Ni₃S₂@NiFeP_x electrode with dual-anion-modulated layer for efficient and stable oxygen evolution

Full

Xijie Chen^a, Keqiang Xu^a, Jinhan Li^a, Xiao Wang^a, Tete Zhao^a, Fangming Liu^a, Meng Yu^*^,^a, Fangyi Cheng^*^,^a^,^b

Affiliations

^a Key Laboratory of Advanced Energy Materials Chemistry (Ministry of Education), Engineering Research Center of High-efficiency Energy Storage (Ministry of Education), College of Chemistry, Nankai University, Tianjin 300071, China

^b Haihe Laboratory of Sustainable Chemical Transformations, Tianjin 300192, China

Published: 2023-11-15 doi: 10.1016/j.cclet.2023.108713

Outline

Abstract

Less

The rational construction of high-performance and stable electrocatalyst for oxygen evolution reaction (OER) is a prerequisite for efficient water electrolysis. Herein, we develop a broccoli-like Ni₃S₂@NiFeP_x (Ni₃S₂@NFP) catalyst on nickel foam (NF) via a sequential two-step layer-by-layer assembly electrodeposition method. X-ray diffraction, in situ Raman and Fourier-transform infrared spectra have mutually validated the element segregation and phase refusion during OER condition. The reconstruction of double layer Ni₃S₂@NFP facilitates the formation of the active (oxy)hydroxides, which is modulated by the dual anionic layer with mixed sulfate and phosphate ions. As a result, the obtained Ni₃S₂@NFP electrode exhibits low overpotential (329 mV) and long-term durability (~500 h) for OER at current density of 500 mA/cm². Moreover, the self-supported Ni₃S₂@NFP can act as an efficient and durable anode in alkaline anion exchange membrane water electrolysis device (AEMWE). This work provides a facile and scaled-up strategy to construct self-supported electrocatalyst and emphasizes the crucial role of anions in pre-catalyst reconstruction and enhancing OER performance.

Key words

Oxygen evolution reaction / Anion-modulated layer / Electrochemical reconstruction / Phosphide / Sulfide / Membrane electrode assembly

Cite this Article

Xijie Chen, Keqiang Xu, Jinhan Li, Xiao Wang, Tete Zhao, Fangming Liu, Meng Yu, Fangyi Cheng. Ni₃S₂@NiFeP_x electrode with dual-anion-modulated layer for efficient and stable oxygen evolution[J]. Chinese Chemical Letters, 2023 , 34 (11) : 108713 - . DOI: 10.1016/j.cclet.2023.108713

Full Text

Less

Green hydrogen production by water electrolysis coupled with renewable electricity has been considered as one of the prospective proposals to tackle global energy crisis and environmental pollution [1-3]. Among the mainstream of water electrolysis technologies, alkaline exchange membrane water electrolysis (AEMWE) has received intensive attention considering the compact membrane electrode assembly, high energy conversion efficiency and availability of inexpensive transition metal (Fe, Co, Ni, etc.) based electrodes [4-6]. However, the sluggish kinetic of anodic oxygen evolution reaction (OER) and poor electrode sustainability seriously impact electrolytic efficiency [7,8], leading to additional power consumption and limited lifetime. Thus, exploiting highly active and robust OER electrodes is pivotal for scalable hydrogen production via water electrolysis.

Earth abundant nickel-iron-based catalysts, including oxides [9-11], (oxy)hydroxides [12,13], phosphides [14-16], chalcogenides (sulfides [17,18] and selenides [19,20]), borides [21,22], etc., have been considered as promising non-precious options. Among these, self-supported electrode with uniform amorphous phosphide on porous substrate is considered to be a potential OER electrocatalyst [23]. However, the possible structural stress and/or voids [24], leaching of active sites [25] and abundant bubbles breakage [26] at large current density lead to the degradation of OER performance for long-term operation, which is a stumbling block on the road to industrialization. In a bid to overcome this challenge, a modified layer is demanded on nickel-iron-based phosphide. Nickel sulfide, e.g., Ni₃S₂, has been found to undergo self-activation and in situ transform into oxysulfide, which can enhance the electrocatalytic activity and stability via electronic structure optimization [27]. Consequently, Ni₃S₂ maybe a judicious choice to modify nickel-iron-based phosphide.

In this research, we fabricate the Ni₃S₂@NiFeP_x (Ni₃S₂@NFP) self-supported electrode by sequential electrodeposition method. Benefiting from the rough broccoli-like morphology, the Ni₃S₂@NFP has stronger local electric field strength on the top edge, which improves local concentration of adsorbed hydroxide ions. Furthermore, elemental mapping and line scanning reveal the element segregation and phase refusion of double layer Ni₃S₂@NFP, leading to the generation of Ni(Fe)OOH layer on the surface with dual anion inserted. During this process, the in situ formed anion-rich modified layer will not only accelerates proton transfer progress, but enhances the catalytic stability by inhibiting the dissolution of the metal active sites. Therefore, the obtained Ni₃S₂@NFP electrode achieves 500 mA/cm² at low overpotential of 329 mV and remains highly stable for 500 h in traditional three electrode system. The overall water splitting performance is further evaluated in AEMWE device using Ni₃S₂@NFP as anode. These results provide a novel perspective to understand the in situ structural reconstruction and anionic regulation effect of electrocatalysts in OER progress.

As schematically presented in Fig. 1a, Ni₃S₂@NFP electrocatalyst was fabricated by a sequential two-step layer-by-layer assembly electrodeposition method on conductive nickel foam (NF) substrate. The morphology and structural characters of NF, NFP, Ni₃S₂@NFP electrodes were examined by scanning electron microscopy (SEM). Compared to the glazed surface of NF (Fig. 1b), electrodeposited NFP (Fig. 1c and Figs. S1a-c in Supporting information) and Ni₃S₂ (Figs. S2a-c in Supporting information) exhibit dense nanoparticle morphology. By increasing the deposition time of Ni₃S₂ on NFP surface, broccoli-like nanoparticles gradually grow (Fig. S3 in Supporting information and Fig. 1d), displaying a rougher surface. According to energy-dispersive spectrometry (EDS) mappings of NFP (Fig. S1d in Supporting information) and Ni₃S₂@NFP (Fig. S4 and Table S1 in Supporting information), Fe and P content decreased and S element appeared on the surface of Ni₃S₂@NFP after the secondary deposition, which indicates the existence of top Ni₃S₂ layer. To further confirm the successful preparation of double layer, cross-section image of Ni₃S₂@NFP (Figs. 1e and f) and elemental line scanning (Fig. 1g) were performed, which verifies the successful assembly of Ni₃S₂ on the top of NFP layer and the thickness of the whole coating is about 0.95 µm. The transmission electron microscopy (TEM) images of NFP and Ni₃S₂ were also collected in Figs. S5 and S6 (Supporting information), respectively. Given the unique morphology, simulations were then performed to explore the morphology-dependent electric field enhancement effect. Results show that the local electric field on the top of broccoli-like nanoparticle with increased curvature (Fig. 1i) is stronger than the monolayer catalyst assembled with compact nanoparticles (Fig. 1h), which may promote the adsorption of hydroxide ions and thereby facilitate surface reconstruction [18,28]. Moreover, the phase was examined by X-ray diffraction (XRD) patterns in Fig. 1j. The characteristic peaks of Ni₃S₂ are observed in Ni₃S₂@NFP, while no diffraction signals for NFP can be recognized considering the relatively poor crystallinity [29,30].

The deposition time for top Ni₃S₂ and bottom NFP was optimized and the results were shown in Fig. S7 (Supporting information). The optimal Ni₃S₂@NFP catalyst exhibits superior OER performance with low overpotentials of 235 and 329 mV at 10 and 500 mA/cm_geo² in contrast to NFP (251 and 370 mV), Ni₃S₂@NP (344 and 592 mV), NP (342 and 656 mV), Ni₃S₂ (359 and 691 mV) and bare NF substrate (369 and 791 mV) (Fig. 2a and Fig. S9 in Supporting information). The corresponding Tafel slop values of Ni₃S₂@NFP (41.6 mV/dec) and NFP (49.8 mV/dec) are significantly lower than Ni₃S₂@NP (74.3 mV/dec), NP (81.8 mV/dec) and Ni₃S₂ (100.0 mV/dec) (Fig. 2b), which demonstrates that the incorporation of iron accelerates the kinetics of electrochemical reaction and changes rate-determining step from the first electron transfer process to the second electron transfer process. Meanwhile, the C_dl values of double layer Ni₃S₂@NFP (5.53 mF/cm²) and Ni₃S₂@NP (6.00 mF/cm²) are higher than NFP (3.46 mF/cm²), NP (4.33 mF/cm²), Ni₃S₂ (3.79 mF/cm²) and NF (2.78 mF/cm²), implying more active sites owing to the sequential two-step electrodeposition method (Fig. 2d and Fig. S10 in Supporting information). Electrochemical impedance spectroscopy (EIS) was also carried out to further obtain the electron transfer resistance and reaction kinetics during OER process (Fig. 2e and Fig. S11 in Supporting information). The Ni₃S₂@NFP displays the lowest R_ct of 2.01 Ω, confirming the smallest resistivity on electrode/electrolyte interface and rapid electron charge kinetics. The calculated electrochemical activation energy of Ni₃S₂@NFP is 29.49 kJ/mol (Fig. S12 in Supporting information), indicating the high intrinsic catalytic activity.

Except OER activity, long-term stability is also an indispensable criterion to evaluate the catalyst performance. Accelerated duration test (Fig. 2f) and chronopotentiometry measurement of Ni₃S₂@NFP (Fig. 2g) were then performed to assess the electrode stability. In Fig. 2f, the catalytic performance of Ni₃S₂@NFP slightly improves in first 250 cycles, which can be attributed to the catalyst self-activation under oxidation condition. After that, no obvious decay is observed within 5000 cycles. However, the noticeable decline of NFP is displayed in Fig. S13 (Supporting information). In addition, Ni₃S₂@NFP electrode displays a slight increase of 30 mV after 500 h operation with a low degradation rate of 60 µV/h at 500 mA/cm² in Fig. 2g, while NFP electrode increased ~180 mV after only ~400 h with a degradation rate of 450 µV/h. Inductively coupled plasma-optical emission spectrometer (ICP-OES) was applied to analyze the difference of stability between Ni₃S₂@NFP and NFP by testing the dissolution of metal contents in electrolyte (Fig. 2h). The Ni and Fe concentrations in the electrolyte for Ni₃S₂@NFP after chronopotentiometry test are both lower than those for single layer NFP, which proves the protective effect of surface deposited Ni₃S₂. The OER performance and stability comparison of Ni₃S₂@NFP with those reported in the literature are presented in Fig. S14 and Table S5 (Supporting information).

We then conducted systematical characterizations to further explore the origin of high OER performance for Ni₃S₂@NFP. After OER, the morphology evolution (Fig. 3a and Fig. S15 in Supporting information), visibly intensified superficial Fe, P signals (Fig. S16 and Table S4 in Supporting information) and more even distribution of elements along the fracture surface (Figs. 3b-d) confirm element segregation and phase refusion between the double layer of Ni₃S₂@NFP. To this end, X-ray photoelectron spectroscopy (XPS) measurements were performed to analyze the chemical composition and elemental state of catalyst surface before and after chronopotentiometry test. The Ni 2p spectra (Fig. 3e) of Ni₃S₂@NFP after OER presents characteristic peaks at 873.3 eV (Ni 2p_1/2) and 855.8 eV (Ni 2p_3/2), along with two satellite peaks at 879.2 eV and 861.4 eV [23,31]. After peak deconvolution, the area ratio of Ni³⁺/Ni²⁺ is around 1.06, higher than that of Ni₃S₂ (0.48) before OER. Similarly, Fe 2p spectra (Fig. 3f) can be divided into two sub-peaks at 726.3 eV for Fe 2p_1/2 and 712.7 eV for Fe 2p_3/2 [32], displaying a higher area ratio of Fe³⁺/Fe²⁺ (2.19) than NFP (0.63). These indicate that the metal cations in Ni₃S₂@NFP are oxidized to higher valence states during in situ reconstruction and act as the real active sites for OER. Furthermore, compared with Ni 2p_3/2, Fe 2p_3/2 peak shows a preferential tendency towards higher binding energy after reaction, illustrating that the presence of iron site is conducive to the adsorption of reactant OH⁻ and promoting the formation of *OO⁻ intermediate, while nickel site may responsible for the subsequent O₂ release [33,34], which is consistent with Tafel slope results. The XPS spectra of Ni₃S₂@NFP after chronopotentiometry test were also presented in Fig. S18 (Supporting information) for reference. As depicted in Fig. 3g, the original peak of M-P (where M stands for metal) disappears after reaction, implying most of P ions bonding with metal ions are oxidized to phosphate and transfer to the catalyst surface [31]. However, only partial S ions in M-S are oxidized to sulfate (Fig. 3h) and the remaining S may still exist as metal sulfides to inhibit the leaching of metal ions, due to their small solubility-product constants (K_sp) [17,18]. In parallel, according to the XRD pattern (Fig. 3i), the characteristic peaks of Ni₃S₂ disappear and Ni₃S₂@NFP becomes amorphous due to reconstruction after chronopotentiometry test [29,35].

To monitor the surface dynamic evolution of electrocatalysts during OER, in situ Raman and Fourier-transform infrared (FTIR) analyses are proceeded. As presented in Fig. 4a, the typical bands of Ni₃S₂ at 302, 322, 350 cm⁻¹ could be detected at open circuit potential (OCP) [36,37]. When the potential increased, these peaks became weaker and then completely disappeared at 1.5 V vs. RHE. Meanwhile, the peak belonging to Ni^II-O at around 519 cm⁻¹ [38] can be observed at 1.1 V vs. RHE and then be substituted by a pair of bands at 474 cm⁻¹ and 556 cm⁻¹ from 1.4 V vs. RHE, which are attributed to Ni^III-O vibrations in γ-NiOOH [39,40]. The broad peak between 850 and 1150 cm⁻¹ is ascribed to *OO⁻ [41]. In addition, two weak peaks at 490 cm⁻¹, 1095 cm⁻¹ and one peak at 981 cm⁻¹ are assigned to the P-O [42] and S-O [43] bonds of the adsorbed phosphate and sulfate, respectively. These confirm that Ni₃S₂@NFP finally transforms into the Ni(Fe)OOH with phosphate and sulfate layer, in which Ni(Fe)OOH is deemed as the main active site. By contrast, the Ni^III-O vibration peaks at 1.4 V vs. RHE are weaker for monolayer NFP (Fig. 4b) and no noticeable Ni^III-O characteristic peak can be observed below 1.5 V vs. RHE for Ni₃S₂ (Fig. 4c), indicating that higher voltage is demanded to trigger the reconstruction. To summarize, two factors facilitate the rapid reconstruction of Ni₃S₂@NFP: on one hand, the broccoli-like morphology enhances the local electric field, which benefits the adsorption of OH⁻ and thereby promotes surface hydroxylation; on the other hand, the oxidation and leaching of anions for Ni₃S₂@NFP are significant to promote electrode reconstruction (Fig. S8 in Supporting information), as compared to NiFe alloy and Ni(OH)₂@NiFe(OH)_x in Fig. S19 (Supporting information). These two inducements synergistically facilitate the formation of high-valence metal active sites. Furthermore, since the signals of anions from Raman spectra are inconspicuous, in situ FTIR measurements were then conducted. As depicted in Fig. 4d, the recorded peaks intensity of H-OH (~1650 cm⁻¹) vibration [44] and surface-adsorbed hydroxide (OH_ad) (~1220 cm⁻¹) [45] increases with raising applied potential. The clear adsorption signal of PO₄³⁻ (~1011 cm⁻¹) [46] and SO₄²⁻ (~1150 cm⁻¹) [47] emerges at 1.40 V and 1.52 V vs. RHE, respectively. The in situ FTIR analyses of NFP and Ni₃S₂ are also presented in Fig. S20 (Supporting information). Combined with the characterizations and electrochemical tests, the dynamic reconstruction behavior and in situ generated anionic layer on the surface is indispensable to enhance OER activity and stability (Fig. 4e). In addition, the Ni₃S₂@NFP electrode also presents super-hydrophilicity, as confirmed by the water/bubble contact-angle measurements in Figs. S21–S23 (Supporting information), which makes it a potential anode in AEMWE for efficient alkaline water electrolysis.

The assembly and operation diagram of AEMWE device are presented in Figs. 5a and b, respectively. According to the polarization curves (Fig. 5c), the Ni₃S₂@NFP-based AEMWE exhibits high current density of 500 mA/cm² at an applied cell voltage of 1.84 V. Compared to bare NF, the AEMWE with Ni₃S₂@NFP anode has higher current density and lower charge transfer resistance under similar operation voltage (Figs. 5c and d). The stability of the Ni₃S₂@NFP-based AEMWE was confirmed in 10 h test at 500 mA/cm², where the cell voltage remained largely unchanged (Fig. 5e), implying the potential for practical hydrogen production.

In summary, we have fabricated the broccoli-like Ni₃S₂@NFP electrocatalyst via a facile and scalable electrodeposition route under room temperature. The as-prepared Ni₃S₂@NFP electrode possesses high OER activity with a low overpotential of 329 mV and excellent long-term stability of 500 h at 500 mA/cm². The outstanding OER performance of Ni₃S₂@NFP could be attributed to the following features: (1) Increased surface roughness and enhanced top electric field strength owing to the broccoli-like morphology; (2) facilitated oxidation and generation of Ni(Fe)OOH active sites; (3) enhanced stability stemming from the in situ generated surface dual-anionic layer; (4) rapid mass transport between electrode/electrolyte interface considering the super-hydrophilic surface. The catalytic performance of Ni₃S₂@NFP is further assessed in AEMWE system as the anode. This work opens up the possibility to judiciously engineer the electrocatalyst by promoting in situ self-reconstruction during OER in AEMWE devices for cost-effective green hydrogen production.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This study was supported by the National Natural Science Foundation of China (NSFC, Nos. 21925503, 22102076), the Ministry of Science and Technology of the People's Republic of China (MOST, No. 2022YFA1504001), the Ministry of Education of the People's Republic of China (MOE, No. B12015) and the Fundamental Research Funds for the Central Universities.

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108713.

References

Less

[1]

S. Lyu, C. Guo, J. Wang, et al., Nat. Commun. 13 (2022) 6171.

[2]

F. He, Y. Zhao, X. Yang, et al., ACS Nano 16 (2022) 9523–9534.

[3]

J. Jiang, F. Li, H. Su, et al., Chin. Chem. Lett. 33 (2022) 4367–4374.

[4]

D. Li, E.J. Park, W. Zhu, et al., Nat. Energy 5 (2020) 378–385.

[5]

L. Han, J. Xu, Y. Huang, et al., Chin. Chem. Lett. 32 (2021) 2263–2268.

[6]

P. Thangavel, M. Ha, S. Kumaraguru, et al., Energy Environ. Sci. 13 (2020) 3447–3458.

[7]

F. Liu, M. Yu, X. Chen, et al., Chin. J. Catal. 43 (2022) 122–129.

[8]

K. Wang, Y. Wang, B. Yang, et al., Energy Environ. Sci. 15 (2022) 2356–2365.

[9]

W. Kang, R. Wei, H. Yin, et al., J. Am. Chem. Soc. 145 (2023) 3470–3477.

[10]

W. Zhang, X. Jiang, Z. Dong, et al., Adv. Funct. Mater. 31 (2021) 2107181.

[11]

R. Hu, L. Wei, J. Xian, et al., Acta Phys. Chim. Sin. 39 (2023) 2212025.

[12]

B. Deng, J. Liang, L. Yue, et al., Chin. Chem. Lett. 33 (2022) 890–892.

[13]

P. Shi, X. Cheng, S. Lyu, Chin. Chem. Lett. 32 (2021) 1210–1214.

[14]

L. Wu, L. Yu, F. Zhang, et al., Adv. Funct. Mater. 31 (2021) 2006484.

[15]

Y. Liu, Z. Zhang, L. Zhang, et al., J. Mater. Chem. A, 10 (2022) 22125–22134.

[16]

X. Jiang, X. Yue, Y. Li, et al., Chem. Eng. J. 426 (2021) 130718.

[17]

T. Wu, Y. Sun, X. Ren, et al., Adv. Mater. 35 (2023) 2207041.

[18]

Y. Hu, Y. Zheng, J. Jin, et al., Nat. Commun. 14 (2023) 1949.

[19]

Y. Huang, L.W. Jiang, B.Y. Shi, et al., Adv. Sci. 8 (2021) 2101775.

[20]

K. Wang, X. Wang, Z. Li, et al., Nano Energy 77 (2020) 105162.

[21]

J. Li, Y. Liu, H. Chen, et al., Adv. Funct. Mater. 31 (2021) 2101820.

[22]

P. Han, T. Tan, F. Wu, et al., Chin. Chem. Lett. 31 (2020) 2469–2472.

[23]

R.A. Marquez-Montes, K. Kawashima, Y.J. Son, et al., J. Mater. Chem. A 9 (2021) 7736–7749.

[24]

C.W. Tung, Y.Y. Hsu, Y.P. Shen, et al., Nat. Commun. 6 (2015) 8106.

[25]

J. Li, F. Liu, M. Yu, et al., J. Phys. Chem. C 125 (2021) 25383–25391.

[26]

H. Liu, X. Li, L. Chen, et al., Adv. Funct. Mater. 32 (2021) 2107308.

[27]

C.X. Zhao, J.N. Liu, C. Wang, et al., Energy Environ. Sci. 15 (2022) 3257–3264.

[28]

P. Liu, B. Chen, C. Liang, et al., Adv. Mater. 33 (2021) 2007377.

[29]

H. Liu, J. Cheng, W. He, et al., Appl. Catal. B Environ. 304 (2022) 120935.

[30]

M. Yu, J. Li, F. Liu, et al., J. Energy Chem. 72 (2022) 361–369.

[31]

X. Luo, P. Ji, P. Wang, et al., Adv. Sci. 9 (2022) 2104846.

[32]

P. Wang, Y. Luo, G. Zhang, et al., Small, 18 (2022) 2105803.

[33]

C. Hu, Y. Hu, C. Fan, et al., Angew. Chem. Int. Ed. 60 (2021) 19774–19778.

[34]

H. Shin, H. Xiao, W.A. Goddard, et al., J. Am. Chem. Soc. 140 (2018) 6745–6748.

[35]

B. Fei, Z. Chen, J. Liu, et al., Adv. Energy Mater. 10 (2020) 2001963.

[36]

D. Li, W. Wan, Z. Wang, et al., Adv. Energy Mater. 12 (2022) 2201913.

[37]

Z. Wang, S. Shen, Z. Lin, et al., Adv. Funct. Mater. 32 (2022) 2112832.

[38]

Z. Huang, L. He, W. Zhang, et al., J. Colloid Interface Sci. 622 (2022) 728–737.

[39]

F. Cheng, Z. Li, L. Wang, et al., Mater. Horiz. 8 (2021) 556–564.

[40]

N. Zhang, Y. Hu, L. An, et al., Angew. Chem. Int. Ed. 61 (2022) e202207217.

[41]

C. Huang, Q. Zhou, D. Duan, et al., Energy Environ. Sci. 15 (2022) 4647–4658.

[42]

J. Liu, X. Liu, H. Shi, et al., Appl. Catal. B Environ. 302 (2022) 120862.

[43]

T. Ma, W. Xu, B. Li, et al., Angew. Chem. Int. Ed. 60 (2021) 22740–22744.

[44]

Y. Yao, S. Hu, W. Chen, et al., Nat. Catal. 2 (2019) 304–313.

[45]

M. Claudio, M. Giuliana, Catal. Today 27 (1996) 497–532.

[46]

E.J. Elzinga, D.L. Sparks, J. Colloid Interface Sci. 308 (2007) 53–70.

[47]

W. Xie, H. Wang, Renew. Energy 145 (2020) 1709–1719.

Appendix

Less

Year 2023 volume 34 Issue 11

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2023.108713

Receive Date：2023-04-23
Online Date：2025-11-21
Published：2023-11-15

Article Data

Affiliations

History

Received：2023-04-23
Revised：2023-05-30
Accepted：2023-06-19

Affiliations

^b Haihe Laboratory of Sustainable Chemical Transformations, Tianjin 300192, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2023.108713

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1. (a) Schematic illustration of the synthesis route for Ni₃S₂@NFP electrocatalyst. NFP stands for amorphous nickel-iron-based phosphide and NP stands for nickel-based phosphide. SEM images of (b) NF, (c) NFP and (d) Ni₃S₂@NFP. (e) Cross-section SEM image, (f) EDS mapping and (g) elemental line scanning of Ni₃S₂@NFP. Simulation results of electric field intensity for the electrodes consisting of (h) compact (representing NFP and Ni₃S₂) and (i) broccoli-like (representing Ni₃S₂@NFP) nanoparticles. (j) XRD patterns of NFP and Ni₃S₂@NFP.

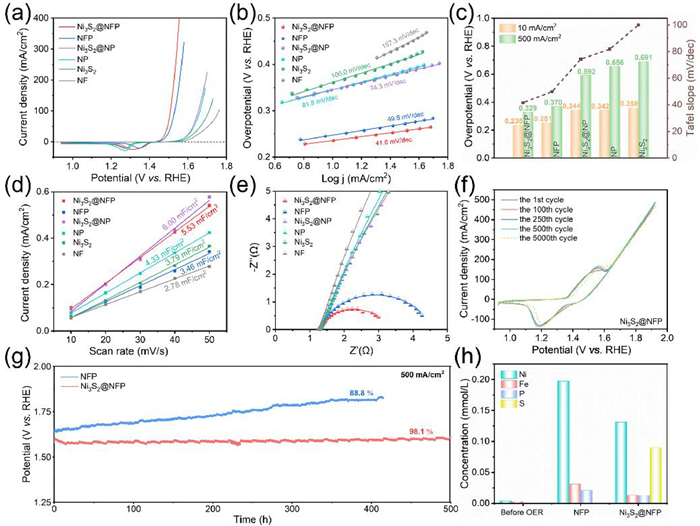

Fig. 2. (a) The LSV curves of different electrodes in 1.0 mol/L KOH with 95% iR-compensation and (b) the corresponding Tafel slopes. (c) The overpotentials at 10 and 500 mA/cm², along with the Tafel slopes of the catalysts in (a). (d) Double-layer capacitances and (e) Nyquist plots of the catalysts measured at 1.47 V. (f) The accelerated duration test of Ni₃S₂@NFP with 50 mV/s scan rate. (g) Chronopotentiometry curves of Ni₃S₂@NFP and NFP at 500 mA/cm². (h) Inductively coupled plasma-optical emission spectrometry (ICP-OES) results of the electrolyte after OER chronopotentiometry test. The detailed data are listed in Table S3 (Supporting information).

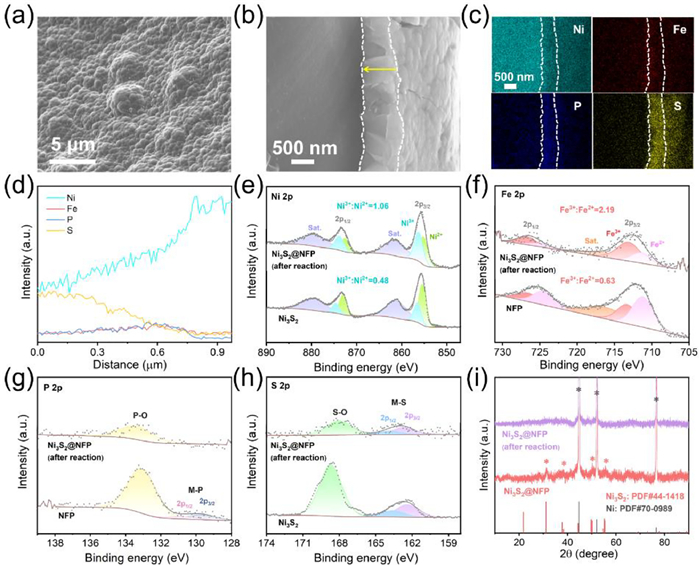

Fig. 3. (a) The top-view and (b) cross-section SEM images of Ni₃S₂@NFP electrode after OER test. (c) EDS mapping and (d) elemental line scanning of the Ni₃S₂@NFP fracture surface. High resolution XPS spectra of (e) Ni 2p, (f) Fe 2p, (g) P 2p, (h) S 2p for Ni₃S₂@NFP, NFP and Ni₃S₂. (i) XRD patterns of Ni₃S₂@NFP on Ni foam before and after electrolysis.

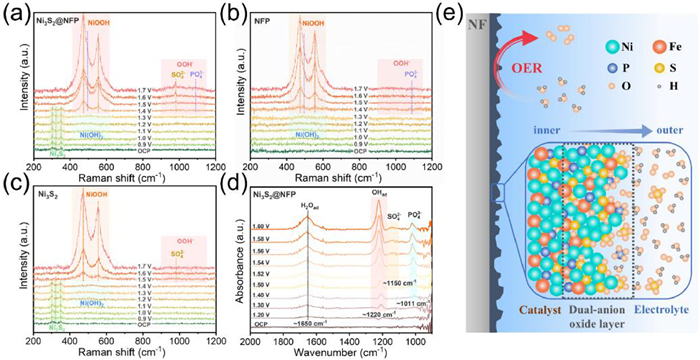

Fig. 4. The in situ Raman spectra of (a) Ni₃S₂@NFP, (b) NFP and (c) Ni₃S₂. (d) In situ FTIR of Ni₃S₂@NFP in 1.0 mol/L KOH. (e) Schematic illustration of the layered structure of Ni₃S₂@NFP after dynamic reconstruction.

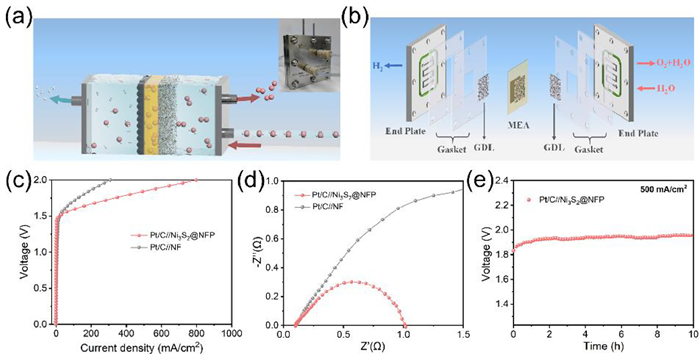

Fig. 5. (a) The schematic diagram and optical picture of AEMWE device. (b) The assembly parts. (c) Polarization curves of Ni₃S₂@NFP-based AEMWE at 50 ℃ in 1.0 mol/L KOH. (d) Nyquist plots at 1.50 V. (e) Stability test at 500 mA/cm².
