Tungsten oxide nanowires and polyaniline hybrid film-based electrochromic device with multicolor display and enhanced capacitance

Full

Yanan Chen^a^,¹, Jiao Lei^a^,¹, Yanling Zhai^a^,^*, Zhijun Zhu^b^,^*, Weitai Wu^c, Xiaoquan Lu^a^,^*

Affiliations

^a Institute of Molecular Metrology, College of Chemistry and Chemical Engineering, Qingdao University, Qingdao 266071, China

^b Institute of Hybrid Materials, National Center of International Research for Hybrid Materials Technology, National Base of International Science & Technology Cooperation, College of Materials Science and Engineering, Qingdao University, Qingdao 266071, China

^c State Key Laboratory of Physical Chemistry of Solid Surfaces, Xiamen University, Xiamen 361005, China

Published: 2023-11-15 doi: 10.1016/j.cclet.2023.108305

Outline

Abstract

Less

Electrochromic devices (ECDs) have exhibited promising applications in the fields of energy-saving intelligent buildings and next-generation displays because of their simple structure, low power consumption, and multicolor displays. W₁₈O₄₉/polyaniline (PANI) hybrid films are prepared and assembled to ECDs. Compared with pure PANI and W₁₈O₄₉ films, the hybrid film exhibits superior electrochemical and electrochromic performance, including high optical modulation (70.2%), large areal capacity (79.6 mF/cm²), and good capacitance retention. The excellent electrochemical and electrochromic performance is ascribed to the formation of the donor (PANI)-acceptor (W₁₈O₄₉) pair, the porous structure in the nanowires, and the large surface area, which enhance electron delocalization of the W₁₈O₄₉/PANI, improve the ion diffusion rate, and increase the charge storage sites. Furthermore, benefitting from the outstanding optical, electrical, and multifunctional properties, the W₁₈O₄₉/PANI hybrid film-based ECD platform is expected to play an important role in electrochromism and energy storage.

Key words

W₁₈O₄₉/PANI / Electrochromism / Multifunctional devices / Multicolor / Energy storage

Cite this Article

Yanan Chen, Jiao Lei, Yanling Zhai, Zhijun Zhu, Weitai Wu, Xiaoquan Lu. Tungsten oxide nanowires and polyaniline hybrid film-based electrochromic device with multicolor display and enhanced capacitance[J]. Chinese Chemical Letters, 2023 , 34 (11) : 108305 - . DOI: 10.1016/j.cclet.2023.108305

Full Text

Less

With the increasing energy demand and environmental pollution, more and more attention has been paid to the green economy, so the issue of efficient energy storage and energy conservation has gradually become the primary concern [1–3]. In recent years, ECD with bifunctional properties of electrochromism and energy storage has been developed as an excellent technology to meet the above requirements for a green world [4,5]. ECDs can achieve reversible color changes and dynamic regulation of light transmission, absorption, and reflectivity through low voltage control (usually < 4 V) [6–9], which have broad application prospects in smart windows, static displays, automotive anti-glare rearview mirrors, electronic paper, and energy storage fields [10,11].

Moreover, the development of electrochromic materials in energy storage devices has attracted widespread attention [12–14]. The most studied electrochromic materials mainly include transition metal oxides (e.g., WO₃, NiO, V₂O₅, and Nb₂O₅), Prussian blue [15–19], and organic materials such as viologen compounds, PANI, polypyrrole [20,21]. For example, Prussian blue film incorporated with an aluminum (Al) electrode integrated bi-functional electrochromic and energy storage ability into one device [22]. Nevertheless, monotonous color change, slow switching speed, and low capacity greatly limit the application of devices constructed from one electrochromic material. The ECDs with inorganic/organic hybrid films that combine the advantages of conducting conjugated polymers and transition oxides have gained much recent research interest. For instance, Cai and co-workers reported TiO₂/PANI nanocomposites displayed remarkable improvement in transmittance modulation and cycling stability compared with PANI film [23]. Similarly, Shi et al. developed WO₃/poly(3,4-ethylenedioxythiophene) (PEDOT) core@shell hybrid nanorod arrays, which exhibited promising electrochromic performance of much shorter switching time and enhanced optical contrast because of a synergistic effect between the WO₃ nanocore and the PEDOT nanoshell [24]. However, the wide application of these devices is limited by their inadequate energy storage capacity. Hence, developing a novel hybrid film-based ECD with excellent electrochromic properties and high capacitance is of great significance, which provides a valuable technical application direction for the next generation of smart windows and power supply.

It is well known that WO_3-x as a typical cathodic material has excellent properties of high cycle stability [25,26], and good optical contrast, but it has the disadvantages of monotonous color and long switching time. As an anodic electrochromic material, PANI has the advantages of adjustable electrical conductivity and multicolor switching but always possesses poor durability [27,28]. The hybrid material of WO_3-x and PANI is expected to give full play to the advantages of the two materials, which would work as electrochromic devices with higher stability and a multicolor display [29]. More importantly, both WO_3-x and PANI are suitable electrode materials to construct electrochromic energy storage devices [15,30], because of their pseudocapacitive properties [16,20,31,32].

Herein, W₁₈O₄₉/PANI hybrid film is constructed through the electropolymerization of the PANI layer on solvothermal synthesized W₁₈O₄₉ film. Compared with the pure PANI film, the hybrid film exhibits richer color, a wide optical modulation range, improve switching speed, and excellent durability. Moreover, the incorporation of the W₁₈O₄₉ for hybrid film leads to remarkable improvements in energy storage capacity, which is mainly attributed to the synergistic effect between W₁₈O₄₉ and PANI, the porous space of the W₁₈O₄₉/PANI boosting the fast ion diffusion and providing the charge-transfer reactions with large surface area. The as-synthesized W₁₈O₄₉/PANI hybrid film shows great potential in electrochromic and energy storage applications.

The fabrication of W₁₈O₄₉/PANI film involves a two-step process (Fig. 1a). First, W₁₈O₄₉ nanowires were synthesized on fluorine-doped SnO₂ (FTO) glass substrate by solvothermal method. Secondly, the W₁₈O₄₉ was coated by the PANI through an electrochemical deposition of aniline. Field emission scanning electron microscope (FE-SEM) image reveals that the W₁₈O₄₉ nanowires (Fig. S1 in Supporting information) are of an average length of several micrometers and a width of 10–20 nm in Fig. 1b, which provides a porous spatial structure for ion transport. The inset shows the microscopy picture of the synthesized W₁₈O₄₉ film (Fig. S1), which is nearly transparent. After the electrochemical polymerization of PANI on the surface of the W₁₈O₄₉ film, a green PANI layer [31] made of short rod cross-linked curd was deposited (Fig. 1c), indicating the successful fabrication of W₁₈O₄₉/PANI film. Fig. S2 (Supporting information) shows the FE-SEM images of the FTO substrates before and after electrochemically polymerization of short rod-shaped PANI.

The element distribution images in Fig. S3 (Supporting information) show that W, N, and C are uniformly distributed throughout the film. X-ray diffraction (XRD) patterns in Fig. 1d show the sharp diffraction peaks of W₁₈O₄₉ at 23.50°, 26.23°, 35.34°, and 48.00°, confirming the successful preparation of monoclinic W₁₈O₄₉ (JCPDS No. 84–1516) [31]. X-ray photoelectron spectroscopy (XPS) is used to study the surface state of film. The peaks at 35.42/37.55 and 33.97/35.95 eV are ascribed to the binding energies of W⁶⁺ and W⁵⁺ in W₁₈O₄₉ (Fig. S4 in Supporting information), respectively, indicating the mixed valence of W [26]. Moreover, N, O, W, and C can be found in the XPS spectrum of the as-prepared W₁₈O₄₉/PANI hybrid film (Fig. S5 in Supporting information), indicating the coexistence of W₁₈O₄₉ and PANI. In contrast, no characteristic N 1s peak is observed in the W₁₈O₄₉ film (Fig. S6 in Supporting information). As shown in Fig. 1e, the N 1s broad band at 399.57 eV of W₁₈O₄₉/PANI film can be deconvoluted into three N species at 398.88, 399.5, and 401.04 eV, [33,34] which are assigned to quinoline phenyl structure (-N=), benzene structure (-NH-), and quaternary ammonium structure (N⁺) [27,33,35], respectively, and these peaks can also be found in the N 1s XPS spectrum of the PANI film. The similar phenomenon can be observed in the W 4f spectrum of the W₁₈O₄₉/PANI film (Fig. S7 in Supporting information). All these results demonstrate the successful synthesis of W₁₈O₄₉/PANI hybrid film.

Fig. S8 (Supporting information) shows the current density profiles of the electrodepositing PANI film onto FTO and W₁₈O₄₉ substrates. A larger current density on FTO was observed due to the better conductivity of the FTO substrate than W₁₈O₄₉. As the thickness of PANI increases, the color change of the W₁₈O₄₉/PANI hybrid film is more obvious. As shown in Fig. S10 (Supporting information), when the deposition time was increased to 400 s, no significant improvement in the color change of the hybrid film can be seen. Therefore, a deposition time of 300 s is selected for further study and discussion.

The CV curves of the PANI and the W₁₈O₄₉/PANI hybrid films in 1 mol/L AlCl₃ aqueous solution between −0.6 V and 1.0 V are presented in Fig. 2a. The hybrid film exhibits good pseudocapacitive behavior [36–38] with two pairs of redox peaks of PANI marked with blue triangles. The two peaks marked with red triangles in Fig. 2a represent the characteristic redox reaction [15,39] of W₁₈O₄₉ from −0.1 V to −0.6 V (Fig. S11 in Supporting information), which is only found in the W₁₈O₄₉/PANI hybrid film. The redox reaction of W₁₈O₄₉/PANI film involves the intercalation and extraction processes of chlorine anion (Cl^–) and aluminum ion (Al³⁺) [21,35,40–42], which is fully explained in Fig. S12a (Supporting information). It means that both W₁₈O₄₉ and PANI components in the hybrid film exhibit individual electrochemical activities, and they can simultaneously switch to colored/bleached states under positive/negative voltage applications.

The W₁₈O₄₉/PANI hybrid film shows much enhanced exchange current density at around −0.5 and −0.2 V (peak C, C′ in Fig. 2a) than that of PANI film, because of the redox behavior of W₁₈O₄₉. Moreover, the relative current density of the hybrid film at −0.3 and 0.3 V (peak A, A′ in Fig. 2a and Fig. S12a) are much higher than that of PANI film (peak A and A′ in Fig. S13a in Supporting information), which further demonstrates the formation of the donor (PANI)-acceptor (W₁₈O₄₉) pair. The fine structure can be well maintained in its CV curve even at a scan rate as high as 100 mV/s, demonstrating that a large number of active sites in the hybrid film can be efficiently oxidized/reduced due to the fast charge transfer of W₁₈O₄₉ nanowires and the synergistic effect between W₁₈O₄₉ nanowires and PANI. The surface of the W₁₈O₄₉ nanowires is relatively rough, which provides a large active specific surface area for the electrochemical reaction process. Fig. S12b (Supporting information) shows the relationship between the anodic and cathodic peak current densities of W₁₈O₄₉/PANI versus the square root of the scanning rate. An approximately linear relationship can be found, indicating that the entire reaction process is diffusion-controlled.

The capacitive performance is investigated with the galvanostatic charge/discharge (GCD) test. W₁₈O₄₉, PANI, and W₁₈O₄₉/PANI hybrid electrodes are charged and discharged at different current densities respectively (Fig. S12c in Supporting information). The discharge time of the W₁₈O₄₉/PANI film is much longer than that of the individual W₁₈O₄₉ and PANI films, indicating the superior capacitance properties of W₁₈O₄₉/PANI film, which may be attributed to the synergistic effect between W₁₈O₄₉ and PANI. Firstly, the porous structure in the hybrid film provides excess active area, allowing more doped electrons ions to enter the W₁₈O₄₉/PANI thus enhancing the charge storage capacity. Secondly, due to the formation of donor-acceptor pair between PANI and W₁₈O₄₉, PANI chains could locally donate more electrons to W₁₈O₄₉ [24], which further accelerates the electron migration and improve the ion diffusion efficiency.

The areal-specific capacitance (C) of a single electrode is calculated according to the following Eq. 1 [43,44]:

(1)

where Q is the average charge, A is the effective area referring to the geometric area of the electrochromic electrode, and ΔU is the voltage window (excluding the IR drop) [45]. Based on the GCD test, the value of Q can be obtained by the following Eq. 2:

(2)

The areal capacitance values of the W₁₈O₄₉/PANI film are 79.56, 79.09, 75.23, 72.66, and 71.02 mF/cm² at different current densities of 0.1, 0.2, 0.5, 0.8, 1 mA/cm², respectively (Fig. 2b), which is much larger than those of the other two films. The capacitance value of the W₁₈O₄₉/PANI film is much higher than the sum of individual W₁₈O₄₉ and PANI films (Fig. 2b), which can be mostly ascribed to the synergistic effect between PANI and W₁₈O₄₉, further strengthening the energy storage ability. The increase in areal capacitance may be due to the increase in surface roughness of the electrode, which could boost ion diffusion and charge transfer. By using the well-characterized mediator (potassium ferricyanide), the surface roughness factors (the ratio of an electrochemical active area over the geometric area) of pure W₁₈O₄₉, pure PANI and W₁₈O₄₉/PANI were calculated to be 0.52, 1.27, 1.22, respectively. The actual surface area of W₁₈O₄₉/PANI film is calculated according to the Randles-Sevcik equation [46,47]. The surface roughness factor of the W₁₈O₄₉/PANI film (1.22) is less than that of PANI (1.27), as well as the sum of individual W₁₈O₄₉ and PANI, while the capacitance value of the W₁₈O₄₉/PANI film is much higher than the sum of individual W₁₈O₄₉ and PANI films (Fig. 2b). Therefore, the remarkable areal capacitance improvement of the W₁₈O₄₉ for the hybrid film is mainly attributed to the synergistic effect between W₁₈O₄₉ and PANI, in other words, the formation of the donor (PANI)-acceptor (W₁₈O₄₉) pair.

Moreover, the similar pattern of the charging and discharging curves, combined with the areal charging and discharging capacities of 80.1 and 79.6 mF/cm² (Fig. S12c) reveal the good capacitive property [31] of W₁₈O₄₉/PANI. Afterward, we tested if a thicker PANI in W₁₈O₄₉/PANI brings a better capacitive behavior. When the deposition time continues to increase to 400 s, the areal capacitance is slightly lower, as shown in Fig. S12d (Supporting information), which may be due to the larger electrode impedance of W₁₈O₄₉/PANI (400 s) and is not conducive to improving the capacitive performance [21]. To further evaluate the electrochemical performance of the hybrid film, its stability is one of the most critical parameters. The CA measurements are carried out to study the stability of the films [9]. As shown in Fig. 2c, the hybrid film exhibits a slightly low current density than that of PANI film (Fig. S13b in Supporting information) at the beginning of the test, which is ascribed to the higher surface conductivity of the PANI film. On the other hand, the hybrid film affords much-enhanced stability than the PANI film after 3200 s cycling time, which could be ascribed to the strong contact between W₁₈O₄₉ and the FTO substrate. Moreover, the electrochemical stability is greatly enhanced after PANI is coated on the rough surface of W₁₈O₄₉. In contrast, as the PANI layer degrades in an acidic environment and loses most of its performance, the current density of PANI gradually decreases. Similarly, the original capacity of the hybrid film still maintains 80% after 100 cycles (Fig. 2d), which is superior to the performance of PANI films (Fig. S13c in Supporting information). This demonstrates the great capacitance reproducibility of the W₁₈O₄₉/PANI hybrid film, showing excellent application potential in electrochromic capacitors.

The W₁₈O₄₉/PANI film turns from dark blue to green, yellow, and light blue, during the potential range from 1.0 V to −0.6 V (Fig. 3a), indicating the large optical modulation range of the hybrid film. Compared with the PANI film (Fig. S14), the W₁₈O₄₉/PANI film displays richer colors, which is ascribed to the diverse absorption characteristics of the W₁₈O₄₉ and PANI at different voltages. The transmittance of W₁₈O₄₉/PANI film at 300~1400 nm gradually increases when the applied voltage is from 1.0 V to −0.6 V (Fig. 3b), involving the process of Cl^- extraction and Al³⁺ intercalation [20,31]. The transmittance modulation (ΔT) of the W₁₈O₄₉/PANI film is calculated to be 70.2% (652 nm), comparable to the PANI film (63.3%, Fig. S15a in Supporting information). Moreover, the W₁₈O₄₉/PANI film has a wider optical modulation range from 800~1050 nm, which has excellently higher ΔT (~44.2%) in comparison to the PANI film. The bleached/colored switching process of the W₁₈O₄₉/PANI film is determined by alternately applying a voltage at 1.0 V for 25 s followed by −0.6 V for 25 s on the film, whereas in situ monitoring is conducted of its transmittances at 652 nm. The dynamic switching of W₁₈O₄₉/PANI (Fig. 3c) for 400 s, in which the W₁₈O₄₉/PANI film exhibits ΔT of 64.2% at 652 nm is higher than that of the PANI film measured (53.0%, Fig. S15b in Supporting information), indicates that W₁₈O₄₉/PANI electrochromic film has good reversibility and cycling stability. Fig. 3d and Fig. S15c (Supporting information) show the reversible electrochromic switching behaviors of the W₁₈O₄₉/PANI and PANI films. Faster switching time in the bleached process (6.3 s) is achieved from the hybrid film, compared to the PANI film (13.3 s), which is ascribed to the layer of W₁₈O₄₉ nanowires providing large porous space and thus making ion diffusion easier, as well as the synergistic effect of the W₁₈O₄₉/PANI. While the coloration time of PANI and W₁₈O₄₉/PANI films are 3.7 and 6.9 s, respectively. Because of the instability of PANI in the colored state, its colored time is slightly shorter than that of the hybrid film. Besides, the donor-acceptor pair between PANI and W₁₈O₄₉ can further enhance the electron transfer rate and has a positive effect on the ion diffusion efficiency and color switching speed of W₁₈O₄₉/PANI.

The schematic diagram of a prototype device demonstrates the potential of this novel W₁₈O₄₉/PANI ECD (Fig. 4a). Aluminum (Al) is chosen as the anode to construct the W₁₈O₄₉/PANI ECD, which has a strong reducing ability and easily loses electrons [22]. Fig. 4b shows the visually distinguished color change of the ECD, from light blue to light green, green, blue, and dark blue at the voltages from 0.2 V to 2.2 V, where a deeper color means a higher charging extent [22], indicating a function of the capacitive level-visualization of ECD-based energy storage device [21]. In addition, the optical transmission spectrum of the W₁₈O₄₉/PANI ECD under different applied voltages was also tested (Fig. S16 in Supporting information), which shows the good optical modulation (∆T = 50.0% at 532 nm) of the W₁₈O₄₉/PANI ECD. The CV curves of the device from 2.2 V to 0.2 V at different scan rates are presented in Fig. 4c, as the scan speed increases, the response current density of the W₁₈O₄₉/PANI ECD also increases, demonstrating the excellent kinetics and reversibility of the interfacial Faradaic redox reaction [21]. The CV curve potential window range of the ECD is enlarged due to the two electrodes system and the internal resistance of the device [6,22]. As depicted in Fig. S17a (Supporting information), the GCD curves of the device at different current densities under the voltage window of 2.2~0.2 V show nonlinear characteristics, which may be due to the redox reaction [21] of W₁₈O₄₉ or PANI. According to the Eqs. 1 and 2 described above, the areal capacitances of W₁₈O₄₉/PANI ECD are 46.15, 45.16, 43.78, 43.20, 42.83, and 42.36 mF/cm², respectively. The charge capacity of the W₁₈O₄₉/PANI ECD is far superior to that of the pure W₁₈O₄₉ ECD and PANI ECD (Fig. S17b in Supporting information), which shows that the hybrid film ECD has excellent application strength in energy storage.

Previous reports have demonstrated that Al with strong reducing power exhibits large negative potentials and can be used to establish a large potential gradient for the rapid discharge process using electrochromic electrodes [22,48]. Electron transfer can occur when W₁₈O₄₉/PANI film is connected to a metallic Al electrode due to the potential difference between W₁₈O₄₉/PANI with Al, which could produce a current that exhibits battery-like characteristics [15,42]. Meanwhile, the transferred electrons induce spontaneous discoloration of the W₁₈O₄₉/PANI, enabling the device to function without an external power supply. The color of the device changes from the initial dark green to light yellow and finally to light blue as shown in Fig. S18 (Supporting information), which reflects the energy-saving property of W₁₈O₄₉/PANI ECD. Afterward, the as-prepared W₁₈O₄₉/PANI ECD can be charged by an external bias, accompanied by the color recovery from light blue to dark blue; a deeper color means a higher charging degree. In this sense, the energy storage level of the W₁₈O₄₉/PANI ECD can be indicated through the color state.

To further demonstrate the battery function of the W₁₈O₄₉/PANI electrochromic device, Mg is selected to construct the battery instead of Al to obtain a larger potential [49–52] output a red light-emitting diode LED (~1.8 V) can be lit up when the W₁₈O₄₉/PANI and Al electrodes are connected. The pictures of LED at different time are presented in Fig. S19a (Supporting information). Compared with the LED lightened by the PANI-Mg pair (Fig. S19b in Supporting information), it can be found that the energy delivered by the W₁₈O₄₉/PANI-Mg battery can continuously light up a red LED for more than 2 h. In contrast, the PANI-Mg system can only light up the LED for a short time, demonstrating excellent capacitance characteristics of the W₁₈O₄₉/PANI hybrid device.

In conclusion, the W₁₈O₄₉/PANI hybrid film-based multicolored ECD is successfully proposed. Because of the individual electrochromic characteristics of PANI and W₁₈O₄₉, the color of the hybrid film exhibits richer color than that of PANI. Due to the formation of the donor-acceptor system (PANI-W₁₈O₄₉) as well as the synergistic effect, the W₁₈O₄₉/PANI hybrid film exhibits excellent electrochemical stability, good optical modulation, high areal specific capacitance, and excellent capacitance retention, which shows a profound impact on the development of multifunctional ECDs and promises their potential applications in energy-efficient technologies.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by the National Natural Scientific Foundation of China (No. 21804074), China Postdoctoral Science Foundation (No. 2020T130331), and the Open Funds of the State Key Laboratory of Physical Chemistry of Solid Surfaces (No. 202023).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108305.

References

Less

[1]

P. Yang, P. Sun, W. Mai, Mater. Today 19 (2016) 394–402.

[2]

Z. Tong, Y. Tian, H. Zhang, et al., Sci. China Chem. 60 (2017) 13–37.

[3]

Y. Zhai, J. Li, S. Shen, et al., Adv. Funct. Mater. 32 (2022) 2109848.

[4]

H. Li, L. McRae, C.J. Firby, et al., Adv. Mater. 31 (2019) 1807065.

[5]

Z. Tong, R. Lian, R. Yang, et al., Energy Storage Mater. 44 (2022) 497–507.

[6]

M.A. Farahmand Nejad, S. Ranjbar, C. Parolo, et al., Mater. Today 50 (2021) 476–498.

[7]

Q. Huang, G. Dong, Y. Xiao, et al., Electrochim. Acta 252 (2017) 331–337.

[8]

S.I. Park, Y.J. Quan, S.H. Kim, et al., Int. J. Precis Eng. Manuf.-Green Technol. 3 (2016) 397–421.

[9]

T.V. Nguyen, H.H. Do, T.Q. Trung, et al., J. Alloys Compd. 882 (2021) 160718.

[10]

G. Yang, Y.M. Zhang, Y. Cai, et al., Chem. Soc. Rev. 49 (2020) 8687–8720.

[11]

K.W. Kim, J.K. Lee, X. Tang, et al., Dyes Pigm. 190 (2021) 109321.

[12]

D.S. Dalavi, R.S. Desai, P.S. Patil, J. Mater. Chem. A 10 (2022) 1179–1226.

[13]

Q. Huang, J. Wang, H. Gong, et al., J. Mater. Chem. A 9 (2021) 6451–6459.

[14]

H. Li, C.J. Firby, A.Y. Elezzabi, Joule 3 (2019) 2268–2278.

[15]

J. Zhao, Y. Tian, Z. Wang, et al., Angew. Chem. Int. Ed. 55 (2016) 7161–7165.

[16]

S. Cong, Y. Tian, Q. Li, et al., Adv. Mater. 26 (2014) 4260–4267.

[17]

J. Zhang, J.P. Tu, G.H. Du, et al., Sol. Energy Mater. Sol. Cells 114 (2013) 31.

[18]

Y. Chen, Y. Wang, P. Sun, et al., J. Mater. Chem. A 3 (2015) 20614–20618.

[19]

Z. Tong, N. Li, H. Lv, et al., Sol. Energy Mater. Sol. Cells 146 (2016) 135–143.

[20]

Y. Wang, X. Zhong, X. Liu, et al., J. Mater. Chem. A 10 (2022) 3944–3952.

[21]

Y. Zhong, Z. Chai, Z. Liang, et al., ACS Appl. Mater. Interfaces 9 (2017) 34085–34092.

[22]

J. Wang, L. Zhang, L. Yu, et al., Nat. Commun. 5 (2014) 4921.

[23]

G. Cai, J. Tu, D. Zhou, et al., J. Phys. Chem. C 117 (2013) 15967–15975.

[24]

Y. Shi, Y. Zhang, K. Tang, et al., Chem. Eng. J. 355 (2019) 942–951.

[25]

J.L. Wang, Y.R. Lu, H.H. Li, et al., J. Am. Chem. Soc. 139 (2017) 9921–9926.

[26]

S. Xu, X. Li, Y. Ou, et al., Inorg. Chem. Front. 6 (2019) 680–686.

[27]

X. Li, J. Chu, Y. Cheng, et al., Mater. Lett. 275 (2020) 128081.

[28]

S.H. Patil, A.P. Gaikwad, S.D. Sathaye, et al., Electrochim. Acta 265 (2018) 556–568.

[29]

Y. Yue, H. Li, K. Li, et al., J. Phys. Chem. Solids 110 (2017) 284–289.

[30]

J. Pan, R. Zheng, Y. Wang, et al., Sol. Energy Mater. Sol. Cells 207 (2020) 110337.

[31]

Y. Tian, S. Cong, W. Su, et al., Nano Lett. 14 (2014) 2150–2156.

[32]

P. Yang, P. Sun, L. Du, et al., J. Phys. Chem. C 119 (2015) 16483–16489.

[33]

P. Snauwaert, R. Lazzaroni, J. Riga, et al., Synth. Metals 18 (1987) 335–340.

[34]

N.A. Kumar, H.J. Choi, Y.R. Shin, et al., ACS Nano 6 (2012) 1715–1723.

[35]

H.S. Nalwa, Appl. Organomet. Chem. 5 (1991) 349–377.

[36]

T. Kobayashi, H. Yoneyama, H. Tamura, J. Electroanal. Chem. 177 (1984) 293–297.

[37]

A. Rudge, J. Davey, I. Raistrick, et al., J. Power Sources 47 (1994) 89–107.

[38]

F. Fusalba, D. Bélanger, Electrochim. Acta 45 (2000) 3877–3883.

[39]

Z. Wang, Q. Zhang, S. Cong, et al., Adv. Opt. Mater. 5 (2017) 1700194.

[40]

K. Zhou, H. Wang, J. Jiu, et al., Chem. Eng. J. 345 (2018) 290–299.

[41]

A.J. Heeger, J. Phys. Chem. B 105 (2001) 8475–8491.

[42]

X. Chang, R. Hu, S. Sun, et al., Appl. Surf. Sci. 441 (2018) 105–112.

[43]

W.W. Liu, Y.Q. Feng, X.B. Yan, et al., Adv. Funct. Mater. 23 (2013) 4111–4122.

[44]

Y. Gogotsi, P. Simon, Science 334 (2011) 917–918.

[45]

M. Liu, K. Zhang, M. Si, et al., Carbon 153 (2019) 707–716.

[46]

N. Wu, L. Jiao, S. Song, et al., Anal. Chem. 93 (2021) 15982–15989.

[47]

D. Voiry, M. Chhowalla, Y. Gogotsi, et al., ACS Nano 12 (2018) 9635–9638.

[48]

Y. Luo, H. Jin, Y. Lu, et al., ACS Energy Lett. 7 (2022) 1880–1887.

[49]

H. Zhang, Y. Yu, L. Zhang, et al., Chem. Sci. 7 (2016) 6721–6727.

[50]

Y. Zhai, Y. Li, H. Zhang, et al., ACS Appl. Mater. Interfaces 11 (2019) 28072–28077.

[51]

J. Sun, Y. Li, J. Sun, et al., Chem. Commun. 55 (2019) 12060–12063.

[52]

Q. Ma, H. Zhang, J. Chen, et al., ACS Central Sci. 6 (2020) 2209–2216.

Appendix

Less

Year 2023 volume 34 Issue 11

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2023.108305

Receive Date：2022-10-25
Online Date：2025-11-21
Published：2023-11-15

Article Data

Affiliations

History

Received：2022-10-25
Revised：2023-02-06
Accepted：2023-03-05

Affiliations

^a Institute of Molecular Metrology, College of Chemistry and Chemical Engineering, Qingdao University, Qingdao 266071, China

^c State Key Laboratory of Physical Chemistry of Solid Surfaces, Xiamen University, Xiamen 361005, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2023.108305

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1. (a) Schematic illustration of the fabrication of the W₁₈O₄₉/PANI film. (b, c) SEM image of W₁₈O₄₉ and W₁₈O₄₉/PANI film (the inset is the photograph of the corresponding film). (d) The XRD pattern of W₁₈O₄₉ on the FTO glass. (e) The N 1s XPS of W₁₈O₄₉, PANI, and W₁₈O₄₉/PANI.

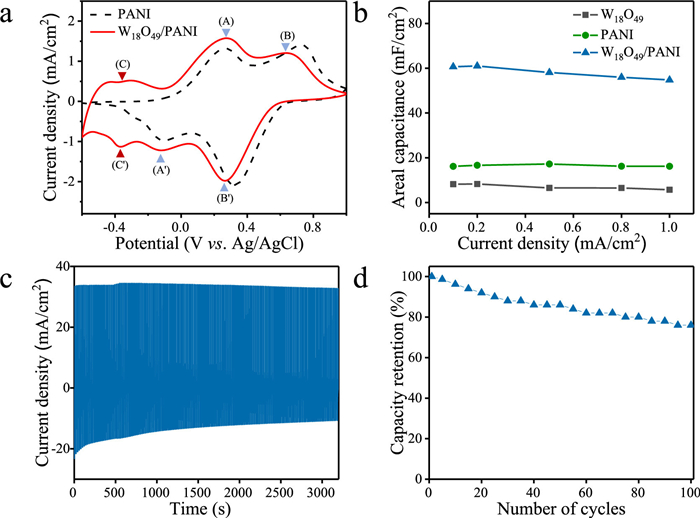

Fig. 2. Energy storage performances and cycle stability are characterized by electrochemical measurements. (a) Cyclic voltammetry curves for PANI and W₁₈O₄₉/PANI hybrid thin film between −0.6 V and 1.0 V at 40 mV/s in 1 mol/L AlCl₃ aqueous solution. (b) The areal capacitance of the three films at different current densities of 1.0, 0.8, 0.5, 0.2, and 0.1 mA/cm². (c) The chronoamperometry (CA) curves of W₁₈O₄₉/PANI hybrid film at the alternant potential of −0.6 V and 1.0 V (vs. Ag/AgCl, each for 10 s) in 1 mol/L AlCl₃ aqueous solution. (d) The energy storage cycle stability of the W₁₈O₄₉/PANI film at a current density of 1.0 mA/cm².
