Jianjian Yi^a^,^b, Zhou Zhou^a, Yu Xia^a, Ganghua Zhou^a, Guoxiang Zhang^a, Li Li^c, Xuyu Wang^d, Xingwang Zhu^a, Xiaozhi Wang^a^,^e^,^f^,^*, Huan Pang^b^,^**

Chinese Chemical Letters | 2023, 34(11) : 108328

Less

Chinese Chemical Letters | 2023, 34(11): 108328

• Communication •

Unraveling the role of phase engineering in tuning photocatalytic hydrogen evolution activity and stability

Full

Jianjian Yi^a^,^b, Zhou Zhou^a, Yu Xia^a, Ganghua Zhou^a, Guoxiang Zhang^a, Li Li^c, Xuyu Wang^d, Xingwang Zhu^a, Xiaozhi Wang^a^,^e^,^f^,^*, Huan Pang^b^,^**

Affiliations

^a College of Environmental Science and Engineering, Yangzhou University, Yangzhou 225127, China

^b School of Chemistry and Chemical Engineering, Yangzhou University, Yangzhou 225127, China

^c Institute for Energy Research, Jiangsu University, Zhenjiang 212013, China

^d School of Environmental and Chemical Engineering, Jiangsu University of Science and Technology, Zhenjiang 212003, China

^e Joint International Research Laboratory of Agriculture and Agri-Product Safety of Ministry of Education of China, Yangzhou University, Yangzhou 225127, China

^f Jiangsu Collaborative Innovation Center for Solid Organic Waste Resource Utilization, Nanjing 210095, China

Published: 2023-11-15 doi: 10.1016/j.cclet.2023.108328

Outline

Abstract

Less

In this work, taking NiSe₂ as a prototype to be used as cocatalyst in photocatalytic hydrogen evolution, we demonstrate that the crystal phase of NiSe₂ plays a vital role in determining the catalytic stability, rather than activity. Theoretical and experimental results indicate that the phase structure shows negligible influence to the charge transport and hydrogen adsorption capacity. When integrating with carbon nitride (CN) photocatalyst forming hybrids (m-NiSe₂/CN and p-NiSe₂/CN), the hybrids show comparable photocatalytic hydrogen evolution rates (3.26 µmol/h and 3.75 µmol/h). Unlike the comparable catalytic activity, we found that phase-engineered NiSe₂ exhibits distinct stability, i.e., m-NiSe₂ can evolve H₂ steadily, but p-NiSe₂ shows a significant decrease in catalytic process (~57.1% decrease in 25 h). The factor leading to different catalytic stability can be ascribed to the different surface conversion behavior during photocatalytic process, i.e., chemical structure of m-NiSe₂ can be well preserved in catalytic process, but partial p-NiSe₂ tends to be converted to NiOOH.

Key words

Phase engineering / Hydrogen evolution / Photocatalysis / Cocatalyst / Surface reconstruction

Cite this Article

Jianjian Yi, Zhou Zhou, Yu Xia, Ganghua Zhou, Guoxiang Zhang, Li Li, Xuyu Wang, Xingwang Zhu, Xiaozhi Wang, Huan Pang. Unraveling the role of phase engineering in tuning photocatalytic hydrogen evolution activity and stability[J]. Chinese Chemical Letters, 2023 , 34 (11) : 108328 - . DOI: 10.1016/j.cclet.2023.108328

Full Text

Less

Recent studies have demonstrated that, in addition to the composition, size, dimensionality, defect, and facet, crystal phase of nanomaterials plays a crucial role to their catalytic functions [1–3]. Tuning the phase structure of nanomaterials can change the atom arrangement, leading to the regulation of their physical/chemical properties and optimization of catalytic performance [4,5]. With the deepening of relevant understanding, phase engineering is now considered as an effective strategy to optimize materials for efficient catalysis. However, it is still urgent to do research work regarding the following aspects: (1) developing general synthetic methods for the controllable synthesis of desired phases, (2) unmasking the mechanism about the phase transition process, and (3) uncovering the inner mechanism for phase-dependent catalytic activity, stability and selectivity [3,6].

Great efforts have been devoted into material design, controllable synthesis and mechanism exploration, to boost the development of phase engineering toward catalysis. For example, semiconducting 2H-MoS₂ and 2H-MoSe₂ have been widely explored as catalysts for hydrogen evolution reaction, but their performances are limited by the poor conductivity and limited active sites at edges [7–9]. Phase engineering strategy can prepare metallic 1T-MoS₂ and 1T-MoSe₂, which shows increased charge transfer capacity and active basal plane (chemical insert in 2H phase) [10,11]. As such, improved hydrogen evolution catalysis can be realized. Except for phase transition to metallic 1T phase, phase engineering of MoS₂ from crystalline to amorphous phase can also improve the catalytic hydrogen evolution performance [12]. CO₂ reduction requires more than efficiency, high selectivity to a specific product is of great significance [13]. Phase engineering is also verified that it can affect the selectivity in CO₂ reduction reaction. It was found that, Au nanorods with a well-defined fcc-2H-fcc phase structure show improved CO production selectivity compared to fcc phase Au nanorods in electrocatalytic CO₂ reduction reaction [14]. Deep mechanism study revealed that the reaction energy barrier in the formation of ^*COOH is decreased at 2H surface and 2H/fcc interface compared to fcc surface, resulting in improved selectivity and activity. Previous case studies have highlighted the fascinating characteristics of phase engineered nanomaterials, and how the catalytic functions are influenced by phase engineering. Despite many phase-engineered nanomaterials have been explored, the understanding of the phase-dependent catalytic performance including activity, selectivity and stability is nowadays still under development.

Photocatalytic hydrogen evolution via water splitting is considered as a good research orientation, aiming to mitigating energy and environmental problems in the present century [15–17]. Similar to other typical photocatalytic reactions including CO₂ reduction and N₂ activation, the realization of efficient and stable water splitting is determined by the rational design of catalyst structure, to promote charge separation and molecule adsorption/activation [18,19]. Transitional metal dichalcogenides (TMDs) can serve as cocatalyst on semiconductor surface to boost the photocatalytic hydrogen evolution performance, but their performances are hard to meet the practical requirement regarding both activity and stability, compared to noble metals [6,20,21]. Phase engineering of TMDs offers a feasible avenue to tame the electronic structures and thus improving the catalytic performance. Nickel selenide (NiSe₂), a neglected material in TMDs family, has shown potential to catalyze water splitting [22,23]. There are many reported strategies that can tune the property or functions for improved catalysis, for example nanostructure engineering [24], defect engineering [23], constructing heterostructure [22]. However, phase engineering of NiSe₂ lacks systematic research. Theoretically, there are two different crystal phases according to the atom arrangement (marcasite phase with orthorhombic structure namely m-NiSe₂, and pyrite phase with cubic structure namely p-NiSe₂), as presented in Fig. 1a. However, systematic research about the specific role of phase structure for NiSe₂ in photocatalytic hydrogen evolution lacks systematic research.

In this communication, we report the phase engineering of NiSe₂ and the application in photocatalytic hydrogen evolution, with aims to: (1) develop a general approach for the controllable synthesis of phase-engineered NiSe₂, (2) explore the feasibility of improving catalytic activity/stability via phase engineering, and (3) uncover the origin of phase-dependent catalytic behaviors. We first developed a simple wet-chemical method to prepare m-NiSe₂ and annealing treatment to obtain p-NiSe₂, followed by fine characterization of chemical structures. Then, the catalytic hydrogen evolution performance of NiSe₂ as cocatalyst was examined by integrating with two-dimensional carbon nitride (2D g-C₃N₄). Finally, we found that the crystal phase structure of NiSe₂ plays a vital role in determining the reaction stability, rather than the activity, and discussed the role of phase structure in affecting the activity/stability.

To gain insight into the phase dependent catalytic hydrogen evolution properties of NiSe₂, the hydrogen adsorption Gibbs free energy (ΔG_H^*), density of state (DOS), and band structure and of NiSe₂ based catalysts were theoretically calculated. Fig. 1a and Fig. S1 (Supporting information) illustrate the crystal structures of m-NiSe₂ and p-NiSe₂, clearly showing the different structures at atomic level. The ΔG_H^* of catalyst's surface can provide strong information about the interaction between proton and catalyst's surface. A zero-approaching ΔG_H^* with low energy barrier is beneficial for hydrogen evolution reaction [25,26]. In our case, the optimized ΔG_H^* values of m-NiSe₂ and p-NiSe₂ are determined to be 0.48 and 0.49 eV respectively, as shown in Fig. 1b and Fig. S2 (Supporting information). These results indicate that both m-NiSe₂ and p-NiSe₂ possess appropriate and comparable hydrogen adsorption surfaces, and the hydrogen evolution capacity could not be effectively tuned by phase engineering.

Apart from the ΔG_H^*, charge delivery ability is another important parameter affecting the hydrogen evolution performance. As shown in Figs. 1c and d and Fig. S3 (Supporting information), the band structure and DOS of m-NiSe₂ and p-NiSe₂ were further analyzed. It can be observed that both pure m-NiSe₂ and p-NiSe₂ show electronic states across the Fermi level, demonstrating their metallic characteristics [27,28]. As such, it can be theoretically predicted that both m-NiSe₂ and p-NiSe₂ possess good electrochemical conductivity from the theoretical perspective. It can also be noticed that, p-NiSe₂ shows only slightly increased numbers of states at Fermi level compared to m-NiSe₂, suggesting the comparable intrinsic conductivity theoretically. In summary, theoretical analysis shows that NiSe₂ with different crystal phases could both extract the electrons from electrode or light absorber, and possess comparable proton to hydrogen molecule conversion efficiency.

Experimental investigation of the catalytic hydrogen performance for NiSe₂ relies on the synthesis of NiSe₂ with different crystal phases. The idea of the synthesis is to synthesize metastable state NiSe₂ (m-NiSe₂) via wet chemical method firstly, followed by phase transition to stable state NiSe₂ (p-NiSe₂) by extra energy input. In this work, we synthesized m-NiSe₂ using a simple wet chemical oil bath method. Phase transition from m-NiSe₂ to p-NiSe₂ can be realized by a general high-temperature annealing treatment. X-ray diffraction (XRD) was firstly employed to provide structure information of NiSe₂ samples, as shown in Fig. 1e. XRD patterns of m-NiSe₂ and p-NiSe₂ can both be well indexed to the standard PDF cards (JCPDS 18-0886 and JCPDS 88-1711), which preliminarily confirm the successful preparation of phase engineered NiSe₂. The phase transition from m-NiSe₂ to p-NiSe₂ can be further evidenced by Raman analysis. As illustrated in Fig. 1f, two sharp peaks located at 196.2 cm⁻¹ and 214.2 cm⁻¹ for Se-Se stretching mode were detected. The active peak shift of m-NiSe₂ to higher wavelength position for p-NiSe₂ is powerful evidence for the changed Se-Se bond length, further illustrating the phase transition from pyrite phase to marcasite phase [29,30]. The surface chemical states and elemental composition were also explored using X-ray photoelectron spectroscopy (XPS) as shown in Fig. S4 (Supporting information), evidencing the fine chemical structure of synthesized NiSe₂ samples (detailed illustration in Supporting information).

Upon finely characterizing the chemical structures of NiSe₂, the next concern of this work is to investigate the cocatalytic function of phase engineered NiSe₂ in photocatalytic hydrogen evolution. In this work, the evaluation of photocatalytic hydrogen evolution performance is based on the selection of carbon nitride nanosheets (2D g-C₃N₄) with stable chemical structure, visible light response and flat surface characteristics, as hosting semiconductor [15,16,32–37]. The large lateral size and specific area are beneficial for the loading of NiSe₂, while the ultrathin thickness can effectively shorten the charge migration pathway from bulk to surface, thereby reducing the charge recombination. It can be observed in transmission electron microscopy (TEM, Fig. 2a) image that pristine 2D g-C₃N₄ shows transparent and wrinkled nanosheet morphology. Atomic force microscope (AFM) image and corresponding height profile (Figs. 2b and c) show the lateral size (~5 µm) and thickness corresponding to ~2 atomic layers (~1.08 nm) of 2D g-C₃N₄ [38]. The construction of a typical semiconductor/cocatalyst reaction system is based on the effective charge migration of photogenerated charge carriers from semiconductor to cocatalyst.

Considering that the charge transfer between two components relies on the work function difference, the work functions (Φ) of 2D g-C₃N₄, m-NiSe₂ and p-NiSe₂ were theoretically calculated to ensure the potential of presented systems (Figs. 2d–f). On the basis that both m-NiSe₂ (4.56 eV) and p-NiSe₂ (4.89 eV) have larger work function values than pristine 2D g-C₃N₄ (4.47 eV), the charge migration from 2D g-C₃N₄ to NiSe₂ after contact can be ensured thermodynamically.

The fabrication process of hybrid photocatalysts is illustrated in Fig. 3a. m-NiSe₂ is in-situ grown on 2D g-C₃N₄ surface by oil bath reaction using NiCl₂ and Se powder as precursors, namely m-NiSe₂/CN. As contrast, p-NiSe₂/CN can be obtained by a general annealing treatment on m-NiSe₂/CN to induce phase transition. XRD patterns and Fourier transform infrared spectra (FT-IR) of the hybrids in Fig. S5 (Supporting information) confirm the coexistence of NiSe₂ and 2D g-C₃N₄, and the introduction of NiSe₂ does not affect the structure of 2D g-C₃N₄. In the meantime, the morphology and phase structure of as-obtained m-NiSe₂/CN and p-NiSe₂/CN were analyzed using TEM and high-resolution TEM (HRTEM). TEM images in Fig. S6 (Supporting information) depict that m-NiSe₂ and p-NiSe₂ with similar nanoribbon morphology are loaded on the surface of sheet-like 2D g-C₃N₄. To disclose the fine phase structure of presented hybrids, HRTEM was performed as shown in Figs. 3b and c. The observed lattice spacings of 0.296 and 0.265 nm in Fig. 3b correspond to (101) and (111) crystal plane of m-NiSe₂, while lattice spacings of 0.297 and 0.266 nm in Fig. 3d can be ascribed to (200) and (210) crystal plane of p-NiSe₂. The distribution of NiSe₂ on 2D g-C₃N₄ surface was also analyzed by scanning TEM (STEM) and corresponding elemental mapping (Figs. 3d and e). The homogeneous distribution of C, N, Ni and Se elements in the catalysts can be observed, clearly showing that NiSe₂ with different phases in nanoribbon morphology are anchored uniformly on 2D g-C₃N₄ surface. As contrast, both pristine m-NiSe₂ and p-NiSe₂ show seriously aggregated morphology as presented in Fig. S7 (Supporting information), suggesting 2D g-C₃N₄ can serve as a good platform for the uniform loading of NiSe₂. XPS spectra of m-NiSe₂/CN and p-NiSe₂/CN were also analyzed as illustrated in Fig. S8 (Supporting information). The Ni 2p spectra and Se 3d spectra are in good agreement with pristine NiSe₂ samples, while the C 1s and N 1s spectra are consistent with previous reported g-C₃N₄ [9,15].

Considering the charge migration and highly active surface of NiSe₂ with different crystal phases, we are in position to examine whether NiSe₂ can serve as cocatalyst advancing photocatalytic hydrogen evolution, and investigate the role of crystal phase structures in catalytic hydrogen evolution. The examination of photocatalytic hydrogen evolution performance was then performed using 2D g-C₃N₄ as light absorber, NiSe₂ as cocatalysts and TEOA as sacrificial agent under visible light irradiation. As presented in Fig. 4a, it can be firstly found that pristine 2D g-C₃N₄ displays a hydrogen formation rate of 0.75 µmol/h. After merging with NiSe₂ cocatalysts, the hydrogen evolution rates can be greatly promoted to 3.26 µmol/h for m-NiSe₂/CN and 3.75 µmol/h for p-NiSe₂/CN, highlighting the advantages of NiSe₂ in promoting charge migration and providing surface active site [20,39]. Despite that many previous reports about phase engineered nanomaterials for hydrogen evolution generally show crystal dependent performance [40–43], in our case, the crystal phase structure of NiSe₂ does not play an important role in determining the activity. The reason for this phenomenon is owing to that the phase engineering on NiSe₂ leads to negligible optimization on the hydrogen adsorption and charge delivery capacity. Although there is a big gap between NiSe₂ and other benchmark cocatalysts (e.g., Pt or MoS₂) for the catalytic performance, the significance and finding for this work can be summarized as below: (ⅰ) A universal method is developed for the synthesis of phase-engineered NiSe₂; (ⅱ) the effects of phase engineering to catalytic stability is demonstrated over NiSe₂; and (ⅲ) the origin for phase-dependent stability is uncovered, which can be owing the different surface reconstruction processes.

To determine the specific role of 2D g-C₃N₄ and NiSe₂ in photocatalytic process, the wavelength-dependent hydrogen evolution performance was measured (Fig. 4b). The experimental results illustrate that, H₂ can be evolved when 2D g-C₃N₄ can effectively absorb light irradiation (380 nm monochromatic light) and thus generate charge carriers. Although the introduction of NiSe₂ can improve the light absorption in visible light region, not any gas product can be detected under 420 nm and 550 nm monochromatic lights irradiation since NiSe₂ with metallic characteristic cannot be excited upon light illumination. The results mentioned above strongly demonstrate the light absorber role of 2D g-C₃N₄ and cocatalyst role of NiSe₂.

To uncover the origin of the comparable photocatalytic H₂ evolution activity in NiSe₂/CN with different NiSe₂ crystal phases, the physicochemical properties of the catalysts were performed to provide insightful information, focusing on light absorption, charge separation and interfacial proton reduction. The light absorption capacity can be evaluated by UV-visible diffuse reflectance spectra (DRS), as can be viewed in Fig. 4b and Fig. S9 (Supporting information). After the introduction of NiSe₂, the light absorption in visible light region can be improved due to the black color characteristic of NiSe₂. Given the similar light absorption capacity observed in DRS spectra, the charge generation ability based on light harvesting of two NiSe₂/CN catalysts are determined to be comparable.

The charge separation efficiency was further determined by transient-state fluorescence (FL), steady state fluorescence spectra (PL) and photocurrent response. Shorter intensity-average charge lifetimes for m-NiSe₂/CN and p-NiSe₂/CN compared to pristine CN, can illustrate the enhanced charge separation of 2D g-C₃N₄ after introducing NiSe₂ as electron trap (Fig. 4c) [44]. At a meantime, the quenched PL emission (Fig. S10a in Supporting information) and enhanced photocurrent intensity (Fig. S10b in Supporting information) can also support that the loading of NiSe₂ can extract photogenerated charge carriers from 2D g-C₃N₄. It should be pointed out that, the charge separation efficiency is also comparable between m-NiSe₂/CN and p-NiSe₂/CN, based on the characterizations above and theoretical simulations.

The interfacial proton reduction process can be determined by using ΔG_H^* as descriptor. As discussed in Fig. 1b, we have demonstrated that both m-NiSe₂ and p-NiSe₂ can serve as active sites for proton reduction to hydrogen, with calculated of ΔG_H^* of 0.48 eV and 0.49 eV respectively. Taken together, it can be concluded that, the introduction of NiSe₂ can promote hydrogen evolution since NiSe₂ can improve charge separation and provide effective active sites. For photocatalytic hydrogen evolution process, the factors affecting performance includes light absorption, charge separation and surface reactivity. In our case, NiSe₂ with different phases can exactly promote the charge separation and provide active site for surface proton reduction, resulting in improved catalysis compared to pristine CN. Since the charge separation efficiency and surface hydrogen adsorption capacity is comparable, the presented m-NiSe₂/CN and p-NiSe₂/CN exhibited close hydrogen evolution rates.

The stability of m-NiSe₂/CN and p-NiSe₂/CN was investigated by performing 5 cycles of photocatalytic reaction (25 h). As presented in Fig. 4d, unlike the comparable catalytic activity, it is interesting that m-NiSe₂/CN and p-NiSe₂/CN show different durability. The hydrogen evolution rate goes steady over m-NiSe₂/CN, but almost 50% decrease can be observed in p-NiSe₂/CN. Taken the photocatalytic rate measurement result together, it can be demonstrated that, crystal phase engineering on NiSe₂ holds the key affecting the catalytic stability, rather than the generally mentioned activity. In general, the most common causes of significant stability changes are the loss or deterioration active components. It has been widely reported that, the surface reconstruction of active sites is a common phenomenon using transitional metal dichalcogenides/nitrides/phosphides as catalysts during catalytic process. For example, it has been demonstrated that the sulfides sometimes can only be considered as pre-catalysts, which will be completely converted to (hydrogen) oxide, or form a sulfide-(hydrogen) oxide core-shell structure [45]. Moreover, it has been found that, metallic Co₄N surface will be transformed to cobalt oxides/hydroxides in electrocatalytic oxygen evolution process [46]. The surface structure reconstruction would thus result in different catalytic activity/stability.

To investigate whether surface structures of NiSe₂ were changing with the ongoing of photocatalytic reaction or not, the surface structure transformation behavior of NiSe₂/CN catalysts was investigated using HRTEM based on the p-NiSe₂/CN and m-NiSe₂/CN samples before and after photocatalytic reactions. Fig. S11 (Supporting information) firstly illustrate that the nanosheet structure of 2D g-C₃N₄ can be preserved without significant loss of NiSe₂. As can be further viewed from Figs. 5a and b, m-NiSe₂ layers on 2D g-C₃N₄ surface could be will preserved after photocatalytic process, without significant observation of other components. As contrast, complete structure of p-NiSe₂ is hardly to be seen after reaction, partial lattice spacing corresponding to NiOOH layers can be found around the surface of p-NiSe₂ (Figs. 5c and d). The results above reveal that, the formation of NiOOH on p-NiSe₂ surface destroyed the pristine active sites, leading to the significant decrease of photocatalytic hydrogen evolution activity. According to the stability test result, it could also be deduced that, the surface reconstruction from p-NiSe₂ to NiOOH could reach the steady state after 5 h reaction, since the hydrogen evolution rate becomes relatively stable in 5 h to 25 h (Fig. 4d). To provide more evidence for phase engineering induced stability change, cyclic voltammetry (CV) tests of m-NiSe₂ and p-NiSe₂ were also performed (Fig. S12 in Supporting information), observing the reduction peak in p-NiSe₂ corresponding to Ni⁴⁺ to Ni⁰. As contrast, not any reduction/oxidation peak can be found in m-NiSe₂. The CV results can also indirectly support the stable characteristic of m-NiSe₂ rather than p-NiSe₂ in catalytic process.

Taken together, the role of crystal phase engineering toward photocatalytic hydrogen evolution can be uncovered (Figs. 5e and f). NiSe₂ with charge delivery capacity and surface proton reduction ability can serve as an effective cocatalysts for boosting the photocatalytic hydrogen evolution of 2D g-C₃N₄. Upon light illumination, 2D g-C₃N₄ will be excited to generate electron-hole pairs. The photogenerated electrons tend to transfer across the interface to NiSe₂ surface, and react with adsorbed protons to evolve H₂ gas product. In our case, phase engineering of NiSe₂ exhibits negligible influence to charge transport and hydrogen adsorption capacity, leading to comparable photocatalytic activity between m-NiSe₂/CN and p-NiSe₂/CN. However, experimental results demonstrate that the crystal phase of NiSe₂ plays a vital role in determining the catalytic stability. In photocatalytic process, the surface structure of m-NiSe₂ can be preserved, whilst p-NiSe₂ surface tends to be transformed to NiOOH, resulting in different stability.

In summary, a facile and effective method is developed to synthesize phase engineered NiSe₂ for application in photocatalytic hydrogen evolution. The hydrogen evolution activity/stability for these different-phased NiSe₂ catalysts is also systematically investigated. The results show that m-NiSe₂ and p-NiSe₂ shows comparable catalytic activity in boosting hydrogen evolution of 2D g-C₃N₄, owing to the similar light harvesting, charge transport and hydrogen adsorption capacity. m-NiSe₂ surface is stable during catalytic process while p-NiSe₂ tends to be converted to NiOOH, so that m-NiSe₂ exhibits better stability than that of p-NiSe₂. These results highlight the role of phase engineering in tuning catalytic stability, not limited to activity, and also, suggest that in the process of preparation and screening of catalysts, the materials with high activity/stability can be selected through the regulation of crystalline phase structure.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

The authors appreciate for the financial support by Natural Science Foundation of Jiangsu Province (No. BK20210827), China Postdoctoral Science Foundation (No. 2021M700117), National Natural Science Foundation of China (Nos. U1904215 and 41977085), Program for Young Changjiang Scholars of the Ministry of Education (No. Q2018270), Six Talent Peaks Project in Jiangsu Province (No. TD-JNHB-012), and 333 Project in Jiangsu Province (No. BRA2020300).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108328.

References

Less

[1]

J. Wu, S. Liu, Y. Rehman, et al., Adv. Funct. Mater. 31 (2021) 2010832.

[2]

X. Yin, C.S. Tang, Y. Zheng, et al., Chem. Soc. Rev. 50 (2021) 10087–10115.

[3]

Y. Chen, Z. Lai, X. Zhang, et al., Nat. Rev. Chem. 4 (2020) 243–256.

[4]

J. Liu, J. Huang, W. Niu, et al., Chem. Rev. 121 (2021) 5830–5888.

[5]

H. Li, X. Zhou, W. Zhai, et al., Adv. Energy Mater. 10 (2020) 2002019.

[6]

D. Voiry, A. Mohite, M. Chhowalla, Chem. Soc. Rev. 44 (2015) 2702–2712.

[7]

Y. Sun, Y. Zang, W. Tian, et al., Energy Environ. Sci. 15 (2022) 1201–1210.

[8]

J. Mao, Y. Wang, Z. Zheng, et al., Front. Phys. 13 (2018) 138118.

[9]

J. Yi, H. Li, Y. Gong, et al., Appl. Catal. B: Environ. 243 (2019) 330–336.

[10]

Y. Yu, G.H. Nam, Q. He, et al., Nat. Chem. 10 (2018) 638–643.

[11]

A.R. Puente Santiago, T. He, O. Eraso, et al., J. Am. Chem. Soc. 142 (2020) 17923–17927.

[12]

D. Merki, S. Fierro, H. Vrubel, et al., Chem. Sci. 2 (2011) 1262–1267.

[13]

J. Fu, K. Jiang, X. Qiu, et al., Mater. Today 32 (2020) 222–243.

[14]

Z. Fan, M. Bosman, Z. Huang, et al., Nat. Commun. 11 (2020) 3293.

[15]

B. Wu, L. Zhang, B. Jiang, et al., Angew. Chem. Int. Ed. 60 (2021) 4815–4822.

[16]

J. Yi, T. Fei, L. Li, et al., Appl. Catal. B: Environ. 281 (2021) 119475.

[17]

T. Takata, J. Jiang, Y. Sakata, et al., Nature 581 (2020) 411–414.

[18]

B. Wang, W. Zhang, G. Liu, et al., Adv. Funct. Mater. 32 (2022) 2202885.

[19]

B. Wang, J. Zhao, H. Chen, et al., Appl. Catal. B: Environ. 293 (2021) 120182.

[20]

Q. Zhu, Z. Xu, B. Qiu, et al., Small 17 (2021) e2101070.

[21]

T. Rao, H. Wang, Y.J. Zeng, et al., Adv. Sci. 8 (2021) 2002284.

[22]

C. Liu, T. Gong, J. Zhang, et al., Appl. Catal. B: Environ. 262 (2020) 118245.

[23]

C. Gu, S. Hu, X. Zheng, et al., Angew. Chem. Int. Ed. 57 (2018) 4020–4024.

[24]

Z. Huang, S. Yuan, T. Zhang, et al., Appl. Catal. B: Environ. 272 (2020) 118976.

[25]

D. Voiry, H.S. Shin, K.P. Loh, et al., Nat. Rev. Chem. 2 (2018) 0105.

[26]

J. Ran, G. Gao, F.T. Li, et al., Nat. Commun. 8 (2017) 13907.

[27]

Y. Liu, H. Cheng, M. Lyu, et al., J. Am. Chem. Soc. 136 (2014) 15670–15675.

[28]

J. Yi, X. Zhu, M. Zhou, et al., Chem. Eng. J. 396 (2020) 125244.

[29]

Y.R. Zheng, P. Wu, M.R. Gao, et al., Nat. Commun. 9 (2018) 2533.

[30]

X.L. Zhang, S.J. Hu, Y.R. Zheng, et al., Nat. Commun. 10 (2019) 5338.

[31]

B. Hinnemann, P.G. Moses, J. Bonde, et al., J. Am. Chem. Soc. 127 (2005) 5308–5309.

[32]

I. Krivtsov, D. Mitoraj, C. Adler, et al., Angew. Chem. Int. Ed. 59 (2020) 487–495.

[33]

J. Jing, K. Qi, G. Dong, et al., Chin. Chem. Lett. 33 (2022) 4715–4718.

[34]

J. Geng, L. Zhao, M. Wang, et al., Environ. Sci. : Nano 9 (2022) 742–750.

[35]

K. Qi, J. Jing, G. Dong, et al., Environ. Res. 212 (2022) 113405.

[36]

E. Zhao, M. Li, B. Xu, et al., Angew. Chem. Int. Ed. 61 (2022) e202207410.

[37]

E. Wang, A. Mahmood, S.-G. Chen, et al., ACS Catal. 12 (2022) 11206–11215.

[38]

X. She, J. Wu, J. Zhong, et al., Nano Energy 27 (2016) 138–146.

[39]

J. Di, B. Lin, B.J. Tang, et al., Small Struct. 2 (2021) 2100046.

[40]

H. Lin, K. Zhang, G. Yang, et al., Appl. Catal. B: Environ. 279 (2020) 119387.

[41]

H. Xu, J. Yi, X. She, et al., Appl. Catal. B: Environ. 220 (2018) 379–385.

[42]

L. Wang, X. Liu, J. Luo, et al., Angew. Chem. Int. Ed. 56 (2017) 7610–7614.

[43]

K. Chang, X. Hai, H. Pang, et al., Adv. Mater. 28 (2016) 10033–10041.

[44]

S. Bai, J. Jiang, Q. Zhang, et al., Chem. Soc. Rev. 44 (2015) 2893–2939.

[45]

C.X. Zhao, J.N. Liu, C.D. Wang, et al., Energy Environ. Sci. 15 (2022) 3257–3264.

[46]

P. Chen, K. Xu, Z. Fang, et al., Angew. Chem. Int. Ed. 54 (2015) 14710–14714.

Appendix

Less

Year 2023 volume 34 Issue 11

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2023.108328

Receive Date：2022-10-19
Online Date：2025-11-21
Published：2023-11-15

Article Data

Affiliations

History

Received：2022-10-19
Revised：2023-02-12
Accepted：2023-03-09

Affiliations

^a College of Environmental Science and Engineering, Yangzhou University, Yangzhou 225127, China

^b School of Chemistry and Chemical Engineering, Yangzhou University, Yangzhou 225127, China

^c Institute for Energy Research, Jiangsu University, Zhenjiang 212013, China

^d School of Environmental and Chemical Engineering, Jiangsu University of Science and Technology, Zhenjiang 212003, China

^e Joint International Research Laboratory of Agriculture and Agri-Product Safety of Ministry of Education of China, Yangzhou University, Yangzhou 225127, China

^f Jiangsu Collaborative Innovation Center for Solid Organic Waste Resource Utilization, Nanjing 210095, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2023.108328

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1. Theoretical simulation and experimental characterization studies of NiSe₂ with different crystal phases. (a) Structure models. (b) The calculated hydrogen adsorption Gibbs free energy (Pt is referred from Ref. [31]). (c, d) The calculated band structures. XRD patterns (e) and Raman spectra (f).

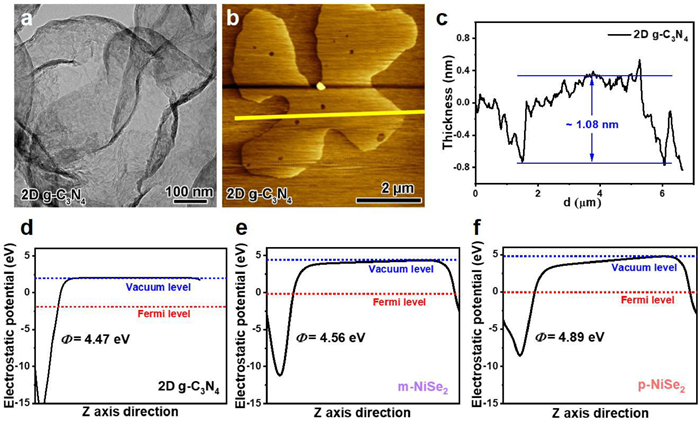

Fig. 2. Structural characterization of 2D g-C₃N₄ and work function simulation. (a) TEM image. AFM image (b) and corresponding height profile (c). (d–f) The calculated work functions of 2D g-C₃N₄, m-NiSe₂ and p-NiSe₂.

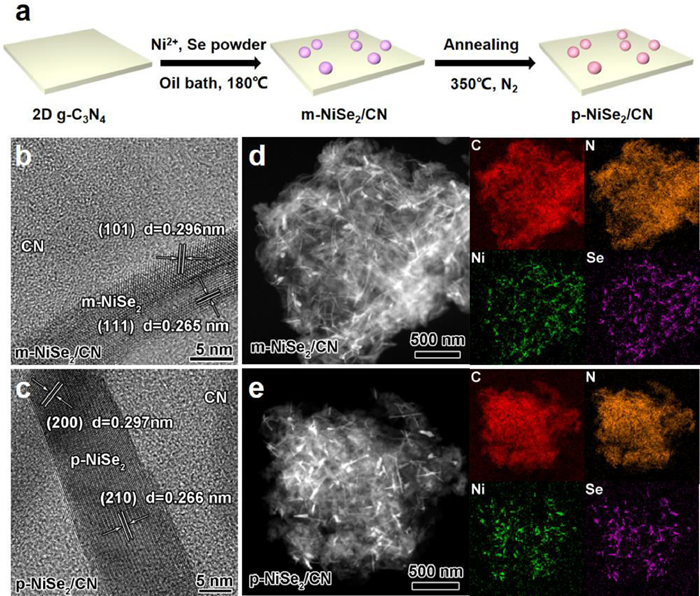

Fig. 3. Structural characterization of m-NiSe₂/CN and p-NiSe₂/CN. (a) Schematic illustration of construction process. (b, c) HRTEM images. (d, e) STEM and elemental mapping images.

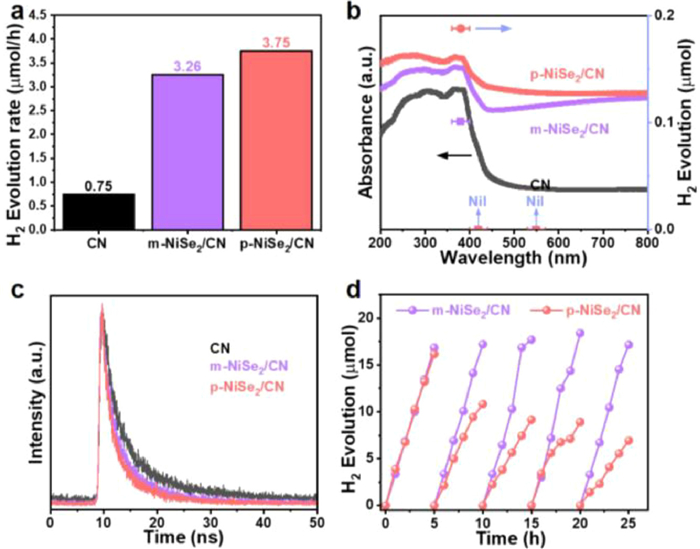

Fig. 4. Hydrogen evolution performance of the catalysts. (a) A comparison of photocatalytic hydrogen evolution rates. (b) Wavelength-dependent hydrogen evolution rates. (c) Transient state fluorescence spectra of the catalysts. (d) Photocatalytic stability evaluation.

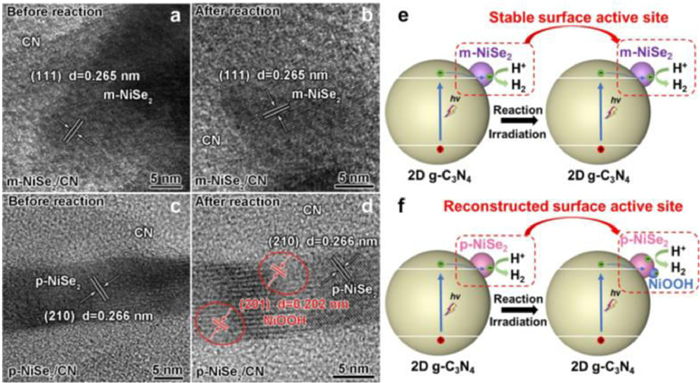

Fig. 5. Morphology and composition analysis of the NiSe₂/CN catalysts before and after photocatalytic reaction. (a, b) HRTEM images of m-NiSe₂/CN. (c, d) HRTEM images of p-NiSe₂/CN catalyst. (e, f) Schematic illustration of the structural transformation of NiSe₂ and the effect to photocatalytic processes.
