To achieve ideal nanoscale phase separation for the active layer of organic solar cells, the polymer donor should precipitate first and form a fibrous network to prevent the small-molecular acceptor from generating large domains. The competitive crystallization processes for the polymer donor and small-molecular acceptor would directly impact the morphology quality. To satisfy the above requirement, the small-molecular acceptor should have a good solubility in the processing solvent, a relatively slow crystallization rate during the drying of the active layer. As known, side chain engineering is a widely used method to adjust the molecular solubility. In 2017, Bo et al. firstly designed a kind of asymmetric A-D-A type fused-ring electron acceptor IDT-OB, bearing asymmetric side chains at the same sp³ bridged carbon (one alkyl and one aryl lateral chains) [13]. Such strategy breaks the molecular symmetry without interference with the conjugation characteristics, guarantees good solubility during the processing, enables the acceptor molecules to pack closely in a dislocated way, and provides favorable phase separation when blended with PBDB-T. Interestingly, such asymmetric IDT-OB based OSCs could achieve high photovoltaic performance thick-film devices (9.17% at thickness of 210 nm). When the IDT core in IDT-OB is replaced by a larger conjugated counterpart IDTT, even better performance thick-film devices could be obtained by IDTT-OB (10.20% at thickness of 250 nm) [14]. Additionally, this asymmetric side chain strategy is not only effective in the fused ring A-D-A acceptors, it is also applicable in noncovalently fused-ring electron acceptors (NC-FREAs). Bo et al. applied this asymmetric strategy to the simple NC-FREAs and a high-power conversion efficiency (PCE) of 12.36% is achieved for FOC2C6–2FIC [15]. Recently, Bo and Song rationally designed two novel asymmetric NC-FREAs PCBM-C6 and PCBM-C10 via unilaterally introducing the phenyl-C₆₁-butyric acid methyl ester (PCBM) as the pendent to fully take advantage of both nonfullerene and fullerene acceptors simultaneously. The bulky, spherical, and electronic isotropic fullerene pendent could effectively suppress severe molecular aggregation, form the preferred blend morphology and further improve the PCE to 13.55% relative to the symmetric control molecule [16].

Besides, side chain tailoring could be another route to fulfill the purpose of asymmetric side chain. Sun et al. built one asymmetric wide-bandgap small molecular acceptor C6-IDTT-T via shearing one hexyl side chain from the end of the donor core and prominent red-shifted absorption is achieved, which should be ascribed to the intense π–π intermolecular interactions in the solid state [17]. Very recently, Zheng et al. built an asymmetric NFAs M14 with one alkoxy side-chain and one alkylthio side-chain at the conjugated ladder core, which endows the molecules with increased solubility, enhanced the intermolecular interactions and thereby improved charge transport, and a high PCE 16.46% is achieved by this A-D-A type asymmetric NFAs [18]. In short, though there are not many examples of asymmetric side chains in A-D-A molecules as shown in Fig. 1, the above examples do demonstrate that constructing a ladder-type backbone structure with asymmetric side chains is promising in designing high-performance acceptors with better solubility and more compact molecular packing, which is also especially successful in thickness-insensitive based photovoltaic devices.

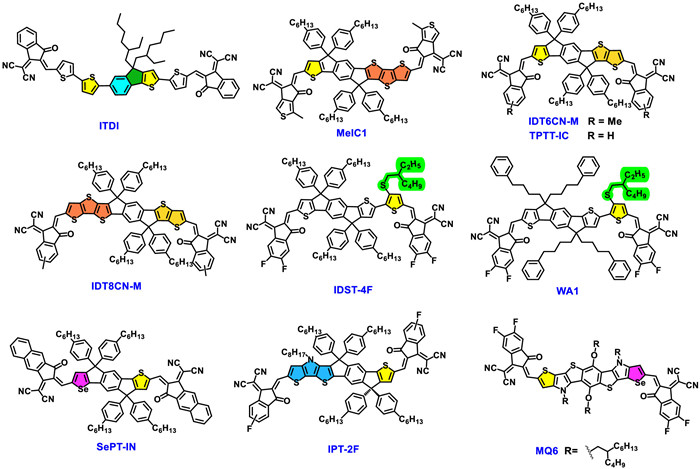

Asymmetric lateral chains mainly improve the processability and tuning molecular packing through changing the surrounding environment of the conjugated skeletons. As the OPV field experienced a long period of development, a variety of symmetric conjugated ladder cores with fused rings have been explored. By tailoring the ladder skeletons from one side, the asymmetric central cores could be acquired and the varied dipole moments between the end group and half of the donor unit will break the dipole counterbalance and induce a new dipole moment for the whole molecule with tunable orientations. IDT and IDTT are the commonly used symmetric ladder core in A-D-A type nonfullerene acceptors and one simple cutting at one sp³ carbon in the ring (Fig. 2) could introduce asymmetry in the D core, which could be inherited into the final acceptor molecules. For example, Zheng et al. developed the indenothiophene core via this skeleton shearing strategy and the corresponding ITDI molecule presents significantly improved photovoltaic performances in comparison with the symmetric analogue, which also presents good stability for the encapsulated device with 93% initial value after storage for 30 days in air [19].

Ring-fusion could be treated as an alternative molecular design route to achieve the same result as ring-shearing, which alters the core’s conjugation length. Yang et al. constructed the asymmetric ladder core through the ring-extension by fusing a new thiophene or thieno[3,2-b]thiophene unit onto the IDT block [20-22]. As a result, the induced dipoles for MeIC1, IDT6CN-M and IDT8CN-M by asymmetry, strong intermolecular interactions can be generated, leading to a favorable antiparallel packing, high fill factors (FF) of around 80% and the highest PCEs among the OSCs devices. Sun and Yi [23] verified this idea through DFT quantum prediction and found abundant terminal packing probability might exist in the asymmetric molecule aggregates of TPTT-IC, two of which (with similar binding energies and more stable configurations) present much stronger intermolecular interactions than that of symmetric one, suggesting that a high electron mobility would be achieved by asymmetric molecules. In some cases, unilaterally inserting one π unit at the symmetric ladder core can also produce asymmetry to the skeleton. Zhang et al. utilized the unilateral alkylthio-substituted thiophene unit to construct the asymmetric A-D-π-A acceptor IDST-4F [24]. Such structural alteration would induce the dipole change, reinforce the intermolecular interaction, redshift the absorption spectra and achieve a final high PCE of 14.3%. Notably, these devices, displaying improved storage and thermal stability, could retain 82% of the original PCE with no obvious morphological changes after thermal treatment at 150 ℃ for 1200 min. Via moving the phenyl to the lateral terminals, a further enhanced PCE of 15.45% could be achieved by WA1 [25].

Additionally, the unilateral incorporating heteroatom could also disrupt the skeleton symmetry along with the change of chemical constitution and electronic structure. Via the simple replacement of the sulfur atom with the selenium atom, Sun et al. reported a new asymmetric analogue to IDT and the corresponding asymmetric acceptor SePT-IN presents a bathochromic absorption spectrum, increased intermolecular π-π stacking and a decent PCE of 10.20% in relative to the symmetric counterpart [26]. In some cases, the incorporation of heteroatom is combined with the ring-fusion and side chain engineering. For example, Tang et al. [27] reported that the fusion of the thienopyrrole moiety with the IDT unit, which forms a new asymmetric IPT block with an alkyl side chain at the nitrogen atom, whose stronger dipole interactions trigger a closer lamellar packing. It is advantageous to fine-tune the morphology in the active layer for more efficient OSCs by using an S type molecule skeleton as this IPT-2F molecule and a more efficient OSCs with a high PCE of 14% is achieved. Afterwards, terminal derivation [28,29] and side chain engineering [30,31] were utilized on this pyrrole modified asymmetric core by several groups. High FF values above 70% are very common for these acceptors and PCEs of ~15% are achieved [28,32]. Zheng et al. synthesized the asymmetric MQ6 bearing a heteroheptacene core with one selenophene heterocycle, which can make best use of the enhanced O···Se noncovalent interaction without interference of the 3D network packing in relative to the symmetric counterpart, and a comparable PCE of 16.39% to Y-series acceptors is achieved [33].

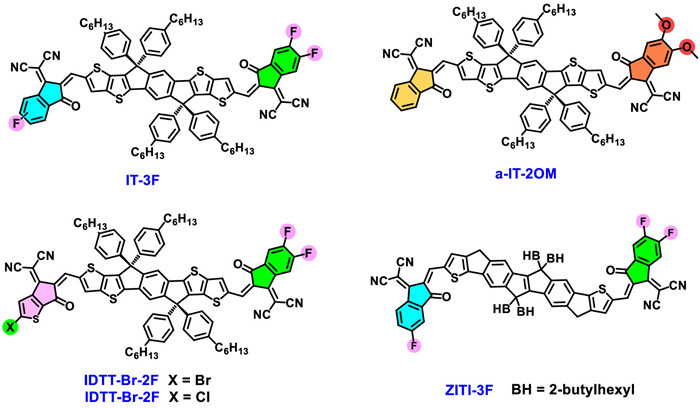

Side chain engineering and conjugated skeleton tailoring/fusion would produce conformation asymmetry in the final acceptor molecule and slightly change the electrostatic potential or dipole moment for the whole molecule. In the A-D-A type molecules, the whole and regional dipole moments of the molecules would impact the molecular interactions and aggregation [34] which is directly correlated to the acceptor moieties. Stronger intermolecular dipole interactions have been detected, formed by dipole-driven self-assembly in the NLO molecules previously. Consequently, it would be natural for the researchers to consider utilizing the terminal asymmetric strategy for the A₁-D-A₂ type acceptor molecule design as shown in Fig. 3. Hou et al. build the asymmetric molecule IT-3F with different F substitution number at each terminal [35] and the corresponding OSCs demonstrated a better photovoltaic performance with a PCE of 13.41% in relative to the symmetric counterparts of IT-2F and IT-4F. Song et al. adopted the consecutive addition method to construct the asymmetric a-IT-2OM, which combined the general 1,1-dicyanomethylene-3-indanone (IC) with the dimethoxy modified IC. Such molecular design enabled fine tuning of the regional and whole molecular dipole moments, enhancing the intermolecular interactions and achieving encouraging photovoltaic performances by a-IT-2OM even in thick film devices (>9% at thickness of 450 nm) [34]. Wang et al. developed asymmetric acceptors via utilizing the synergistic effect of asymmetry and halogenation, which shows the shallowest lowest unoccupied molecular orbital energy level and tight molecular packing from the molecular simulation. When blended with the polymer donors, IDTT-Cl-2F [36] and IDTT-Br-2F [37] based OSCs yield the PCEs of 12.1% and 13.3%, respectively. Zhu et al. reported an asymmetric A–D–A-type nonfullerene ZITI-3F based on the dithienocyclopentaindenoindene core [38]. A PCE of 13.15% was achieved by the J71:ZITI-3F based devices and further improved PCE of 13.85% was obtained by the “one-pot synthesized composite” due to the synergistic effect and electronic alloy nature of the symmetric and asymmetric moieties. In the meantime, the reversibility of end-group condensation for these asymmetric molecules has been noticed during the synthesis, which may aid the concise preparation of terminal diverse acceptors by one-pot reaction [39]. In short, different D-A terminal combinations would bring varied asymmetry and dipole moments to the whole molecule, ultimately impacting the intermolecular interactions, crystallization properties, blended microscopic morphology and charge transporting process. Though there are only a few A-D-A examples reported utilizing the asymmetric terminal strategy, it is proved to be the most efficient route in Y-series high-efficiency acceptor design (vide infra).

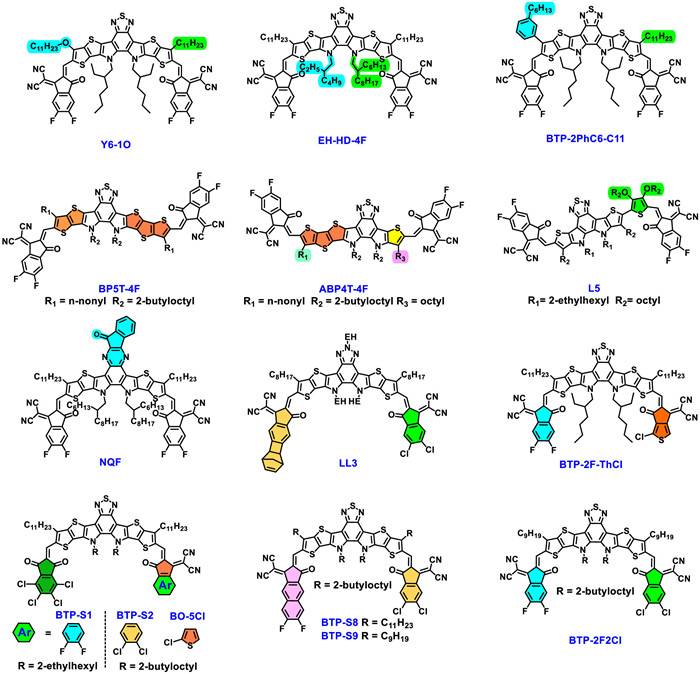

During the past three years, the fast advance of NFAs has revolutionized the field of OSCs and the photovoltaic performances have been significantly improved to near 19% since the Y-series acceptor have been explored. In the meantime, the three asymmetric strategies for molecular design are also employed during the Y-series acceptor construction as shown in Fig. 4. Yan et al. utilized the asymmetric alkyl and alkoxy terminal substitution strategy to balance the solubility and morphology of the final acceptor Y6–1O, which finally achieved a PCE of 16.1% and 17.6% in binary and ternary OSCs, respectively [40]. Huang et al. introduced asymmetric branched side chains at the nitrogen of the central core of EH–HD-4F, which efficiently affected the absorption spectra, induced more favorable face-on orientation, improved charge transport and reduced recombination losses, and a high PCE of 18.38% with a J_SC of 27.48 mA/cm² was accomplished by the photovoltaic devices [41]. As mentioned, asymmetric side chain modification on NFAs is an effective and promising method to realize high device efficiencies. Yang et al. developed an asymmetric side-chain functionalized Y typed analogues BTP-PhC6-C11 [42], which enables a 3D network with hydrogen bond assisted crystal packing. The enhanced electronic coupling, larger and more symmetric charge mobility, longer carrier lifetime and enhanced molecular packing guarantees the best photovoltaic performance for the blend based on BTP-PhC6-C11 with a PCE of 18.33%.

Aiming at the ladder core, Jen et al. built asymmetric Y-type acceptors through shearing or fusing one more thiophene unit at the terminal of π-conjugated skeleton and two distinct molecular conformations (Z-shape and W shape) for NFAs (BP5T-4F and ABP4T-4F) [43] are obtained, which could achieve appropriate micromorphology, suppress the nonradiative recombination loss and give high PCEs of 16.7% and 15.2%, respectively. Bo et al. unilateral introduced a thiophene alkoxy units resulting in an asymmetric skeleton of L5, which endows the acceptor with a slightly twisted molecular conformation in solution but a planar one in the solid state. Such dynamic transformation properties facilitate the good processability in solution while maintaining a dense molecular packing in a thin film. Hence, the binary as-cast devices based on L5 generate a high PCE of 15.2% and ternary devices of PM6:L5:Y6 achieved a higher PCE of 17.14% [44]. Recently, researchers also noticed that high nonradiative recombination energy loss (ΔE_nr) is one of the significant factors that limit efficiencies of organic solar cells (OSCs), Chen et al. developed an acceptor NQF with an asymmetric and extended conjugation at the central electron deficient core [45]. The asymmetry in NQF increases the dipole moment of the acceptor and strengthen the rigidity of the molecule, resulting in a high-power conversion efficiency (PCE) of 17.57% with a rather low ΔE_nr of 0.177 eV.

As mentioned above, the asymmetric electron terminals would create permanent dipoles in the A-D-A type NFAs and tune the molecular stacking. Very recently, Bo et al. developed a three-dimensional shape-persistent CBIC terminal group to pair with the chlorinated IC terminal groups and an asymmetric acceptor LL3 could be constructed. The novel LL3 design could effectively improve the solubility and regulated the molecular packing mode as well, which finally reaches a PCE of 16.83% [46]. Through utilizing the thiophene fused terminal (CPTCN—Cl) at one end in BTP-2F-ThCl, a minimal energy offset and sufficient charge separation could be achieved, which realizing a PCE approaching 17% with a balance between V_OC and J_SC [47]. Chen et al. demonstrated highly efficient OSCs with improved luminescence via the introduction of electron-poor terminals in the asymmetric acceptor molecules BTP-S1, BTP-S2 [48] and BO-5Cl, which generates dual nature of the interfacial electronic states and brings combined low non-radiative voltage losses and high charge generation efficiency when the resulted acceptor was used as the third component [49,50]. Encouragingly, some other terminal functionalized asymmetric guest acceptors as BTP-2F2Cl [9] and BTP-S9 [8] could achieve high PCEs around 19% due to the improved the exciton behaviors and reduced energetic disorder, respectively. Additionally, not only the experimental results demonstrate the photovoltaic performance improvement for the asymmetric Y-series acceptors, quantum chemistry prediction also confirms that these asymmetric acceptors possess enhanced light absorption ability, improved interfacial properties with more CT states and strong interactions with the donor [51], contributing to such excellent photovoltaic performances.

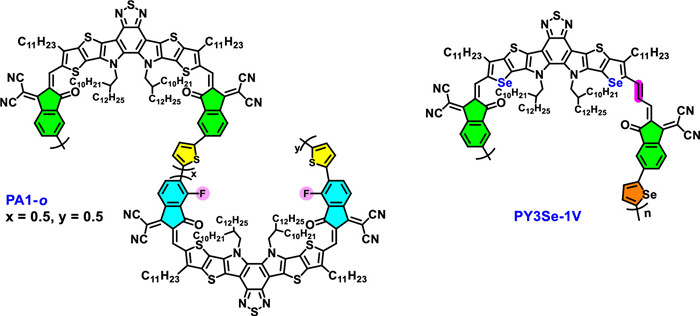

In the field of electron acceptors, polymer counterpart as another potential branch attracted more attention in organic photovoltaics. Recently, Li et al. conceived a new strategy for NFAs design via polymerizing the small molecular acceptors (PSMAs) and the widely used monomers are from Y-series acceptors, which achieves good film quality, stable morphology, high absorption coefficients and high photovoltaic performance. During the PSMAs design, they also borrowed the asymmetric concept from small molecular NFAs (Fig. 5). For example, Li et al. developed an asymmetry concept for PA1-o [52] design via random polymerization of two different symmetric SMA building blocks with a thiophene linking unit. The PM6:PA1-o-based all-PSC achieved the highest PCE of 16.0%, suggesting that asymmetric copolymerization is an effective strategy for synthesizing high-performance PSMAs. Jen et al. adopted a vinylene-inserted asymmetric monomer for the preparation of PSMA, PY3Se-1V [53], whose absorption onset reached 1000 nm. Due to the enhanced electron-donating ability and quinoidal character of such a DA'D-V-type core, the corresponding asymmetric PY3Se-1V with an ultra-low bandgap of 1.25 eV still maintains a moderate LUMO energy level of −3.90 eV and the corresponding all-PSCs based on PBDB-T:PY3Se-1V achieved a high PCE of 13.2%. Both examples demonstrate the asymmetric strategy could be transplanted to the polymeric PSMAs design for high performance of all polymer solar cells.
