Engineering J-aggregates for NIR-induced meso-CF₃-BODIPY nanoparticles by activated apoptosis mechanism in photothermal therapy

Full

Chujing Ye^a^,¹, Shan Zhang^b^,¹, Dongxiang Zhang^a^,¹, Yue Shen^a, Zhan Wang^b, Huan Wang^b, Junyi Ren^b, Xin-Dong Jiang^a, Jianjun Du^c^,^*, Rong Shang^d, Guiling Wang^b^,^*

Affiliations

^a Liaoning & Shenyang Key Laboratory of Functional Dye and Pigment, Shenyang University of Chemical Technology, Shenyang 110142, China

^b Department of Cell Biology, China Medical University, Shenyang 110122, China

^c State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian 110624, China

^d Department of Chemistry, Graduate School of Science, Hiroshima University, Higashi-Hiroshima 7398526, Japan

Published: 2023-09-15 doi: 10.1016/j.cclet.2023.108223

Outline

Abstract

Less

Forming J-aggregates by organic monomer is a fascinating strategy to urge spectroscopic redshift with respect to that of the monomer. Herein, we designed 1,7-diphenyl-substituted meso–CF₃-BDP monomer confirmed by X-ray crystallographic analysis. The low-barrier rotation of the –CF₃ group in meso–CF₃-BDP 1 significantly enhances the non-radiative efficiency, and the photothermal conversion efficiency (PCE) of the self-assembled nanoparticles (1-NPs: λ_abs = 746 nm) by J-aggregates was 82%. 1-NPs could effectively block cell cycle progression, inhibit cancer cell proliferation and trigger cell apoptosis under low power laser irradiation (0.2 W/cm²). This study proposes an alternate molecular design platform by J-aggregates to promote PCE through the insertion of rotating segment and trigger the cancer cells apoptosis in photothermal therapy at low power laser density.

Key words

NIR dye / J-aggregate / CF₃-BODIPY / Photothermal therapy / Cell apoptosis

Cite this Article

Chujing Ye, Shan Zhang, Dongxiang Zhang, Yue Shen, Zhan Wang, Huan Wang, Junyi Ren, Xin-Dong Jiang, Jianjun Du, Rong Shang, Guiling Wang. Engineering J-aggregates for NIR-induced meso-CF₃-BODIPY nanoparticles by activated apoptosis mechanism in photothermal therapy[J]. Chinese Chemical Letters, 2023 , 34 (9) : 108223 - . DOI: 10.1016/j.cclet.2023.108223

Full Text

Less

Cancer phototherapy refers to the utilization of photon-energy to implement the tumor ablation, mainly involving photodynamic therapy (PDT) and photothermal therapy (PTT), which had been emerged as cancer treatment approach following surgery, chemotherapy and radiotherapy. Compared with other cancer therapies, phototherapy holds great promise for precisely navigating at the lesion site for diagnostic therapy, non-tissue invasiveness, high treatment efficiency and anti-drug resistance [1–6]. Strong absorption of the near-infrared (NIR) photon with high penetration of tissue, and efficient conversion to heat energy through non-radiative decay are critical factors for constructing photothermal agents (PTAs) [7–13]. Compared with the molecular engineering strategy of extending π-π conjugated structure or inserting electron-donating/withdrawing groups, the J-aggregate by organic monomer endowed it attractively optical properties, such as spectroscopic bathochromic shift, high photobleaching resistance, strong light-harvesting feature [14–18]. J-aggregates demand slip-stacked alignment (θ < 54.7°), but currently there are few reports about J-aggregates of cyanine, chlorophyll, perylenediimide, squaranine dye and borondipyrromethene (BODIPY or BDP) [19–23]. Owing to the excellent spectral characters of BODIPY, such as high molar extinction coefficients, outstanding photostability and easy modification, it is urgent to conduct a thorough analysis for the crystal aggregation structure of BODIPY, and explore light-induced application, especially in the field of biomedical therapeutics [24–27].

In contrast with PDT, PTT is not restricted by the hypoxic of the tumor microenvironment. Whereas, PTT usually undergoes the necrosis, which may impair the treatment outcomes by triggering pro-inflammatory responses and promoting tumor growth [8]. By molecular design and photoexcitation condition, PTT can also be modulated to induce apoptosis rather than necrosis, which is significative since apoptosis prevented an inflammatory response. Above all, PTT is an efficient, non-invasive treatment method that overcomes hypoxia restriction and inflammation [28]. The relaxed molecules in the lowest vibrational level of the excited state can undergo one or more of the three paths, that is, non-radiative transition, radiative transition (fluorescence emission) and intersystem crossing (ISC), to return to the ground state. In this regard, three pathways compete with each other, and it is pivotal to effectively inhibit the other two processes for improving non-radiative relaxation, which is conducive for PTT. In short, integrating high photothermal conversion efficiency (PCE), deep tissue penetration and excellent photostability for the ideal PTAs are vital [29–33].

To enhance PCE, researchers constructed various structural BODIPYs, which are often involved in intramolecular charge transfer (ICT), photoinduced electron transfer (PET), rotating segments and so forth. For instance, Ma et al. showed a BODIPY-based PTA, enhanced phototherapeutic performance of which is resulted from the reduction of radiation transition by ICT [34]. Based on PET to quench the fluorescence, Huang et al. reported dimethylamino-substituted aza-BODIPY with a moderate PCE (η = 35%) [35]. Especially, the low-barrier rotation strategy of a bulky group (such as –CF₃, –tBu) is employed to directly promote non-radiative decay. In 2017, our group prepared NIR-absorbing meso-CF₃-BODIPYs by one-pot synthesis for the first time and reveal the property of non-fluorescent emission [36]. In 2019, Xi et al. successfully discovered the highest PCE (η = 88.3%) of this meso-CF₃-BODIPY [37]. Very recently, our group successfully synthesized 1,7-di -tert-butyl-substituted aza-BODIPY for the first time [38]. Although the low-barrier rotation of the distal –tBu groups in aza-BODIPY results in low quantum yield, the PCE (η = 48%) is remarkably enhanced [38]. Thereby, by restricting fluorescence and ISC, the enhancement of PCE could be achieved by high-efficiency non-radiative decay [39]. Herein, to understand the influence of the –CF₃ rotation effect on non-radiation attenuation profoundly, 1,7-diphenyl-substituted meso-CF₃-BODIPY (namely meso–CF₃-BDP) was designed (Fig. 1a). The crystal structure showed obvious slip-stacked alignment (θ = 24°), and the dye nanoparticles constituted by self-assembly emerged obvious bathochromic-shift (λ_abs = 746 nm) due to J-aggregates. In addition, the low-barrier rotation of the –CF₃ group can directly promote non-radiative decay. Self-assembled meso–CF₃-BDP 1 nanoparticles (namely 1-NPs) showed excellent PCE (η = 82%), which is highly desirable for an effective and potential tumor PTA. Although the photothermal radiation with different photon intensity is acquainted by trigger cell death through either necrosis or apoptosis [40], PTT is usually engaged in necrosis mechanism. In contrast, PTT caused by apoptosis pathway is rarely reported [40,41]. Furthermore, based on American National Standard for Safe Use of Lasers Outdoors, the maximum permissible exposure (MPE) for skin exposure is 0.2 W/cm² at the 635 nm laser. Hence, the safe PTT at low power laser density should be advocated and could be involved in the apoptosis mechanism. In this work, 1-NPs fabricated by J-aggregates could induce the cancer cells death at low laser power density by triggering the apoptosis mechanism, which is fascinating since apoptosis discourages an inflammatory response (Fig. 1b). As a result, this study proposes an alternate molecular design platform by J-aggregates to enhance PCE through the insertion of rotating segment (–CF₃) and trigger the cancer cells apoptosis in PTT under low power laser irradiation.

Based on the synthetic method pioneered by our group [36], one-pot synthesis of meso–CF₃-BDP 1 is achieved in 43% yields, as shown in Scheme S1 (Supporting information). In a sharp contrast, the contrastable dye meso–H-BDP 3 (H-substitute at meso-site) was also prepared (Scheme S1 and Figs. S1–S5 in Supporting information). Moreover, the solid state structures of BDPs 1–3 were confirmed by X-ray crystallographic analysis (Fig. 2a). The sp³ hybridized boron center in meso–CF₃-BDP 1 appeared as slightly distorted tetrahedron geometry with angles N1-B1-N2 of 108.15(19)° and F1-B1-F2 of 111.2(2)°, deviating from the ideal value of 109.5° In a stark comparison with meso–H-BDP 3 (the dihedral angles of C29-C28-C15-C14: 137.6°; C35-C34-C11-C12: 134.3°), the dihedral angles of C14-C9-C1-C8 and C31-C30-C23-C21 in meso–CF₃-BDP 1 were small and measured to be 126.4° and 134.7°, respectively. Moreover, the smaller dihedral angles of C12-C11-C2-C1 and C29-C24-C7-C6 in meso–CF₃-BDP 2 (non-ring-fused configuration) were also observed to be 107.1° and 125.2°, respectively [36]. Therefore, the 1,7-diphenyl torsion is mainly due to the steric hindrance from the introduction of the meso-CF₃ group, which meanwhile provides the enough space for the rotation of the –CF₃ group at meso-site. Moreover, the electrostatic potential (ESP) maps for 1–3 in the gas phase were also investigated (Fig. 2b). The negative charges (red color) were mainly concentrated on the fluorine atoms and oxygen atoms of BODIPY units, including the –CF₃ group. In contrast, the positive charges (blue color) were evenly distributed in the remaining positions. These results demonstrated the uneven charge distribution and the significant structural distortion of BODIPY, which is beneficial for the rotation energy-releasing of the –CF₃ group.

To gain insight into the photophysical properties of meso–CF₃-BDPs, the absorption and emission spectra for BDPs 1–3 were measured and outlined in Fig. 3a and Table S1 (Supporting information). Compared to the spectroscopic information for corresponding dye meso–H-BDP 3 (λ_abs/λ_em = 658/687 nm, ϕ_f = 0.55), the introduction of the electron-withdrawing group (–CF₃) leads to a remarkable bathochromic shift (74 nm) of meso–CF₃-BDP 1 (λ_abs = 732 nm), the absorption maximum of which locates at the NIR region. However, meso–CF₃-BDP 1 was astoundingly found to exhibit no fluorescence character. The lack of fluorescence signal indicates the excited state decays through non-radiative pathways and results in highly efficient PCE. In comparison with meso–H-BDP 3 (ε = 140,000 L mol⁻¹ cm⁻¹; FWHM: 36 nm), meso–CF₃-BDP 1 has higher molar extinction coefficients (155,000 L mol⁻¹ cm⁻¹) and wider full width at half maxima (FWHM: 52 nm) which is mainly caused by the drastic vibration of the –CF₃ fragment. Additionally, the band gaps (LUMO/HOMO) were calculated to be 2.07, 2.23 and 2.30 eV for BDPs 1–3, respectively (Fig. S6 in Supporting information). All the theoretical calculation results well explained and supported the difference of absorption maxima. Furthermore, in order to reveal the obstruction of the rotating segment, the effect of viscosity on the fluorescence by using different concentrations of glycerol was further investigated (Figs. 3b and c). Generally, the substituent rotation can be leastwise restricted in viscous media, and the corresponding fluorescence enhancement should be observed [42–45]. Comparing to the remarkable fluorescence enhancement of meso–H-BDP 3, no obvious change in fluorescence intensity was observed for meso–CF₃-BDP 1 in the mixture of glycerol and methanol in different proportions (Figs. 3b and c). This was attributed to the "low-barrier" rotation of the –CF₃ group (Fig. S7 in Supporting information). Comparing to meso–H-BDP 3, the smaller dihedral angles in meso–CF₃-BDP 1 dodges the steric hindrance between the 1,7-diphenyl groups and the meso-CF₃ group to exactly provide the space for the low-barrier rotation of the –CF₃ group (Fig. 2a). Moreover, we also calculated the rotated potential energy barrier of the –CF₃ group in meso–CF₃-BDP 1, as picked in Fig. 3d. The energy maxima in meso–CF₃-BDP 1 are 26.3 kJ/mol, indicating the low-barrier rotation of the –CF₃ group in this molecule. As a result, the –CF₃ rotation in meso–CF₃-BDP 1 significantly increases the non-radiative efficiency.

We further investigated singlet oxygen generation of meso–CF₃-BDPs 1 and 2 to inspect the ISC process. By utilizing 1,3-diphenylisobenzofuran (DPBF), a singlet oxygen (¹O₂) indicator, the efficiency of ¹O₂ generation was evaluated by detecting the decrease of DPBF indicator absorbance at 416 nm [46,47]. Based on the slope coefficient of the decay lines, the ¹O₂ yields of meso–CF₃-BDPs 1 and 2 were so low and calculated to be 0 and 0.006 respectively (Fig. S8 in Supporting information), indicating that ISC is basically prohibited.

Since we preliminarily probed the key data of fluorescence (ϕ_f = 0) and ¹O₂ yield (ϕ_Δ = 0) of this novel dye meso–CF₃-BDP 1, such information urges us to further explore the insight into the photothermal conversion capacity. To enhance the water solubility and biocompatibility of meso–CF₃-BDP 1 for application in photoimaging and phototherapy in biological system, meso–CF₃-BDP 1 and amphipathic polymer material 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[methoxy(polyethylene glycol)−2000] (DSPE-PEG₂₀₀₀) were self-assembled into dye nanoparticles (abbreviated 1-NPs) [48–50]. To confirm the molecular design concept, the molecular packing mode of meso–CF₃-BDP 1 via single-crystal structure analysis was firstly investigated (Fig. 4a). In the single-crystal structure, the C—H…F hydrogen bond (2.677 Å) between the –OMe group and the –BF₂– group, and the C—H…F hydrogen bond (2.514 Å) between the –Ph group and the –BF₂– group dominate the molecular packing structure of meso–CF₃-BDP 1 (Fig. 4b), which facilitates the J-aggregation packing mode. The slipping angle and the distance between each molecule are determined to be 24° and ~3.6 Å, respectively (Fig. 4b). Based on transmission electron microscopy (TEM) photograph, their sizes were less than 110 nm (Fig. 4e). Moreover, dynamic light scattering (DLS) of 1-NPs showed a suitable hydrodynamic diameter (10–110 nm) in Fig. 4d, and the average hydrodynamic diameter and the polydispersity index (PDI) were about 56.35 nm and 0.215. The prepared 1-NPs in aqueous solution are stable for two weeks (Figs. 4f and g). Owing to the J-aggregation effect (Fig. 4c), the absorption maximum (λ_abs = 746 nm) of 1-NPs in aqueous solution bathochromically shifted 14 nm and its absorption band covered the ranges of the NIR region (650–900 nm) and became wider [14,17], comparing to those (650–800 nm) of 1 in CH₂Cl₂ (Fig. 4 h) [51].

To discover the photothermal efficacy of hydrosoluble 1-NPs (Figs. S9 and S10 in Supporting information), the temperature elevation of the multiple concentrations ranging from 20 µmol/L to 80 µmol/L 1-NPs were recorded in the presence of 690 nm laser irradiation (0.6 W/cm²) (Fig. S9a). As revealed in Figs. S9a and b, 80 µmol/L 1-NPs exhibited a intense photothermal conversion ability (∆T = 55.5 ℃) upon photon-irradiation (0.6 W/cm² in 5 min), comparing to those (∆T = 27.5 ℃ for 20 µmol/L; ∆T = 36.1 ℃ for 40 µmol/L) in the low concentration, suggesting that temperature augment is concentration dependent. Thus, we further discussed the temperature enhancement under different illumination of 80 µmol/L 1-NPs, and found that the stronger the radiation intensity, the higher temperature enhancement (∆T = 28.9 ℃ in 0.2 W/cm²; ∆T = 39.4 ℃ in 0.4 W/cm²; ∆T = 55.5 ℃ in 0.6 W/cm²) (Fig. S9c). Therefore, higher concentration and stronger laser radiation are feasible for photothermal conversion process. 1-NPs showed an outstanding photothermal conversion during three heating–cooling cycles, approving the possibility of reuse (Fig. S9d). The PCE of 1-NPs was established by acquiring the temperature response of the heating and cooling curves (Fig. S9e), as revealed in Fig. S9f (τ = 129 s). The PCE value (η) of 1-NPs was calculated to be 82%, which was much higher than that of the commercialized PTAs indocyanine green (ICG) NPs (η = 17.3%) [52,53], Au nanorods (η = 21%) [54] and was inferior to the highest one (η = 88.3%) [37].

To further explore the biological compatibility and potential inhibiting cancer cells effect of 1-NPs, the double-staining kit calcein AM (stains live cells with green fluorescence presented) and prodium iodide (PI, stains dead cells with red fluorescence presented) was applied to demonstrate the effectiveness of 1-NPs with low-power photon-irradiation on cancer cell viability. As displayed in column 4 of Fig. S11 (Supporting information), 1-NPs induced death of gastric cancer cells SGC-7901, exhibiting a significant red fluorescence, suggesting cell death state under laser treatment. In contrast, control group, sole laser-treated or sole 1-NPs-treated groups had distinct green fluorescence, demonstrating no phototherapy effect for killing cancer cells. These results exhibited that cancer cells destroyed by 1-NPs with laser irradiation (690 nm, 0.2 W/cm²) was observed on the premise of ensuring biosafety.

To deeply research the triggering mechanism of 1-NPs under photo-mediated on cancer cell death, then, flow cytometry on SGC-7901 cells was performed. In comparison to the other groups, the cells treated with 1-NPs plus low power laser irradiation (690 nm, 0.2 W/cm²) displayed a reduction in the stage of DNA synthesis phase (S phase), indicating that 1-NPs intercepted cancer cell proliferation, block cancer cell cycle progression caused by laser irradiation, as shown in Fig. 5a [55–57]. Meanwhile, Fig. 5b evaluated that the percentage of apoptotic cells increased from 14.42% to 54.33% after treatment with 1-NPs imposed laser irradiation, cells treated with 1-NPs alone or light irradiation alone showed lower apoptosis rates, demonstrating the valid competence of 1-NPs to induce cancer cells apoptosis under light-responsive. The effect of 1-NPs with NIR laser irradiation on cycle and apoptosis related factors was further verified in SGC-7901 cancer cell by real-time polymerase chain reaction (RT-qPCR) and Western blot at both RNA and protein levels as shown in Figs. 5c and d and Fig. S12 (Supporting information). Over expression of Cyclin D1 resulted in cell cycle disorder and uncontrolled cancer cell growth, the decreased expression level of Cyclin D1 indicated that treatment with 1-NPs plus 690 nm laser irradiation induced cancer cell cycle stagnation, and suppressed cancer cell proliferation [58]. Meanwhile, Bcl-2 is a negative factor of cell apoptosis and Bax is a positive regulator of apoptosis [59,60]. As shown in Figs. 5c and d, executing light-treated in the 1-NPs groups, the RNA and protein levels of Bax increased, while the RNA and protein levels of Bcl-2 decreased, indicating that the photothermal therapeutic effect of 1-NPs can trigger apoptosis in cancer cells. The above results are in high consistency with those of AM/PI co-stained experiments, indicating that 1-NPs upon low-power laser irradiation effectively restrains cell cycle progression, triggers cell apoptosis factors, and inhibits cancer cell proliferation. Thus, the design principle for 1-NPs obtained the probability of a NIR PTA for cancer treatment.

In conclusion, one-pot synthesis of 1,7-diphenyl subsitituted meso–CF₃-BDP was achieved in 43% yields. The low-barrier rotation of the –CF₃ group in meso–CF₃-BDP remarkably increases the non-radiative efficiency, and the photothermal conversion efficiency of the self-assembled nanoparticles (1-NPs : λ_abs = 746 nm) by J-aggregates based on X-ray crystallographic analysis was 82%. 1-NPs plus low power laser irradiation (0.2 W/cm²) could effectively block cell cycle progression, inhibit cancer cell proliferation and trigger cell apoptosis. Therefore, this study proposes an alternate molecular design platform by J-aggregates to promote PCE through the introduction of rotating segment and trigger the cancer cells apoptosis in PTT at low power laser density.

Declaration of competing interest

Less

The authors declare no conflict of interest.

Acknowledgments

Less

This work was supported by the National Natural Science Foundation of China (Nos. 22078201, U1908202), Natural Science Foundation of Liaoning (No. 2021NLTS1206), Serving Local Project of Education Department of Liaoning Province (No. LZ2020005), Liaoning & Shenyang Key Laboratory of Functional Dye and Pigment (Nos. 2021JH13/10200018, 21-104-0-23) and the Distinguished Professor Project Liaoning Province (No. 20183532).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108223.

References

Less

[1]

J. Li, M. Zhang, Y. Yang, et al., Chin. Chem. Lett. 32 (2021) 3865–3869.

[2]

X. Zhao, M. Li, W. Sun, et al., Chem. Commun. 51 (2018) 7038–7041.

[3]

K. Han, S. Wang, Q. Lei, J. Zhu, X. Zhang, ACS Nano 10 (2015) 10268–10277.

[4]

J. Gao, J. Li, W. Geng, et al., J. Am. Chem. Soc. 140 (2018) 4945–4953.

[5]

D. Ni, C.A. Ferreira, T.E. Barnhart, et al., J. Am. Chem. Soc. 140 (2018) 14971–14979.

[6]

Q. Ma, X. Sun, W. Wang, et al., Chin. Chem. Lett. 33 (2022) 1681–1692.

[7]

H. Jung, P. Verwilst, A. Sharma, et al., Chem. Soc. Rev. 47 (2018) 2280–2297.

[8]

Y. Liu, P. Bhattarai, Z. Dai, X. Chen, Chem. Soc. Rev. 48 (2019) 2053–2108.

[9]

X. Zhen, C. Xie, K. Pu, Angew. Chem. Int. Ed. 57 (2018) 3938–3942.

[10]

R. Chen, J. Wang, H. Qiao, Prog. Chem. 29 (2017) 329–336.

[11]

A. Turksoy, D. Yildiz, E.U. Akkaya, Coord. Chem. Rev. 379 (2019) 47–64.

[12]

Y. Chen, Y. Su, S. Hu, S. Chen, Adv. Drug Deliv. Rev. 105 (2016) 190–204.

[13]

Y. Yang, W. Zhu, Z. Dong, et al., Adv. Mater. 29 (2017) 28833643.

[14]

K. Li, X. Duan, Z. Liu, et al., Nat. Commun. 12 (2021) 2376.

[15]

Y. Wang, D. Zhang, K. Xiong, R. Shang, X.D. Jiang, Chin. Chem. Lett. 33 (2022) 115–122.

[16]

D. Zhang, M. Xiong, Q. Yang, et al., Chem. Commun. 58 (2022) 10060–10063.

[17]

X. Wang, Z. Jiang, Z. Liu, et al., Sci. Adv. 8 (2022) eadd5660.

[18]

D. Wang, G. Wang, K. Liu, et al., Chin. Chem. Lett. 33 (2022) 2532–2536.

[19]

P. Sun, Q. Wu, X. Sun, et al., Chem. Commun. 54 (2018) 13395–13398.

[20]

W. Chen, C.A. Cheng, E.D. Cosco, et al., J. Am. Chem. Soc. 141 (2019) 12475–12480.

[21]

C. Sun, B. Li, M. Zhao, et al., J. Am. Chem. Soc. 141 (2019) 19221–19225.

[22]

S. Yagai, T. Seki, T. Karatsu, A. Kitamura, F. Würthner, Angew. Chem. Int. Ed. 47 (2008) 3367–3371.

[23]

Z. Liu, Y. Zheng, T. Xie, et al., Chin. Chem. Lett. 32 (2021) 3862–3864.

[24]

T. Zhang, X. Ma, H. Tian, Chem. Sci. 11 (2020) 482–487.

[25]

T. Cheng, T. Wang, W. Zhu, et al., Org. Lett. 13 (2011) 3656–3659.

[26]

F. Wang, Z. Guo, X. Li, X. Li, C. Zhao, Chem. Eur. J. 20 (2014) 11471–11478.

[27]

H. Dai, Z. Cheng, T. Zhang, et al., Chin. Chem. Lett. 33 (2022) 2501–2506.

[28]

B. Tian, S. Liu, L. Feng, et al., Adv. Funct. Mater. 31 (2021) 2100549.

[29]

T. Sun, J. Dou, S. Liu, et al., ACS Appl. Mater. Interfaces 10 (2018) 7919–7926.

[30]

W. Dou, F. Xu, C. Xu, et al., Chem. Sci. 12 (2021) 11089–11097.

[31]

W. Sun, X. Zhao, J. Fan, J. Du, X. Peng, Small 15 (2019) 1804927.

[32]

B. Hu, Z. Zhao, X. Gao, et al., J. Mater. Chem. B 9 (2021) 8832–8841.

[33]

P. Gao, H. Wang, Y. Cheng, Chin. Chem. Lett. 33 (2022) 575–586.

[34]

C. Ma, T. Zhang, Z. Xie, J. Mater. Chem. B 9 (2021) 7318–7327.

[35]

Y. Xu, T. Feng, T. Yang, et al., ACS Appl. Mater. Interfaces 10 (2018) 16299–16307.

[36]

X.D. Jiang, T. Fang, X. Liu, D. Xi, Eur. J. Org. Chem. 34 (2017) 5074–5079.

[37]

D. Xi, M. Xiao, X. Peng, et al., Adv. Mater. 11 (2020) 1907855.

[38]

Y. Su, Q. Hu, D. Zhang, et al., Chem. Eur. J. 28 (2022) 202103571.

[39]

B. Zheng, Q. He, X. Li, J. Yoon, J. Huang, Coord. Chem. Rev. 426 (2021) 213548.

[40]

J.R. Melamed, R.S. Edelstein, E.S. Day, ACS Nano 9 (2015) 6–11.

[41]

M. Perez-Hernandez, P.D. Pino, S.G. Mitchell, et al., ACS Nano 9 (2015) 52–61.

[42]

S.C. Lee, J. Heo, H. Woo, et al., Chem. Eur. J. 24 (2018) 13706–13718.

[43]

L. Zhu, W. Lin, Sens. Actuators B: Chem. 352 (2022) 131042.

[44]

W. Chi, Q. Qiao, R. Lee, et al., Angew. Chem. Int. Ed. 21 (2019) 7073–7077.

[45]

L. Wang, Y. Xiao, W. Tian, L. Deng, J. Am. Chem. Soc. 135 (2013) 2903–2906.

[46]

C.M. Krishna, Y. Lion, P. Riesz, Photochem. Photobiol. 45 (1987) 1–6.

[47]

J.R. Kanofsky, Photochem. Photobiol. 87 (2011) 14–17.

[48]

S. Atifi, M.N. Mirvakili, C.A. Williams, et al., Adv. Mater. 34 (2022) 2109170.

[49]

F. Xia, A. He, H. Zhao, et al., ACS Nano 16 (2022) 169–179.

[50]

C. Fan, T. Bian, L. Shang, et al., Nanoscale 8 (2016) 3923–3925.

[51]

E.E. Jelly, Nature 138 (1936) 1009–1010.

[52]

M. Zheng, P. Zhao, Z. Luo, et al., ACS Appl. Mater. Interfaces 6 (2014) 6709–6716.

[53]

D. Gao, B. Zhang, Y. Liu, et al., Theranostics 9 (2019) 5315–5331.

[54]

C.M. Hessel, V.P. Pattani, M. Rasch, et al., Nano Lett. 11 (2011) 2560–2566.

[55]

Z. Wang, Cells 10 (2021) 3327.

[56]

J. Hartl, P. Kiefer, A. Kaczmarczyk, et al., Nat. Metab. 2 (2020) 153–166.

[57]

J. Lin, M.A. Milhollen, P.G. Smith, U. Narayanan, A. Dutta, Cancer Res. 70 (2010) 10310–10320.

[58]

M. Hirayama, F. Wei, T. Chujo, et al., Cell Rep. 31 (2020) 107464.

[59]

X. Feng, Y. Yu, S. He, et al., Cancer Lett. 385 (2017) 12–20.

[60]

A.C. Timucin, H. Basaga, O. Kutuk, Med. Res. Rev. 39 (2019) 146–175.

Appendix

Less

Year 2023 volume 34 Issue 9

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2023.108223

Receive Date：2022-11-27
Online Date：2025-11-21
Published：2023-09-15

Article Data

Affiliations

History

Received：2022-11-27
Revised：2023-02-06
Accepted：2023-02-10

Affiliations

^a Liaoning & Shenyang Key Laboratory of Functional Dye and Pigment, Shenyang University of Chemical Technology, Shenyang 110142, China

^b Department of Cell Biology, China Medical University, Shenyang 110122, China

^c State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian 110624, China

^d Department of Chemistry, Graduate School of Science, Hiroshima University, Higashi-Hiroshima 7398526, Japan

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2023.108223

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

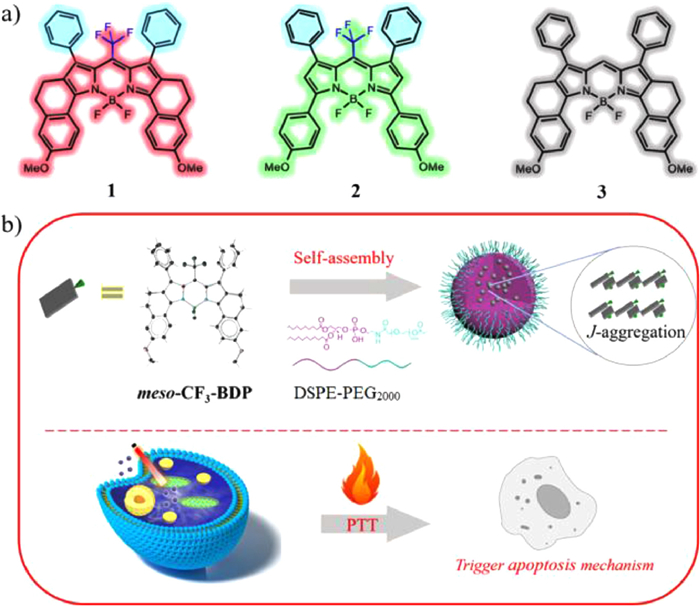

Fig. 1. (a) Structures for BDPs 1–3. (b) Design strategies of self-assembling nanoparticles and application of light triggering apoptosis.

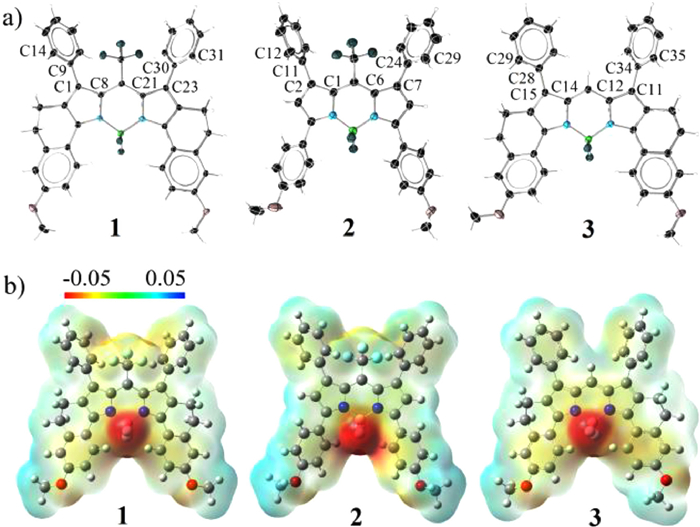

Fig. 2. (a) ORTEP drawing of BDPs 1–3 (CCDC: 2189483 for 1; 1547540 for 2 [36]; 2189484 for 3). The dihedral angles: C14-C9-C1-C8: 126.4(3)°, C31-C30-C23-C21: 134.7(3)° for 1; C12-C11-C2-C1: 107.1(5)°, C29-C24-C7-C6: 125.2(6)° for 2; C29-C28-C15-C14: 137.6(3)°, C35-C34-C11-C12: 134.3(3)° for 3. (b) ESP distribution diagram of BDPs 1–3.

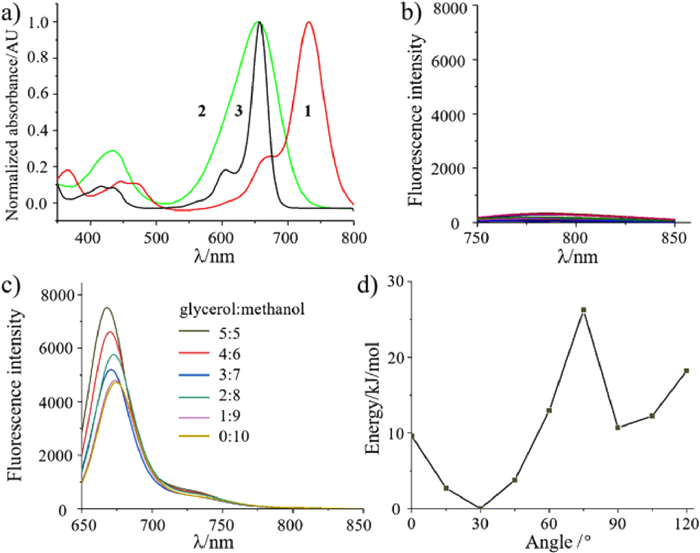

Fig. 3. (a) Normalized absorption spectra of BDPs 1 (red), 2 (green) and 3 (black) in CH₂Cl₂ at 298 K. (b, c) Emission changes of BDPs 1 and 3 in different concentrations of glycerol/methanol (v/v: 0:10; 1:9, 2:8, 3:7, 4:6 and 5:5) solution. (d) Energy levels of the S₀ states of chemical bond for BDP 1 with the dihedral angle θ (Scheme S1).

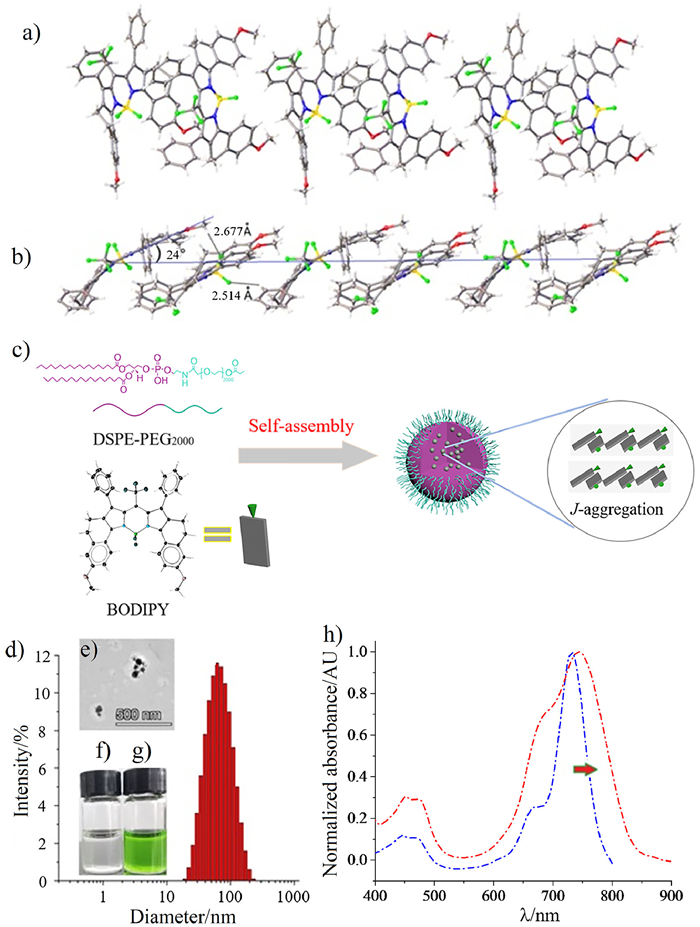

Fig. 4. Molecular packing diagram of (a) front view and (b) side view for meso-CF₃-BDP 1. (c) Self-assembly of meso-CF₃-BDP 1. (d) DLS and (e) TEM of 1-NPs in aqueous solution. (f) Photo of pure water. (g) Photo of 1-NPs in water. (h) Normalized absorption of 5 µmol/L meso-CF₃-BDP 1 (blue curve) in CH₂Cl₂ and 20 µmol/L 1-NPs in water (red curve).

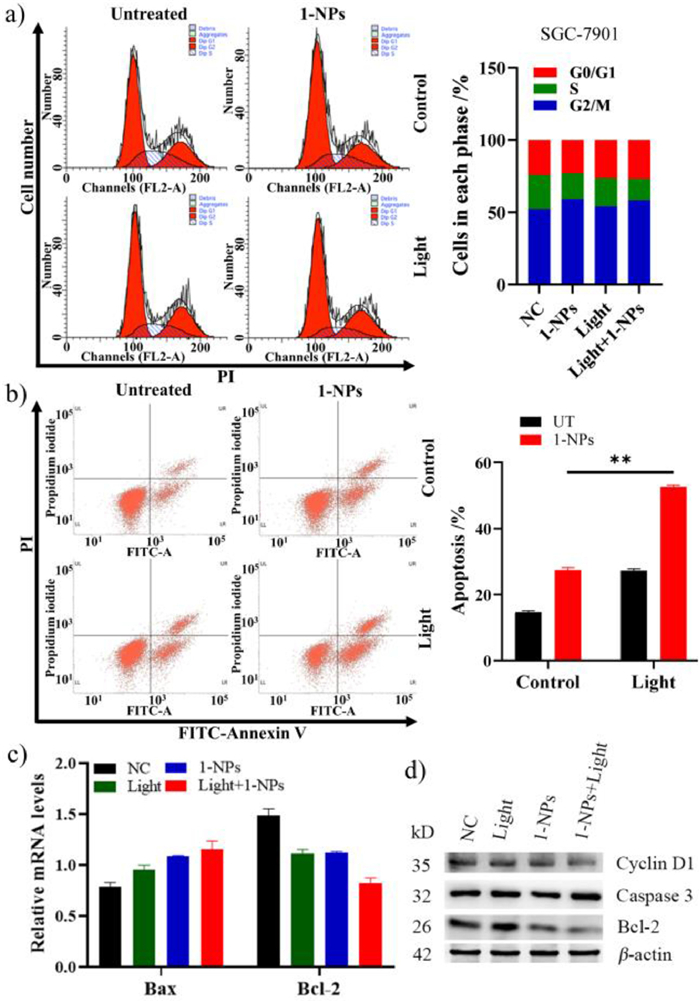

Fig. 5. (a) Cell cycle analysis using flow cytometry in SGC-7901 cells. NC: negative control. (b) Apoptosis analysis using flow cytometry in SGC-7901 cells. ** P < 0.01, n = 2. t-test. All data were shown as mean ± standard deviation (SD). UT: untreated. (c) mRNA expression levels related to the regulation of apoptosis (Bax and Bcl-2) was evaluated using RT-qPCR in SGC-7901 cells. (d) Protein expression levels related to the regulation of cell cycle (Cyclin D1) and cell apoptosis (Bax and Bcl-2) were evaluated by Western blot in SGC-7901 cells. Different treatments are including untreated, 20 µmol/L 1-NPs, laser (690 nm, 20 min), and BDP 1-NPs plus laser irradiation (0.2 W/cm²).
