Strategic design of lysine-targeted irreversible covalent NDM-1 inhibitors
收藏切换
PDF
Youzhen Maa, Yongxi Lianga, Menglu Guoa, Delin Mina, Lulu Zhengc, Yun Tangc, Xun Sun*, a, b
Chinese Chemical Letters | 2023, 34(7) : 108072
Less
收藏切换
Chinese Chemical Letters | 2023, 34(7): 108072
• Communication •
Strategic design of lysine-targeted irreversible covalent NDM-1 inhibitors
Full
Youzhen Maa, Yongxi Lianga, Menglu Guoa, Delin Mina, Lulu Zhengc, Yun Tangc, Xun Sun*, a, b
Affiliations
  • aDepartment of Natural Medicine, School of Pharmacy, Fudan University, Shanghai 201203, China
  • bThe Institutes of Integrative Medicine of Fudan University, Shanghai 200040, China
  • cShanghai Key Laboratory of New Drug Design, School of Pharmacy, East China University of Science and Technology, Shanghai 200237, China
Published: 2023-07-15 doi: 10.1016/j.cclet.2022.108072
Outline
收藏切换

New Delhi metallo-β-lactamase 1 (NDM-1) can hydrolyze most β-lactam antibiotics, which is the major factor for drug resistance of Gram-negative bacteria. The binding of most reversible inhibitors to NDM-1 is relatively weak due to the shallow active pocket of NDM-1. Alternatively, irreversible covalent inhibitors can prevent their dissociation from the target, leading to permanent inactivation of the protein. Herein, we report a series of irreversible covalent inhibitors of NDM-1 targeting the conserved Lys211 in the active pocket. Several methods, including mass spectrometry, sodium dodecyl sulfate-polyacrylamide gel electrophoresis, fluorescent labeling, and coumarin probe were used to demonstrate that pentafluorophenyl ester formed a covalent bond with Lys211. Moreover, our target inhibitor, in combination with meropenem, achieved an antibacterial effect on drug-resistant bacteria, along with an excellent safety profile. Our new strategy in designing lysine-targeted irreversible covalent NDM-1 inhibitors provides a potential option for the clinical treatment of Gram-negative bacteria.

Covalent inhibitors  /  Lysine  /  Irreversible  /  Metallo-β-lactamase  /  Antimicrobial activity
Youzhen Ma, Yongxi Liang, Menglu Guo, Delin Min, Lulu Zheng, Yun Tang, Xun Sun. Strategic design of lysine-targeted irreversible covalent NDM-1 inhibitors[J]. Chinese Chemical Letters, 2023 , 34 (7) : 108072 - . DOI: 10.1016/j.cclet.2022.108072
Full Text
Less
New Delhi metallo-β-lactamase 1 (NDM-1) exists in Gram-negative bacteria, such as Escherichia coli (E. coli) or Klebsiella pneumoniae (K. pneumonia). As a Zn(Ⅱ)-containing enzyme, NDM-1 can inactivate β-lactam antibiotics through opening the β-lactam ring by a nucleophilic water, making these so-called super bacteria resistant to most β-lactam antibiotics including carbapenems. As a result, limited clinical drugs can be applied to fight such infections [1,2]. Two general types of inhibitors against hydrolases, either reversible or irreversible, are usually designed to target catalytic nucleophilic amino acids, such as serine and cysteine residues. For example, the approved serine-β-lactamases (SBLs) inhibitors such as Avibactam, Vaborbactam [3,4], were based on covalent bond formation from the nucleophilic serine at the catalytic site.
Unlike the formation of a covalent bond from serine in SBLs, the active site of metallo-β-lactamases (MBLs) utilizes a water molecule chelated by two Zn(Ⅱ) ions to hydrolyze the β-lactam ring. In other words, conventional design strategies for covalent inhibitors of amidohydrolases are not applicable to NDM-1. At present, most MBLs inhibitors are non-covalent inhibitors, such as L-Captopril, Thiorphan and Taniborbactam [5,6]. Since the active pocket of NDM-1 is a shallow groove, the binding of reversible inhibitors to NDM-1 is relatively weak [7]. Therefore, it is challenging and important to develop irreversible covalent inhibitors against MBLs.
The crystal structures of MBLs indicate the active pocket contains a series of nucleophilic amino acids, such as cysteine and lysine, which can be targeted by covalent inhibitors. Because the conserved lysine at the bottom of the active pocket plays a critical role in substrate binding [8], the covalent targeting of these amino acids can be an efficient strategy to inhibit the catalytic activity of MBLs. As shown in Fig. 1, some covalent MBLs inhibitors have been reported in this field, with compounds 1-4 targeting lysine residues and compounds 5-8 targeting cysteine residues in the active pocket [9-14]. Most of these inhibitors are early hits from high-throughput screening, so they often suffer from low activity against NDM-1, poor water solubility, or selectivity issues. For example, the thiol groups of 3 and 4 tend to bind to other enzymes containing Zn(Ⅱ), resulting in toxic side effects [15].
Herein we report an irreversible covalent inhibitor of NDM-1 with cephalosporin as the core backbone and an active ester as a covalent warhead. Compared with the reported non-covalent inhibitors, such as metal chelators and sulfhydryl compounds, and covalent inhibitors, such as p-chloromercuric benzoic acid and ebselen [13,16], cephalosporins have little effect on the other enzymes containing Zn(Ⅱ) or cysteine. Thus, our strategy for new covalent NDM-1 inhibitors is to combine cephalosporin and a pentafluorophenyl active ester, a key unit in compounds 3 and 4 as a covalent warhead targeting IMP-1 lysine.

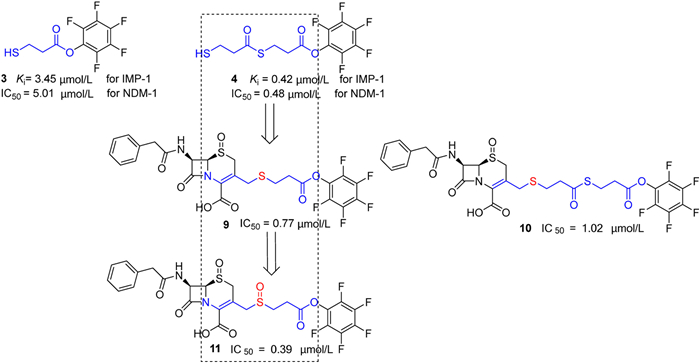

The Ki values for IMP-1 inhibitors 3 and 4 were reported to be 3.5 µmol/L and 0.4 µmol/L, respectively [11]. Given the structural similarity between NDM-1 and IMP-1 (Fig. S1 in Supporting information), we tested 3 and 4 for the inhibition of NDM-1, with IC50 of 5.0 µmol/L and 0.5 µmol/L, respectively (Figs. S2A and B in Supporting information). Unfortunately, neither 3 nor 4 potentiated the efficacy of meropenem (MER) against clinical isolates harboring NDM-1 (Table S1, Figs. S3A-C in Supporting information). Therefore, the sulfhydryl group was replaced with a cephalosporin backbone, aiming for potential binding to the active pocket of NDM-1, meanwhile, the pentafluorophenyl active ester was maintained for the potential formation of an irreversible covalent bond with Lys211. As a result, compounds 9 and 10 (Fig. 2) were designed and synthesized, in which the sulfur atom in the bicyclic skeleton was oxidized to (S)-sulfoxide to avoid Δ2-Δ3 isomerization and reduce the spontaneous hydrolysis rate [17,18].
Next, the inhibitory activities of 9 and 10 against NDM-1 were tested, with IC50 of 0.8 µmol/L and 1.0 µmol/L, respectively (Figs. S2C and D in Supporting information). Surprisingly, upon the replacement of thiol group in 3 with cephalosporin backbone, the inhibitory activity of 9 against NDM-1 significantly increased by 6.5-fold, while 10 showed slightly lower activity than 4 after similar substitution. The comparable IC50 values between 4 and 9 could be explained by their similar binding modes. The thiol group in 4 and the cephalosporin backbone in 9 are coordinated with the Zn(Ⅱ). Through the same distance from the Zn(Ⅱ), the active ester in both compounds can form a stable covalent bond with the Lys211 of NDM-1. It was known that 9 would liberate pentafluorophenyl mercaptopropionate (3) upon the hydrolysis of β-lactam ring by NDM-1 (Scheme S1 in Supporting information) [19], and the resultant pentafluorophenyl mercaptopropionate did not potentiate the minimum inhibitory concentration (MIC) of meropenem against clinical isolates harboring NDM-1. In order to prevent the cleavage of such a thioether after hydrolysis of the β-lactam ring in 9, we oxidized the sulfur atom to sulfoxide to obtain compound 11 (Fig. 2), which was a pair of diastereomers (67.1:32.9) due to the stereocenter at sulfur (Fig. S7 in Supporting information). As a result, this NDM-1 inhibitor 11 can not only bind to the Zn(Ⅱ) in the active pocket, but also form a covalent bond with the conserved Lys211 no matter whether the β-lactam ring is hydrolyzed or not. The IC50 of 11 against NDM-1 was determined to be 0.4 µmol/L (Fig. S2E in Supporting information).

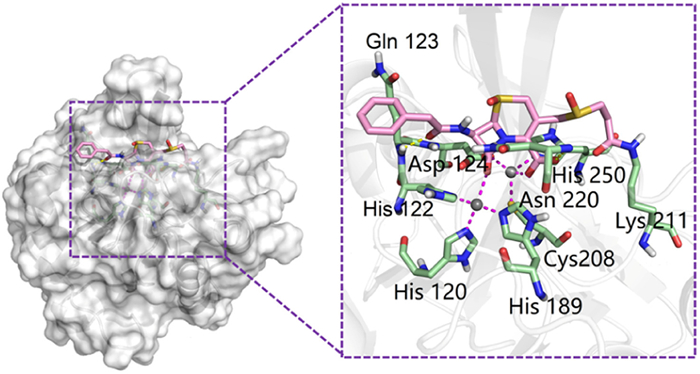

Subsequently, we explored the binding mode of 11 with NDM-1 by covalent docking using Schrodinger software. The docking model (Fig. 3) showed the existence of two hydrogen bonds: the carbonyl oxygen atom of phenylacetamide region with Gln123, and the carboxyl oxygen atom of cephalosporin region with Asn220. At the same time, two Zn(Ⅱ) ions formed coordination bonds with the oxygen atoms of the β-lactam ring and the carboxyl group, respectively. More importantly, in addition to the above conventional interactions, the active ester was displaced by Lys211 to form a covalent bond as expected. By overlapping the docking model with the crystal structure of 6OVZ (Fig. S4 in Supporting information), we found that the fundamental morphology of Lys211 almost remained unchanged after the covalent bond formation between 11 and Lys211, indicating that the covalent binding did not cause unreasonable alteration in protein conformation.
Next, we focused on confirming the covalent interaction of 11 with NDM-1, we evaluated the incubation of 11 with NDM-1 using polyacrylamide gel under denaturing conditions. The change in molecular weight of NDM-1, after the formation of a covalent adduct with 11, would lead to different moving behaviour on polyacrylamide gels [20]. In this case, pure NDM-1 and incubation of NDM-1 with 11 in 20 mmol/L Tris-HCl (pH 7.5) at 25 ℃ were evaluated by polyacrylamide gel. The results (Fig. S5 in Supporting information) showed that the adduct of NDM-1 with 11 moved slightly slower, with multiple repetitions, than NDM-1, indicating that 11 formed covalent adduct with NDM-1.

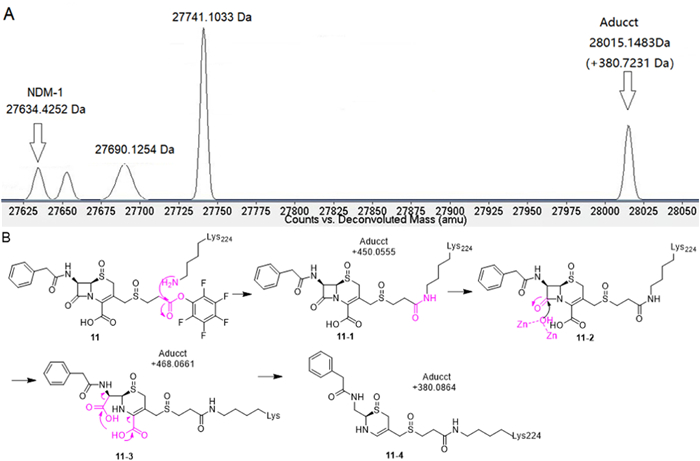

To further confirm the formation of the covalent bond between 11 and the lysine of NDM-1. The trypsin digestion of NDM-1, with or without treatment by 11, was analyzed by LC/MS/MS. Obviously, peptide sequence analysis showed that the trypsin-digested NDM-1 contained the peptide of Lys211. Due to potential fragmentation during the ionization process in LC/MS/MS, no peptides labelled with 11 were detected in the trypsin-digested incubation of NDM-1 upon treatment with 11. However, the covalent bond formation with 11 was supported according to the subsequent analysis by primary mass spectrometry. The ionization showed the parent peak for NDM-1 (27634.4252) and an adduct peak (28015.1483), with the difference as 380.7231 (Fig. 4A). A possible explanation was illustrated in Fig. 4B [21]. The mass of initial adduct 11-1 derived from the active ester 11 was 450.0555 higher than NDM-1. Upon the hydrolysis of β-lactam ring and subsequent decarboxylation, the adduct of 11-4 was formed, with molecular weight 380.0864 higher than NDM-1. This data was consistent with what we observed in the primary mass spectrometry, and indicated that NDM-1 only bound one equivalent of 11.

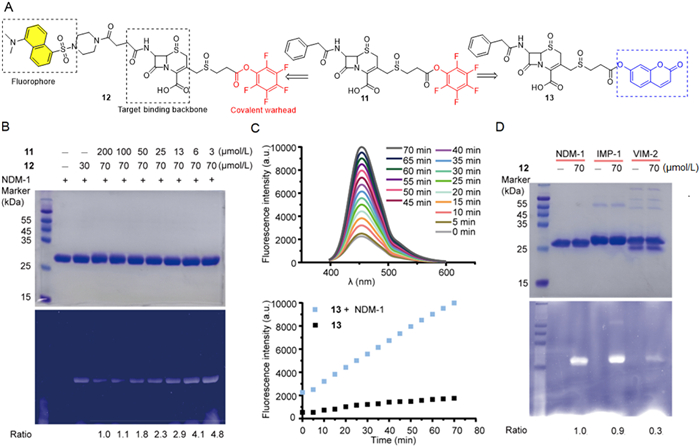

In addition, a fluorescent labelling analogue 12 was synthesized by replacing the benzene ring in 11 with a dansylamide moiety (Fig. 5A). This compound could also form a covalent bond with lysine in NDM-1, thus displaying fluorescence under excitation by UV light [22,23]. Upon the pre-treatment of NDM-1 with vehicle or 11 for 40 min, respectively, the subsequent incubation with 12 was conducted in 20 mmol/L Tris-HCl (pH 7.5) at 25 ℃ for 1 h. As shown in polyacrylamide gels under denaturing conditions (Fig. 5B), no fluorescence was observed at all for the NDM-1 lane. On the other hand, the incubation of NDM-1 with 12 presented obvious fluorescence, and the corresponding NDM-1 band was detected after Coomassie staining (Fig. 5B). When NDM-1 was pretreated with 11 prior to labelling with 12, the fluorescent band of NDM-1 gradually became weaker as the concentrations of 11 increased (Fig. 5B), suggesting the formation of covalent bond with lysine already took place with 11 in the active pocket of NDM-1 and less free lysine residues were available for 12 to react with. These results indicated that 12 formed a covalent bond with the lysine in the active pocket of NDM-1.
Another fluorescent probe 13, in which 7-hydroxycoumarin was introduced for potential cyan fluorescence, was prepared (Fig. 5A). Instead of pentafluorophenol, the formation of a covalent bond between 13 and the lysine in NDM-1 will release 7-hydroxycoumarin (Scheme S2 in Supporting information), which can be monitored by spectrofluorophotometer [24]. As a result, the fluorescence value (at 460 nm) of the incubation 13 with NDM-1 significantly increased in a time-dependent manner and reached 9997 a.u. at 70 min, indicating that 13 formed an amide bond with NDM-1 (Fig. 5C). On the other hand, the fluorescence value of 13 without NDM-1 changed little with time and stayed below 2000 a.u. at 70 min (Fig. 5C). These results further demonstrated that 11, with a similar structure to probe 13, was able to form a covalent bond with NDM-1.
Furthermore, we would figure out the exact lysine site in NDM-1 for 11 and 12 to form a covalent bond. According to literature reports, NDM-1 has three potential sites (Lys211, Lys214 and Lys216) [25], and LC/MS experiment demonstrated that NDM-1 only binds to one equivalent of 11, but the exact lysine it acts on has not been identified. It is well known that three proteins in B1 subclass, NDM-1, VIM-2 and IMP-1, have similar activity pockets. The sequence homologies of NDM-1 with IMP-1 and VIM-2 are 30% and 33%, respectively (Table S2 in Supporting information) [7]. Further analysis revealed that IMP-1 and VIM-2 do not contain lysine residues corresponding to Lys214 and Lys216 residues of NDM-1, and Lys211 of NDM-1 corresponds to Lys179 of IMP-1 and Tyr201 of VIM-2, respectively (Table S3 in Supporting information) [7]. In order to understand the covalent bond formation, these three proteins were subjected to labelling experiments with 12, and the results showed that 12 has approximately the same labelling effect on NDM-1 and IMP-1, suggesting the same covalent chemistry of Lys211 in NDM-1 and Lys179 in IMP-1. Meanwhile, the labelling effect on VIM-2 was much weaker (Fig. 5D), owing to the less reactive Tyr201 in VIM-2. These experimental results confirmed the decisive role of Lys211 in the fluorescent labelling of NDM-1, and further demonstrated that Lys211 was the site for covalent bond formation of 12 with NDM-1.

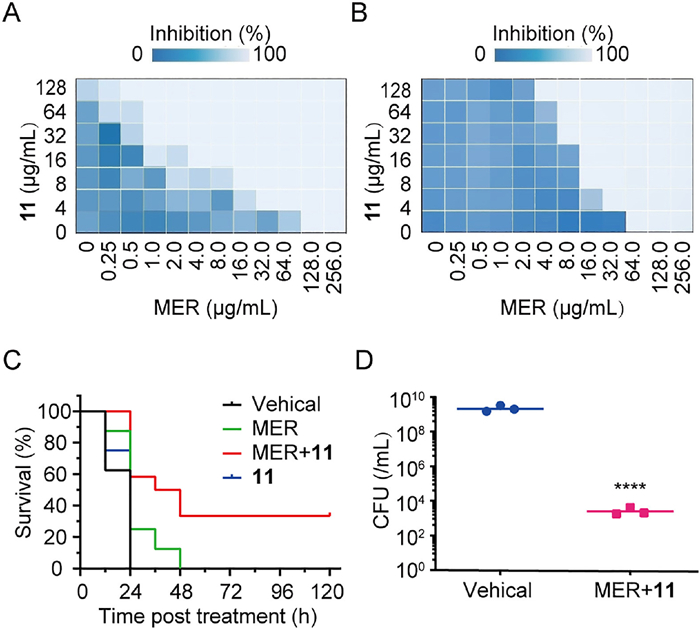

Next, we turned to evaluate the synergistic inhibitory effect of 9 and 11, in combination with MER, against E. coli and K. pneumoniae harboring NDM-1. The combination of 11 (at 32 µg/mL) with MER could reduce the MIC of MER against E. coli BL21 (NDM-1+) and clinical isolates E. coli BAA-2452 (blaNDM-1) by 128-fold and 8-fold, respectively (Figs. 6A and B). Meanwhile, 9 showed a relatively weak synergistic antibacterial effect against E. coli BL21 (NDM-1+) (Fig. S3D and Table S1 in Supporting information). As shown in the Figs. 6A and B, 11 almost exhibited no bacteriostatic effect even at 128 µg/mL in the absence of MER, suggesting that the 11 with lower toxicity restored the antibacterial activity of MER by inhibiting NDM-1.
Due to limited reports on the safety of covalent inhibitors targeting lysine, we profiled the cytotoxicity of 11 against tumor cells SGC-7901 and HT-29 at 4 µmol/L, 40 µmol/L, and 200 µmol/L concentrations. Viability of SGC-7901 and HT-29 was greater than 60% in the presence of 200 µmol/L 11, and limited inhibitory effect was observed on the proliferation of SGC-7901 and HT-29 (Figs. S6A and B in Supporting information). In addition, 11 had no cardiotoxicity concern, with hERG IC50 much greater than 40 µmol/L (Fig. S6C in Supporting information). A single-dose acute toxicity experiment was conducted with C57BL/6 mice, and 11 did not induce a significant effect on the weight, activity and mental state of the mice (Table S4 in Supporting information), except that some body weight loss was observed for the mice at 400 mg/kg dose group at 8-11 days of administration (Fig. S6D in Supporting information). Overall, 11 displayed a good safety profile.
In addition, we investigated the potential in vivo benefit of this combination therapy in BALB/c mice using an intraperitoneal infection model. The results showed that the combination of 11 with MER, through intraperitoneal injection, could improve the survival rate of E. coli BAA-2452 intraperitoneal infected mice (Fig. 6C). Meanwhile, the number of bacteria in the blood of survival mice was significantly reduced after five days of administration. (Fig. 6D).
In conclusion, an irreversible covalent inhibitor 11, utilizing cephalosporin as the backbone and active ester as a covalent warhead, was rationally designed to specifically target the Lys211 residue in the active pocket of NDM-1. This tool compound enabled breakthrough studies, from enzymatic to bacterial inhibition in vitro and in vivo, for lysine-targeted covalent inhibitors of NDM-1. Notably, the cephalosporin-based strategy not only reduced the MIC of MER against E. coli (blaNDM-1) and K. pneumoniae (blaNDM-1), but also avoided toxicity, making it a safe and effective treatment for resistant Gram-negative bacterial infections.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Ethics statement
Less
All animal procedures were approved by the Ethics Committee for Experimental Research, Shanghai Medical College, Fudan University.
Acknowledgments
Less
This work was funded by the National Natural Science Foundation of China (No. 82073688 to X. Sun and No. 82103971 to Y. Liang), Science and Technology Commission of Shanghai Municipality (No. 21S11907300 to X. Sun), Shanghai Science and Technology Development Fund from Central Leading Local Government (No. YDZX20223100001004 to X. Sun). We thank the National Center for Protein Science in Shanghai for their help with protein mass spectrometry, and Shanghai Junji Medical Laboratory Co., Ltd. for their guidance on bacterial culture. We also thank Prof. Jing Zhang at Huashan Hospital Affiliated to Fudan University for constructive comments on the microdilution MIC assay.
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.108072.
References
Less
[1]
L. Dortet, L. Poirel, P. Nordmann, BioMed. Res. Int. 2014 (2014) 249856.
[2]
N. Guo, Y. Xia, Y. Duan, et al., Chin. Chem. Lett. 34 (2023) 107542.
[3]
J. Berkhout, M.J. Melchers, A.C. van Mil, et al., Antimicrob. Agents Chemother. 59 (2015) 2299–2304.
[4]
S.J. Hecker, K.R. Reddy, M. Totrov, et al., J. Med. Chem. 58 (2015) 3682–3692.
[5]
D.T. King, L.J. Worrall, R. Gruninger, N.C. Strynadka, J. Am. Chem. Soc. 134 (2012) 11362–11365.
[6]
J. Brem, R. Cain, S. Cahill, et al., Nat. Commun. 7 (2016) 12406.
[7]
G. Bahr, L.J. Gonzalez, A.J. Vila, Chem. Rev. 121 (2021) 7957–8094.
[8]
J. Chiou, T.Y. Leung, S. Chen, Antimicrob. Agents Chemother. 58 (2014) 5372–5378.
[9]
P.W. Thomas, M. Cammarata, J.S. Brodbelt, W. Fast, ChemBioChem 15 (2014) 2541–2548.
[10]
P.W. Thomas, M. Cammarata, J.S. Brodbelt, et al., Biochemistry 58 (2019) 2834–2843.
[11]
H. Kurosaki, Y. Yamaguchi, T. Higashi, et al., Angew. Chem. Int. Ed. 44 (2005) 3861–3864.
[12]
J. Chiou, S. Wan, K.F. Chan, et al., Chem. Commun. 51 (2015) 9543–9546.
[13]
P.W. Thomas, T. Spicer, M. Cammarata, et al., Bioorg. Med. Chem. 21 (2013) 3138–3146.
[14]
C. Chen, K.W. Yang, L.Y. Wu, J.Q. Li, L.Y. Sun, Chem. Commun. 56 (2020) 2755–2758.
[15]
D. Buttner, J.S. Kramer, F.M. Klingler, et al., ACS Infect. Dis. 4 (2018) 360–372.
[16]
P. Linciano, L. Cendron, E. Gianquinto, F. Spyrakis, D. Tondi, ACS Infect. Dis. 5 (2019) 9–34.
[17]
H. Xie, J. Mire, Y. Kong, et al., Nat. Chem. 4 (2012) 802–809.
[18]
W. Gao, B. Xing, R.Y. Tsien, J. RaoNovel, J. Am. Chem. Soc. 125 (2003) 11146–11147.
[19]
S.S. van Berkel, J. Brem, A.M. Rydzik, et al., J. Med. Chem. 56 (2013) 6945–6953.
[20]
L. Gambini, C. Baggio, P. Udompholkul, et al., J. Med. Chem. 62 (2019) 5616–5627.
[21]
D.N. Heller, D.A. Kaplan, N.G. Rummel, J. von Bredow, J. Agric. Food Chem. 48 (2000) 6030–6035.
[22]
M. Kurogochi, S. Nishimura, Y.C. Lee, J. Biol. Chem. 279 (2004) 44704–44712.
[23]
X. Li, H. Yang, Y. Teng, et al., Chin. Chem. Lett. 33 (2022) 4223–4228.
[24]
C. Chen, Y. Xiang, K.W. Yang, et al., Chem. Commun. 54 (2018) 4802–4805.
[25]
M.R. Mehaffey, Y.C. Ahn, D.D. Rivera, et al., Chem. Sci. 11 (2020) 8999–9010.
