The synthesis schematic of Co
3O
4-DT and Co
3O
4-NC is shown in
Fig. 1A and detailed process is elaborated in the Supporting information. According to the different amounts of tetraethoxysilane (TEOS), the obtained Co
3O
4-DT by dual-template were denoted as Co
3O
4-DT1 (low amount of TEOS) and Co
3O
4-DT2 (high amount of TEOS), respectively. XRD patterns of all replica materials (
Fig. 1B) show well-resolved reflection peaks, which can be assigned to spinel Co
3O
4 phase (PDF#42-1467) with a Fd3m symmetry. No other diffraction peaks were detected, indicating high purity phase. With increasing TEOS amount, the diffraction peaks of the replica Co
3O
4 obviously become weaker and broader, revealing a lower level of crystallization and/or smaller crystalline grain size. The grain sizes were calculated based on the (311) facets of Co
3O
4 by using Scherrer equation, as listed in
Table 1. It is shown that the grain sizes of Co
3O
4-DT2 (8.9 nm) are smaller than that of Co
3O
4-DT1 (10.9 nm) and Co
3O
4-NC (12.7 nm), indicating that the introduction of TEOS can effectively suppress Co
3O
4 nanocrystals sintering during the calcination process. And this phenomenon on cobalt catalysts also have been observed in literature [
41,
42]. The N
2 adsorption-desorption isotherms and corresponding pore size distributions curves of the replica samples are showed in
Figs. 1C and
D. And the relevant parameters are summarized in
Table 1. For Co
3O
4-NC, the specific surface area and pore volume are calculated to be 81 m
2/g and 0.13 cm
3/g, respectively. Interestingly, the specific surface area of Co
3O
4-DT1 and Co
3O
4-DT2 prepared by dual-template method are significantly increased to 122 and 169 m
2/g, and the corresponding pore volumes are also increased remarkably to 0.52 and 0.39 cm
3/g, respectively. The pore sizes distribution of this catalyst has a maximum around 3–4 nm, revealing a uniform mesoporous structure. The morphological and structural features were further analyzed by transmission electron microscopy (TEM). It can be seen that Co
3O

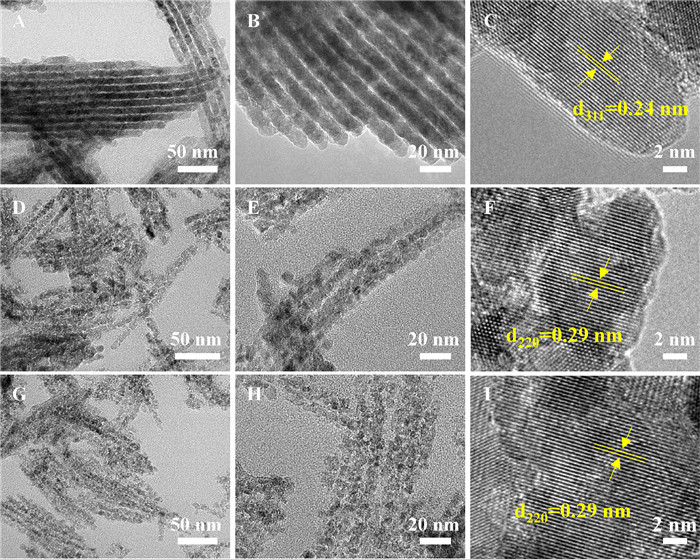

4-NC presents a rod-like morphology (
Figs. 2A and
B), and the rod diameter is consistent with the pore size of SBA-15, suggesting a good replication of the SBA-15 template. In addition, all the nanorods are quite dense without obvious cracks or grain boundaries. Lattice fringes show a
d-spacing of 0.24 nm in high-resolution TEM (HR-TEM) image (
Fig. 2C), which is in well accordance with the (311) crystal planes of spinel Co
3O
4 [
43,
44]. Co
3O
4-DT1 prepared by dual-template method also exhibits a rod-like morphology (
Figs. 2D and
E). However, compared to traditional Co
3O
4-NC, plenty of randomly oriented cracks/pores are observed in the nanorod arrays of Co
3O
4-DT1, and these cracks/pores can connect the meso-channels to build an interconnected mesopore networks. When further increase the amount of TEOS, the cracks/pores inside the nanorods are increases remarkably (
Figs. 2G and
H). The crystals lattice fringes for both Co
3O
4-DT1 and Co
3O
4-DT2 catalysts can be clearly observed in the HR-TEM images (
Figs. 2F and
I). An average d-spacing is measured to be 0.29 nm, which can be assigned to the (220) reflection of Co
3O
4 spinel structure [
45,
46]. The existence of the inner nanorods pores are contributed to the increase of the specific surface area. These results reveal that the introduction of TEOS during synthesis process gives rise to numerous cracks, whose density can be controllably adjusted while maintaining structural integrity. The more open porous structures leading by cracks are expected to favor the facile accessibility of active sites. These results indicate the successful synthesis of Co
3O
4-DT with high specific surface area and high porosity by dual-template method. Moreover, this strategy can be extended to the synthesis of other mesoporous metal oxides with high specific surface area. Mesoporous Fe
2O
3 (Fe
2O
3-DT), NiO (NiO-DT), and CeO
2 (CeO
2-DT) with similar structure and enhanced specific surface areas can also be synthesized. The related structure characterizations are showed in Fig. S1 (Supporting information) and
Table 1.
