Recent advances in photoelectrochemical sensors for detection of ions in water

Full

Linyang Li^a, Junlian Chen^a, Chuanbao Xiao^a, Yihao Luo^b, Nianbing Zhong^*^,^a^,^b, Quanhua Xie^a, Haixing Chang^**^,^c, Dengjie Zhong^c, Yunlan Xu^c, Mingfu Zhao^a, Qiang Liao^**^,^d

Affiliations

^a Intelligent Fiber Sensing Technology of Chongqing Municipal Engineering Research Center of Institutions of Higher Education, Chongqing Key Laboratory of Modern Photoelectric Detection Technology and Instrument, Chongqing Key Laboratory of Fiber Optic Sensor and Photodetector, Chongqing University of Technology, Chongqing 400054, China

^b Biodesign Swette Center for Environmental Biotechnology, Arizona State University, Tempe, AZ 85271-5701, United States

^c College of Chemistry and Chemical Engineering, Chongqing University of Technology, Chongqing 400054, China

^d Key Laboratory of Low-grade Energy Utilization Technologies and Systems (Chongqing University), Ministry of Education, Chongqing 400030, China

Published: 2023-06-15 doi: 10.1016/j.cclet.2022.107904

Outline

Abstract

Less

Over the last 50 years, the explosive adoption of modern agricultural practices has led to an enormous increase in the emission of non-biodegradable and highly biotoxic ions into the hydrosphere. Excess intake of such ions, even essential trace elements such as Cu²⁺ and F⁻, can have serious consequences on human health. Therefore, to ensure safe drinking water and regulate wastewater discharge, photoelectrochemical (PEC) online sensors were developed, with advantages such as low energy consumption, inherent miniaturization, simple instrumentation, and fast response. However, there is no publicly available systematic review of the recent advances in PEC ion sensors available in the literature since January 2017. Thus, this review covers the various strategies that have been used to enhance the sensitivity, selectivity, and limit of detection for PEC ion sensors. The photoelectrochemically active materials, conductive substrates, electronic transfer, and performance of various PEC sensors are discussed in detail and divided into sections based on the measurement principle and detected ion species. We conclude this review by highlighting the challenges and potential future avenues of research associated with the development of novel high-performance PEC sensors.

Key words

Photoelectrochemical sensor / Ion detection / Working principle / Electronic transfer / Sensitivity and selectivity / Limit of detection

Cite this Article

Linyang Li, Junlian Chen, Chuanbao Xiao, Yihao Luo, Nianbing Zhong, Quanhua Xie, Haixing Chang, Dengjie Zhong, Yunlan Xu, Mingfu Zhao, Qiang Liao. Recent advances in photoelectrochemical sensors for detection of ions in water[J]. Chinese Chemical Letters, 2023 , 34 (6) : 107904 - . DOI: 10.1016/j.cclet.2022.107904

Full Text

Less

1 Introduction

Less

Ion-sensing technology has expanded in the last 50 years with increasing demands for water quality detection as numerous ions and their compounds are being discharged into water sources due to anthropogenic activities [1-3]. However, ions are commonly found in the human body and nature, but it is their imbalance or contamination in nature/human body that can be detrimental [4-7]. For example, trace elements (Cu²⁺ and F⁻) are generally beneficial for the human body at low concentrations and will cause poisoning and related physiological diseases at higher dodes [8-10]. On the contrary, heavy metal and redox (NO₂⁻) ions are harmful to humans in even small quantities [11,12]. Importantly, their contamination in environment is irreversible, can get accumulated, and has an indelible impact on the biosphere [13-15]. Therefore, to ensure safe drinking water and guide wastewater discharge, it is necessary to develop advanced sensors for the detection of trace ion concentrations in water [16-20].

Numerous online sensors such as fiber-optic, electrochemical, and photoelectrochemical (PEC) sensors have been developed because of their simple design, low cost, fast response, easy operation, portability, and the ability to enable selective and in-situ real-time detection [21-23]. Of the sensors, PEC sensing is a promising analytical technology because of its high sensitivity, rapid response, low energy consumption, inherent miniaturization, and simple instrumentation [24-27].

Until now, numerous novel PEC sensors have been proposed for the detection of ions in wastewater [28-36]. Most previous works have mainly focused on improving the performance of photoelectrochemical materials to extend visible-light absorption, enhance photoelectric conversion, influence charge recombination kinetics, and thus increase the magnitude of changes in photocurrent [36-39]. With the emergence of a variety of ions in wastewater, efforts should be made to carefully study the mechanism of ion selectivity measurement as the ion-selective adsorption of photoelectrochemically active materials is often unsatisfactory. In addition, the principles and methods to extend the detection range and improve the low limit of detection (LOD) of the PEC ion sensors should be also illustrated. However, these important properties—the preparation, measurement principle, and performance—of PEC ion sensors for selective monitoring trace metal and non-metal ions in water have not yet been systematically reviewed. Furthermore, the last comprehensive review of PEC metal-ion sensors (eight ions: Cu²⁺, Cr⁶⁺, Hg²⁺, Pb²⁺, Ag⁺, K⁺, Ca²⁺, and Cd²⁺) was published in 2016 [40] and a review of PEC biosensors for detection of four heavy metal ions (Hg²⁺, Pb²⁺, Ag⁺, and K⁺ ions) was reported in 2018 (The reported review is based on selecting the papers published in 2009–2016) [41]; a review of PEC sensors for non-metal-ion detection has not yet been reported yet.

The goal of this review is to address the aforementioned issues and provide a comprehensive discussion on all PEC ion sensors developed between January 2017 and June 2022. Section 2 covers the principles employed for measurement of ions in water. Sections 3 and 4 describe the composition (of the ion-selective sensitive photoelectrode) and performance (sensitivity, selectivity, detection range, and LOD) of 9 metal-ion (Cu²⁺, Cr⁶⁺, Hg²⁺, Pb²⁺, Ag⁺, K⁺, Co²⁺, As⁵⁺, and Tl⁺) and 3 non-metal-ion (NO₂⁻, F⁻, and S²⁻) PEC sensors. Finally, achievements and outlook of PEC ion sensors are discussed.

2 Working principle of PEC sensors

Less

In general, a PEC sensing system is composed of a three-electrode subsystem, a light source (such as Xe lamp, halogen lamp, and light emitting diode), and an electrochemical workstation. The electrode subsystem includes a reference electrode (RE), counter electrode (CE), and working electrode (WE). The RE is usually an Ag/AgCl electrode or a saturated calomel electrode, the CE is generally a platinum electrode, and the WE is composed of photoelectrochemical materials and conductive substrates such as indium tin oxide (ITO) glass. The light source was used to irradiate the working electrode and produce photocurrent readout signal. The photocurrents are recorded by an electrochemical workstation (Fig. 1).

In PEC sensors, a series of conversion and transfer processes occur between light, photoelectrochemical materials, conductive substrates, and the target analyte. First, the electrons of photoelectrochemical materials get excited by light and migrate from valence band (VB) to conduction band (CB) to form electron-hole pairs. Once this process occurs, there are two choices for the transfer of CB electrons: recombine or transfer charges outside [42]. The transport path of CB electrons will affect the polarity of photocurrent, mainly cathode photocurrent and anode photocurrent (Fig. 1) [43]. Second, when the CB electrons are transferred to the electrolyte and react with the electron acceptor in the electrolyte solution, the electrons on the electrode surface are transferred to the holes generated by the VB and yield a cathodic photocurrent. Third, when the CB electrons are further transferred to the electrode surface and the electrons in the electrolyte solution are transferred to the holes in the VB, an anodic photocurrent is generated [44]. The photocurrent generated via light excitation will be affected by the ion concentration in analyte, resulting in changes in photocurrent (such as photocurrent increases, photocurrent decreases, or switch in photocurrent polarity) that can be utilized for determining an ion's concentration [45]. Herein, these three measurement principles are discussed in detail.

2.1 Measurement based on decrease in photocurrent

Numerous PEC ion sensors are available that detect the target analyte based on the decrease in photocurrent generated by light excitation; these are named "signal-off" PEC ion sensors. The five most common conditions that cause a decrease in the generated photocurrent are as follows: (a) The target analyte reacts with the photoelectrochemically active material, resulting in the production of new species on the electrode surface (such as Cu_xS [46], Cu₇S₄ [47], Co-CS chelate [36]), which inhibits electron transport and decreases photocurrent. (b) The target analyte reacts with the photoelectrochemically active material, thereby disrupting or inhibiting certain reactions (such as the hybridization between aptamer and DNA) [48] and resulting in a decrease in photocurrent [48]. (c) Energy transfer (such as between CdS quantum dots and Au nanoparticles) occurs in the presence of target analyte, resulting in a decrease in photocurrent [49]. (d) The interaction between the target analyte and the hole scavenger in the electrolyte destroys the electron transfer between the hole scavenger and the hole, resulting in a decrease in photocurrent [50]. (e) The target analyte triggers the dissolution or surface state passivation of the photoelectrochemically active materials, thereby resulting in a decrease of photocurrent [51].

2.2 Measurement based on increase in photocurrent

Some PEC sensors produce an increase in photocurrent with increasing ion concentration; such devices and are known as "signal-on" PEC ion sensors. The increase in photocurrent is controlled by the photosensitive material, the probe ion species, and their interactions; the four cases are described as follows: (a) The target analyte reacts with photoelectrochemically active materials (such as ZnO [34], ZnS@Ag₂S [52]) and the reaction products are coated on the electrode surface to form the new heterojunction (HgS/ZnS@Ag₂S) [52] or photosensitizer (CdSe [33], AgBr [34]); the heterojunction can promote the separation of electron-hole pairs under light illumination and the photosensitizer can enhance light absorption to prompt the generation of electron-hole pairs, thereby resulting in an increase in photocurrent. (b) In the presence of the target analyte, the analyte can destroy or inhibit the reaction (such as energy transfer [53], generation of insoluble products [54]) and restore the decreased photocurrent, that is, the photocurrent increases. (c) In PEC sensors, the charge carrier reacts directly with the target analyte to decrease the recombination of electron-hole pairs, thereby speeding up the transfer rate of photogenerated carriers and leading to an increase in photocurrent [55,56]. (d) The target analyte can change the structure or state of photoelectrochemically active materials (such as the formation of folding configuration [57], the restoration of oxidation state [58], the formation of heterojunction [59]), so as to increase the photocurrent.

2.3 Measurement based on polarity-switchable photocurrent

In recent years, PEC ion sensors with target analyte induced polarity-switchable effect in photocurrent have been developed [60-62]. The photocurrent of such sensors changes in two ways: (a) When the concentration of the target analyte increases, the photocurrent continuously decreases to zero and finally increases in reverse; (b) when the target analyte exists, it directly leads to the switching of photocurrent polarity. The reverse change in photocurrent is generally caused by competitive reactions (such as the competition between the photoreactions reactions at the surface of the photoelectrochemically active materials and the charge carrier transfer process of the electrode [61,62] or the competitive adsorption between the target analyte and photoelectrochemically active materials [60]).

3 PEC sensors for metal ions

Less

Although the change in photocurrent generated in PEC ion sensors shows three patterns, as discussed in Section 2, such changes are simultaneously affected by the electrode active material, the target detection ion species, and their interactions. PEC sensors with same photoelectrochemically active material (such as n-type and p-type semiconductors and DNA probe) for the detection different ions show different changes in photocurrent; similarly, when the detection ion is given, PEC sensors with different active materials also show different changes in photocurrent. Therefore, to clearly describe the research progress in PEC ion sensors, instead of classifying them based on the way the photocurrent changes, they will be classified according to ion species here. Furthermore, the composition, active materials, the way in which the generated photocurrent changes with increasing ion concentration, and performance of the PEC sensors are discussed in detail.

3.1 Detection of Cu²⁺

Cu²⁺ is the third most essential trace element in the human body and an essential dietary mineral for organisms; it thus plays a vital role in heme formation, iron absorption, and so on [63]. Although many reactions of copper ions are indispensable, abnormal ingestion of Cu²⁺ leads to protein denaturation and inactivation, leading to Wilson, Alzheimer's disease, and other diseases [64]. The recommended intake of Cu²⁺ for adults is approximately 0.8–0.9 mg/day, while the drinking-water quality guidelines of the World Health Organization (WHO 2008) recommend that the copper content must be limited to 20 µmol/L. Therefore, accurate monitoring of Cu²⁺ concentration is very important.

3.1.1 CdS-based PEC sensors for detection of Cu²⁺

CdS is a typical n-type semiconductor and has been widely used in PEC sensors on account of its suitable band gap and strong absorption of visible light. In PEC Cu²⁺ sensors, when the CdS-based Cu²⁺ sensitive materials coated ITO and FTO electrodes come in contact with the Cu²⁺-containing solutions, Cu_xS (x = 1,2) is formed on their surface due to the excellent selective interaction between CdS and Cu²⁺ ions, which not only blocks the light illumination paths but also promotes the recombination of photogenerated carriers, thereby causing photocurrent quenching. Therefore, sensors with CdS-based ITO mediated electrodes can be used to linearly detect Cu²⁺ ion concentration.

PEC Cu²⁺ sensing technology based on CdS was first proposed by Wang et al. in 2010 [46]; subsequently, CdS (n-type semiconductor) has been widely used in PEC sensors on account of its suitable band gap and strong absorption of visible light [29,38,39,65-67]. However, PEC sensors with pure CdS-coated electrodes show low sensitivity to Cu²⁺ due to the rapid recombination of electron-hole pairs in the pure CdS sensitive material before migrating to the surface. Therefore, to improve sensitivity of PEC sensors to Cu²⁺ ions, the pure CdS sensitive material was replaced with a CdS complex to promote the separation of photogenerated carriers. For example, Wang et al. proposed WO₃/CdS heterostructure sensitive films (Fig. 2a) and investigated the sensitivity and anti-interference ability of a PEC sensor with fluorine-doped tin oxide (FTO)/WO₃/CdS electrode for diverse metal ions [39]. Under illumination, photogenerated electrons migrate from CB of CdS to WO₃ because CB and VB of CdS are more negative than those of WO₃. At the same time, holes migrate from VB of WO₃ to CdS. When Cu²⁺ exists, some electron-hole pairs are transferred to Cu_xS (x = 1, 2), promoting the surface charge recombination of WO₃/CdS electrode, and the photocurrent density decreases. The LOD and linear range of this sensor are 0.06 µmol/L and 0.5 µmol/L~1 mmol/L, respectively.

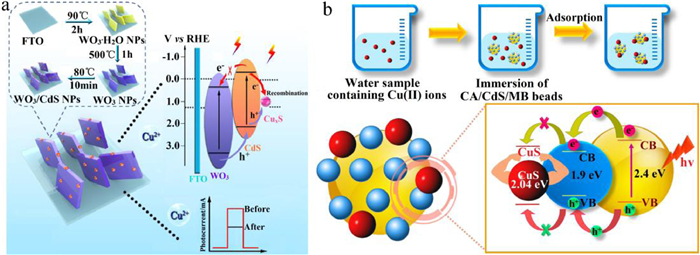

In CdS-based Cu²⁺ PEC sensors, combinations of CdS and other materials, such as BiOI [29], CuS [38], ZnO [66]), Ti₃C₂ [67], TiO₂ [65], graphene [68], ZnO-graphene [69], and cellulose acetate (Fig. 2b) [70], have been continuously developed. Moreover, considerable research efforts have been made toward assembling Au on the surface of CdS sensing material to prepare PEC sensors, because the assembly of noble metals on the surface of semiconductor materials can effectively inhibit the recombination of electron-hole pairs and improve sensitivity [71]. Furthermore, the rapid recombination of photogenerated carriers of CdS-based materials can also be inhibited by improving the surface area of the support materials. Graphene has become a good choice because of the high surface area of single-layer graphene. Herein, the introduction of graphene into CdS can enhance the sensitivity of CdS-based PEC sensors for detection of Cu²⁺ ions [72].

3.1.2 g-C₃N₄-based PEC sensors for detection of Cu²⁺

Graphite carbon nitride (g-C₃N₄) is a type of polymer semiconductor material, PEC sensors with g-C₃N₄-coated electrodes have been widely applied for the detection of Cu²⁺ concentration due to the visible-light response, unique electronic band structure, nontoxic, and low cost of g-C₃N₄. Unfortunately, due to the high recombination rate of photogenerated electron-hole pairs and low specific surface area the photoelectrochemical activity of pristine g-C₃N₄ photoelectrochemical materials is still limited [73]. Therefore, to increase photocurrent intensity and improve the sensitivity of such PEC sensors, novel methods, such as coupling g-C₃N₄ with other semiconductor materials (Bi₂MoO₆) [74] and changing the morphology and structure of pristine g-C₃N₄ [73], have been adopted. Subsequently, the modified ionothermal method was used to improve the g-C₃N₄-based electrode and prepare 3D branched crystalline carbon nitride with 1D nanoneeds using pristine g-C₃N₄ material [75]. The PEC sensor showed a good linear detection range of 1–100 nmol/L, the LOD reached 0.38 nmol/L, and high selective sensitivity to Cu²⁺.

3.1.3 Other PEC sensors for detection of Cu²⁺

In addition to the CdS-based and g-C₃N₄-based PEC sensors, many other unique and novel PEC Cu²⁺sensors that utilize various photoelectrochemical active materials have been proposed. For example, the CdTe quantum dots (QDs) was developed due to the resistance of the QDs to excellent light absorption properties, photobleaching, and high efficiency of charge separation [28]. In such a PEC sensor, when the electrode is exposed to Cu²⁺-containing solutions, a CdTe-Cu₂Te heterostructure film is formed on the electrode in-situ. The generated Cu₂Te particles prevent the photogenerated electrons of CdTe QDs from transferring to the electrolyte at pH 7.0, resulting in photocurrent quenching; the sensor showed a good linear relationship between photocurrent and Cu²⁺ concentration in the range of 1 nmol/L ~ 10 µmol/L and the LOD reached 0.4 nmol/L [28]. Apart from CdTe QDs, graphitic carbon nitride QDs (g-CNQDs) has also been used to prepare the photoelectrochemical sensitive materials of PEC sensors for the detection of Cu²⁺ [74].

A PEC Cu²⁺ sensor with Ni/Co₃O₄/MnO₂/chitosan heterostructure film-coated electrode was developed [76]. The sensor showed good selectivity because the energy barrier at the interface of heterostructure was formed by p-type Co₃O₄ and n-type MnO₂ (none of other substances can cause any interference above 30% for detection of Cu²⁺ ions); the sensor also showed a large detection range of 0–6500 nmol/L and a low LOD of 6.9 nmol/L. Similarly, Hammami et al. also constructed a PEC Cu²⁺ sensor based on the MnO₂-graphene oxide heterojunction photosensitive material [77].

Similarly, various other PEC Cu²⁺ sensors have been reported for the detection of Cu²⁺ ions. Wang et al. proposed a PEC Cu²⁺sensor by using BiOI and gold nanoparticles nanohybrids [78]. Jiang et al. electrodeposited PbSe, PbTe, and PbS films on ITO to prepare the PEC Cu²⁺ sensors and discovered that the PbSe/ITO electrode showed the highest stable and repeatable photocurrent, that is, the PbSe/ITO PEC sensor exhibited the best sensitivity and stability [79].

3.2 Detection of Cr⁶⁺

There are two common and stable oxidation states of chromium: Cr³⁺ and Cr⁶⁺. Cr³⁺ is an essential micronutrient element and plays an important role in regulating glucose metabolism in humans [80]. Cr³⁺ is also a basic tanning agent and widely used in the leather, electroplating, printing, and chemical industries. However, Cr³⁺ can lead to genotoxic effects in humans, especially DNA damage and oxidative stress [80]. Furthermore, Cr⁶⁺ and its compounds are commonly applied in chromium smelting, chromate production, stainless steel welding, and chrome pigment production. However, Cr⁶⁺ is highly toxic and its compounds have been classified as Group I human carcinogens by the International Agency for Research on Cancer since 1990 [81]. Importantly, both Cr³⁺ and Cr⁶⁺ are widely used and have contaminated many water bodies globally [82]. The drinking-water quality guidelines of the WHO (1993) recommend that the chromium content must be limited to 0.96 µmol/L. Therefore, there is an urgent need to monitor the presence of chromium ions in water.

3.2.1 TiO₂-based PEC sensors for detection of Cr⁶⁺

Numerous TiO₂-based PEC sensors have been developed for the detection of metal ions [23,61,62,83], and the first such PEC sensor for the detection of Cr⁶⁺ ions was reported by Li et al. in 2013 [30]. TiO₂ was preferred as it shows good stability, large specific surface area, and controllable morphology. To improve the sensitivity and detection range, improved TiO₂ composite coating materials were investigated. For example, Dashtian et al. fabricated a PEC Cr⁶⁺ sensor with Ti/TiO₂-Pb₅S₂I₆-polydopamine electrodes based on Ti foil [23]. The PEC sensor showed high sensitivity (1.9 µA L µmol⁻¹), good LOD (3 nmol/L), and wide linear range (0.01–80 µmol/L) to Cr⁶⁺ concentration in 0.1 mol/L deoxygenated Tris-HCl (pH 5) buffer containing 0.01 mol/L triethanolamine (TEA). To further improve sensitivity, Moakhar et al. proposed a Cr⁶⁺ PEC sensor with Au-TiO₂-coated FTO electrodes [83]. The sensor showed high selectivity, good sensitivity of 13.94 µA L µmol⁻¹, low relative standard deviation of 1.5%, and good LOD of 6 nmol/L in the Cr⁶⁺ concentration range of 0.01–50 µmol/L.

Furthermore, flexible substrates have also been utilized as response electrodes. Liu et al. fabricated a PEC Cr⁶⁺ sensor by using nano-particle TiO₂/graphene/gold electrode and graphene/gold/polyolefin composite flexible film that replaced FTO/ITO as substrate [61]. In another study, they replaced the polyolefin substrate with SiO₂/Si substrate and developed another PEC Cr⁶⁺ sensor [62]. The PEC sensors showed the sensitivity of 1.27 nA L nmol⁻¹ for the detection of Cr⁶⁺ ions.

3.2.2 Other PEC sensors for detection of Cr⁶⁺

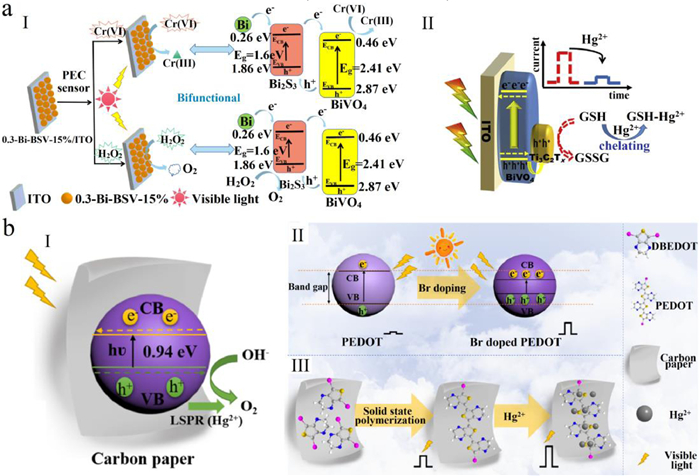

Although most PEC sensors for Cr⁶⁺ are based on TiO₂ and g-C₃N₄ sensitive materials and the sensing mechanism is based on the reduction of Cr⁶⁺ [83], TiO₂ and g-C₃N₄ belong to n-type semiconductors and are more prone to oxidation reaction. Therefore, PEC sensors based on p-type semiconductor are more suitable for the detection of Cr⁶⁺because p-type semiconductors make it easy to trigger the reduction reaction [84]. Wang et al. constructed a PEC sensor by using p-type semiconductor PbS-coated ITO electrode [84]. The LOD reached 10 pmol/L and the linear range was 0.02 nmol/L~2 µmol/L. Furthermore, bismuth-system oxides have also attracted considerable attention for PEC Cr⁶⁺sensors because of their abundance, low toxicity, low cost, and good optical and electrical properties [85]. The bismuth-system oxides used for Cr⁶⁺ PEC detection mainly include BiOX (X = Cl, I, Br) [55,86,87], BiVO₄ (Fig. 3a, Ⅰ) [56,59], BiPO₄ [87], etc. Among them, p-type BiOI with strong visible-light absorption ability is a good choice PEC-sensor-based detection of Cr⁶⁺ ions [29]. For example, Li et al. fabricated a Cr⁶⁺ PEC sensor by using Bi-modified BiPO₄/BiOI composite film-coated ITO electrode [87], and the PEC sensor showed a good linear relationship between photocurrent and Cr⁶⁺ concentration in the range of 0.5–180 µmol/L with LOD of 0.3 µmol/L.

3.3 Detection of Hg²⁺

Hg²⁺ is considered to be one of the most toxic heavy metal pollutant in food, water, and biosphere [88]. Excessive Hg²⁺ accumulation in human body leads to headache, impaired hearing, and even damage to brain and central nervous system [16,89]. The United States Environmental Protection Agency (EPA 2001) specifies that the maximum level of Hg²⁺ in drinkable water is 10 nmol/L. Therefore, there is an urgent need for fast and reliable sensors that can determine even trace Hg²⁺ concentrations in water in real-time.

3.3.1 CdS-based PEC sensors for detection of Hg²⁺

Although CdS is an important sensing material in PEC sensors, it has high carrier recombination rate and no selective sensitivity to metal ions. Thus, to selectively detect Hg²⁺ ions in water, CdS-based composites were developed [90]. For example, Zhang et al. developed a hollow CoS_x@CdS-modified ITO electrode to fabricate a PEC Hg²⁺sensor [90]; the sensor showed a high selective sensitivity to Hg²⁺, a good linear response for Hg²⁺ concentration in the range of 0.01–1000 nmol/L, and a good LOD at 2 pmol/L. Furthermore, Li et al. created a g-C₃N₄@CdS composite-coated FTO electrode and prepared a PEC Hg²⁺sensor [91]. However, when the electrolyte includes Hg²⁺ ions, they will be selectively absorbed on the surface of the coating to inhibit exciton formation and photoelectron transmission, thereby decreasing the photocurrent.

3.3.2 ZnS-based PEC sensors for detection of Hg²⁺

For PEC Hg²⁺sensors, ZnS-based photoelectrochemical materials coated ITO electrodes have also been developed [52,92]. When the ZnS-based PEC sensors come in contact with a Hg²⁺-containing solution, p-type semiconductor HgS is produced and coated on the surface of n-type semiconductor ZnS. The spontaneous heterojunction promotes carrier transport, resulting in evident enhancement in sensor photocurrent. Therefore, PEC sensors with ZnS-based ITO mediated electrodes can be used to quantitatively detect Hg²⁺ concentration. For example, the PEC sensors for Hg²⁺ detection were developed using an ITO electrode based on ZnS QDs capped with Cysteine and mercaptoacetic acid, respectively [92]. To improve the photocurrent response and LOD, a PEC sensor with ZnS@Ag₂S-modified electrode was created as the cocatalyst of Ag₂S QDs can effectively promote the separation of carriers in ZnS [52], thereby increasing the sensitivity of the sensor. The improved ZnS@Ag₂S-based PEC Hg²⁺ sensor showed a good LOD at 1 pmol/L.

3.3.3 TiO₂-based PEC sensors for detection of Hg²⁺

Although TiO₂-based PEC sensors have been used to detect Cr⁶⁺ ions [23], they have also been developed to detect Hg²⁺ ions. To improve the performance of the PEC Hg²⁺ sensors, FTO/TiO₂/3-aminopropyltriethoxysilane (APTES)/N3 electrode was developed [93]; the photocurrent response of the sensor was relatively better because the N3-Hg²⁺ complex was formed by the presence of Hg^2+. The measurement range and LOD of the sensor were 0.5–50 µmol/L and 0.13 nmol/L, respectively. Furthermore, Wu et al. designed a PEC sensor with FTO/Ru-1/TiO₂ electrode [94]. The Ru-1 was composed of two thiocyanate ligands and Ru(Ⅱ) bipyridyl complex; the photocurrent of the sensor decreased linearly with increasing of Hg²⁺ concentration over the range of 0.005–500 nmol/L and 500–5 × 10⁶ nmol/L, and LOD of the sensor reached 5 × 10⁻³ nmol/L due to the specific interaction between Hg²⁺ and thiocyanate ligands.

3.3.4 Other PEC sensors for detection of Hg²⁺

Although most PEC Hg²⁺ sensors are based on RS, CdS, ZnS, and TiO₂ composites, PEC sensors based on other sensitive materials also show good performance for the detection of Hg²⁺. For example, Zhang et al. designed a PEC sensor with Ag@Ag₂S-modified ITO conductive glass [95]. Ag was deposited on the surface of Ag₂S QDs with bead-chain-like nanostructures to produce the surface plasmon resonance effect and accelerate the separation of photo-induced charges, thereby increasing the sensitivity of the PEC Hg²⁺ sensor. Importantly, the prepared PEC sensor also showed good Hg²⁺ selectivity. Furthermore, the localized surface plasmonic resonance (LSPR) effect has been explored as a means to increase the sensitivity of PEC Hg²⁺ sensors. For example, WO₃/Au nanocomposite-coated ITO electrodes were developed to increase the sensitivity of the PEC Hg²⁺ sensors through the LSPR effect of Au [96].

In practice, novel Hg²⁺ sensitive electrodes for the preparation of PEC sensors are being continuously developed. Examples include PEC Hg²⁺ sensors with electrodes based on NiOOH-functionalized n-silicon [97], Fe³⁺/ZnO-Ag [98], BiVO₄/Ti₃C₂T_X (Fig. 3a, Ⅱ) [99], and Bi₂MoO₆/CuS [100] coatings. Recently, a novel sensor with Br-doped poly(3,4-ethylenedioxythiophene) (PEDOT)-modified carbon paper was reported (Fig. 3b) [101]. The dopant of Br ions in PEDOT decreases the band gap of PEDOT; Br ions in PEDOT layer act as shuttles, promote more electron-hole separation, and greatly enhance the photocurrent intensity of the sensor. When the Br/PEDOT-based PEC sensor comes in contact with a Hg²⁺-containing solution, the photocurrent is significantly enhanced due to the chelation of Hg²⁺ to S and O functional groups of polythiophene. The sensor shows a good linear response in the Hg²⁺ concentration over the range of 1–450 nmol/L, LOD of 0.3 nmol/L, and selectivity to Hg²⁺.

3.4 Detection of Pb²⁺

Lead pollution has been a longstanding global problem as Pb²⁺ can enter the human body through inhalation, intake, as well as skin contact [102]. Human exposure to Pb²⁺ can seriously harm the brain, kidney, and nervous system, and interfere with all aspects of fetal development [103]. Due to the significant threat that Pb²⁺ contamination poses to public health, the EPA has determined that the maximum permissible amount of Pb²⁺ ions in drinking water is 70 nmol/L. Therefore, it is essential to realize accurate detection of Pb²⁺ in drinking water.

3.4.1 CdS-based PEC sensors for detection of Pb²⁺

To detect Pb²⁺ ions, a first such PEC Pb²⁺sensor coupled with n-type semiconductor (Cds) and G-quadruplex aptamers of Pb²⁺ was developed in 2013 [54]. To improve the selectivity of PEC Pb²⁺ sensors, Pb²⁺-selective CdS composites were developed. For example, electrodes based on MoS₂-CdS:Mn nanocomposites [104], CdS-TiO₂ nanocomposite [105], and CdSe/CdS/ZnO [48] photoelectrochemically active materials have been developed to fabricate PEC Pb²⁺ sensors. In particular, the CdS-based PEC sensor utilizing an ITO electrode based on MoS₂-CdS:Mn nanocomposites showed the widest detection range in 5 × 10⁻⁵–100 nmol/L, a LOD of 1.67 × 10⁻⁵ nmol/L, good selectivity to Pb²⁺, and high repeatability [104].

3.4.2 TiO₂-based PEC sensors for detection of Pb²⁺

Although TiO₂ photocatalysts has been widely used in PEC sensors for the detection of Cr(Ⅵ) ions [23], it has also been designed for Pb²⁺ sensing. In 2022, a Cu₂O-CuO-TiO₂ heterojunction modified electrode was designed [106]. The PEC sensor based on this electrode showed a high selectivity for Pb²⁺ among the presence of other interfering ions (Cd²⁺, Mg²⁺, Ca²⁺ and Cu²⁺), low LOD of 6.8 × 10⁻⁶ nmol/L, and a linear detection range of 1 × 10⁻⁵–1000 nmol/L.

3.4.3 ZnO-based PEC sensors for detection of Pb²⁺

ZnO-based photoelectrochemically active materials have attracted considerable attention for application in PEC Pb²⁺ sensors thanks to their high surface volume ratio, good biocompatibility, and chemical stability [107]. For example, combinations of ZnO and CdS [48] is being developed for ZnO-based Pb²⁺ PEC sensors.

3.4.4 Other PEC sensors for detection of Pb²⁺

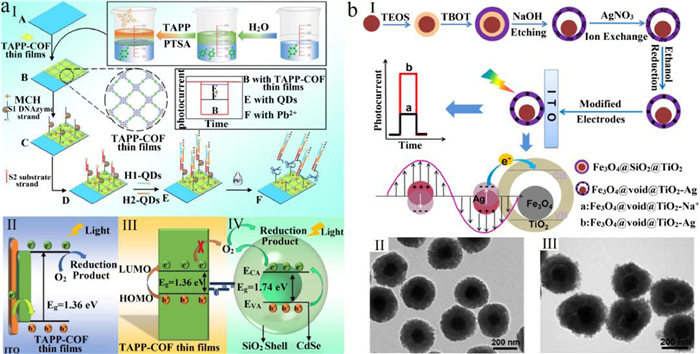

Apart from CdS (TiO₂- and ZnO-)-based materials, BiOI [108], g-C₃N₄ [109], 3,4,9,10-perylene tetracarboxylic acid [110,111], nickel hexacyanoferrate [112], and porphyrin-based covalent organic framework (TAPP-COF) [113] were developed for use in the design of PEC sensors for the detection of Pb²⁺. For example, Zhao et al. fabricated such a sensor based on a TAPP-COF film-coated electrode (Fig. 4a) [113]. First, the prepared TAPP-COF thin film was transferred onto a poly(ethylene terephthalate) (PET)-based ITO electrode. Subsequently, CdSe QDs coated with a SiO₂ shell (CdSe@SiO₂ QDs) were immobilized on TAPP-COF film. In the presence of Pb²⁺, the quencher CdSe@SiO₂ QDs immediately detached from TAPP-COF film, the quenching effect caused by CdSe@SiO₂ QDs disappeared, the photocurrent increased. The sensor showed a good linear detection range of 1 × 10⁻⁵–1000 nmol/L, low LOD of 0.012 nmol/L, and high selectivity to Pb²⁺.

3.5 Detection of Ag⁺

Ag⁺ is one of the trace elements found in the human body. It is widely used in jewelry, skin care products, and other commodities as trace amounts of silver are generally harmless to human health [114]. However, silver exists in nature as a heavy metal ion to form silver salt. Silver salts are toxic to humans because they can be absorbed into the human circulatory system and become deposited in various body tissues. This can lead to argyria including inhibition of the activity of the enzymes, cell apoptosis and decrease in the expression level of genes [115]. The guideline value of EPA for silver in public water supplies is 0.93 µmol/L. Hence, it is imperative to detect Ag⁺ economically and reliably.

In 2014, Li et al. developed the first PEC sensor with AgBr-enhanced ZnO nanorod-based electrode to detect Ag⁺ ions [34]. To improve the sensitivity and LOD of the sensor, Li et al. further developed another PEC sensor utilizing an ITO electrode based on yolk-shell-structured Fe₃O₄@void@TiO₂-Na⁺ particles (Fig. 4b) [116]. The prepared Fe₃O₄@void@TiO₂-Na⁺ particles were immersed in a solution containing Ag⁺; after magnetic separation and washing process, Fe₃O₄@void@TiO₂-Ag⁺ particles were obtained through Ag⁺-Na⁺ ion exchange. The exothermic electron injection mechanism of the in-situ generated nanosilver particles significantly increased the photocurrent; therefore, the proportional increment in photocurrent can be utilized to detect Ag⁺ ions. The PEC sensor showed high selectivity for Ag⁺ in 0.1 mol/L phosphate-buffered saline (pH 7.0) due to Ag⁺-Na⁺ ion exchange and in-situ formation of plasma Ag nanoparticles. The PEC sensor also showed a good linear detection range of 1 pmol/L~6 nmol/L and LOD of 0.88 pmol/L.

3.6 Detection of K⁺

K⁺ is an important mineral that helps in maintaining the balance of fluid and electrolyte in biological systems and regulates body functions [117]. It plays an important role in many physiological functions, including cellular metabolism, glycogen and protein synthesis, and regulation of electrical action potential across cell membranes [118]. However, excessive intake of K⁺ can lead to diseases such as abnormal heart rhythm. The maximum allowable level for K⁺ ions in drinkable water defined by the WHO (2011) is 0.31 mmol/L. Hence, it is necessary to develop a reliable method for the analysis of K⁺ in water.

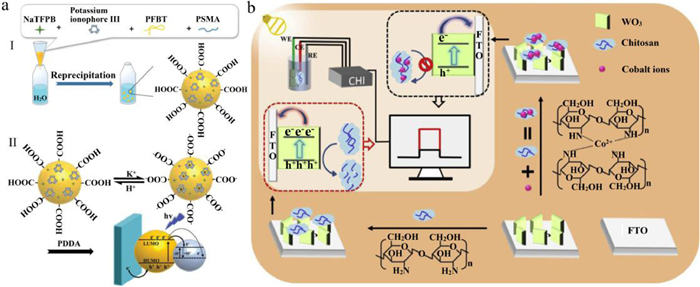

Qian et al. proposed a PEC sensor with an ITO electrode based on potassium-selective polymer dots (K-Pdots) (Fig. 5a) [35]. When the electrode was immersed in a K⁺ solution, the exposure of K⁺ to K-Pdots initiated the transport of K⁺ ions into the Pdots and their subsequent binding with the ionophores. The hydrogen ions in K-Pdots moved toward outside of K-Pdots, resulting in the deprotonation of –COOH in the K-Pdots, and thereby reducing the production of carriers at the surface of K-Pdots, causing a corresponding decrease in photocurrent. The PEC sensor showed a good linear detection range of 1~1 × 10⁵ nmol/L, LOD of 0.421 nmol/L, and a good selectivity to K⁺.

3.7 Detection of Co²⁺

Cobalt is an essential trace element for both prokaryotes and eukaryotes, and it occurs naturally in organic and inorganic forms [9]. Cobalt ions (Co²⁺) play an important role in various biological processes involving a multitude of physiological functions, including the protection of nervous system, formation of red blood cells, DNA synthesis, and iron and amino acid metabolism [119]. It has been demonstrated that deficiency of Co may cause in cardiovascular, anemia, neuropsychiatric, osteomyelitis and glaucoma, and endocrine deficits [9]. However, excessive intake of cobalt can induce poisoning and has adverse effects on the health of skin, lung, and thyroid when concentration in the blood exceeds 5.09 mmol/L [120]. Therefore, it is very important to build a sensitive and reliable sensor to detect Co²⁺ in water.

The first PEC sensor to detect Co²⁺was proposed by Zheng et al. in 2019 [36], which utilized a FTO/WO₃/Chitosan (CS) electrode. Modifying FTO/WO₃ with CS can significantly improve the visible-light absorption and the separation efficiency of photogenerated carriers, and can thus significantly improve the photocurrent due to the CS is an efficient hole scavenger. In the presence of Co²⁺, CS can be used as a chelating agent to effectively extract Co²⁺ from water. In addition, the formation of Co-CS chelate inhibits the electron transfer from CS to the photogenerated holes of WO₃, resulting in low separation efficiency of WO₃ photogenerated carriers and subsequently decreasing the photocurrent (Fig. 5b). The aforementioned PEC sensor showed a broad linear response for Co²⁺ concentration in the range of 1–60 µmol/L, a LOD of 0.3 µmol/L, and a high selectivity for Co²⁺ in phosphate buffer (pH 6.5).

3.8 Detection of As⁵⁺

Arsenic (As⁵⁺) is one of the most widely distributed inorganic contaminants in the world [121]. If its intake exceeds the excretion rate, arsenic will accumulate in human organs, leading to chronic poisoning, neuritis, myelitis, etc. The WHO (1993) stipulates that the maximum contamination level of As⁵⁺ in drinking water should be limited to 0.133 µmol/L. Therefore, it is important to accurately detect As⁵⁺ in drinking water and food.

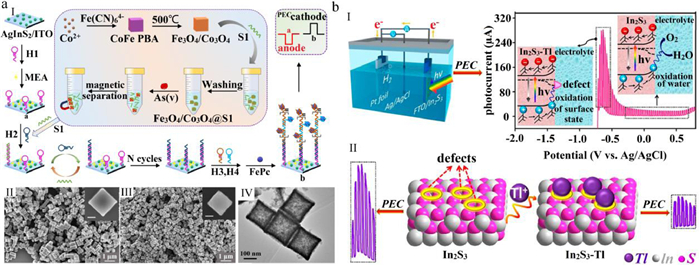

Recently, Fu et al. proposed a novel PEC sensor utilizing a AgInS₂/oligonucleotides/FePc based ITO electrode for detecting As⁵⁺ (Fig. 6a) [60]. To develop the PEC As⁵⁺ sensor, magnetic Co₃O₄-Fe₃O₄ cubes were prepared and then functionalized with oligonucleotides. In the presence of As⁵⁺, oligonucleotides can be released and As⁵⁺ can be absorbed due to the strong affinity between As⁵⁺ and Co₃O₄-Fe₃O₄ cubes. Subsequently, the released oligonucleotides trigger catalytic hairpin assembly and hybridization chain reaction, forming a large number of G-quadruplex structures on the electrode. Then, phthalocyanine was captured by the G-quadruplex structures, leading to a switch in the photocurrent polarity of electrode from anode to the cathode. The PEC sensor showed a good linear detection range of 10~2 × 10⁵ nmol/L and selectivity for As⁵⁺ with LOD at 1 nmol/L. However, except As⁵⁺, PO₄³⁻ can also switch the polarity of photocurrent; therefore, to accurately monitor As⁵⁺ in water, the analyte should be pretreated to eliminate any interference from PO₄³⁻.

3.9 Detection of Tl⁺

Thallium is a very rare but widely dispersed trace element. There are two common and stable oxidation states of thallium: Tl³⁺ and Tl⁺; compared to the former, monovalent thallium compounds have relatively high solubility and are toxic to organisms [122]. The toxicity of Tl⁺ is higher than other heavy metals such as Hg, Pb, and Cd [123]. Moreover, it is readily transported to the environment through aqueous routes and gradually accumulates. Excessive intake of Tl⁺ can easily cause esophageal cancer, liver cancer, and other diseases. The WHO (1993) has warned that the concentration of thallium in drinking water must not exceed the threshold limit of 9.8 nmol/L. Therefore, the detection of Tl⁺ is of great significance for effective monitoring of the hydrosphere and human health.

Wei et al. reported a PEC Tl⁺ sensor using a sulfide-rich In₂S₃ coated FTO electrode [51]. When the bias potential was scanned from –0.8 V to 0.8 V vs. Ag/AgCl, the surface state-rich In₂S₃ showed significant anodic photocurrent response. The photocurrent gradually reached a steady-state (Fig. 6b) with further increase in bias potential, and the peak value of photocurrent was approximately –0.65 V. The appearance of the peak value is caused by the direct oxidation of sulfide surface states by photogenerated holes, while the latter stable state is regarded as the consequence of water oxidation. In the presence of Tl⁺, the surface sulfide will chemically combine with Tl⁺, which will greatly decrease the photoactivity of sulfide and lead to the quenching of photocurrent at –0.65 V. The sensor showed a linear response for Tl⁺ concentration in the range of 0.625–10 µmol/L with LOD of 0.36 µmol/L. However, when the concentrations of Co²⁺, La³⁺, and Cu²⁺ were 30 times higher than that of Tl⁺ and the concentrations of Pb²⁺, Hg²⁺, and Cd²⁺ were 10 times higher than that of Tl⁺, addition of ethylenediaminetetraacetic acid was required to carry out the accurate detection of Tl⁺.

4 PEC sensors for non-metal ions

Less

4.1 Detection of NO₂⁻

Nitrite anions (NO₂⁻) are considered a common inorganic environmental pollutant [124], and NO₂⁻ can react with amines to form carcinogenic nitrosamines [125]. In high doses, it is toxic and can lead to food poisoning, methemoglobinemia, and other conditions that are harmful to human health [126]. According to the regulation by WHO (2003), the maximum contaminant level for nitrite is 0.065 mmol/L in drinking water. Hence, it is necessary to develop novel approaches for accurate detection of NO₂⁻.

4.1.1 TiO₂-based PEC sensors for detection of NO₂⁻

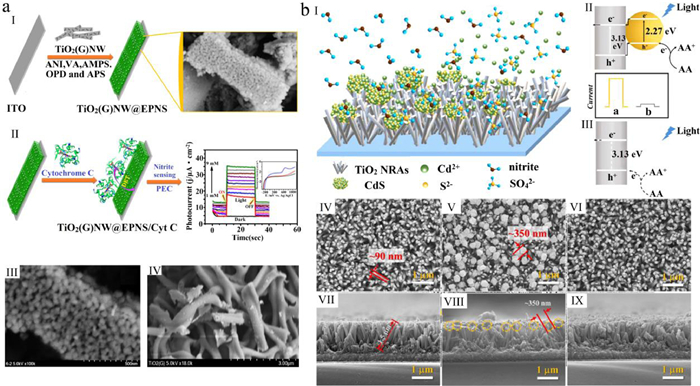

Currently, TiO₂-based composites are the most commonly used photoelectrochemically active materials in PEC sensors for the detection of NO₂⁻. A TiO₂-based PEC sensor was fabricated through the application of disposable screen-printed carbon substrates with TiO₂-P25 nanoparticles to detect NO₂⁻ [127]. To improve the selectivity and detection range of PEC NO₂⁻sensors, Muthuchamy et al. fabricated a TiO₂-based PEC NO₂⁻ sensor: First, the graphene (G) was modified by using an electroconductive polymer nanosponge (EPNS) and TiO₂ nanowires (named TiO₂ (G) NW@EPNS); second, cytochrome C (Cyt C) was immobilized into TiO₂ (G) NW@EPNS (Fig. 7a) [128]. The PEC sensor showed a high selectivity for NO₂⁻, a good detection range of 0.5–9000 µmol/L, a LOD of 225 µmol/L, and a rapid response (~5 s). Furthermore, to improve the LOD of the NO₂⁻ sensors, Gao et al. constructed a PEC NO₂⁻ sensor an FTO electrode based on CdS/TiO₂ nanocomposites (NCs) (nitrite is considered as an active oxidant under acidic conditions) (Fig. 7b) [129]. In the presence of NO₂⁻, NO₂⁻ will trigger CdS etching reaction. With the dissolution of CdS, the photocurrent conversion efficiency of the sensor decreases sharply under visible light, resulting in a significant decrease in photocurrent response. The photocurrent of the sensor decreases linearly with an increase in the NO₂⁻ concentration over 1–100 µmol/L and 100–500 µmol/L and the LOD of the sensor was 0.56 µmol/L. Furthermore, the PEC sensor showed good selectivity to NO₂⁻.

4.1.2 Other PEC sensors for detection of NO₂⁻

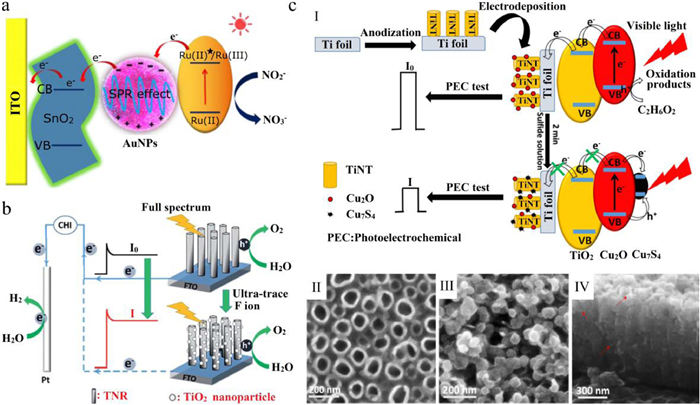

Recently, Luo et al. reported a three-dimensional network nanocomposite composed of SnO₂ nanofibers and Au nanoparticles (NPs), and evaluated the anti-interference ability of ITO/SnO₂-AuNPs electrode (Fig. 8a) [58]. Photosensitizer Ru(bpy)₃²⁻ was added into the NO₂⁻ sensitive electrode to improve the performance of the detection system. Under illumination, Ru²⁺ is excited into unstable Ru²⁺* and rapidly transfers electrons to adjacent conductor of AuNPs or SnO₂ nanofibers, turning itself into Ru³⁺. Simultaneously, the hot electrons in AuNPs are also excited to the surface plasma state. The electrons flowing into AuNPs are transferred to the CB of SnO₂ due to the matched energy level. Subsequently, the electrons are guided to the external circuit to generate a photocurrent response. In the presence of NO₂⁻, Ru³⁺ ions react with NO₂⁻ ions to form NO₃⁻ and Ru²⁺ ions. This means that the presence of NO₂⁻ restores the oxidative state of ruthenium and improves the PEC response, so as to establish the relationship between photocurrent intensity and NO₂⁻ concentration. The photocurrent of the PEC sensor increases linearly with NO₂⁻ concentrations ranging over 10⁻⁹ ~ 10⁻⁵ mol/L with a LOD of 48 nmol/L. Furthermore, the PEC sensor showed good anti-interference performance.

4.2 Detection of F⁻

Fluorine is generally beneficial to human health and is commonly used for the prevention of dental caries and treatment of osteoporosis, obesity disorders, and cardiovascular diseases [130]. However, excess fluoride intake can result in numerous health problems, such as dental fluorosis and skeletal fluorosis in children, impaired thyroid, chronic kidney disease, and endocrine system function or developmental neurotoxicity [130]. Unfortunately, fluoride compounds are widely present in the environment because of natural and anthropogenic activities, resulting in the accumulation of F⁻ in the soil, air, water, and in humans as well. Particularly, endemic fluorosis is present in many countries, including Africa and Asia due to drinking water contaminated with fluoride [130]. Therefore, keeping the F⁻ content in drinking water below the accepted thresholds is very important for human health, and the WHO (2010) guideline value for F⁻ concentration in drinking water is set at 0.079 mmol/L. Thus, to effectively protect the impact of excess F⁻ on human health, it is necessary to accurately detect the F⁻ concentration.

A PEC F⁻ sensor utilizing TiO₂ nanorod array (TNRs)-based FTO electrode was first proposed by Su et al. in 2019 [131]. When the TNR-based PEC sensor comes in contact with an F⁻-containing solution, F⁻ ions trigger an etching reaction on the surface of the TNRs, resulting in more surface-active sites and smaller electron transfer resistance, which increases photocurrent density (Fig. 8b). The PEC F⁻ sensor shows a good linear response to F⁻ ion concentration over the range of 0.05–1000 nmol/L along with an ultra-trace LOD of 0.03 nmol/L and high selectivity for F⁻ in 0.1 mol/L Na₂SO₄ among interfering ions.

4.3 Detection of S²⁻

Sulfide (S²⁻), as a toxic pollutant in wastewater, is of great concern for the environment [132]. High concentrations of S²⁻ can cause multiple serious health problems such as unconsciousness or even permanent brain damage [133]. In addition, it can get further protonated and converted to more toxic gaseous such as HS⁻ and H₂S under acidic conditions. In general, the amount of sulfide in the solution is expressed as the sum of dissolved H₂S, HS⁻, and S²⁻, and it reaches equilibrium relying on the pH of the solution [134]. To assure safe drinking water, the maximum level of S²⁻ in drinking water prescribed the WHO (2004) is 0.016 mmol/L. Thus, there is an imminent need to develop highly selective sensors to detect S²⁻ in water.

In 2001, Shchukin et al. first proposed a PEC sensor with CdO electrode to detect S²⁻ ions [135]. Subsequently, Su et al. developed another PEC S²⁻ sensor by utilizing a Cu₂O/TiO₂ nanotube (TiNTs) based Ti foil [47]. When the Cu₂O/TiNT electrode is suspended in the sulfide solution, Cu₇S₄ is formed on the surface of electrode, and the photogenerated carriers from Cu₂O nanoparticles are transferred to Cu₇S₄ and rapidly combine with Cu₇S₄, resulting in a decrease in photocurrent (Fig. 8c). The photocurrent of the sensor decreased linearly over an S²⁻ concentration range of 1–300 µmol/L with a LOD of 0.6 µmol/L. Particularly, the sensor showed a high selectivity for sulfide in 0.1 mol/L Na₂SO₄ solution containing interference ions.

5 Conclusion and future prospects

Less

In this review, we have systematically outlined the latest important developments regarding PEC ion sensors in the literature since January 2017. Importantly, the composition (photoelectrochemically active materials and conductive substrates), measurement principle (electronic transfer, chemical reaction, and photocurrent variation characteristics), and performance of the sensors for detecting trace metal and non-metal ions are summarized according to ion species.

Although these extensive studies have significantly advanced the development of PEC ion sensors, detectable ion species may have to be expanded and the performance of some sensors needs to be further improved, because our purpose is to ensure that the tested drinking water is safe for humans and we must be able to accurately detect trace ions in water. Clearly, the performance of the PEC sensors for K⁺, Co²⁺, As⁵⁺, Tl⁺, NO₂⁻, F⁻, and S²⁻ should be further enhanced. Particularly, the LOD values of PEC sensors for Co²⁺, Tl⁺ and S²⁻ need to be further improved (Table 1). Besides, the stability, repeatability, portability, multiple detection and anti-interference ability (temperature, pH value, microorganism, etc.) of PEC ion sensors still need to be improved, which are the main obstacles that hinder their development into commercial products for practical applications. We understand that the LOD, detection range, and sensitivity of PEC sensors are controlled by the intensity of the generated photocurrent. Although the photocurrent of the PEC sensors is controlled by many factors (photoreactor structure, conductive substrate, electrolyte, photoelectrochemically active materials, and so on), the ion sensing material is the most important factor affecting the photocurrent because it determines the light absorption, photoelectric conversion, electron and hole recombination, electron transfer, and reaction between the active material with the detection target ions. Furthermore, the performance of these materials is controlled by their band structure, work function, molecular and morphology structures, and specific surface area. Therefore, to improve the LOD, detection range, and sensitivity of PEC sensors, more advanced photoelectrochemical active materials should be developed or imported from other PEC research applications such as water splitting, wastewater treatment, and reduction of carbon dioxide.

The selectivity of PEC ion sensors has been investigated in the presence of a series of interference ions. The results highlight that most of the developed PEC ion sensors have good selectivity for target ions, which means that these sensors have a certain anti-interference ability. In particular, PEC DNAzyme biosensors show high selectivity and specificity for metal ions because DNAzyme molecules can strongly and selectively bind metal ions. However, when PEC ion sensors are applied to monitor ions in surface and groundwater sources, especially polluted water, it is not enough to only consider the influence of other interfering ions. Other interfering factors such as temperature, pH, and common pollutants (such as microorganisms and suspended particles) may affect the response of the PEC ion sensors. Therefore, to improve the anti-interference ability of these sensors and make them more flexible in practice, it is necessary to further enhance the anti-interference ability of the PEC ion sensors to avoid the influence of temperature, pH, microorganisms, suspended particles, etc.

In addition to the importance of sensitivity, LOD, detection range, and anti-interference ability of the PEC ion sensors, their repeatability and lifetime are also key factors that determine their applicability in the real world. The relative standard deviations can judge the stability of the PEC ion sensor. Although the relative standard deviations of some PEC ion sensors have been tested and showed a good result, they still face certain critical issues that need to be addressed. Moreover, the photo-corrosion of photoelectrochemically active materials and their separation from the conductive substrate surface can lead to poor charge-transfer properties and rapid electron-hole recombination, thereby decreasing the photoelectric conversion efficiency and dropping the stability and repeatability of the PEC ion sensors. Furthermore, in the process of reuse and continuous detection of PEC ion sensors, the accumulation of products or non-target ions on the electrode surface will hinder the absorption of light by the photoelectrochemically active materials and block the active sites on the electrode surface as well as hinder the reaction between the target analyte and active material, thereby leading to material deactivation and reduced service life. The performance degradation gets worse when the photo-corrosion and accumulation of reaction products and non-target ions occur simultaneously on the electrode surface. For example, in the PEC Cu²⁺ sensor, which comprises a CdS-coated ITO electrode, Cd²⁺ will be produced when CdS is subjected to photo-corrosion or CdS undergoes displacement reaction with target ions to produce other substances (such as Cu_XS). On the contrary, wastewater, even domestic water, contains a large amount of ions; thus, attempts to detect trace amounts of Cu²⁺ or Zn²⁺ ions (10⁻⁶ mol/L) in such water will lead to marked decline in the photocatalytic activity due to the presence of metal ions that will continuously quench the photogenerated electrons and holes. To overcome the above problems, first, a protective layer (such as Ag₃PO₄) should be deposited on the surface of the photoelectrochemically active material to prevent photo-corrosion and detachment of the active material, inhibit the recombination of carriers, and enhance the charge transmission. Second, the addition of sacrificial agents in the electrolyte can also inhibit photo-corrosion; for example, when CdS is used as a photoelectrochemically active material, adding Na₂SO₃ and Na₂S as sacrificial agent in the solution can effectively inhibit the photo-corrosion. Third, to form a strong interphase between the photoelectrochemically active material and conductive substrate, an appropriate crosslinking agent should be developed and adopted to produce a strong bond between the active material and substrate, thereby enhancing the sustainability and repeatability of PEC sensors. Fourth, the strategy of self-sensitization effect, in which the heavy metal ions convert into the metal sulfides or even form a heterojunction structure with the prepared photoelectrochemically active materials, could be positively utilized to enhance the stability and photocurrent of the PEC ion sensors.

Although extensive research has been carried out to produce PEC sensors with high sensitivity, wide detection range, good LOD, and high repeatability, there are still some inherent challenges for multi-parameter online ion detection in real time. More suitable synthetic strategies for the design of PEC ion sensors are needed to address these challenges. In particular, coupling of PEC system, microfluidics, and lab-on-a-chip may be an effective method to eliminate the water sample collection process and directly realize real-time online detection of surface- and groundwater sources. Furthermore, the distribution of a variety of different sensitive materials on a conductive substrate may build different photocurrent generated to response of different ions, which may be a new research path that can allow PEC sensors to achieve simultaneous detection of multiple ions.

Declaration of competing interest

Less

There are no conflicts to declare.

Acknowledgments

Less

The authors acknowledge financial support from the National Natural Science Foundation of China (NSFC, Nos. 52176178, 51876018), Innovation Research Group of Universities in Chongqing (No. CXQT21035), Scientific and Technological Research Program of Chongqing Municipal Education Commission of China (No. KJZD-M202201101), Chongqing Postgraduate Innovation Project (No. CYS22645).
