Synthesis, insecticidal activity and stability study of novel nitromethylene neonicotinoids with five-membered aromatic heterocycles

Full

Li Han^a, Zihao Yuan^a, Xusheng Shao^a, Xiaoyong Xu^a, Zhong Li^*^,^a^,^b

Affiliations

^a Shanghai Key Laboratory of Chemical Biology, School of Pharmacy, East China University of Science and Technology, Shanghai 200237, China

^b Shanghai Collaborative Innovation Center for Biomanufacturing Technology, Shanghai 200237, China

Published: 2023-06-15 doi: 10.1016/j.cclet.2022.107868

Outline

Abstract

Less

Twenty-four novel neonicotinoid analogues with nitromethylene and five-membered aromatic heterocycles were designed and synthesized. All target molecular structures have been confirmed by analytical and spectral data. Some compounds exhibited notable insecticidal activities against aphid (Aphis medicaginis) and brown planthopper (Nilaparvata lugens). The aqueous stability test confirmed that the stabilities of those compounds were superior to the leading compound, and the photostability was even better than that of imidacloprid.

Key words

Nitromethylene / Neonicotinoids / Selective reduction / Stability / Insecticidal activity

Cite this Article

Li Han, Zihao Yuan, Xusheng Shao, Xiaoyong Xu, Zhong Li. Synthesis, insecticidal activity and stability study of novel nitromethylene neonicotinoids with five-membered aromatic heterocycles[J]. Chinese Chemical Letters, 2023 , 34 (6) : 107868 - . DOI: 10.1016/j.cclet.2022.107868

Full Text

Less

The nicotinic acetylcholine (ACh) receptor (nAChR) is the prototypical ligand-gated ion-channel in charge of rapid excitatory neurotransmission and an important target for insecticide design [1-3]. Nowadays, several neonicotinoids have been developed with novel modes of action [4], e.g., targeting insect nAChRs, low mammalian toxicity, broad insecticidal spectra, and good systemic properties [5-7]. However, rise of resistance due to the wide spread applications [8,9], and overuse of neonicotinoids were major concerns plaguing this class of insecticides [10]. Therefore, it is imperative to find novel compounds to address these problems.

As for the neonicotinoids disclosed in past years (Fig. 1), the double bond in the nitromethylene group plays an important role in its mode of action. As the bond forms a conjugated system that facilitates electron flow toward the nitro group and renders the planarity of the pharmacophore, the double bond is presumably indispensable for bioactivity [11-13]. Nitromethylene proved to be one of the most effective electron-withdrawing fragments, neonicotinoids containing this scaffold were called nitromethylene neonicotinoids [14,15].

Interestingly, in our previous study [16], compound 2 exhibited excellent insecticidal activities against cowpea aphid (craccivora), armyworm (separate Walker) and small brown rice planthopper (striatellus), into which the conjugated double bond was introduced. However, previous studies showcased that the half-life of compound 2 was only 0.77 min under the irradiation of a 300 W high-pressure mercury lamp [17]. The life-time is even shorter when dissolved in water (hydrolysis half-life in water is 2.40 h), which prohibits it from practical applications (Scheme 1).

To solve this problem, we then introduced diazene moiety to compound 2 to enhance the π-π stacking interaction in order to increase the electron density of the conjugated system and reduce its proneness toward nucleophilic addition [18]. This did improve its stability mildly. Yet, these compounds were still unstable compared with imidacloprid (Scheme 1).

Inspired by the stability and activity of cycloxaprid and other nitromethylene neonicotinoids, we next switched our focus to modification of the nitroconjugated double bond of compound 2 into β-nitroenamine in order to maintain its activity and at the same time enhance the stability. According to the reaction reported by Francisco et al. in 2007 [19], sodium borohydride was employed to selectively reduce the conjugated diene system for improved stability (Scheme 1). In addition, the insecticidal activity was expected to be even improved. Twenty-four novel nitromethylene neonicotinoids were synthesized and their significant insecticidal activities and increased stabilities were reported herein.

Synthetic route of 3a-3x was shown in Scheme 2 or Fig. S1 (Supporting information). The key to prepare the target compounds was the selective reduction of conjugated diene system. Sodium borohydride can hydrogenate the double bond, which consists of C and hetero atoms like O or N. Sodium borohydride may add to C=N bond and then the C-4 was subsequently protonated to get the target compound (Scheme 3). When the five-membered aromatic ring was substituted by electron-withdrawing group such as nitro group or cyano group, the reduction reaction was unsuccessful.

The influence of reaction temperature was also studied. Taking the reactivity of sodium borohydride into consideration, we tested the temperature from −78 ℃ to 15 ℃. The results showed that increasing the reaction temperature led to a faster rate but little effect on the yield. The most efficient temperature for this reaction was 15 ℃. The effect of the solvent on the reaction was also investigated, given that compound 2 participates in the reaction as an organic salt, various polar solvents such as H₂O, methanol, ethanol, propanol and DMF were screened. When using water as solvent, due to poor water solubility of the product, it was found that an insoluble sticky substance was formed during the reaction and restrained the stirrer. Here, adding one equal volume of dichloromethane to water in reaction was found favorable to dissolve the product thorough optimization. According to the yields on Table 1, mixture of H₂O/CH₂Cl₂ (1:1) was most suitable to yield compound 3a (Table 1, entries 9 and 11). Structures of all 24 target compounds 3a-3x were listed in Scheme 4.

As biological test results shown in Table 2, almost all compounds were active to rice brown planthopper in concentration of 500 mg/L, and mortality of some compounds could reach 100% even in the concentration of 4 mg/L. Most compounds were active against aphid at 500 mg/L. Some compounds could keep 100% mortality in 4 mg/L. However, this series of compounds show poor activity against the diamondback moth except 3v.

Taking the structure of the compounds we synthesized into consideration, the chloropyridine ring leads to better bioactivity than other six-membered heterocyclic moieties such as clorothiazole, tetrahydrofuran and pyridine. If the pyridine ring is unsubstituted, or replaced by phenyl or chlorophenyl will lead to loss of activity. In the five-membered heterocyclic moiety, the compound substituted by thiophene is generally more active than that of furan. Compounds substituted by pyrrole ring are also good for further derivatization. The substitution position of the five-membered ring had little effect on the activity of the compound such as 3i and 3p which showed less differences in activity. Furthermore, the five-membered ring with electron-donating groups such as methyl and ethyl substituents showed better activity than electron-withdrawing group like bromine. In Table 3, we can see clearly that compound 3v showed better activity than cycloxaprid against alfalfa aphid and diamondback moth. This also proved our selective reduction was rational.

We selected two representative compounds 3a and 3i to test their photo and water stability due to their good activity and imidacloprid was chosen as control. The degradation kinetics of 3a and 3i were calculated by the residues of peak area versus time. The relative concentration of 3a and 3i fitted well to the following pseudo first-order kinetic equation (Eq. 1).

(1)

where C₀ was the initial concentration of 3a, 3i and imidacloprid, C_t was the concentration of 3a, 3i and imidacloprid at time t, and k was the observed reaction rate constant (obtained from the slope of the line in the plot of ln(C_t/C₀) versus time). The best fit of Eq. 1 to the observed changes was shown in Table 2. The data of photolysis rate constants (k), half-lives (t_1/2), and linear response (R²) for compounds were shown in Table 4. The half-life of 3a was 9.6 h. The stability of synthesized compounds was much better than imidacloprid under irradiation of mercury lamp. Meanwhile, the energy of mercury lamp was higher than Xeron lamp, so that the degradation rate was generally faster than that described in the literature.

The hydrolysis rate of our synthesized compounds was also taken into account (Table 5). Using the same kinetic equation in the previous section, we mapped the hydrolysis curve of compounds 2, 3a, 3i and imidacloprid. So that calculated half-life of compound 2 was 2.33 h. 3a, 3i and imidacloprid were quite stable and can kept the concentration at 5 mg/L for three months without degradation in water, which indicates our molecular design was reasonable and valuable.

In summary, we designed and synthesized a series of 24 novel neonicotinoid analogues using sodium borohydride as reducing agent by selective 1,4-reduction. All target molecular structures have been confirmed by analytical and spectral data (Fig. 2 and Supporting information). Most of the compounds show good bioactivity against brown planthopper. Especially, insect activity of 3v was even better than cycloxaprid. But all these compounds show low activity against diamondback moth. The results of stability experiments showed that both hydrolytic stability and photolysis stability of compounds 3a, 3i were better than imidacloprid and superior to the original compound. All of the results met our requirements of enhancing the stability and maintaining good bioactivity of leading compound, which was likely to be enhanced by further discussion and exploration.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper

Acknowledgments

Less

This work was supported by the Innovation Program of Shanghai Municipal Education Commission (No. 201701070002E00037) and the National Key Research Program of China (No. 2017YFD0200505).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.107868.

References

Less

[1]

M. Tomizawa, J.E. Casida, Acc. Chem. Res. 42 (2009) 260-269.

[2]

M. Tomizawa, Adv. Insect Physiol. 44 (2013) 63-99.

[3]

J.E. Casida, K.A. Durkin, Annu. Rev. Entomol. 58 (2013) 99-117.

[4]

M. Tomizawa, T.T. Talley, D. Maltby, et al., Proc. Natl. Acad. Sci. U. S. A. 104 (2007) 9075-9080.

[5]

C.C. Zhu, G.L. Li, K.Y. Xiao, et al., Chin. Chem. Lett. 30 (2019) 255-258.

[6]

H.F. Shen, X. Chen, P. Liao, et al., Chin. Chem. Lett. 26 (2015) 509-512.

[7]

N.Y. Chen, L.P. Ren, M.M. Zou, et al., Chin. Chem. Lett. 25 (2014) 197-200.

[8]

R. Nauen, I. Denholm, Arch. Insect Biochem. Physiol. 58 (2005) 200-215.

[9]

M. Reyes, P. Franck, P.J. Charmillot, et al., Pest Manag. Sci. 63 (2007) 890-902.

[10]

Z.W. Liu, Z.J. Han, Y.C. Wang, et al., Pest Manag. Sci. 59 (2003) 1355-1359.

[11]

Z.J. Ye, S. Xia, X.S. Shao, et al., J. Agric. Food. Chem. 59 (2011) 10615-10623.

[12]

D.D. Zhang, S.X. Cui, Z.P. Xu, D.M. Li, Z.Z. Tian, Chin. Chem. Lett. 28 (2017) 1743-1745.

[13]

M. Cai, W. Gan, Z.Q. Ding, et al., Chin. Chem. Lett. 34 (2023) 107554.

[14]

S. Kagabu, R. Ishihara, Y. Hieda, K. Nishimura, Y. Naruse, J. Agric. Food Chem. 55 (2007) 812-818.

[15]

Y.F. Fan, W.W. Zhang, X.S. Shao, et al., Chin. Chem. Lett. 26 (2015) 1-5.

[16]

X.S. Shao, Z. Li, X.H. Qian, X.Y. Xu, J. Agric. Food. Chem. 57 (2009) 951-957.

[17]

R.B. Xu, R. Xia, M. Luo, et al., J. Agric. Food Chem. 62 (2014) 381-390.

[18]

S.Y. Lu, Y.Y. Zhuang, N.B. Wu, et al., J. Agric. Food Chem. 61 (2013) 10858-10863.

[19]

P. Francisco, V. Javier, A. Domitila, J. Org. Chem. 71 (2006) 7690-7696.

Appendix

Less

Year 2023 volume 34 Issue 6

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2022.107868

Receive Date：2022-07-07
Online Date：2025-11-21
Published：2023-06-15

Article Data

Affiliations

History

Received：2022-07-07
Revised：2022-09-23
Accepted：2022-09-28

Affiliations

^a Shanghai Key Laboratory of Chemical Biology, School of Pharmacy, East China University of Science and Technology, Shanghai 200237, China

^b Shanghai Collaborative Innovation Center for Biomanufacturing Technology, Shanghai 200237, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2022.107868

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1 Optimum process to synthesis the target molecules.

Table 2 Insecticidal activity test result of the synthesized compounds.

Table 3 Insecticidal activities of some target compounds with good bioactivity at 4 mg/L.

Table 4 Photolysis rate of some target compounds.

Table 5 Hydrolysis rate of some target compounds.

Fig. 1. Chemical structures of neonicotinoids disclosed in past years.

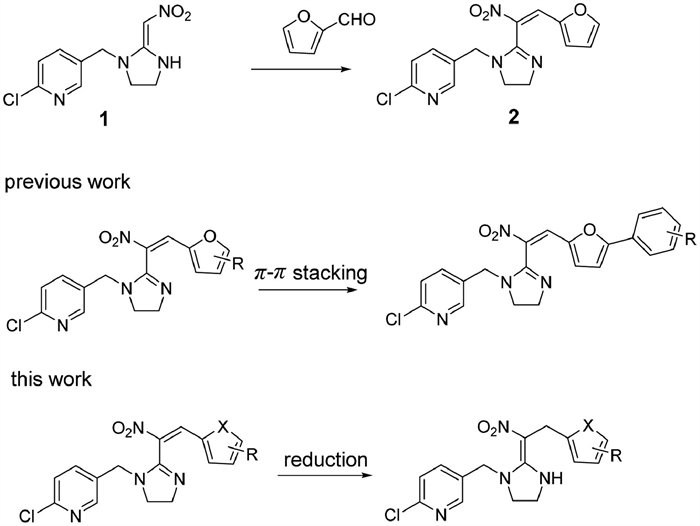

Scheme 1 Our previous and this work.

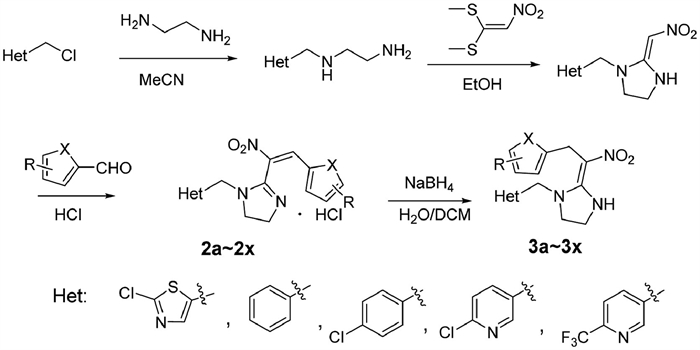

Scheme 2 The synthetic route of 24 target compounds 3a-3x.

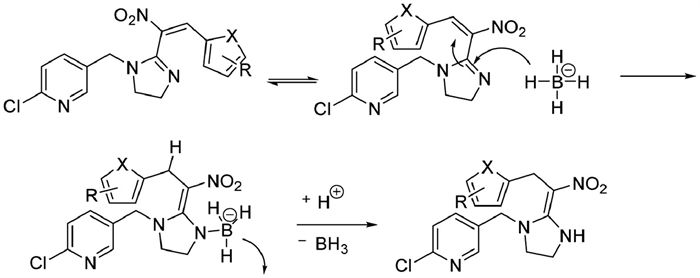

Scheme 3 Presumed synthetic mechanism of the target compounds.

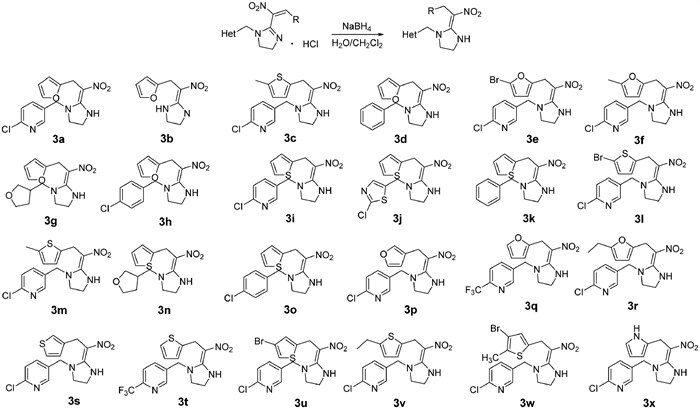

Scheme 4 Structures of 24 target compounds 3a-3x.

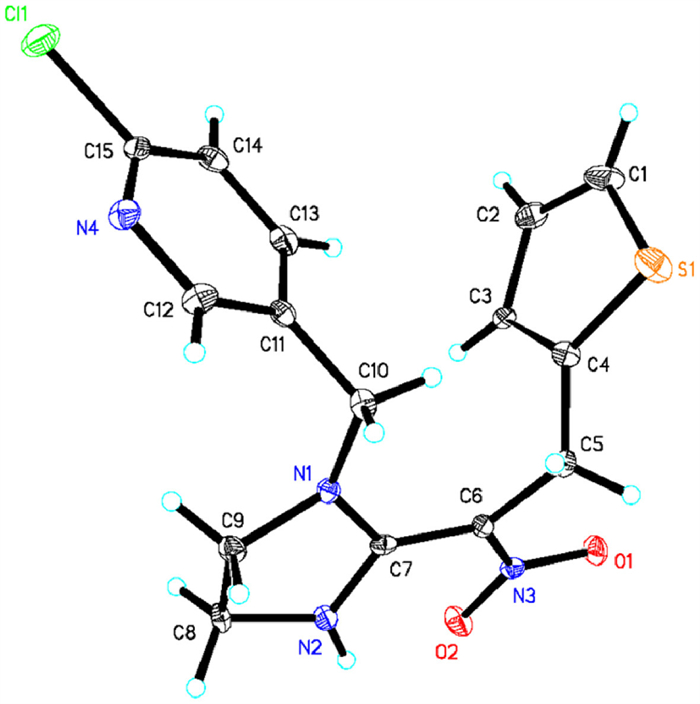

Fig. 2. The single-crystal structure of 3i.
