Selective inhibition of resistant bacterial pathogens using a β-lactamase-activatable antimicrobial peptide with significantly reduced cytotoxicity
收藏切换
PDF
Weipan Xua, Zheng Maa, Geetika Dhandab, Jayanta Haldarb, c, Hexin Xiea, *
Chinese Chemical Letters | 2023, 34(5) : 107847
Less
收藏切换
Chinese Chemical Letters | 2023, 34(5): 107847
• Communication •
Selective inhibition of resistant bacterial pathogens using a β-lactamase-activatable antimicrobial peptide with significantly reduced cytotoxicity
Full
Weipan Xua, Zheng Maa, Geetika Dhandab, Jayanta Haldarb, c, Hexin Xiea, *
Affiliations
  • a State Key Laboratory of Bioreactor Engineering, Shanghai Key Laboratory of New Drug Design, Frontiers Science Center for Materiobiology and Dynamic Chemistry, Shanghai Frontier Science Research Base of Optogenetic Techniques for Cell Metabolism, School of Pharmacy, East China University of Science and Technology, Shanghai 200237, China
  • b Antimicrobial Research Laboratory, New Chemistry Unit, Jawaharlal Nehru Centre for Advanced Scientific Research (JNCASR), Jakkur, Bengaluru 560064, India
  • c School of Advanced Materials, Jawaharlal Nehru Centre for Advanced Scientific Research (JNCASR), Jakkur, Bengaluru 560064, India
Published: 2023-05-15 doi: 10.1016/j.cclet.2022.107847
Outline
收藏切换

The expression of β-lactamase, particularly metallo-β-lactamase (MBL) in bacteria has caused significant resistance to clinically important β-lactam antibiotics, including life-saving carbapenems. Antimicrobial peptides (AMPs) have emerged as promising therapeutic agents to combat antibiotic resistance. However, the cytotoxic AMPs has been one of the major concerns for their applications in clinical practice. Herein, we report a novel cephalosporin-caged AMP, which shows significantly reduced cytotoxicity, hemolytic activity, and antibacterial activity but turns highly active against bacteria upon specific hydrolysis by the antimicrobial resistance-causative β-lactamase. Further investigations demonstrate this β-lactamase-activatable AMP selectively inactivates resistant bacterial pathogens over susceptible bacteria. This strategy should be applicable to other AMPs as a potential solution for the treatment of infectious diseases caused by β-lactamase-expressing pathogenic bacteria.

Antibiotic resistance  /  β-Lactamase  /  Antimicrobial peptide  /  Cytotoxicity
Weipan Xu, Zheng Ma, Geetika Dhanda, Jayanta Haldar, Hexin Xie. Selective inhibition of resistant bacterial pathogens using a β-lactamase-activatable antimicrobial peptide with significantly reduced cytotoxicity[J]. Chinese Chemical Letters, 2023 , 34 (5) : 107847 - . DOI: 10.1016/j.cclet.2022.107847
Full Text
Less
Bacterial resistance to antibiotics, particularly β-lactam antibiotics, the most important class of therapeutic agents for infectious diseases, has emerged and spread rapidly all over the world, which poses a severe threat to public health [1-3]. The major mechanism for pathogenic bacilli to survive in the presence of β-lactam antibiotics is the production of a β-lactam-hydrolyzing enzyme, named as β-lactamase (bla) [4,5]. Particularly, recent studies indicated metallo-β-lactamases (MBLs, or class B bla) [6], such as New Delhi metallo-β-lactamase (NDM), Verona integron-encoded metallo-β-lactamase (VIM), and Imipenemase (IMP), are capable of degrading β-lactams with high efficiency and thus render broad-spectrum resistance to nearly all β-lactam antibiotics, including carbapenems, "the antibiotics of last resort" [7]. Moreover, some of these MBLs are plasmid-encoded enzymes, which are transmissible between different bacterial strains. The selection pressure caused by β-lactam antibiotics results in further reduction of susceptible bacterial strains and expansion of resistant strains, leading to the increase of community antimicrobial resistance.
The rapidly increasing resistance to β-lactam antibiotics has severely weakened the efficacy of these life-saving molecules. Though combination of β-lactams with synthetic β-lactamase inhibitors have been used to inactivate resistant pathogens [8-10], novel therapeutic agents to combat resistant bacteria are still of high demand. Antimicrobial peptides (AMPs), or host defense peptides, have emerged as a new class of compelling antimicrobial agents [11-14]. These antibacterial compounds typically share several similar properties, such as cationicity, hydrophobicity, and amphiphilicity [12,15,16]. Most of AMPs kill bacteria through non-selective physical disruption of outer and/or cytoplasmic membrane of bacteria. However, the high cationicity, hydrophobicity, and amphiphilicity of AMPs might also give rise to increased toxicity to normal mammalian cells. One of the major challenges for the application of AMPs in clinical practice is to balance antibacterial activities and cytotoxicity to mammalian cells [17-20].
Bacterial production of β-lactamase leads to severe antibiotic resistance, which, on the other side, also offers a unique opportunity to specifically detect [21-26] or even inhibit [27-29] resistant microbes. Moreover, Devocelle and co-workers attempted to conjugate β-lactam with AMP as antibiotic prodrug to target resistant bacteria, but resulted in only marginal selectivity against β-lactamase-positive and -negative bacteria [30]. Herein, we report a novel β-lactamase-activatable AMP with high specificity against β-lactamase-producing resistant bacterial pathogens over susceptible microbes. This antibacterial activity of the AMP is initially masked by a cephalosporin group and shows massively reduced toxicity to mammalian cells but it turns highly active against bacteria upon specific hydrolysis by the β-lactamase produced by bacterial pathogens and thus selectively inactivates β-lactamase-producing resistant bacteria.
The bactericidal activity and cytotoxicity of AMPs depends on the charge, amphipathicity, hydrophobicity, and structural propensities. We conceived the introduction of bla-activatable caging group on one or two key side chains of AMP could switch these properties and thus reduce membrane damage of AMP to mammalian cells. Once the caging group is selectively removed by β-lactamase, the major causes for antibiotic resistance, free AMP is released and kills resistant bacteria with high specificity (Fig. 1a). In this study, we employed oxidized cephalosporin as the bla-responsive unit. The selection of oxidized form of cephalosporin over the native form of cephalosporin is mainly based on the following considerations: (1) the oxidized form of cephalosporin is more stable in physiological conditions than the native form of cephalosporin [21,31]; (2) the oxidized cephalosporin might have reduced antibacterial activity against cephalosporin-susceptible bacteria compared to the native form of cephalosporin; (3) the oxidation of cephalosporin effectively blocks the migration of double bond between Δ2 and Δ3 isomers in the presence of base and thus simplifies the synthesis of cephalosporin-peptide conjugate [21].
Temporin L (TL, FVQWFSKFLGRIL-NH2, Fig. 1b) is a type of AMP found in the skin of European red frog Rana temporaria [32,33]. Previous studies have revealed the bactericidal activity of TL is associated with its positive charge and the α-helix structure [34]; the caging of the ε-amine residue of lysine might disrupt the α-helix structure [35,36] and thus leads to massive reduction of bactericidal activity. To test our β-lactamase-activatable AMP strategy, we used TL as a model AMP in this study.

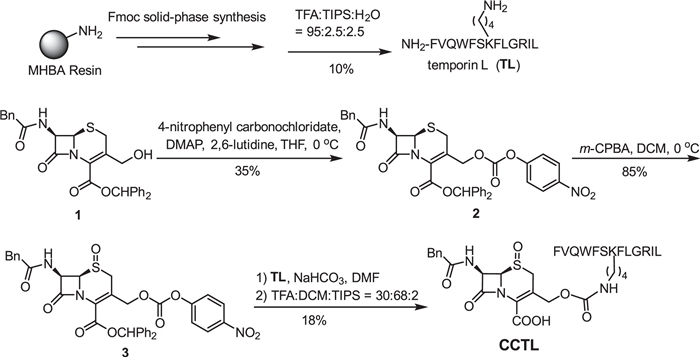

TL and its N-terminal acetylated analogue (AcTL) were readily prepared by Fmoc solid-phase peptide synthesis (SPPS) [33]. As depicted in Scheme 1, the cephalosporin-caged TL (CCTL, Fig. 1b) was easily synthesized by the conjugation of pre-activated cephalosporin 3 and protecting group-free TL in the presence of sodium bicarbonate followed by a trifluoroacetic acid (TFA)-mediated deprotection. It is worth noting that the N-terminal amine of TL is significantly less reactive compared to the ε-amine; selective protection of the N-terminal amine is not necessary for this reaction. Additionally, leaving group-bearing cephalosporin CCEt (Fig. 1b) was also prepared as a control compound.

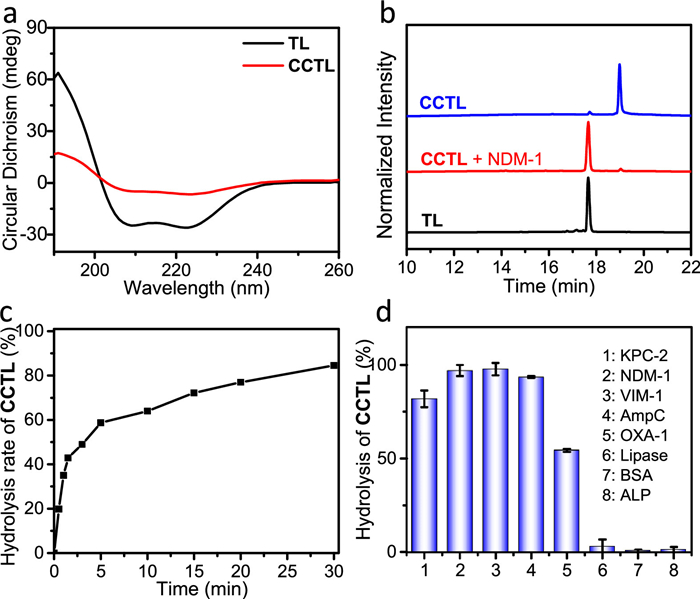

The antimicrobial activity of peptide is closely related to its folding in solution. With CCTL in hand, we first investigated whether the caging of the ε-amino group of lysine on TL had any impact on the folding of peptide. We thus performed a circular dichroism (CD) study on both peptides, free TL and caged TL (CCTL). As exhibited in Fig. 2a, the CD spectra of TL in a DSPE solution showed a positive band at around 190 nm and two negative bands at 209 and 222 nm, respectively, confirming the formation of α-helix structure in solution. In stark contrast, the CD spectra of CCTL displayed a much weaker absorption under identical conditions, suggesting this compound might not form a α-helix structure in solution or at a much lower degree. These results demonstrate the introduction of a single caging group on the ε-amino group of TL could dramatically affect the original secondary structure of peptide in solution.
New Delhi metallo-β-lactamase 1 (NDM-1) hydrolyzes all types of β-lactam-based antibiotics with high efficiency. We incubated CCTL with this enzyme in PBS (pH 7.4) and analyzed by HPLC. As shown in Fig. 2b, the treatment of CCTL with NDM-1 led to disappearance of CCTL, leaving uncaged TL as the major product. Additionally, time-course hydrolysis of CCTL in the presence of NDM-1 was also monitored by HPLC (Fig. 2c and Fig. S1 in Supporting information), which indicates over 80% of CCTL has been hydrolyzed by NDM-1 within 0.5 h.
Moreover, other β-lactamases, such as KPC-2 (class A bla), VIM-1 (class B bla), AmpC (class C bla) and OXA-1 (class D bla), were also tested with CCTL and all resulted in the release of free TL as the major product (Fig. 2d). In contrast, the incubation of CCTL with other proteins, for instance, catalytic alkaline phosphatase (ALP), lipase or non-catalytic bovine serum albumin (BSA), gave rise to no free TL at all, demonstrating the high specificity of CCTL to β-lactamases over other proteins.

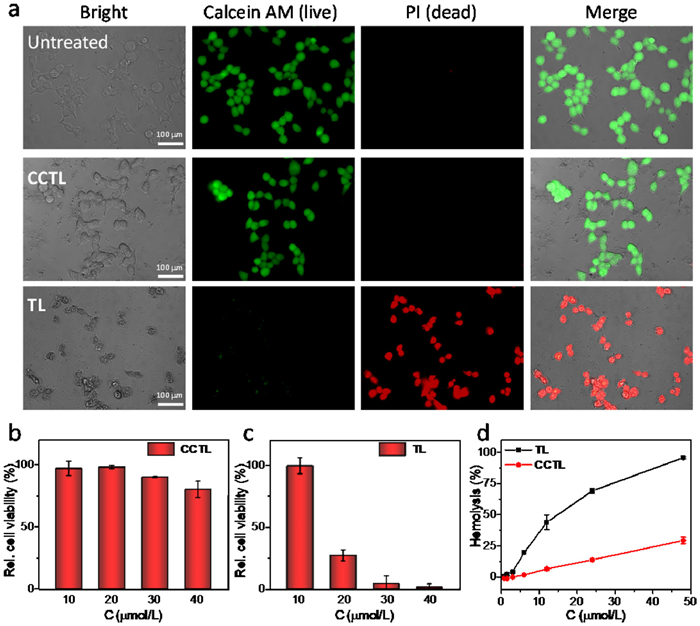

One of the major concerns for the application of AMPs in clinical practice is the toxicity to mammalian cells. To assess the biocompatibility of CCTL, we performed a live/dead staining assay using Calcein AM and propidium iodide (PI). As exhibited in Fig. 3a, upon incubation with 30 µmol/L of CCTL for 1 h, the Calcein AM-treated Human Embryonic Kidney 293 (HEK 293) cells emitted strong green fluorescence as the CCTL-free cells while the PI-treated cells were fluorescently silent, suggesting CCTL is compatible with HEK 293 cells. In sharp contrast, under identical circumstances, the TL-incubated HEK 293 cells generated strong red fluorescence but with basically no green fluorescence emission, indicating there were hardly any living cells left. Additionally, MTT assay was also performed to probe the cytotoxicity of CCTL, which gave comparable results as the live/dead staining assay: CCTL, showed significantly less impact on HEK293 cells compared to free TL (Figs. 3b and c). Additionally, the hemolysis test of TL and CCTL on human red blood cells (hRBCs) revealed the caging of TL with cephalosporin significantly reduced the hemolytic activity (Fig. 3d).
We then moved to study the antibacterial activity of this compound. We first measured the minimum inhibitory concentration (MIC) of CCTL, as well as TL, against susceptible Escherichia coli (E. coli, Gram-negative bacteria). As illustrated in Table 1, TL inhibited E. coli with a MIC of 6 µmol/L [33]. However, the caged TL, CCTL, hardly inhibited the growth of E. coli (MIC > 48 µmol/L), manifesting the caging of ε-amino group on TL reduces its antimicrobial ability significantly. The control compound, cephalosporin CCEt, was ineffective to suppress the growth of E. coli (MIC > 48 µmol/L). Moreover, the MIC of N-terminal acetylated TL, AcTL, against E. coli were also tested and it turned out the MIC of AcTL was over 4-fold higher than that of TL (> 24 µmol/L vs. 6 µmol/L).
We next determined the minimum bactericidal concentrations (MBCs) of these compounds against the same bacterial strain and comparable results were obtained: caged CCTL resulted in significantly higher MBC against susceptible E. coli compared to free TL (> 48 µmol/L vs. 6 µmol/L).
On the other hand, the addition of NDM-1 effectively resumed the antibacterial activity of CCTL against susceptible E. coli: both the MIC and MBC of CCTL dropped to 12 µmol/L from > 48 µmol/L in the presence of NDM-1 (3 nmol/L). These results clearly demonstrate antimicrobial resistance-causative-β-lactamase could effectively revive the antibacterial activity of caged AMPs.
Encouraged by these results, we conducted further investigation to reveal the antibacterial activity of CCTL against β-lactamase-producing resistant microbes. We employed NDM-1-transformed E. coli [25] as a model resistant bacterium. Notably, the expression of NDM-1 in bacteria dramatically increases its resistance towards meropenem (MIC: 0.08 µmol/L vs. > 130 µmol/L). The measurement of MIC and MBC of CCTL revealed that this compound, despite low activity against susceptible E. coli, inactivates NDM-1-producing bacteria effectively with the MIC and MBC close to those of free TL. Given the fact that a large number of β-lactamases are plasmid-encoded enzymes, the selective inhibition of bla-expressing bacteria over β-lactam-susceptible bacteria might be of help to generate a selection pressure to reverse bacterial resistance to β-lactam antibiotics, and thus maintain the efficacy of the most widely used antibiotics.

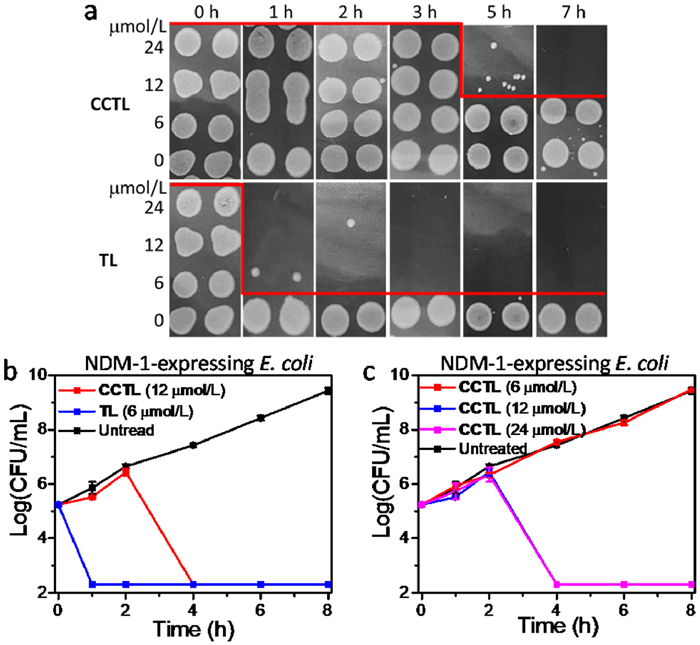

To gain further information on the bactericidal kinetics of CCTL, we incubated NDM-1-expressing E. coli with serial concentrations of CCTL and investigated its sterilization activity by placing an aliquot of diluted sample on a LB Agar plate at different time points. As shown in Fig. 4, cephalosporin-caged CCTL, unlike its free analogue TL, which displayed its bactericidal activity immediately, killed resistant bacteria in a delayed manner. The delay of antibacterial activity for CCTL obviously is due to the time needed for the β-lactamase-mediated hydrolysis of the caged peptide.
Besides resistant model bacteria, we further examined the bactericidal kinetics of CCTL with clinically occurring resistant microbes. Three strains of clinically important β-lactamase-expressing pathogenic bacteria were selected for this test, including, KPC-2-expressing E. coli, NDM-1-expressing K. pneumoniae, and multi-drug resistant A. baumannii. All of these bacterial pathogens are resistant to most β-lactam antibiotics, particularly carbapenems. As illustrated in Fig. S3 (Supporting information), 12 µmol/L or 24 µmol/L of CCTL selectively inhibited KPC-2-expressing E. coli within 2 h albeit with little impact on the growth of β-lactamase-negative E. coli (ATCC 25,922). As expected, the addition of avibactam, an FDA-approved inhibitor for KPC-2, blocked the antibacterial activity of CCTL against KPC-encoded E. coli, demonstrating the dependence of bactericidal activity of CCTL on the bacterial production of β-lactamases. As a control, free TL killed both resistant and susceptible bacteria. What's more, the test of CCTL with NDM-1-expressing K. pneumoniae and multi-drug resistant A. baumannii resulted in similar outcomes (Fig. S3 in Supporting information): CCTL effectively killed resistant bacteria in a delayed manner.
The MICs of CCTL against KPC-2-expressing E. coli, NDM-1-expressing K. pneumoniae, multi-drug resistant A. baumannii and AmpC-expressing E. cloacae have been determined. As shown in Table S1 (Supporting information), CCTL could inhibit the growth of KPC-2-expressing E. coli and AmpC-expressing E. cloacae, but with less efficiency compared to TL. This might associate with the relatively low expression of β-lactamase by these resistant bacteria.
To assess the stability of TL and CCTL in serum, we determined the MICs of these compounds against bla-expressing bacteria in the presence of 10% fetal bovine serum (FBS). As illustrated in Table S2 (Supporting information), the addition of FBS decreased the antibacterial activity of TL and CCTL. This might result from their relatively low stability in serum, which might be improved by structural modifications and the replacement of unnatural amino acids or D-amino acids.
In summary, we have developed a novel cephalosporin-caged antimicrobial peptide (AMP) for the selective inhibition of resistant bacterial pathogens. As a proof of concept, we have demonstrated the introduction of cephalosporin to AMP significantly disrupts the α-helix structure of AMP in aqueous solution and thus massively reduces the cytotoxicity and hemolytic activity, as well as antibacterial activity against β-lactam-susceptible bacteria. The antibacterial activity of the cephalosporin-caged AMP is selectively unmasked by the antibiotic resistance-causative β-lactamase and thus inactivates resistant bacteria with high specificity. Further optimization of the structure of antimicrobial peptide to enhance its antibacterial activity and a more thorough biological study on this cephalosporin-conjugated peptide, including the stability in serum, are still under investigation. Moreover, this strategy should be extendable to other AMPs, providing a potential solution for the treatment of infectious diseases caused by β-lactamase-producing pathogens. Moreover, the selective inhibition of β-lactamase-expressing microbes by cephalosporin-caged AMPs might potentially reverse the selection pressure caused by the wide application of β-lactam antibiotics and thus reduce antimicrobial resistance.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
We are grateful for financial support from the NSFC-BRICS (No. 81861148020, H. Xie), the Fundamental Research Funds for the Central Universities (H. Xie), and the Research Program of State Key Laboratory of Bioreactor Engineering (H. Xie). J. Haldar acknowledges DST-BRICS multilateral cooperation project (DST/IMRCD/BRICS/PilotCall2/MBLI/2018(G)).
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.107847.
References
Less
[1]
G. Taubes, Science 321 (2008) 356–361.
[2]
S. Reardon, Nature 509 (2014) 141–142.
[3]
C.L. Ventola, Pharmacol. Ther. 40 (2015) 277–283.
[4]
J.F. Fisher, S.O. Meroueh, S. Mobashery, Chem. Rev. 105 (2005) 395–424.
[5]
K. Bush, Antimicrob. Agents Chemother. 62 (2018) e01076–e01018.
[6]
T.R. Walsh, M.A. Toleman, L. Poirel, P. Nordmann, Clin. Microbiol. Rev. 18 (2005) 306–325.
[7]
M. Mckenna, Nature 499 (2013) 394–396.
[8]
J. Brem, R. Cain, S. Cahill, et al., Nat. Commun. 7 (2016) 12406.
[9]
V. Yarlagadda, P. Sarkar, S. Samaddar, et al., ACS Infect. Dis. 4 (2018) 1093–1101.
[10]
Y. Acharya, S. Bhattacharyya, G. Dhanda, J. Haldar, ACS Infect. Dis. 8 (2022) 1–28.
[11]
K.A. Brogden, Nat. Rev. Microbiol. 3 (2005) 238–250.
[12]
M. Mahlapuu, J. Hakansson, L. Ringstad, C. Bjorn, Front. Cell. Infect. Microbiol. 6 (2016) 194.
[13]
N. Mookherjee, M.A. Anderson, H.P. Haagsman, D.J. Davidson, Nat. Rev. Drug Discov. 19 (2020) 311–332.
[14]
S. Datta, A. Roy, Int. J. Pept. Res. Ther. 27 (2021) 555–577.
[15]
D. Takahashi, S.K. Shukla, O. Prakash, G. Zhang, Biochimie 92 (2010) 1236–1241.
[16]
M.H. Wu, Q. Chen, Y.D. Wang, et al., Chin. Chem. Lett. 31 (2020) 1288–1292.
[17]
Z.Y. Ong, N. Wiradharma, Y.Y. Yang, Adv. Drug Deliver. Rev. 78 (2014) 28–45.
[18]
C.H. Chen, T.K. Lu, Antibiotics 9 (2020) 24.
[19]
M. Zhu, P. Liu, Z.W. Niu, Chin. Chem. Lett. 28 (2017) 703–708.
[20]
M. Kai, W. Zhang, H. Xie, et al., Chin. Chem. Lett. 29 (2018) 1163–1166.
[21]
H. Xie, J. Mire, Y. Kong, et al., Nat. Chem. 4 (2012) 802–809.
[22]
J. Zhang, Y. Shen, S.L. May, D.C. Nelson, S. Li, Angew. Chem. Int. Ed. 51 (2012) 1865–1868.
[23]
W. Mao, X. Qian, J. Zhang, L. Xia, H. Xie, ChemBioChem 18 (2017) 1990–1994.
[24]
W. Mao, L. Xia, H. Xie, Angew. Chem. Int. Ed. 56 (2017) 4468–4472.
[25]
L. Hu, R. Liu, Z. Ma, et al., Chem. Commun. 57 (2021) 13586–13589.
[26]
C.W. Ma, K.K. Ng, B.H. Yam, et al., J. Am. Chem. Soc. 143 (2021) 6886–6894.
[27]
R. Liu, P.A. Miller, S.B. Vakulenko, et al., J. Med. Chem. 61 (2018) 3845–3854.
[28]
L.E. Evans, A. Krishna, Y. Ma, et al., J. Med. Chem. 62 (2019) 4411–4425.
[29]
B. Jubeh, Z. Breijyeh, R. Karaman, Molecules 25 (2020) 1543.
[30]
S. Desgranges, C.C. Ruddle, L.P. Burke, et al., RCS Adv. 2 (2012) 2480–2492.
[31]
S.S. van Berkel, J. Brem, A.M. Rydzik, et al., J. Med. Chem. 56 (2013) 6945–6953.
[32]
A.C. Rinaldi, M.L. Mangoni, A. Rufo, et al., Biochem. J. 368 (2002) 91–100.
[33]
M.L. Mangoni, A. Carotenuto, L. Auriemma, et al., J. Med. Chem. 54 (2011) 1298–1307.
[34]
A.K. Mahalka, P.K. Kinnunen, Biochim. Biophys. Acta 1788 (2009) 1600–1609.
[35]
S. Mizukami, M. Hosoda, T. Satake, et al., J. Am. Chem. Soc. 132 (2010) 9524–9525.
[36]
S. Mizukami, M. Kashibe, K. Matsumoto, Y. Hori, K. Kikuchi, Chem. Sci. 8 (2017) 3047–3053.
