Machine learning accelerated DFT research on platinum-modified amorphous alloy surface catalysts
收藏切换
PDF
Xi Zhanga, b, c, *, Kangpu Lia, Bo Wena, c, Jiang Mab, Dongfeng Diaoa
Chinese Chemical Letters | 2023, 34(5) : 107833
Less
收藏切换
Chinese Chemical Letters | 2023, 34(5): 107833
• Communication •
Machine learning accelerated DFT research on platinum-modified amorphous alloy surface catalysts
Full
Xi Zhanga, b, c, *, Kangpu Lia, Bo Wena, c, Jiang Mab, Dongfeng Diaoa
Affiliations
  • a Institute of Nanosurface Science and Engineering, Guangdong Provincial Key Laboratory of Micro/Nano, Shenzhen University, Shenzhen 518060, China
  • b College of Mechatronics and Control Engineering, Shenzhen University, Shenzhen 518060, China
  • c Research Center of Medical Plasma Technology, Shenzhen University, Shenzhen 518060, China
Published: 2023-05-15 doi: 10.1016/j.cclet.2022.107833
Outline
收藏切换

Pt-modified amorphous alloy (Pt@PdNiCuP) catalyst exhibits excellent electro-catalytic activity and high experimental durability for hydrogen evolution reaction (HER). However, the physical origin of the catalytically active remains unclear. In this paper, we constructed a distance contribution descriptor (DCD) for the feature engineering of machine learning (ML) potential, and calculated the Gibbs free energies (ΔGH) of 46,000 *H binding sites on the Pt@PdNiCuP surface by ML-accelerated density functional theory (DFT). The relationship between ΔGH and DCD revealed that in the H-Pt distance region of 2.0–2.5 Å where the parabolic tail and disordered scatters coexist, the H-metal bonding configuration is mainly the bridge- or hollow- bonding type. The contribution analysis of DCD indicates that the joint effect of Pt, Pd and Ni atoms determines the catalytical behavior of amorphous alloy, which agrees well with experimental results. By counting atomic percentages in different energy intervals, we obtained the atomic ratio for the best catalytic performance (Pt:Pd:Ni:Cu:P = 0.33:0.17:0.155:0.16:0.185). Projected density of states (PDOS) show that H 1s orbital, Pt 5d orbital, and Pd 4d orbital form a bonding state at −2 eV. These results provide new ideas for designing more active amorphous alloy catalysts.

Hydrogen evolution reaction  /  Amorphous alloy  /  Density functional theory  /  Machine learning
Xi Zhang, Kangpu Li, Bo Wen, Jiang Ma, Dongfeng Diao. Machine learning accelerated DFT research on platinum-modified amorphous alloy surface catalysts[J]. Chinese Chemical Letters, 2023 , 34 (5) : 107833 - . DOI: 10.1016/j.cclet.2022.107833
Full Text
Less
Hydrogen is considered as one of the most ideal alternative energy sources for fossil fuels due to its carbon-free, clean and efficient, and abundant natural resources [1]. Currently, a promising and economical strategy is electrochemical water splitting or hydrogen evolution reaction to produce hydrogen [2-4]. The development of efficient and durable electro-catalysts is crucial for the HER. Pt-based materials have been found to be the most efficient catalysts for HER, but the high cost and scarcity of Pt limit its commercial application. The synergy between the elements of amorphous alloys or metallic glasses and a large number of incongruent sites on the surface provide the possibility for the design of efficient HER catalyst. In recent years, including Pd- [5], Fe- [6], Al- [7], Ni- [8] and Co-based [9] amorphous alloy catalysts for HER have been extensively studied. Unfortunately, they still fall short of the high activity and durability of Pt-based alloys. So far, Pt-based materials are still the most efficient HER catalysts. To reduce the use of Pt, one strategy is to intercalate Pt onto the surface of amorphous alloys. Our previous results show experimentally that Pt@PdNiCuP has the best Tafel coefficient among all the catalysts obtained and unexpected self-stabilized performance in HER processes (the number of sites is about 3 times that of Pt/C, and no degradation occurs for 500 h at an overpotential of 200 mV) [10]. However, limited by experimental conditions and cost, the relationship between the catalytic activity of Pt@amorphous alloys and the local atomic environment is still not effectively resolved.
Density functional theory (DFT) has been shown to be a promising strategy for calculating adsorption energies and catalyst atomic design [11-14], but its high computational cost and computational complexity limit its application in exploring catalytic properties. In recent years, computationally efficient and data-driven machine learning models (ML) have shown great potential in accelerating the development of catalytic technologies, which incorporate data sets containing chemical information as an effective tool for researchers [15-23]. Several research groups have successfully combined density functional theory with machine learning to reveal some interesting discoveries in amorphous alloy or high-entropy alloy catalysts. Batchelor et al. used DFT combined with the least-squares algorithm to predict the adsorption energy of IrPdPtRhRu and reaction intermediates well [24]. Mao et al. proposed an effective high-throughput HER catalyst screening strategy through high-throughput DFT calculation combined with a neural network model [25]. Saidi et al. developed a method based on machine learning and global optimization to optimize the activity of CoMoFeNiCu for ammonia decomposition and ammonia synthesis [26]. These works mainly study the catalytic performance in a relatively limited local atomic environment, and the research on the ligand diversity and coordination complexity of amorphous materials is still rarely covered.
In this paper, DFT calculations combined with ML models were used to predict the ΔGH of adsorption sites under different ligands and coordination of amorphous alloys (Pt@PdNiCuP), which provides conditions for the study of catalytic performance. We sampled 46,000 adsorption sites on the Pt@PdNiCuP surface and construct distance contribution descriptors (DCD) to provide an efficient dataset for machine learning models. Through statistical analysis, the influence mechanism of each element on catalytic activity was clarified from the perspective of atomic distance and atomic percentage, and the atomic ratio with the best catalytic performance was predicted. In addition, we also calculated the charge density difference and projected density of states (PDOS) to investigate the mechanism by which the local atomic environment affects the catalytic activity. These results provide new ideas for designing more active amorphous alloy catalysts.
The algorithm consists of three parts (Fig. S1 in Supporting information): (1) The stochastical generation of the local atomic environment and accurate DFT-level Gibbs free energy calculations for 920 H adsorption sites on the surface of Pt@PdNiCuP; (2) Using distance contribution descriptors (DCD) perform feature extraction, divide the data into the training set and test set, train machine learning potential and evaluate the performance of machine learning potential respectively; (3) 46,000 adsorption sites were densely sampled on the two surfaces of Pt@PdNiCuP, the ΔGH of the adsorption sites were predicted, and finally, the results were statistically analyzed.
We adopted the Pd supercell in which both surfaces are the energetically favored (111) facet [27,28]. We construct a Pd atomic supercell of 14 × 10 × 4 with a total atom of 560 and randomly changed the atomic composition according to the atomic ratio, thereby obtaining the substrate Pd140Ni140Cu140P140. Then Pt atoms were randomly inserted on both sides of the substrate according to the ratio, and finally, the structure of Pt84@Pd140Ni140Cu140P140 was obtained (644 atoms). 20 Å vacuum layer was added along the Z-axis to avoid dipole–dipole interactions. To obtain a stable atomic structure, we performed DFT structure optimization on Pt84@Pd140Ni140Cu140P140, and the results are shown in Fig. 1a. All DFT calculations are performed using the Vienna ab initio simulation package (VASP) (see Supporting information for full details) [29,30].
It is well known that the ΔGH of H adsorption is often used as an indicator of HER activity [31-33]. To maintain high catalytic activity, H atoms should not bind too strongly or too weakly to the catalyst surface, so that both adsorption and desorption are fast. This requirement indicates that the catalyst has high activity for the HER when the ΔGH of adsorbed H atoms is around 0 eV [34,35]. The formula for calculating the ΔGH of H adsorption site is as follows:
where ΔGH represents the H adsorption energy, ΔEZPE and ΔSH are the zero-point energy (ZPE) and the entropy between the H adsorption state and the gas phase, respectively. ΔEH is defined as:
where EH+MG is the total energy of H atoms adsorbed on the surface of the Pt@PdNiCuP, EMG is the energy of the Pt@PdNiCuP, and E(H2) is the energy of H2. The energy of H2 is −6.97 eV. As the vibrational entropy of H atom can be ignored, that is, ΔSH ≈ (1∕2)ΔS(H2). Hence, the ΔGH can be simplified to ΔGH = ΔEH + 0.24 eV.
The catalytic performance of amorphous alloys is closely related to the local atomic environment. To obtain the H atom adsorption sites under different ligands and coordination environments on the catalyst surface, we took an average of 460 sampling points on the upper and lower surfaces of Pt84@Pd140Ni140Cu140P140 to obtain a rich local atomic environment, as shown in Fig. 1b. After determining the X, Y coordinates of the H atom, set its position as the center of the circle and extract the Z coordinate of the highest atom in a circular area with a radius 2.0 Å. Then randomly add 0.8–1.8 Å to the Z coordinate of the highest atom to obtain the height of the H atom along the Z-direction. When the spatial position of the H atom is determined, the atomic cluster in the spherical area with the H atom as the center and the radius of 5.0 Å is extracted, which is the local atomic environment that affects the adsorption performance of the active site. The original dataset was established by DFT calculations and the ΔGH of 920 adsorption sites was obtained.

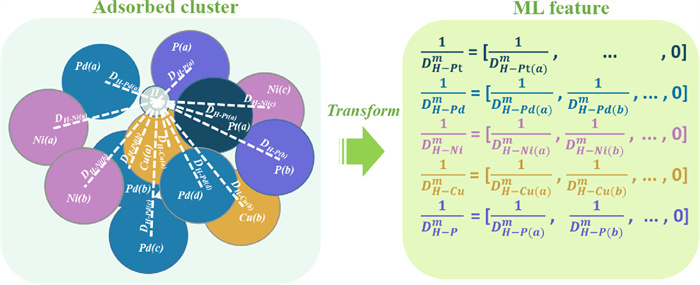

To construct data for machine learning, we need to convert the obtained raw data (atomic structure) into features for machine learning through data descriptors. The ΔGH of the H atom adsorption site is closely related to the “ligand effect” and “coordination effect” of H atom adsorption [36]. To construct a feature that can approximately reflect the coordination and ligand states of H atom adsorption sites, we constructed a distance contribution descriptor (DCD) to describe the coordination of H atoms in the local atomic environment, which is defined as:
where DH-X represents the H-metal (Pt, Pd, ...) distance, X = {Pt, Pd, Ni, Cu, P}.
Next, we combined the contribution of the distance between the H atom and each atom in the local environment in order according to the element type, and finally obtained the characteristic that can approximately reflect the coordination and ligand state of the H atom adsorption site: [], the feature data extraction process is shown in Fig. 2. The characteristics are controlled by two factors: the first is the contribution value of the distance between atoms, and the second is the number of atoms of each element, which together describe the state of the coordination and ligand of the H atom in the local atomic environment. In general, the features we constructed consist of simple geometric elements, which can effectively transform the atomic structure of the adsorption site into data for machine learning. The representative feature data set is shown in Tables S1 (Supporting information).

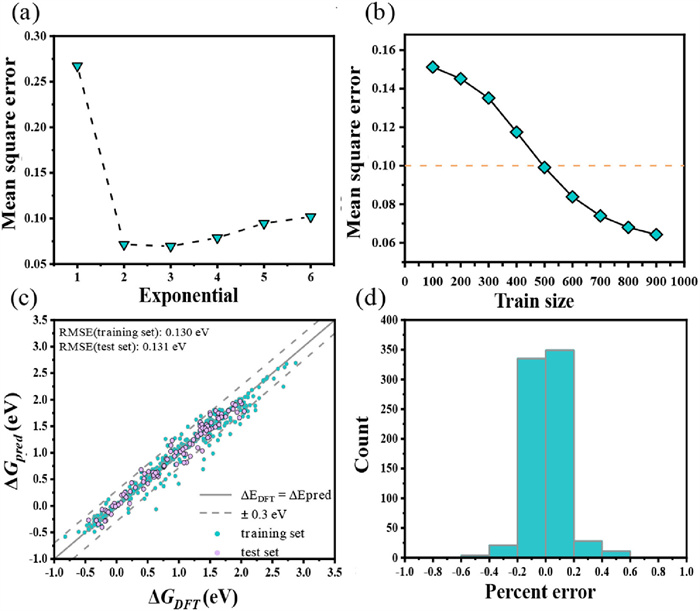

To determine the power m of the DCD, we use the performance of the machine learning model as the evaluation standard to select the optimal power m of the DCD. The machine learning model is developed using scikit-learn code [37]. The code for training the model is based on Python 3.8.5 (see Supporting information for full details). Based on this, we select m = 1, 2, 3, 4, 5 and 6 to train the support vector regression (SVR) model separately, and use the five-fold cross-validation method to select the optimal power m. The result of the machine learning evaluation is shown in Fig. 3a. It can be seen that when the power m = 3, the mean square error is the smallest, which is 0.0695. Based on this, we choose m = 3 as the power of the DCD to provide an efficient data set for the machine learning model.
After the machine learning data set is ready, we draw the learning curve of the SVR model, as shown in Fig. 3b. It can be seen from the figure that as the sample size increases, the mean square error of the model in the training set decreases progressively, which indicates that the prediction accuracy of the model in the test set is getting higher and higher. It is worth noting that when the number of samples is only about 500, the accuracy of the model is below 0.1, which fully proves the superiority of the feature.
Then we further use grid search to adjust the hyper-parameters of the SVR model on the 800 sample training set. The five-fold cross-validation result of the optimized model on the training set is shown in Fig. 3c. The root means square error between the calculated value of DFT and the predicted value of 800 SVR models is 0.130 eV. Then, we use the trained model to predict a test set of 100 samples, and the root means square deviation between the true value and the predicted value is 0.131 eV. Fig. 3d shows the relative error percentage distribution of the model on 800 samples. The error distribution within ± 20% accounts for about 87.9%, the error here can be reduced by expanding the dataset. The above results reflect the accuracy of the model prediction and at the same time prove the feasibility of using the DCD-based machine learning model to evaluate the catalytic performance of the surface active sites of amorphous alloys.
After training the SVR model, we densely sampled 46,000 adsorption sites on the upper and lower surfaces of Pt84@Pd140Ni140Cu140P140, and used the SVR model to predict the ΔGH of H adsorption sites. Inspired by the distance contribution descriptor, we screened 5096 adsorption sites to explore the relationship between H-metal (Pt, Pd, …) distance and ΔGH, and analyze the H-metal bonding configurations (on-site, bridge, hollow) as shown in Fig. 4. As can be seen from the scatter plot in Fig. 4a, in the region of 1.0 < DH-Pt < 2.0 Å, the scatter plot takes on a parabolic shape, indicating that the H atoms in this region are mainly distributed on-site of Pt (Fig. 4c). The adsorption potential energy of H atoms is mainly affected by Pt atoms [38-40], so the energy of the H adsorption site is parabolically shaped. In the region of 2.0 < DH-Pt < 2.5 Å, the coexistence of parabolic tails and disordered scatter can be seen, and the H-metal bonding configuration is mainly the bridge or hollow bonding among H, Pt and other metals (Pd shows more favorable in Figs. 4b, d and e). When DH-Pt > 2.5 Å, it can be seen that the region exhibits a disordered scatter distribution, which indicates without the influence of Pt-H, the H-bonding with other metals has a random distribution of ΔGH.

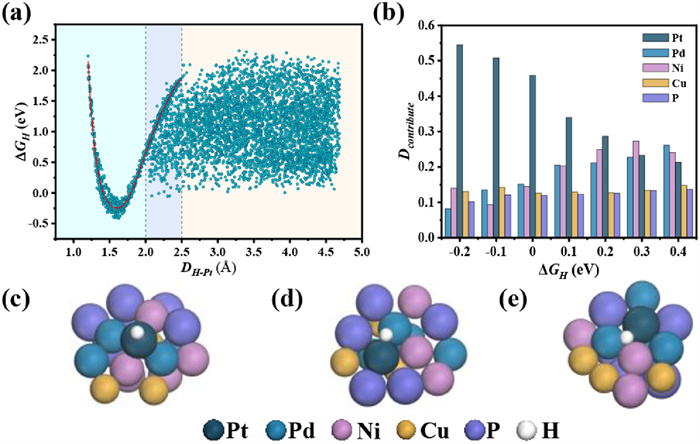

Fig. 4b shows the H-metal distance contribution analysis as the function of ΔGH. We add up the distance contribution value (DCD) of atoms of the same element in the cluster, an index (Dcontribute) that can measure the size of the distance between H atoms and each element, which is defined as:
where n represents the number of atoms of the same element in the adsorbed cluster. Here, the power of DCD is 3. It should be noted that the larger the Dcontribute value, the closer the distance between atoms. Then, we count the cases of Dcontribute in each ΔGH interval (−0.25 to 0.45 eV), and the results are shown in Fig. 4b. When the Pt-H distance decreases, the ΔGH of the adsorption site gradually decreases; when the Pd–H, Ni–H distance decreases, the ΔGH of the adsorption site gradually increases; for Cu atoms and P atoms, the Dcontribute values are at low levels in different energy intervals, indicating that they have little effect on the ΔGH of the adsorption site. In summary, the main factors affecting the catalytic performance of the adsorbed clusters are Pt, Pd and Ni atoms, which agrees well with experimental results [10]. Pt atoms are beneficial to reduce the ΔGH of H adsorption clusters, while Pd and Ni atoms are beneficial for increasing the ΔGH of H adsorption clusters. They jointly regulate the catalytic activity of adsorption clusters.

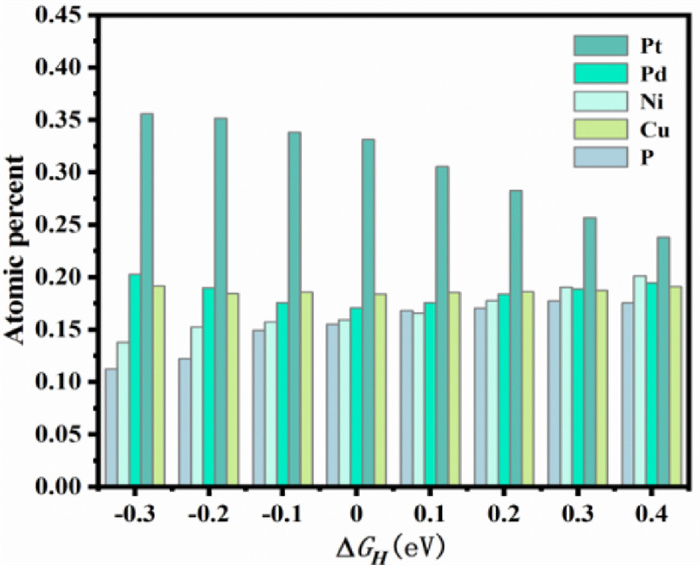

Considering the H-metal bonding configurations (on-site, bridge, hollow), we screened out 11,752 active sites with ΔGH ranging from −0.35 eV to 0.45 eV among 46,000 adsorption sites. Then its atomic percentage in each energy interval was calculated, and the results are shown in Fig. 5. As the Pt atomic percentage gradually decreases, the ΔGH of the active site gradually increases; in the local range of the energy interval −0.05 eV to 0.45 eV, as the Pd, Ni, and P atomic ratio increases, the ΔGH of the active site gradually increases; for Cu atoms, there is no obvious trend in the atomic ratio as the energy interval increases. The above results are consistent with Fig. 4b. To obtain the atomic ratio of the best catalytic performance, we calculated the atomic ratio of ΔGH between −0.05 and 0.05, which resulted in Pt:Pd:Ni:Cu:P = 0.33:0.17:0.155:0.16:0.185.

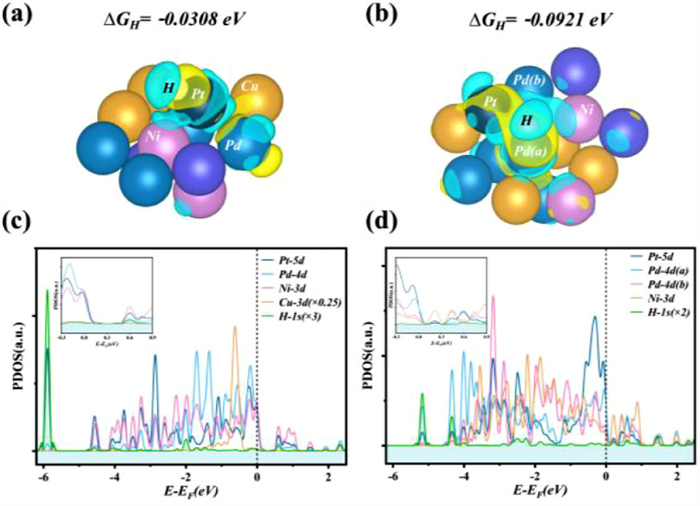

To gain a deeper understanding of the catalytic mechanism of H atom adsorption on the surface of Pt atoms and the substrate surface, we selected the adsorption sites with ΔGH close to 0 in these two adsorption cases, and plotted the differential charge density map, as shown in Fig. 6. We mainly focus on the nearest neighbors of H atoms because they interact with H the strongest. Fig. 6a shows the adsorption site on the surface of Pt atoms. It can be seen that the charge density between H atoms and Pt atoms is high, while the charge density between H atoms and other coordination atoms is low, indicating that there is a strong interaction between H atoms and Pt atoms. Fig. 6b shows the adsorption site on the surface of the substrate. It can be seen that the charge density between H atoms and Pt, Pd and Ni atoms is very high, indicating that there is a strong interaction between them. To further confirm the contribution of the local atomic environment, we calculated the projected density of states of H atoms and their coordinating atoms in the adsorption sites in Figs. 6a and b.
Fig. 6c shows the H atom on the surface of the Pt atom. There are obvious resonance peaks between the s orbital of the H atom and of the Pt 5d orbital and Pd 4d orbital atoms, thereby forming a bond state at −2 eV. At the energy of −6 eV, the density of states of the Pt atom is larger, indicating that the Pt atom has a stronger binding force to the H atom. Fig. 6d shows the H atom on the surface of the substrate. There are obvious resonance peaks between the s orbital of the H atom and d orbital of the Pt, Pd(a), Pd(b) and Ni atoms, thus forming a bond state below −2 eV. Near the energy of −5 eV and the Fermi level, the density of states of Pt, Pd(a) and Ni atoms are larger, indicating that Pt, Pd and Ni atoms have the stronger binding force to H atoms. When H atoms are adsorbed on the surface of Pt, it is mainly because the Pt atoms improve the adsorption of H atoms. When H atoms are adsorbed on the substrate surface, Pt, Pd and Ni atoms can improve the adsorption of H atoms. In conclusion, Pt, Pd and Ni atoms can improve the adsorption of H atoms.
In summary, we used density functional theory (DFT) combined with machine learning to accurately predict the ΔGH of 46,000 adsorption sites on the surface of an amorphous alloy (Pt@PdNiCuP), and research the factors affecting the catalytic activity. The results show that Pt, Pd, and Ni are the main elements that affect catalytic activity. Among them, Pt is beneficial to reduce the ΔGH of the system, while Pd and Ni increase the ΔGH of the system. In addition, in the energy interval −0.05 to 0.05 eV, we get the atomic ratio of the best catalytic performance (Pt:Pd:Ni:Cu:P = 0.33:0.17:0.155:0.16:0.185). Finally, through the projected density of states analysis, it is further indicated that the d orbitals of Pt, Pd, and Ni atoms mainly affect the catalytic performance. Our research strategy provides a new idea for the study of amorphous alloy catalysts, which can be extended to other promising catalytic materials.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
The supports of this work by the National Natural Science Foundation (Nos. 52275565 and 62104155) of China, Natural Science Foundation of Guangdong Province (No. 2022A1515011667) and Guangdong Kangyi Special Fund (No. 2020KZDZX1173).
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.107833.
References
Less
[1]
D. Suman, J. Ind. Eng. Chem. 20 (2014) 1148-1156.
[2]
H. Chen, Y. Zhou, W. Guo, et al., Chin. Chem. Lett. 33 (2022) 1831-1840.
[3]
X. Zou, Y. Zhang, Chem. Soc. Rev. 44 (2015) 5148-5180.
[4]
V.S. Thoi, Y. Sun, J.R. Long, C.J. Chang, Chem. Soc. Rev. 42 (2013) 2388-2400.
[5]
X. Yang, W. Xu, S. Cao, et al., Appl. Catal. B: Environ. 246 (2019) 156-165.
[6]
F. Chu, K. Wu, Y. Meng, et al., J. Non Cryst. Solids 566 (2021) 120831.
[7]
S. Ju, J. Feng, P. Zou, et al., J. Mater. Chem. A 8 (2020) 3246-3251.
[8]
K. Wang, Y. Si, Z. Lv, et al., Int. J. Hydrog. Energy 45 (2020) 2504-2512.
[9]
W. Teng, Z. Sun, J. Xie, et al., Front. Chem. 8 (2020) 552795.
[10]
Y. Yan, C. Wang, Z. Huang, et al., J. Mater. Chem. A 9 (2021) 5415-5424.
[11]
R.O. Jones, Rev. Mod. Phys. 87 (2015) 897-923.
[12]
J.K. Norskov, F. Abild-Pedersen, F. Studt, T. Bligaard, Proc. Natl. Acad. Sci. U. S. A. 108 (2011) 937-943.
[13]
W. Song, J. Wang, L. Fub, et al., Chin. Chem. Lett. 32 (2021) 3137-3142.
[14]
P. Chen, B. Zhang, X. Gu, W. Lic, Chin. J. Chem. Phys. 32 (2019) 437-443.
[15]
Z. Li, S. Wang, W. Chin, et al., J. Mater. Chem. A 5 (2017) 24131-24138.
[16]
B.R. Goldsmith, J. Esterhuizen, J. Liu, et al., AIChE J. 64 (2018) 2311-2323.
[17]
R.B. Wexler, J.M.P. Martirez, A.M. Rappe, J. Am. Chem. Soc. 140 (2018) 4678-4683.
[18]
J. Noh, S. Back, J. Kim, Y. Jung, Chem. Sci. 9 (2018) 5152-5159.
[19]
X. Zhu, J. Yan, M. Gu, et al., J. Phys. Chem. Lett. 10 (2019) 7760-7766.
[20]
T. Williams, K. McCullough, J.A. Lauterbach, Chem. Mater. 32 (2019) 157-165.
[21]
X. Sun, J. Zheng, Y. Gao, et al., Appl. Surf. Sci. 526 (2020) 146522.
[22]
C. Deng, Y. Su, F. Li, et al., J. Mater. Chem. A 8 (2020) 24563-24571.
[23]
X. Zhou, J. Zhu, Y. Wu, et al., Acta Mater. 224 (2022) 117535.
[24]
T.A.A. Batchelor, J.K. Pedersen, S.H. Winther, et al., Joule 3 (2019) 834-845.
[25]
X. Mao, L. Wang, Y. Xu, et al., NPJ Comput. Mater. 7 (2021) 46.
[26]
W.A. Saidi, W. Shadid, G. Veser, J. Phys. Chem. Lett. 12 (2021) 5185-5192.
[27]
T. Wu, M.L. Stone, M.J. Shearer, et al., ACS Catal. 8 (2018) 1143-1152.
[28]
A Soon, M Todorova, B Delley, C Stampfl, Phys. Rev. B 73 (2006) 165424.
[29]
J.P. Perdew, K. Burke, M. Ernzerhof, Phys. Rev. Lett. 77 (1996) 3865-3868.
[30]
G. Kresse, J. Furthmuller, Comput. Mater. Sci. 6 (1996) 15-50.
[31]
B. Hinnemann, P.G. Moses, J. Bonde, et al., J. Am. Chem. Soc. 127 (2005) 5308-5309.
[32]
P. Liu, J.A. Rodriguez, J. Am. Chem. Soc. 127 (2005) 14871-14878.
[33]
H. Wu, H. Huang, J. Zhong, et al., Nanoscale. 11 (2019) 12210-12219.
[34]
R. PARSON, J. Chem. Soc. Faraday Trans. 54 (1957) 1053-1063.
[35]
J.K. Norskov, T. Bligaard, A. Logadottir, et al., J. Electrochem. Soc. 152 (2005) J23-J26.
[36]
Z.L. Lu, Z.W. Chen, C.V. Singh, Matter 3 (2020) 1318-1333.
[37]
F. Pedregosa, G. Varoquaux, A. Gramfort, et al., J. Mach. Learn. Res. 12 (2011) 2825-2830.
[38]
K. Nobuhara, H. Nakanishi, H. Kasai, A. Okiji, J. Appl. Phys. 88 (2000) 6897-6901.
[39]
S.C. Badescu, P. Salo, T. Ala-Nissila, et al, Phys. Rev. Lett. 88 (2002) 136101.
[40]
R.A. Olsen, S.C. Badescu, S.C. Ying, E.J. Baerends, J. Chem. Phys. 120 (2004) 11852-11863.
