Rhodauricanol A, an analgesic diterpenoid with an unprecedented 5/6/5/7 tetracyclic system featuring a unique 16-oxa-tetracyclo[11.2.1.01,5.07,13]hexadecane core from Rhododendron dauricum

Rhodauricanol A, an analgesic diterpenoid with an unprecedented 5/6/5/7 tetracyclic system featuring a unique 16-oxa-tetracyclo[11.2.1.0^1,5.0^7,13]hexadecane core from Rhododendron dauricum

PDF

Yuanyuan Feng^a, Suqin Zha^a, Hanqi Zhang^a, Biao Gao^a, Guijuan Zheng^a, Pengfei Jin^a, Yingyi Chen^a, Guangmin Yao^*^,^a^,^b

Chinese Chemical Letters | 2023, 34(4) : 107742

Less

Chinese Chemical Letters | 2023, 34(4): 107742

• Communication •

Rhodauricanol A, an analgesic diterpenoid with an unprecedented 5/6/5/7 tetracyclic system featuring a unique 16-oxa-tetracyclo[11.2.1.0^1,5.0^7,13]hexadecane core from Rhododendron dauricum

Full

Yuanyuan Feng^a, Suqin Zha^a, Hanqi Zhang^a, Biao Gao^a, Guijuan Zheng^a, Pengfei Jin^a, Yingyi Chen^a, Guangmin Yao^*^,^a^,^b

Affiliations

^aHubei Key Laboratory of Natural Medicinal Chemistry and Resource Evaluation, School of Pharmacy, Tongji Medical College, Huazhong University of Science and Technology, Wuhan 430030, China

^bState Key Laboratory of Phytochemistry and Plant Resources in West China, Kunming Institute of Botany, Chinese Academy of Sciences, Kunming 650201, China

Published: 2023-04-15 doi: 10.1016/j.cclet.2022.107742

Outline

Abstract

Less

A novel diterpenoid with an unprecedented 5/6/5/7 tetracyclic system, rhodauricanol A (1), five new grayanane-derived diterpenoids, dauricanols A−E (2−6), and five known ones (7−11) were isolated from the flowers of Rhododendron dauricum. Rhodauricanol A (1) possesses a unique 5/6/5/7 tetracyclic ring system featuring a 16-oxa-tetracyclo[11.2.1.0^1,5.0^7,13]hexadecane core. Dauricanols A−C (2−4) are the first 1,3-dioxolane conjugates of grayanane diterpenoids and 5-hydroxymethylfurfural and vanillin, respectively, and dauricanols D (5) and E (6) represent the first examples of 6-deoxy-1,5-seco-grayanane diterpenoids. Their structures were determined by spectroscopic methods, quantum chemical calculation including ¹³C NMR-DP4+ analysis and ECD calculation, and single-crystal X-ray diffraction analysis. Plausible biosynthetic pathways for 1−4 were proposed. All the isolates showed significant analgesic activities, and dauricanols B (3) and C (4) showed more potent analgesic activities than the positive control, morphine.

Key words

Rhododendron dauricum L. (Ericaceae) / Diterpenoids / Single-crystal X-ray diffraction / Biosynthetic pathways / Analgesics

Cite this Article

Yuanyuan Feng, Suqin Zha, Hanqi Zhang, Biao Gao, Guijuan Zheng, Pengfei Jin, Yingyi Chen, Guangmin Yao. Rhodauricanol A, an analgesic diterpenoid with an unprecedented 5/6/5/7 tetracyclic system featuring a unique 16-oxa-tetracyclo[11.2.1.0^1,5.0^7,13]hexadecane core from Rhododendron dauricum[J]. Chinese Chemical Letters, 2023 , 34 (4) : 107742 - . DOI: 10.1016/j.cclet.2022.107742

Full Text

Less

Polycyclic diterpenoids such as taxol with a 6/8/6 tricyclic carbon skeleton are a potential resource for drug discovery [1]. Ericaceae plants are famous for their structurally diverse diterpenoids, heretofore, approximately 470 diterpenoids belonging to 28 carbon skeletons have been reported [2-4]. Due to their highly oxygenated and polycyclic architectures, the total synthesis of Ericaceae diterpenoids is an enduring research hotspot. To date, the total synthesis of six grayanane [5-10], a rhodomollane [11], and two mollebenzylane [12,13] diterpenoids have been accomplished, and the synthetic studies towards kalmanol [14] and pierisformoside C [15] were also described.

Severe pains, especially cancer pains, seriously affect people's quality of life. As the gold standard for comparison of other opioids, morphine is used for acute and chronic pain and plays an irreplaceable role in patients with moderate and severe cancer pain. However, the main side effects of morphine are drug resistance and addiction [16]. Thus, it is urgent to search for potent analgesics without addiction and tolerance.

In a continuing search for structurally intriguing analgesics from the medicinal plants [17], a novel diterpenoid with an unprecedented carbon skeleton, rhodauricanol A (1), five new grayanane-derived diterpenoids, dauricanols A−E (2−6), and five known ones (7−11) (Fig. 1) were isolated from the flowers of Rhododendron dauricum L. (Ericaceae), which have been used for sedation and hypnosis. Rhodauricanol A (1) possesses a unique 5/6/5/7 tetracyclic ring system featuring a 16-oxa-tetracyclo[11.2.1.0^1,5.0^7,13]hexadecane core. Dauricanols A−C (2−4) are the first 1,3-dioxolane conjugates of grayanane diterpenoids and 5-hydroxymethylfurfural and vanillin, respectively, and dauricanols D (5) and E (6) represent the first examples of 6-deoxy-1,5-seco-grayanane diterpenoid. All the isolates showed potent analgesic effects, and 3 and 4 showed more potent analgesic activities than morphine at a dose of 0.04 mg/kg. Herein, the structural elucidation, plausible biosynthetic pathways, and analgesic activities were described.

Rhodauricanol A (1), colorless needles, had a molecular formula of C₂₀H₂₈O₄ as deduced by the HRESIMS ([M + Na]⁺ m/z 355.1885, calcd. for 355.1885) and ¹³C NMR data, indicating seven degrees of unsaturation. The ¹H NMR data (Table S1 in Supporting information) of 1 showed resonances attributed to an aldehyde proton at δ_H 10.05 (s, H-16), two oxygenated methines at δ_H 3.47 (d, J = 6.0 Hz, H-3) and 4.28 (dd, J = 7.6, 3.4 Hz, H-6), and four methyl groups at δ_H 1.12 (s, H₃-19), 1.28 (s, H₃-18), 1.58 (s, H₃-20), and 2.29 (s, H₃-17). The ¹³C NMR and DEPT spectra (Table S2 in Supporting information) revealed 20 carbon signals, including four methyls, five methylenes, three methines (two oxygenated), a quaternary carbon, two oxygenated tertiary carbons, two tetrasubstituted endocyclic double bonds, and an aldehyde. Two double bonds and an aldehyde account for three degrees of unsaturation, and the remaining four degrees of unsaturation suggested a tetracyclic ring system in 1.

¹H−¹H COSY revealed three spin-coupling systems (Fig. 2): (a) CH-1−CH₂-2−CH-3, (b) CH-6−CH₂-7, and (c) CH₂-11−CH₂-12. The HMBC correlations of two gem-dimethyl (H₃-18/H₃-19) to C-3/C-4/C-5 indicated the direct connections of C-3/C-5/C-18/C-19 to the quaternary carbon C-4. The connection of C-1 and C-6 through the oxygenated tertiary carbon C-5 was determined by the HMBC correlations from H-6 to C-1 and H₂-7 to C-5, forming the A-ring of 2,2-dimethyl-cyclopentan-1-ol in 1. The HMBC correlations from H₃-20 to C-1/C-9/C-10 established the connection of C-1 and C-9 via C-10. The connection of C-9 to C-7 through an oxygenated tertiary carbon C-8 was determined by the HMBC correlations from H₂-7 to C-8/C-9, constructing the B-ring of 4-methyl-4-cycloheptene-1-ol. The C-ring of 2-methyl-1-cycloheptene-1-carbaldehyde in 1 was architected by the HMBC correlations from H-11 to C-8, from H-12 to C-9/C-13/C-14, from H-16 to C-12/C-13, from H₂-15 to C-8/C-9, and from H₃-17 to C-13/C-14/C-15. The large chemical shift of C-5 (δ_C 95.5) and C-8 (δ_C 84.1) and the rest of one degrees of unsaturation suggested the presence of an oxygen bridge between C-5 and C-8. Thus, the planar structure of 1 bearing an unprecedented 16-oxa-tetracyclo [11.2.1.0^1,5.0^7,13]hexadecane motif was established (Fig. 2).

The relative configuration of 1 was established by NOESY data analysis and ¹³C NMR-DP4+ analysis [18,19]. H-1 was randomly assigned as α-orientation. The NOESY correlations of H-1/H-6, H-1/H₃-19, and H₃-19/H-3 defined the α orientations of H-3, H-6, and H₃-19. The geometry of Δ⁹⁽¹⁰⁾ and Δ¹³⁽¹⁴⁾ double bonds were assigned as Z and E, respectively, by the NOESY correlations of H-11β/H₃-20 and H-16/H₃-17. To determine the orientation of 5,8-epoxy moiety, the theoretical ¹³C NMR calculations and DP4+ probability analysis of two potential isomers, (5R^*,8S^*)-1 and (5S^*,8R^*)-1, were performed using the gauge independent atomic orbital (GIAO) method at the mPW1PW91/6-311G(d,p) level with the Gaussian 09 software [20-22]. The smaller relative errors between experimental and the calculated ¹³C NMR data (Fig. 3) and the DP4+ probability analysis revealed the 5R^*,8S^*-configuration of 1 with a high probability of 100% (Table S3 in Supporting information) [18].

To determine the absolute configuration of 1, the TDDFT-based ECD calculation for (1S,3S,5R,6R,8S)-1 and its enantiomer was performed [23,24]. A good qualitative agreement between the experimental and calculated ECD curves (Fig. S1 in Supporting information) of 1 determined its absolute configuration as 1S,3S,5R,6R,8S. Finally, single-crystal X-ray diffraction analysis using Cu Kα radiation with a Flack parameter [25] of 0.05(4) further validated the structure and absolute configuration of 1 (Fig. 4).

A molecular formula of C₂₆H₃₈O₈ was assigned to dauricanol A (2) based on the HRESIMS at m/z 501.2465 [M + Na]⁺ (calcd. for C₂₆H₃₈O₈Na, 501.2464) and 979.5040 [2M + Na]⁺ (calcd. for C₅₂H₇₆O₁₆Na, 979.5031) and ¹³C NMR data. The NMR data (Tables S1 and S2) of 2 showed some similarities to those of grayanotoxin Ⅲ (9) [26], co-isolated grayanane diterpenoid in this study. The major differences were the presence of an acetal group (δ_H 5.70, s, H-1′), two trisubstituted double bonds (δ_H 6.45, d, H-3′; 6.30, d, H-4′; δ_C 111.9, C-3′; 109.1, C-4′; 150.5, C-2′; 157.0, C-5′), and an oxymethylene (δ_H 4.49, s, H₂-6′) in 2, which was determined to be a (5-(hydroxymethyl)-2-furanyl)methane-1,1-diyl moiety by the detailed 2D NMR analysis (Fig. S2 in Supporting information). The deshielding of C-5 (δ_C 93.6) and C-6 (δ_C 78.3) in 2 compared to 9 (δ_C 84.6, C-5; 74.2, C-6) and the HMBC correlations from H-1′ to C-5 and C-6 suggested the connection of the additional (5-(hydroxymethyl)-2-furanyl)methane-1,1-diyl moiety to C-5 and C-6 via two ether bonds, forming a distinctive 1,3-dioxolane ring. H-1 was randomly assigned as α-orientation. The NOESY correlations (Fig. S2) of H-1/H₃-19, H₃-19/H-6, and H-6/H-1′ established α-orientation of H-1′. The absolute configuration of 2 was defined as 1S,3S,5R,6R,8S,9R,10R,13R,14R,16R,1′R by ECD calculation (Fig. S3 in Supporting information) and single crystal X-ray diffraction analysis with a Flack parameter [25] of −0.03(2) (Fig. 5).

The molecular formula of dauricanol B (3) was determined to be C₃₀H₄₀O₈ by the HRESIMS ion at m/z [M + Na]⁺ 551.2616 (calcd. for C₃₀H₄₀O₈Na, 551.2621) and [2M + Na]⁺ 1079.5343 (calcd. for C₆₀H₈₀O₁₆ Na, 1079.5344) and ¹³C NMR data. The NMR data of 3 (Tables S1 and S2) resembled those of rhodomicranol A, which was firstly isolated from Rhododendron micranthum [27], and the major difference was an additional O-CH₃ (δ_H 3.83, s; δ_C 56.5) in 3. Thus, 3 is an O-methylated derivative of rhodomicranol A. HMBC correlation from OCH₃ to C-4′ and the NOESY correlation of H-3′ and OCH₃ suggested the location of OCH₃ at C-4′ (Fig. S4 in Supporting information). H-1 was randomly assigned as α-orientation. NOESY correlations of H-1/H₃-19, H₃-19/H-6, and H-6/H-1′ revealed the α-orientation of H-1′. The absolute configuration of 3 was determined to be 1S,3S,5R,6R,8S,9S,13R,14R,16R,1′R by the ECD calculation (Fig. S5 in Supporting information).

Dauricanol C (4) was assigned a molecular formula of C₃₀H₄₂O₉ by the ¹³C NMR data and HRESIMS ions at m/z [M + Na]⁺ 569.2717 (calcd. for C₃₀H₄₂O₉Na, 569.2727) and [2M + Na]⁺ 1115.5578 (calcd. for C₆₀H₈₄O₁₈Na, 1115.5555). The NMR data (Tables S2 and S4 in Supporting information) of 4 were similar to those of 3, except for a methyl group (δ_H 1.72, s; δ_C 26.9, CH₃-20) and an oxygenated tertiary carbon (δ_C 78.3, C-10) in 4, replacing an exocyclic double bond (δ_H 5.05, 5.07, s, H₂-20; δ_C 152.0, C-10; 112.4, C-20) in 3. Thus, 4 is a hydrated derivative of 3. The HMBC correlations (Fig. S6 in Supporting information) from H₃-20 to C-1/C-9/C-10 supported the above deduction. The NOESY correlation (Fig. S6) of H-2β and H₃-20 suggested H₃-20 was β-oriented. ECD calculation (Fig. S7 in Supporting information) defined the 1S,3S,5R,6R,8S,9R,10R,13R,14R,16R,1′R-configuration of 4.

The molecular formula of dauricanol D (5) was determined as C₂₀H₃₂O₄ by the ¹³C NMR data and HRESIMS ions at m/z [M + Na]⁺ 359.2199 (calcd. for C₂₀H₃₂O₄Na, 359.2198) and [2M + Na]⁺ 695.4574 (calcd. for C₄₀H₆₄O₈Na, 695.4499). The NMR data (Tables S2 and S4) of 5 was close to the co-isolated 1,5-seco-grayanotoxin (7) [28]. The major difference was a methylene (δ_H 2.56, 3.01, H₂-6; δ_C 36.3, C-6) in 5, replacing an oxygenated methine (δ_H 4.88, br. s, H-6; δ_C 70.5, C-6) in 7. Thus, 5 should be a 6-deoxy derivative of 7, which was supported by the ¹H–¹H COSY correlations (Fig. S8 in Supporting information) of CH₂-6 and CH₂-7. The structure and 3S,8S,9S,13R,14R,16R-configuration of 5 was verified by single-crystal X-ray diffraction analysis (Fig. 6) with a Flack parameter [25] of 0.01(4).

Dauricanol E (6) had a molecular formula of C₂₂H₃₄O₅ as disclosed by the HRESIMS ions at m/z [M + Na]⁺ 401.2324 (calcd. for C₂₂H₃₄O₅Na, 401.2304) and [2M + Na]⁺ 779.4724 (calcd. for C₄₄H₆₈O₁₀Na, 779.4710) and ¹³C NMR data. The NMR data (Tables S2 and S4) of 6 and 5 were closely comparable, except for an O-acetyl group (δ_H 2.07, s; δ_C 172.5, 21.5) and the deshielding of C-14 (δ_C 82.6) in 6 compared to 5 (δ_C 79.4). Hence, 6 was a 14-O-acetylated derivative of 5, which was proved by the ¹H–¹H COSY correlation of H-13 and H-14 and HMBC correlation of H-14 to the acetyl (Fig. S9 in Supporting information). Single-crystal X-ray diffraction analysis (Fig. 7) with a Flack parameter [25] of 0.04(7) ultimately defined the 3S,8S,9S,13R,14R,16R-absolute configuration of 6.

1,5-seco-Grayanane diterpenoids are rare in nature, heretofore, only eight 1,5-seco-grayanane diterpenoids have been reported [4,17]. Dauricanols D (5) and E (6) represent the first examples of 6-deoxy-1,5-seco-grayanane diterpenoid. This is also the first time to report 1,5-seco-grayanane diterpenoids from this plant.

Five known compounds were identified to be 1,5-seco-grayanotoxin (7) [28] and grayanotoxins XXI (8) [29], Ⅲ (9) [26], Ⅰ (10) [30], and Ⅳ (11) [30], respectively, by spectroscopic data analysis and comparison with the reported data. The structure and absolute configuration of 1,5-seco-grayanotoxin (7) was finally assigned by single-crystal X-ray diffraction analysis (Fig. 7) with a Flack parameter [25] of −0.07(5) for the first time.

Rhodauricanol A (1) possesses an unprecedented 5/7/7 tricyclic diterpene carbon skeleton, and the name “rhodauricane” was suggested for this new diterpene skeleton, enriching the diterpene skeleton diversity of natural products. The plausible biosynthetic pathway of 1 (Scheme 1) could be tracked back to the co-isolated grayanotoxin Ⅲ (9) [26]. Under the condition of an enzyme-mediated oxidization, 9 is oxidized to a 7-ketone intermediate A. The carbon bond of C-8 and C-14 in A is cleaved by the retro-aldo reaction to produce the key tricyclic intermediate B, which is reduced and then dehydrated to form the ∆⁷⁽⁸⁾ intermediate D. Under the catalysis of acid enzyme, 5-OH attacks the C-8 carbocation in E to yield the 5,8-epoxy intermediate F. Finally, 1 is generated by the dehydration of G.

Dauricanols A−C (2−4) are the first 1,3-dioxolane conjugates of grayanane diterpenoids and 5-hydroxymethylfurfural and vanillin, respectively. Dauricanol A (2) is produced by an acetalation reaction (Scheme 2) of the 5,6-dihydroxyl unit in 9 with 5-hydroxymethylfurfural which is derived from the dehydration of hexose [31] and widely exists in plants [32]. Similarly, dauricanols B (3) and C (4) are derived from the condensation of vanillin [33] and grayanotoxins Ⅰ (10) and Ⅳ (11), respectively (Scheme 2).

Since the flowers of R. dauricum are used for sedation and hypnosis, and three known grayanane diterpenoids 9−11 had been reported to possess analgesic activities, the other isolates 1−8 were evaluated for their analgesic activities by the HOAc-induced writhing test in mice [4]. This animal experiment was approved by the Laboratory Animal Ethics Committee of Tongji Medical College, Huazhong University of Science and Technology (approval number 2018-S748). Results revealed that 1−8 showed significant analgesic effects (Fig. S10 in Supporting information). Rhodauricanol A (1) with a new diterpene carbon skeleton showed significant analgesic effects at lower doses of 1.0 and 0.2 mg/kg with inhibition rates of 65.2% and 44.2%, respectively. Interestingly, 3 and 4, 1,3-dioxolane conjugates of grayanane diterpenoids and vanillin, exhibited more potent activity than morphine even at a lower dose of 0.04 mg/kg with inhibition rates of 62.8% and 53.2%, respectively. 1,5-seco-Grayanane diterpenoid 5 bearing a 14β-OH showed more potent analgesic effect than 6 with a 14β-OAc at doses of 5.0 and 1.0 mg/kg. While, 5 and 6 without a 6β-OH displayed more potent analgesic activity than 7 and 8 with a 6β-OH at a dose of 5.0 mg/kg. Thus, 14β-OAc and 6β-OH groups may be the deactivating groups of 1,5-seco grayanane diterpenoids.

These findings enriched the diterpene carbon skeleton diversity and provided clues to design potent analgesics.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by the Fund of State Key Laboratory of Phytochemistry and Plant Resources in West China (No. P2022-KF08), National Natural Science Foundation of China (Nos. 22107033 and U1703109), and the Scientific Research Project of Traditional Chinese Medicine of Hubei Provincial Health Commission (No. ZY2021M056). We thank the Analytical and Testing Center at Huazhong University of Science and Technology for single crystal X-ray diffraction data collection, and the Medical Subcenter of Huazhong University of Science and Technology for NMR data acquisition.

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.107742.

References

Less

[1]

Y. Wang, Q. Shi, M. Dong, et al., Chem. Rev. 111 (2011) 76527709.

[2]

Y. Li, Y. Zhu, Z. Zhang, et al., Acta Pharm. Sin. B 10 (2020) 1073–1082.

[3]

J. Zhou, Z. Zuo, J. Liu, et al., Org. Chem. Front. 7 (2020) 820828.

[4]

G.J. Zheng, P.F. Jin, L. Huang, et al., Bioorg. Chem. 99 (2020) 103794.

[5]

N. Hamanaka, T. Matsumoto, Tetrahedron Lett. 13 (1972) 30873090.

[6]

S. Gasa, N. Hamanaka, S. Matsunaga, et al., Tetrahedron Lett. 17 (1976) 553556.

[7]

T. Kan, S. Hosokawa, S. Nara, et al., J. Org. Chem. 59 (1994) 55325534.

[8]

K. Yu, Z. Yang, C. Liu, et al., Angew. Chem. Int. Ed. 58 (2019) 85568560.

[9]

A. Turlik, Y. Chen, A.C. Scruse, et al., J. Am. Chem. Soc. 141 (2019) 80888092.

[10]

L. Kong, H. Yu, M. Deng, et al., J. Am. Chem. Soc. 144 (2022) 52685273.

[11]

J. Gao, P. Rao, K. Xu, et al., J. Am. Chem. Soc. 142 (2020) 45924597.

[12]

Y. Kawamoto, F. Karube, T. Kobayashi, et al., Org. Lett. 22 (2020) 76097612.

[13]

Y. Kawamoto, F. Karube, T. Kobayashi, et al., Tetrahedron 83 (2021) 131958.

[14]

S. Borrelly, L.A. Paquette, J. Am. Chem. Soc. 118 (1996) 727740.

[15]

S. Chow, C. Kress, N. Albaek, et al., Org. Lett. 13 (2011) 52865289.

[16]

C.W. Cunningham, W.M. Elballa, S.U. Vold, Neuropharmacology 151 (2019) 195207.

[17]

P. Jin, G. Zheng, X. Yuan, et al., Bioorg. Chem. 111 (2021) 104870.

[18]

D. Xin, P.J. Jones, N.C. Gonnella, J. Org. Chem. 83 (2018) 5035‒5043.

[19]

N. Grimblat, M.M. Zanardi, A.M. Sarotti, J. Org. Chem. 80 (2015) 12526‒12534.

[20]

S.G. Smith, J.M. Goodman, J. Am. Chem. Soc. 132 (2010) 129460112959.

[21]

R. Guo, T. Lv, F. Han, et al., Chin. Chem. Lett. 31 (2020) 12541258.

[22]

J. Gao, X. Zhang, K. Shang, et al., Chin. Chem. Lett. 31 (2020) 427‒430.

[23]

J. Zhou, J. Liu, T. Dang, et al., Org. Lett. 20 (2018) 20632066.

[24]

M. Jiang, Z. Wu, Q. Wu, et al., Chin. Chem. Lett. 32 (2021) 18931896.

[25]

S. Parsons, H.D. Flack, T. Wagner, Acta Crystallogr. B 69 (2013) 249259.

[26]

S.F. El-Naggar, R.W. Doskotch, T.M. Odell, et al., J. Nat. Prod. 43 (1980) 617631.

[27]

M. Zhang, Y. Zhu, G. Zhan, et al., Org. Lett. 15 (2013) 30943097.

[28]

M. Katai, T. Terai, J. Katakawa, Mem. Osaka Inst. Technol., Ser. A 51 (2006) 16.

[29]

H. Zhang, H. Wang, L. Wang, et al., J. Asian Nat. Prod. Res. 7 (2005) 8790.

[30]

J.W. Burke, R.W. Doskotch, J. Nat. Prod. 53 (1990) 131137.

[31]

J. Wang, C.P. Zhang, P.K. Ouyang, Chem. Ind. Eng. Prog. 27 (2008) 702707.

[32]

H.S. Kang, J.H. Choi, W.K. Cho, et al., Arch. Pharm. Res. 27 (2004) 742750.

[33]

R. Mogana, K. Teng-Jin, C. Wiart, et al., Biomed. Res. Int. 2014 (2014) 903529.

Appendix

Less

Year 2023 volume 34 Issue 4

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2022.107742

Receive Date：2022-05-08
Online Date：2025-11-21
Published：2023-04-15

Article Data

Affiliations

History

Received：2022-05-08
Revised：2022-08-07
Accepted：2022-08-10

Affiliations

^aHubei Key Laboratory of Natural Medicinal Chemistry and Resource Evaluation, School of Pharmacy, Tongji Medical College, Huazhong University of Science and Technology, Wuhan 430030, China

^bState Key Laboratory of Phytochemistry and Plant Resources in West China, Kunming Institute of Botany, Chinese Academy of Sciences, Kunming 650201, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2022.107742

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1. Chemical structures of compounds 1−11 and the nomenclature of the unprecedented tetracyclic ring system in 1.

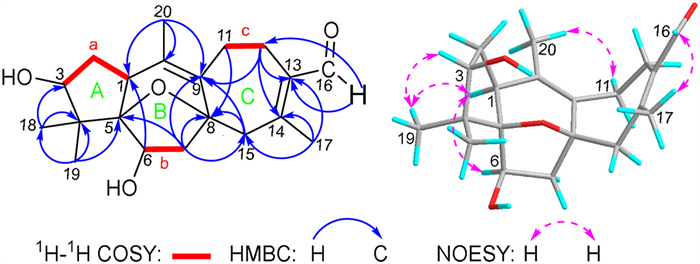

Fig. 2. Key 2D NMR correlations of 1.

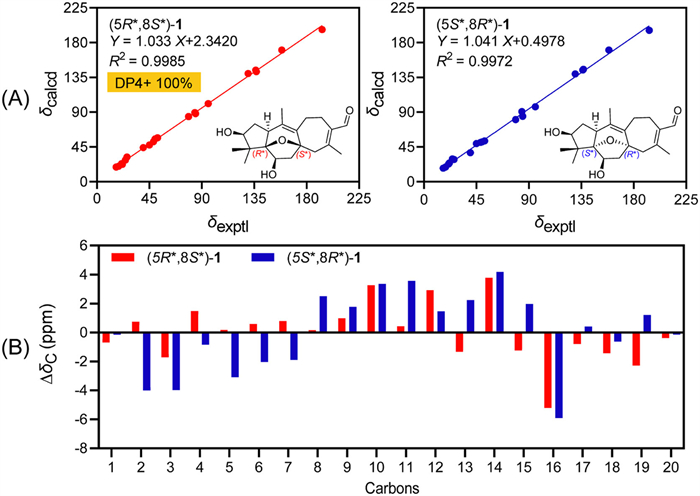

Fig. 3. Linear correlation plots (A) and relative errors (B) between the experimental and calculated ¹³C NMR data for (5R^*,8S^*)- and (5S^*,8R^*)-1.

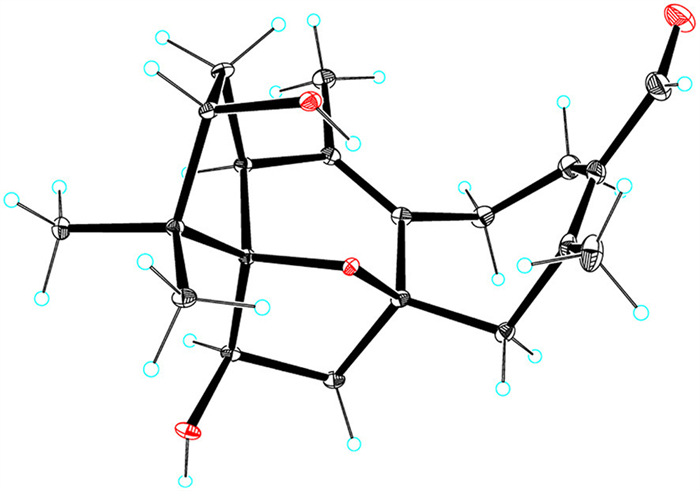

Fig. 4. Single-crystal X-ray structure of 1.

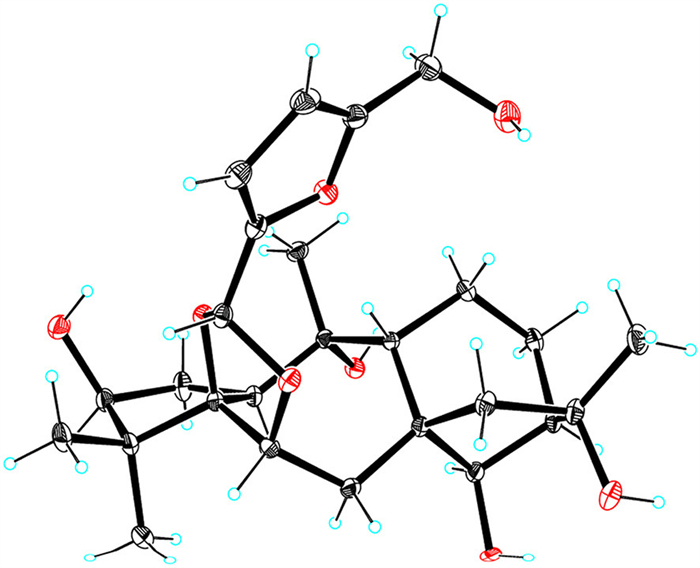

Fig. 5. Single-crystal X-ray structure of 2.

Fig. 6. Single-crystal X-ray structure of 5.

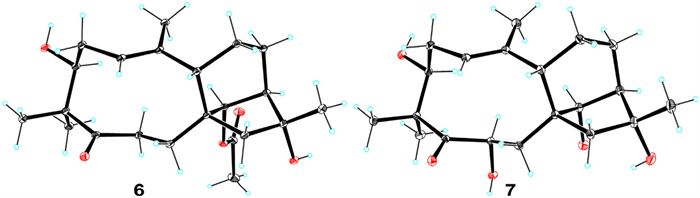

Fig. 7. Single-crystal X-ray structures of 6 and 7.

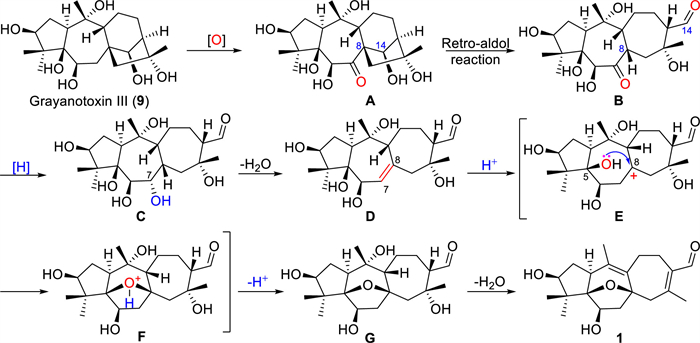

Scheme 1 Proposed biogenetic pathway for rhodauricanol A (1).

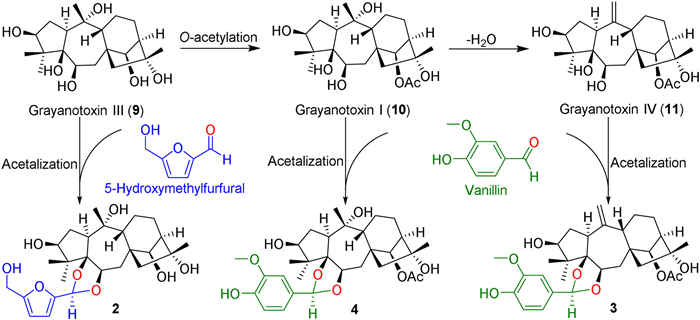

Scheme 2 Proposed biogenetic pathways for dauricanols A−C (2−4).
