Owing to the environmentally friendly and high specific energy of combustion (142 MJ/kg), hydrogen (H₂) is recognized as a promising candidate to manage the global carbon balance and remit the energy issues [1, 2]. Developing low cost and efficient strategies to generate H₂ is thus highly desirable, in which solar light induced hydrogen evolution reaction (HER) has emerged for applications in this domain [3, 4]. Generally, HER could only take place at sites on the surface of catalysts, and regulating charge transfer to inhibit their recombination is crucial for photocatalysis reaction [5-8]. Incorporating another semiconductor to form heterostructure is a widely accepted method due to the inducing of a build-in interfacial electric field through the energy band offset, which enables the reverse migration of photogenerated electrons and holes [9-12]. Accordingly, a variety of approaches, such as hydrothermal, mechanical mixing, and cation exchange, have been proposed and employed for synthesizing heterostructures [13, 14]. While the obtained guest semiconductors are usually randomly dispersed on the host ones using these routes, and it is still difficult to control the electron transfer direction through precisely adjusting the positions of the second semiconductor.

Photochemical, a facile and rapid process for depositing noble metal nanoparticles on light-response substances, is commonly harnessed to fabricate catalysts in photocatalysis [15-17]. It has been proved that the photo-excited electrons (holes) generated in semiconductors could migrate to certain places to reduce some metal precursors, leading to the selectivity attachment of metal particles on substrate surface [18]. The resulted composite exhibits advantages in charge separation due to the regulation of excited electron flow direction compared with that prepared by traditional methods [19]. Inspired by this, photochemical process has also been extended from metals to semiconductors, and a series of CdS-based photocatalysts have been developed [20-22]. Among them, CdS/g-C₃N₄ catalyst is widely synthesized by many researchers [19, 23]. While the fundamental photophysical processes have been poorly understood between the host and guest semiconductors, leading to the insufficient evidences to prove the type of CdS/g-C₃N₄ heterostructure (Z-S or type Ⅱ) [19, 24]. More importantly, previous photoinduction obtained CdS-based catalysts usually contain high weight percent of CdS, and it is well known that CdS is an effective photocatalyst for HER [19, 25]. Therefore, whether the enhanced catalytic activity of heterostructures comes from the incorporated CdS or the facilitated charge separation also requires a deep discussion.

Even through the recombination of electron-hole pairs in heterostructure photocatalysts would be retarded, insufficient of active centers still hinders their performance [26, 27]. Recently, typical transition metal sulfides, such as NiS, have been extensively regarded as promising candidates for electrocatalysis HER, and thus employed as cocatalysts in photocatalysis HER to replace precious noble metals (Pt, Pd, and Au) [28, 29]. Herein, the ultrathin g-C₃N₄ nanosheets were used as substrate to build a ternary photocatalyst for HER by orderly photodepositing CdS and NiS. Due to the low content of CdS (around 3.0 wt%), most of the photo-excited electrons in CdS/g-C₃N₄ derive from g-C₃N₄. Moreover, the closely contact of NiS nanoparticles with CdS obviously demonstrated efficient electron transmission from g-C₃N₄ to CdS, where the sulfur precursors of NiS were reduced. The examined charge transfer dynamics and processes revealed a newly formed electron pathway in g-C₃N₄ after pinpoint anchoring CdS and NiS sequentially. The results showed that the photocatalytic activity of NiS/CdS/g-C₃N₄ was significantly superior to that of g-C₃N₄ and NiS/g-C₃N₄. This basic study of photophysical property provides guidance for the designing and synthesizing photocatalysts.

The surface morphology and structure of different photocatalysts were first characterized by TEM, and a general appearance of g-C₃N₄ was shown in Fig. S1 (Supporting information). It can be noticed that g-C₃N₄ displays a large-scale flexible two-dimensional (2D) structure. Due to the long-time thermally annealing under air atmosphere, the surface of g-C₃N₄ becomes rough and appears as nanosticks cross-linked with each other. According to AFM results, the thickness of g-C₃N₄ is measured to be less than 6 nm, suggesting an ultrathin layer structure (Fig. 1a). Then a photoinduction strategy was utilized to synthesize CdS/g-C₃N₄ heterostructures. Through altering the irradiation time, photocatalysts with different amount of CdS were achieved and named as CC-X (see Supporting information for details). Compared with pristine g-C₃N₄, CdS fine particles are separately and uniformly scattered on the surface of g-C₃N₄, and the particle size gradually increases from ~20 nm to ~80 nm with the prolonging of irradiation time (Fig. S2 in Supporting information). TEM and HRTEM images indicate that CdS nanoparticles are selectively attached onto g-C₃N₄ nanosheets without any aggregation, where the lattice fringe of 0.340 nm corresponds to the (002) facet of CdS (Figs. 1b and c) [30]. The close contact between g-C₃N₄ and CdS is beneficial to charge separation. After further depositing NiS, g-C₃N₄ still keeps a 2D layer structure without any morphology change (labeled as CCN-Y), as shown in Fig. 1d. It is found that two linked nanoparticles with lattice fringe spacing of 0.340 and 0.290 nm appear in HRTEM image, which are assigned to the (002) and (101) facet of CdS and NiS, respectively (circles in Fig. 1e) [31]. Additionally, no NiS nanoparticles individually grow on the surface of g-C₃N₄ (Fig. 1e and Fig. S3 in Supporting information). This result implies that the photo-excited electrons in g-C₃N₄ would effectively inject into CdS and then accumulate around CdS. The energy-dispersive spectroscopy (EDS) mappings in Fig. 1f confirm that CdS and NiS nanoparticles are uniformly distributed on the surface of g-C₃N₄ (Fig. 1f). These observations indicate that the photocatalyst prepared by photoinduction method possesses a heterostructure with designated electron transfer route and is not a simple physical mixture of separate phases.

The photocatalysts were then examined by XRD and FT-IR to determine their texture properties. The peak at 27.4° matches well with the (002) stacking layered structure of g-C₃N₄, and the 12.9° peak corresponds to (110) in-plane repeated unites (Fig. S4a in Supporting information) [32, 33]. After photodeposition of CdS and NiS, the characteristic peaks of g-C₃N₄ are well preserved without any shift. While due to the low content and crystallinity, no diffraction peaks of CdS and NiS could be observed in XRD patterns. For the FT-IR spectra, all the peaks belonging to g-C₃N₄ are preserved without any change, demonstrating that g-C₃N₄ nanosheets could basically keep their crystal structure in heterostructures after photodeposition process (Fig. S4b in Supporting information).

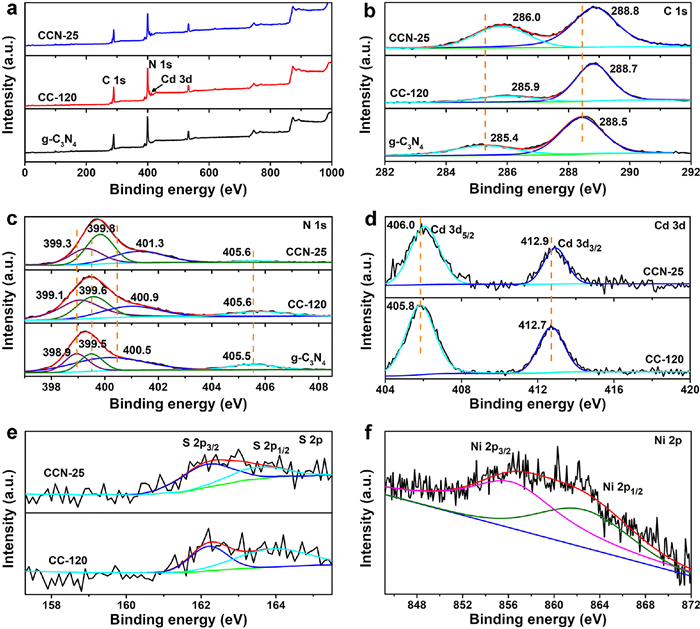

The chemical composition and charge distribution of g-C₃N₄, CC-120, and CCN-25 were characterized by XPS. Fig. 2a illustrates the wide-scan XPS spectra of each photocatalyst, in which C 1s, N 1s, and small Cd 3d peaks could be identified. In the high resolution XPS spectrum, the peak of C 1s in g-C₃N₄ at 288.5 eV represents the sp²-nonded carbon (N-C=N), while the peak at 285.4 eV refers to the graphitic carbon (C-C) groups in g-C₃N₄ (Fig. 2b). For the N 1s spectra, the deconvoluted peaks at 400.5, 399.5, and 398.9 eV are attributed to amino groups (C-N-H), N atoms in 3 heptazine units (N-(C)₃), and heptazine ring center (C=N-C), respectively (Fig. 2c) [34]. The peak at 405.5 eV assigning to a more oxidized nitrogen state is as well detected in previous work [35]. After the CdS/g-C₃N₄ heterostructure is formed, the characteristic peak positions of both C 1s and N 1s move toward higher binding energy, indicating that there is a strong interaction between g-C₃N₄ and CdS. Typically, the XPS peak position shifting to higher binding energy demonstrates the depletion of electrons around the atom, and the excited electrons in g-C₃N₄ are chiefly localized in C atoms since the C atoms mainly contribute to the bottom of conduction band [36, 37]. Thus, the variations of C 1s in CC-120 and CCN-25 prove that the electrons could inject from g-C₃N₄ into CdS. The XPS peaks of Cd 3d at 412.7 and 405.8 eV are assigned to Cd 3d_3/2 and 3d_5/2 in CC-120, respectively (Fig. 2d). Interestingly, their positions also move to higher binding energy after forming CCN-25, proving the electron injection from CdS to NiS. The peaks at 163.9 and 162.2 eV are due to S²⁻ in CdS and NiS (Fig. 2e) [38]. The binding energy of two main peaks at 862.7 and 856.3 eV are in accordance with the Ni species in NiS (Fig. 2f). According to above analysis, CdS and NiS are confirmed to photochemically deposit onto g-C₃N₄ and an efficient charge migration could be observed [39-41]. In addition, the weight percent of NiS, CdS, and g-C₃N₄ in CCN-25 were also calculated, in which the amount of CdS was relatively low (around 3.0 wt%, Table S1 in Supporting information).

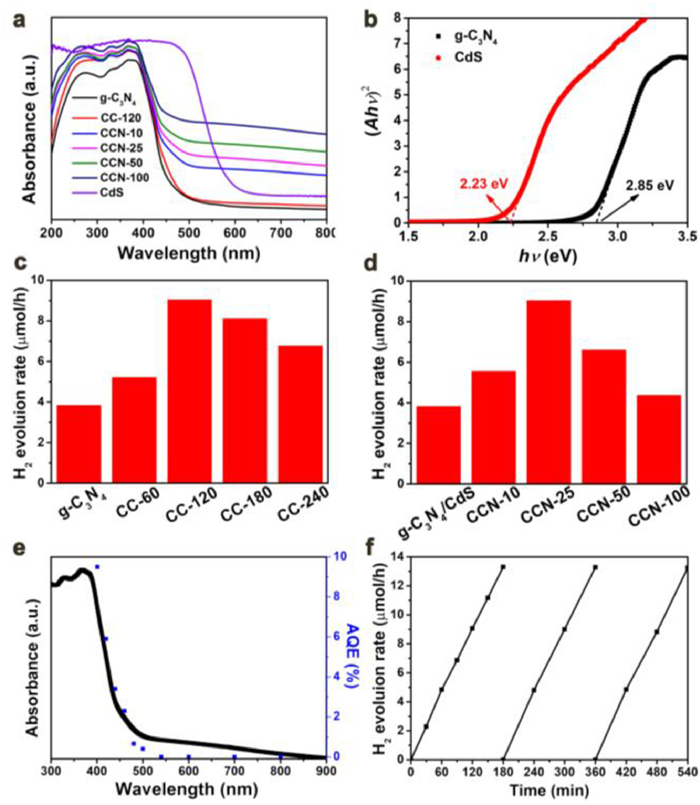

Fig. 3a shows the optical properties of individual photocatalysts, and the absorption edge of pristine g-C₃N₄ is approximately 440 nm, resulting in a bandgap (E_g) of 2.85 eV. Even though CdS shows a strong light absorption in the visible extent (450–550 nm, assigning to the bandgap of 2.23 eV, Fig. 3b), only a slightly red shift could be observed in CdS/g-C₃N₄. This phenomenon is quite different from previous work that the absorption behavior of heterostructure is significantly affected by the deposited CdS due to its large loading content [24]. After loading NiS nanoparticles, light absorption is gradually strengthened with the increasing amount of NiS precursors in the range of 500–800 nm, while the absorption edge of CCN-Y exhibits no change compared with that of CC-120. The corresponding digital images of different photocatalysts shown in Fig. S5 (Supporting information) obviously demonstrate the color change from pale white for g-C₃N₄ to grey for CCN-100. To explore the band structure, Mott-Schottky (M-S) plots were conducted, and the flat band potential values (E_fb) of CdS and g-C₃N₄ are −0.98 and −1.75 eV versus those of Ag/AgCl, respectively (Fig. S6 in Supporting information). The positive slopes of Mott-Schottky curves indicate that CdS and g-C₃N₄ are n-type semiconductors. In general, it is considered that the conduction band (E_CB) of n-type semiconductors is minus 0.1 eV compared with their E_fb. Therefore, the E_CB for CdS and g-C₃N₄ could be estimated as −0.48 and −1.25 eV versus reversible hydrogen electrode (vs. RHE), and their valence band potential (E_VB) are measured to be 1.75 and 1.60 eV corresponding to the equation: E_VB = E_g + E_CB, respectively (Fig. S7 in Supporting information).

Photocatalytic H₂ evolution reaction was put into effect at room temperature with TEOA (20 vol%) as a hole scavenger under the visible light irradiation (λ > 400 nm). Fig. 3c exhibits the results of H₂ production rate over g-C₃N₄ and different CC-X photocatalysts in aqueous suspensions with a certain amount of NiS as cocatalyst. Although NiS is introduced, pristine g-C₃N₄ still illustrates poor activity (1281 µmol g⁻¹ h⁻¹), probably because of the rapid recombination of electron-hole pairs. While the photocatalytic activity is increased after combining CdS, and the amount of H₂ initially enhances and then gradually decreases with the prolonging irradiation time. Among them, CC-120 shows the highest photocatalytic performance. We suppose that the reduction of H₂ evolution for CC-180 and CC-240 would be the increased particle size of CdS, leading to the prohibition of charge transfer from the interior of CdS to surface and finally to NiS. Then, CC-120 photocatalyst was employed as substrate to detect the influences of photodeposited NiS on photocatalytic performance (Fig. 3c). The H₂ evolution rate is boosted with the increasing of NiS, and CCN-25 displays the highest activity with the value of 3015 µmol g⁻¹ h⁻¹, to be probably 2.4 folds better than that of g-C₃N₄ with similar amount of NiS (Fig. 3d). Wavelength dependence of the apparent quantum efficiency (AQE) was also calculated using various band-pass filter under the same reaction conditions (Fig. 3e). The trend of AQE follows well with that of absorbance, and it reaches up to 9.5% and 5.9% at 400 and 420 nm, respectively. The stability of CCN-25 was also tested, and CCN-25 maintained its activity for H₂ evolution after three cycles (Fig. 3f). XRD patterns indicate that CCN-25 remains unchanged in the crystal structure (Fig. S8 in Supporting information). CdS and NiS nanoparticles could still be observed in HRTEM image and the elemental mappings of CCN-25 after the durability test also demonstrate that CdS and NiS nanoparticles are evenly dispersed on the surface of g-C₃N₄ without any aggregation (Figs. S9 and S10 in Supporting information).

Due to the low content of CdS in heterostructure based on above analysis and the well-kept appearance and layer-structure of g-C₃N₄ after photochemical reaction, the introduced CdS and surface area of CCN-Y would not cause the increment for H₂ evolution rate. We hypothesize that the efficient electron flow from g-C₃N₄ to CdS and ultimately to NiS is account for the enhanced activity. A series of photoelectrochemical measurements were performed to support the effect of such charge separation properties in heterostructures. The transient photocurrent (I-t) curves of several on-off cycles under intermittent visible-light irradiation indicate that g-C₃N₄ performs the highest photocurrent density of 1.76 µA/cm² after orderly photodepositing CdS and NiS, which is much higher than that of pristine g-C₃N₄ (0.25 µA/cm²) and CC-120 (0.57 µA/cm²) (Fig. S11a in Supporting information). The EIS Nyquist plots of g-C₃N₄, CC-120, and CCN-25 together with simulated equivalent electrical circuits were also provided in Figs. S11b and c (Supporting information), in which R_s and R_ct are electrolyte solution resistance and the interfacial charge-transfer resistance, respectively [42]. Based on the model, CCN-25 showed the smallest semicircle diameter and R_ct value (Table S2 in Supporting information), proving the lowest resistance of interfacial charge-transfer in CCN-25 [43, 44]. Moreover, the efficient charge transfer in CCN-25 was also identified by photoluminescence (PL) spectroscopy (Fig. S12 in Supporting information). Contrary to previous works that the PL spectra of CdS/g-C₃N₄ could exhibit both emission peaks of g-C₃N₄ and CdS, the composites here only show PL emission peak of g-C₃N₄, also making clear that the photogenerated electrons in the heterostructures mainly derive from g-C₃N₄ [24]. Interestingly, the PL intensity greatly decreases after depositing CdS, and CCN-25 reveals the weakest intensity with a quenching intensity of about 70% compared to the undecorated g-C₃N₄.

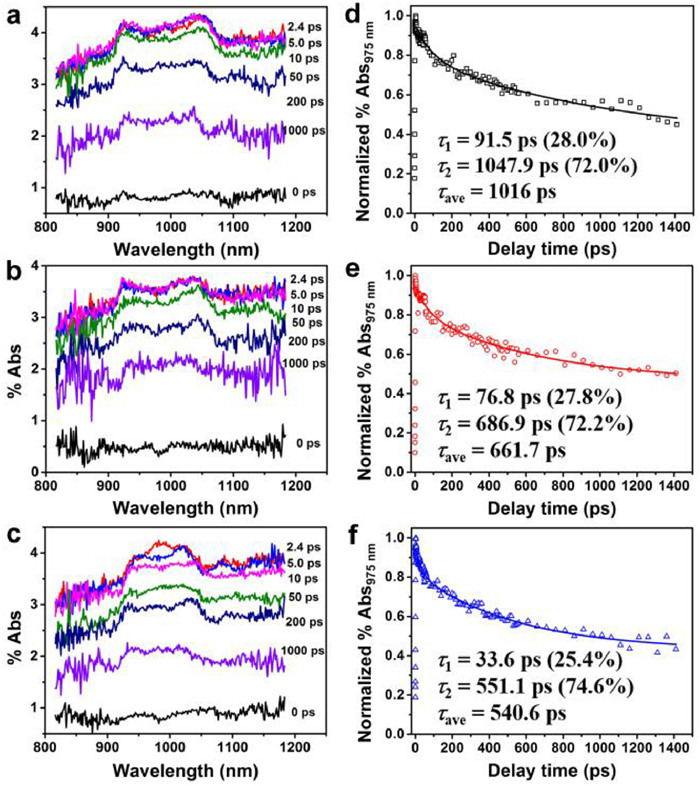

According to above analyses, the retarded charge recombination in NiS/CdS/g-C₃N₄ has been proved. While the detailed electron transfer kinetics are still not obvious, which would provide direct evidence to determine the type of heterostructure and simultaneously explain the enhancement of photocatalytic activity. Therefore, femto-second transient diffuse reflectance (TDR), a robust tool for tracking the dynamics of charge carriers involved in nanostructured systems in real time, was measured to probe the average charge lifetimes and charge transfer processes. A pump pulse with a central wavelength of 400 nm was used to record the TDR spectra at different time delays, which is effective for exciting electrons from the valence band of g-C₃N₄ to the conduction band. An absorption signal, ranging from 900–1100 nm, is observed in g-C₃N₄, assigning to the trapped or free electrons in semiconductors (Fig. 4a) [45]. And it turns out that very similar TA spectra are yielded for CC-120 and CCN-25 (Figs. 4b and c). This result also proves that most of the photo-excited electrons are from g-C₃N₄. In addition, the transient absorption immediately reaches highest upon the excitation, and then gradually decays. Comparing to the pristine g-C₃N₄, the absorption of CC-120 within delay time of 2.4–200 ps decays more rapidly, while the CCN-25 discloses the fastest decay. The absorption-time profiles recorded at 975 nm for different photocatalysts are illustrated in Figs. 4d–f, which are fitted by a multi-exponential function. The pristine g-C₃N₄ exhibits a signal that can be characterized by two-time constants: τ₁ = 91.5 ps (28.0%) and τ₂ = 1047.9 ps (72.0%). The shorter lifetime caused by electrons trapped in the sub-state is attributed to the nonradiative recombination process, while the longer lifetime component is assigned to the recombination of excitons in semiconductors. The weighted average lifetime (τ_ave) of electron-hole pairs is 1016 ps. Notably, the fitting curve is converged to a long-lived plateau with a certain amplitude, reflecting that the charge recombination possesses a relative long lifetime up to nano- or microsecond. After decorating CdS, the composite also displays photoinduced absorption signals that can be characterized by two-time constants: τ₁ = 76.8 ps (27.8%) and τ₂ = 686.9 ps (72.2%), and the average lifetime is calculated to be 661.7 ps. The further shortened average recovery lifetime in CCN-25 (540.6 ps) is caused by the decreasing of τ₁ (33.6 ps, 25.4%) and τ₂ (551.1 ps, 74.6%). Commonly, the average lifetime is regarded as an important parameter to estimate the separation and transfer efficiency of photogenerated charge carriers in photocatalysts [31]. Such difference can be ascribed to the opening of an additional charge transfer channel in heterostructure. Therefore, the TDR results prove that a typical type Ⅱ rather than a Z-S heterostructure is formed here for the CdS/g-C₃N₄ composite.

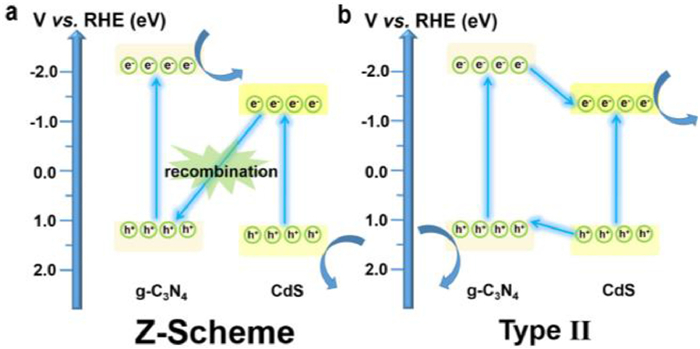

In addition to fitting parameters of TDR spectra, the long stability of CCN-25 also excludes the Z-S heterostructure between g-C₃N₄ and CdS. According to the band level calculations, the conduction band of CdS is lower than that of g-C₃N₄. If the Z-S system was formed, electrons probably transfer from CdS to g-C₃N₄, leading to the recombination without any redox reactions (Fig. 5a). While the holes left on CdS would increase the light corrosion of CdS, which is contradict with the stability test. As a result, the proper mechanism of the reinforced photocatalytic HER performance for NiS/CdS/g-C₃N₄ heterostructure is put forward. Upon light irradiation, g-C₃N₄ is excited together with CdS. While due to the low amount of CdS, most of the photogenerated electrons come from g-C₃N₄. Then, the electrons in the interface states of g-C₃N₄ are injected into CdS and finally to NiS in an efficient manner, whereas the valence holes of CdS are transferred to the valence band of g-C₃N₄ (Fig. 5b). In consequence, the electrons possess more opportunities to participate in the proton reduction. Meanwhile, the photo-corrosion of CdS is also inhibited, resulting in the increase of stability and activity for H₂ evolution.

A precisely controlled electron flow direction is achieved through pinpoint depositing CdS and NiS subsequently on g-C₃N₄ thin layers via photochemical strategy. From tracking of the charge migration based on TDR and PL spectroscopy, the electrons prefer transferring from g-C₃N₄ to CdS and ultimately NiS stepwise, and a typical type Ⅱ heterostructure is constructed in CdS/g-C₃N₄. Because of the efficient charge separation, the photocatalyst exhibits an obvious enhanced catalytic activity for H₂ evolution under visible light irradiation (3015 µmol g⁻¹ h⁻¹) with introducing a low content of CdS (~3.0 wt%), to be approximately 2.4-fold comparing to the pristine g-C₃N₄. Additionally, the composite also possesses superior resistance for the photocorrosion of CdS. The work here systematically studies the connection between g-C₃N₄ and CdS, which may provide a choice to design and fabricate ideal heterojunction with regulated charge migration positions.

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

This work is supported by the National Natural Science Foundation of China (No. 21902143).

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.07.026.
