Using silicon spheres as a template, the Fe,N-UHCF was synthesized by a one-pot high-temperature calcination method using porous carbon (PC), iron nitrate, glucose and dicyandiamide as carbon substrate, Fe source, chelating agent and nitrogen source. The crystal structure of Fe,N-UHCF and N doped carbon (N-C) was characterized by XRD. Similar to N-C, the XRD pattern of Fe,N-UHCF shows a broad diffraction peak and no other peaks (Fig. S1 in Supporting information). This implies no formation of crystallized Fe species except for amorphous carbon. The morphology of Fe,N co-doped carbon (Fe,N-C), N-doped ultrathin hollow carbon framework (N-UHCF) and Fe,N-UHCF was characterized by transmission electron microscope (TEM). It shows that the morphology of Fe,N-C and N-UHCF is nanosheet and hollow spherical framework, respectively (Figs. S2a and b in Supporting information). The electron dispersive spectra (EDS) mapping images indicate the uniform distributions of C, N, and O in the whole architecture of N-UHCF (Fig. S2c in Supporting information). The morphology of Fe,N-UHCF exhibits amounts of hollow spherical framework after removal of silica spheres templates, with an ultrathin shell thickness of ~4 nm (
Figs. 1a and
b). And the surface of hollow spheres is covered with a layer of lamellar and flocculent structure, which may be composed of PC substrate and glucose pyrolysis. The big Fe-based particles are not observed during the TEM images. The electron dispersive spectra (EDS) mapping images indicate the uniform distributions of C, N, O, and Fe in the whole architecture of Fe,N-UHCF (
Figs. 1c and
d). The above results verify that Fe is successfully doped into the hollow carbon spheres. Measured by inductively coupled plasma atomic emission spectrometry (ICP-AES), the actual Fe loading is 5.85 wt%. The chemical enviroments of Fe,N-UHCF and Fe,N co-doped carbon (Fe,N-C) were investigated by X-ray photoelectron spectroscopy (XPS) (Fig. S3 in Supporting information). The C 1s spectra show the existence of C-C, C=C, C-N and C=O [
32]. The N 1s signals indicate the presence of pyridinic N,Fe-N
x species, pyrrolic N, graphitic N and oxidized N, in which the peak at 399.5 eV is assigned to Fe-N
x species [
25]. The Fe 2p spectra of Fe,N-UHCF and Fe,N-C have two peaks at 711.1 and 724.7 eV, indicating the presence of oxidized Fe [
24]. The O 1s spectra consist of two peaks labelled as O1 and O2, corresponding to the oxygen defects and chemisorbed species (such as H
2O or O
2), respectively [
33]. Moreover, in the O 1s spectra there is no distinct features of Fe-O bonding, which should appear around 530 eV [
25]. The above XPS analysis show that Fe-N
x bonding is the dominant Fe species in Fe,N-UHCF and Fe,N-C. Compared with Fe,N-C, the Fe,N-UHCF have larger amount of Fe-N

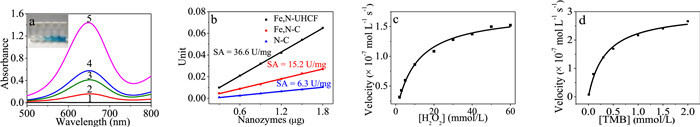

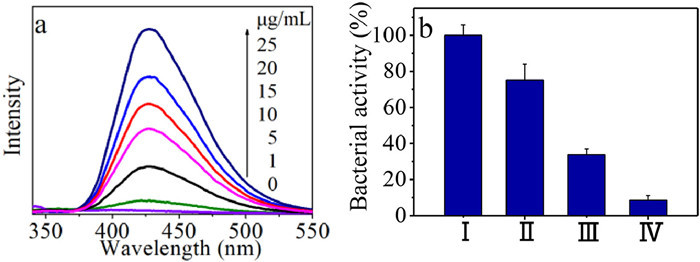

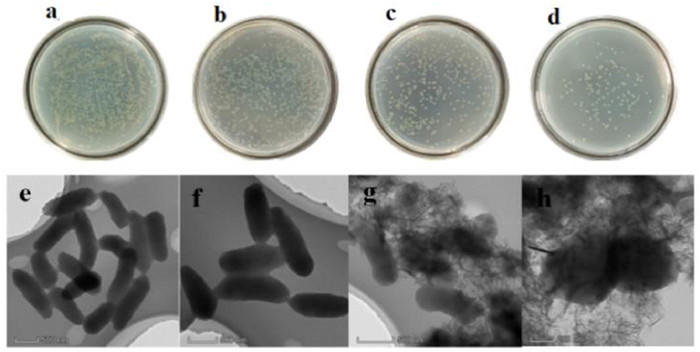

x bonding, which may provide more active sites and contribute to the improvement of catalytic performance. The BET specific surface areas of Fe,N-UHCF and Fe,N-C were measured to be 502.1 m
2/g and 180.6 m
2/g, respectively (Fig. S4 in Supporting information). The unique hollow structure enables Fe,N-UHCF to have a larger specific surface area, which can expose more active sites, and be conducive to efficient mass transfer.
