Dual polarization strategy to enhance CH4 uptake in covalent organic frameworks for coal-bed methane purification
收藏切换
PDF
Junhua Wangb, c, Xin Lianc, Xichuan Caoa, b, *, Qiao Zhaoc, **, Baiyan Lic, **, Xian-He Buc
Chinese Chemical Letters | 2024, 35(8) : 109180
Less
收藏切换
Chinese Chemical Letters | 2024, 35(8): 109180
• Communication •
Dual polarization strategy to enhance CH4 uptake in covalent organic frameworks for coal-bed methane purification
Full
Junhua Wangb, c, Xin Lianc, Xichuan Caoa, b, *, Qiao Zhaoc, **, Baiyan Lic, **, Xian-He Buc
Affiliations
  • aSchool of Materials Science and Physics, China University of Mining and Technology, Xuzhou 221116, China
  • bSchool of Chemical Engineering and Technology, China University of Mining and Technology, Xuzhou 221116, China
  • cSchool of Materials Science and Engineering, National Institute for Advanced Materials, TKL of Metal and Molecule-Based Material Chemistry, Nankai University, Tianjin 300350, China
Published: 2024-08-15 doi: 10.1016/j.cclet.2023.109180
Outline
收藏切换

The purification of low-grade coal-bed methane is extremely important, but challenging, due to the very similar physical properties of CH4 and N2. Herein, we proposed a dual polarization strategy by employing triazine and polyfluoride sites to construct polar pores in COF materials, achieving the efficient separation of CH4 from N2. As expected, the dual polarized F-CTF-1 and F-CTF-2 exhibit higher CH4 adsorption capacity and CH4/N2 selectivity than CTF-1 and CTF-2, respectively. Especially, the CH4 uptake capacity and CH4/N2 selectivity of F-CTF-2 is 1.76 and 1.42 times than that of CTF-2. This work not only developed promising COF materials for CH4/N2 separation, but also provided important guidance for the separation of other adsorbates with similar properties.

Dual polarization strategy  /  Covalent organic frameworks (COFs)  /  Coal-bed methane purification  /  Chemical/thermal stability  /  Cycling stability
Junhua Wang, Xin Lian, Xichuan Cao, Qiao Zhao, Baiyan Li, Xian-He Bu. Dual polarization strategy to enhance CH4 uptake in covalent organic frameworks for coal-bed methane purification[J]. Chinese Chemical Letters, 2024 , 35 (8) : 109180 - . DOI: 10.1016/j.cclet.2023.109180
Full Text
Less
As a kind of unconventional energy with high calorific value, coal-bed methane (CBM) is a kind of natural gas mainly composed of methane and nitrogen [1,2]. For the utilization of coal-bed methane, CBM with the high methane concentration can be directly extracted and utilized [3]. On the contrast, a large number of CBM resources with low methane concentration (< 30% CH4) are often directly vented to the atmosphere, which not only causes resource waste but also aggravates the global greenhouse effect [4–7]. Therefore, the separation of CH4 from N2 for low-grade CBM purification is considered to be economical and environment-friendly.
Owing to their similar physical properties, the separation of CH4/N2 is widely regarded as one of the most challenging technical issues [8–11]. Currently, traditional industrial technology to separate CH4 over N2 from CBM is cryogenic distillation, which is highly energy-consuming and uneconomical [12,13]. On the contrary, adsorbent-based gas separations have exhibited great prospects due to their low energy consumption and simple operation [14]. To date, several types of porous materials have been investigated and used for separating CBM, including activated carbons [15–18], zeolites [19] and MOFs [20–24]. In this regard, activated carbons and zeolites often shows some drawbacks in practical applications including lack of functional adsorption sites, poor separation selectivity, and low uptake capacity [25]. Although MOFs display excellent methane adsorption capacity and CH4/N2 separation selectivity because of the existence of unsaturated metal centers and suitable pore size, they often suffer from the poor chemical and moisture stabilities [26–28]. Therefore, it is of great significance to develop highly efficient and stable adsorbents for selective separation of CH4/N2.
Covalent organic frameworks (COFs), constructed by covalent bonds, are a type of promising porous materials due to their large specific surface area [29], low mass density [30], excellent chemical/thermal stability [31,32] and structural modularity [33,34]. Therefore, COFs is a kind of suitable candidate material for the separation of CH4/N2. Unfortunately, current COFs were rarely reported [35] for methane purification which may be attributed to the lack of efficient constructional strategies. The existing strategy of constructing COF adsorbent for CH4/N2 separation is adjusting the pore size of COFs. Therefore, it is necessary to develop new strategy for constructing COF based adsorbents for CH4/N2 separation. Based on the fact that CH4 (25.93 × 10−25 cm3) has a greater polarizability than N2 (17.40 × 10−25 cm3), we reason that enhancing the polarity of the host framework to form multiple interactions between CH4 molecules and the skeleton would benefit the CH4/N2 separation. Therefore, we proposed a dual polarization strategy by introducing both triazine and polyfluoride sites onto framework to construct polar pores, which would thus enhance the interaction between CH4 molecules and the host framework and thereby achieving the high-efficient separation of CH4 from N2.
To verify our strategy, four COFs including CTF-1, CTF-2, and their perfluorinated counterparts (F-CTF-1 and F-CTF-2) were chosen as the platform adsorbents for CBM purification (Scheme 1). Both F-CTF-1 and F-CTF-2 with polar pores exhibited higher CH4 uptake and CH4/N2 selectivity than that of CTF-1 and CTF-2. Especially, F-CTF-2 exhibited high CH4 uptake capacity (21.7 cm3/g) and superior CH4/N2 selectivity (5.28), which is 1.76 and 1.42 times higher than that of CTF-2. Simulated calculations revealed that the higher CH4 uptake and CH4/N2 selectivity of F-CTF-2 were attributed to the existence of dual polarization sites on COF pores. These results thus highlight the advantage of the dual polarization strategy to construct CH4 preferred adsorbent for CH4/N2 separation. Additionally, F-CTF-2 exhibits excellent chemical and thermal stabilities, making it among the promising adsorbents for CBM purification.

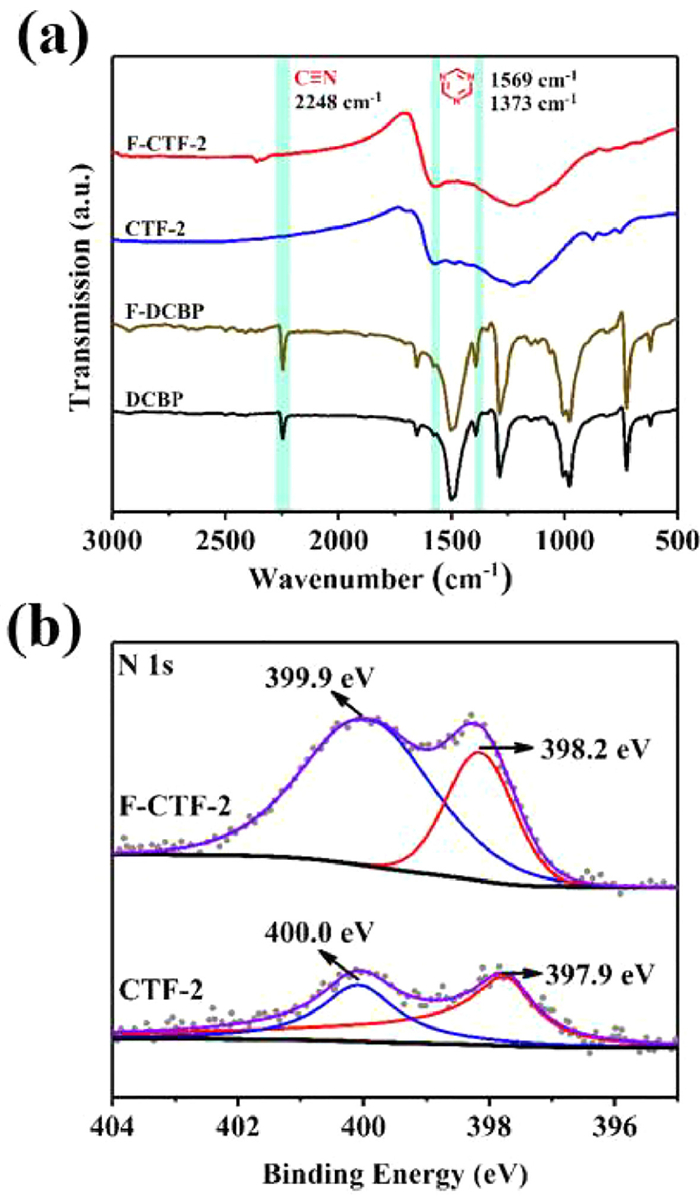

All of the COF materials were prepared at 500 ℃ under typical ionothermal conditions using ZnCl2 as catalyst with a ZnCl2/monomer molar ratio of 10 [36]. The obtained products were abbreviated as CTF-1, CTF-2, F-CTF-1, F-CTF-2, respectively. The successful synthesis of CTFs and F-CTFs was confirmed by Fourier transform-infrared (FT-IR), X-ray photoelectron spectroscopy (XPS), solid-state 13C NMR measurements. As shown in the FT-IR spectra (Fig. 1a and Fig. S1 in Supporting information), the characteristic vibrational band for the terminal cyano group at ~2248 cm−1 disappeared after polymerization, representing the complete polymerization has been achieved. Meanwhile, the new characteristic vibrations at ~1569 cm−1 (–C=N– stretching vibration) and 1373 cm−1 (–C–N= stretching vibration) indicated the successful formation of the triazine rings [36,37]. Furthermore, X-ray photoelectron spectroscopy (XPS) was used to verify the structural features of the CTFs and F-CTFs. As displayed in Figs. S2a and b (Supporting information), the C 1s XPS spectrum of each of the samples can be resolved into two peaks. The strongest peak (284.9 eV) was assigned to the sp2 hybrid C species in the benzene rings, while the peak with higher binding energy (286.2 eV) was assigned to the sp2 hybrid C species in the triazine rings [38]. In the N 1s XPS spectra of CTFs and F-CTFs, the peaks at ~398.0 eV also revealed the formation of the triazine rings (Fig. 1b and Fig. S2c in Supporting information) [39]. Solid-state 13C NMR spectra of F-CTFs showed the characteristic peak at ~161 ppm corresponding to the sp2-hybridized carbon atoms in the triazine ring [40], which further revealed the formation of CTFs (Fig. S3 in Supporting information). Additionally, the morphology of F-CTFs was analyzed by the SEM and TEM. The layered structures and porosity were observed. The energy dispersive spectroscopy (EDS) elemental mappings (Fig. S4 in Supporting information) indicated a homogeneous distribution of C, N and F in F-CTFs. Finally, the powder X-ray diffraction (XRD) patterns of CTFs and F-CTFs showed an amorphous character (Fig. S5 in Supporting information).

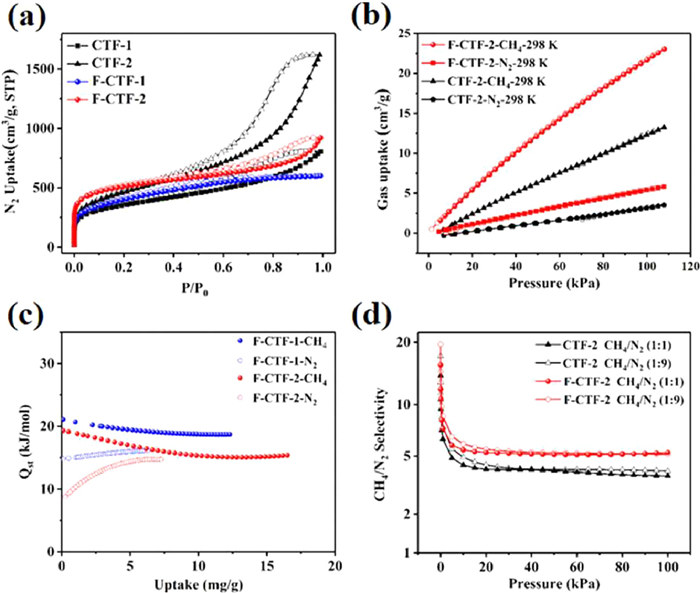

The porosity property of the model COF materials was examined by N2 adsorption isotherms at 77 K (Fig. 2a). All of the samples displayed rapid N2 uptake at low relative pressures (P/P0 < 0.04), indicating the existence of microporous structures. Then, the hysteresis loops appeared around the relative pressure of P/P0 = 0.4, showing the presence of mesopores. The formation of mesoporous structure may be caused by the defects in CTFs [41]. The Brunauer-Emmett-Teller (BET) specific surface areas of CTF-1 and CTF-2 were calculated to be 1239 and 1599 m2/g. And that were 1392 and 1812 m2/g for F-CTF-1 and F-CTF-2, respectively. In addition, the pore size distributions were calculated by the density functional theory model (Fig. S6 in Supporting information). Compared with CTF-1 and CTF-2, F-CTF-1 and F-CTF-2 possessed more ultramicropore structures at 5.9 Å and 5.0 Å, which favors small-size gas molecule separation.

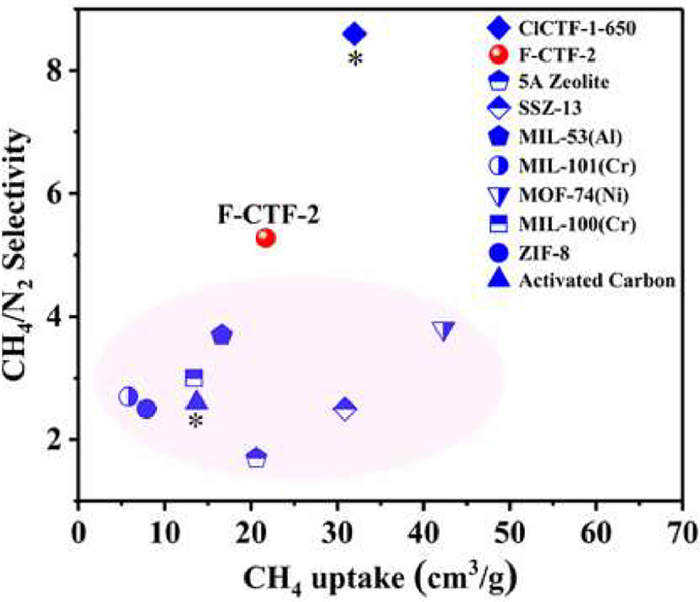

In order to verify the effectiveness of the dual polarization strategy, the single-component adsorption of CH4 and N2 was separately measured at 273 and 298 K (Fig. 2b, Figs. S7a and b in Supporting information). The adsorption capacities of F-CTF-1 and F-CTF-2 for CH4 at 273 K and 1 bar were 25.2 cm3/g and 33.7 cm3/g, respectively. While the CH4 uptake for CTF-1 and CTF-2 were a little lower with the capacity of 23.3 cm3/g and 20.2 cm3/g, respectively, under the identical conditions. Consistently, the CH4 uptake of F-CTF-1 and F-CTF-2 at 298 K and 1 bar were also higher than their counterparts of CTF-1 (16.3 vs. 14.9 cm3/g) and CTF-2 (21.7 vs. 12.3 cm3/g), respectively. Apparently, all F-CTFs absorbed more CH4 than their non-fluorizated counterparts in the full pressure region at 298 K or 273 K. Then, the virial equation was used to calculate isosteric enthalpy of adsorption (Qst) for all samples based on the isotherms collected at 273 K and 298 K (Fig. 2c and Fig. S7c in Supporting information). The fitted parameters were provided in Tables S1–S4 (Supporting information). The initial Qst values of CH4 for F-CTF-1 and F-CTF-2 were 21.1 and 19.4 kJ/mol, respectively, higher than those for CTF-1 and CTF-2 (17.6 and 16.7 kJ/mol, respectively). As descripted, both the CH4 uptake and Qst follow the trend: CTFs < F-CTFs. This phenomenon is due to the introduction of polar sites on F-CTFs pores, which induce a stronger guest-framework interaction. To explore the separation potential of adsorbents, the CH4/N2 separation abilities of these COFs were evaluated by the ideal adsorbed solution theory (IAST) calculations (Tables S5 and S6 in Supporting information). Consistent with the trend of CH4 uptake for CTFs and F-CTFs, the adsorption selectivities of the CH4/N2 (1:1, v/v) mixture at 298 K and 1 bar for F-CTF-1 and F-CTF-2 were 5.20 and 5.28, respectively (Fig. 2d and Fig. S7d in Supporting information), higher than that of CTF-1 (4.59) and CTF-2 (3.73). Notably, the selectivity of F-CTFs are higher than that of many benchmark adsorbents, such as 5A zeolite (1.7) [42], BPL (2.6) [43] and MIL-100(Cr) (3.0) [44], indicating the successful practice of dual polarization strategy.
Considering the practical application, the stability of adsorbent is another key criterion to evaluate the industrial application potential for the purification of CBM. As an optimized candidate, the chemical/thermal stabilities for F-CTF-2 were investigated. F-CTF-2 can remain structurally stable in harsh conditions as verified by the consistent FT-IR results (Fig. S8a in Supporting information) and almost the same CH4 uptake capacity after being treated in 6 mol/L HCl and 6 mol/L NaOH solution for 72 h, respectively (Fig. S8b in Supporting information). TGA test showed that F-CTF-2 possessed a high thermal stability up to 450 ℃ (Fig. S9 in Supporting information). Moreover, F-CTF-2 exhibited superior recyclability with no visible decay after 10 cycles (Fig. S10 in Supporting information). It is worth noting that the comprehensive applicability of F-CTF-2 has exceeded that of most other benchmarks, such as zeolites [19], MOFs [1], Schiff-based COFs [45], which often suffer from the potential decomposition of porous structures under such harsh conditions (Fig. 3) [46,47]. Therefore, these results thus rank F-CTF-2 among the best porous adsorbents for CBM purification.

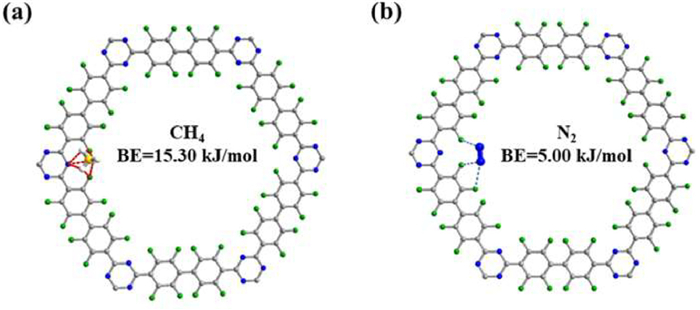

The adsorption behavior of CH4 and N2 was computed using grand canonical Monte Carlo simulations to reveal the adsorption mechanism. Considering its superior CH4 adsorption capacity and CH4/N2 selectivity, F-CTF-2 was chosen as the simulation model. As illustrated in Fig. 4a, CH4 interacted with the fluorine binding sites of F-CTF-2 via multiple C–H···F hydrogen bond interactions, in which the H···F distance ranged from 2.98 Å to 4.08 Å. Meanwhile, CH4 interacted with the triazine ring sites via multiple C–H···N hydrogen bond interactions, and the H···N distance differed from 3.83 Å to 4.41 Å. In comparison, there only existed weak Van der Waals interactions between N2 and the F-CTF-2 host frameworks with the N···F distance from 4.14 Å to 4.58 Å (Fig. 4b). This is consistent with the calculated binding energy of 15.30 kJ/mol between F-CTF-2 and CH4, and a low binding energy of 5.00 kJ/mol between F-CTF-2 and N2. The stronger interactions between the dual polarization sites in skeleton and methane molecules could thus account for high methane uptake and selectivity for F-CTF-2.

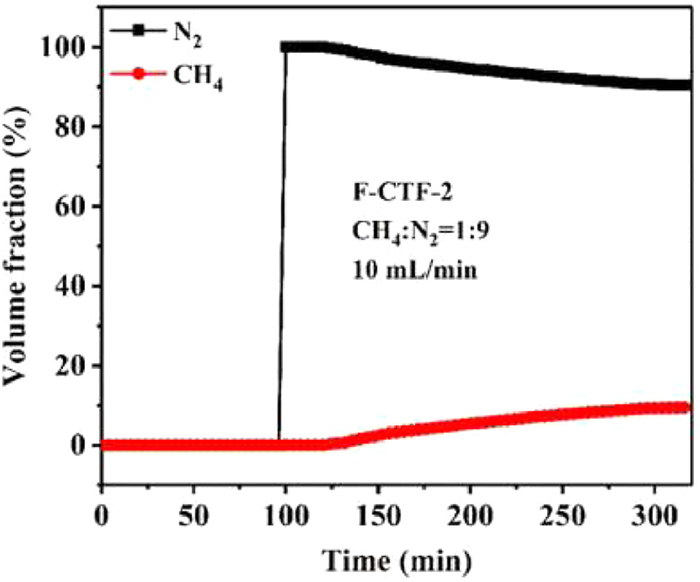

To further confirm the practical separation performance on the CBM with a low CH4 concentration, breakthrough experiment of F-CTF-2 for CH4/N2 (1:9, v/v) was purged into a packed column with a total inlet flow rate of 10 mL/min at 298 K (Fig. 5). During the experiment, N2 firstly penetrated the column before CH4 because of weaker interactions with the adsorbents. Subsequently, CH4 broke through the column after 20 min, which corresponds to a time window of 20 min for high-purity CH4 collection. This separation experiment demonstrated that F-CTF-2 can efficiently purify low concentration CBM, indicating the practicability of the dual polarization strategy.
In conclusion, we developed a dual polarization strategy to construct robust adsorbents for coal-bed methane purification. By introducing triazine and polyfluoride sites onto COF-based materials, the CH4 uptake and CH4/N2 selectivity were significantly enhanced. This was attributed to the enhanced affinity between CH4 molecules and the skeleton. Theoretical calculation revealed that the surface of F-CTF-2 could have strong interactions with CH4 via multiple C-H···F and C-H···N hydrogen bonds, which then caused good CH4 adsorption capacity. Thereby our work not only proposed a new approach to prepare high uptake CH4 adsorbents but also provided insight of the development of COFs as a new type of adsorbents for low concentration coal-bed methane purification.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
This work was supported by National Key R & D Program of China (No. 2022YFA1503300), National Natural Science Foundation of China (Nos. 21978138, 22035003), the Fundamental Research Funds for the Central Universities (Nankai University), and the Haihe Laboratory of Sustainable Chemical Transformations (No. YYJC202101).
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.109180.
References
Less
[1]
S.M. Wang, M. Shivanna, Q.Y. Yang, Angew. Chem. Int. Ed. 61 (2022) e202201017.
[2]
T.Y. Li, Y.S. Wang, M.Y. Zhang, et al. Chem. Eng. J. 462 (2023) 142118.
[3]
Y. Liu, Q. Xu, L. Chen, et al. Nano Res. 15 (2022) 7695–7702.
[4]
C. Zhang, Y. Chen, H. Wu, et al. Chem. Eng. J. 435 (2022) 133876.
[5]
Q. Shi, J. Wang, H. Shang, et al. Sep. Purif. Technol. 230 (2020) 115850.
[6]
M. Chang, F. Wang, Y. Wei, et al. AIChE J. 68 (2022) e17794.
[7]
J. Liu, X. Tang, X. Liang, et al. AIChE J. 68 (2022) e17589.
[8]
F. Zhang, H. Shang, B. Zhai, et al. AIChE J. 69 (2023) e18079.
[9]
M. Chang, T. Yan, Y. Wei, et al. ACS Appl. Mater. Interfaces 14 (2022) 25374–25384.
[10]
X.W. Liu, Y.M. Gu, T.J. Sun, et al. Ind. Eng. Chem. Res. 58 (2019) 20392–20400.
[11]
M. Chang, J. Ren, Y. Wei, et al. Chem. Mater. 35 (2023) 4286–4296.
[12]
D. Lv, Y. Wu, J. Chen, et al. AIChE J. 66 (2020) e16287.
[13]
V.I. Águeda Maté, J.A. Delgado Dobladez, S. Álvarez-Torrellas, et al. Chem. Eng. J. 361 (2019) 1007–1018.
[14]
M. Chang, Y. Zhao, D. Liu, et al. Sustain. Energy Fuels 4 (2020) 138–142.
[15]
S. Xu, W.C. Li, C.T. Wang, et al. Angew. Chem. Int. Ed. 60 (2021) 6339–6343.
[16]
P. Zhang, J. Wang, W. Fan, et al. Chem. Eng. J. 375 (2019) 121931.
[17]
Z. Dong, B. Li, H. Shang, et al. AIChE J. 67 (2021) e17281.
[18]
S.M. Wang, P.C. Wu, J.W. Fu, Q.Y. Yang, Sep. Purif. Technol. 274 (2021) 119121.
[19]
X. Tang, Y. Wang, M. Wei, et al. Sep. Purif. Technol. 318 (2023) 124003.
[20]
Z. Niu, X. Cui, T. Pham, et al. Angew. Chem. Int. Ed. 58 (2019) 10138–10141.
[21]
S. Qadir, D. Li, Y. Gu, et al. Chem. Eng. J. 408 (2021) 127238.
[22]
M. Chang, J. Ren, Q. Yang, D. Liu, Chem. Eng. J. 408 (2021) 127294.
[23]
Y. Chen, Y. Wang, Y. Wang, et al. AIChE J. 68 (2022) e17819.
[24]
D. Lv, R. Shi, Y. Chen, et al. Ind. Eng. Chem. Res. 57 (2018) 12215–12224.
[25]
Y. Chen, H. Wu, Y. Yuan, et al. Chem. Eng. J. 385 (2020) 123836.
[26]
T. Li, X. Jia, H. Chen, et al. ACS Appl. Mater. Interfaces 14 (2022) 15830–15839.
[27]
X. Zhao, P. Pachfule, A. Thomas, Chem. Soc. Rev. 50 (2021) 6871–6913.
[28]
J.N. Chang, Q. Li, Y. Yan, et al. Angew. Chem. Int. Ed. 61 (2022) e202209289.
[29]
X.H. Han, J.Q. Chu, W.Z. Wang, et al. Chin. Chem. Lett. 33 (2022) 2464–2468.
[30]
X. Feng, X. Ding, D. Jiang, Chem. Soc. Rev. 41 (2012) 6010–6022.
[31]
J. Li, J. Wang, F. Shui, et al. Chin. Chem. Lett. 34 (2023) 107917.
[32]
J.N. Chang, Q. Li, J.W. Shi, et al. Angew. Chem. Int. Ed. 62 (2023) e202218868.
[33]
T.Y. Yu, Q. Niu, Y. Chen, et al. J. Am. Chem. Soc. 145 (2023) 8860–8870.
[34]
M.X. Wu, Y.W. Yang, Chin. Chem. Lett. 28 (2017) 1135–1143.
[35]
K.X. Yao, Y. Chen, Y. Lu, Y. Zhao, Y. Ding, Carbon 122 (2017) 258–265.
[36]
P. Kuhn, M. Antonietti, A. Thomas, Angew. Chem. Int. Ed. 47 (2008) 3450–3453.
[37]
X. Suo, F. Zhang, Z. Yang, et al. Angew. Chem. Int. Ed. 60 (2021) 25688–25694.
[38]
G. Wang, K. Leus, H.S. Jena, et al. J. Mater. Chem. A 6 (2018) 6370–6375.
[39]
Z.A. Lan, M. Wu, Z. Fang, et al. Angew. Chem. Int. Ed. 61 (2022) e202201482.
[40]
X. Zhu, C. Tian, S.M. Mahurin, et al. J. Am. Chem. Soc. 134 (2012) 10478–10484.
[41]
M. Liu, Q. Huang, S. Wang, Angew. Chem. Int. Ed. 57 (2018) 11968–11972.
[42]
J.A.C. Silva, A. Ferreira, P.A.P. Mendes, et al. Ind. Eng. Chem. Res. 54 (2015) 6390–6399.
[43]
S. Sircar, J. Chem. Soc. Faraday Trans. I. 80 (1984) 1101–1111.
[44]
L. Li, J. Yang, J. Li, Y. Chen, J. Li, Microporous Mesoporous Mater. 198 (2014) 236–246.
[45]
L. Liao, X. Guan, H. Zheng, et al. Chem. Sci. 13 (2022) 9305–9309.
[46]
A. Dong, D. Chen, Q. Li, et al. Small 19 (2023) 2201550.
[47]
X. Guan, H. Li, Y. Ma, et al. Nat. Chem. 11 (2019) 587–594.
