Development of functional dye with redshifted absorption based on Knoevenagel condensation at 1-site in phenyl[b]-fused BODIPY
收藏切换
PDF
Tianze Wanga, 1, Junyi Renb, 1, Dongxiang Zhanga, 1, Huan Wangb, Jianjun Du*, c, Xin-Dong Jiang*, a, Guiling Wang*, b
Chinese Chemical Letters | 2024, 35(6) : 108862
Less
收藏切换
Chinese Chemical Letters | 2024, 35(6): 108862
• Communication •
Development of functional dye with redshifted absorption based on Knoevenagel condensation at 1-site in phenyl[b]-fused BODIPY
Full
Tianze Wanga, 1, Junyi Renb, 1, Dongxiang Zhanga, 1, Huan Wangb, Jianjun Du*, c, Xin-Dong Jiang*, a, Guiling Wang*, b
Affiliations
  • a Liaoning & Shenyang Key Laboratory of Functional Dye and Pigment, Shenyang University of Chemical Technology, Shenyang 110142, China
  • b Department of Cell Biology, China Medical University, Shenyang 110122, China
  • c State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian 116024, China
Published: 2024-06-15 doi: 10.1016/j.cclet.2023.108862
Outline
收藏切换

Integrating ring-fused modification with π-conjugated extension is an effective approach for designing, synthesizing, and application for novel borondipyrromethene (BODIPY) structures. In this work, based on phenyl[b]-fused BODIPY, we made reasonable modification of the methyl group at 1-site to generate dye NBDP. NBDP possessed near-infrared region (NIR) absorption and emission properties, and the intramolecular charge transfer (ICT) resulted in low fluorescence. Whereas, heat energy is evidently released in the presence of light, which can be exploited for intracellular photothermal therapy via the cell apoptosis process, reducing the inflammatory side-effects induced by necrosis. This research provides a crucial foundation for the novel molecule via BODIPY multi-directional alteration and its potential application in anti-tumor phototherapy.

NIR dyes  /  [b]-Fused BODIPY  /  Knoevenagel condensation  /  Photothermal therapy  /  Cell apoptosis
Tianze Wang, Junyi Ren, Dongxiang Zhang, Huan Wang, Jianjun Du, Xin-Dong Jiang, Guiling Wang. Development of functional dye with redshifted absorption based on Knoevenagel condensation at 1-site in phenyl[b]-fused BODIPY[J]. Chinese Chemical Letters, 2024 , 35 (6) : 108862 - . DOI: 10.1016/j.cclet.2023.108862
Full Text
Less
Aromatic [b]-fused modification in borondipyrromethene (BODIPY) system is remarkably advantageous for restraining the segment rotation to lead to dramatic spectroscopic bathochromic shift (Fig. 1a) [1-3]. BODIPY chromophore has the favorable light-stability and the excellent light absorption capacity [4-8]. Therefore, excellent photophysical properties of BODIPY allow it to be employed in fluorescence labeling [9-11], organic photoelectric materials [12, 13], laser dyes [14, 15], photodynamic therapeutic [16-19], photothermal therapy [20-22] and other innovative applications [23-25]. To achieve multi-site alteration for specific applications, it is critical to synthesize the BODIPY core from various structural platform.
Knoevenagel condensation with an aldehyde can be usually accomplished at 3,5-sites in BODIPY system (Fig. 1a), and the functional fragments can be linked by the olefinic bond [26-28]. And meanwhile, the spectral redshift and the π-conjugated structure extension are both achieved [29, 30]. Absorption of red or near-infrared region (NIR) light, which is preferable for better tissue penetration and less background interference, is required for biomedicine [31-33]. Considering the cumulative effect of ring-fused configuration and Knoevenagel condensation, the BODIPY chromophore can be manipulated with 1,7,3,5-sites for extending absorption wavelength and integrating functional substituent such as dimethylamino group (-NMe2) to promote intramolecular charge transfer (ICT) (Fig. 1a) [34, 35]. In order to investigate and compare the utility, structural variations contribute to a specific application. For instance, by enhancing the radiation transition of S1 → S0, dye provides an highly efficient fluorescence [36-38]. Inhibiting the radiation transition and boosting the non-radiation transition will contribute to the production of thermal energy for the treatment of cancer cells [39, 40].

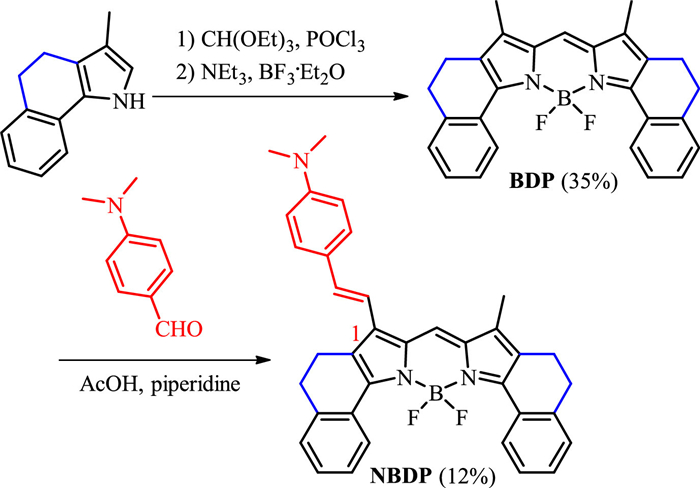

Recently, a strategy of the upper ring-fused configuration (Fig. 1a) and Knoevenagel condensation at 3,5-sites by our group was employed to provide NIR-absorbing dye [26]. However, Knoevenagel condensation of a methyl group at 1- or 7-site in BODIPY needs ingenious design to prohibit what happened at 3,5-sites (Fig. 1a). This phenyl[b]-fused strategy prevented 3,5-sites –CH3 groups from participating in the condensation reaction, thus this condensation could only appear at 1,7-sites. Herein, we successfully constructed an underneath aromatic[b]-fused BODIPY dye, and established a dimethylaminophenyl connection at 1-site (Fig. 1b). However, we also attempted to develop bis-substituted derivative at 1,7-sites. Yet, the bis-substituted compounds were not obtained, because the activity of methyl groups at 1,7-sites was more inertial than that of 3,5-sites [5, 24]. The ICT effect between the –NMe2 group and the BODIPY core can significantly reduce fluorescence, and the results showed negligible photosensitive but improved photothermal capabilities, achieving photothermal conversion efficiency (PCE: 46.9%), and provided a remarkable killing function on light-activated cancer cells. These results of this research reveal innovative improvements to the BODIPY core, as well as an in-depth examination of its photophysical characteristics and photoinduced capacity for therapeutic strategies via cancer cells apoptosis pathway, blocking the development of inflammation [41, 42]. This provides a valuable point of reference for the concept and application of innovative structure in BODIPY system.

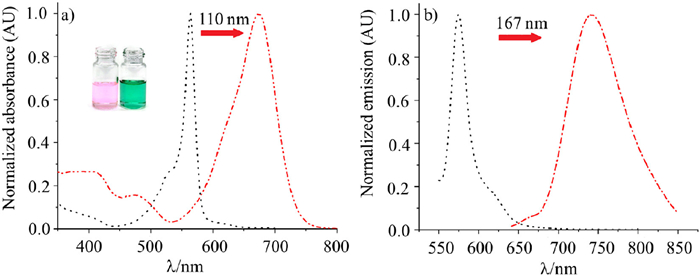

Aromatic[b]-fused strategy in BODIPY system, not only takes advantage of prominent photophysical properties such as strong light capture ability, but also enhances photostability and π-extend conjugated structure, which is an appropriate modification approach. So, according to the new aromatic[b]-fused BDP, we conducted the olefinic interlinkage at 1-site via Knoevenagel condensation of dimethylaminobenzaldehyde to generate NBDP in 12% yields (Scheme 1). The structure of NBDP was confirmed by 1H and 13C nuclear magnetic resonance (NMR) spectroscopy as well as high resolution mass spectrometer (HRMS) (Figs. S1–S6 in Supporting information). As demonstrated in Fig. 2, the maximal absorption and emission of 674 and 742 nm were both located in the NIR spectrum. NBDP with dimethylaminophenyl group at 1-site displayed a dramatic redshift in absorption (110 nm) and emission (167 nm) in CH2Cl2, with high molar extinction coefficients (ε = 166,000 L mol−1 cm−1), wide full width at half maximum (FWHM: 82 nm) and low fluorescence quantum yield (Φf=0.02), comparing to those of the parent dye BDP (λabs/λem = 564/575 nm, ε = 145,000 L mol−1 cm−1, Φf=0.77 and FWHM = 20 nm in CH2Cl2). The pictures of BDP (pink) and NBDP (green) in CH2Cl2 under normal conditions shows a vivid color difference (Fig. 2a). Additionally, absorption maxima of NBDP have little effects on different solvents, however the fluorescence quenching effect is more significant in large polar solvents such as N, N-dimethylformamide (DMF) and dimethyl sulfoxide (DMSO) owing to ICT (Fig. S7 and Table S1 in Supporting information). The highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) of the dyes were calculated by Gaussian 09 using the density functional theory (DFT) method. The HOMO level of NBDP was mostly distributed in the electron-donating dimethylamine phenyl group, whereas the LUMO level was primarily dispersed in the electron-deficient BODIPY center, establishing an electron donor-acceptor system. The energy level gaps between the HOMO and LUMO orbitals are also determined to be 2.468 and 2.128 eV of BDP and NBDP, respectively. This reduced energy of HOMO and LUMO orbital well explains the absorption redshift (Fig. 2a) by the condensed dimethylaminophenyl fragment (Fig. S8 in Supporting information).

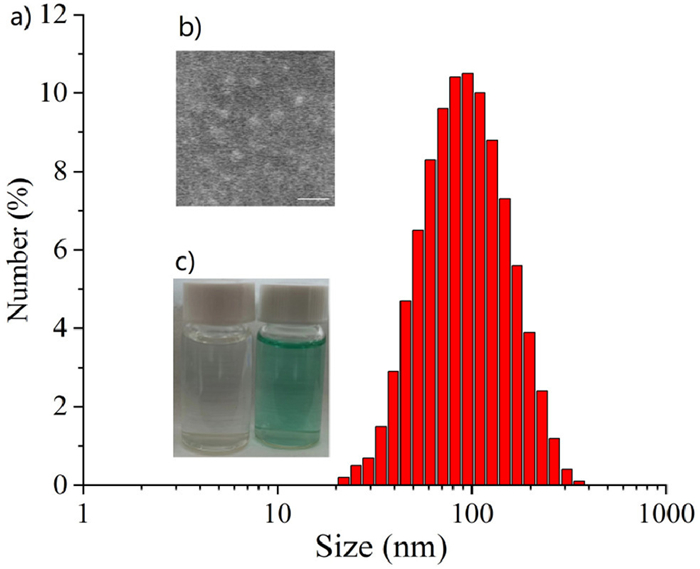

To enable better applicability in physiological diagnostic and therapeutic applications, dye NBDP nanomaterials (NBDP-NPs) were further constructed with the amphiphilic polymer 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[methoxy(polyethylene glycol)−2000] (DSPE-PEG2000). This boosted aqueous solubility and biocompatibility of NBDP-NPs. Dynamic light scattering (DLS) examination revealed the average hydrodynamic diameter of NBDP-NPs to be 75.23 nm, and the polymer dispersity index (PDI) to be 0.267, as depicted in Fig. 3a. Based on the transmission electron microscope (TEM) image, NBDP-NPs presents a spherical state with uniform size, which is conducive to further application in cells (Fig. 3b). Green NBDP-NPs in aqueous solution still indicated favorable distribution and stabilization after 7 days (Fig. 3c). The enhanced water solubility is beneficial to the application of biological samples.
The 1O2 production capabilities of the NBDP was evaluated. To track the formation of 1O2 while exposed to 690 nm laser radiation, 1,3-diphenylisobenzofuran (DPBF) was chosen as the sensor, because the absorbance of DPBF can be drastically reduced by the interaction of DPBF with 1O2 to form a cyclic compound. Herein, the absorbance of DPBF at 416 nm decreases not obvious decline in presence of NBDP than it does in the lack of NBDP (Fig. S9a in Supporting information). The absorbance (Δλabs) of DPBF in toluene containing NBDP only decreased by 0.018 after 12 min of light, indicating that the singlet oxygen generation of NBDP is entirely negligible under the radiation (Fig. S9b in Supporting information). Whereas, the photostability (λabs = 678 nm) under illumination is an essential indicator that the dye will not decompose and will present a long-lasting therapeutic effect on the malignancy tumor.

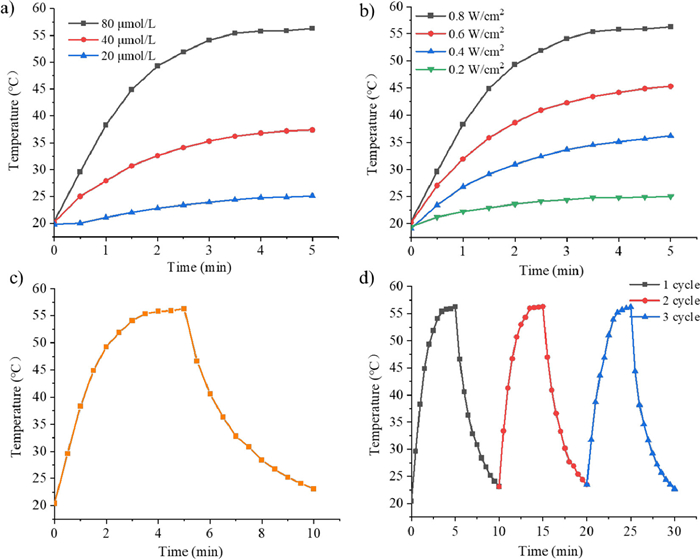

The photothermal conversion of NBDP-NPs in aqueous solution was investigated (Fig. 4). After being exposed to light sources, the solution temperature significantly increased. After laser irradiation (690 nm, 0.8 W/cm2, 5 min) with the corresponding concentration (80 µmol/L) of NBDP-NPs, the temperature increment of NBDP-NPs (Tmax = 56.3 ℃) was substantially increased. It was discovered that the temperature rises with exposure time, demonstrating that NBDP-NPs can convert the optical energy into the thermal energy. The photothermal effect of NBDP-NPs was also investigated at concentrations ranging from 20 µmol/L to 80 µmol/L. According to Fig. 4a, the temperature was risen rapidly in the first 2 min, after which, the trend declined and reached a plateau. Also, it was found that NBDP-NPs concentration was in responsible of controlling temperature rise (Fig. 4b and Fig. S10 in Supporting information). In addition, the relationship between temperature and laser power density was also investigated. The photothermal effect was associated with the amounts of NBDP-NPs as well as the laser exposure intensity and duration, indicating that the degree of temperature rise could be precisely controlled (Figs. 4b and c). Moreover, NBDP-NPs demonstrated outstanding thermal stability and photostability under continuous laser illumination, showing no degradation after three cycles of heating and cooling (Fig. 4d). The formula from the experimental approach was subsequently employed to calculate the photothermal conversion efficiency. It was calculated to be approximately 46.9% (Fig. S11 in Supporting information), which was considerably greater than that of previously recorded indocyanine green (ICG) NPs (17.3%), demonstrating that this method of exploring the photothermal conversion by modifying at 1-site in BODIPY system performs effectively.

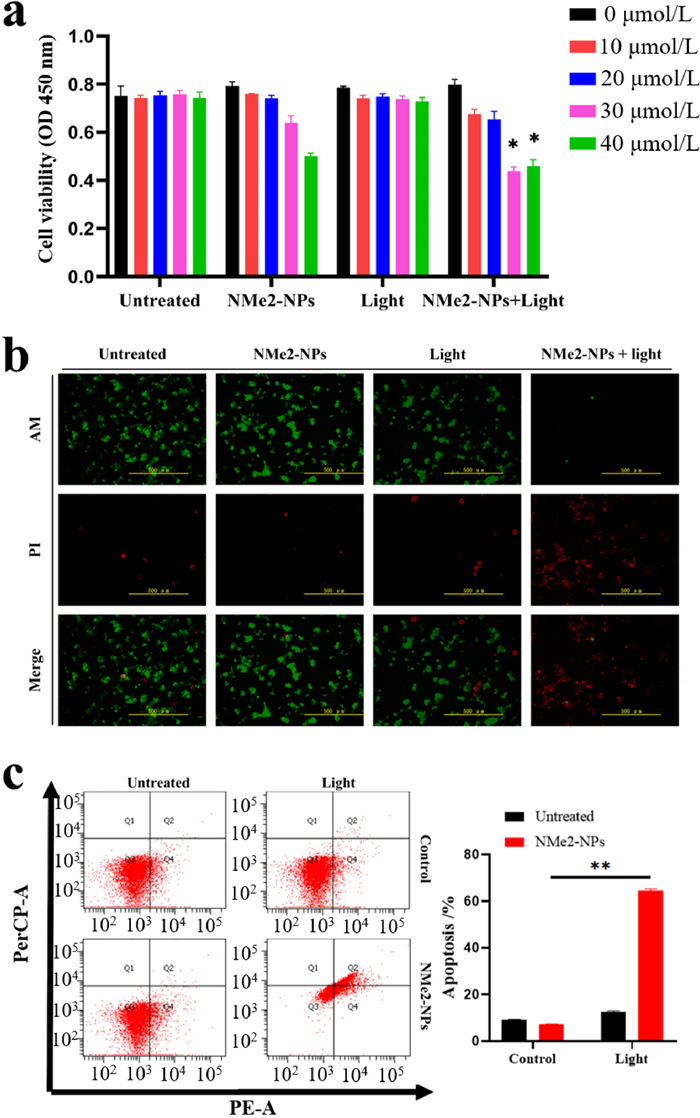

Human colorectal cancer cells (SW-620) were treated with various NBDP-NPs concentrations (0–40 µmol/L) and laser radiation, and the cell counting kit-8 (CCK-8) assessment was utilized to determine the concentration dependency of NBDP-NPs. The results revealed that, when compared to the no-treatment group, the NBDP-NPs treatment group, and the laser radiation group, the combination of laser radiation and NBDP-NPs had the most significant effect on decreasing cell viability. There was NBDP-NPs concentration dependence, with the discrepancy increasing more noticeable at NBDP-NPs concentrations of 30 µmol/L. As a result, we determined to use 30 µmol/L NBDP-NPs in the following studies (Fig. 5a). Live-dead cell labeling with calcein AM (green) and propidium iodide (PI, red) reagents was conducted in order to vividly observe efficiency of the phototherapeutic function of NBDP-NPs. The green fluorescence denotes living cells, whereas the red fluorescence reflects dead cells. The red fluorescence following NIR photoexcitation (0.3 W/cm2, 20 min) proved that 30 µmol/L NBDP-NPs severely destroyed the cancer cells (Fig. 5b). Nevertheless, only green fluorescence was detected in the solo light and sole NPs groups, confirming that the combination of NBDP-NPs with laser irradiation significantly promoted cytotoxic effects. Moreover, the intracellular ROS production was performed by DCFH-DA assays to detect using flow cytometry. As shown in Fig. S12 (Supporting information), the intracellular ROS level of NBDP-NPs groups treated with light has no significant difference compared to the NBDP-NPs groups without light. As shown in Fig. 5c, cells treated with NBDP-NPs or light alone displayed lesser rates of apoptosis, the fraction of apoptotic cells increased from 9.3% to 65% after treatment with NBDP-NPs and laser irradiation, suggesting the efficacy of NBDP-NPs stimulated by illumination in inducing apoptosis in cancer cells, rather than necrosis which can cause increased inflammation for therapeutic side-effect.
In conclusion, NBDP PTA by a phenyl[b]-fused strategy combined with Knoevenagel condensation at 1-site in BODIPY system was constructed, which by self-assembly serves as nanomaterials to prepare NBDP-NPs for photothermal therapy (PTT) via apoptosis mechanism. NBDP-NPs were found to have NIR absorption, and possessed the outstanding PCE of 46.9%, thereby endowing the nanomaterials with PTT anti-cancer reagent. Herein, the feasible modification of BODIPY supports a meticulous-design molecular structure, which can not only achieve innovative molecule construction, but also undertake anti-tumor PTT treatment via apoptosis mechanism, rather than necrosis caused increased inflammation for therapeutic side-effect.
