To develop efficient sensitizers for dye-sensitized solar cells (DSSCs), we recently reported doubly concerted companion (DCC) dye XW83 with a wrapped porphyrin sub-dye unit linked to an organic sub-dye unit through a flexible chain, which exhibits panchromatic absorption and excellent anti-aggregation ability. To further improve the absorption, we herein report XW87 and XW88 by inserting an ethynyl group into the organic sub-dye unit of XW83 near the donor and acceptor, respectively. For the corresponding organic dyes Z3 and Z4, the introduced ethynyl group improves their absorption, but induces aggravated charge recombination, leading to lowered power conversion efficiencies (PCEs). Similar to the organic dyes, the introduced ethynyl group improves the absorption of DCC dyes XW87 and XW88 as well. In addition, the ethynyl group near the acceptor of the organic sub-dye unit can be well protected by the long wrapping chains from the porphyrin unit. As a result, XW88 affords the highest JSC (21.84 mA/cm2), VOC (782 mV) and PCE (12.2%) among the DCC dyes. These results provide an effective method for developing efficient DSSC dyes by inserting an ethynyl group at a suitable position of a DCC dye.

Porphyrin  /  Ethynyl bridge  /  Charge-recombination  /  Dye sensitized solar cells  /  Doubly concerted companion dyes
Yuqing Wang, Zhemin Li, Qingjun Lu, Qizhao Li, Jiaxin Luo, Chengjie Li, Yongshu Xie. Solar cells based on doubly concerted companion dyes with the efficiencies modulated by inserting an ethynyl group at different positions[J]. Chinese Chemical Letters, 2024 , 35 (5) : 109093 - . DOI: 10.1016/j.cclet.2023.109093
Full Text
Less
Because of the energy crisis induced by the rapid consumption of energy sources, it has been developed as an important research topic to employ efficient photovoltaic devices for converting solar energy into electricity. Among various photovoltaic techniques [1–3], dye-sensitized solar cells (DSSCs) are relatively low-cost, colorful and environmentally friendly, and thus they have attracted considerable attention [4–6]. As one of the key components of DSSCs, dyes are used to harvest sunlight and generate excited electrons. In the past three decades, ruthenium dyes [7–9], metal-free organic dyes [10–12] and zinc porphyrin dyes [13–16] have been designed for fabricating efficient DSSCs. Among them, porphyrin dyes are promising due to their facile structural modification and excellent light-harvesting capability, showing an intense Soret band and moderate Q bands in the visible region with molar absorption coefficients higher than those of ruthenium dyes and metal-free organic dyes. Thus, many efficient porphyrin dyes have been reported [17–20]. However, porphyrin dyes exhibit weak absorption in the green light region between the Soret band and Q bands, which limits the further enhancement of the photovoltaic behavior. To address this problem, the employment of cosensitizers with absorption spectra complementary to those of the porphyrin dyes has achieved panchromatic absorption and improved efficiencies [21–23]. However, the fabrication of cosensitized devices is rather complicated and time-consuming, which requires the optimization of various dye adsorption procedures like cocktail and sequential ones as well as the dye concentrations and adsorption time to control the amounts and distribution of more than one dye on the TiO2 film [24,25].
To address these problems, we have designed a novel class of "concerted companion" (CC) dyes by covalently linking a porphyrin sub-dye unit with an organic sub-dye unit through long flexible chains [26–28]. The CC dyes possess panchromatic absorption, affording higher efficiencies than those obtained by the corresponding cosensitization systems. For CC dyes like XW61 which contains a doubly strapped porphyrin dye unit (Fig. 1a), the straps can suppress the aggregation of the porphyrin unit without protecting the organic sub-dye unit from aggregation. As a result, XW61 affords a moderate VOC of 763 mV and a PCE of 11.7% [28]. In order to further enhance the anti-aggregation ability of CC dyes, we have designed a class of doubly concerted companion (DCC) dyes, with the porphyrin macrocycle wrapped with four long alkoxy chains at the ortho-positions of the meso-phenyl groups [29]. For DCC dye XW83 (Fig. 1b), the long wrapping chains can suppress the aggregation of both the porphyrin unit and the organic unit. With enhanced anti-aggregation and anti-charge-recombination ability, XW83 afforded improved VOC and PCE. However, the light-harvesting ability of XW83 within 500–600 nm still needs to be further improved. Thus, we herein report DCC dyes XW87 and XW88 synthesized by inserting an extra ethynyl group into the organic dye unit of XW83 near the donor and acceptor, respectively. For comparison, the corresponding organic dyes Z3 and Z4 have been synthesized as well (Fig. 1b). As a result, Z3 and Z4 exhibit PCEs lower than that of Z2 because of the aggravated charge recombination induced by the less compact packing resulting from the extended conjugation frameworks, as evidenced by the lowered charge recombination resistance (Rrec). Similarly, XW87 affords a lower efficiency (11.5%) than that of XW83 (11.7%). In contrast, XW88 exhibits a higher PCE (12.2%) than that of XW83 as the consequence of enhanced JSC (21.84 mA/cm2) and VOC (782 mV). These results imply that the long wrapping chains from the porphyrin unit can protect the ethynyl group near the acceptor of the organic dye unit (XW88) better than that near the donor (XW87), which is consistent with the larger Rrec value observed for XW88 and more compact packing for the optimized structure of XW88 adsorbed on TiO2 film, compared with XW87. These results indicate that the position of the ethynyl group in the organic dye unit is vital for developing efficient DCC dyes.

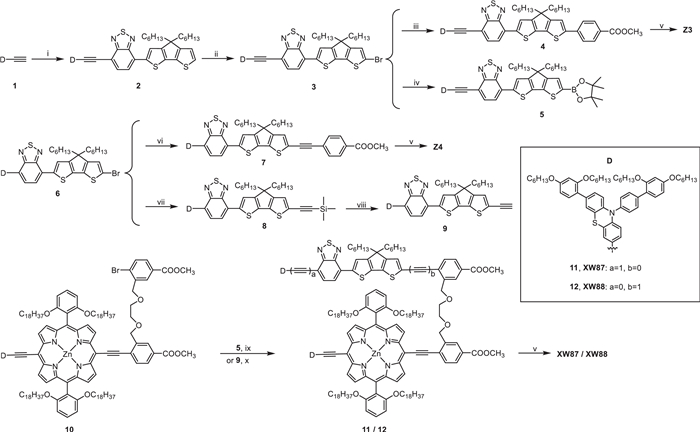

The synthetic routes for the dyes are summarized in Scheme 1. Dye precursors 4, 7, 11 and 12 were obtained via Suzuki or Sonogashira coupling reactions, and subsequent hydrolysis of the ester group under alkaline conditions afforded the target sensitizers. All the synthesized compounds have been characterized by NMR, FT-IR and mass spectra (Supporting information).

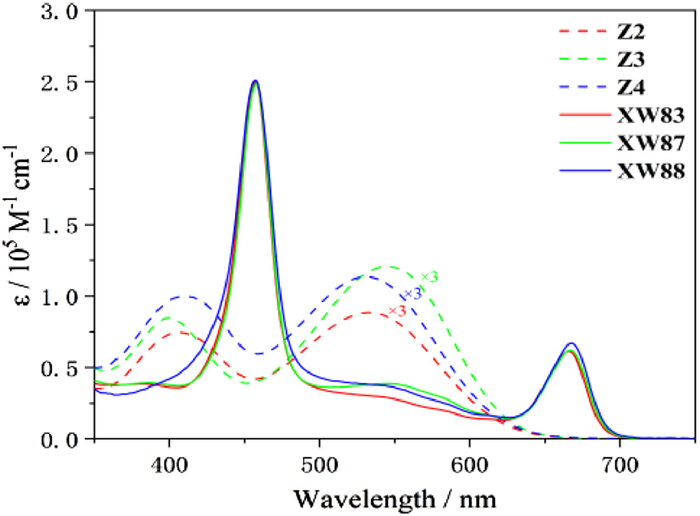

The UV–vis absorption spectra of the dyes in THF are shown in Fig. 2, with the corresponding data listed in Table S1 (Supporting information). Compared with Z2, the introduction of the ethynyl group enhances the absorption of Z3 and Z4 at around 550 nm, leading to better absorption complementarity with the porphyrin dye unit. As a result, XW87 and XW88 exhibit enhanced absorption within 500–600 nm relative to that of XW83. Upon adsorption onto the TiO2 films, the absorption spectra of all the dyes are broadened (Fig. S2 in Supporting information), which will be favorable for sunlight-harvesting [30].
To assess the driving forces for electron injection and dye regeneration, the energy levels of the dyes were evaluated by cyclic voltammetry (CV) and differential pulse voltammetry (DPV) measurements (Table S3, Figs. S5 and S6 in Supporting information). Thus, the highest occupied molecular orbital (HOMO) levels of Z3, Z4, XW87 and XW88 were assessed to be 0.84, 0.80, 0.84 and 0.81 V, respectively, versus the normal hydrogen electrode (NHE), which are considerably more positive than that of the I–/I3– redox potential (~0.4 V vs. NHE), providing sufficient driving forces for dye regeneration. On the other hand, the lowest unoccupied molecular orbital (LUMO) levels range from -1.27 V to -1.01 V, obviously more negative than the conduction band of TiO2 (-0.5 V vs. NHE), ensuring effective electron injection into TiO2 from the excited dyes [31,32].

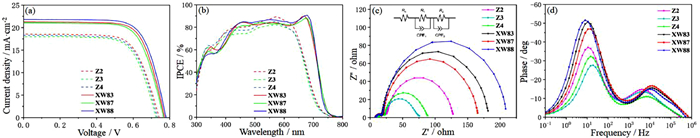

The photovoltaic performance of the dyes was investigated under simulated solar light (AM 1.5G, 100 mW/cm2) using the I–/I3– redox couple as the electrolyte. Figs. 3a and b show the photocurrent density–voltage (J–V) curves and the incident photon-to-current conversion efficiency (IPCE) spectra of the DSSCs, respectively, and corresponding photovoltaic parameters are given in Table 1.
Compared with the efficiency of 9.7% obtained for Z2 [28], the conjugation-extended dyes Z3 and Z4 exhibit lower photovoltaic performance despite their stronger light-harvesting capability, which may be ascribed to the aggravated charge recombination as a consequence of the less compact packing of the dyes on the TiO2 film after the conjugation extension by introducing the ethynyl unit (vide infra). Due to the complementary absorption between Z3–Z4 and the porphyrin dye unit, the resulting DCC dyes exhibit IPCE plateaus higher than 80% in the range of 450–700 nm. As a result, XW87 affords JSC, VOC and PCE of 21.06 mA/cm2, 767 mV and 11.5%, respectively, lower than those obtained for the reference dye XW83. By contrast, XW88 gives JSC, VOC and PCE of 21.84 mA/cm2, 782 mV and 12.2% respectively, higher than those obtained for XW83 and XW87. These observations indicate that the unfavorable charge recombination issue owing to the introduced ethynyl group observed for Z3, Z4 and XW87 may be considerably suppressed in XW88, implying that the long chains from the porphyrin sub-dye unit could protect the acceptor part of the organic sub-dye unit better than the donor part, and this concerted companion protection effect is absent in Z3 and Z4. To testify this hypothesis, theoretical calculations have been carried out for the DCC dyes adsorbed on TiO2 [33]. As a result, the long chains from the porphyrin unit indeed extend to the ethynyl group near the acceptor of the organic sub-dye unit and wrap it (XW88). Whereas, such a protecting effect is negligible for the ethynyl group near the donor part (XW87), which exhibits obvious non-filled free space around the ethynyl moiety (Fig. S4 in Supporting information). Thus, the enhanced light-harvesting ability contributed by the organic sub-dye unit and the largest dye loading amount (Table S4 in Supporting information) enable XW88 to afford the highest IPCE plateau within 450–700 nm and the highest JSC among the DCC dyes. Meanwhile, the unfavorable charge recombination problem induced by the conjugation-extended organic sub-dye unit is suppressed by the concerted companion protection effect of the long chains, which also contributes to enhancing the VOC, IPCE and JSC. As a result, XW88 affords the best photovoltaic performance among all the DCC dyes.
To better understand the photovoltaic behavior of the DSSCs, electrochemical impedance spectroscopy (ESI) measurements were carried out in the dark. For a certain electrolyte, VOC is determined by the Fermi level of TiO2 semiconductor (EF, n), which is associated with the conduction band (ECB) position and the electron density in the semiconductor, which can be reflected by the chemical capacitance (Cµ) and charge recombination resistance (Rrec), respectively [34–36]. The similar Cµ values obtained for the DSSCs (Table S6 in Supporting information) reveal that the small difference in ECB has negligible influence on VOC. Therefore, the difference in VOC may be mainly related to the different Rrec values. Figs. 3c and d show the complex-plane plots and Bode phase plots based on a forward bias of -0.75 V. In the complex-plane plots, the small and large semicircles represent the charge transport resistance (Rtr) at the counter electrode/electrolyte interface and the Rrec, respectively. The Rtr values of the DSSCs are similar because of the same counter electrode and electrolyte employed (Table S6 in Supporting information). In contrast, the Rrec values differ considerably in the increasing order of Z3 (50.1 Ω cm2) < Z4 (64.1 Ω cm2) < Z2 (101.4 Ω cm2) < XW87 (145.9 Ω cm2) < XW83 (163.0 Ω cm2) < XW88 (191.5 Ω cm2), corresponding to the trend of increasing VOC. These results are indicative of the aggravated charge recombination of Z3 and Z4 associated with the less compact dye packing on the TiO2 film resulting from the extended conjugation frameworks. With respect to the organic dyes, all DCC dyes exhibit larger Rrec values, consistent with their higher VOC values. Notably, the Rrec of XW88 is much larger than that of XW87, indicating that the concerted companion protection effect from the long chains of the porphyrin unit is more pronounced for the acceptor part of the organic dye unit, compared with that of the donor part. This inference is consistent with the theoretical calculations (vide supra).
In addition to high efficiencies, stability is essential for practical application of DSSCs. Thus, we measured the adsorption stability and photostability of the DSSCs (Fig. S8 in Supporting information) [37,38]. It was found that Z3 and Z4 are almost quantitatively desorbed within 10 min under alkaline conditions. In contrast, more than 60% of XW87 and XW88 remain adsorbed after 120 min of treatment under the same conditions, indicative of stronger adsorption of the DCC dyes due to the presence of two anchoring groups. After the DSSCs were irradiated under sunlight continuously for 500 h, the PCEs of XW87 and XW88 remained ca. 91% of the initial values, higher than those of ca. 85% observed for Z3 and Z4, revealing excellent photostability of the DCC dyes.
In summary, with the purpose to improve the light-harvesting ability, an ethynyl group has been introduced into the donor and acceptor parts of organic dye Z2 to afford Z3 and Z4, respectively. On this basis, DCC dyes XW87 and XW88 have been synthesized by covalently linking a porphyrin dye unit with Z3 and Z4, respectively. As expected, the introduction of the ethynyl group improves the light-harvesting ability of the dyes. However, Z3 and Z4 afford lower photovoltaic performance than Z2 due to their aggravated charge recombination (low Rrec value) resulting from the extended conjugation frameworks. For the DCC dyes, the ethynyl group near the acceptor of the organic dye unit can be wrapped better than that near the donor through the concerted companion protection by the long chains from the porphyrin unit. As a result, XW87 exhibits decreased VOC, JSC and PCE, compared with those of XW83. In contrast, XW88 achieves the highest PCE of 12.2% among these dyes owing to the best concerted companion protection effect and the largest dye loading amount. These results indicate that introduction of an ethynyl group in the organic dye unit at a suitable position is an effective approach for developing efficient DCC dyes with excellent absorption and concerted companion anti-charge recombination effect.
