Smart hydrogel that can feedback the external stimuli (suck as pH, temperature, electricity, light, ionic strength, shear force) has been widely developed for their promising potential in biomedicine [1,2], shape memory hydrogels [3,4], self-healing [5,6], soft wearable devices [7,8] and actuators [9,10]. Among these stimuli, pH-responsive hydrogel is investigated widely [11-14], because the liquid environment in human body varies greatly. For example, the blood and cellular fluid of muscle and skin are nearly neutral at pH 6.0-7.4; the gastric mucosa is extremely acidic at pH 1.0-3.5; the bile and pancreatic fluid are alkaline at pH 7.6-8.8 [15]. As a result, the physiological function of these tissues is also affected by pH, such as lubrication, anti-virus, nutrient transport, and biological signal communication. The pH-responsive hydrogel is developed for satisfying the requirement in artificial tissue, biomedicine or soft actuator. For example, by utilizing the pH-response on the protonation state of polyacrylic acid, the lubrication on poly(acrylamide-co-acrylic acid) hydrogel was managed to superlubricity level (~0.005) [16]. Moreover, a pH-responsive DNA hydrogel composed of adenine-rich and cytosine-rich oligonucleotides and polyacrylamide (PAAm) was fabricated as carrier for insulin encapsulation and oral delivery in acidic condition (pH 1.2-6.0) [17]. The drug could be released following the process of gel-sol transition at physiological pH 7.2, which was attributed to the disassembly of the two cross-linking units to single-stranded adenine-rich and cytosine-rich sequences. As the sol appearance after the gel-sol transition, it might be utilized to regulate the lubrication on the hydrogel surface.

Generally, the gel-sol transition capability of hydrogel includes two network system: the supramolecular noncovalent bonding network and the dynamic covalent bondings network. Through the strategy on combining supramolecular network into covalent network a semi-convertible hydrogel was prepared that exhibited responsive lubrication capability due to the gel-sol transition partly [18-20]. Besides the supramolecular gel-sol transition system, the esterification of boronic acid with polyvinyl alcohol (PVA-borax) is a typical dynamic covalent bonding system leading to reversible formation of boronic ester following the pH change [21-23]. When pH decreases below the pK_a [24-26] of the boronic acids, the hydrogel transforms to sol state due to the broken of the borate ester bonding. When the pH increases higher than the pK_a, the borate ester bonding is re-formed, and the PVA-borax sol transforms into gel state. If the dynamic covalent bonding system is embedded into another polymer network, the proposed hydrogel might exhibit both pH-response lubricating character and stable framework. However, the pH-responsive liquid environment would weaken the mechanical property due to the swelling behavior of the hydrogel. The doping strategy of particles is thought to be a possible way for overcoming this limitation. Carbon dots (CDs) is a new kind of carbon nanomaterials [27-29], which exhibits various fluorescent properties, biocompatible and non-toxicity [30-36]. It is widely used in lubricants [37-39], catalysis [40-45], bioimaging [46-50], medical therapeutics [51-53], and antibacterial [54-57]. If CDs was doped in the pH-responsive lubricating hydrogel network, the lubrication and mechanics might be improved due to its appearance on the hydrogel surface accompanied by the gel-sol transition process. Meanwhile, CDs composite would also increase the possibility of improving the mechanical properties of hydrogels. Herein, a CDs-enhanced pH-responsive lubricating hydrogel (CPLH) was fabricated composing of PVA-borax, PAAm and CDs (Fig. 1). The hydrogel will occur partly gel-sol transition corresponding to the pKa of boronic acid while the whole hydrogel keeps gel state due to the existence of PAAm covalent frameworks. The sol state PVA with boronic acid and free CDs appears on the hydrogel surface that the responsive lubricating property might be achieved and further improved due to the introduction of CDs. Correspondingly the mechanics of the prepared hydrogel will also be tuned following the pH changes.

As described in Fig. 1, the pH responsiveness of the prepared hydrogel is derived from the dynamic borate ester bond of PVA-borax, which brings the gel-sol transition of PVA-borax hydrogel under different pH. When it was treated by the solution with pH range from 1.0 to 6.0, the gel-sol transition can be observed (Fig. S1a in Supporting information). When pH further increased higher than 8.0, no gel-sol transition occurred on the hydrogel. The storage modulus (G′) of PVA-borax hydrogel was also investigated corresponding to each pH solution as shown in Fig. S1b (Supporting information). Compared to the G′ (6687.27 ± 989.61 Pa) of original hydrogel at pH~7.6, it decreased obviously corresponding to each pH value ranged from 1.0 to 6.0. When treated by the pH solution higher than 6.0 (pH 6.86 and pH 7.6), the G′ has no changes. It proved that PVA-borax hydrogel could undergo gel-sol transition when pH ≤ 6.0. These rheological results were consistent with the optical observation in Fig. S1a. Furthermore, the sol state of PVA-borax in acid condition would transfer to gel state when pH ≥ 8.5, which G′ in sol state also increased to around 7000 Pa, correspondingly. As the gel-sol transition occurs, the surface viscosity of PVA-borax hydrogel decreased compared with original gel state when pH ≤ 6.0 (Fig. S1c in Supporting information). It can be attributed to the appearance of sol layer on the surface. But when pH = 6.86 and 7.6, the viscosity was similar to the original gel state, because it could not occur gel-sol transition. When pH ≥ 8.5, the viscosity on the hydrogel surface was similar with the value of original gel state (Fig. S1d in Supporting information). The original coefficient of friction (COF) of PVA-borax hydrogel was as high as 0.819–0.979 (Fig. S2a in Supporting information). When pH 6.0 buffer solution was added on the hydrogel surface, the COF decreased to 0.030 because the PVA-borax hydrogel transformed to the sol state. The fracture stress of untreated PVA-borax hydrogel is 11.32 kPa and it decreased to 5.17 kPa after treated by pH 6.0 buffer solution, because of the gel-sol transition (Fig. S2b in Supporting information). These results verified that the pH-responsiveness of PVA-borax in both mechanics and lubrication. As shown in Fig. S2c (Supporting information), the G′ and G′′ of PVA-borax hydrogel exhibited well reversibility, the original G′ was about 7.0 kPa. After treated by pH 6.0 buffer solution, it sharply decreased to about 0.1 kPa. And treated by pH 8.5 solution again, the G′ would return back to about 7.0 kPa.

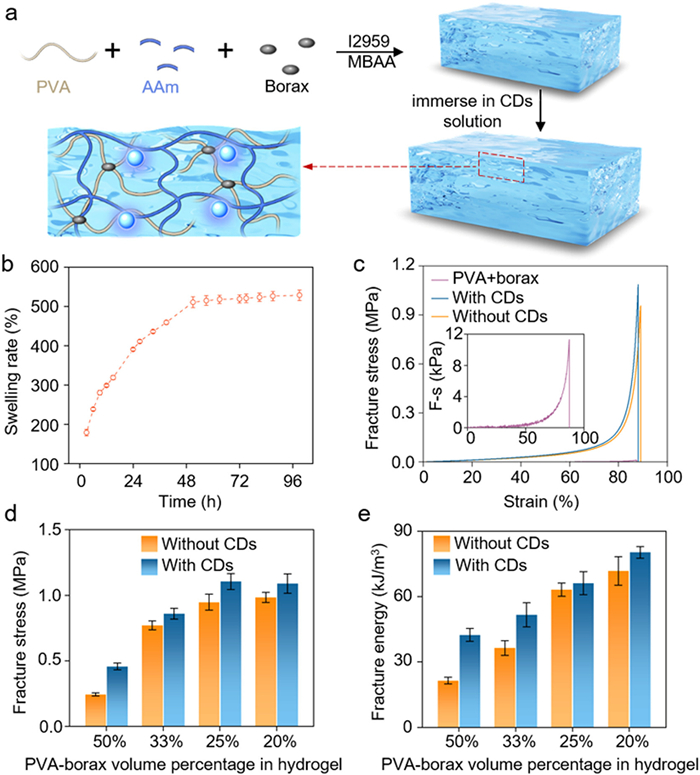

As shown in Fig. 2a, the prepared CDs-enhanced pH-responsive lubricating hydrogel was composed of CDs, PVA-borax and PAAm networks. A series of hydrogels were prepared by controlling the volume percentage of dynamic covalent bondings network (PVA-borax) in the hydrogel, which were 50%, 33%, 25% and 20%, respectively. In this study, CDs used in the hydrogel was synthesized by hydrothermal method of citric acid-ethylenediamine [31], which could be identified through UV, fluorescence and FTIR spectrum (Figs. S3a-c in Supporting information). The typical swelling curve of CPLH with 25% PVA-borax volume percentage as shown in Fig. 2b, the swelling equilibrium was achieved after about 60 h. All hydrogels used in this work were swelling completely. Firstly, the effect of CDs concentration in the pH-responsive lubricating hydrogel on the mechanical and lubrication properties was investigated as shown in Fig. S4 (Supporting information). In order to easily differentiate hydrogels in this work, the hydrogel without CDs is pH-responsive lubricating hydrogel, and the hydrogel with CDs is CDs-enhanced pH-responsive lubricating hydrogel (CPLH). In the experiment, the CDs concentration in the hydrogel was selected as 0.5, 1.0 and 2.0 mg/mL, the fracture stress of hydrogel with these three CDs concentrations were 0.456 ± 0.028 MPa, 0.456 ± 0.025 MPa and 0.462 ± 0.034 MPa, respectively. They were higher than that without CDs introduction (0.243 ± 0.011 MPa) (Fig. S4a). Regarding the lubrication, the COF of the hydrogel with CDs concentration of 0.5, 1.0 and 2.0 mg/mL were 0.051 ± 0.013, 0.054 ± 0.006 and 0.056 ± 0.006, correspondingly. They were lower than the COF of the hydrogel without CDs introduction (0.121 ± 0.006) (Fig. S4b). Based on the above analysis, the introduction of CDs in the pH-responsive hydrogel would increase the mechanical property and decrease the COF. In addition, the selected CDs concentration in the experiment has little effect on mechanical and lubrication properties, so the CDs concentration in the hydrogel was chosen of 1.0 mg/mL. The fracture stress of CPLH with 25% PVA-borax volume percentage was about 1.087 MPa (Fig. 2c), which was much higher than those of PVA-borax hydrogel (11.324 kPa) and the hydrogel without CDs (0.958 MPa). The weak mechanical strength of PVA-borax hydrogel could be attributed to weak dynamic covalent bondings. Compared to the hydrogel without CDs, the mechanics of CPLH (with CDs) exhibited relative higher strength that could be ascribed to the possible principle of organic-inorganic composites and hydrogen bonding interaction [58,59]. The prepared citric acid-ethylenediamine CDs surface has a large number of amino and carboxyl groups, and can formed hydrogen bondings with the network. Meanwhile, the CDs is rigid nanoparticles, it can be used as a filler dispersed uniformly in the pores of the hydrogel, and absorbing fracture energy under the action of external forces. As shown in Fig. 2d, the fracture stress of the prepared CPLHs was higher than those without CDs doping. For example, the fracture stress of hydrogel with 25% PVA-borax volume percentage increased from 0.947 ± 0.060 MPa to 1.104 ± 0.061 MPa. In addition, the fracture energy of the prepared hydrogels also increased from 21.400 ± 1.539 kJ/m³ to 71.733 ± 6.506 kJ/m³ (Fig. 2e) following the decreased dynamic covalent bondings percentage. For each percentage setpoint, the prepared CPLHs presented higher value than that hydrogels without CDs doping. It further verified that the introduction of CDs can improve the hydrogel mechanical property.

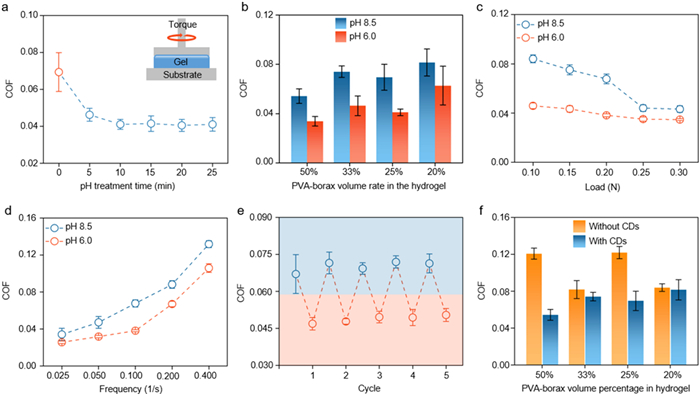

The tribological properties of the prepared hydrogel was shown in Fig. 3a. The original COF of CPLH (25% PVA-borax volume percentage) was 0.069 ± 0.011, which gradually decreased to 0.041 ± 0.003 after treated by acidic solution of pH 6.0 for 10 min. It can be attributed that, when treated with pH 6.0 buffer solution, the formed boronic ester of PVA-borax in the hydrogel would disassembly, and a partial gel-sol transition occurred. Consequently, a sol layer composed of PVA, boracic acid and free CDs appeared on the hydrogel surface that results in the decrease of COF. Compared to these hydrogels, the COF of PAAm/PVA hydrogel without borax has not been influenced by pH 6.0 buffer solution (Fig. S5a in Supporting information). The COF of PAAm/PVA hydrogel remains stable following the pH treatment time. In addition, as water has strong effect on the surface lubrication, the COF of the hydrogel surface was analyzed when deionized water existed. There was no COF change on the hydrogel surface (Fig. S5b in Supporting information). The prepared CPLHs exhibited the pH responsiveness at pH of 8.5 and 6.0, which decreased from 0.054 ± 0.006 to 0.034 ± 0.004 of CPLH with 50% PVA-borax volume percentage, 0.074 ± 0.005 to 0.046 ± 0.008 of CPLH with 33% PVA-borax volume percentage, 0.069 ± 0.011 to 0.041 ± 0.003 of CPLH with 25% PVA-borax volume percentage, 0.081 ± 0.011 to 0.063 ± 0.016 of CPLH with 20% PVA-borax volume percentage, correspondingly (Fig. 3b). It can be seen that the CPLH with 50% PVA-borax volume percentage exhibited lowest COF among the prepared CPLHs, the friction behaviors in whole pH range was investigated in the experiment. The COF of the CPLH in the acidic range from 1.0 to 6.0 was around 0.033 (Fig. S6 in Supporting information). On the other hand, the COF in basic range from 7.6 to 14.0 was about 0.054. These COF results in the whole pH range was consistent with the tendency of the storage modulus G′ and viscosity (Fig. S1b). When the acid-treated hydrogel was treated again with the buffer solution of pH ≥ 8.5, the COF would return to its original state that was about 0.054.

As load and frequency are important factors for the tribology performance. Firstly, by adjusting the load from 0.10 N to 0.30 N and fixed frequency at 0.100 1/s, the COF of CPLH with 25% PVA-borax volume percentage decreases following the increasing of load. In the pH condition of 8.5 it decreased from 0.084 ± 0.003 to 0.043 ± 0.003. For the condition at pH 6.0, the COF decreased from 0.046 ± 0.002 to 0.035 ± 0.001 (Fig. 3c). When control load is 0.30 N, adjusting the frequency from 0.025 1/s to 0.400 1/s, the COF increased with frequency from 0.034 ± 0.007 to 0.132 ± 0.004 at pH 8.5. For the situation at pH 6.0, COF increased from 0.026 ± 0.001 to 0.106 ± 0.005 (Fig. 3d). PVA-borax hydrogel underwent a reversible gel-sol transition when treated with acidic and alkaline pH buffer solution, the reversibility of the COF was presented in Fig. 3e. In addition, the prepared CPLHs showed lower COF than those without CDs introduction (Fig. 3f). It confirmed that CDs introduction could improve hydrogel surface lubrication. Regarding to the hydrogel (with 50% PVA-borax volume percentage) without CDs introduction, the surface COF was 0.121 ± 0.006, and decreased gradually to 0.107 ± 0.007 following to treatment time of pH 6.0 for 10 min (Fig. S7a in Supporting information). Moreover, this hydrogel without CDs introduction exhibited relative lower COF (0.107) in acidic range from 1.0 to 6.0, than those (0.121) in neutral and basic range from 8.5 to 14.0 as shown in Fig. S7b (Supporting information). These results proved that, first, the pH responsiveness was originated from the dynamic covalent bondings of PVA-borax in the hydrogel; secondary, the CDs could be benefit to the hydrogel lubrication.

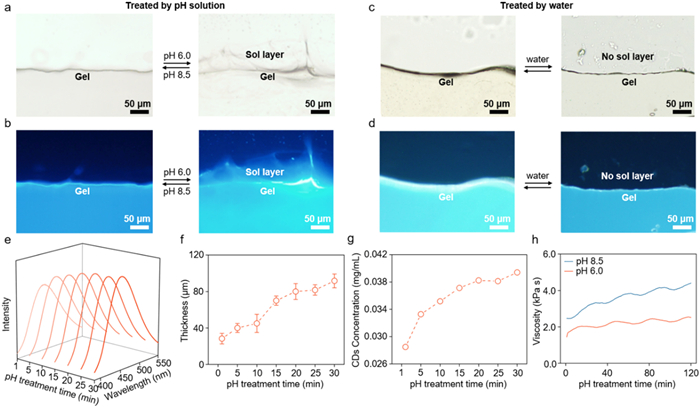

To identify the appearance of a sol layer on the CDs-enhanced pH-responsive lubricating hydrogel surface after acidic treatment, a direct observation on the hydrogel surface (CPLH with 25% PVA-borax volume percentage) treated by buffer solution of pH 8.5 and 6.0 was shown in Fig. 4a. Compared to the hydrogel surface at pH 8.5, there was a sol layer observed on the surface after being treated by the buffer solution at pH 6.0. As CDs has blue fluorescence, one can observe a bright blue hydrogel and black background at pH 8.5 (Fig. 4b). After being treated by the buffer solution at pH 6.0, a wavy sol layer with blue fluorescence was found onto the hydrogel surface. To identifying the sol layer originate from the disassembly of PVA-borax dynamic covalent bondings at pH 6.0, a contrast experiment was introduced that the hydrogel surface was treated by deionized water at pH 7.4, as shown in Figs. 4c and d, there was no sol layer observed on the surface. It confirmed that the sol layer was derived from the disassembly of PVA-borax dynamic covalent bondings at pH 6.0, but not residual water layer after pH solution treatment.

The relationship between the thickness of the sol layer and the pH-responsive time was observed in quantity as shown in Fig. 4f, the sol layer was generated at 1 min, and the thickness was about 28.3 ± 5.8 µm. With the increase of the treated time, the thickness of the sol layer increased gradually to 91.7 ± 7.6 µm at 30 min. Due to the florescence from CDs at 447 nm, the sol layer can be also analyzed by the fluorescence spectrum. In Fig. 4e, the extract on the hydrogel surface was obtained by rinsing the responsive CPLH with 25% PVA-borax volume percentage surface with 1 mL of deionized water. The fluorescence intensity increased with the pH treated time, indicating that there is more CDs appearing on the surface. Based on a standard calibration curve of CDs solution (Fig. S8 in Supporting information), the CDs concentration in the sol layer can be found that increased with the pH treated time form 0.029 mg/mL to 0.039 mg/mL (Fig. 4g). Furthermore, as the sol layer on the surface, the surface viscosity of CPLH with 25% PVA-borax volume percentage also changes correspondingly. As shown in Fig. 4h, the viscosity is about 3.828 kPa s at pH 8.5, and decreased to 2.215 kPa s at pH 6.0. The reduction of surface viscosity was attributed to the formation of the sol layer on the hydrogel surface. Compared to these, different viscosity solutions of PVA with CDs was drops on PAAm hydrogel substrates (Fig. S9 in Supporting information). The surface viscosity of PAAm hydrogel substrates was about 12.144 kPa s (0.10 1/s), and when water was dropped, its surface viscosity decreased to 6.202 kPa s dramatically; When different concertation PVA (PVA1 means the concentration of PVA is 0.01%, PVA2 0.1%, PVA3 0.5%) with CDs solution (1 mg/mL) was dropped, the surface viscosity was decreasing with increasing concentration of PVA and CDs concentration, down to 4.732 kPa s. One can conclude that the surface viscosity of hydrogel will decreases when the sol layer is present on the hydrogel surface. For the other CPLHs, the surface viscosity exhibited the same tendency as shown in Fig. S10 (Supporting information).

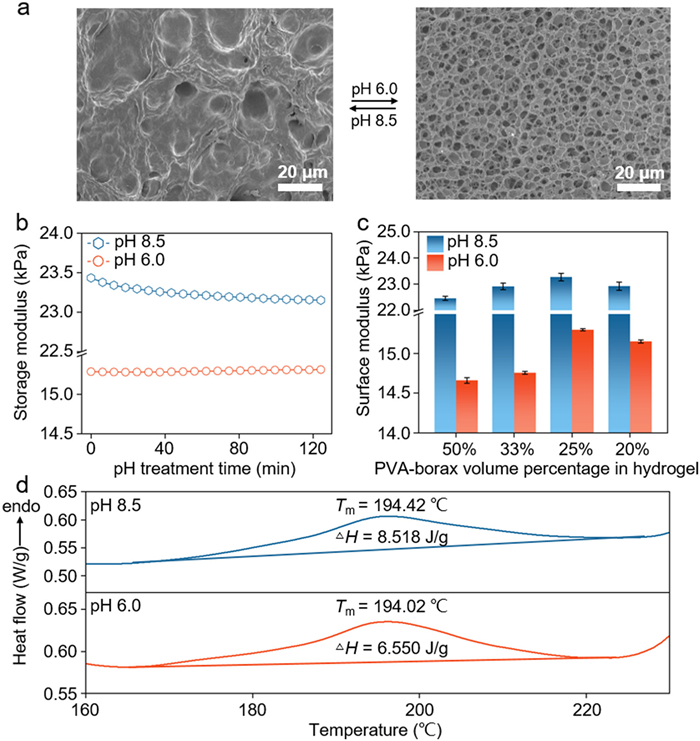

As shown in Fig. 5a, the CPLH with 25% PVA-borax volume percentage surface showed occluded and anomalous micro-structures at pH 8.5, which is similar to the micro-structures of PVA-borax hydrogel (Fig. S11 in Supporting information). When the hydrogel surface was treated with pH 6.0 buffer solution, companying with the disassembly of PVA-borax dynamic covalent bondings in the hydrogel network, the surface structure transformed to micro-porous structures. The gel state PVA-borax network in the hydrogel underwent gel-sol transition, the sol state composed of PVA, boracic acid and CDs wept out from the hydrogel network, therefore the hydrogel structures become porous and flexible. Consequently, the surface modulus of CPLH with 25% PVA-borax volume percentage decreased from 23.212 kPa at pH 8.5 to 15.295 kPa at pH 6.0 (Fig. 5b). The same tendency could be observed on prepared hydrogels (Fig. 5c). The differential scanning calorimetry (DSC) of CPLH with 25% PVA-borax volume percentage was characterized following the pH changes (Fig. 5d). As stronger bonding interactions in network indicates higher endothermic enthalpy (ΔH). For the hydrogel at pH 8.5, the dynamic covalent bondings of PVA and borax was binding state that ∆H was 8.518 J/g. After treated by the solution with pH 6.0, the ∆H reduced to 6.550 J/g. It meant that the disassembly of PVA-borax brought weaker bonding interactions than the assembled state at pH 8.5. It consistent with the SEM observation and rheological results in Figs. 5a and b.

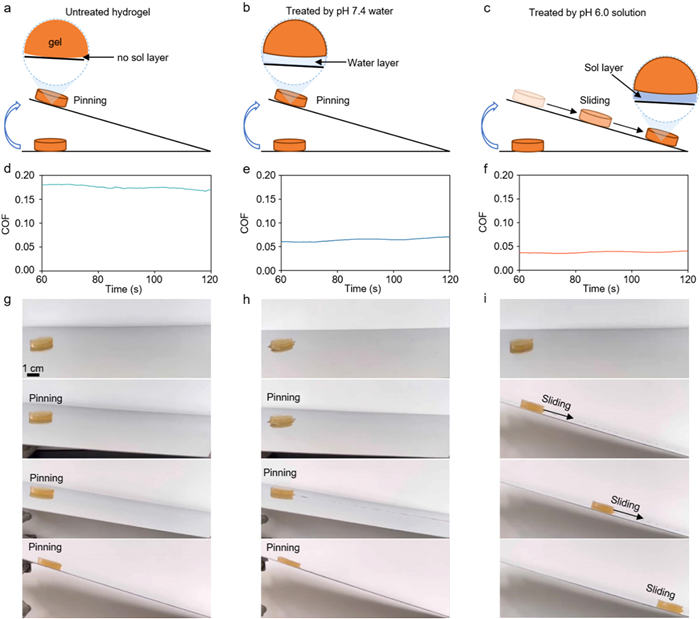

For demonstrate the pH-responsive lubrication of the hydrogel, the CPLH with 25% PVA-borax volume percentage was placed on a stainless-steel substrate (Fig. 6 and movie S1 in Supporting information). In Figs. 6a, d and g, the untreated CPLH was pinning on the substrate due to the high static COF of 0.170. With treated by pH 7.4 water (Figs. 6b, e and h), the COF of the CPLH decreases significantly to 0.064, but similarly, the CPLH is still pining on the substrate. When the hydrogel was treated by pH 6.0 solution (Figs. 6c, f and i), there was a sol layer formed between CPLH and substrate. The COF of the hydrogel further decreased to 0.038 and slid down.

In summary, we reported a CDs-enhanced hydrogel composed of PVA-borax dynamic covalent bondings and covalent polymer network. In acidic pH environment ranged from 1.0 to 6.0, the PVA-borax network in the hydrogel will disassembly and form the sol lubricating layer on the hydrogel surface. The coefficient of friction on hydrogel surface changes from 0.069 ± 0.011 to 0.041 ± 0.003 reversibility. The introduction of CDs improves not only the lubricating capability but also the mechanical property of the hydrogel. Moreover, the fluorescence properties of the CDs endow the sol lubricating layer with unique observability, which blue sol layer could be observed under fluorescence microscopy. This study provides a promising idea for designing pH-responsive hydrogels for potential applications on soft actuator or robot, the future work can be foreseen to develop durable and more sensitive lubricating hydrogel.

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

This research was supported by the National Natural Science Foundation of China (No. 22175075).

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.109297.
