Recent progress of MgO-based materials in CO₂ adsorption and conversion: Modification methods, reaction condition, and CO₂ hydrogenation

Full

Zixuan Zhu^a^,^b^,^c, Xianjin Shi^a^,^b^,^c, Yongfang Rao^d, Yu Huang^a^,^b^,^*

Affiliations

^a Key Laboratory of Aerosol Chemistry & Physics, State Key Laboratory of Loess and Quaternary Geology (SKLLQG), Institute of Earth Environment, Chinese Academy of Sciences (CAS), Xi'an 710061, China

^b Center for Excellence in Quaternary Science and Global Change, Chinese Academy of Sciences, Xi'an 710061, China

^c University of Chinese Academy of Sciences, Beijing 100049, China

^d Department of Environmental Science and Engineering, Xi' an Jiaotong University, Xi'an 710049, China

Published: 2024-05-15 doi: 10.1016/j.cclet.2023.108954

Outline

Abstract

Less

Integrated CO₂ capture and conversion of (ICCC) is one of the most effective solutions to reduce anthropogenic CO₂ emissions, which has attracted extensive public attention. Dual functional materials (DFMs), including adsorbent and catalyst, are the key components to achieve ICCC. Magnesium oxide (MgO) is an ideal adsorbent for ICCC, since it is characterized by high theoretical adsorption capacity, low cost, low energy consumption and extensive sources. It can also be used as DFMs in combination with the Ni catalysts. MgO not only can act as an adsorbent in DFMs but also enhance the catalytic performance of Ni. This review summarizes the advantages and modification methods of MgO as adsorbent and the influence of its adsorption conditions on the adsorption performance. Moreover, the important role of MgO in facilitating the catalytic conversion of CO₂ is highlighted. Future research focuses are proposed for the development of MgO based DFMs with high adsorption capacity, high stability, conversion, and selectivity as well as low cost and energy consumption.

Key words

CO₂ / ICCC / MgO / Adsorption / Conversion

Cite this Article

Zixuan Zhu, Xianjin Shi, Yongfang Rao, Yu Huang. Recent progress of MgO-based materials in CO₂ adsorption and conversion: Modification methods, reaction condition, and CO₂ hydrogenation[J]. Chinese Chemical Letters, 2024 , 35 (5) : 108954 - . DOI: 10.1016/j.cclet.2023.108954

Full Text

Less

1 Introduction

Less

Global climate change has aroused widespread concern [1,2]. Compared with the level before industrialization (~1880), global average surface temperature increases about 0.92 ℃ in 2012 [3], and is expected to increase about 6 ℃ in 2050 [4]. Scientists generally believe that anthropogenic greenhouse gases released into the atmosphere are the main cause of global climate change [5]. CO₂ is the most significant components of greenhouse gas, which is the main contributor to the greenhouse effect [6]. Atmospheric CO₂ concentrations reached 400 ppm in 2015, significantly higher than the pre-industrial revolution level of 280 ppm [7]. The primary source of anthropogenic CO₂ is the burning of fossil fuels (coal, oil, and natural gas) [8]. Besides, fossil fuels will still be the main energy source that human beings rely on in the coming decades, so it is particularly urgent to develop effective technologies to reduce CO₂ emissions [9].

Carbon capture, utilization, and storage (CCUS) is a crucial technology to reduce CO₂ emission [10,11]. However, CCUS suffers from technical immaturity, excessive costs, energy consumption and risks in the transport and storage of CO₂. CCUS lacks pipeline failure models during transport and storage risk assessment system [12]. In addition, the cost and energy loss incurred by CO₂ transport and storage significantly increase the operating costs of CCUS [13]. The long-distance transport of CO₂ can lead to dangerous accidents due to changes in external conditions or materials corrosion [13], such as major hazards to the environment, humans and ecosystems caused by CO₂ leakage [14]. On the other hand, the geological storage of CO₂ is highly uncertain: CO₂ may leak through faults and fractures, leading to earthquakes [12]. To address these issues, researchers have proposed the integrated CO₂ capture and conversion (ICCC) technology, which is the employment of in situ adsorption and conversion of CO₂ to value-added product, such as methane (CH₄), carbon monoxide (CO), methanol (CH₃OH), cyclic carbonates, hydrocarbon and dimethyl ether [15–21]. It offers new perspectives for the reduction of CO₂ emissions and the synthesis of natural gas. Especially, CO₂ capture and hydrogenation have received extensive attention [22–24].

Dual functional materials (DFMs) are ideal for ICCC [25]. Developing DFMs with high adsorption capacity, high conversion, high stability, and low cost is the focus and challenge of ICCC technology. Solid adsorbents as alternative CO₂ separation materials can reduce capture costs and increase CO₂ adsorption [26]. Solid adsorbents can be divided into physical adsorbents (e.g., zeolite, carbon adsorbents and MOFs) and chemical adsorbents (e.g., metal oxides and hydrotalcite-like compounds) according to adsorption mechanisms [27–31]. Chemical adsorbents are more attractive due to their high selectivity and adsorption capacity [32]. Metal oxides (especially alkali metal and alkaline earth metal oxides) as chemical adsorbents have attracted much attention due to their low cost, wide availability, and high specific surface area. MgO [33], CaO [34] and Li₂ZrO₃ [35] have been studied and used as adsorbents for CO₂. However, CaO and Li₂ZrO₃ is a typical high-temperature adsorbent, which is not conducive to CO₂ methanation in thermodynamics. MgO achieves CO₂ adsorption at moderate temperatures and has a higher theoretical adsorption capacity than CaO and Li₂ZrO₃. Therefore, MgO has become one of the most promising adsorbents for CO₂ capture at medium temperature [35,36]. Meanwhile, MgO is also a suitable metal support for CO₂ reduction catalysts. It can provide basic centers for the catalysts. These basic centers not only promote Ni reduction but also inhibits the sintering of Ni catalysts on the catalyst surface [37–39].

However, the actual adsorption capacity of MgO (0.24 mmol/g) is poor [40]. Great efforts devoted to improving the adsorption performance of MgO based adsorbents include (1) adjusting the pore size, (2) reducing the particle size, (3) dispersing MgO on the support, (4) loading metals/metal oxides, and (5) modifying MgO using molten salts [41–44]. MgO plays the role of adsorbent in DFMs. The optimum adsorption temperature of MgO coincides with the optimum temperature of the methanation reaction, thus rendering MgO an ideal adsorbent prior to CO₂ methanation reaction. Combining MgO with catalysts such as Ni enables the capture and methanation of CO₂ and is an effective way to reduce carbon emissions.

The potential of MgO to enhance CO₂ adsorption performance and its contribution to conversion has not been described comprehensively in previous studies. Therefore, this review focuses on the significant role of MgO in CO₂ adsorption and conversion. Firstly, it summarizes the advantages and limitations of MgO based materials as CO₂ adsorbents. Secondly, the modification methods of MgO based adsorbents in terms of structural and chemical properties are described. Thirdly, the effect of adsorption conditions on the CO₂ adsorption performance of MgO based adsorbents is also presented. Finally, the role of MgO as ICCC adsorbent in improving the catalytic performance of the catalyst and its potential as catalyst support is emphasized.

2 Advantages and limitations of MgO as CO₂ adsorbent

Less

MgO is a significant material which has been widely used in various fields due to its low cost and multifunction properties. MgO has been used as refractory protective material [45], electrode coating for solar cells [46], photocatalyst [47], and antibacterial material [48]. Recently, the application of MgO in reducing CO₂ in flue gas has attracted extensive attention as a solid CO₂ adsorbent [41,49–53], due to its rich sources and low cost, as well as its high theoretical CO₂ adsorption capacity. Mg element are abundant on the earth, ranking the eighth in the crustal content. The most common magnesium ore minerals are dolomite (CaMg(CO₃)₂), magnesite (MgCO₃), brucite (Mg(OH)₂), carnallite (MgCl₂·KCl·6H₂O), brucite (MgCl₂·6H₂O), olivine ((Mg, Fe)₂SiO₄), etc. [54]. MgCO₃ and CaMg(CO₃)₂ are the main sources for MgO [55]. In addition, as a basic oxide, MgO can act as an adsorbent to capture acid gases (e.g., CO₂). The adsorption of CO₂ by MgO can be categorized into physical adsorption and chemical adsorption. Physisorption of CO₂ occurs on Mg²⁺ sites [56] at temperatures of approximately 25–40 ℃ [50]. Chemical reaction is the main pathway for CO₂ capture by MgO: MgO reacts with CO₂ to form MgCO₃ (Eq. 1) [57]:

(1)

Theoretically, 1 g MgO can adsorb 24.8 mmol of CO₂ [35], which is higher than most solid adsorbents (Table 1). Although the CO₂ adsorption capacity of metal-organic framework (MOF) is the highest among all adsorbents reported at present [58], MOF has the disadvantages of high cost, poor moisture resistance [59], and lower stability than chemical adsorbents [60]. In addition, compared to other metal oxides, MgO not only has higher theoretical adsorption capacity (17.8 mmol/g and 6.53 mmol/g for CaO and Li₂ZrO₃, respectively) (Table 1), but also has lower adsorption-desorption temperature (300–400 ℃), implying that CO₂ adsorption–desorption of MgO requires lower energy consumption [35], further reducing the operating cost.

The strength of the interaction between CO₂ and MgO surface is related to the surface energy of the crystalline surface, the coordination number of the surface O atoms and the ability to donate electrons [61,62]. (110), (111) and (100) are the three thermodynamically most stable surfaces of MgO. The (111) surface consists of two alternating layers of Mg and O atoms with (111)/O and (111)/Mg terminated surface. CO₂ is weakly adsorbed on the (100) and (111)/O, and strongly adsorbed on the (110) surface [61,62]. CO₂ chemisorption sites are low coordination O ions and oxygen vacancies on the surface of MgO [56,61,63]. O_5c sites are generally more stable and inert toward CO₂ [64]. O_4c and O_3c sites with lower coordination number than O_5c, have higher reactivity toward CO₂. Compared to the terraces (Fig. 1a), O_4c sites are more stable at the edge (Fig. 1b) and forms monodentate carbonates. O_3c sites are more reactive at the corner sites (Fig. 1c) than those at the edge and terrace sites, producing bidentate (Fig. 1d) and tridentate carbonates [65].

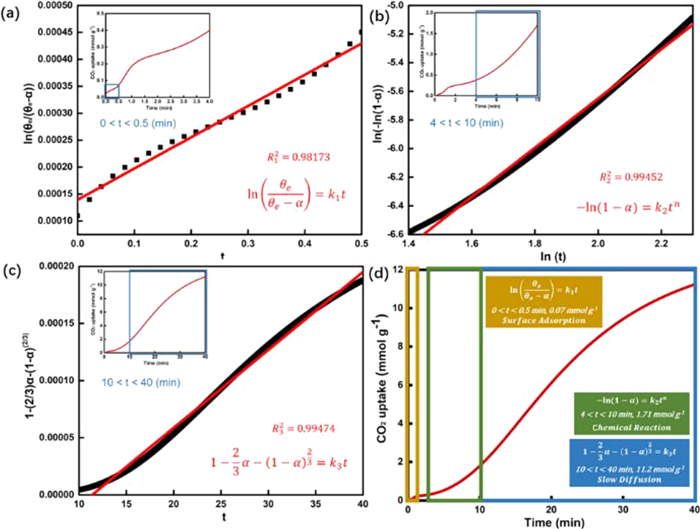

However, previous studies have shown that CO₂ actual adsorption amount (0.24 mmol/g) of MgO is much less than the theoretical adsorption (24.8 mmol/g) [35,40]. This can be explained as follows: (1) High enthalpy of the reaction between MgO and CO₂ results in weak adsorption, limiting the reaction rate of carbonation [40,43]; (2) Few basic sites (O²⁻) are exposed on the MgO surface [66]; (3) The adsorption of CO₂ by MgO forms a carbonate layer on the surface of the adsorbent (Fig. 2), especially the presence of water accelerates the formation of carbonate layer [67,68]. Currently, structure modification has been applied to improve the exposure of MgO to CO₂ [19–23]. It has also been demonstrated that adsorption capacity of MgO based adsorbents can be enhanced by the increase of surface alkalinity and the decrease of the energy barrier for chemical reactions [42,43,67]. Section 3 in this paper focuses on the achievement of MgO modification.

3 Modification of MgO based adsorbents

Less

3.1 Structural modification of MgO based adsorbents

CO₂ is adsorbed by MgO mainly via the interaction between CO₂ and alkaline sites (O²⁻) [65]. The structure modification of the adsorbent can increase the number of basic sites, the specific surface area and pore diameter of the adsorbent [57]. High specific surface area is conducive to the exposure of basic sites and the adsorption of CO₂ on MgO [51,66,69,70]. Table 2 shows the CO₂ adsorption capacity of MgO with different specific surface area. However, the increase of specific surface area cannot guarantee the increase of adsorption capacity [71]. Pore structure has also been reported to influence the adsorption capacity of MgO. Ordered pore structure can accelerate the CO₂ capture rate of adsorbent, thus improving the adsorption capacity [72].

Reducing the particle size can also increase the specific surface area of the adsorbent [73], leading to the increased exposure of basic sites. MgO nanoparticles have more basic sites due to their small size, which exposes more O²⁻ on the edges and corners compared to bulk MgO [41]. Furthermore, nano size of MgO particles was reported to inhibit the sintering of adsorbent, and thus improve the cycle stability [74]. Elvira et al. prepared MgO nano powders from CO(NH₂)₂ and Mg(NO₃)₂ (2:1) by solution-combustion and ball-milling processes [53]. Its adsorption capacity at 25 ℃ and 1 atm was 1.61 mmol/g and was 1.47 mmol/g after five adsorption–desorption cycles. However, small particle size may have negative effect on the practical application of MgO powder. Powdered adsorbents suffer from increased pressure drop or elutriation when being applied to industrial fixed or fluidized beds for CO₂ separation [41].

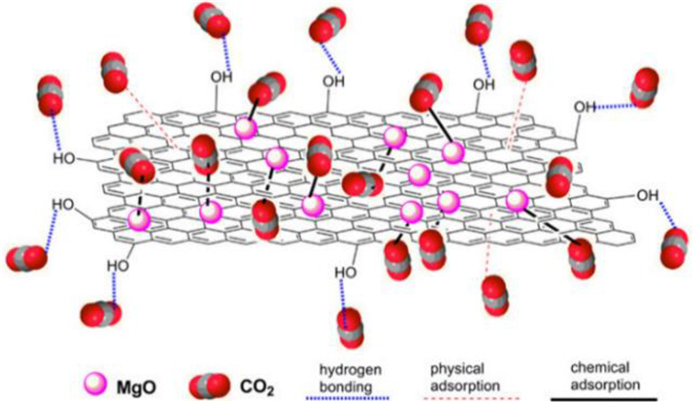

Synthesis of porous adsorbent is another method to improve specific surface area and pore size. MgO-based porous adsorbents include porous MgO [66,69,73,75,76] and MgO dispersing on porous substrates [71,77]. Mesoporous materials as ideal porous adsorbents with pore diameters of 2–50 nm have high specific surface area, high alkalinity and ordered pore structure (Table 2). Hanif et al. synthesized MgO by ammonia precipitation, urea hydrolysis and thermal degradation methods. They found that mesoporous MgO had the highest CO₂ adsorption capacity (~1.75 mmol/g) with a high specific surface area (361 cm²/g) at 200 ℃, 1 bar [76]. TiO₂ [78], Al₂O₃ [42,79,80], CeO₂ [42,81], SiO₂ [82], ZrO₂ [83], CuO [84] and porous carbon materials [75] have been used to support MgO [85]. Mesoporous carbon stabilized MgO is the ideal CO₂ adsorbents among the above materials. Liu et al. obtained mesoporous carbon stabilized MgO nanoparticles (mPC-MgO) from MgCl₂ and biomass waste [41]. TEM images showed that MgO nanoparticles were uniformly distributed on the carbon sheet. They found that the CO₂ adsorption capacity of mPC-MgO exceeded 2 mmol/g at 200 ℃ (greater than other MgO-based adsorbents in Table 1). The maximum adsorption (5.45 mmol/g) was reached at 80 ℃. Moreover, mPC-MgO showed good selectivity toward CO₂: the amount of CO₂ being captured (5.22 mmol/g) was much higher than that of N₂ (0.045 mmol/g) and O₂ (0.47 mmol/g).

The morphology of adsorbents also influences the CO₂ capture of MgO based adsorbents. Gao et al. prepared MgO nanosheet a with high specific surface area (327 m²/g, 0.38 cm³/g) using a thin sheet structure of hydro magnesite as a precursor [66]. The maximum adsorption capability of MgO nanosheets they prepared was 1.99 mmol/g at 60 ℃. Patchanee et al. fabricated microspheres with high surface area (227 m²/g) and high pore volume (0.79 cm³/g) using spherical magnesium ethanol as precursors [86]. The microspheres had a high adsorption capacity of 6.85 mmol/g at 25 ℃ and 0.6 MPa CO₂ pressure. Doping irregular metal oxide is another method to change the morphology of adsorbent. Chen et al. studied the structure and adsorption properties of FeO–MgO [87]. They found that the core-shell structure of FeO–MgO increased the surface curvature of MgO, promoting the exposure of defective sites at the edges and corners of the crystal surface, thus providing more alkaline sites to adsorb CO₂. Instantaneous adsorption-temperature programmed desorption indicated the proportion of strong alkaline sites on FeO–MgO surface increased to 91%, higher than that on MgO (28.9%).

3.2 Other modifications of MgO adsorbents

The surface oxygen ions (O²⁻) of MgO are the main basic sites of capturing CO₂, and the coordination states of the different O²⁻ determine the CO₂ adsorption properties [65]. O²⁻ at the edge or corner of the lattice are usually more alkaline, which react with CO₂ to form monodentate, bidentate or tridentate carbonate, respectively [64,88]. More basic sites can increase the surface alkalinity of the adsorbent, thus boosting the CO₂ adsorption capacity. In addition, reducing the reaction energy barrier or increasing the adsorption energy to improve the carbonation reaction rate has also become research focuses in the field of MgO modifications [43]. Metals, metal oxides and alkali metal molten salts can be used as MgO promoters to improve its CO₂ adsorption capacity by increasing the surface alkalinity, lowering the reaction energy barrier, or increasing the adsorption energy.

3.2.1 Increase of surface alkalinity on MgO based adsorbents

Metal oxides such as ZnO, La₂O₃, CeO₂, and CuO have been proved to improve the CO₂ adsorption capacity of MgO based adsorbents [42,81,84,87,89–92] by increasing the alkalinity of MgO. CuO, ZnO and La₂O₃ alter the number of basic sites by replacing Mg²⁺ with metal ions, thus improving the adsorption performance. The substitution of Mg²⁺ (0.066 nm) by Cu²⁺ (0.073 nm) [84] and La³⁺ (0.115 nm) with larger radii than Mg²⁺ [92], or Zn²⁺ (0.060 nm) smaller than Mg²⁺ [93] could create structural defects, leading to the exposure of more active sites on the surface of MgO by producing an increase in the alkalinity of MgO. The remaining Cu²⁺ could maintain the pore structure of the adsorbent, acting as a support to disperse MgO [84].

The variation in crystalline phase could also change surface alkalinity of MgO. Vishwanath et al. synthesized mesoporous MgO–TiO₂ with different TiO₂ contents. They found that doping different amount of TiO₂ influenced the crystalline phases of MgO and Ti oxidation state, which determined CO₂ adsorption capacity of the adsorbent. MgTi₂O₄ with spinel structure had higher alkalinity and CO₂ adsorption capacity than other crystal phases (MgTiO₃ and Mg₂TiO₄) [89].

Previous studies indicated increasing alkalinity was a more beneficial way to improve the CO₂ adsorption capacity of MgO based adsorbent than increasing the specific surface area [42,81]. The recycle stability and adsorption performance of MgO coupled by Al₂O₃ and CeO₂ at medium temperature (200 ℃) are better than that of MgO. Al₂O₃ improves the adsorption performance of MgO mainly by increasing the specific surface area. CeO₂ improves the adsorption capacity mainly by increasing the alkalinity of the adsorbent. Although Al₂O₃–MgO has a larger specific surface area and pore volume, and more homogeneous pore structure than CeO₂–MgO, its CO₂ adsorption capacity is still lower than that of CeO₂–MgO.

Moreover, the introduction of surface functional groups (e.g., OH) is a potential way to improve the surface properties to increase the adsorption capacity. Due to the strong electro positivity of the hydrogen atoms in the OH group, they can interact with the oxygen atoms in the CO₂ to form hydrogen bonds (Fig. 3), thereby improving the CO₂ adsorption of MgO adsorbents [41].

3.2.2 Promoting chemical reaction between MgO and CO₂

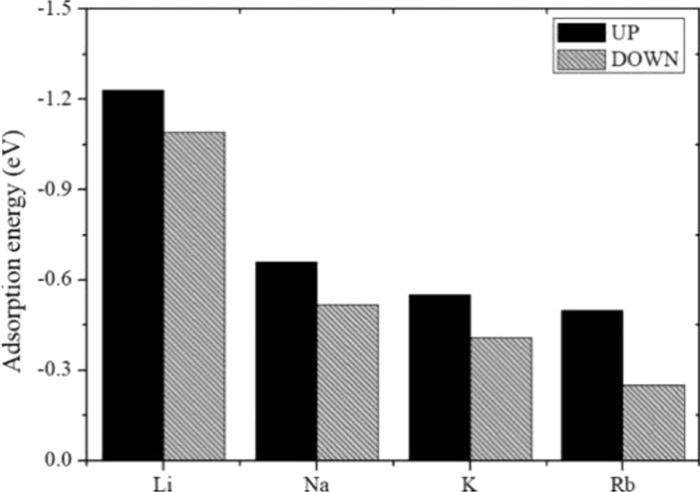

Metals can promote the adsorption capacity by increasing the adsorption energy of CO₂ on MgO or decreasing the reaction energy barriers of the reaction between MgO and CO₂. Alkali metal (Li, Na, K, Rb and Cs), alkaline earth metals (Be, Ca, Sr, and Ba), Fe and Al have been investigated to modify the adsorption properties of MgO [43,94–97]. Alkali and alkaline earth metals are considered to be superior promoters of MgO [43]. The increase in adsorption energy is related to the radius and electronegativity of the doped metal. In general, the smaller the radius and the higher the electronegativity, the higher adsorption energy is [96]. Thus, Li-doped MgO have the highest adsorption energy among alkali metals (Fig. 4). Exceptionally, metals with larger atomic radii (Cs and Ba) have greater adsorption energies than those with smaller radii (Na, K, Rb and Ca, Sr) due to the electrostatic interaction between Cs and Ba with neighboring Mg atoms. Considering the necessity to regenerate the adsorbent after adsorption, Li, Ca and Sr promoted MgO adsorbents are suitable as CO₂ adsorbents [95].

Hu et al. investigated the CO₂ adsorption properties of Ca/Fe/Al-doped MgO based on density flooding theory (DFT) calculations [96]. Compared to that of MgO, the stronger adsorption capability of Ca/Fe/Al-doped MgO was mainly attributed to (1) the strong electronic interaction between Ca/Fe/Al-doped MgO and CO₂, (2) changes in the crystallographic parameters of MgO, and (3) the reduction of the transition state energy barrier [43]. The minimum adsorption energy of Al doped MgO (−98.15 kJ/mol) was greater than the maximum adsorption energy of Ca (−56.73 kJ/mol) and Fe (−76.70 kJ/mol) doped MgO, creating a more stable adsorption structure [87]. Therefore, Al doped had more significant effect on the CO₂ adsorption capability of MgO.

They subsequently used Ce as a promoter to facilitate Al-doped MgO [43]. Compared to Al-doped MgO, CO₂ adsorption energy on Ce/Al-doped MgO was higher and CO₂ reaction potential was lower due to more chemically active metal atoms and less electrostatic repulsion around the adsorption sites on the surface of Ce/Al-doped MgO. Thus, Ce/Al-doped MgO has higher CO₂ adsorption capacity. However, two issues should be considered for metal-doped MgO: (1) the difficult desorption due to the strong adsorption energy and (2) the blockage of pores due to metal doping and metal agglomeration [81].

Molten salt such as Alkali metal nitrates, nitrites, and carbonates (e.g., NaNO₃, NaNO₂, LiNO₃, KNO₃, KNO₂, Li₃PO₄ and Na₂CO₃) can also be used to increase the CO₂ adsorption of MgO [98–103]. When the ambient temperature (~300 ℃) is above the melting point of the alkali metal salts, the salts are converted from the solid phase to the liquid phase [35], facilitating the reaction between CO₂ and MgO [104]. The adsorbent is then desorbed at a higher temperature (400–450 ℃) to be regenerated. It achieves CO₂ capture at medium temperature and addresses the issue that the formation of carbonate layers decreases the adsorption capability of MgO-based absorbents. Therefore, alkali metal nitrates and nitrites have been used to improve the adsorption capacity of MgO more commonly than other promoters.

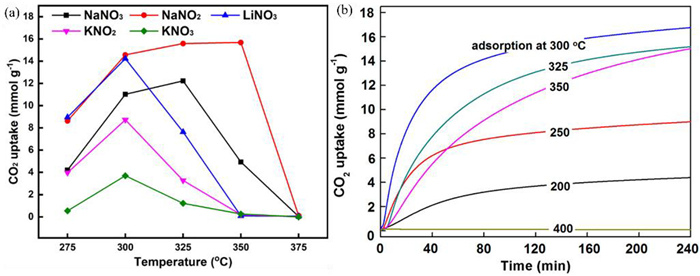

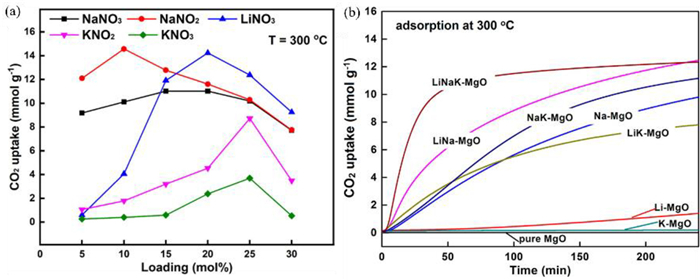

The type (unitary salt, binary salts as well as multicomponent salts) and doping amount of molten salts affects the adsorption capacity of MgO based adsorbents. Table 3 shows MgO adsorbents with different melt salts doped have various adsorption capacities. In the case of unitary salt promoted MgO, CO₂ adsorption capacity of MgO doped by NaNO₃, LiNO₃, KNO₂ and KNO₃ increased with the enhancement of alkali metal nitrate loading from 5% to 20% (25%) (Fig. 5a) [104]. The adsorption capacity of NaNO₂-doped MgO at 10% loading exceeded that of the other MgO materials doped by molten salts (15.7 mmol/g) [33]. In the case of binary salts promoted MgO, (NaNO₃—NaNO₂)/MgO had the largest CO₂ uptake of 19.8 mmol/g [105]. In addition, Li–Na–K/MgO had higher CO₂ adsorption capacity and adsorption rates compared to most of alkali metal nitrate doped MgO (Fig. 5b). (Li_0.44K_0.56)NO₃]₂[(Na_0.5K_0.5)CO₃]/MgO exhibited the largest adsorption capacity among all multicomponent salt doped MgO, reaching 19.6 mmol/g [106].

Current studies have demonstrated that doping molten salts is the most promising modification method for facilitating CO₂ adsorption of MgO. Nitrate and nitrite promoted MgO has significantly enhanced the CO₂ adsorption capacity, which increase from 0.24 mmol/g to a maximum of 19.8 mmol/g [105]. However, the mechanisms underlying the increased CO₂ adsorption capacity of MgO promoted by molten salts remain in debate. Zhang et al. suggested that molten salts as phase transition catalysts facilitate the adsorption of gaseous CO₂ on solid MgO and MgCO₃ may precipitate from the initial dissolution without inhibiting the reaction between CO₂ and MgO, thus improving the cyclic stability of the adsorbent. Based on DFT calculations, they found the [Mg²⁺-O²⁻] dissociation energy could be reduced by 1.771 eV with molten salt involved. Because the dissociation of the MgO ionic bond is the rate–limiting step during the CO₂ adsorption process, the involvement of the molten salt increases the rate of MgCO₃ production [67]. Harada and Gao et al. analyzed the reaction kinetics of CO₂ adsorption using kinetic modeling [35,104]. They found that the process of CO₂ adsorption on nitrate promoted MgO included three key steps: CO₂ adsorption first occurred on the surface of the adsorbent with essentially linear reaction rates (Fig. 6a). Subsequently, the rate of reaction first increased and then decreased (Fig. 6b), which is attributed to the nucleation and growth of MgCO₃. Due to the formation of the MgCO₃ layer, the exposure of CO₂ to MgO was reduced. Therefore, the reaction rate in the third stage was controlled by the diffusion of CO₂ through the MgCO₃ layer (Fig. 6c). In the whole adsorption process (Fig. 6d), the involvement of nitrate salt inhibited the generation of the MgCO₃ layer and promoted the diffusion of CO₂, accelerating the rate of the reaction in the second and third stages, thus improving the adsorption capacity of the adsorbent. Prashar et al. monitored the changes in the in-situ IR spectrum of MgO based adsorbents during multiple adsorption and desorption [107]. The nitrate (825 cm⁻¹) peak was observed prior to the adsorption of CO₂. After 1 min of reaction, the peak for nitrate decreased rapidly and the peak assigned to carbonate (862 cm⁻¹) appeared. Subsequently, peaks for MgCO₃ (853 and 890 cm⁻¹) were observed (Fig. 7a). However, the peak at 876 cm⁻¹ may be assigned to a lattice defect resulting from the doping of nitrate in the lattice of MgO. The nitrate peak reappeared in the desorption process (Fig. 7b). During the second adsorption, the area of the MgCO₃ peak was larger than that during the first adsorption (Figs. 7c and d), implying a faster adsorption rate of CO₂ due to the homogenization of nitrate in the distribution [35] or the creation of lattice defects in MgO. Gao et al. have identified the involvement of NaNO₃ in CO₂ adsorption by oxygen isotope labeling, including the conversion of NO³⁻ to NO²⁺ and O²⁻, the adsorption of NO²⁺ on MgO, and the transfer of ¹⁸O²⁻ from ¹⁸O⁻nitrate to MgO [108]. Three CO₂ isotopes, C¹⁶O₂ C^l6O^l8O and C^l8O₂, were obtained using ¹⁸O-labelled NaNO₂ (NaN ^l6O₂ to NaN ^l6O₂¹⁸O) doped MgO (Mg¹⁸O) to adsorb CO₂ for 1 h at 300 ℃. The different desorption temperatures of CO₂ demonstrated the difference in the adsorption energy of CO₂ on NaNO₃–MgO and MgO. CO₂ adsorbed by NaNO₃–MgO had a higher desorption temperature, indicating the generated MgCO₃ has a higher thermal stability. They also proved that NaNO₃–MgO promoted the formation of [Mg²⁺-O²⁻], which increased the capacity and rate of CO₂ adsorption.

However, there are some problems with alkali metal modified MgO adsorbents. During successive adsorption–desorption cycles, a reduction in the active center, blockage of the pore structure and partial depletion of the NaNO₃ molten salt layer occurs on the surface of the adsorbent, leading to a gradual decrease in CO₂ adsorption during the adsorption–desorption cycles [33,109]. Dong et al. suggested that the addition of Li₃PO₄ could provide more basic sites for the adsorbent [110], which is a possible way to solve the sintering of the adsorbent and to improve the adsorption capacity and stability.

4 Effect of adsorption conditions on the CO₂ capture

Less

The adsorption conditions such as adsorption temperature, pressure and flue gas will also affect the CO₂ adsorption capacity of the adsorbents.

MgO can adsorb CO₂ from 25 ℃ to 400 ℃ [50,73,111]. Physical adsorption is predominant at low temperature (< 40 ℃) and chemisorption occurs at higher temperatures [50]. Increasing temperature favors the reaction, but the reaction of MgO with CO₂ to form MgCO₃ is exothermic. The calculated Gibbs free energy suggests that the optimum adsorption temperature for MgO is 300 ℃ [104]. However, the optimum adsorption temperature varies considerably with different MgO based adsorbents, which may be related to the basic sites of the adsorbent [65,112]. Mesoporous MgO adsorbents generally exhibit high CO₂ adsorption at 200 ℃ [73,76,80]. Mesoporous MgO nanoparticles with high specific surface area and high alkalinity can trap large amounts of CO₂ at relatively low temperatures (< 100 ℃) [41]. The optimum adsorption temperature of molten salt modified MgO also varies with the doping of the alkali metal salt (Fig. 8a). Because the optimal adsorption temperature is related to the melting temperature of nitrate, the selection of adsorption temperature should consider the melting temperature of unitary nitrate or the eutectic point of multicomponent nitrates [49,52,108,113]. The optimum temperature of CO₂ adsorption on MgO modified by binary alkali metal salts is higher than that on unitary salts modified MgO. NaNO₃-promoted adsorbents have an optimum CO₂ adsorption temperature of 325 ℃, while NaNO₃ and NaNO₂ promoted MgO adsorbents have an optimum adsorption temperature of 350 ℃. Also, NaNO₃ and NaNO₂ promoted MgO adsorbents show a faster CO₂ uptake rate and higher adsorption stability than NaNO₃-promoted adsorbents [114,115]. The optimum adsorption temperature of CO₂ adsorbed by multicomponent salts is related to the ratio of molten salts. At Li: Na: K = 0.1:0.3:0.6, the adsorbent had the greatest CO₂ capture capacity (16.8 mmol/g) at an adsorption temperature of 300 ℃ (Fig. 8b). At Li: Na: K = 0.3:0.18:0.52, the adsorbent had the greatest adsorption capacity (13.1 mmol/g) at 325 ℃ [103]. Adsorption temperature is also related to the partial pressure of CO₂. Pressure increase facilitates CO₂ adsorption [76,105].

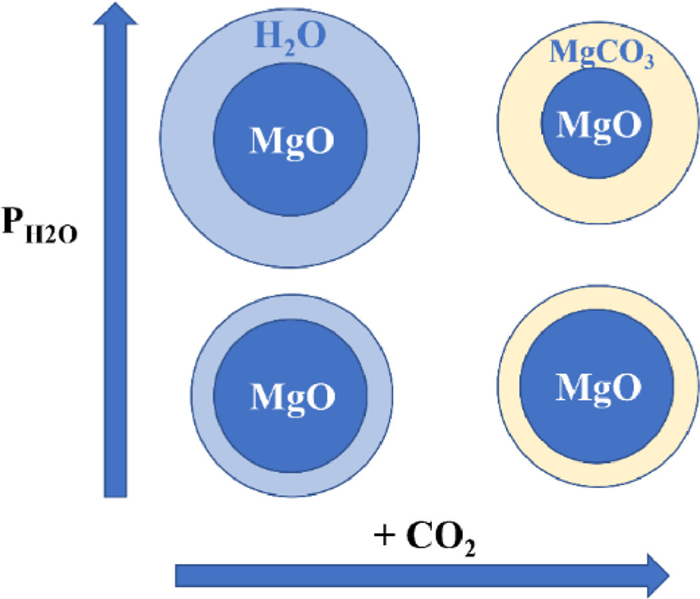

The presence of gases such as H₂O, O₂ and SO₂ in practical industrial applications can affect the adsorption capacity of MgO based adsorbents. The presence of H₂O promotes the adsorption of CO₂ by MgO [80,116–118]. This is probably because the OH group production from H₂O dissociation on MgO surface promotes the formation of highly basic sites [49], and the adsorption energy of CO₂ on MgO increases from −0.479 eV to −1.163 eV with the presence of H₂O [119]. This is the same as mentioned in Section 2, where the presence of water promotes the formation of carbonates. The presence of SO₂ and O₂ inhibits the CO₂ adsorption [102]. It is because both SO₂ and CO₂ are acidic gases and SO₂ is more acidic than CO₂. Thus, the MgO-based adsorbents prefer capturing SO₂ over CO₂. However, a significant increase in CO₂ adsorption can be achieved in the presence of both SO₂ and H₂O [120]. Compared with SO₂, O₂ has less influence on MgO adsorption performance. It is proved that the addition of alkali metal can reduce the influence of SO₂ and O₂ on the adsorption performance by improving the adsorption energy, but the desorption temperature of CO₂ the adsorbent also increases [97].

5 Application of MgO in CO₂ conversion

Less

Considering the problems of transportation and storage in CCUS, ICCC has received an extensive attention in recent years [15,121–124]. Among ICCC, CO₂ adsorption and hydrogenation process can convert CO₂ into CH₄, which has increased economic benefits and aroused widespread interests [22,125,126]. The selection of CO₂ adsorbent and catalyst is the key to achieve CO₂ capture and conversion. As mentioned above, MgO is a suitable adsorbent for CO₂ at the temperatures consistent with the optimum reaction temperature (300–400 ℃) of methanation reaction. Therefore, CO₂ capture, and conversion can be carried out at the same temperature in a single reactor [22,104]. Studies have been performed with MgO as an adsorbent for DFMs achieving good adsorption and conversion performance (Table 4). Meanwhile, MgO has the potential to act as a carrier for catalysts [127]. Therefore, MgO is a suitable material for the DFMs [128–130].

CO₂ methanation converts captured CO₂ to CH₄ by catalytic reaction with H₂. The methanation reaction equation is shown in Eq. 2 [131]:

(2)

Ruthenium (Ru) and nickel (Ni) are often used as catalysts for CO₂ methanation. The noble metal catalysts are highly efficient in conversion. Ru exhibits fast CO₂ methanation kinetics and unique redox chemistry. However, the high cost and catalyst sintering limit the application of Ru in DFMs [132,133]. Ni catalysts with high abundance, low cost and good catalytic properties have been widely used in CO₂ reduction [134]. However, Ni catalyst sintering leads to decreased specific surface area and shortened lifetimes, which reduces its catalytic ability and increases carbon deposits [135]. Ni reacts with CO at low temperatures to form nickel subcarbonyls, resulting in reduced activity [136]. In addition, Ni catalysts can suffer Ni oxidation and deactivation during the capture phase in flue gases containing large amounts of air [23]. Therefore, further studies in improving the resistance of Ni catalysts to sintering and coking as well as increasing low-temperature activity are necessary [137].

Supporting Ni on MgO is an effective way to solve the reduction of Ni activity [138,139]. As a basic additive, MgO not only increases the amount of the basic centers, favorable for CO₂ activation [140], but also strengthens OH* adsorption, which is beneficial for H₂O formation [38]. The CO₂ conversion and CH₄ selectivity of Ni/MgO was reported to be close to 90% and 100% at about 300 ℃, respectively [141]. Huang et al. investigated the pathway of CO₂ methanation on Ni/MgO surfaces by means of DFT calculations. In contrast to CO₂ methanation on Ni (111) surface via O-terminal hydrogenation to form HCOOH*, the C-terminal hydrogenation of CO₂ on the Ni/MgO surface is more favorable than the O-terminal since electrons can be transferred from MgO to Ni nanoribbon, leading to more electrons accumulating on C atoms of CO₂. Therefore, the C-terminal of the CO₂ molecule has a higher electron density [38]. The combination of Ni and MgO based adsorbents is conducive to the dispersion of Ni particles and the strong metal-carrier interaction between Ni and MgO significantly improves the Ni reduction on the Ni/MgO surface [38]. Furthermore, MgO can inhibit the growth of Ni particles, thereby improving the resistance of Ni to sintering [142] and carbon deposition [143]. Furthermore, the addition of additives can further enhance CO₂ adsorption and conversion performance of Ni/MgO. We could further improve CO₂ methanation activity and sintering resistance through promotion the formation of monodentate species with higher H₂ activity and increasing the number of stable CO₂ adsorption sites [144]. Currently, Ni/MgO as a bifunctional catalyst for CO₂ adsorption and methanation using alkali metal salts as promoters has obtained good performance with CO₂ adsorption and CH₄ yield of 6.46 mmol/g and 0.85 mmol/g at 450 ℃, respectively [145]. Moreover, Reverse water gas shift reaction was achieved with Ni/MgAl₂O₄ as the catalyst, showing 39.2% CO₂ conversion and 100% CO selectivity at 700 ℃ [146]. This provides a new way to improve the adsorption and catalytic performance of DFMs.

6 Conclusions and prospects

Less

MgO is an ideal medium temperature solid adsorbent for CO₂. It is characterized by low cost, wide availability, and high theoretical adsorption capacity (~24.8 mmol/g). Although the actual adsorption capacity (0.24 mmol/g) is much lower than the theoretical value, it can be greatly increased by structural changes, and doping other species. Especially, the maximum adsorption capacity of MgO doped by alkali metal molten salt can reach 19.8 mmol/g. Transition metal Ni is a common catalyst for CO₂ methanation with high activity and selectivity. The combination of MgO and Ni can realize in-situ CO₂ capture and hydrogenation. Although the resistance of Ni to carbon deposition and sintering is weak, MgO as a basic oxide can improve the basicity of Ni, thereby increasing activity, selectivity, and stability of Ni-based catalysts. The addition of promoters can not only improve the adsorption capacity and cycle stability of the adsorbent, but also enhance the activity, selectivity, and stability of the catalyst.

Ni/MgO is an ideal material with a broad application prospect for ICCC. Furthermore, ICCC is a potential way to achieve carbon emission reduction and mitigate climate warming. Unfortunately, the current research on DFMs materials is relatively limited and further studies can be focused on:

(1) The actual adsorption capacity of MgO adsorbent differs greatly from the theoretical adsorption capacity. This is related to several factors such as preparation method, adsorption temperature and pressure, surface basic sites and CO₂ concentration, etc. Therefore, the interaction of all factors should be considered to achieve CO₂ capture efficiently. However, the current study considers fewer influencing factors. The next step can be based on machine learning high-throughput screening methods to efficiently optimize the existing modification methods or application conditions.

(2) The low added value of the CO₂ conversion products makes it difficult to drive companies to independently select ICCC technology for large-scale applications. The next step is to change the existing active site to realize C—C coupling, such as C₂H₂, C₂H₅OH and other high value-added products conversion.

(3) Application studies under industrial conditions are lacking. For example, whether the presence of co-existing pollutants (NO_x, SO_x, etc.) in the flue gas will poison the existing catalysts is a direction that needs to be taken into account in future catalyst design and selection.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

We are grateful to the Strategic Priority Research Program of the Chinese Academy of Sciences, China (Nos. XDA23010300 and XDA23010000), the National Natural Science Foundation of China (Nos. 51878644 and 41573138), and the Plan for "National Youth Talents" of the Organization Department of the Central Committee for financial support of this research.

References

Less

[1]

C.L. Parker, P.A. Mooney, M.A. Webster, L.N. Boisvert, Nat. Commun. 13 (2022) 6514.

[2]

C.H. Trisos, C. Merow, A.L. Pigot, Nature 580 (2020) 496–501.

[3]

J.Y. Huang, Q.X. Li, Z.Y. Song, Sci. Total Environ. 816 (2022) 151656.

[4]

N. Mac Dowell, P.S. Fennell, N. Shah, G.C. Maitland, Nat. Clim. Change 7 (2017) 243–249.

[5]

Y. Ou, C. Roney, J. Alsalam, et al., Nat. Commun. 12 (2021) 6245.

[6]

S.K. Kim, J. Shin, S.I. An, et al., Nat. Climate Change 12 (2022) 834–840.

[7]

Q. Wang, J. Luo, Z. Zhong, A. Borgna, Energy Environ. Sci. 4 (2011) 42–55.

[8]

M.M.F. Hasan, E.L. First, F. Boukouvala, C.A. Floudas, Comput. Chem. Eng. 81 (2015) 2–21.

[9]

K.M.K. Yu, I. Curcic, J. Gabriel, S.C.E. Tsang, ChemSusChem 1 (2008) 893–899.

[10]

J. Yan, Z. Zhang, Appl. Energy 235 (2019) 1289–1299.

[11]

R.S. Norhasyima, T.M.I. Mahlia, J. CO2 Utiliz. 26 (2018) 323–335.

[12]

J. Koornneef, A. Ramírez, W. Turkenburg, A. Faaij, Prog. Energy Combust. Sci. 38 (2012) 62–86.

[13]

S. Chen, J. Liu, Q. Zhang, F. Teng, B.C. McLellan, Renew. Sustain. Energy Rev. 167 (2022) 112537.

[14]

M. Hillebrand, S. Pflugmacher, A. Hahn, Inter. J. Greenh. Gas Control 55 (2016) 118–143.

[15]

I.S. Omodolor, H.O. Otor, J.A. Andonegui, B.J. Allen, A.C. Alba-Rubio, Ind. Eng. Chem. Res. 59 (2020) 17612–17631.

[16]

W. Zhang, R. Ping, X. Lu, et al., Chem. Eng. J. 451 (2023) 138715.

[17]

R. Ping, C. Ma, Z. Shen, et al., Sep. Purif. Technol. 310 (2023) 123151.

[18]

F. Liu, X. Duan, X. Dai, et al., Chem. Eng. J. 445 (2022) 136687.

[19]

S. Mou, T. Wu, J. Xie, et al., Adv. Mater. 31 (2019) 1903499.

[20]

A.T. To, M.A. Arellano-Treviño, C.P. Nash, D.A. Ruddy, J. CO2 Utiliz. 66 (2022) 102261.

[21]

G. Bonura, S. Todaro, V. Middelkoop, et al., J. CO2 Utiliz. 70 (2023) 102458.

[22]

M.S. Duyar, M.A.A. Treviño, R.J. Farrauto, Appl. Catal. B: Environ. 168-169 (2015) 370–376.

[23]

M.S. Duyar, S.X. Wang, M.A. Arellano Treviño, R.J. Farrauto, J. CO2 Utiliz. 15 (2016) 65–71.

[24]

M.A. Arellano Treviño, N. Kanani, C.W. Jeong Potter, R.J. Farrauto, Chem. Eng. J. 375 (2019) 121953.

[25]

J. Chen, Y. Xu, P. Liao, H. Wang, H. Zhou, Carbon Capt. Sci. Technol. 4 (2022) 100052.

[26]

L. Jiang, A. Gonzalez Diaz, J. Ling Chin, A.P. Roskilly, A.J. Smallbone, Appl. Energy 245 (2019) 1–15.

[27]

R.M. Firdaus, A. Desforges, A. Rahman Mohamed, B. Vigolo, J. Clean. Prod. 328 (2021) 129553.

[28]

Y. Belmabkhout, V. Guillerm, M. Eddaoudi, Chem. Eng. J. 296 (2016) 386–397.

[29]

X. Hou, L. Zhuang, B. Ma, et al., Chem. Eng. Sci. 181 (2018) 315–325.

[30]

C. Chen, D.W. Park, W.S. Ahn, Appl. Surf. Sci. 292 (2014) 63–67.

[31]

Y.J. Heo, S.J. Park, Energy 91 (2015) 142–150.

[32]

S. Wang, S. Yan, X. Ma, J. Gong, Energy Environ. Sci. 4 (2011) 3805–3819.

[33]

W. Liu, Y.F. Cai, M.J. Luo, Y. Yang, P. Li, Ind. Eng. Chem. Res. 61 (2022) 2882–2893.

[34]

H. Sun, Y. Wang, S. Xu, et al., Fuel 286 (2021) 119308.

[35]

T. Harada, F. Simeon, E.Z. Hamad, T.A. Hatton, Chem. Mater. 27 (2015) 1943–1949.

[36]

C.H. Huang, K.P. Chang, C.T. Yu, P.C. Chiang, C.F. Wang, Chem. Eng. J. 161 (2010) 129–135.

[37]

M. Yusuf, M. Beg, M. Ubaidullah, et al., Int. J. Hydrogen Energy 47 (2022) 42150–42159.

[38]

J. Huang, X. Li, X. Wang, et al., J. CO2 Utiliz. 33 (2019) 55–63.

[39]

X. Qingli, Z. Zhengdong, H. Kai, et al., Int. J. Hydrogen Energy 46 (2021) 27380–27393.

[40]

S.J. Gregg, J.D. Ramsay, J. Chem. Soc. A: Inorg. Phys. Theor. A (1970) 2784–2787.

[41]

W.J. Liu, H. Jiang, K. Tian, Y.W. Ding, H.Q. Yu, Environ. Sci. Technol. 47 (2013) 9397–9403.

[42]

H. Yu, X. Wang, Z. Shu, M. Fujii, C. Song, Front. Chem. Sci. Eng. 12 (2018) 83–93.

[43]

P. Hu, S. Wang, Y. Zhuo, Sep. Purif. Technol. 287 (2022) 120518.

[44]

W. Gao, T. Zhou, Y. Gao, et al., J. Energy Chem. 26 (2017) 830–838.

[45]

I. Fongkaew, B. Yotburut, W. Sailuam, et al., Sci. Rep. 12 (2022) 10063.

[46]

S. Petnikota, N.K. Rotte, M.V. Reddy, V.V.S.S. Srikanth, B.V.R. Chowdari, ACS Appl. Mater. Interfaces 7 (2015) 2301–2309.

[47]

Z. Liu, Z. Yin, C. Cox, et al., Sci. Adv. 2 (2016) e1501425.

[48]

M.R. Bindhu, M. Umadevi, M. Kavin Micheal, M.V. Arasu, N. Abdullah Al-Dhabi, Mater. Lett. 166 (2016) 19–22.

[49]

G. Bang, K.M. Kim, S. Jin, C.H. Lee, Chem. Eng. J. 433 (2022) 134607.

[50]

H. Bekhti, H. Bouchafaa, R. Melouki, A. Travert, Y. Boucheffa, Microporous Mesoporous Mater. 294 (2020) 109866.

[51]

S.W. Bian, J. Baltrusaitis, P. Galhotra, V.H. Grassian, J. Mater. Chem. 20 (2010) 8705–8710.

[52]

A. Dal Pozzo, A. Armutlulu, M. Rekhtina, P.M. Abdala, C.R. Müller, ACS Appl. Energy Mater. 2 (2019) 1295–1307.

[53]

G.B. Elvira, G.C. Francisco, S.M. Victor, M.L. Raul Alberto, J. Environ. Sci. 57 (2017) 418–428.

[54]

Y. González, A. Navarra, R.I. Jeldres, N. Toro, Hydrometallurgy 201 (2021) 105573.

[55]

J. Yu, J. Qian, F. Wang, et al., Constr. Build. Mater. 253 (2020) 119147.

[56]

E. Florez, P. Fuentealba, F. Mondragón, Catal. Today 133-135 (2008) 216–222.

[57]

Y.D. Ding, G. Song, X. Zhu, R. Chen, Q. Liao, RSC Adv. 5 (2015) 30929–30935.

[58]

A.R. Millward, O.M. Yaghi, J. Am. Chem. Soc. 127 (2005) 17998–17999.

[59]

S.Y. Lee, S.J. Park, J. Ind. Eng. Chem. 23 (2015) 1–11.

[60]

H. Sharma, A. Dhir, Environ. Chem. Lett. 19 (2021) 851–873.

[61]

H.X. Fan, T.Y. Cui, A. Rajendran, et al., Catal. Today 356 (2020) 535–543.

[62]

M.A. Manae, L. Dheer, S. Rai, S. Shetty, U.V. Waghmare, Phys. Chem. Chem. Phys. 24 (2022) 1415–1423.

[63]

G. Pacchioni, Surf. Sci. 281 (1993) 207–219.

[64]

D. Cornu, H. Guesmi, J.M. Krafft, H.L. Pernot, J. Phys. Chem. C 116 (2012) 6645–6654.

[65]

M.B. Jensen, L.G.M. Pettersson, O. Swang, U. Olsbye, J. Phys. Chem. B 109 (2005) 16774–16781.

[66]

W. Gao, T. Zhou, Q. Wang, Chem. Eng. J. 336 (2018) 710–720.

[67]

K. Zhang, X.S. Li, W.Z. Li, et al., Adv. Mater. Interf. 1 (2014) 1400030.

[68]

J. Fagerlund, J. Highfield, R. Zevenhoven, RSC Adv. 2 (2012) 10380–10393.

[69]

G. Song, Y.D. Ding, X. Zhu, Q. Liao, Colloids Surf. A: Phys. Eng. Asp. 470 (2015) 39–45.

[70]

H. Burri, R. Anjum, R.B. Gurram, et al., Korean J. Chem. Eng. 36 (2019) 1482–1488.

[71]

Y.J. Heo, S.J. Park, Sci. Rep. 7 (2017) 5653.

[72]

Y.D. Ding, X.X. Zhao, L. Chen, et al., Ind. Eng. Chem. Res. 60 (2021) 5310–5318.

[73]

V. Hiremath, R. Shavi, J.G. Seo, J. Colloid Interf. Sci. 498 (2017) 55–63.

[74]

Z. Zhang, J. Li, J. Sun, et al., Ind. Eng. Chem. Res. 55 (2016) 7880–7887.

[75]

M. Bhagiyalakshmi, J.Y. Lee, H.T. Jang, Int. J. Greenh. Gas Control 4 (2010) 51–56.

[76]

A. Hanif, S. Dasgupta, A. Nanoti, Ind. Eng. Chem. Res. 55 (2016) 8070–8078.

[77]

A. Hanif, M. Sun, Z. Tao, et al., ACS Appl. Nano Mater. 2 (2019) 6565–6574.

[78]

H. Jeon, Y.J. Min, S.H. Ahn, et al., Colloids Surf. A: Physicochem. Eng. Asp. 414 (2012) 75–81.

[79]

V. Hiremath, B.T. Shiferraw, J.G. Seo, J. CO2 Utiliz. 42 (2020) 101294.

[80]

K.K. Han, Y. Zhou, Y. Chun, J.H. Zhu, J. Hazard. Mater. 203 (2012) 341–347.

[81]

S. Jin, G. Bang, L. Liu, C.H. Lee, Microporous Mesoporous Mater. 288 (2019) 109587.

[82]

A. Zukal, J. Pastva, J. Cejka, Microporous Mesoporous Mater. 167 (2013) 44–50.

[83]

J.S. Kwak, K.Y. Kim, K.R. Oh, Y.U. Kwon, Int. J. Greenh. Gas Control 81 (2019) 38–43.

[84]

Y.Y. Li, X.Y.M. Dong, X.D. Sun, Y. Wang, J.H. Zhu, ACS Appl. Mater. Interf. 8 (2016) 30193–30204.

[85]

Y. Hu, Y. Guo, J. Sun, H. Li, W. Liu, J. Mater. Chem. A 7 (2019) 20103–20120.

[86]

C. Patchanee, L.T.T. Mai, T. Ikeda, M. Priyank, J. CO2 Utiliz. 51 (2021) 101652.

[87]

J.L. Chen, X.Y.M. Dong, C.L. Shi, et al., Clean-Soil Air Water 47 (2019) 1800447.

[88]

N.N.A.H. Meis, J.H. Bitter, K.P. de Jong, Ind. Eng. Chem. Res. 49 (2010) 1229–1235.

[89]

V. Hiremath, R. Shavi, J.G. Seo, Chem. Eng. J. 308 (2017) 177–183.

[90]

W. Ueda, T. Yokoyama, Y. Morooka, T. Ikawa, Chem. Lett. 14 (1985) 1059–1062.

[91]

P.Q. Lan, S.F. Wu, Chem. Eng. Technol. 37 (2014) 580–586.

[92]

H. Liu, K. Wang, X. Cao, J. Su, Z. Gu, RSC Adv. 11 (2021) 12532–12542.

[93]

Y.Y. Li, M.M. Wan, X.D. Sun, et al., J. Mater. Chem. A 3 (2015) 18535–18545.

[94]

J.M. Jang, S.G. Kang, ACS Sustain. Chem. Eng. 7 (2019) 16979–16984.

[95]

K. Kim, J.W. Han, K.S. Lee, W.B. Lee, Phys. Chem. Chem. Phys. 16 (2014) 24818–24823.

[96]

P. Hu, S. Wang, Y. Zhuo, Sep. Purif. Technol. 276 (2021) 119323.

[97]

P. Hu, S. Wang, Y. Zhuo, Sep. Purif. Technol. 284 (2022) 120253.

[98]

C.H. Lee, H.J. Kwon, H.C. Lee, et al., Chem. Eng. J. 294 (2016) 439–446.

[99]

W. Dong, X.P. Chen, F. Yu, Y. Wu, Energy Fuels 29 (2015) 968–973.

[100]

A.T. Vu, Y. h. Park, P.R. Jeon, C.H. Lee, Chem. Eng. J. 258 (2014) 254–264.

[101]

S.C. Lee, S.H. Cha, Y.M. Kwon, et al., Korean J. Chem. Eng. 33 (2016) 3448–3455.

[102]

J. Wang, M. Li, P. Lu, P. Ning, Q. Wang, Chem. Eng. J. 392 (2020) 123752.

[103]

Y.Q. Qiao, J.Y. Wang, Y. Zhang, et al., Ind. Eng. Chem. Res. 56 (2017) 1509–1517.

[104]

W. Gao, M.A. Vasiliades, C.M. Damaskinos, et al., Environ. Sci. Technol. 55 (2021) 4513–4521.

[105]

X. Zhao, G.Z. Ji, W. Liu, et al., Chem. Eng. J. 332 (2018) 216–226.

[106]

J. Ding, C. Yu, J.F. Lu, et al., Appl. Energy. 263 (2020) 114681.

[107]

A.K. Prashar, H. Seo, W.C. Choi, et al., Energy Fuels 30 (2016) 3298–3305.

[108]

W. Gao, J. Xiao, Q. Wang, et al., Adv. Mater. 34 (2022) 2106677.

[109]

Y.H. Zheng, J.Y. Wu, L.J. Zhang, et al., Chem. Eng. J. 450 (2022) 137944.

[110]

H. Dong, H.J. Cui, Z.M. Zhou, Chem. Eng. J. 442 (2022) 136133.

[111]

W. Gao, T. Zhou, Y. Gao, Q. Wang, W. Lin, Energy Fuels 33 (2019) 1704–1712.

[112]

C.D. Daub, G.N. Patey, D.B. Jack, A.K. Sallabi, J. Chem. Phys. 124 (2006) 114706.

[113]

L. Zhang, Y. Zheng, Y. Guo, et al., ACS Appl. Energy Mater. 4 (2021) 9513–9524.

[114]

T. Harada, T.A. Hatton, Chem. Mater. 27 (2015) 8153–8161.

[115]

K. Wang, Y.W. Zhao, P.T. Clough, P.F. Zhao, E.J. Anthony, Chem. Eng. J. 372 (2019) 886–895.

[116]

Y.D. Ding, G. Song, Q. Liao, X. Zhu, R. Chen, Energy 112 (2016) 101–110.

[117]

R.V. Siriwardane, R.W. Stevens Jr., Ind. Eng. Chem. Res. 48 (2009) 2135–2141.

[118]

N. Yang, P. Ning, K. Li, J. Wang, J. Taiwan Inst. Chem. Eng. 86 (2018) 73–80.

[119]

S. Wu, B.T. Tan, H.L. Senevirathna, P. Wu, Appl. Surf. Sci. 562 (2021) 150187.

[120]

A. Czyżewski, J. Kapica, D. Moszyński, R. Pietrzak, J. Przepiórski, Chem. Eng. J. 226 (2013) 348–356.

[121]

S. Sun, H. Sun, P.T. Williams, C. Wu, Sustain. Energy Fuels 5 (2021) 4546–4559.

[122]

M. Liu, P. Zhao, W. Zhang, et al., Fuel 315 (2022) 123230.

[123]

J. Liu, C. Chen, K. Zhang, L. Zhang, Chin. Chem. Lett. 32 (2021) 649–659.

[124]

M. Liu, C. Ma, X. Cheng, et al., Sep. Purif. Technol. 317 (2023) 123937.

[125]

X. Shi, L.N.Y. Cao, M. Chen, Y. Huang, Chin. Chem. Lett. 33 (2022) 5023–5029.

[126]

X.J. Shi, Y. Huang, Y.A. Bo, et al., Angew. Chem. Int. Ed. 61 (2022) e202203063.

[127]

Y. Varun, I. Sreedhar, S.A. Singh, Int. J. Hydrogen Energy 45 (2020) 28716–28731.

[128]

P. Huang, Y.F. Guo, G.D. Wang, et al., Energy Fuels 35 (2021) 20185–20196.

[129]

H.M. Sun, Y. Zhang, S.L. Guan, J. Huang, C.F. Wu, J. CO2 Utiliz. 38 (2020) 262–272.

[130]

S.J. Park, M.P. Bukhovko, C.W. Jones, Chem. Eng. J. 420 (2021) 130369.

[131]

T.A. Le, M.S. Kim, S.H. Lee, T.W. Kim, E.D. Park, Catal. Today 293-294 (2017) 89–96.

[132]

C.J. Potter, A. Porta, R. Matarrese, et al., Appl. Catal. B: Environ. 310 (2022) 121294.

[133]

M.A. Arellano Treviño, Z.Y. He, M.C. Libby, R.J. Farrauto, J. CO2 Utiliz. 31 (2019) 143–151.

[134]

W. Wang, S. Wang, X. Ma, J. Gong, Chem. Soc. Rev. 40 (2011) 3703–3727.

[135]

C.H. Tan, S. Nomanbhay, A.H. Shamsuddin, et al., Front. Energy Res. 9 (2022) 795423.

[136]

J. Liu, C. Li, F. Wang, et al., Catal. Sci. Technol. 3 (2013) 2627–2633.

[137]

S. Natesakhawat, R.B. Watson, X. Wang, U.S. Ozkan, J. Catal. 234 (2005) 496–508.

[138]

M.W. Tan, X.G. Wang, X.X. Wang, et al., J. Catal. 329 (2015) 151–166.

[139]

D. Hu, J. Gao, Y. Ping, et al., Ind. Eng. Chem. Res. 51 (2012) 4875–4886.

[140]

L. Xu, F. Wang, M. Chen, et al., RSC Adv. 7 (2017) 18199–18210.

[141]

A.I. Tsiotsias, N.D. Charisiou, I.V. Yentekakis, M.A. Goula, Catalysts 10 (2020) 812.

[142]

J.J. Tan, J.M. Wang, Z.Y. Zhang, et al., Appl. Surf. Sci. 481 (2019) 1538–1548.

[143]

C.J. Liu, J.Y. Ye, J.J. Jiang, Y.X. Pan, ChemCatChem 3 (2011) 529–541.

[144]

Y. Yan, Y. Dai, H. He, Y. Yu, Y. Yang, Appl. Catal. B: Environ. 196 (2016) 108–116.

[145]

P. Huang, J. Chu, J. Fu, et al., Chem. Eng. J. 467 (2023) 143431.

[146]

A. Ranjbar, S.F. Aghamiri, A. Irankhah, Int. J. Hydrogen Energy 48 (2023) 19115–19125.

Appendix

Less

Year 2024 volume 35 Issue 5

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2023.108954

Receive Date：2023-05-16
Online Date：2025-11-21
Published：2024-05-15

Article Data

Affiliations

History

Received：2023-05-16
Revised：2023-07-29
Accepted：2023-08-21

Affiliations

^a Key Laboratory of Aerosol Chemistry & Physics, State Key Laboratory of Loess and Quaternary Geology (SKLLQG), Institute of Earth Environment, Chinese Academy of Sciences (CAS), Xi'an 710061, China

^b Center for Excellence in Quaternary Science and Global Change, Chinese Academy of Sciences, Xi'an 710061, China

^c University of Chinese Academy of Sciences, Beijing 100049, China

^d Department of Environmental Science and Engineering, Xi' an Jiaotong University, Xi'an 710049, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2023.108954

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1 Comparison of CO₂ adsorption capacity on different solid adsorbents.

Table 2 Effect of change in specific surface area and pore volume on adsorption capacity of MgO based adsorbents at different temperature.

Table 3 CO₂ adsorption capacities of MgO adsorbents promoted by alkali metal salts at ~300 ℃.

Table 4 Adsorption-catalytic capacity of DFMs based on MgO as adsorbents at ~300 ℃.

Fig. 1 CO₂ adsorption model at different positions on MgO surface ((front (left) and top (right) view): (a) MgO/CaO terrace site; (b) MgO/CaO edge site; (c) MgO/CaO corner sites) and bidentate carbonate formed at corner site of O_3c sites (d). Copied with permission [65]. Copyright 2005, American Chemical Society.

Fig. 5 Different loading of unitary salts (a) (Copied with permission [104]. Copyright 2021, American Chemical Society) and multicomponent salts versus CO₂ adsorption in 300 ℃ (b). Copied with permission [103]. Copyright 2017, American Chemical Society.

Fig. 6 Kinetic process of nitrate promoting MgO to adsorb CO₂ (d): (a) Surface adsorption process; (b) Nucleation and growth of MgCO₃ phase; (c) Diffusion of CO₂ in MgCO₃ layer. Copied with permission [104]. Copyright 2021, American Chemical Society.

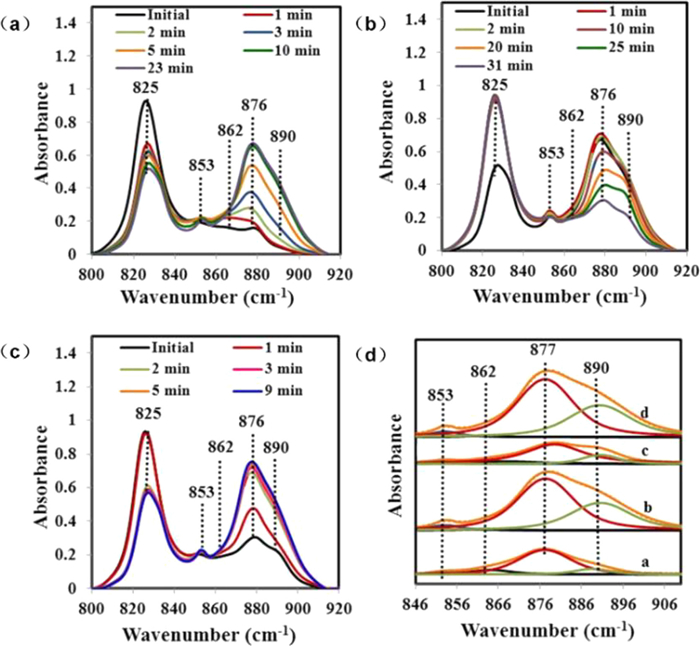

Fig. 7 IR spectral changes in CO₂ adsorption (a), desorption (b) and re-adsorption (c) by NaNO₃-Promoted MgO and deconvolution (d) of carbonate peaks at various intervals (2 min in CO₂ (curve a), 23 min in CO₂ (curve b), after 30 min in He during partial desorption (curve c), and after 9 min in CO₂ during re-adsorption (curve d)). Copied with permission [107]. Copyright 2016, American Chemical Society.

Fig. 8 CO₂ adsorption capacity of unitary salts (a) (Copied with permission [104]. Copyright 2021, American Chemical Society) and multicomponent salts (b) in different temperature. Copied with permission [103]. Copyright 2017, American Chemical Society.

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
