Lithium-sulfur (Li-S) batteries are promising for the next generation energy storage devices, due to their lightweight design of cells without special thermal management, high security, superior cycling life and environment-friendly traits [1–3]. However, the "shuttle effect" and sluggish reaction kinetics hinder their commercialization and large-scale applications [4]. During cycling, lithium polysulfides (LiPSs) migrate easily between the positive and negative electrode, driven by the concentration gradient and electric field. This results in a dramatic specific capacity loss, low sulfur utilization and corrosion of the lithium metal surface, which not only restrains the formation of a stable solid electrolyte interphase (SEI) but also increases the security risks of the cells [5–7]. On the other hand, sulfur (S₈), Li₂S₂, and Li₂S are poor ionic and electronic conductors [8,9]. Therefore, the effective transport of electrons and ions during the redox reactions are impeded, leading to slow reaction kinetics, large cell polarization, low sulfur utilization and poor rate capability [10–12].

Integrating sulfur with functional materials that feature chemical/physical adsorption and electrocatalytically accelerating the conversion of polysulfides has been validated a root remedy for suppressing its "shuttle effect" and lowing the energy barrier, thus improve cell performance. Recently, various strategies were proposed to settle the above-mentioned issues regarding the material and structural designs [13–16]. Among them, a convenient and effective method to deal with the detrimental "shuttle effect" is to anchor the LiPSs and facilitate a rapid conversion from S₈ to Li₂S [17,18]. Different microstructured (CNT, graphene, 3D carbonaceous gel, etc.) and functionalized carbon materials (doping with N, S, B, etc.) are known to suppress the LiPSs shuttling [19–22]. However, insufficient adsorption sites for LiPSs inhibit the catalytic efficiency. As the conversion between elemental sulfur and LiPSs is a solid-liquid phase transition process, LiPSs can be chemically deposited to form Li₂S, as well as be converted into each other through chemical reactions. Therefore, another strategy to improve the redox reaction kinetics was proposed by the addition of catalytic additives in sulfur hosts [23], electrolytes [24,25], and interlayers [15]. In this regard, metal nano particles (Pt, Ni), single metal-atom doped materials [26,27] and other metal compounds (TiO₂ [28], MoS₂ [18], MXene [29,30], MoN-VN [31]) have shown great potential. Particularly, the metal compounds not only possess high capture abilities to LiPSs, but also reduce the reaction energy barrier of the LiPSs conversion, rendering rapid transport of electrons and efficient utilization of active substances.

Studies correlated with catalytic materials used in Li-S batteries nowadays mainly focus on transition metal elements [32–34], less attentions have been paid on other metals, especially rare earth metal compounds. Compared to the d-block elements, the rare earth (RE) elements possess a unique electronic configuration of [Xe]4fⁿ⁻¹5d⁰⁻¹⁶s² (n = 1-15) that the unpaired 4f electrons of RE³⁺ do not get involved in the chemical bonding and give rise to special properties, such as luminescence, magnetic moments, catalytic, energy conversion [35,36]. Recently, the significant enhancement of RE oxides, on the chemical adsorption and reaction kinetics of LiPSs was demonstrated, such as La₂O₃ [37], Nd₂O₃ [38], and Y₂O₃ [38]. Among the compounds based on RE elements, layered rare-earth hydroxides (LREHs), an intriguing system of layered host compounds containing lanthanide cations in the host layer, has been explored to offer unique opportunities for functional applications. The general formula of LREHs can be described as: Ln₈(OH)₂₀A·nH₂O (Ln = Nd, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tm and Y; A = NO₃, Cl, SO₄) [39,40], the two-dimensional channels with various interlayer spacing of the structure could optimize the ion transport for fast reaction kinetics, providing tunable physical and chemical properties for catalyst design [41,42].

Here, we report a novel LGdH@GO modified polypropylene (PP) separator that exploit a new catalytic combination for Li-S batteries. Specifically, layered gadolinium hydroxy chlorides [Gd₂(OH)₅(H₂O)_n]Cl nanoplates (LGdH NPs) were synthesized under controllable strategies in order to catalyze the LiPSs conversion, while GO acted as a sulfur immobilizer, which endowed better cell performance with enhanced utilization of active material, improved reaction kinetics and rate capability. The LGdH@GO modified separators delivered an excellent discharging capacity of 1039 mAh/g with commercial sulfur particles at the current density of 0.2 C. Moreover, it retained a discharging capacity of 846.8 mAh/g after 100 cycles, and an excellent cycle stability with a decay rate of 0.087% over 500 cycles at 2 C. Benefiting from the first-principal calculations, the chemical evolution of each component can be examined, from which the chemical adsorption and catalytic conversion of polysulfides by LGdH@GO will be verified and studied.

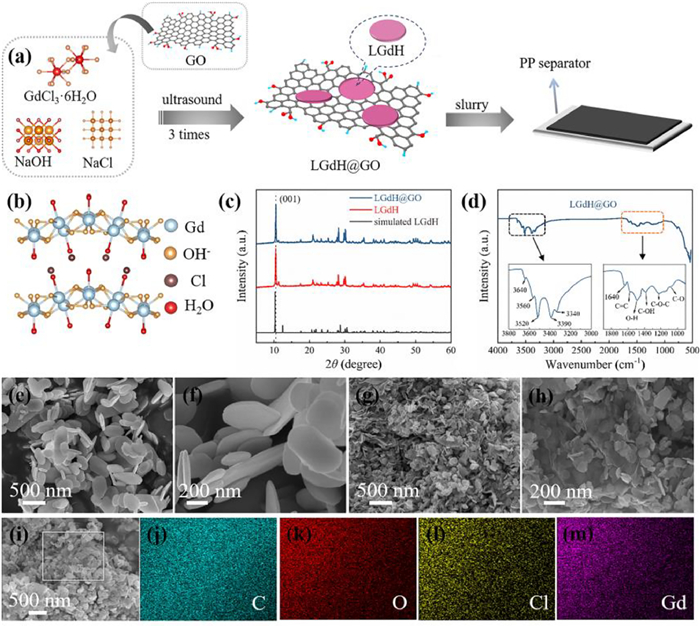

The synthesis process for the LGdH@GO composite is illustrated in Fig. 1a. The LGdH and LGdH@GO composite were synthesized by hydrothermal method using GdCl₃·6H₂O, NaOH, NaCl, and graphene oxide as raw materials. The detailed preparation process is shown in the Experimental Section in Supporting information. The atomic structure (Fig. 1b) illustrates that the LGdH possesses a zigzag-like layered structure comprising a positively charged [Gd₈(OH)₂₀(H₂O)_n]⁴⁺ and interlayered Cl ions. The model atoms position of [Gd₂(OH)₅(H₂O)_n]Cl are shown in Table S1 (Supporting information). Gd centered in the main layer, tricapped by Cl and OH groups, the adjacent layers are piled up and stabilized by crystal water molecules and Cl ions [43]. The X-ray diffraction patterns of prepared samples are displayed in Fig. 1c. Almost all the observed diffraction peaks can be well indexed by the orthorhombic LREHs unit cell with lattice parameters of a = 12.64 Å, b = 7.13 Å and c = 8.59 Å [44], and a (001) diffraction at 2θ ≈ 10.54° indicates an interlayer distance of 8.39 Å. Taking the simulated XRD pattens as a reference, the shoulder peak besides the (001) diffraction peak indicates the presence of an unidentified coexisting phase introduced during synthesis [39,45]. Since the low- and high-hydration phase of LGdH is interconvertible at different humidity levels, thermogravimetric analysis (TGA) of LGdH and LGdH@GO (Fig. S1 in Supporting information) was performed to help further evaluate intercalated water molecules (n = 1.4) [43,45]. The Fourier transform infrared spectrometer (FT-IR) spectrum of LGdH@GO is shown in Fig. 1d. Based on the structural consideration of LGdH, the two sets of bands around 3600 cm⁻¹ (3640, 3560 and 3520 cm⁻¹) and 3350 cm⁻¹ (3390 and 3340 cm⁻¹) can be accordingly attributing to the symmetrical and asymmetrical O−H stretching vibrations of intralayer -OH groups and hydrogen-bonded interlayer water molecules, respectively. A band at 1640 cm⁻¹ is assigned to the bending mode of water molecules, and the bands below 1000 cm⁻¹ are Gd–O vibration modes [40,44,46]. Also, a band in the FT-IR spectrum consisting of fine structures from 1000 cm⁻¹ to 1600 cm⁻¹ is associated with stretching vibration of C=C, C–O, C–OH groups of GO, indicating the incorporation of GO. The Raman spectrum of LGdH@GO (Fig. S2 in Supporting information) in 1250–1650 cm^–1 reveals the characteristic D and G band peaks at 1361.5 and 1613.5 cm^–1, assigning to disordered non-sp² stretching mode and ordered graphitic sp² stretching mode of GO, respectively [47].

In order to investigate the microstructure of each sample, scanning electron microscopy (SEM) and transmission electron microscope (TEM) characterizations have been carried out. As shown in Figs. 1e and f, pure LGdH reveals a well-developed plate-like microcrystalline morphology with a size distribution of 500 nm of average diameter and a thickness of about 50 nm, which is consistent with the characteristics of the layered compound. Upon combining LGdH with GO during synthesis, GO flakes can provide the sites for heterogeneous nucleation of LGdH. As a result, LGdH nanoplates are distributed on GO sheets with a reduced particle size of around 100 nm (Figs. 1g and h), which is beneficial for the enhancement of electrical conductivity attributed to the consecutive electronic pathway through the GO sheet. The elemental mapping by energy-dispersive X-ray spectroscopy (EDX) analysis (Figs. 1i-m) further confirm the uniform distribution of LGdH nanoplates on GO sheets. Figs. 2a-c show the TEM images of the LGdH and LGdH@GO, respectively. Pure LGdH exhibits Quasi-hexagonal-platelets morphology, which shares similar morphology with previous reports and suggests a high crystallinity, while nanoplates with reduced size and no obvious features can be observed with LGdH@GO [45]. The SAED pattern taken from an individual platelet of LGdH is clearly demonstrated in Figs. 2d and e [44,45]. In particular, the brighter spots were ascribed to a fundamental cell in a pseudohexagonal symmetry (af = 3.52 Å), whereas the arrangement in the reciprocal lattice corresponded to a rectangular supercell ( Å; bs = 2 af = 7.04 Å). Notably, there is slight deviations of the estimated lattice results from simulated parameters.

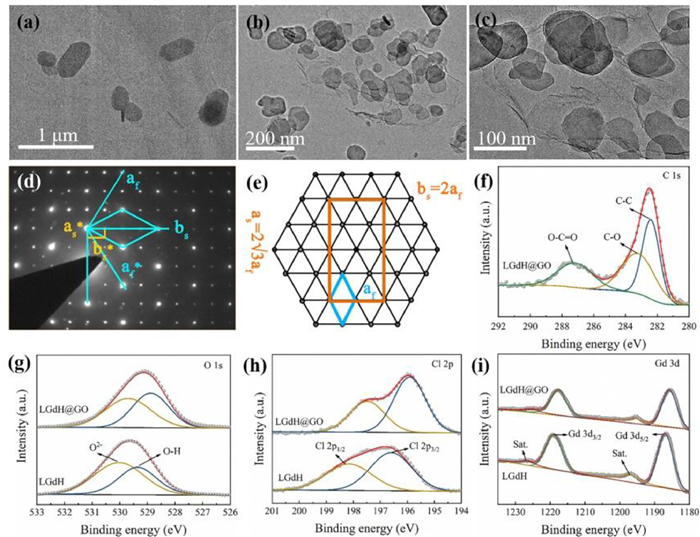

The specific surface areas (Fig. S3 in Supporting information) of LGdH and LGdH@GO were measured as 15.16 and 54.06 m²/g, respectively, which indicates the enhancement in the adsorption ability to LiPSs. The chemical compositions of the two samples were also evaluated using X-ray photoelectron spectroscopy (XPS). The peaks at 282.4, 283.3 and 287.2 eV of XPS spectrum of LGdH@GO (Fig. 2f) could be ascribed to C–C, C–O and O–C=O, respectively [48]. The existence of C–O and O–C=O confirmed the successful composite formation of LGdH with GO. The high-resolution XPS spectra in the O 1s region (Fig. 2g) exhibit two peaks at 529.3 and 530.1 eV, which are consistent with O–H and O^2–. In the Cl 2p region (Fig. 2h), there were two peaks at 196.3 and 197.7 eV, which are consistent with Cl 2p_3/2 and Cl 2p_1/2. The XPS spectra in the Gd 3d region (Fig. 2i) depicted two satellite peaks at 1197.2 and 1226.8 eV, and two characteristic peaks at 1186.9 and 1219.0 eV, which were attributed to Gd 3d_5/2 and Gd 3d_3/2, respectively. Notably, compared with LGdH, the O 1s and Cl 2p region of LGdH@GO shifted toward lower binding energy of around 0.4 eV, while about 1.2–1.4 eV shift toward lower binding energy for Gd 3d region of LGdH@GO, this indicates that there is stronger interaction between GO and Gd atoms.

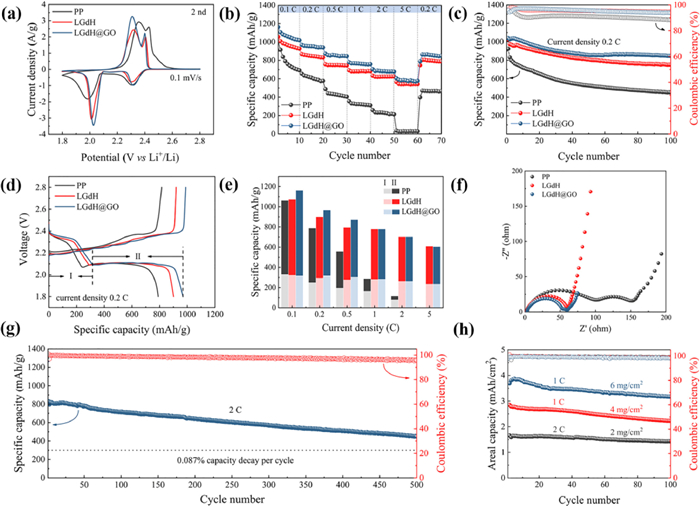

The electrochemical performances of LGdH and LGdH@GO were investigated by assembling Li-S batteries with LGdH and LGdH@GO modified separators. The cyclic voltammetry (CV) curves of various separators are shown in Fig. 3a at a scan rate of 0.1 mV/s between 1.8 V and 2.8 V. LGdH and LGdH@GO modified separators showed two reduction peaks at about 2.31 and 2.02 V, corresponding to the reduction of elemental sulfur to long-chain LiPSs (Li₂S_x, 4 ≤ x ≤ 8) and long-chain to short-chain LiPSs (Li₂S/Li₂S₂), respectively. The oxidation peaks at about 2.31 and 2.40 V could be ascribed to the reversible processes. Additionally, the second reduction peaks of modified separators shifted toward higher potential and became much stronger, which indicates a lower polarization and better sulfur utilization. These CV results clearly imply that the LGdH containing functional interlayer support better electrochemical kinetics for LiPSs conversion. The rate performances of PP, LGdH and LGdH@GO modified separators are shown in Fig. 3b at varying current densities from 0.1 C to 5 C. The LGdH@GO modified separator displayed better specific capacities compared with PP and LGdH separators, with values of 1163.26, 968.32, 872.52, 779.33, 703.77 and 605.34 mAh/g at 0.1, 0.2, 0.5, 1, 2 and 5 C, respectively. This indicates that LGdH@GO composite could effectively hinder the "shuttle effect" of the LiPSs. The galvanostatic discharge/charge (GDC) profiles at various current densities (Fig. S4 in Supporting information) were also used to further confirm the rate performances. As shown in Fig. 3c, PP showed a specific capacity of 924.4 mAh/g initially, but only 48.8% capacity (451.4 mAh/g) was retained after 100 cycles. In contrast, the LGdH and LGdH@GO modified separators demonstrated 73.6% (751.4 mAh/g) and 81.5% (846.3 mAh/g) retention of capacity after 100 cycles. The GDC profiles of various separators (Fig. 3d) at the current density of 0.2 C displayed two typical discharge plateaus corresponding to the conversion of sulfur (S₈) to long-chain LiPSs (Ⅰ) and long-chain LiPSs to short-chain LiPSs (Ⅱ), respectively. The specific capacities of all three separators faded with the increasing current density, due to the sluggish reduction kinetics of LiPSs. However, approximately 62% of discharge capacity was retained in the second plateau of LGdH, and LGdH@GO modified separators, even at a high current density of 5 C (Fig. 3e and Table S2 in Supporting information) [49]. The electrochemical impedance spectra (EIS) were also measured to further explore the electrochemical performances of the modified separators. The Nyquist plots of modified separators (Fig. 3f) were composed of a semicircle in the high frequency and a straight line in the low frequency, which were ascribed to charge transfer resistance (R_CT) and ion diffusion resistance, respectively [9]. Notably, the PP separator showed much larger R_CT with two semicircles in the high frequency because of its poor electronic conductivity. The R_CT was the smallest for LGdH@GO modified separator due to the synergistic effect of LGdH nanoplates and graphene oxide. The commercialization of Li-S batteries requires long-term cycling stability and high areal capacity. The long-term cycling stability of LGdH@GO (Fig. 3g) with a sulfur loading of 2 mg/cm² was measured at the current density of 2 C. It exhibited an initial specific capacity of 797.4 mAh/g at 2 C after one cycle of activation at 0.1 C. After 500 cycles, it maintained a considerable specific capacity of 449.6 mAh/g, accompanied by a high coulombic efficiency of 96%. The specific capacity retention was calculated as 56.4%, and the corresponding capacity decay rate of 0.087% per cycle, revealing an excellent cycling performance of the LGdH@GO modified separator. Its cycling performances at a current density of 1 C with higher sulfur loadings of 4 and 6 mg/cm² was also tested (Fig. 3h). A high initial specific capacity of 2.85 and 3.69 mAh/cm² was obtained with one cycle of activation at 0.2 C for samples with 4 and 6 mg cm² of sulfur loadings, respectively, which retained areal capacities of 2.23 and 3.17 mAh/cm² after 100 cycles at 1 C, indicating a promising potential in Li-S batteries applications.

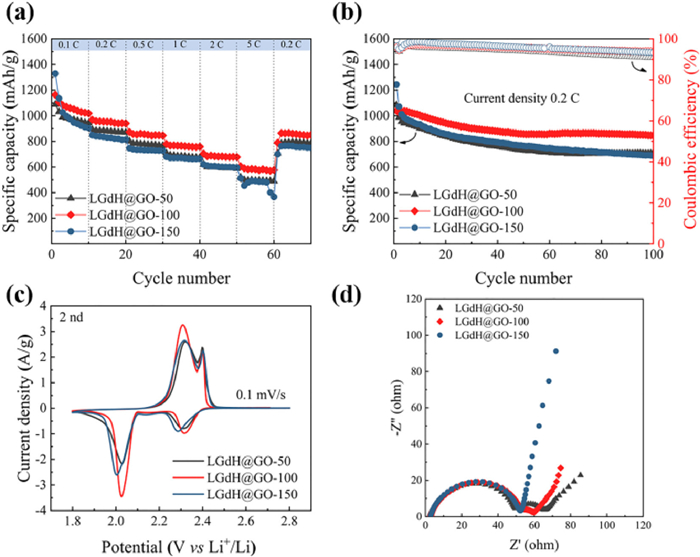

Various thicknesses of the LGdH@GO coatings (LGdH@GO-50, 100 and 150) were also prepared for further investigation. The surface morphology and actual thicknesses of LGdH@GO-50, LGdH@GO-100 and LGdH@GO-150 were measured (Figs. S5 and S6, Table S3 in Supporting information) as 19.29, 35.48 and 43.57 µm, respectively. The rate performances of different separators at various current densities are shown in Fig. 4a. LGdH@GO-100 exhibited considerable discharge capacities of 1163.26 mAh/g at 0.1 C and 605.34 mAh/g even at the current density of 5 C. The LGdH@GO-150 showed higher initial capacities of 1329.4 mAh/g at 0.1 C, but with degraded cycling stability. The cycling performances of the samples with various thicknesses were measured at the current density of 0.2 C (Fig. 4b). A superior initial specific capacity of 1039 mAh/g and retention of 846.8 mAh/g after 100 cycles were exhibited by the LGdH@GO-100. In contrast, despite exhibiting the highest initial discharge capacity of 1243.8 mAh/g, the cycling performance of the LGdH@GO-150 retained only 688.4 mAh/g after 100 cycles. The CV curves of interlayers of different thicknesses (Fig. 4c) were measured at a scan rate of 0.1 mV/s. The LGdH@GO-100 delivered stronger redox peaks, corresponding to better utilization of elemental sulfur and a smaller polarization. Fig. 4d shows the EIS spectra of various thicknesses of LGdH@GO modified separators. Notably, LGdH@GO-50 and LGdH@GO-100 exhibited two semicircles in the high frequency, whereas LGdH@GO-150 showed only one semicircle. This can be ascribed to better electronic conductivity for the thicker LGdH@GO coatings. In particular, the optimization of thickness plays a significant role in improving the electrochemical performances in terms of catalytic activity. Consequently, a much thicker LGdH@GO would limit the ion transport, resulting in a worse electrochemical performance.

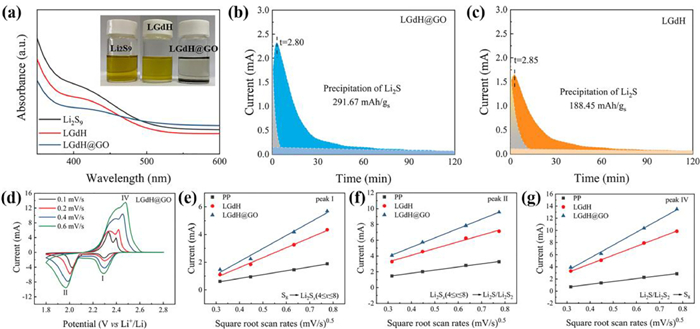

The adsorption abilities of LGdH and LGdH@GO were assessed by the static polysulfide adsorption test [50]. The interaction between the two samples and LiPSs was verified by a visual distinction using the Li₂S₉ solution. Briefly, a certain amount of LGdH and LGdH@GO powders were separately added into 3 mL 2 mmol/L Li₂S₉ solution. The pronounced adsorption ability to LiPSs of GO has been well verified previously as a result of the abundant functional groups on the surface. As shown in Fig. S7 (Supporting information), solution with 20 mg LGdH@GO turned colorless after 24 h of static adsorption, while for 20 mg LGdH, the color change was not obvious indicating the weaker LiPSs adsorption of LGdH. When increasing the amount of LGdH to 100 mg, the faded solution was mainly due to the raising particle surface area. Quantitative analysis of the adsorption of the LiPSs was provided by ultraviolet (UV)-visible spectroscopic measurements. The observed peak intensity of LGdH@GO was much lower compared with LGdH, which indicated a better polysulfide adsorption ability of LGdH@GO (Fig. 5a). A simple potential discharge experiment corresponding to the nucleation of Li₂S was measured (Figs. 5b and c) to further investigate the ability of LGdH and LGdH@GO in accelerating the liquid-solid conversion progress. A similar growth time of about 3 min was found for both LGdH and LGdH@GO, indicating that LGdH takes main responsibility for the rapid kinetics of Li₂S precipitation. It is worth mentioning that, the capacity of precipitated Li₂S for LGdH@GO (291.67 mAh/g_s) was much higher than LGdH (188.45 mAh/g_s), and it delivered a higher current intensity, which indicates better Li₂S nucleation and more precipitation on LGdH@GO surface [49,51]. A pivotal parameter to reflect the conversion kinetics of lithium polysulfides is the diffusion coefficient of Li ions. The diffusion coefficient of Li ions for the LGdH@GO separator was evaluated from the CV curves (Fig. 5d) under varying scanning rates from 0.1 mV/s to 0.6 mV/s with a voltage range between 1.8 V to 2.8 V (vs. Li⁺/Li). Corresponding CV curves for PP and LGdH separators are shown in Figs. S8a and b (Supporting information). In addition, a linear correlation with the square root of the scan rates was found for the reduction peaks (peak Ⅰ and peak Ⅱ) and oxidation peak current (peak Ⅳ) of various separators, which was estimated based on Randles-Sevcik Eq. 1.

where I_p, n, A, D_Li⁺, C_Li⁺, and ν represent the peak current, electron charge number (n = 2), electrode area, diffusion coefficient of Li ions, the concentration of Li ions, and the scan rate, respectively [52,53]. Figs. 5e-g show the relationship between I_p and ν^0.5, and the slopes of the curves were positively correlated to D_Li⁺. The slopes of the modified separator were much higher than the PP separator in each redox peak. Additionally, the specific values of various separators at redox peaks are shown in Table 1. The LGdH@GO modified separator showed the highest diffusion coefficient of Li ions, which demonstrates a faster Li ion diffusivity and better LiPSs conversion kinetics compared to the commercial PP separators.

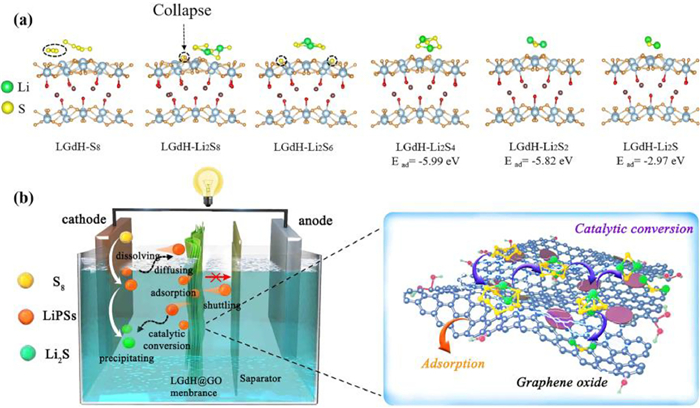

The chemical interaction between the LiPSs and LGdH was further investigated using the DFT simulations. The configurations of Li₂S, Li₂S₂, Li₂S₄, Li₂S₆, Li₂S₈ and S₈ on the LGdH (001) surface were chosen as the computational models [54]. Interestingly, S₈, Li₂S₈, and Li₂S₆ decomposed quickly when adsorbed on the LGdH surface as shown in Fig. 6a, indicating a strong catalytic ability on LiPSs conversion from the long-chain LiPSs into short-chain LiPSs. The relaxed configurations of Li₂S, Li₂S₂ and Li₂S₄ on LGdH (001) surface were shown in Fig. 6a and the corresponding binding energies were calculated to be –2.97, –5.82 and –5.99 eV, respectively, indicating a strong chemical adsorption [51]. The calculation results were in good agreement with the electrochemical measurements and the LiPSs adsorption experiment, which confirmed the ability of LGdH to accelerate the chemical reaction kinetics during the discharge/charge progress, leading to better electrochemical performances. The catalytic conversion mechanism of LiPSs to Li₂S for the presence of LGdH@GO modified separators is illustrated in Fig. 6b. While the pristine PP separator was only considered as an inhibitor for LiPSs, the LGdH@GO interlayer not only provided a strong chemical adsorption but also accelerate the catalytic redox conversion of LiPSs.

In summary, LGdH@GO composite was prepared using a simple hydrothermal method for the modification of the PP separators in Li-S batteries. The remarkable electrochemical performances of the LGdH@GO modified separator were confirmed by combining the experimental investigations and DFT calculations. The liquid-solid conversion of LiPSs was accelerated by the LGdH nanoplates due to their efficient electrocatalytic activity and strong chemical affinity to LiPSs. Moreover, benefiting from the fast transport channels for electrons/ions and abundant functional groups in company with the incorporation of GO, LGdH@GO composite helps further facilitates the reaction kinetics and enhances the adsorption ability toward LiPSs. Therefore, the LGdH@GO modified separator displayed excellent electrochemical performance, with values of 1163.26, 968.32, 872.52, 779.33, 703.77 and 605.34 mAh/g at the current densities of 0.1, 0.2, 0.5, 1, 2 and 5 C, respectively. Also, the LGdH@GO contributed to excellent cycling stability with a decay rate of only 0.087% over 500 cycles at a current density of 2 C. The current study demonstrated a novel strategy for the first application of LREHs in high-performance Li-S batteries due to their excellent electrocatalytic performance, the catalytic abilities of LGdH have also been systematically investigated, aiming to lay the foundation for the future application of LREHs in Li-S batteries.
