Photodynamic therapy (PDT) is an emerging treatment for tumor that depends on the interaction of photosensitizer (PS), light source and oxygen to produce highly toxic reactive oxygen species (ROS) [1,2]. The principle of PDT is that PS absorbs the energy of photons in a specific wavelength and transforms from ground state to excited singlet state (¹PS*) and then thrice excited triplet state (³PS*) by inter-systemic crossing (ISC), which generates reactive oxygen species by electron transfer or energy transfer with oxygen molecules, leading to apoptosis or necrosis of tumor cells then results in tumor cell death [3–6]. Compared with traditional treatments such as radiotherapy and chemotherapy, PDT has the advantages of good efficacy, low invasiveness, low systemic toxicity, low drug resistance and high selectivity, enabling it to become a research hotspot in the treatment of various tumors [7–10].

Porphyrins and their derivatives are a classical type of photosensitizers that have been extensively studied because of their widespread occurrence in nature and their excellent photophysical and photochemical properties [11–13]. Porphyrins have a large π-conjugated aromatic structure in their core, a large absorption peak with a large molar extinction coefficient in the visible region and high ROS yields. But π-π interactions between porphyrin molecules can result in aggregation and self-quenching under high concentrations, hindering ROS production. It is necessary to improve the self-quenching of porphyrins in order to enhance their biological activity in PDT [14,15]. The introduction of hydrophilic substituents through covalent linkages to avoid the aggregated self-quenching effect of porphyrins is a common and feasible class of methods [16–19]. It is still a challenge to develop a strategy that can effectively improve the photosensitive properties of porphyrins through a simple preparation process.

The use of photosensitizers in metal-organic cages (MOCs) for biomedical applications has attracted considerable attention in the past few years [20–22]. MOCs are easily functionalized by ligand modification and have a fixed stereospecific conformation that general metal complexes and ligands never provide. The presence of various non-covalent interactions, such as hydrogen bonding, π-π stacking, electrostatic interactions, hydrophobic or hydrophilic effects, gives MOCs excellent flexibility and more efficient application compared to conventional covalently linked complexes, offering great potential in various fields such as molecular identification [23], drug delivery [24], imaging or anti-cancer activity [25] and PDT [26,27]. In addition, discrete MOCs are prepared at the molecular level and tend to be distributed in sizes of a few nanometre. The larger size provides advantages for the MOCs in biology applications, such as promoting enhanced permeation and retention (EPR) effects in tumors to enhance drug uptake and release, which conforms to the ultimate goal of nanomedicine technology [28]. Through the application of metal-organic cages and improvements to porphyrin photosensitizers, incorporating porphyrins as building blocks in metal-organic cages and using them as precursors for constructing metal-organic cages has tremendous potential to enhance the efficacy of PDT.

In this work, the porphyrin ligand 5,10,15,20-tetra-(4-aminophenyl)porphyrin (TAPP) and ligand Zn-TAPP were synthesized and subsequently self-assembled by a one-pot method to generate a porphyrin-based cubic metal-organic cage C66. Compared with the ligand Zn-TAPP, the porphyrin hexahedral MOCs have improved molar extinction coefficients in the visible region, the potential metal heavy atom effect further enhances the ISC efficiency of the MOCs, the fixed spatial structure inhibits molecular aggregation, resulting in efficient light energy utilization and ROS generation. Characterization of the ability to generate reactive oxygen species in solutions of C66 and Zn-TAPP shows that C66 has a stronger ability to generate singlet oxygen and superoxide anion radicals, enabling it to rapidly provide large amounts of reactive oxygen for other reactions (Scheme 1). More significantly, C66 exhibits extreme photocytotoxicity to HeLa and MCF-7 cells after modification into nanoparticles, while being almost non-toxic under the dark conditions. Synthesizing and modifying a porphyrin-based metal-organic cage opens up a new strategy for PDT applications in vitro biological systems.

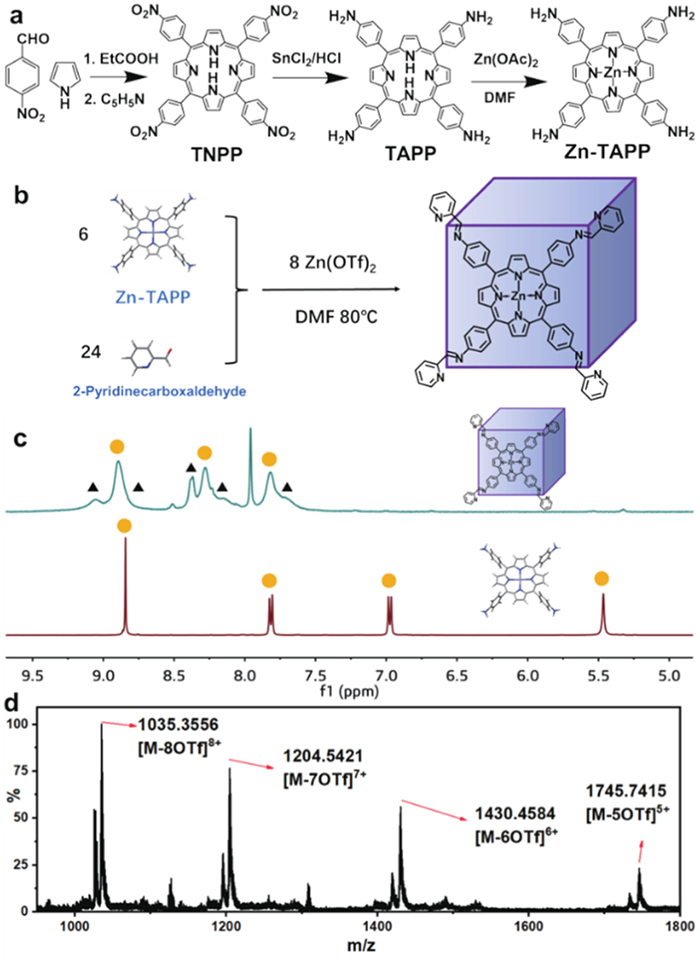

The ligands 5,10,15,20-tetrakis(4-nitrophenyl)porphyrin (TNPP), TAPP, and Zn-TAPP were prepared according to the previous literatures (Figs. 1a and b and Figs. S1–S5 in Supporting information) [29–31]. Zn-TAPP was ultimately obtained and used as a self-assembled ligand for the next reaction in the formation of C66 MOC. The reaction of Zn-TAPP (6 equiv.) with 2-pyridinecarboxaldehyde (24 equiv.) was then carried out in the presence of Zn(OTf)₂ (8 equiv.) to form a cubic complex whose structure is Zn₈L₆(OTf)₁₆ [32,33].

The corresponding hydrogen signals in Zn-TAPP and C66-MOC were first analyzed by proton nuclear magnetic resonance (¹H NMR) spectroscopy after preparation. The downfield shift of the whole signals probably caused by the coordination of ligand to metal atom. The disappearance of the hydrogen signal of the porphyrin amino group (δ 5.47) and the appearance of the hydrogen signal at δ 9.05 correspond to the reaction of amino group with 2-pyridinecarboxaldehyde to form the imine structure (Fig. 1c). Moreover, the hydrogen signal of the imine has a fixed proportional relationship with the hydrogen signals of the pyrrole and benzene ring units corresponding to Zn-TAPP, confirming the formation of a highly symmetrical metal-organic cage in actuality.

The structure was further characterized by electrospray ionization mass spectrometry of C66. The mass spectra showing that signals were appeared at m/z of 1035.3556, 1204.5421, 1430.4584 and 1745.7415 (Fig. 1d and Table S1 in Supporting information), corresponding to [M − 8OTf]⁸⁺ [M − 7OTf]⁷⁺ [M − 6OTf]⁶⁺ and [M − 5OTf]⁵⁺. A simple comparison with simulations based on natural isotopic abundances shows that these peaks can correspond well to their corresponding measured values of [Zn₈L₆(OTf)_n]^(16-n)+ (n = 8–11) (Fig. S6 in Supporting information). The analysis of starting material ratio in experiment, hydrogen signal proportion in ¹H NMR and m/z values in electrospray ionization mass spectrometry (ESI-MS) spectra shows that the MOC was a structure composed of Zn₈L₆ (OTf) ₁₆. Based on similar structures that have been prepared [34,35], the cubic configuration of the metal cage was ultimately determined. In this cubic structure, Zn-porphyrins act as the surface of MOCs, eight zinc atoms are occupying each of the eight vertices, which forms a coordination pattern of Zn(N-N)₃ through sp³d² hybridization with six nitrogen atoms from each of the three ligands. The above data confirmed the formation of Zn₈L₆(OTf)₁₆ metal-organic cages.

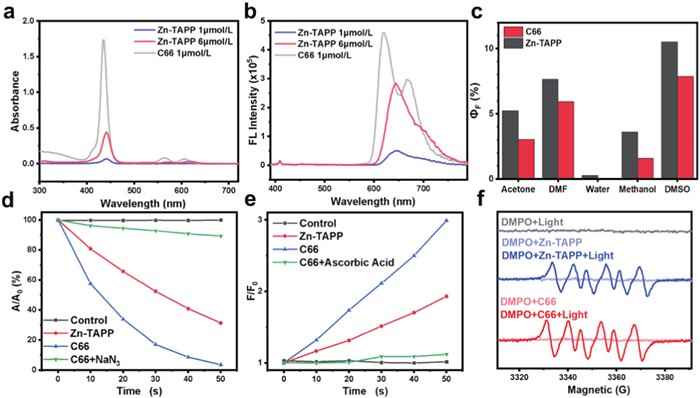

After determining the correct structure of the metal-organic cages, the absorption spectra and fluorescence emission spectra of ligand Zn-TAPP and MOC C66 in different common solvents were recorded using an ultraviolet visible (UV–vis) spectrophotometer and a fluorescence spectrometer (Figs. 2a and b). The absorption peaks of Zn-TAPP and MOCs in different solvents were concentrated around 415, 580 and 610 nm, while the emission peaks were concentrated around 620 nm, with slight variations depending on the solvent. Both the ligand and the metal cage showed intense red fluorescence when the excitation light wavelength was chosen to be 365 nm, with a distinct set of emission peaks near 650 nm corresponding to the porphyrin core. Analysis of the UV–vis absorption and fluorescence emission spectra of Zn-TAPP (6 equiv.) and C66 (1 equiv.) in dimethyl sulfoxide (DMSO) showed that the molar extinction coefficient of C66 (1 equiv.) at the absorption peak was higher than that 6 equiv. Zn-TAPP, while the fluorescence intensities were similar. Subsequently, the fluorescence quantum yield Φ_F of both ligands and metal cages was measured using Rhodamine B (Φ_F = 31% in water) as a standard (Fig. 2c, Fig. S7, Tables S2 and S3 in Supporting information) [36,37]. The reduced fluorescence quantum yield of the metal cage compared to the porphyrin ligand indicates that the energy conversion via the fluorescence emission pathway has been partially suppressed and more energy has the opportunity to enter from ¹PS* to ³PS* through ISC process, promoting the production of reactive oxygen species [38], which means that the porphyrin ligand could be successfully improved in its photosensitive properties after modification into the metal-organic cage.

Singlet oxygen, a common reactive oxygen species, plays a major role in apoptosis in PDT [39]. To determine the ability of Zn-TAPP and C66 to release ¹O₂ under red light excitation, 1,3-diphenylisobenzofuran (DPBF) was used as an indicator to measure ¹O₂ [40]. In the presence of singlet oxygen, DPBF can be oxidized to endoperoxides, which further decompose to the low-fluorescence 1,2-dibenzoylbenzene. The performance of the photosensitizer in producing singlet oxygen can be deduced by observing the reduction of the absorption peak of DPBF at 418 nm. After irradiation of the porphyrin Zn-TAPP and C66 in DMSO solution for 50 s with a 600–610 nm LED lamp, the absorption peak of DPBF at 418 nm was reduced by 67% for 6 equiv. of Zn-TAPP, indicating that porphyrins are a very good class of singlet oxygen donors. By comparison, 1 equiv. of C66 showed a more intense DPBF decomposition efficiency (a decrease of almost 100%), indicating that more ¹O₂ was produced (Fig. 2d and Fig. S8 in Supporting information). Conversely, the addition of the singlet oxygen quencher NaN₃ strongly inhibited the ¹O₂ production capacity of C66, partially confirming the ability of the cage to specifically and efficiently produce singlet oxygen [41].

Interestingly, while determining other possible ROS, we also discovered its ability to generate superoxide radicals, and the presence of superoxide anion radicals provides C66 with another novel PDT type I process, which allows C66 to still produce a large amount of reactive oxygen species and cause cell death under possible hypoxic conditions in tumor tissue [42,43]. To determine whether ligands and C66 are able to release ·O₂⁻ under red light excitation, dihydrorhodamine 123 (DHR123) was used as an indicator for the determination of ·O₂⁻ [44,45]. In the presence of ·O₂⁻, DHR123 can be oxidized to rhodamine 123 with strong green fluorescence, and the ability of the photosensitizer to produce ·O₂⁻ can be confirmed by observing the magnitude of the increase in fluorescence generation peak at 540 nm in DMSO. After irradiation of the porphyrin ligand or C66 in DMSO solution with 600–610 nm LEDs for 50 s, DHR123 produced nearly a two-fold increase in fluorescence at 540 nm for 6 equiv. of Zn-TAPP, indicating the ability of the porphyrin ligand to produce ·O₂⁻, while C66 showed better ·O₂⁻ production than the porphyrin ligand (3-fold fluorescence enhancement) (Fig. 2e and Fig. S9 in Supporting information). Further addition of the ·O₂⁻ quencher ascorbic acid drastically inhibited the ·O₂⁻ production capacity of C66, while confirming the ·O₂⁻ production capacity of C66 MOC [46]. Electron spin resonance (ESR) spectroscopy was employed to further confirm the ·O₂⁻ generation by sensitization of C66. 5,5-Dimethyl-1-pyrroline-N-oxide (DMPO) was used as a spin-trap agent for ·O₂⁻. Upon light-irradiation of the aerated solution of C66 and DMPO, a characteristic paramagnetic adduct was observed and matched with the ·O₂⁻ signal thereby confirming the ·O₂⁻ production (Fig. 2f). It is concluded that the photophysical and photochemical properties of the porphyrins were successfully improved by metal-organic cage modification, which enhanced the reactive oxygen generation capacity of the porphyrin photosensitive molecules.

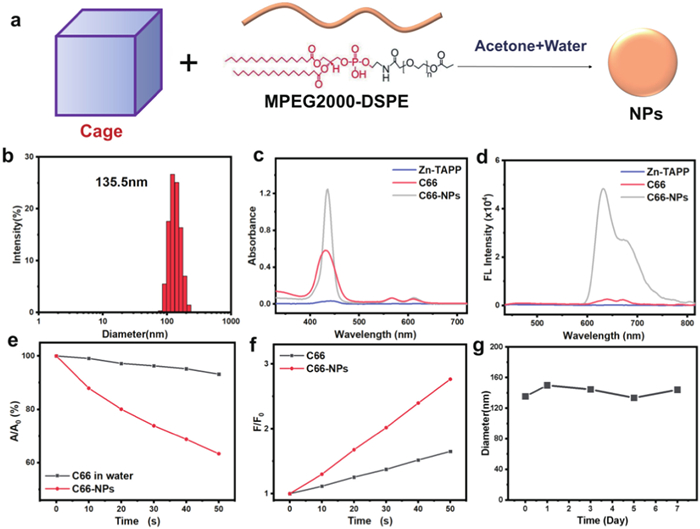

Although MOCs have improved photosensitiser performance compared to the original Zn-TAPP, they still exhibited unsatisfactory water solubility, which hinders their application in living organisms. Further modification of MOCs into special structures with excellent water solubility is paramount to promote their application in cancer therapy. Here, a nanoparticle with high water solubility and biomass application was prepared by nanoprecipitation using the amphiphilic molecule methyl polyethylene glycol-distearoyl phosphoethanolamine (MPEG-DSPE) to encapsulate and cover the MOCs [47]. An aqueous solution of the nanoparticles was prepared by rapidly injecting an acetone solution of cage C66 into an aqueous solution of MPEG-DSPE and then evaporating any residual acetone (Fig. 3a). The nanoparticles were then filtered through a 0.22 µm filter membrane, which was obtained by dynamic light scattering (DLS) analysis with a diameter distribution of around 130 nm (Fig. 3b).

A facile test of photophysical properties and reactive oxygen generation capacity was carried out after the successful preparation of C66 nanoparticles. The UV–vis absorption and fluorescence emission of the MOCs in water were enhanced after modification to nanoparticles, which can be attributed to the more superior water solubility (Figs. 3c and d). In addition, a comparison of the ¹O₂ and ·O₂⁻ production capacities of C66 and its nanoparticles C66-NPs in aqueous solution also confirmed that the nanoparticles C66-NPs are competent for the efficient generation of reactive oxygen species in aqueous solution as well as in the cellular environment (Figs. 3e and f). While possessing superior photosensitizer performance, C66-NPs also exhibit good stability. After placing the C66-NPs solution for one week, the approximate particle size and the absorption spectrum of C66-NPs had almost no change, which laid the foundation for the storage and application of nanoparticles (Fig. 3g and Fig. S10 in Supporting information).

Inspired by the efficient production of reactive oxygen species under red light irradiation by C66 and nanoparticles C66-NPS, we started to study their effect in vitro for PDT with laser confocal scanning microscopy (CLSM). At first, the cellular uptake capacity of C66-NPs was characterised. The diameter of nanoparticles is about 140 nm, for microvascular endothelium with dense gaps and complete structure in normal tissues, nanoparticles do not easily penetrate the vessel wall. In contrast, solid tumor tissue is characterised by abundant blood vessels, large vessel wall gaps and poor structural integrity, which allows C66 nanoparticles to have EPR at the tumor site, making them easily phagocytosed into the cytoplasm by cancer cells, promoting selective distribution in tumor tissue and improving drug efficacy and reducing systemic side effects. As expected, HeLa cells showed red fluorescence in the cytoplasm after uptake of C66-NPs when Zn-TAPP, C66 and C66-NPs were incubated with HeLa cells for 4.0 h respectively, in contrast to unmodified nanoparticles where Zn-TAPP and MOCs were more difficult to take up into the cells and therefore did not fluoresce significantly (Fig. S11 in Supporting information), further confirming the good cellular uptake process.

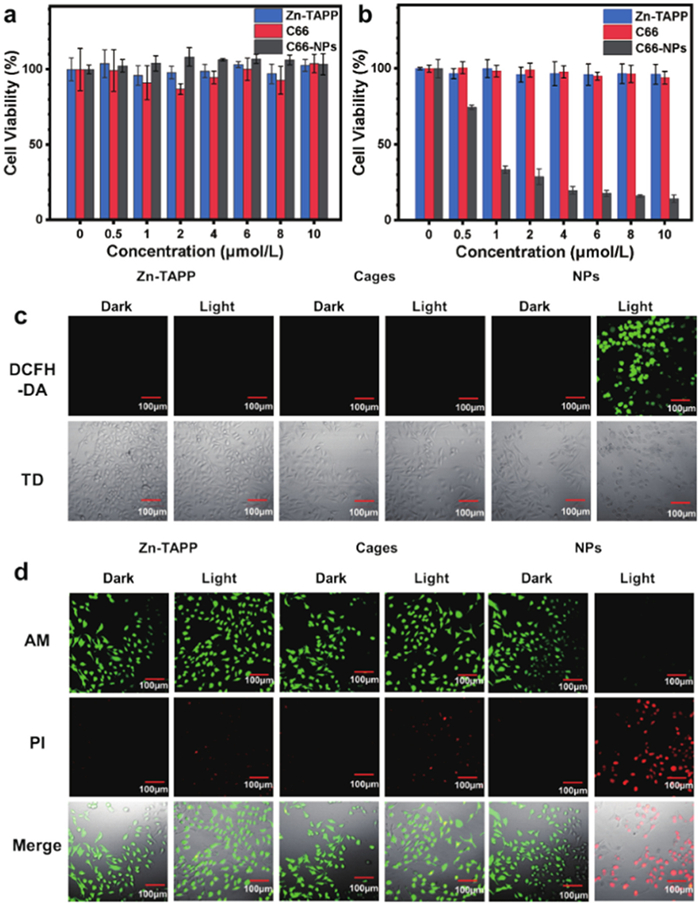

To assess the feasibility of nanoparticles in cancer therapy, 3-(4′,5′-dimethylthiazol-2′-yl)-2,5-diphenyl tetrazolium bromide (MTT) was used to further evaluate the feasibility of nanoparticles in cancer therapy at concentrations ranging from 0 to 10 µmol/L [48]. It is noteworthy that C66-NPs exhibited relatively low dark cytotoxicity at this concentration range (Fig. 4a), which avoids the unwanted systemic toxicity associated with PDT. C66 NPs induced in situ production of the potent cytotoxic ¹O₂/·O₂⁻ under light conditions, with half-inhibitory concentrations in range of 0.5–1 µmol/L, predicting excellent therapeutic effects (Fig. 4b). Then, we characterised the ability of intracellular ROS production and detected changes in intracellular ROS during PDT using the ROS probe 2′,7′-dichlorodihydrofluorescein diacetate (DCFH-DA) [43]. Bright green fluorescence was observed in C66-NPs-treated HeLa cells by CLSM after light irradiation, indicating effective ROS production (Fig. 4c). To verify the phototoxicity of C66-NPs in cancer cells, the cells were further stained with calcein-AM and propidium iodide (PI) to detect the effect of C66-NPs on tumor cells through oxidative damage [49]. C66-NPs-treated HeLa cells showed almost no signals in green channel and significant signals in red channel after illumination, indicating almost complete HeLa cell death. On the contrary, C66-NPs treated cells showed fluorescence only in green channel in absence of light, indicating negligible cell death, while the majority of cells incubated with Zn-TAPP and C66 remained alive, corresponding to poorer cellular uptake (Fig. 4d). Then, an Annexin V-fluorescein isothiocyanate (FITC)/PI apoptosis detection kit was used to study apoptotic cells, and the experimental results showed that C66-NPs can effectively induce tumor cell apoptosis through PDT to achieve the therapeutic goal (Fig. S12 in Supporting information). In addition, when C66-NPs are applied to other cancer cell lines, such as MCF-7 cell lines, they still have good PDT effects, which can cause similar reactive oxygen species production ability and cell phototoxicity, and have good results in a wide range of tumor cell PDT (Fig. S13 in Supporting information). The construction of C66 and modification of C66-NPs not only significantly improved the water-soluble and light-sensitive properties of porphyrin, but also provided a highly efficient cellular uptake process. After rapid and accurate enrichment in tumor tissue, C66 effectively produces large amounts of highly cytotoxic ROS under irradiation conditions, resulting in apoptosis of tumor cells. The excellent performance of C66 NPs provides a viable strategy for simple and efficient modification of porphyrin-based photosensitizers.

In summary, the C66 MOCs based on porphyrin core units have been synthesized to improve the efficacy of PDT. The common porphyrin derivative ligand was modified into the cage as the surface of the MOCs, while the introduction of zinc atoms provided the attachment sites for the MOCs to self-assemble into cubic cages. The cage has a higher molar extinction coefficient than the original ligand, increasing the extent to which the porphyrin is available for visible light; the design of the cage provides a fixed spacing for the porphyrin and inhibits self-aggregation. C66 nanoparticles were prepared to effectively increase water solubility with a certain efficiency of reactive oxygen species generation. The nanoparticles were able to induce apoptosis of tumor cells effectively by PDT after internalization by cancer cells. This work provides new directions and ideas for simple modifications of porphyrins for application in biological systems, which can be used as photosensitizers for PDT of excellent performance.

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

This work was supported by the National Natural Science Foundation of China (Nos. 21977015 and 21820102001).

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108748.
