Effective assignment of positional isomers in dimeric shikonin and its analogs by 1H NMR spectroscopy
收藏切换
PDF
Ling-Hao Zhao, Hai-Wei Yan, Jian-Shuang Jiang, Xu Zhang, Xiang Yuan, Ya-Nan Yang*, Pei-Cheng Zhang*
Chinese Chemical Letters | 2024, 35(5) : 108863
Less
收藏切换
Chinese Chemical Letters | 2024, 35(5): 108863
• Communication •
Effective assignment of positional isomers in dimeric shikonin and its analogs by 1H NMR spectroscopy
Full
Ling-Hao Zhao, Hai-Wei Yan, Jian-Shuang Jiang, Xu Zhang, Xiang Yuan, Ya-Nan Yang*, Pei-Cheng Zhang*
Affiliations
  • State Key Laboratory of Bioactive Substance and Function of Natural Medicines, Institute of Materia Medica, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing 100050, China
Published: 2024-05-15 doi: 10.1016/j.cclet.2023.108863
Outline
收藏切换

An approach for distinguishing two types of positional isomers of dimeric shikonin and its analogs was explored with 4JC, H long-range correlation by prolonging the acquisition time at 2,3JC, H values of 2.0 and 8.0 Hz. Furthermore, the 1H (proton) nuclear magnetic resonance (NMR) pattern of phenolic hydroxyl protons was developed as a "diagnosis signal" to ascertain the relative location of each side chain in DMSO–d6 at sample concentrations of 0.022–0.034 mol/L. The chemical shift differences of 0.6 ppm between OH-5′ and OH-1 and between OH-8′ and OH-4 are assigned to Type A and Type B, respectively. All reported ambiguous structures were corrected by this pattern. Additionally, the steric structures of isolated compounds were elucidated by quantum chemical calculations of electronic circular dichroism (ECD) spectra.

Arnebia euchroma  /  Dimeric hydroxyl naphthoquinones  /  Positional isomers  /  1H NMR spectroscopy  /  Chemical shift difference
Ling-Hao Zhao, Hai-Wei Yan, Jian-Shuang Jiang, Xu Zhang, Xiang Yuan, Ya-Nan Yang, Pei-Cheng Zhang. Effective assignment of positional isomers in dimeric shikonin and its analogs by 1H NMR spectroscopy[J]. Chinese Chemical Letters, 2024 , 35 (5) : 108863 - . DOI: 10.1016/j.cclet.2023.108863
Full Text
Less
Hydroxyl naphthoquinones, such as alkannin, shikonin and their derivatives, naturally occur in Boraginaceae, are the characteristic and high-content constituents that are generally regarded as an index for quality control of the traditional Chinese medicine "Zicao" [1–3]. In the last decade, their dimers were isolated from Arnebia euchroma [4,5], Lithospermum erythrorhizon [6] and Onosma paniculatum [7]. Some of them exhibited synergistic antibacterial, neuraminidase inhibitory and antitumor activities. Structurally, their common skeleton feature is the existence of a dibenzo[b,h]fluorene unit bearing two alkyl chains. The presence of 18 continuous quaternary carbons in the dibenzo[b,h]fluorene unit makes their structural determination difficult by 2JC, H and 3JC, H correlations in heteronuclear multiple bond correlation (HMBC) experiments, especially, the substitutive position of the isohexenyl side chain.
The first two dimers, shikometabolins A and B (Fig. 1), were reported by Meselhy et al. in 1994 and were acquired through biotransformation of shikonin by human intestinal bacteria [8–11]. Based on sufficient sample amounts, multiple nuclear magnetic resonance (NMR) technologies, such as two-dimensional (2D) incredible natural abundance double quantum transfer experiment (INADEQUATE) [12] and heteronuclear Overhauser effect spectroscopy (HOESY) [13] experiment, were used to ascertain the conjunctive ordering of carbons and the position of side chains in the linkage area: in shikometabolin A, two side chains were determined to behave in the opposite orientation, while in shikometabolin B, two side chains behaved the same. We defined them as Type A and Type B, respectively. Incredibly, since 1994, the isolated hydroxyl naphthoquinone dimers from natural products [4–7] have all been determined to be Type B through the comparison of NMR data and without the help of 2D INADEQUATE and HOESY experiments. To our knowledge, the 2D INADEQUATE experiment is time-consuming and requires large sample amounts because of its naturally low sensitivity. Therefore, it is not suitable for trace amounts of natural products. On the other hand, NMR comparison, widely used in the structure determination for structurally related compounds, is responsible for numerous structural misassignments [14–16]. These problems inspired us to investigate thoroughly for a simple and effective method to elucidate the structures of these dimers.
As a continuation of our efforts to explore hydroxyl naphthoquinones from the roots of A. euchroma, 17 dimeric hydroxyl naphthoquinones (Fig. 1, 1a–13) were isolated by various column chromatography methods. Due to their extremely similar NMR data of the dibenzo[b,h]fluorene unit, the most difficult problem encountered in their structure determination was how to distinguish whether they belong to Type A or Type B without using INADEQUATE and HOESY experiments due to the limited sample amount. A detailed and comprehensive literature survey disclosed a method by diminishing the J value (2,3JC, H) to 4.0 Hz for a long-range correlation to bring out the oxygen-interval cross-peaks [17,18]. In addition, in our previous experiments directed toward polyacetylene glycosides [19], which featured two or more conjugated acetylenic and olefinic bonds, four-bond or even longer-range couplings in a large conjugate system were detected and strengthened as the acquisition time increased. These phenomena inspired us to determine the effect of some parameters, such as the 2,3JC, H and acquisition time, on the four-bond 1H-13C correlations in the HMBC experiment.

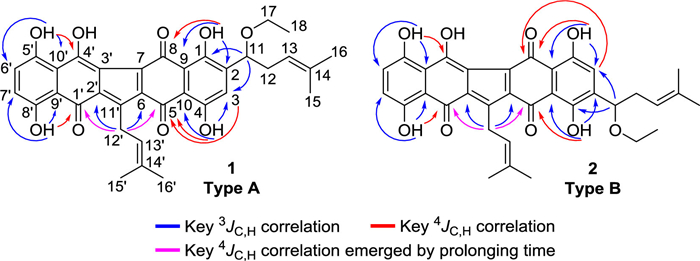

Taking 2 as an example, a series of HMBC spectra for 2 at different 2,3JC, H values (1.0, 2.0, 4.0, 8.0 and 12.0 Hz) combined with its time-divisional intercepts (every 30 min for 180 min) were recorded at a sample concentration of 0.022 mol/L (Figs. S5–S25 in Supporting information). When the acquisition time was 30 min, two- or three-bond 1H-13C correlations (blue in Fig. 2) and some four-bond 1H-13C correlations (red in Fig. 2) were observed at 2,3JC, H values of 1.0, 2.0, 4.0, 8.0 and 12.0 Hz. Surprisingly, when the acquisition time proceeded to 150 min at the setting 2,3JC, H value of 8.0 Hz, two key four-bond 1H-13C correlations from H2-12′ (δH 4.15) to C-1′ (δC 186.8) and C-5 (δC 187.1) appeared, as shown in Fig. 2 (bright pink) (Fig. S19). Coupling with the correlation of H-2 (δH 7.04) to C-8 (δC 183.0) and other conventional HMBC signals, the relative position of two alkyl chains in 2 was doubtlessly attributed to the same side, as depicted in Fig. 2 (Type B). Similarly, for 1, the key four-bond 1H-13C correlations from H2-12′ (δH 4.16) to C-1′ (δC 186.9) and C-5 (δC 186.6) were also observed at the 2,3JC, H value of 8.0 Hz in the extended acquisition time (Figs. S36 and S37 in Supporting information). Together with the cross-peak of H-3 (δH 7.03) to C-5 and other conventional signals in the HMBC spectrum, the two side chains of 1 were classified on the opposite side, as depicted in Fig. 2 (Type A). Additionally, the HMBC correlations of H2-12′ with two "silent" quaternary carbons (C-3′ and C-7) were observed at a 2,3JC, H value of 2.0 Hz in 2 (Fig. S12). Therefore, 18 continuous quaternary carbons in the dibenzo[b, h]fluorene unit were accurately assigned. Detailed assignments of the 1H and 13C NMR spectra for 1 and 2 are presented (Tables S7–S10 in Supporting information).

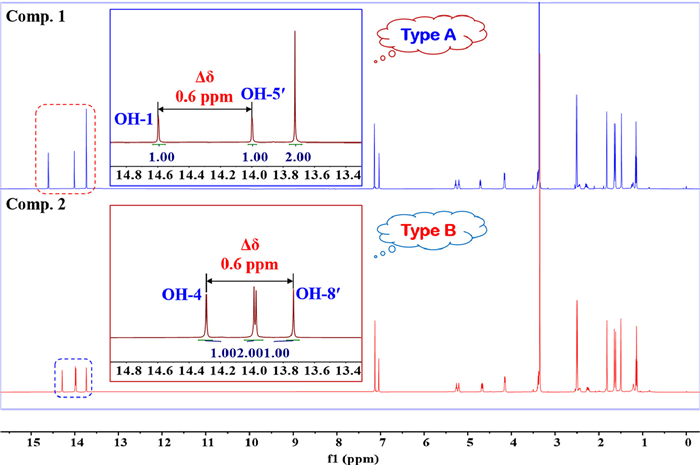

Further careful analysis of the 1H NMR data of 1 and 2 in DMSO–d6 revealed an interesting phenomenon. The four phenolic hydroxyl proton signals of 1 appeared at δH 14.00 (OH-5′), 14.60 (OH-1), 13.72 (OH-8′) and 13.72 (OH-4), while the corresponding signals of 2 appeared at δH 13.97 (OH-5′), 13.99 (OH-1), 13.73 (OH-8′) and 14.29 (OH-4). Obviously, when there was no isohexenyl chain adjacent, two active protons were displayed at approximately δH 14.0, such as OH-5′ and OH-1, in 2, while they were nearly at δH 13.7, such as OH-8′ and OH-4, in 1. Notably, the existence of an isohexenyl chain was found to increase the chemical shift of the adjacent phenolic hydroxyl proton by approximately 0.6 ppm. For instance, the chemical shift of OH-1 changed from approximately δH 14.0 to δH 14.6 compared with OH-5′ in 1; the chemical shift of OH-4 changed from approximately δH 13.7 to δH 14.3 compared with OH-8′ in 2 (Fig. 3). The 1H NMR patterns and the chemical shift differences (0.6 ppm) of phenolic hydroxyl protons can be recognized as a "diagnosis signal" for the series of dimeric hydroxyl naphthoquinones to ascertain the relative location of side chains. Subsequently, other dimers (3–13) were studied carefully, and their 1H NMR data follow the above pattern: 3, 5, 7, 9, 10, 11 and 12 belong to Type A; 4, 6, 8 and 13 belong to Type B (Fig. 1, Table 1).

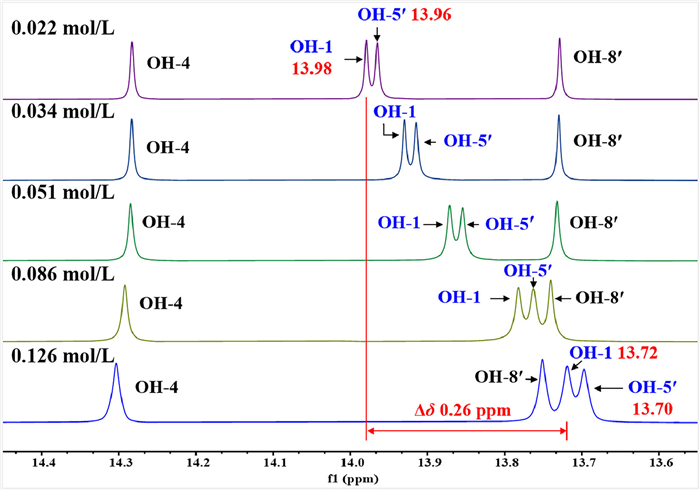

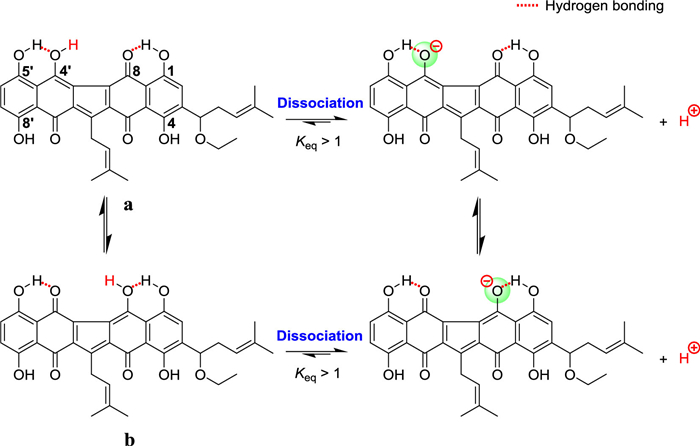

Notably, in DMSO–d6, the 1H NMR signals of OH-5′ and OH-1 of shikometabolins A and B in Meselhy's data [8] were evidently at a higher field than the corresponding data of 3 and 4, while the chemical shifts of OH-8′ and OH-4 were almost identical (Table 1). After clarifying that purification processes (involving acids or bases) and the content of D2O in DMSO–d6 do not have a significant effect on the chemical shifts of phenolic hydroxyl protons (Figs. S26–S28 in Supporting information), the sample concentration, a factor affecting intramolecular hydrogen bonding, was tested in focus. Using 2 as a model compound, its 1H NMR spectra at different concentrations from 0.022 mol/L to 0.126 mol/L in DMSO–d6 were recorded (Fig. 4). Amazingly, the peaks of OH-5′ and OH-1 gradually shifted to higher fields as the concentration increased and were in general agreement with the reported values at a sample concentration of 0.126 mol/L, whereas OH-8′ and OH-4 only slightly displaced to low fields. Generally, when the solution is diluted, the antimagnetic shift of the proton signal with hydrogen-bond interactions occurs due to the severing or weakening of intermolecular hydrogen bonds. However, the anomalous low-field shifts of OH-5′ and OH-1 can be explained by the fact that the phenolic hydroxyl groups at C-4′ or C-8 are more easily dissociated in dilute solution (Fig. 5), resulting in stronger hydrogen bonding to OH-5′ or OH-1. Similarly, the same phenomenon was observed in the concentration factor experiments for 1 (Fig. S29 in Supporting information). Therefore, as a "diagnosis signal" for this type of compound, the recommended sample concentration ranges from 0.022 mol/L to 0.034 mol/L.
Additionally, to elucidate whether the "diagnosis signal" applies to other deuterated solvents used in previous literature [4–7], the NMR spectra of 1–8 in acetone-d6 and 1, 2 in pyridine-d5 were recorded. Their 1H NMR data were cautiously assigned (Tables S11–S13 in Supporting information). Although the chemical shifts of the corresponding phenolic hydroxyl protons in acetone-d6 and pyridine-d5 have certain differences, especially at OH-5′ and OH-1, the expected ∆δ pattern (0.6 ppm) still exists.
Based on the above NMR rules, all sixteen reported dimers [4–7], except for shikometabolins A and B [8], were carefully verified. The NMR data of nine "plausible" compounds were summarized (Table S14 in Supporting information), including three cases of inaccurate assignments and six cases of inaccurate side chain positions. The structural accuracy of the remaining seven compounds reported in the patent (Type B) cannot be judged due to the absence of NMR data.
Finally, in consideration of the chirality of C-11 of these dimers, their chiral resolutions were executed by high performance liquid chromatography (HPLC) experiments with normal-phase chiral columns (Figs. S1–S4 in Supporting information), and their absolute configurations were determined by experimental and calculated electronic circular dichroism (ECD) spectra [20,21]. Compounds 2, 4, 6 and 8 (Type B) gave (R)−2a, (S)−2b, (S)−4a, (R)−4b, (R)−6a, (S)−6b and (S)−8, while A-type compounds gave (R)−1a, (S)−1b, (S)−3, (R)−5, (S)−7, (R)−9, (R)−10, and (S)−11 (Figs. S30–S32 in Supporting information).
In conclusion, the structures of dimeric shikonin and its analogs were more conveniently determined through four-bond 1H-13C correlations in HMBC spectra at 2,3JC, H values of 2.0 and 8.0 Hz. Furthermore, the characteristic ∆δ of phenolic hydroxyl protons in 1H NMR spectra caused by the adjacent side chain was summarized. Notably, this 1H NMR pattern varies with sample concentration, so the sample concentration needs to be limited when this rule is applied. This is a simple and effective method to elucidate the structures of these dimers. It provides a valuable reference scheme for the structural identification of organic molecules in which several continuous quaternary carbons exist.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
This project was funded by the CAMS Innovation Fund for Medical Sciences (CIFMS, No. 2021-I2M-1-028). We appreciate Ms. Y.-H. Wang and Ms. L. Li (Institute of Materia Medica, Chinese Academy of Medical Sciences and Peking Union Medical College) for testing the NMR and ECD spectra.
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108863.
References
Less
[1]
V.P. Papageorgiou, A.N. Assimopoulou, E.A. Couladouros, D. Hepworth, K.C. Nicolaou, Angew. Chem. Int. Ed. 38 (1999) 271–300.
[2]
M. Valipour, Eur. J. Med. Chem. 235 (2022) 114314.
[3]
State Pharmacopoeia CommitteeChinese Pharmacopoeia, 2020 ed., China Medical Pharmaceutical Science and Technology Publishing House, Beijing, 2020.
[4]
Q. Mu, J. Ye, Z.L. Sun, S. Jibens, M. Reheman, Patent, CN104887677 A, 2015.
[5]
H.H. Cao, W.Q. Zhang, D.Y. Liu, et al., Bioorg. Chem. 96 (2020) 103655.
[6]
Y.Q. Yang, D.P. Zhao, K.L. Yuan, et al., Nat. Prod. Res. 29 (2015) 908–913.
[7]
M. Dong, D. Liu, Y.H. Li, et al., Planta Med. 83 (2017) 631–635.
[8]
M.R. Meselhy, S. Kadota, K. Tsubono, M. Hattori, T. Namba, Tetrahedron 50 (1994) 3081–3098.
[9]
M.R. Meselhy, S. Kadota, K. Tsubono, et al., Tetrahedron Lett. 35 (1994) 583–586.
[10]
B.S. Min, M.R. Meselhy, M. Hattori, H.M. Kim, Y.H. Kim, J. Microbiol. Biotechnol. 10 (2000) 514–517.
[11]
M.R. Meselhy, E. Nishimoto, T. Akao, M. Hattori, J. Tradit. Med. 18 (2001) 58–63.
[12]
A. Bax, R. Freeman, S.P. Kempsell, J. Am. Chem. Soc. 102 (1980) 4849–4851.
[13]
J.J. Ford, W.A. Gibbons, N. Niccolai, J. Magn. Reson. 47 (1982) 522–527.
[14]
S.M. Shen, G. Appendino, Y.W. Guo, Nat. Prod. Rep. 39 (2022) 1803–1832.
[15]
J. Hur, J. Jang, J. Sim, et al., Angew. Chem. Int. Ed. 57 (2018) 3069–3073.
[16]
R. Irie, K. Takada, Y. Ise, et al., Org. Lett. 19 (2017) 5395–5397.
[17]
D. Lee, M. Cuendet, J.S. Vigo, et al., Org. Lett. 3 (2001) 2169–2171.
[18]
J.F. Xu, Z.M. Feng, J. Liu, P.C. Zhang, Chem. Biodivers. 5 (2008) 591–597.
[19]
K. Xu, P.F. Yang, Y.N. Yang, et al., Org. Lett. 19 (2017) 686–689.
[20]
Y.F. Liu, M.H. Chen, X.L. Wang, et al., Chin. Chem. Lett. 26 (2015) 931–936.
[21]
H.W. Yan, R.R. Du, X. Zhang, et al., Chin. Chem. Lett. 33 (2022) 2555–2558.
