Self-enhanced photothermal-chemodynamic antibacterial agents for synergistic anti-infective therapy

Full

Ning Guo^a, Yu Xia^a, Yuxi Duan^a, Quanxin Wu^a, Le Xiao^a, Yaxin Shi^a, Bin Yang^*^,^b, Yun Liu^*^,^a^,^c

Affiliations

^a Guangdong Key Laboratory for Research and Development of Natural Drugs, School of Pharmacy, Guangdong Medical University, Zhanjiang 524023, China

^b The Sixth Affiliated Hospital of Guangzhou Medical University, Qingyuan People's Hospital; Department of Biomedical Engineering, School of Basic Medical Sciences, Guangzhou Medical University, Guangzhou 511436, China

^c The Marine Biomedical Research Institute of Guangdong, Zhanjiang 524023, China

Published: 2023-02-15 doi: 10.1016/j.cclet.2022.05.056

Outline

Abstract

Less

Cu_2-xS nanostructures have been intensively studied as outstanding chemodynamic therapy (CDT) and good photothermal therapy (PTT) antibacterial agents due to their highly efficient Cu(Ⅰ)-initiated Fenton-like catalytic activity and good photothermal conversion property. However, they still suffer from shortage of Cu(Ⅰ) supply in the long-term and comparatively low inherent photothermal conversion efficiency. Herein, we constructed a self-enhanced synergistic PTT/CDT nanoplatform (Cu_1.94S@MPN) by coating Cu_1.94S nanoparticles with Fe(Ⅲ)/tannic acid based metal-polyphenol networks (MPN). Activated by the acidic bacterial infection microenvironment, Cu_1.94S@MPN could be decomposed to continuously release Cu(Ⅱ), Fe(Ⅲ) ions and tannic acid. As the result of tannic acid-involved Cu and Fe redox cycling, Cu(Ⅰ)/Fe(Ⅱ)-rich CDT could be achieved through the highly accelerated catalytic Fenton/Fenton-like reactions. More importantly, experimental results demonstrated that Cu_1.94S@MPN exhibited both excellent photothermal antibacterial and photothermal-enhanced CDT properties to eradicate bacteria in vitro and in vivo. Overall, this novel nanotherapeutics has great potential to become a clinic candidate for anti-infective therapy in future.

Key words

Antibacterial / Self-enhanced / Photothermal therapy / Chemodynamic therapy / Anti-infective therapy

Cite this Article

Ning Guo, Yu Xia, Yuxi Duan, Quanxin Wu, Le Xiao, Yaxin Shi, Bin Yang, Yun Liu. Self-enhanced photothermal-chemodynamic antibacterial agents for synergistic anti-infective therapy[J]. Chinese Chemical Letters, 2023 , 34 (2) : 107542 - . DOI: 10.1016/j.cclet.2022.05.056

Full Text

Less

In the past few years, intensive research efforts have been devoted to bacterial infection due to the high infection probability and serious mortality, particularly in the context of infectious diseases spread [1-7]. In clinical trials, the utilization of antibiotics is often the first choice for anti-infective therapy. However, long-term use and abuse of antibiotics (such as excess, insufficiency and defective use) have led to the occurrence of antimicrobial resistance (AMR) [8-10]. Unfortunately, the discovery of novel types of antibiotics has significantly lagged behind the rapid spread of AMR [11]. In 2014, the World Health Organization (WHO) predicted that the issue of AMR could cause the death of nearly 10 million people each year by 2050 in a published review [12]. Therefore, the development of novel non-antibiotic therapies for bacterial infection, which could prevent the occurrence of AMR, is becoming increasingly significant.

Recently, promising approaches with negligible AMR have been proposed for anti-infective treatments [13-17], for instance, chemodynamic therapy (CDT) [18-20] and photothermal therapy (PTT) [21-26]. CDT takes full advantage of Fe(Ⅱ)-initiated Fenton reaction or Cu(Ⅰ)-initiated Fenton-like reaction to kill bacteria [27]. During the process, endogenous hydrogen peroxide (H₂O₂) at the infection site is efficiently degraded to produce highly destructive hydroxyl radicals (^•OH) for effective bacterial inactivation. Besides, it is worth to mention that CDT greatly benefits from acidity and overexpressed H₂O₂ level in the infected tissue [28, 29]. Meanwhile, increasing research attention has also been focused on PTT due to its broad-spectrum antibacterial capacity and excellent controllability via near-infrared (NIR) light. To further improve the therapeutic efficiency and minimize adverse effects, the strategy of combining PTT with CDT has been reported recently [30]. More importantly, synergistic PTT/CDT not only can directly kill bacteria via PTT or CDT themselves, but also leads to the self-enhanced therapeutic efficacy of CDT through increasing the local temperature with PTT [31-34]. Hence, PTT/CDT synergistic therapeutic nanoagents could be promising candidates in clinical trials.

In this regard, Cu_2-xS nanostructures with variable oxidation states (Ⅰ/Ⅱ), possessing good photothermal conversion property in the NIR region and efficient Fenton-like catalytic activity, have been exploited as PTT and highly efficient CDT therapeutic agents for anti-infective therapy [35-37]. It was reported that Cu(Ⅰ)-initiated Fenton-like reaction is featured with dramatically higher reaction rate (≈ 1 × 10⁴ L mol⁻¹ s⁻¹) than that of Fe(Ⅱ)-initiated Fenton reaction (≈ 63 L mol⁻¹ s⁻¹) [38]. However, their antibacterial applications are still limited due to their comparatively low photothermal conversion efficiency (η ≈ 25.7%). On the other hand, metal-polyphenol networks (MPN) formed by Fe(Ⅲ) and tannic acid (TA, Scheme S1 in Supporting information) or other polyphenols have been also used as CDT and PTT agents for both cancer and anti-infective therapies [39-42]. In the presence of solid templates, MPN-based nano-coatings could be formed onto the interface of templates. Despite the continuous Fe(Ⅱ) ions supply through reducing Fe(Ⅲ) with TA, Fe(Ⅲ)/TA based MPN still suffer from unsatisfactory CDT efficacy due to the inherent low reaction rate of Fe(Ⅱ)-initiated Fenton reaction. Interestingly, compared with Cu_2-xS nanostructures (η ≈ 25.7%), Feng and coworkers reported that Fe(Ⅲ)/TA based MPN illustrated more excellent photothermal conversion property (η ≈ 45.4%) for PTT [43].

Based on the above mentioned, we designed a novel self-enhanced PTT/CDT antibacterial nanoagent by engineering Cu_1.94S nanoparticles with Fe(Ⅲ)/TA based MPN nano-coatings, named Cu_1.94S@MPN, to achieve non-antibiotic synergistic anti-infective therapy. As illustrated in Scheme 1, Cu_1.94S with good photothermal conversion property and excellent catalytic capacity were prepared via a simple and low-cost published protocol [44]. Further modification of Cu_1.94S with Fe(Ⅲ)/TA based MPN could not only improve their biocompatibility, but also achieve self-enhanced PTT/CDT synergistic therapeutic effect. After in situ injection, interior Cu_1.94S could serve as both the source of Cu(Ⅰ) ions for Cu(Ⅰ)-initiated CDT and photothermal agents for PTT. In this nanotherapeutics, exterior MPN were employed as PTT agents due to their outstanding photothermal property. More importantly, MPN could dissociate with the continuous release of Fe(Ⅲ) and TA in response to acidic pH in infected tissues. Owning to the reducing function of TA, Fe(Ⅲ) and Cu(Ⅱ) could be converted into Fe(Ⅱ) and Cu(Ⅰ) with accelerated redox cycling to achieve enhanced CDT. Therefore, a perfect nanotherapeutics, which integrated photothermal eradication and photothermal-enhanced CDT, was successfully constructed by the combination of Cu_1.94S with MPN for mutual profit in anti-infective therapy. The current protocol will offer new concepts for developing efficient treatments of bacterial infection in clinic trials.

Detailed synthetic procedures of Cu_1.94S@MPN were presented in Supporting information. Afterwards, Cu_1.94S@MPN was fully characterized by transmission electron microscopy (TEM), dynamic light scattering (DLS), X-ray photoelectron spectroscopy (XPS), X-ray diffraction (XRD), Fourier transform infrared (FT-IR) and ultra violet-visible-near infrared (UV-vis-NIR) spectrophotometric analysis (Scheme 1, Figs. 1a-c and Fig. S1 in Supporting information). TEM images showed the spherical nanostructures and nanosizes of Cu_1.94S and Cu_1.94S@MPN (Fig. 1a, Fig. S1a). On the other hand, their hydrodynamic diameters determined by DLS analysis were ~60 nm for Cu_1.94S and ~170 nm for Cu_1.94S@MPN, separately (Fig. 1b and Fig. S1b). Obviously, the size of Cu_1.94S@MPN was much larger than that of Cu_1.94S after modification. Due to the same reason, zeta potential of Cu_1.94S@MPN became more negative (Fig. 1c). As can be seen from Fig. S1c, Cu_1.94S@MPN showed two peaks of Cu 2p_3/2 at 932.6 eV and Cu 2p_1/2 at 952.6 eV with no visible satellite peak in the Cu 2p region, which illustrated that the valence state of Cu in Cu_1.94S@MPN was mainly +1 [45]. In addition, the crystalline structure of Cu_1.94S in Cu_1.94S@MPN was recorded by XRD analysis. As displayed in Fig. S1d, the characteristic pattern of Cu_1.94S@MPN was in accordance with Cu_1.94S (JCPDS No. 34-0660), which suggested that the crystal structure of Cu_1.94S was not affected by MPN layer. Besides, the FT-IR spectrum of Cu_1.94S@MPN illustrated typical peaks (1400–1600 cm⁻¹) corresponding to benzene rings of TA (Fig. S1e), which further proved the successful synthesis of Cu_1.94S@MPN. In brief, all these characterizations solidly demonstrated the successful production of Cu_1.94S@MPN.

Furthermore, the photothermal and peroxidase-like catalytic properties of Cu_1.94S@MPN were systemically investigated. As can be seen from Fig. S1f, Cu_1.94S@MPN showed a relatively high absorbance at 808 nm, which indicated its photothermal conversion effect under 808 nm laser activation. Technically, the photothermal performance of Cu_1.94S@MPN was studied by illuminating Cu_1.94S@MPN of different concentrations with an 808 nm laser at various power densities (Figs. 1d-f and Fig. S2a in Supporting information). Upon irradiation, the temperature differences were found to be concentration and power density dependent. Meanwhile, its photothermal property exhibited no big decrement after ten cycles, which proved its extraordinary photostability (Fig. 1f). By using single "on-off" laser irradiation assay, its photothermal conversion efficiency (η) was determined to be 29.17% (Figs. S2b and c in Supporting information). These experimental outcomes proved the remarkable photothermal effect of Cu_1.94S@MPN as an encouraging PTT nanoagent. Due to the typical absorption peak at 652 nm after oxidization, 3, 3′, 5, 5′-tetramethylbenzidine (TMB) was utilized as a probe to verify the formation of ^•OH (Figs. 1g and h, Fig. S3 in Supporting information). Similarly, the catalytic activity of Cu_1.94S@MPN showed concentration and time dependent properties, which was also influenced by the concentration of H₂O₂. Compared with Cu_1.94S, the peroxidase-like catalytic ability of Cu_1.94S@MPN was greatly facilitated by MPN, which was attributed to its outstanding photothermal effect and successive Cu(Ⅰ) ions supply through the pH-responsive degradation of Cu_1.94S@MPN (Fig. S4 in Supporting information) and the reduction of Cu(Ⅱ) with TA. Eventually, these results demonstrated that Cu_1.94S@MPN could be a promising antibacterial nanoagent for self-enhanced synergistic PTT/CDT.

Encouraged by above outcomes, in vitro antibacterial and antibiofilm capacities of Cu_1.94S and Cu_1.94S@MPN were assessed by plate counting method against S. aureus and E. coli at pH 5.5 (Figs. 2 and 3, Figs. S5-S7 in Supporting information). During the assays, bacteria were dealt with Cu_1.94S and Cu_1.94S@MPN under four types of conditions, including NIR(−)H₂O₂(−), NIR(−)H₂O₂(+), NIR(+)H₂O₂(−) and NIR(+)H₂O₂(+). Initially, Cu_1.94S showed severely limited antibacterial activity under all conditions even at concentration of 500 µg/mL (Figs. 2a and b, Fig. S5). Likewise, Cu_1.94S@MPN exhibited badly restricted efficiency under the condition of NIR(−)H₂O₂(−). Upon irradiation (1.25 W/cm², NIR(+)H₂O₂(−)), Cu_1.94S@MPN displayed a concentration depended PTT efficiency and reached ~90% antibacterial activity until 1000 µg/mL. Under the condition of NIR(−)H₂O₂(+), similar outcomes as PTT were obtained, such as concentration dependence of CDT effect and a badly restrained antibacterial activity until 1000 µg/mL. Anyhow, monotherapy could not achieve satisfactory efficiency at a relatively low concentration of Cu_1.94S@MPN. Upon the usage of an 808 nm laser light, synergistic PTT/CDT was performed with Cu_1.94S@MPN, and realized greatly enhanced efficiencies of 91.9% (S. aureus) and 98.1% (E. coli), separately. Live/dead bacterial staining assays were performed by employing SYTO-9 and PI staining kits. Notably, more intensive red fluorescence were viewed in Cu_1.94S@MPN groups under the condition of NIR(+)H₂O₂(+) compared with other groups (Figs. 2c and d). Meanwhile, the morphological changes of bacteria were observed by scanning electron microscopy (SEM). Compared to other groups, more massive wrinkles and dents were generated in Cu_1.94S@MPN group under the condition of NIR(+)H₂O₂(+), manifested its outstanding antibacterial ability via synergistic PTT/CDT (Figs. 2e and f). Apart from planktonic bacteria, the destructive capacities towards stubborn biofilms were further evaluated under the same conditions by plate counting method (Figs. 3a-d and Fig. S7). At the beginning, uniform biofilms of S. aureus and E. coli were formed and stained with crystal violet (Fig. S7). Afterwards, synergistic PTT/CDT with Cu_1.94S@MPN was found to show the highest efficiency in anti-biofilm assays (Figs. 3a-d) and led to an absolute damage of biofilms (> 99%) at 500 µg/mL. Basically, all acquired results implied the outstanding bactericidal ability of Cu_1.94S@MPN.

Furthermore, MTT and hemolysis assays were used to appraise the biosafety of Cu_1.94S@MPN (Figs. 3e and f). After incubating with L929 cells, negligible cytotoxicity was observed even at a quite high concentration (1000 µg/mL, Fig. 3e). In the hemolytic test, mouse red blood cells (RBCs) treated with H₂O was employed as positive control and PBS as negative control. Inspiringly, the hemolysis rate of Cu_1.94S@MPN was merely 5.8% at the concentration of 1000 µg/mL (Fig. 3f). Virtually, the perfect biosafety of Cu_1.94S@MPN was proved by these results.

Motivated by the perfect antibacterial ability and biocompatibility of Cu_1.94S@MPN in vitro, S. aureus infected subcutaneous mice model was utilized to evaluate its in vivo therapeutic efficiency in Balb/c mice (Fig. 4, Figs. S8 and S9 in Supporting information) approved by the Ethics Committee of Guangdong Medical University. After infected for 1 day, all mice were randomly divided into four groups, namely, PBS group, PBS+NIR group, Cu_1.94S@MPN group and Cu_1.94S@MPN+NIR group. PBS was in situ injected into infection site of mice in control groups, while Cu_1.94S@MPN was administrated in therapeutic groups (Fig. 4a). Meanwhile, NIR irradiation was given to PBS+NIR and Cu_1.94S@MPN+NIR groups (Fig. S8a). The images of infected tissues and body weight of every mouse were daily recorded during the entire 15-day treatment period (Fig. 4b and Fig. S8b). In PBS, PBS+NIR and Cu_1.94S@MPN groups, persistent pustules existed until the end of treatment. In contrary, gradually diminished scars were observed in Cu_1.94S@MPN+NIR group due to synergistic PTT/CDT. After the homogenization treatment of the acquired infected tissues in saline on day 5, the antibacterial ability of Cu_1.94S@MPN was quantificationally assessed by plate counting method (Figs. 4c and d). Compared with PBS group, the amount of colonies diminished to 38.72% for Cu_1.94S@MPN group due to the limited CDT effect of Cu_1.94S@MPN in the absence of NIR. Encouragingly, Cu_1.94S@MPN+NIR group achieved an antibacterial rate of 84.93%, indicating the excellent in vivo bactericidal capacity of Cu_1.94S@MPN mediated synergistic PTT/CDT. At end of the treatment, the serum of infected mice was collected to evaluate the expression levels of several characteristic pro-inflammatory cyto-kines through enzyme-linked immunosorbent assay (ELISA), including TNF-α, IL-6 and IL-1β (Figs. 4e-g). The levels of all pro-inflammatory cyto-kines after treatment were found to be significantly decreased in comparison with PBS and PBS+NIR groups. Even better, the levels for Cu_1.94S@MPN+NIR group showed no obvious statistical distinction compared to normal mice, which demonstrated the reduced inflammation through synergistic PTT/CDT. On the other hand, the skin at infected site was also obtained for hematoxylin and eosin (H & E) staining (Fig. 4h). The same as normal tissues, no apparent inflammatory cells were observed in Cu_1.94S@MPN+NIR group, further verifying its remarkable in vivo anti-inflammatory effect.

In summary, a novel infection microenvironment-responsive antibacterial nanoplatform Cu_1.94S@MPN was constructed by encapsulating Cu_1.94S with Fe(Ⅲ)/TA based MPN nano-shells. Due to the excellent inherent photothermal conversion property of MPN and continuous Cu(Ⅰ) ions supply via reducing Cu(Ⅱ) with TA, it achieved self-boosted synergistic PTT/CDT with extraordinary efficiency. Antibacterial experiments proved that Cu_1.94S@MPN could achieve a satisfactory bactericidal activity both in vitro and in vivo. This research might offer new strategy on developing intelligent nanotherapeutics for anti-bacterial therapy in clinical trials.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This research was financially supported by the National Natural Science Foundation of China (Nos. 81803723, 51903062), Guangdong Basic and Applied Basic Research Foundation (No. 2019B1515120006), Guangdong Province Universities and Colleges Pearl River Scholar Funded Scheme (2019), Innovation and Entrepreneurship Team Leads the Pilot Program of Zhanjiang (No. 2020LHJH005), Discipline Construction Project of Guangdong Medical University (No. 4SG22002G) and Science and Technology Projects of Guangzhou (No. 202102020757).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.05.056.

References

Less

[1]

T.M. Rawson, R.C. Wilson, A. Holmes, Clin. Microbiol. Infect. 27 (2021) 9–11.

[2]

C. Liu, Y. Wen, W. Wan, J. Lei, X. Jiang, Int. Immunopharmacol. 90 (2021) 107157.

[3]

S. Yu, G. Li, R. Liu, D. Ma, W. Xue, Adv. Funct. Mater. 28 (2018) 1707440.

[4]

S. Yu, G. Li, P. Zhao, et al., Adv. Funct. Mater. 29 (2019) 1905697.

[5]

S. Wu, Y. Huang, J. Yan, et al., Adv. Funct. Mater. 31 (2021) 2103442.

[6]

E. Bakkeren, M. Diard, W.D. Hardt, Nat. Rev. Microbiol. 18 (2020) 479–490.

[7]

D.G. Joakim Larsson, C.F. Flach, Nat. Rev. Microbiol. (20) (2022) 257–269.

[8]

L. Jin, X. Liu, C. Bian, et al., Chin. Chem. Lett. 31 (2020) 2137–2141.

[9]

H. Yan, H. Ni, Y. Yang, et al., Chin. Chem. Lett. 31 (2020) 1792–1796.

[10]

T.M. Rawson, R.C. Wilson, D. O'Hare, et al., Nat. Rev. Microbiol. 19 (2021) 747–758.

[11]

M. Miethke, M. Pieroni, T. Weber, et al., Nat. Rev. Chem. 5 (2021) 726–749.

[12]

J. O'Neill, Tacking drug-resistant infections globally: Final report and recommendations, Review on Antimicrobial Resistance, Government of the United Kingdom, 2016, pp. 1–84.

[13]

P.P. Kalelkar, M. Riddick, A.J. Garia, Nat. Rev. Mater. 7 (2022) 39–54.

[14]

W. Li, E.S. Thian, M. Wang, Z. Wang, L. Ren, Adv. Sci. 8 (2021) 100368.

[15]

Z. Vanic, M.W. Joraholmen, N. Skalko-Basnet, Adv. Drug Deliv. Rev. 178 (2021) 113855.

[16]

J.M.V. Makabenta, A. Nabawy, C.H. Li, et al., Nat. Rev. Microbiol. 19 (2021) 23–36.

[17]

F. Xiao, B. Cao, L. Wen, et al., Chin. Chem. Lett. 31 (2020) 2516–2519.

[18]

Y. Li, W. Xiu, K. Yang, et al., Mater. Horiz. 8 (2021) 1264–1271.

[19]

D. Li, T. Chen, Y. Zhang, Y. Xu, H. Niu, Adv. Healthcare Mater. 10 (2021) 2100716.

[20]

M. Song, Y. Cheng, Y. Tian, et al., Adv. Funct. Mater. 30 (2020) 2003587.

[21]

J. Huo, Q. Jia, H. Huang, et al., Chem. Soc. Rev. 50 (2021) 8762–8789.

[22]

J.W. Xu, K. Yao, Z.K. Xu, Nanoscale 11 (2019) 8680–8691.

[23]

C.R. McCollum, J.R. Bertram, P. Nagpal, A. Chatterjee, ACS Appl. Mater. Interfaces 13 (2021) 30404–30419.

[24]

T.W. Chang, H. Ko, W.S. Huang, et al., Chem. Eng. J. 428 (2022) 131237.

[25]

X. Guo, B. Cao, C. Wang, S. Lu, X. Hu, Nanoscale 12 (2020) 7651–7659.

[26]

C. Cao, N. Yang, Y. Zhao, et al., Nano Today 39 (2021) 101165.

[27]

Z. Tang, Y. Liu, M. He, W. Bu, Angew. Chem. Int. Ed. 58 (2019) 946–956.

[28]

C. Wang, W. Zhao, B. Cao, et al., Chem. Mater. 32 (2020) 7725–7738.

[29]

G. Guo, H. Zhang, H. Shen, et al., ACS Nano 14 (2020) 13391–13405.

[30]

Q. Xu, Y. Hua, Y. Zhang, et al., Adv. Healthcare Mater. 10 (2021) 2101374.

[31]

N. Yang, H. Guo, C. Cao, et al., Biomaterials 275 (2021) 120918.

[32]

X. Zhu, X. Chen, Z. Jia, et al., J. Colloid Interface Sci. 603 (2021) 615–632.

[33]

Y. Shi, J. Yin, Q. Peng, et al., Biomater. Sci. 8 (2020) 6093–6099.

[34]

X. Lin, Y. Fang, Z. Hao, et al., Small 17 (2021) 2103303.

[35]

E.A.D.R. Hans, M.D. Regulacio, Chem. Eur. J. 27 (2021) 11030–11040.

[36]

A. Nain, S.C. Wei, Y.F. Lin, et al., ACS Appl. Mater. Interfaces 13 (2021) 7865–7878.

[37]

Y. Zhou, Z. Chen, S. Zeng, et al., ACS Appl. Mater. Interfaces 13 (2021) 53659–53670.

[38]

C. Dong, W. Feng, W. Xu, et al., Adv. Sci. 7 (2020) 2001549.

[39]

X. Yu, T. Shang, G. Zheng, et al., Chin. Chem. Lett. 33 (2022) 1895–1900.

[40]

Y. Yu, P. Li, C. Zhu, et al., Adv. Funct. Mater. 29 (2019) 1904402.

[41]

Z. Ren, S. Sun, R. Sun, et al., Adv. Mater. 32 (2020) 1906024.

[42]

Z. Guo, W. Xie, J. Lu, et al., J. Mater. Chem. B 9 (2021) 4098–4110.

[43]

T. Liu, M. Zhang, W. Liu, et al., ACS Nano 12 (2018) 3917–3927.

[44]

R. Shen, W. Chen, Q. Peng, et al., Chem 5 (2019) 2099–2110.

[45]

X. Deng, K. Li, X. Cai, et al., Adv. Mater. 29 (2017) 1701266.

Appendix

Less

Year 2023 volume 34 Issue 2

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2022.05.056

Receive Date：2022-01-27
Online Date：2025-11-21
Published：2023-02-15

Article Data

Affiliations

History

Received：2022-01-27
Revised：2022-05-13
Accepted：2022-05-17

Affiliations

^a Guangdong Key Laboratory for Research and Development of Natural Drugs, School of Pharmacy, Guangdong Medical University, Zhanjiang 524023, China

^c The Marine Biomedical Research Institute of Guangdong, Zhanjiang 524023, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2022.05.056

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

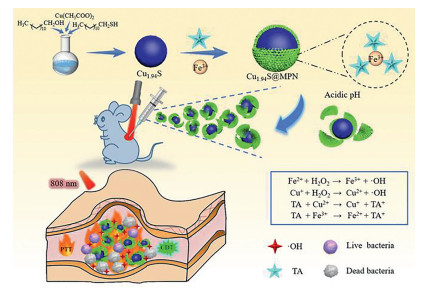

Scheme 1 Schematic representation of the production of Cu_1.94S@MPN and its synergistic antibacterial therapy.

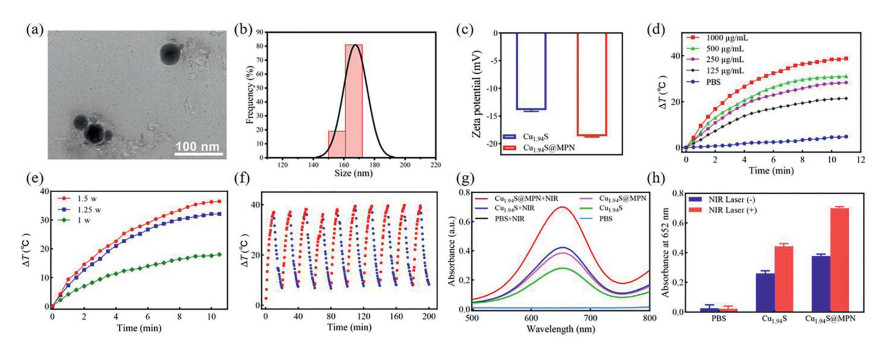

Fig. 1. (a) TEM image of Cu_1.94S@MPN. (b) Dynamic light scattering spectrum of Cu_1.94S@MPN. (c) Zeta potential profiles of Cu_1.94S and Cu_1.94S@MPN. Temperature changes of Cu_1.94S@MPN aqueous solution irradiated by an 808 nm laser (d) at different concentrations (1.25 W/cm²), (e) at different power densities (500 µg/mL). (f) Heating and cooling curves of Cu_1.94S@MPN aqueous solution (500 µg/mL) over 10 cycles of irradiation (808 nm, 1.25 W/cm²). (g) and (h) Absorbance of TMB solutions at 652 nm via incubating with Cu_1.94S and Cu_1.94S@MPN at pH 5.5 in the presence H₂O₂.

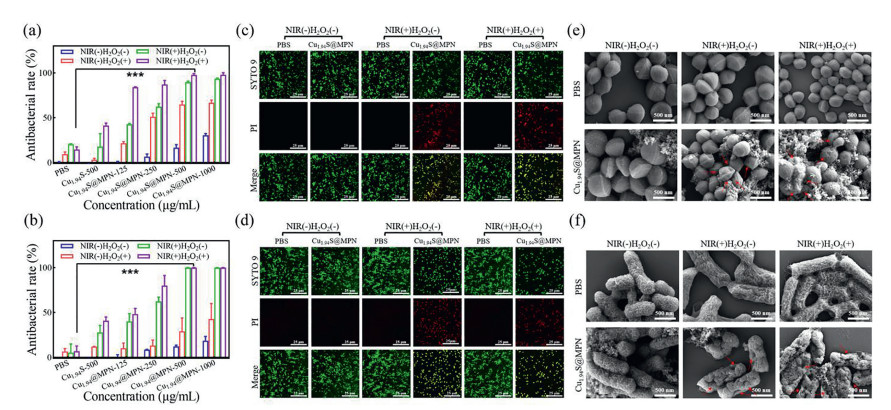

Fig. 2. Antibacterial rate of (a) S. aureus and (b) E. coli after different treatments determined by the plate counting method. Fluorescence staining images of (c) S. aureus and (d) E. coli. Dead/live bacteria are labeled green by SYTO 9, and dead bacteria are labeled red by PI (scale bar: 25 µm). SEM images of (e) S. aureus and (f) E. coli after different treatments (scale bar: 500 nm). Cu_1.94S@MPN-500 means the concentration of Cu_1.94S@MPN is 500 µg/mL, NIR(+)H₂O₂(+) means the samples were irradiated by an 808 nm laser light (1.25 W/cm²) for 10 min in the presence of H₂O₂ (100 µmol/L).

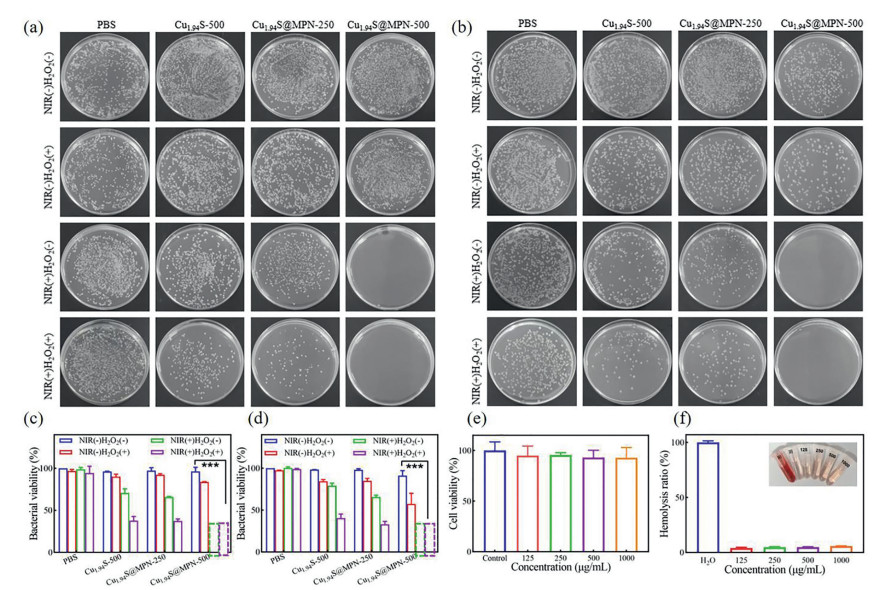

Fig. 3. Representative plate photographs of (a) S. aureus and (b) E. coli colonies detached from respective biofilms and their corresponding antibiofilm activity against (c) S. aureus and (d) E. coli. (e) Cell viability of L929 cells treated with different concentrations of Cu_1.94S@MPN. (f) Relative hemolysis rate of DI water, PBS and different concentrations of Cu_1.94S@MPN. Insets are the corresponding photographs. Cu_1.94S@MPN-500 means the concentration of Cu_1.94S@MPN is 500 µg/mL, NIR(+)H₂O₂(+) means the samples were irradiated by an 808 nm laser light (1.25 W/cm²) for 10 min in the presence of H₂O₂ (100 µmol/L).

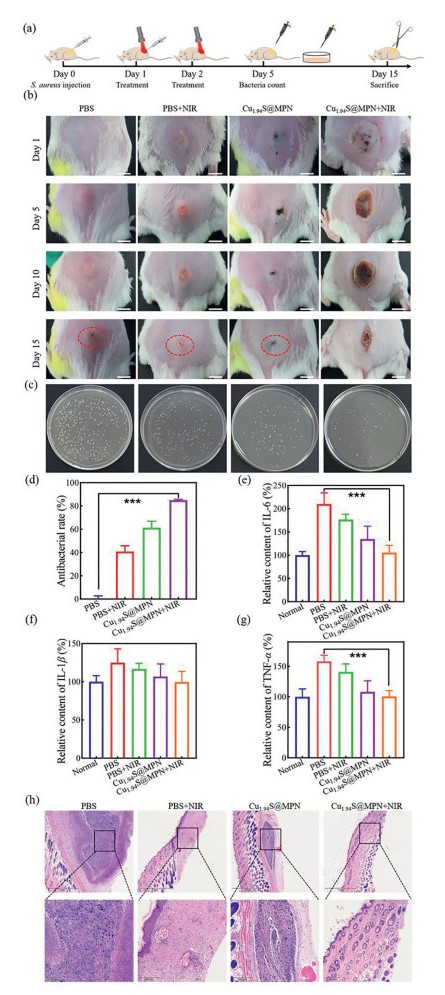

Fig. 4. (a) Schematic illustration of the treatment process of the mouse subcutaneous abscess model. (b) Photographs of infected area on the infected mice treated with PBS, PBS+NIR, Cu_1.94S@MPN, Cu_1.94S@MPN+NIR at different time points (scale bar: 5 mm). (c) Representative photographs of bacterial colonies from infected wound area of different treatment groups after 5 days. (d) Antibacterial rate of the infected tissues on day 5 determined by the plate counting method. (e) IL-6, (f) IL-1β and (g) TNF-α levels of infected mice serum tested by ELISA on day 15 (^***P < 0.001). (h) H & E staining images of the infected tissues from the four groups after 15 days (scale bar: 1 mm and 200 µm). NIR(+)H₂O₂(+) means the samples were irradiated by an 808 nm laser light (1.25 W/cm²) for 10 min in the presence of H₂O₂ (100 µmol/L).
