Yonarolide A, an unprecedented furanobutenolide-containing norcembranoid derivative formed by photoinduced intramolecular [2+2] cycloaddition

Yonarolide A, an unprecedented furanobutenolide-containing norcembranoid derivative formed by photoinduced intramolecular [2+2] cycloaddition

PDF

Yeqing Du^a^,^b, Ligong Yao^b, Xuwen Li^a^,^b^,^c^,^*, Yuewei Guo^a^,^b^,^c^,^*

Chinese Chemical Letters | 2023, 34(2) : 107512

Less

Chinese Chemical Letters | 2023, 34(2): 107512

• Communication •

Yonarolide A, an unprecedented furanobutenolide-containing norcembranoid derivative formed by photoinduced intramolecular [2+2] cycloaddition

Full

Yeqing Du^a^,^b, Ligong Yao^b, Xuwen Li^a^,^b^,^c^,^*, Yuewei Guo^a^,^b^,^c^,^*

Affiliations

^a School of Chinese Materia Medica, Nanjing University of Chinese Medicine, Nanjing 210023, China

^b State Key Laboratory of Drug Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China

^c Drug Discovery Shandong Laboratory, Bohai Rim Advanced Research Institute for Drug Discovery, Yantai 264117, China

Published: 2023-02-15 doi: 10.1016/j.cclet.2022.05.026

Outline

Abstract

Less

Eight polycyclic furanobutenolide-containing norcembrane diterpenoids featuring C19 frameworks (1–8) were rapidly recognized and isolated from the Hainan soft coral Sinularia sp. by the HSQC-based small molecule accurate recognition technology. Yonarolide A (1a), featuring an unprecedented 5/6/4/4/7 pentacyclic ring skeleton, was surprisingly obtained as a transformed product by leaving compound 1 under indoor natural light, and was further proved to be a [2 + 2] cycloaddition product of 1 by photochemical reaction. The absolute stereochemistry of 1a and the three known norcembrane diterpenoids 1, 4, and 7 were determined by using X-ray diffraction (XRD) analyses. Further, with the aid of XRD analysis, the structure of scabrolide B (2), which was previously reported of possessing 5/6/7 tricyclic skeleton, was firmly revised as 2a with the rare inelegane skeleton featured by the highly oxygenated 5/7/6 tricyclic carbocycle.

Key words

Soft coral / Sinularia / Norcembranoid / Photocycloaddition / SMART method

Cite this Article

Yeqing Du, Ligong Yao, Xuwen Li, Yuewei Guo. Yonarolide A, an unprecedented furanobutenolide-containing norcembranoid derivative formed by photoinduced intramolecular [2+2] cycloaddition[J]. Chinese Chemical Letters, 2023 , 34 (2) : 107512 - . DOI: 10.1016/j.cclet.2022.05.026

Full Text

Less

Polycyclic furanobutenolide-containing norcembranoids are a rare group of natural products, which are found exclusively in soft corals of the genus Sinularia, especially S. leptoclados, S. inelegans, and S. lochmodes [1-3]. These metabolites have captured the attention of chemists and biologists due to their complex structures featured by a 5/6/7 tricyclic or 5/7/6 tricyclic skeleton, and their wide spread biological activities, such as anti-inflammatory, anti-osteoporotic, and cytotoxic effects [4, 5]. Particularly, the first total synthesis of scabrolide A has been accomplished by Stoltz and co-workers in 2020 owning to its potential as an anti-inflammatory agent [6]. However, due to the polycyclic nature and complex stereochemistry of these norditerpenoids, their structure elucidation was challenging, which also limited their further biological study [4, 7, 8]. In order to explore the chemical diversity of these intriguing furanobutenolide-containing norcembranoids and further confirm their stereochemistry, soft corals from the genus Sinularia were collected off the coast of Ximao island and chemically investigated.

Small molecule accurate recognition technology (SMART) is an artificial intelligence-based tool to generate structure hypotheses from HSQC data. It can rapidly recognize the structure types of natural product from crude extracts or fractions of the sample [9]. Gerwick and co-workers used NMR-based SMART for the discovery and rapid classification of several new peptides from a marine cyanobacterium in 2017 [10]. The NMR-based SMART and MS²-based molecular networking led to the isolation and rapid identification of the macrolide and cyclic peptides in 2020 by Reher et al. [11]. This technology is being widely recognized, which inspired us to apply it for the discovery and rapid classification of polycyclic furanobutenolide-containing norcembranoids. The crude extract of species unidentified soft coral Sinularia sp. collected off the coast of Ximao Island in the South China Sea, was separated by a rapid silica gel column chromatography to yield five fractions (Fr. A to Fr. E). The cross-peaks obtained from HSQC spectra of crude fractions Fr. A−Fr. E were settled in tables saved as CSV files, which were then uploaded to the SMART system (http://smart.ucsd.edu/classic). The result of Fr. E showed that 5 out of top 8 compounds ordered by cosine similarity score were polycyclic furanobutenolide-containing norcembranoids (Fig. 1). Based on the results of the SMART positioning, Fr. E could be rich in polycyclic furanobutenolide-containing norcembranoids and was thus systematically further investigated for its chemical constituents.

With the help of SMART, eight polycyclic furanobutenolide-containing norcembranoids (1–8) were rapidly isolated from Sinularia sp. Interestingly, yonarolide A (1a), featuring an unprecedented 5/6/4/4/7 pentacyclic carbon skeleton, was obtained as a transformed product by leaving compound 1 in methanol/water under indoor natural light, and further synthesized from 1 by photoreaction. With the aid of X-ray diffraction analysis, the structure of scabrolide B (2) was revised as 2a with the rare inelegane skeleton featured by the highly oxygenated 5/7/6 tricyclic carbocycle. Detailed isolation, structure elucidation of the norcembranoids, and the chemical transformation towards the novel compound 1a were reported herein.

The acetone extract of the soft coral Sinularia sp. was partitioned between Et₂O and n-BuOH. The Et₂O-soluble portion was subjected to chromatography to yield five fractions (Fr. A to Fr. E), and the SMART method (Fig. 1, see Supporting information for details) was used to rapidly afford eight pure norcembranoids 1–8 (Fig. 2).

Compounds 1 and 3–8 were rapidly identified by the comparison of their spectroscopic data with those reported in the literature as yonarolide (1) [12], ineleganolide (3) [13], scabrolide D (4) [14], norcembrene 5 (5) [13, 15], sinulin D (6) [16], 10‑epi-gyrosanolide E (7) [15], and sinularcasbane O (8) [17], respectively. It is worth mentioning that the absolute configurations of compounds 1, 4 and 7 were unambiguously established for the first time by X-Ray diffraction analyses (Fig. 3).

Interestingly, when we were trying to grow a single crystal for yonarolide (1) in a methanol/water 9:1 solvent system, we found that compound 1 has been transformed into 1a in transparent glass bottle. A semipreparative HPLC (CH₃CN/H₂O, 1:1, v/v) was utilized to analyze the purity of compound 1. Surprisingly, two principal constituents 1 (t_R = 7.3 min) and 1a (t_R = 10.6 min) were observed in HPLC analysis, indicating that compound 1 was transformed into 1a in the transparent glass bottle under indoor natural light.

The molecular formula of 1a was established as C₁₉H₂₀O₄ with ten double-bond equivalents (DBEs) by ESIHRMS analysis ([M + H]⁺ m/z 313.1437, calcd. for C₁₉H₂₁O₄, 313.1434). The 1D NMR and HSQC spectra exhibited 19 carbon resonances, including three carbonyls (δ_C 211.3, 196.8, 175.1), two olefinic carbons (δ_C 127.4, 156.7), four methines (δ_C 80.8, 48.0, 42.1, 34.7), five methylenes (δ_C 43.2, 44.4, 45.3, 29.9, 39.4), two methyl groups (δ_C 16.9, 19.9), three quaternary carbons (δ_C 47.7, 43.3, 47.5). Three carbonyl carbons and two olefinic groups accounted for 4 of the 10 DBEs, the remaining degree of unsaturation required the presence of six rings in 1a. 1D NMR data comparison of 1 and 1a suggested that the 5/6/7 tricyclic skeleton and the five-membered lactone ring of 1 was remained. However, the lack of four olefinic carbons (δ_C 149.1, 146.9, 134.1, 111.1) in 1a suggested that the structural transformation may occur in these carbon positions, probably a [2 + 2] cycloaddition towards two cyclobutane rings. Our hypothesis was further confirmed by HMBC experiment. The clear HMBC correlations from H-17 to C-13/C-15/C-16/C-1 and from H-14 to C-13/C-5/C-15 supported the presence of two cyclobutane rings (Fig. 4), thus constructing a 5/6/4/4/7 pentacyclic ring skeleton in 1a.

It is obvious that compound 1a is the photoinduced [2 + 2] cycloaddition product of 1. To confirm this conversion and to obtain more of 1a for absolute configuration determination, we carried out the photochemical reaction with different conditions as shown in Table 1. To our delight, a smooth [2 + 2] photocycloaddition between Δ^{5, 13} and Δ^{15, 16} of 1 led to the desired bicyclo[2.2.0]hexane moiety towards 1a (Table 1, entries 1 and 2). Further, 250 W long arc mercury lamp irradiation either in air or in N₂ proved to be better reaction conditions, with an isolated yield of 48% and 57%, respectively. Fortunately, after obtaining the enough amount of 1a, we tried and succeeded in the cultivation of its single crystal, which allowed the unambiguous determination of its absolute configuration and further confirmed its planar structure as 5/6/4/4/7 pentacyclic ring scaffold. It is worth mentioning that the skeleton of 1a has never been discovered in any known diterpenoid.

Compound 2 was readily identified as scabrolide B, a norcembranoid that was previously isolated from the same species but collected off the coast of Kenting, Taiwan, in April 2001 by Sheu and co-workers, based on the overall comparison of its physical and chemical data including NMR spectroscopic data (Table S4 in Supporting information) with those reported in the literature [14]. Since the skeleton of 2 belongs to an extremely rare group of marine natural products, and as far as we known, there are only four members of reported yonarane norditerpenoids, which stimulated our curiosity to double-check the spectroscopic data of 2. Firstly, we carefully analyzed the data reported in Sheu's paper. They have reported the HMBC correlations from H-4 (δ_H 6.34) to C-5 (δ_C 150.8), C-3 (δ_C 202.2), C-6 (δ_C 202.5), and C-13 (δ_C 41.6), whereas, the correlations from H-5 (δ_H 6.33) to C-7 (δ_C 62.4) and from H-2 (δ_H 2.59) to C-3 (δ_C 202.5), C-15 (δ_C146.4), C-14 (δ_C 30.5), which can be observed in our HMBC spectrum, have not been mentioned by the authors. These cross-peaks are much more consistent with 2a (C7−C6−C5−C4 linkage), which led to a revision of the planar structure of scabrolide B as possessing a 5/7/6 tricyclic carbocycle.

In order to explain the rationality of the 5/7/6 tricyclic carbocycle and further improve the correctness of our speculation, we calculated the chemical shifts of 2a and 2 at the PCM/mPW1PW91/6–31+G^**//B3LYP/6–31G^* level of theory (using chloroform as the solvent) [18, 19]. We found the calculated chemical shifts of 2a to be in significantly better agreement with the experimental values than those calculated for 2 (Table S5 in Supporting information), as indicated by parameters such as correlation coefficient in regression analysis (R²), mean absolute error (MAE), corrected mean absolute error (CMAE), and maximum absolute error (MaxErr) (Fig. 5). In particular, the remarkably upfield observed chemical shift of C-5 (δ_C 130.5) was much closer to the calculated value in 2a (δ_C 131.1) than it was to the calculated value in 2 (δ_C 136.6). To address this question with quantifiable confidence, the experimental ¹³C NMR data were compared to the DFT-NMR data generated from the revised structure of 2a and the originally elucidated form through DP4+ probability scores [20]. The DP4+ probability scores, resulted in preferring the revised structure (2a) over its original version (2) with 100% probability (Fig. 5).

Fortunately, the suitable crystal was eventually obtained from CH₂Cl₂-MeOH-H₂O (10:20:1) after many failed attempts and was then sent for X-ray crystallographic analysis using Cu Kα radiation with a Flack parameter of –0.01(8). The X-ray result firmly supported our speculation that the correct structure of scabrolide B was 2a (Fig. 6). To the best of our knowledge, 2a is the second compound with the novel inelegane skeleton possessing the highly oxygenated 5/7/6 tricyclic carbocycle in nature [21, 22].

In summary, HSQC-based SMART method was applied to guide the isolation of diterpenoids in Sinularia sp. collected off the coast of the Ximao Island in the South China Sea, and led to the discovery of eight polycyclic furanobutenolide-containing norcembranoids with C19 frameworks (1–8). Their structures were elucidated by extensive spectroscopic analysis, NMR calculation with DP4+ probability analysis, and/or X-ray diffraction analyses. Compound 1 belongs to the yonarane norditerpenoids with only four members of this type norditerpenoids. Compounds 2a and 3 represent the only two examples of inelegane norditerpenoids that have been found in nature. Yonarolide A (1a), featuring an unprecedented 5/6/4/4/7 pentacyclic ring skeleton containing a highly strained bicyclo[2.2.0]hexane moiety, was obtained by a chemical transformation from 1. Compound 1a is probably a natural product in the soft coral, since many similar [2 + 2] natural product has been found in nature and was confirmed by total synthesis, such as nyingchinoid D and eriobrucinol [23, 24]. The discovery of 1–8, especially the novel compound 1a, has expanded the diversity and complexity of marine diterpenoids. Further study should be conducted for the exploration of the chemistry and biological activities of the novel compound 1a and its related polycyclic furanobutenolide-containing norcembranoids to understand their roles played in the life cycle of the soft coral.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This research work was financially supported by the National Key Research and Development Program of China (No. 2021YFF0502400), the National Natural Science Foundation of China (Nos. 81991521, 82022069 and 42076099), the Shanghai Rising-Star Program (No. 20QA1411100), "Youth Innovation Promotion Association" of Chinese Academy of Sciences (No. Y202065), and the SKLDR/SIMM Project (No. SIMM2103 ZZ-06). We thank Prof. X.-B. Li from Hainan University for the taxonomic identification of the soft coral material.

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2022.05.026.

References

Less

[1]

A.F. Ahmed, R.T. Shiue, G.H. Wang, et al., Tetrahedron 59 (2003) 7337–7344.

[2]

C.Y. Duh, S.K. Wang, M.C. Chia, et al., Tetrahedron Lett. 40 (1999) 6033–6035.

[3]

Y.J. Tseng, A.F. Ahmed, C.F. Dai, et al., Org. Lett. 7 (2005) 3813–3816.

[4]

R.A. Craig, B.M. Stoltz, Chem. Rev. 117 (2017) 7878–7909.

[5]

N.P. Thao, N.H. Nam, N.X. Cuong, et al., Bioorg. Med. Chem. Lett. 23 (2013) 228–231.

[6]

N.J. Hafeman, S.A. Loskot, C.E. Reimann, et al., J. Am. Chem. Soc. 142 (2020) 8585–8590.

[7]

Y. Li, G. Pattenden, Nat. Prod. Rep. 28 (2011) 1269–1310.

[8]

Y. Li, G. Pattenden, Nat. Prod. Rep. 28 (2011) 429–440.

[9]

C. Zhang, Y. Idelbayev, N. Roberts, et al., Sci. Rep. 7 (2017) 14243–14260.

[10]

W.H. Gerwick, J. Nat. Prod. 80 (2017) 2583–2588.

[11]

R. Reher, H.W. Kim, C. Zhang, et al., J. Am. Chem. Soc. 142 (2020) 4114–4120.

[12]

K. Iguchi, K. Kajiyama, Y. Yamada, Tetrahedron Lett. 36 (1995) 8807–8808.

[13]

W.X. Cui, M. Yang, H. Li, et al., Bioorg. Chem. 94 (2020) 103350.

[14]

J.H. Sheu, A.F. Ahmed, R.T. Shiue, et al., J. Nat. Prod. 65 (2002) 1904–1908.

[15]

A. Sato, W. Fenical, Q.T. Zheng, et al., Tetrahedron 41 (1985) 4303–4308.

[16]

G.F. Qin, X.L. Tang, Y.T. Sun, et al., Mar. Drugs 16 (2018) 127.

[17]

M.E.F. Hegazy, T.A. Mohamed, A.I. Elshamy, et al., Molecules 21 (2016) 308.

[18]

Y.F. Li, S.W. Li, C. Cuadrado, et al., Chin. Chem. Lett. 32 (2021) 271–276.

[19]

Y.P. Sun, L.T. Cui, Q.R. Li, et al., Chin. Chem. Lett. 33 (2022) 516–518.

[20]

T. Kouamé, G. Bernadat, V. Turpin, et al., Org. Lett. 23 (2021) 5964–5968.

[21]

R.A. Craig, R.C. Smith, J.L. Roizen, et al., J. Org. Chem. 83 (2018) 3467–3485.

[22]

R.A. Craig, R.C. Smith, J.L. Roizen, et al., J. Org. Chem. 84 (2019) 7722–7746.

[23]

A.J. Day, C.J. Sumby, J.H. George, J. Org. Chem. 85 (2020) 2103–2117.

[24]

J.D. Hart, L. Burchill, A.J. Day, et al., Angew. Chem. Int. Ed. 58 (2019) 2791–2794.

Appendix

Less

Year 2023 volume 34 Issue 2

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2022.05.026

Receive Date：2022-02-24
Online Date：2025-11-21
Published：2023-02-15

Article Data

Affiliations

History

Received：2022-02-24
Revised：2022-05-07
Accepted：2022-05-11

Affiliations

^a School of Chinese Materia Medica, Nanjing University of Chinese Medicine, Nanjing 210023, China

^b State Key Laboratory of Drug Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China

^c Drug Discovery Shandong Laboratory, Bohai Rim Advanced Research Institute for Drug Discovery, Yantai 264117, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2022.05.026

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

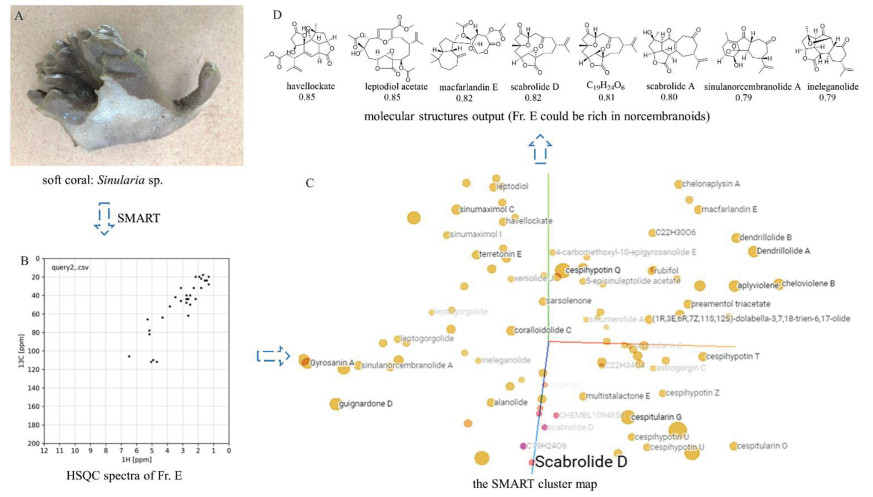

Fig. 1. SMART-guided isolation. (A) Isolated compounds from soft coral Sinularia sp.; (B) Digitized HSQC spectrum of Fr. E, which was generated by the SMART system through uploading the files containing the signals in experimental HSQC spectrum of crude extract; (C) The spectra were mapped into a 180-dimensional embedding space (nodes representing natural products trained on the basis of their ¹H–¹³C-HSQC spectra); (D) SMART 2.0 results (top 8 structures based on cosine similarity score) of Fr. E suggests that it contains norcembranoids.

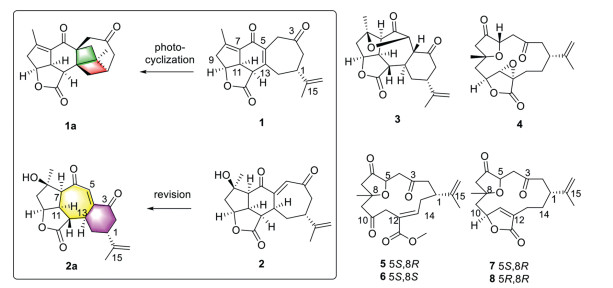

Fig. 2. The structures of compounds 1−8, 1a and 2a.

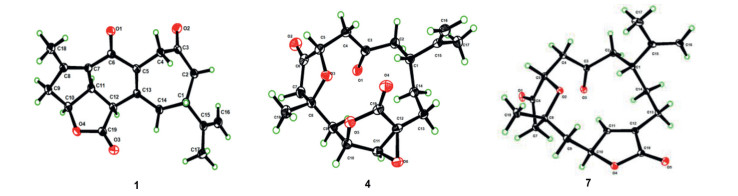

Fig. 3. Perspective ORTEP drawing of X-ray structures of 1, 4 and 7.

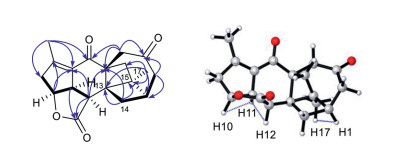

Fig. 4. Key ¹H–¹H COSY (thick lines), HMBC (blue arrows, from ¹H to ¹³C) and NOESY (blue dashed lines, from ¹H to ¹H) correlations of compound 1a.

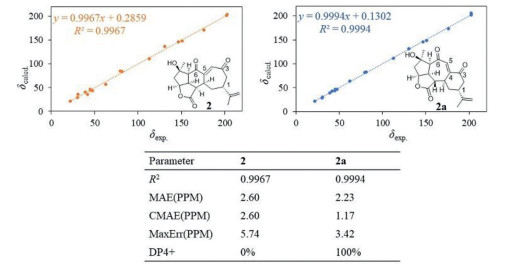

Fig. 5. Parameters of the calculated chemical shifts of 2 and 2a.

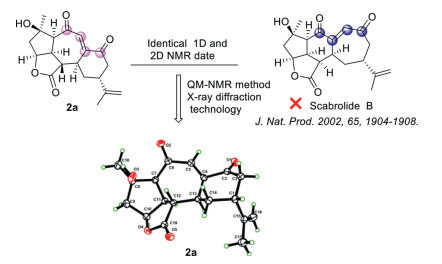

Fig. 6. Revised structure and originally structure of scabrolide B.
