Imines are a class of active intermediates for dyes, biochemistry, and pharmaceuticals [1–3]. Synthesizing imines using environmentally friendly methods is becoming increasingly important to meet the demand that drives catalysis research. Since Ohtani et al. synthesized imines with palladium@TiO₂ photocatalyst [4], several decades ago, an increasing number of studies have focused on photocatalytic oxidative amine coupling [5–7]. It is generally believed that electrons in the conduction band (CB) of photocatalysts react with oxygen molecules and generate active oxygen species. These active oxygen species are the determining factors for the oxidate amines and facilitate the coupling of amines [6,8]. Recently, composites that could expand the optical absorption range, reduce the band gap and promote the separation of photoelectron-hole pairs have been chosen as excellent photocatalysts to achieve the oxidation of amines [9–11].

Porous photoactive materials such as metal-organic frameworks (MOFs), and covalent organic frameworks (COFs) with more active sites, and a broader absorption band are viewed as potential candidates to form composites [12,13]. So far, these composites used for oxidative coupling of amines are generally composed of MOFs and other materials, such as CdS and Ce, that have matching CB with MOFs, thereby constructing the rapid charge transport channels and reservoir for the electrons [14,6]. It is evident that these systems could only absorb a narrow spectrum of UV–visible light range. In order to maximize solar energy utilization, researchers have developed metal nanoparticles that uniquely absorb visible and near infrared wavelengths through confined coherent electron cloud oscillation in the conduction band referring to localized surface plasmon resonance (LSPR) [15,16]. In addition, some literature has reported loading metal nanoparticles on MOFs to synthesize amines [17]. However, very few research studies have constructed core-shell structures containing MOFs and metal nanoparticles, which differ from loading systems to promote the photocatalytic oxidative coupling of amines.

Herein, we fabricated NH₂-UiO-66 coating on Ag nanowires (NWs) with absorption at a more comprehensive UV-visible and infrared light range. Ag NWs are noted for their mechanical flexibility and high transmittance in the near infrared (NIR) [18]. NH₂-UiO-66 is a classical MOF that exhibits excellent chemical stability, high surface area and efficient light absorption ability [19–21]. More importantly, the zeta-potential of NH₂-UiO-66 is contrary to the Ag NWs in acidic pH range, which help to form the core-shell structure through electrostatic interaction [22,23]. The composite Ag NWs@NH₂-UiO-66 exhibited significantly enhanced photocatalytic activity of coupling imines under mild conditions in the air atmosphere. The research could offer valuable reference for the design and construction of MOF-based composite photocatalysts for oxidative coupling of amines.

In a typical experiment, a one-pot synthesis of ZrCl₄, NH₂-BDC, and DMF solution containing pre-synthesized Ag NWs yielded Ag NWs@NH₂-UiO-66 (A@U). Briefly, the positively charged precursors of NH₂-UiO-66 were anchored on the surface of negatively charged Ag NWs via electrostatic interaction. Then, the MOF crystal nucleus was anchored on the Ag NWs and increasingly grown on the Ag NWs to form a core-shell (Scheme 1). The thickness of the NH₂-UiO-66 sheath was controlled by the cyclic growth time of precursors on the Ag nanowires surface to achieve the optimal catalytic performance of the A@U core/sheath nanowires.

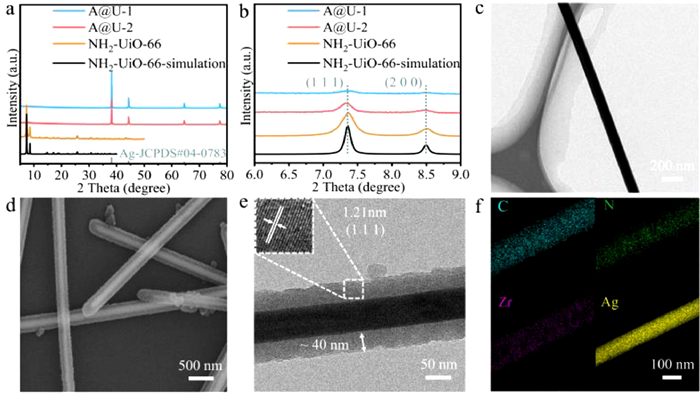

Two samples of Ag nanowires with 1 and 2 cycle coating layers, named A@U-1, and A@U-2, respectively, were synthesized to optimize catalytic performance. The PXRD patterns of A@U-1, A@U-2 and NH₂-UiO-66 were in good agreement with the simulation, which indicated the successful construction of the composite structure (Fig. 1a). It is worth noting that, after removing the Ag NWs characteristic diffraction peaks, the diffraction peaks in the range of 6°−9° are exactly in agreement with NH₂-UiO-66 (Fig. 1b). The N₂ adsorption-desorption isotherms of composites and NH₂-UiO-66 also exhibited typical type-Ⅰ isotherms (Fig. S1 in Supporting information). To investigate the morphology and particle size of composites, A@U were characterized by scanning electron microscopy (SEM) and high-resolution TEM (HRTEM). As shown in Fig. 1c, the surface of Ag NWs was smooth and uniform thickness of NH₂-UiO-66 increased over cyclic time (Fig. 1d, Figs. S2 and S3 in Supporting information). The TEM images suggested that the thickness of the NH₂-UiO-66 coating layer of A@U-1 and A@U-2 was about 40 and 70 nm, respectively (Fig. 1e and Fig. S2). The corresponding high-resolution TEM (HRTEM) image (inset in Fig. 1e) showed the lattice fringes with an interplanar spacing of 1.21 nm, which matched with the (111) crystal plane of NH₂-UiO-66. Moreover, the energy-dispersive X-ray spectroscopy (EDS) elemental mapping (Fig. 1f) and DRIFTS (Fig. S4 in Supporting information) of A@U-1 supported the delicate structure that proportional NH₂-UiO-66 well-bound on the Ag nanowires.

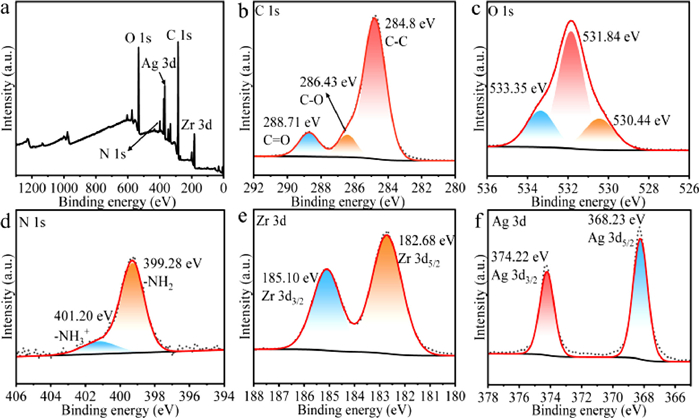

The elemental valence states of composites were investigated by XPS. As shown in Fig. 2a, the survey spectrum suggests that A@U-1 contains C, O, N, Zr and Ag elements, which agrees with the EDS mapping. The high-resolution C 1s spectrum can be split into three peaks, at 284.8, 286.43 and 288.71 eV, which could be attributed to carbon-carbon single bond, carbon-oxgyen single bond, and carbon-oxgyen double bond group in the NH₂-UiO-66 (Fig. 2b). The O 1s spectrum shows the three peaks at 530.44, 531.84 and 533.35 eV, ascribed to absorbrd lattice oxygens, oxygens of COOH groups and oxygen vacancies, respectively (Fig. 2c). Two peaks centered at 399.28 eV (-NH₂), and 401.20 eV (-NH₃⁺) can be seen in the N 1s spectrum (Fig. 2d). There are two peaks in the Zr spectrum that can be related to Zr 3d_5/2 (182.68 eV), and Zr 3d_3/2 (185.10 eV) (Fig. 2e) [6,24]. Evidently, the spectrum of the Ag 3d region can be fitted to two peaks for Ag 3d_3/2 (374.22 eV) and Ag 3d_5/2 (368.23 eV) of metallic Ag state (Fig. 2f).

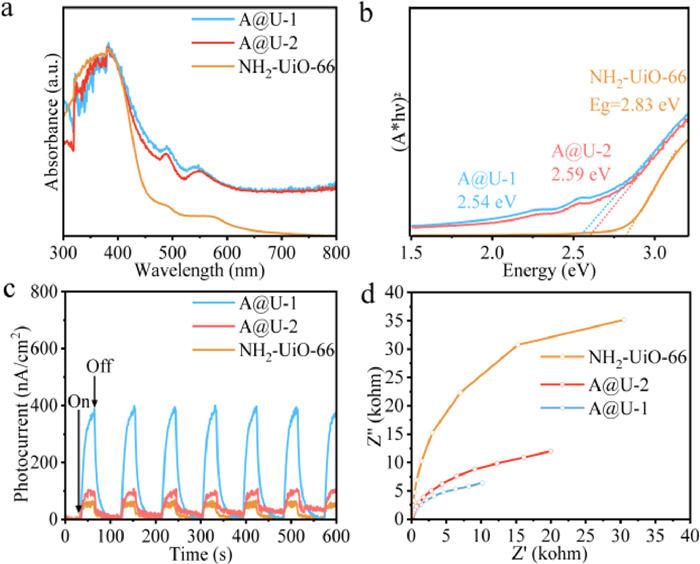

UV-visible analysis was performed (Fig. 3a) to understand the optical absorption abilities of core-shell structures. Apparently, NH₂-UiO-66 could only absorb a narrow range of UV-visible light, while A@U-X exhibited wider absorption at the range of 400–800 nm, paving the way to utilize more optical energy. Meanwhile, the bandgaps of NH₂-UiO-66, and A@U-X (Fig. 3b) were calculated by tauc plot by using diffused reflectance spectra [17]. Specifically, the bandgap of NH₂-UiO-66, A@U-1, and A@U-2 is 2.83, 2.54 and 2.59 eV, respectively. It is worth noting that the A@U-1 which has a thinner coating layer exhibited a narrower bandgap than the thicker one, indicating the consequent catalytic performances of A@U-1. In order to reveal the core-shell structures abilities of separating photoelectron-hole pairs, composites were tested by photoelectrochemical measurements. As depicted in Fig. 3c, both A@U composites exhibited significantly enhanced photocurrent response abilities, which were higher than the NH₂-UiO-66. More importantly, the A@U-1 with thinner thickness exhibited the highest photocurrent response, indicating that the A@U-1 had the best ability to separate photoelectron-hole pairs. The electrochemical impedance spectroscopy (EIS) (Fig. 3d) also supported a similar conclusion, A@U-1 had the smallest radium, confirming its charge transfer resistance was lower than that of A@U-2.

To preliminarily evaluate the catalytic activity of A@U for the oxidative coupling of amines to imines, benzylamine was chosen as a substrate. When NH₂-UiO-66, Ag NWs, A@U-1 and A@U-2 were used as catalysts, the yields of imines were 50%, 14%, 80% and 62%, respectively (Table 1). As expected, due to its core-shell structure, A@U displayed better imine yields than the original single-component MOF. In addition, A@U-1 exhibited better catalytic activity under the light. Blank experiments in the absence of either light or catalyst showed only slight conversion of the substrates, confirming that the photocatalytic process drove the conversion of amines. The low benzylamine yield in N₂ indicated that oxygen was required to be involved in the photocatalytic oxidative coupling of amines. To demonstrate that the reaction was truly processed in a heterogeneous manner, the catalyst was filtered out during the reaction, and the results revealed that keeping the reaction under identical conditions for another 2 h did not lead to any conversion of benzylamine (Fig. S5 in Supporting information). In order to evaluate the cyclic stability of the catalyst for the benzylamine coupling reaction, A@U-1 was selected to investigate the stability of the catalyst after recovery (Fig. S6 in Supporting information). The PXRD patterns and FT-IR spectra of A@U-1 after three reaction cycles are well matched with those of the material before the reaction, which proves that A@U-1 has good photocatalytic benzylamine coupling cycle stability (Fig. S7 in Supporting information).

The semiconducting properties of NH₂-UiO-66 were measured using Mott-Schottky measurements (Fig. S8 in Supporting information) with three different frequencies. NH₂-UiO-66 displayed an n-type semiconductor, and its conduction band minimum (CBM) is −0.62 V vs. NHE, it is theoretically suitable for electrons transfered to O₂ to produce related reactive oxygen species (ROS, E(O₂/^·O₂⁻) = −0.33 V vs. NHE) [25]. Considering the bandgap of NH₂-UiO-66 from tauc plot (2.83 V), the calculated valence band maximum (VBM) is +2.21 V vs. NHE. In comparison with the previously reported systems (Table S1 in Supporting information), the delicate core-shell composite facilitates the coupling of amines under air, which is indicative that these core-shell systems possess a higher catalytic superiority over other silver nanocomposites. NH₂-UiO-66 shells in A@U can (1) stabilize and disperse silver nanowires; (2) increase the number of active sites; (3) accumulation of photoelectrons and transfer them to the active site. The outstanding catalytic ability could be summarized as follows: (1) Plasmon sensitization of plasmonic metal and semiconductor composite nanostructures has been considered as a functioning mechanism in photocatalysis [26]. When under resonant excitation of the LSPR of the Ag NWs, the electron from Ag NWs is transferred to NH₂-UiO-66 by plasmon quanta decay into an electron-hole pair [27]. As a result, wide-band gap NH₂-UiO-66 gain additional electrons and exhibit better photocatalytic activity. (2) The excellent photothermal behavior of composites could also convert optical radiation to thermal energy thus accelerating the catalytic reaction. (3) The porous characteristic of NH₂-UiO-66 makes sure it can efficiently absorb O₂ to promote the reaction. (4) The surface of the composite promotes the separation of electron-hole pairs. Under illumination, Ag NWs with LSPR effect will generate a significantly enhanced local electromagnetic field in the near-field region near the surface. The NH₂-UiO-66 located near the Ag NWs is affected by the strong electric field, and its intensity is several orders of magnitude larger than that of the far-field incident. Since the generation rate of electron/hole pairs is proportional to the locally excited light, the concentration of electron/hole pairs produced in this region of the NH₂-UiO-66 is greatly increased [28]. (5) The A@U-1 with thinner shell thickness shows better catalytic activity since the intensity of the near-field from LSPR decays with the distance from the surface of the Ag NWs, a thinner MOF layer will be under the influence of a stronger electric field on average, leading to superior catalytic activity. When the shell thickness becomes thicker, the Plasmon-Enhanced photocatalytic oxidative coupling of amines becomes weaker (Fig. S9 in Supporting information).

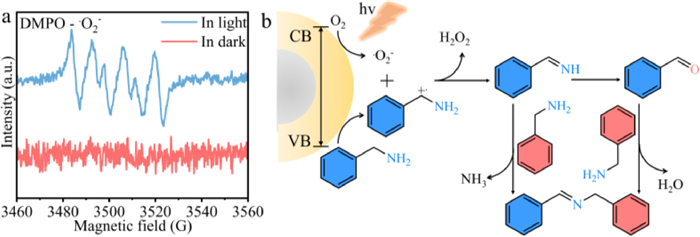

In order to explore the active species in the reaction, a series of quenchers were added to the reaction system (Table 1). These include p-benzoquinone (quenches superoxide radicals); potassium persulfate (quenches electrons) and potassium iodide (to quench holes). After adding three quenchants, the yield of imines decreased to a certain extent, indicating that superoxide radicals, photogenerated electrons and holes were involved in the reaction process. To identify the reactive oxygen species of the photocatalytic reaction, A@U-1 with better catalytic activity was detected with DMPO (Fig. 4a). In the dark background, there was no observable signal, while there was a typical sextet signal, which could be identified as a superoxide radical (^·O₂⁻), observed under the light. In addition, H₂O₂ and benzaldehyde were detected by NMR and GC–MS analysis (Fig. S10 in Supporting information). Above all, we propose a possible mechanism to synthesize amines with core-shell composites A@U-X (Fig. 4b). Step 1: Ag NWs is excited to yield plasmon quanta, which could be converted into electron-hole pairs of NH₂-UiO-66 via the composite's surface. Step 2: Electron-hole pairs are further separated on the surface, electrons activate O₂ to ^·O₂⁻, meanwhile holes react with benzylamine generating carbocationic radicals. Step 3: A pair of ^·O₂⁻ and carbocationic radicals react with each other and generate PHCH═NH intermediate and benzaldehyde. Step 4: PHCH═NH intermediate and benzaldehyde nucleophilic attacks another benzylamine forming the imine.

In conclusion, we constructed delicate Ag nanowires@NH₂-UiO-66 core-shell nanostructures as photocatalysts to oxidize amines and facilitate the coupling of amines. The A@U-1 composite further successfully synthesizes amines under air with a higher yield compared to both constituent parts. Moreover, the result reveals that in semiconductor-metal composite systems, the metal component with LSPR may take the lead during the photocatalytic oxidative coupling of amines. This work proposes a noble core-shell construction strategy that could offer valuable reference for the design and construction of MOF-based composite photocatalysts for oxidative coupling of amines.
