Transition metal chalcogenides (TMCs) have attracted extensive scientific interest in the fields of electrochemical energy storage and conversion due to their unique chemical and physical properties [1-3]. In particular, ternary tin-based chalcogenides (SnSSe) deliver the high theoretical capacity based on the multiple ion storage mechanisms and appropriate voltage plateaus, and their layered structure with large interlayer spacing is conducive to the insertion of alkali (Li, Na, K) ion storage and alleviate volume expansion [4-6]. However, SnSSe exhibits the deficient kinetics and fast capacity decay during the discharge and charge process, owing to its unsatisfactory electronic/ionic conductivity, and serious structural degradation and volume change. Therefore, many strategies including nanostructure design, nanocomposite optimization, doping and heterojunction etc. have been designed to enhance the ion storage performance of anode materials [7-10]. Specially, various carbon substrates with different morphologies are often used to improve conductivity, reduce diffusion distance, sustain structural strain and accommodate volume expansion of electrodes.

As a kind of carbon substrates, carbon nanofibers (CNF) with one-dimensional structure, good electrical conductivity, high mechanical strength and low density, have been applied to enhance the sodium storage performance of TMCs [11,12]. The unique structure of CNF can provide high surface-volume ratios, facilitate rapid electron/ion transport and enhance the stability of electrodes. Although CNF can improve the electrochemical performance of tin-based electrodes, designing the ternary tin-based chalcogenides coupled with CNF is rarely reported, many works do not pay attention to the synergistic effects and reaction mechanism on the hybrid composites. Meanwhile, heteroatom doping has been explored to be an effective method to introduce external defect, generate rich active sites and further optimize electronic conductivity of CNF [13].

Herein, we designed and prepared the ternary tin selenium sulfide (SnS_0.5Se_0.5) nanoparticles coupled with N/S/Se triple-doped carbon nanofibers (NSSe-C) through a facile strategy for the first time. Combined the merits of high theoretical capacity of SnS_0.5Se_0.5, and high conductivity and stability of NSSe-C, SnS_0.5Se_0.5@NSSe-C nanofibers display the improved sodium storage performance. Moreover, the reaction mechanisms and kinetics of SnS_0.5Se_0.5@NSSe-C nanofibers are investigated in detail though in situ methods and theoretical calculations.

The two-step preparation of SnS_0.5Se_0.5@NSSe-C composite is illustrated in Fig. 1a. In the synthesis process of SnS_0.5Se_0.5 active material, multi-element doping of carbon fiber were achieved. Fig. 1b shows XRD patterns of SnS_0.5Se_0.5 prepared by solid state method, and SnS_0.5Se_0.5@NSSe-C and NSSe-C prepared by electrospinning and heat treatment process. The characteristic diffraction peaks of SnS_0.5Se_0.5 and SnS_0.5Se_0.5@NSSe-C are corresponding exactly to the indexed SnS_0.5Se_0.5 (PDF#48–1225 [14]), suggesting good crystallinity and high purity. In Fig. S1 (Supporting information), the synthesis of SnS_0.5Se_0.5@NSSe-C nanofibers require more sulfur and selenium powders to avoid the formation of Sn impurity, and additional sulfur and selenium powders can be doped into the N−CNF, creating more defects. The two definite peaks between 1200 cm⁻¹ and 1700 cm⁻¹ are observed in the Raman spectra of N−CNF and SnS_0.5Se_0.5@NSSe-C (Fig. 1c). The peak intensity ratio of disordered amorphous carbon (D bond) and crystalline graphic carbon (G bond) (I_D/I_G) value of SnS_0.5Se_0.5@NSSe-C (1.39) is higher than that of pure N−CNF (1.15), indicating that the S/Se doping can create more structural defects and vacancies in N−CNF, which can provide additional electrochemical action sites and help to accelerate sodium diffusion. The two peaks at 190 and 780 cm⁻¹ for SnS_0.5Se_0.5@NSSe-C correspond to the C-Se and C-S bonds, respectively, which suggesting the existence of S/Se doping into the N−CNF [15,16]. Fig. S2 (Supporting information) shows the TGA/DSC curves of the SnS_0.5Se_0.5@NSSe-C and two exothermic peaks at 123 and 512 ℃ are observed, which are related to the evaporation of physically adsorbed water and the oxidation of SnS_0.5Se_0.5@NSSe-C, respectively. Based the residual mass, the carbon content in SnS_0.5Se_0.5@NSSe-C can be calculated to 45.63%. The XPS characteristic peaks corresponding Sn, S, Se and N elements are observed in Fig. S3 (Supporting information) and the N element is mainly produced by carbonization of polypropylene. As shown in Fig. S4 (Supporting information), the three fitted peaks located at 398.4, 399.8 and 400.5 eV correspond to pyridinic-N, pyrrolic-N and graphitic-N, respectively [17,18]. The high-resolution C 1s spectrum in Fig. S5 (Supporting information) can be fitted and separated into five peaks at 284.5, 284.9, 285.7, 286.5 and 288.6 eV, attributing to C−C/C=C, C−O, C−N, C-S/Se and O−C=O bonds, respectively [19]. The C-S/Se bond can prove the partial substitution of carbon with S and Se elements, increasing the disorder degree of graphitization. The two peaks at 161.6 and 164.9 eV in Fig 1d correspond to S 2p_3/2 and S 2p_1/2, respectively, and the other peaks at 164.1 and 167.8 eV are ascribed to the C-S bond and satellite peak [20]. In the Se 3d spectra (Fig. 1e), three peaks are observed at 54.6, 55.3 and 56.1 eV, ascribed to the Se 3d_5/2, Se 3d_3/2 and C-Se bond, respectively [21].

Fig. S6 (Supporting information) shows the morphology of SnS_0.5Se_0.5 prepared by solid state method, which displays the irregular shape of several microns. Benefiting from the continuous frame structure of NSSe-C (Fig. S7 in Supporting information), the SnS_0.5Se_0.5@NSSe-C can maintain the fibrous structure morphology in Fig. 1f and SnS_0.5Se_0.5 particles with several hundred nanometers are embedded into the N/S/Se triple-doped carbon nanofibers in Fig. S8 (Supporting information). The microstructure of SnS_0.5Se_0.5@NSSe-C nanofibers is exhibited in Fig. 1g and the interior are solid structure. In the HRTEM image of SnS_0.5Se_0.5@NSSe-C nanofibers (Fig. 1h), the clear lattice fringe of 3.26 Å is observed, which is related to the (210) plane of SnS_0.5Se_0.5. Moreover, the TEM elemental mapping images of SnS_0.5Se_0.5@NSSe-C nanofibers in Fig. S9 (Supporting information) illustrate the homogeneous distribution of Sn, S, Se, N and C elements, further confirming the successful formation of the SnS_0.5Se_0.5@NSSe-C nanofibers.

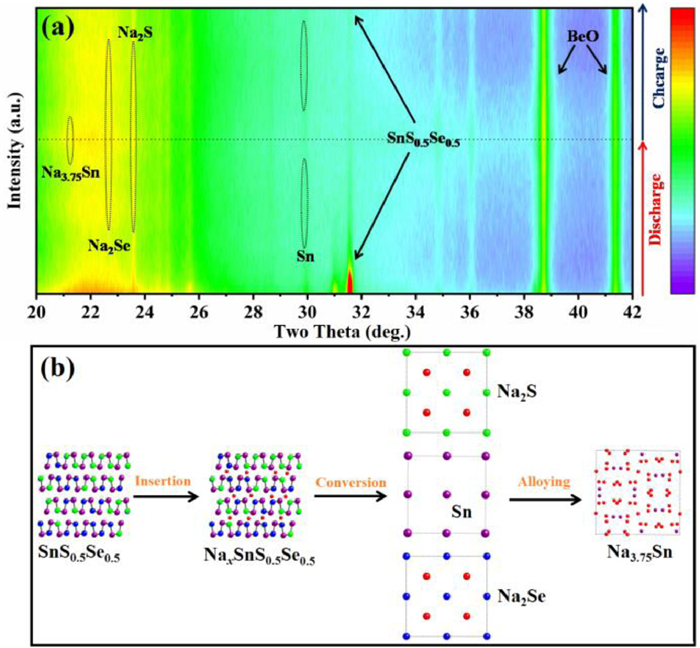

The in-situ XRD tests were carried out to reveal the sodium storage mechanism of SnS_0.5Se_0.5@NSSe-C nanofibers. In Fig. 2a, the intensity of the diffraction peak increases as the color changes from purple to red. The diffraction peaks corresponding to the (111) and (400) planes significantly shift to higher angles at initial discharge states (Fig. S10 in Supporting information), indicating the sodium ions insertion into the lattice with formation of Na_xSnS_0.5Se_0.5. As continuous discharge, the characteristic peaks of Sn, Na₂S and Na₂Se phases are observed, corresponding to the conversion reaction of Na_xSnS_0.5Se_0.5. When discharged to the 0.1 V, the formation of Na_3.75Sn is related to the alloying reaction of Sn and observed in the HRTEM image (Fig. S11 in Supporting information) [22]. During the charge process, the weak diffraction peaks of SnS_0.5Se_0.5 gradually appear, implying a certain reversibility of the structure. The characteristic planes of Na₂S and Na₂Se intermediates still exist after the charge process, which is attributed to the loss of electrochemical activity of some sodium ions to maintain structural stability. Thus, the sodium storage mechanism of SnS_0.5Se_0.5 can be summarized as Fig. 2b, which is composed of insertion, conversion and alloying reactions.

As shown in Fig. S12 (Supporting information), the three reduction peaks in the initial scan for SnS_0.5Se_0.5 are observed at 1.01, 0.65 and 0.14 V, corresponding to the Na⁺ insertion into the SnS_0.5Se_0.5 layer, the conversion reaction of Na_xSnS_0.5Se_0.5 and structural activation process, and the alloying reaction of Sn, respectively. Meanwhile, the three oxidation peaks at 0.28, 0.91 and 1.04 V in the anodic scan are attributed to the desodiation process (Na_3.75Sn → Sn → Na_xSnS_0.5Se_0.5 → SnS_0.5Se_0.5). Compared with curves of SnS_0.5Se_0.5, the redox process of SnS_0.5Se_0.5@NSSe-C nanofibers is relatively gentle in the presence of NSSe-C, suggesting that the NSSe-C can prevent the large volume changes of active materials. In Fig. S13 (Supporting information), the subsequent CV curves (2^nd to 5^th) of SnS_0.5Se_0.5 are completely different, and some redox peaks shift or even disappear, which is ascribed to the irreversible decomposition of SnS_0.5Se_0.5 caused by the volume changes. On the contrary, the following CV curves of NSSe-C almost coincide in Fig. S14 (Supporting information) with excellent electrochemical reversibility. Meanwhile, Fig. 3a presents the reproducible curves of SnS_0.5Se_0.5@NSSe-C nanofibers, demonstrating the superior reversibility of sodiation/desodiation behavior of SnS_0.5Se_0.5@NSSe-C nanofibers. As displayed in Fig. S15 (Supporting information), the initial discharge and charge capacities of SnS_0.5Se_0.5, NSSe-C and SnS_0.5Se_0.5@NSSe-C nanofibers are 794.5/566.4, 448.8/214.8 and 1123.8/676.7 mAh/g at 0.1 A/g, respectively. The high discharge capacity of SnS_0.5Se_0.5@NSSe-C nanofibers is attributed to multiple reaction mechanisms of SnS_0.5Se_0.5 and the generation of solid electrolyte interphase (SEI) with more sodium ions consumption [23]. In addition, the irreversible capacity loss is mainly owing to some irreversible structural changes of SnS_0.5Se_0.5 and low coulombic efficiency of NSSe-C. The cycling performance of SnS_0.5Se_0.5, NSSe-C and SnS_0.5Se_0.5@NSSe-C nanofibers was evaluated at 0.1 A/g and exhibited in Fig. 3b. Obviously, the SnS_0.5Se_0.5 particles present the rapid capacity fading and a low capacity of 25.4 mAh/g after 100 cycles. The low conductivity and large volume expansion of SnS_0.5Se_0.5 may lead to the poor cycling ability with severe pulverization. Moreover, the NSSe-C nanofibers play excellent cycling stability during discharge and charge process. To determine the effect of S/Se doping on the N−CNF, the cycling and rate performance of N−CNF were tested and shown in Fig. S16 (Supporting information). The cycling capacity of NSSe-C nanofibers is higher than that of the pure N−CNF, indicating that the S/Se doping can improve the electrochemical activity of the pure N−CNF. Profiting from the high theoretical capacity of SnS_0.5Se_0.5 and high conductivity of the NSSe-C nanofibers, the SnS_0.5Se_0.5@NSSe-C nanofibers can maintain a reversible capacity of 478.8 mAh/g, much higher than the capacity of SnS_0.5Se_0.5. Fig. 3c compares the rate performance of SnS_0.5Se_0.5, NSSe-C and SnS_0.5Se_0.5@NSSe-C nanofibers, and the specific capacities of the SnS_0.5Se_0.5@NSSe-C are higher than the values of SnS_0.5Se_0.5and NSSe-C at various current densities. A comparison of the cycling performance of SnS_0.5Se_0.5@NSSe-C nanofibers for SIBs with some reported TMCs is listed in Table S1 (Supporting information) and SnS_0.5Se_0.5@NSSe-C nanofibers show the better sodium storage performance. Furthermore, Fig. S17 (Supporting information) shows the long cycling performance of SnS_0.5Se_0.5@NSSe-C nanofibers at 2.0 A/g. After five cycles at 0.1 A/g, the SnS_0.5Se_0.5@NSSe-C can reach a high capacity of 225.0 mAh/g after 2000 cycles, indicating the outstanding rate capability of the SnS_0.5Se_0.5@NSSe-C nanofibers. As presented in Fig. S18 (Supporting information), the SnS_0.5Se_0.5@NSSe-C with low carbon content delivers the better cycling performance than that with high carbon content, which is attributed to that more carbon content can reduce the amount of active material. It was found that no fibrous precursor was formed when the ratio of raw material (Sn: S: Se) exceeded 4:6:6. Thus, the ratio of 4:6:6 can be the best ratio to enhance the cycling capacity of SnS_0.5Se_0.5@NSSe-C.

To further illuminate the excellent rate capability and electrochemical reaction kinetics of SnS_0.5Se_0.5@NSSe-C nanofibers, the CV tests were performed from 0.1 mV/s to 2.0 mV/s and displayed in Fig. S19 (Supporting information). According to the previous studies [24,25], the relationship between the current (i) and the scan rate (v) can be expressed as the following formulas:

The calculated b values of peaks for SnS_0.5Se_0.5@NSSe-C nanofibers in Fig. S20 (Supporting information) are between 0.5 and 1.0, indicating that the reaction kinetics include the diffusion-controlled and capacitive behavior. Furthermore, the reaction kinetics are quantitatively analyzed by the following equation:

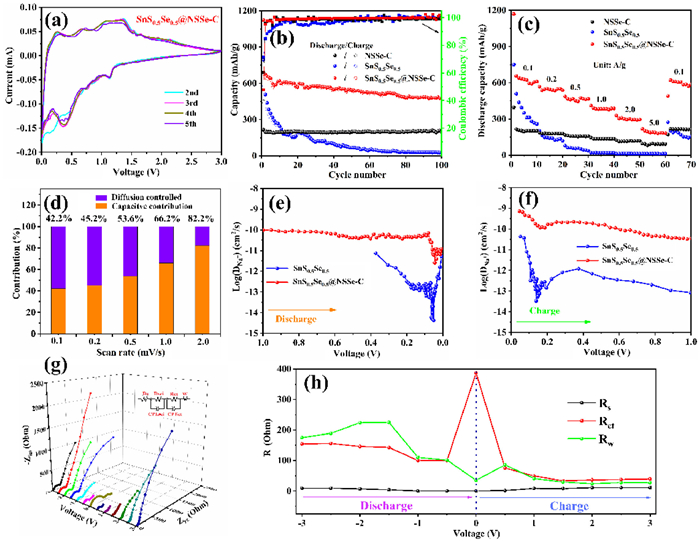

As revealed in Fig. 3d, the capacitive contributions of SnS_0.5Se_0.5@NSSe-C nanofibers are 42.2%, 45.2%, 53.6%, 66.2% and 82.2% at 0.1, 0.2, 0.5, 1.0 and 2.0 mV/s, respectively, high than those of SnS_0.5Se_0.5 (Fig. S21 in Supporting information). The high capacitive contribution leads to the fast charge transfer behavior, which is favorable for high rate and long cycling performance of sodium storage [26,27].

To better illustrate the extraordinary sodium storage performance of SnS_0.5Se_0.5@NSSe-C nanofibers, the GITT method was applied in Fig. S22 (Supporting information). The D_Na+ values of SnS_0.5Se_0.5@NSSe-C nanofibers can be obtained according to the following equation [28]:

During the initial sodiation process (Fig. 3e), the D_Na of SnS_0.5Se_0.5 drops slowly, attributed to that the deepening of conversion reaction can lead to the decrease in the sodium requirement. Interestingly, the alloying reaction results in the increase of the D_Na approaching 0.01 V. As shown in Fig. 3f, the D_Na displays a completely opposite change, which corresponds to the alloying and conversion reactions in the desodiation process. Compared to the D_Na of SnS_0.5Se_0.5, SnS_0.5Se_0.5@NSSe-C nanofibers present the more table diffusion process and higher D_Na values, suggesting that the introduction of NSSe-C nanofibers can solve the problems of slow ion diffusion caused by volume expansion and poor conductivity of SnS_0.5Se_0.5.

The sodium ion transfer kinetics and interfacial stability were investigated by EIS measurement [29]. Fig. S23 (Supporting information) exhibits the typical Nyquist plots of SnS_0.5Se_0.5, SnS_0.5Se_0.5@NSSe-C and NSSe-C after 100 cycles, which can be fitted by equivalent circuit. The R_s, R_ct and R_w represent the solvent resistance, charge transfer resistance and diffusion resistance, respectively [30]. The R_ct value of SnS_0.5Se_0.5@NSSe-C nanofibers is 154.6 Ω, higher than that of SnS_0.5Se_0.5 (667.1 Ω) and lower than that of NSSe-C (85.69 Ω), indicating that the high conductivity and continuous network structure of NSSe-C can shorten the diffusion distance and accelerate the charge transfer of pure SnS_0.5Se_0.5 particles. Moreover, the detailed in-situ Nyquist plots are shown in Fig. 3g and the corresponding impedance values are displayed in Fig. 3h. Notably, the R_s value keeps a relative stability during cycling process owing to the stable formation of SEI films. Before sodiation to 0.5 V, the R_ct value decreases slowly with the depth of discharge, which is attributed to that the Sn element generated by the conversion reaction can improve the electrical conductivity and facilitate the charge transfer. However, the structural change caused by the alloying reaction and the decrease of Sn element can lead to the sluggish charge transfer and increase of the R_ct value at 0.01 V. The R_w value increase at initial discharge states, which is related to the increase of interlayer spacing and internal stress caused by insertion reaction. Then, the R_w value decreases with decrease of voltage, ascribed to that subsequent conversion and alloying reactions can continue to react with sodium ions and enhance the diffusion kinetics. The R_ct and R_w values show similar opposite changes during the desodiation process, indicating the excellent reversibility of charge transport and ion diffusion kinetics of SnS_0.5Se_0.5@NSSe-C nanofibers.

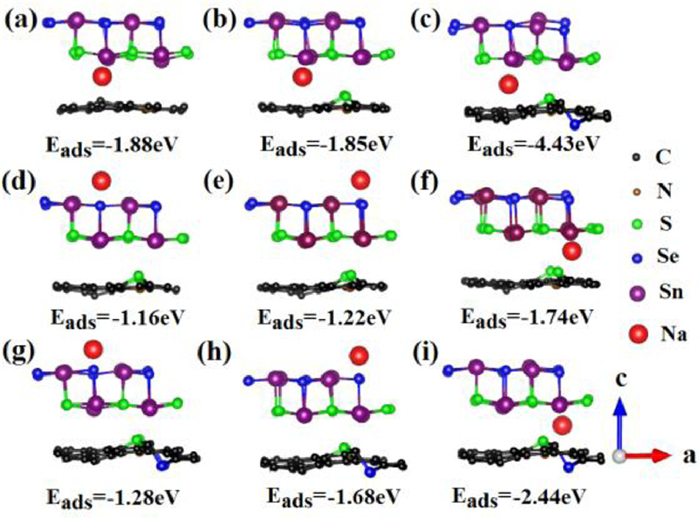

The DFT calculations were performed to reveal the structural advantages of SnS_0.5Se_0.5@NSSe-C nanofibers. As displayed in Figs. 4a-c, the adsorption energy (E_ads) between Na⁺ and SnS_0.5Se_0.5@N−C, SnS_0.5Se_0.5@NS-C or SnS_0.5Se_0.5@NSSe-C at same adsorption sites is calculated to be −1.88, −1.85 and −4.43 eV, respectively, indicating the stronger interaction of SnS_0.5Se_0.5 adsorption on NSSe-C. The higher negative adsorption energy illustrates more electrochemical active site in the SnS_0.5Se_0.5@NSSe-C, which are beneficial for sodium storage performance [31,32]. The E_ads between Na⁺ and SnS_0.5Se_0.5@NS-C or SnS_0.5Se_0.5@NSSe-C at the different adsorption sites is further calculated and presented in Figs. 4d-i. The SnS_0.5Se_0.5@NSSe-C composite delivers the better Na⁺ adsorption performance than SnS_0.5Se_0.5@NS-C, demonstrating great sodium storage potential. The results also prove that the interlayer between SnS_0.5Se_0.5 and NSSe-C is more conducive to sodium ion insertion.

In summary, the SnS_0.5Se_0.5 nanoparticles coupled with N/S/Se triple-doped carbon nanofibers (SnS_0.5Se_0.5@NSSe-C) have been synthesized through two-step process, and investigated as an anode material for SIBs. Due to the synergistic effect of SnS_0.5Se_0.5 and NSSe-C, the SnS_0.5Se_0.5@NSSe-C composite delivers superior sodium storage performance with ultralong cycle life at a high current density and fast reaction kinetics. This work can provide an intelligent strategy for the efficient construction of high-performance electrodes with fast electrochemical reaction kinetics and increase the understanding of the sodium-storage mechanism in ternary tin-based chalcogenides.
