A nonenzymatic electrochemical sensor for the detection of hydrogen peroxide in vitro and in vivo fibrosis models

Full

Hongyao Liu^a^,¹, Yan Yu^b^,¹, Taixiong Xue^a, Cailing Gan^a, Yuting Xie^a, Doudou Wang^a, Peilin Li^a, Zhiyong Qian^b^,^*, Tinghong Ye^a^,^*

Affiliations

^a Department of Gastroenterology and Hepatology, Sichuan University-University of Oxford Huaxi Joint Centre for Gastrointestinal Cancer and Frontiers Science Center for Disease-Related Molecular Network, State Key Laboratory of Biotherapy, West China Hospital, Sichuan University, Chengdu 610041, China

^b Department of Biotherapy, Cancer Center and State Key Laboratory of Biotherapy, West China Hospital, Sichuan University, Chengdu 610041, China

Published: 2024-03-15 doi: 10.1016/j.cclet.2023.108574

Outline

Abstract

Less

Fibrosis occurs due to the excessive deposition of extracellular matrix caused by cell injury. After various types of tissue injury, the dysregulation of the internal response can eventually lead to the destruction of organ structure and dysfunction. There is increasing evidence that oxidative stress, which is characterized by excessive production of hydrogen peroxide (H₂O₂), is an important cause of fibrosis. Therefore, we synthesized a biosensitive and efficient electrochemical H₂O₂ sensor based on PtNi nanoparticle-doped N-reduced graphene oxide (PtNi-N-rGO) to detect H₂O₂ released from transforming growth factor β1 (TGFβ1)-induced myofibroblast. In addition, the sensor could easily detect changes in H₂O₂ in the lung and bronchoalveolar lavage fluid (BALF) of mice with pulmonary fibrosis. Furthermore, the sensor could also detect H₂O₂ in activated hepatic stellate cells and the liver of carbon tetrachloride (CCl₄)-induced liver fibrosis. Moreover, the alterations in H₂O₂ detected by the sensor were consistent with nicotinamide adenine dinucleotide phosphate oxidase 4 (NOX4) protein expression and the staining results of pathological sections. Taken together, these results highlight the use of H₂O₂ sensors for the rapid detection of fibrosis and facilitate the rapid evaluation of antifibrotic drug candidates.

Key words

Fibrosis / H₂O₂ / Electrochemical sensor / NOX4 / Nintedanib

Cite this Article

Hongyao Liu, Yan Yu, Taixiong Xue, Cailing Gan, Yuting Xie, Doudou Wang, Peilin Li, Zhiyong Qian, Tinghong Ye. A nonenzymatic electrochemical sensor for the detection of hydrogen peroxide in vitro and in vivo fibrosis models[J]. Chinese Chemical Letters, 2024 , 35 (3) : 108574 - . DOI: 10.1016/j.cclet.2023.108574

Full Text

Less

Fibrosis is considered to be an abnormal repair process in connective tissue caused by various chronic injuries, such as massive levels of apoptosis or necrosis. Nearly half of the deaths from various diseases are associated with organ tissue fibrosis, which is a common feature of chronic diseases that affects nearly every tissue in the body [1,2]. Studies of idiopathic pulmonary fibrosis (IPF) have shown that fibrosis enhances the deposition of extracellular matrix (ECM) proteins produced by myofibroblasts. The pathogenesis of this disease is unclear, and the prognosis is poor, with a 5-year survival rate that is worse than that of many common cancers [3–5]. More importantly, with the global spread of corona virus disease 2019 (COVID-19), some severe and critically ill patients may develop pulmonary fibrosis due to inflammation and injury, which has increased public health awareness [6]. High-resolution computed tomography (HRCT) is the main diagnostic method for IPF [7]. During liver fibrosis, hepatic stellate cells (HSCs) in the resting state are stimulated by various inflammatory factors, such as transforming growth factor β1 (TGFβ1) to form myofibroblasts, which secrete ECM and participate in the development of liver fibrosis [8]. There are striking similarities in profibrotic signalling cascades during fibrosis, and TGFβ1 is associated with the stimulation of ECM production, reactive oxygen species (ROS) production, and the fibroblast to myofibroblast transition, which are the main events in tissue fibrosis [9–11]. Excess ROS and reactive free radicals are produced in the liver, which weakens the antioxidant function of the liver, leads to an increase in reactive free radicals in liver cells and impairs the normal function of cells, eventually leading to necrosis and apoptosis in hepatocytes [12]. Although studies have shown that this process is reversible, there is currently no clinically approved drug to treat this condition, and inhibiting oxidative stress is an important means of treating liver injury and liver fibrosis. Furthermore, evaluating whether drugs can inhibit cell oxidative stress, maintain cell membrane stability, and detect tissue oxidation indices are the main methods of evaluating antifibrotic drugs [13–15].

Compared with other organs, the lungs are particularly susceptible to oxidative stress, and after external stimuli such as radiation, drugs, and the environment induce lung damage, inflammatory factors such as TGFβ1 stimulate excessive ECM deposition, and lung fibroblasts are activated and further promote ROS production, which is the main manifestation of pulmonary fibrosis [16,17]. Since oxidative stress leads to pathological wound healing and fibrosis, previous research has shown that inhibitors of ROS generation generally have antifibrotic effects [18]. NOX4 is a complex enzyme whose structure leads to the formation of H₂O₂, which plays an important role in TGFβ-mediated signal transduction [19]. Elevated NOX4 levels have also been reported in IPF lungs [20]. In ageing mice, NOX4 expression is elevated, and the ability of these animals to resolve fibrosis is reduced [21]. Fibrosis can be regulated by regulating H₂O₂ levels in cells. Further studies have confirmed that the NOX4 inhibitor GKT137831 decreases H₂O₂ levels, reduces intracellular oxidative stress and enables reparative cell transplantation to restore lung and liver regeneration [22]. NOX4 knockdown during hepatic fibrosis not only inhibits ROS production but also reduces the expression of alpha-smooth muscle actin (α-SMA) in angiotensin Ⅱ-induced LX2 cells [23]. Therefore, we hypothesize that the upregulation of H₂O₂ may be used as a biomarker for the diagnosis of fibrosis.

Detecting H₂O₂ in tissues is a challenge due to the low levels of H₂O₂ in tissues, its short half-life, and its instability. In addition, other detection methods, such as fluorescence and chemiluminescence techniques, either have low sensitivity or complex sample preparation, making it difficult to achieve real-time and rapid measurement of H₂O₂ [24]. However, with the rapid development of materials science, biology, electrochemistry and other disciplines, great progress has been made in electrochemical sensing technology [25,26]. In our previous study, we detected H₂O₂ in cancer cells using nonenzymatic hydrogen peroxide electrochemical sensing, which was also used to efficiently detect tumour tissue, adjacent tissue, and normal tissue. Due to the complex mechanism and unknown aetiology of fibrosis and the complicated and lengthy drug screening process [28,29], it is necessary to establish a more accurate and convenient fibrosis diagnosis method.

Here, we successfully detected H₂O₂ released by TGFβ1-induced fibroblasts using a nonenzymatic chemical sensor, which also conveniently detected changes in H₂O₂ in the lung and BALF of mice with pulmonary fibrosis. In addition, the sensor could detect H₂O₂ in activated hepatic stellate cells and the liver of mice with hepatic fibrosis. The changes in H₂O₂ detected by the sensor were consistent with NOX4 protein expression and the staining results of pathological sections. Taken together, these results highlight the use of H₂O₂ sensors for the rapid detection of fibrosis disease progression and facilitate the rapid evaluation of antifibrotic drug candidates.

Our previous findings have confirmed that this H₂O₂ sensor has good sensor performance, including safety, selectivity, repeatability and stability [27]. Therefore, we first characterize the structure of composite nanomaterials by measuring the size, distribution and morphology of nanoparticles. The size and morphology of the PtNi-N-rGO nanocomposites were characterized by transmission electron microscopy (TEM). Typical TEM images are shown in Figs. 1a and b and adequately demonstrate that the PtNi nanoparticles were evenly distributed and easily supported on folded rGO nanosheets. The lattice fringes of the PtNi nanoparticles are shown in Fig. 1c. High-resolution transmission electron microscopy (HRTEM) images show interplanar distances of 0.21 nm and 0.18 nm (Fig. 1c). The average size of the nanoparticles was approximately 5 nm (Fig. 1d). Energy dispersive spectroscopy (EDS) further confirmed the presence of C, O, N, Pt and Ni atoms in the nanocomposites (Fig. 1e). The distributions of Pt and Ni were further demonstrated by EDS line-scan profiles of individual nanoparticles (Fig. 1f). These data indicate that the PtNi-N-rGO nanocomposites were successfully synthesized.

It is well established that TGFβ1 induces fibroblast activation and epithelial-mesenchymal transformation (EMT), and so we first examined changes in intracellular ROS levels after TGFβ1 stimulation. As shown in Fig. S1 (Supporting information), the NIH-3T3, A549 and LX2 cell lines released more ROS after TGFβ1 stimulation while the ROS level decreased after the nintedanib intervention. Next, we investigated whether the as-fabricated H₂O₂ sensor could be used to detect H₂O₂ released by activated fibroblasts using commercially available H₂O₂ kits for comparison. Figs. 2a–d shows that the H₂O₂ sensor had an obvious response to H₂O₂ released by NIH-3T3 and A549 cells after TGFβ1 stimulation. More importantly, a reduction in H₂O₂ levels was detected after the cells were treated with nintedanib. These results were confirmed by commercially available H₂O₂ test kits (Figs. S2a and b in Supporting information). During TGFβ1-induced fibrosis, epithelial cells gradually lose their characteristics and gain the characteristics of mesenchymal cells [28]. As shown in Figs. 2e and f, in response to TGFβ1 stimulation, the protein expression of collagen Ⅰ in NIH-3T3 cells was increased, and the protein expression of E-cadherin in A549 cells was decreased. The expression of NOX4 is consistent in these two types of cells. However, nintedanib reversed these changes in protein expression in activated cells. In addition, TGFβ1 changed the morphology of A549 cells compared to control, including hypertrophy, elongation, and spindle shape. These results suggest that H₂O₂ levels are positively correlated with TGFβ1-induced fibrosis progression in NIH-3T3 and A549 cell models.

It is important to highlight the fact that the commercially available kit generates trivalent iron ions by oxidizing divalent iron ions with H₂O₂, and then forms a purple product with xylenol orange in a specific solution to determine the concentration of H₂O₂. The natural microenvironmental characteristics of sensors and cells could have a profound impact on the reactivity and sensitivity of sensors. In contrast, no apparent current response was observed when catalase was injected prior to the addition of N-formylmethionyl-leucyl-phenyl-alanine (fMLP) (Fig. S3 in Supporting information). This finding suggests that the response current was due to fMLP-induced H₂O₂ release from activated fibroblasts. Therefore, this may be one of the reasons for the increased sensitivity of electrochemical sensors for H₂O₂.

A pulmonary fibrosis model was established by a single intratracheal instillation of bleomycin (BLM) to mice (approximately 2 mg/kg) [28,30]. Animal experimental procedure was permitted the Institutional Animal Care and Treatment Committee of Sichuan University in China (New Permit Number: 20220531039). As illustrated in Fig. 3a, the success of BLM-induced pulmonary fibrosis was confirmed by hematoxylin and eosin (H&E) and Masson's trichrome staining, which are classic histochemical methods to detect inflammation and fibrosis [31]. H₂O₂ levels in lung tissue lysate (Figs. 3b and c) and BALF (Figs. 3d and e) after BLM treatment was significantly increased compared with those in the sham group, while nintedanib treatment group was significantly decreased. More importantly, NOX4 protein expression was consistent with the in vitro results. Immunofluorescence analysis showed that NOX4 protein levels near areas of collagen deposition were up-regulated and enriched in fibrotic lesions after BLM treatment (Fig. 3f). In conclusion, H₂O₂ levels in fibrotic lungs increased with increasing pulmonary fibrosis levels. In addition, we detected oxidative stress in the lung of mice with fibrosis. Compared with those in the sham group, after BLM exposure, oxidative stress indices in the lung, including the levels of malondialdehyde (MDA), superoxide dismutase (SOD) and H₂O₂, were significantly increased (Figs. S2d–f in Supporting information), indicating that BLM induced severe oxidative stress in lung tissues.

To explore whether our electrochemical sensor could detect H₂O₂ in fibrotic liver, we constructed animal models of hepatic fibrosis [29] (Fig. 4e), and nintedanib was used to validate the sensor's response to changes in H₂O₂ in fibrotic liver tissue. Consistent with previously reported results [32], nintedanib improved carbon tetrachloride (CCl₄)-induced structural damage, inflammatory infiltration and collagen deposition in the liver (Fig. 4e). Our sensor not only detected changes in H₂O₂ in activated LX2 cells in vitro (Figs. 4a and b) but also sensitively detected changes in fibrotic liver tissue (Figs. 4c and d). The commercially available H₂O₂ detection kit was also used (Fig. S2c in Supporting information). Immunofluorescence analysis also showed that the NOX4 protein was highly expressed in CCl₄-induced hepatic fibrosis tissue and was enriched near the lesions of collagen deposition in comparison with that in the oil group (Fig. 4f). These results indicate that our sensor can be used as a means of evaluating drugs for the treatment of liver fibrosis.

In summary, we used a nonenzymatic electrochemical H₂O₂ sensor to detect H₂O₂ changes in fibrotic cells and tissues. PtNi-N-rGO can fully adsorb and catalyze H₂O₂ due to its small size PtNi nanoparticles and nitrogen doping rGO. The concentration of H₂O₂ is measured by the amperometric i-t curve technique by applying the reduction potential (relative to saturated calomel electrode (SCE), −0.6 V) and recording the current, thus achieving successful detection of H₂O₂ [27]. We summarized and analyzed H₂O₂ electro-reduction mechanism for nano-enzymatic based H₂O₂ sensor [26,27]. Detailed catalytic mechanism equation can be found in Supporting information. In this study, H₂O₂ was used as a molecular biomarker, and our sensor successfully captured H₂O₂ produced by TGFβ1-activated fibroblasts, expanding the application fields of electrochemical sensor [33]. In addition, the sensor could rapidly and sensitively detect H₂O₂ released in the lung and liver tissues of mice with fibrosis. Therefore, the H₂O₂ sensor can reflect the effects of drugs on fibrosis, and this technology can be used as a convenient means for fibrosis drug screening.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by the National Natural Science Foundation of Sichuan Province (Nos. 2022NSFSC1465, 2023NSFSC0525), Post-Doctor Research Project, West China Hospital, Sichuan University (No. 2021HXBH086), the Sichuan University postdoctoral interdisciplinary Innovation Fund (No. 10822041A2118) and Full-Time Postdoctoral Research Fund of Sichuan University (No. 20826041F4134).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108574.

References

Less

[1]

N.C. Henderson, F. Rieder, T.A. Wynn, Nature 587 (2020) 555–566.

[2]

T.A. Wynn, J. Clin. Invest. 117 (2007) 524–529.

[3]

A.L. Mora, M. Rojas, A. Pardo, et al., Nat. Rev. Drug Discov. 16 (2017) 755–772.

[4]

S.B. Strock, J.K. Alder, D.J. Kass, J. Pathol. 244 (2018) 383–385.

[5]

A.U. Wells, Lancet Respir. Med. 6 (2018) 735–737.

[6]

L. Richeldi, H.R. Collard, M.G. Jones, Lancet 389 (2017) 1941–1952.

[7]

W. Merkt, M. Bueno, A.L. Mora, D. Lagares, Semin. Cell Dev. Biol. 101 (2020) 104–110.

[8]

M. Parola, M. Pinzani, Mol. Aspects Med. 65 (2019) 37–55.

[9]

T. Zhang, X. He, L. Caldwell, et al., Sci. Transl. Med. 14 (2022) eaaz4028.

[10]

M. Jain, E.A. Monclus, S. Rivera, et al., J. Biol. Chem. 288 (2013) 770–777.

[11]

S. Smith E. Otoupalova, G. Cheng, et al., Compr. Physiol. 10 (2020) 509–547.

[12]

Z. Tan, H. Sun, T. Xue, et al., Front. Cell Dev. Biol. 9 (2021) 730176.

[13]

T. Xue, L. Yue, G. Zhu, et al., Liver Int. 43 (2023) 718–732.

[14]

L. Lin, H. Gong, R. Li, et al., Adv. Sci. 7 (2020) 1903138.

[15]

J. Liu, Z. Wu, Y. Liu, et al., J. Nanobiotechnol. 20 (2022) 213.

[16]

D. Chanda, E. Otoupalova, S.R. Smith, et al., Mol. Aspects Med. 65 (2019) 56–69.

[17]

R.M. Liu, K.A. Gaston Pravia, Free Radic, Biol. Med. 48 (2010) 1–15.

[18]

R. Samarakoon, J.M. Overstreet, P.J. Higgins, Cell. Signal. 25 (2013) 264–268.

[19]

K. Tsubouchi, J. Araya, S. Minagawa, et al., Autophagy 13 (2017) 1420–1434.

[20]

N. Amara, D. Goven, F. Prost, et al., Thorax 65 (2010) 733–738.

[21]

Y.Y. Sanders, X. Lyv, Q.J. Zhou, et al., JCI Insight 5 (2020) e137127.

[22]

Z. Cao, T. Ye, Y. Sun, et al., Sci. Transl. Med. 9 (2017) eaai8710.

[23]

J. Du, J. Sun, N. Li, et al., Acta Pharmacol. Sin. 42 (2021) 1090–1100.

[24]

C. Wang, Y. Wang, G. Wang, et al., Anal. Chim. Acta 1097 (2020) 230–237.

[25]

Y. Tian, L. Du, P. Zhu, et al., Biosens. Bioelectron. 176 (2021) 112899.

[26]

Y. Yu, M. Pan, J. Peng, et al., Chin. Chem. Lett. 33 (2022) 4133–4145.

[27]

Y. Yu, J. Peng, M. Pan, et al., Small Methods 5 (2021) e2001212.

[28]

H. Liu, X. Wu, C. Gan, et al., Cell Prolif. 54 (2021) e13081.

[29]

L. Yue, T. Xue, X. Su, et al., Eur. J. Med. Chem. 242 (2022) 114685.

[30]

P. Kolb, C. Upagupta, M. Vierhout, et al., Eur. Respir. J. 55 (2020) 1901105.

[31]

R.H. Hübner, W. Gitter, N.E. El Mokhtari, et al., BioTechniques 44 (2008) 507–517.

[32]

L. Wollin, D. Togbe, B. Ryffel, Biomed. Res. Int. 2020 (2020) 3867198.

[33]

J. Xu, J. Ma, Y. Peng, et al., Chin. Chem. Lett. 34 (2023) 107527.

Appendix

Less

Year 2024 volume 35 Issue 3

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2023.108574

Receive Date：2023-03-21
Online Date：2025-11-20
Published：2024-03-15

Article Data

Affiliations

History

Received：2023-03-21
Revised：2023-05-11
Accepted：2023-05-14

Affiliations

^b Department of Biotherapy, Cancer Center and State Key Laboratory of Biotherapy, West China Hospital, Sichuan University, Chengdu 610041, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2023.108574

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1 (a, b) TEM images of PtNi-N-rGO. Scale bars: 200 nm (a) and 50 nm (b); (c) HRTEM image of PtNi-N-rGO. Scale bar: 5 nm; (d) the size distribution of PtNi nanoparticles; (e) EDS spectrum of PtNi-N-rGO; (f) scanning transmission electron microscopy (STEM) image and EDS line profiles of a single PtNi-N-rGO nanoparticle.

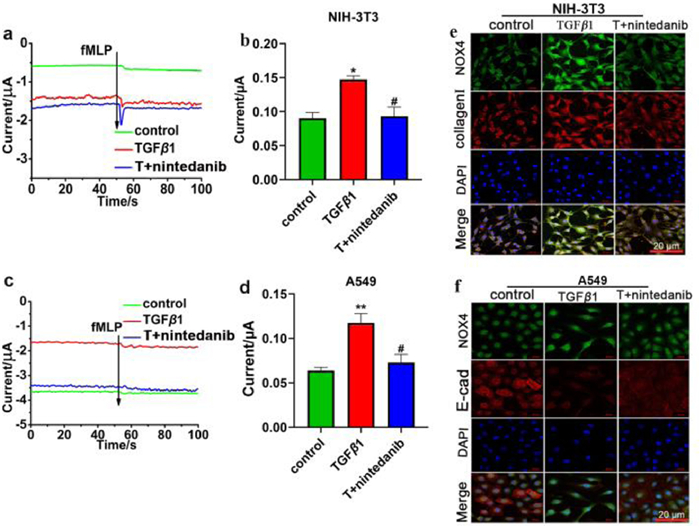

Fig. 2 (a–d) Statistical results of the current response in cells detected by the sensor. The values are expressed as the mean ± standard deviation (SD), n = 3. ^*P < 0.05, ^**P < 0.01 compared with control; ^#P < 0.05 compared with TGFβ1. (e, f) NOX4 immunofluorescence imaging of NIH-3T3 cells and A549 cells with collagen Ⅰ or E-cadherin. Scale bar: 20 µm. DAPI, diamidino-phenyl-indole.

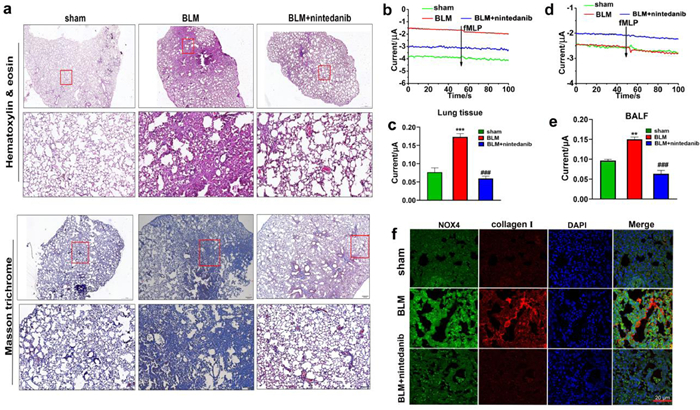

Fig. 3 (a) H&E staining and Masson staining of lung tissue. Scale bar: 200 and 100 µm. (b, c) The levels of H₂O₂ in the lung of mice were detected by the sensor. (d, e) The levels of H₂O₂ in the BALF of mice were detected by the sensor. The data are presented as the means ± SD, n = 3. ^**P < 0.01, ^***P < 0.001 vs. sham. ^###P < 0.001 vs. BLM. (f) Immunofluorescence imaging of collagen Ⅰ and NOX4 in lung tissues. Scale bar: 20 µm.

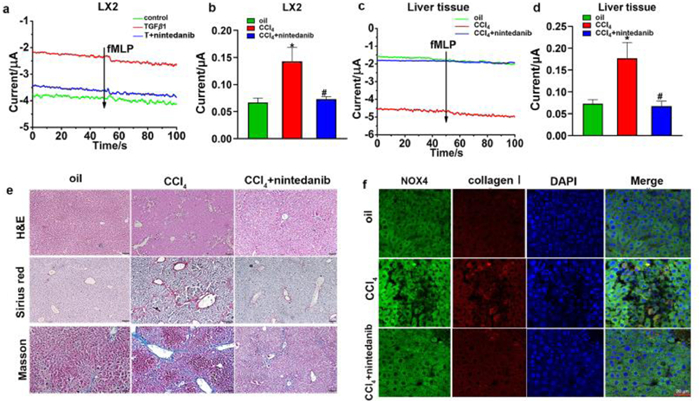

Fig. 4 (a, b) The levels of H₂O₂ in LX2 cells were detected by the sensor. (c, d) The levels of H₂O₂ in the liver tissues of mice were detected. The data are presented as the means ± SD, n = 3. ^*P < 0.05 vs. oil. ^#P < 0.05 vs. CCl₄. H&E staining of liver tissues from the oil, CCl₄, and CCl₄ + nintedanib (30 mg/kg) groups. (e) Masson staining and Sirius red staining. Scale bar: 100 µm. (f) Immunofluorescence imaging of collagen Ⅰ and NOX4 in liver tissues. Scale bar: 20 µm.
