Biomass resources have been listed as the fourth largest resource because of their abundant reserves, green and renewable characteristics [1]. As the only platform compound with aromatic ring among the 12 bio-based platform compounds promoted by the US Department of Energy, 5-hydroxymethylfurfural (HMF) derived from biomass is known as the "sleeping giant" [2,3]. HMF is centered on a unique furan ring and contains a hydroxymethyl group and an aldehyde group, which makes HMF rich in the development of thousands of downstream derivatives, including alcohols, acids, ethers, aldehydes, etc. [4,5]. The oxidation product of HMF, 2,5-furanediformic acid (FDCA) [6], has a structure similar to that of petrochemical derivative terephthalic acid (TPA), and can be polymerized with ethylene glycol to synthesize polyethylene 2,5-furanediformate (PEF) as an alternative to polyethylene terephthalate (PET). Compared with traditional PET, PEF has excellent gas barrier property, up to 6–10 times than that of PET, biodegradability can effectively alleviate the existing "white pollution" problem [7]. Therefore, it is urgent to develop an efficient catalytic system for the selective oxidation of HMF to produce FDCA.

Thermal catalysis [8], electrocatalysis [9,10], photocatalysis [11] and enzymatic catalysis [12] have been reported and exploited for the selective oxidation of HMF to FDCA. Heterogeneous catalysts are widely used in various reaction systems because of their easy separation, excellent stability and recyclability. The activation of oxygen plays a pivotal role in the process of oxidation reactions. The unique properties of the surface of metal oxides, crystal surfaces and defects can be regulated to enable the surface to have specific electronic or geometric properties as active centers to promote molecular activation. In addition, metal oxides are used as support for loading metal nanoparticles, and the interaction between the support and metals impacts the distribution and size of metal particles, thus producing different catalytic properties [13,14]. Metal oxide surfaces exhibit optimal activity and stability due to their high metal ion concentrations, oxygen vacancies (O_v) and exposure of multiple types of metal crystal faces [15]. Oxygen vacancies located near the metal perimeter and acted as preferential nucleation sites for metal nanoparticles loading. Moreover, the strong interaction between the nanoparticles and metal oxide support facilitates the acceleration of electron transfer from metal to the O₂ adsorbed at O_v of the support, thus improving catalytic activity that includes productivity and the turnover frequency (TOF) value. In previous studies, ZrO₂ with different crystalline phases (monoclinic, tetragonal and mixed phases) has been used as support to study a variety of reactions using its high thermal stability, tunable Brønsted-Lewis acidity and abundant surface defects [15-18]. ZrO₂ with different crystalline phases supported metals were synthesized and employed for catalytic oxidation of toluene. The results revealed that Pt/ZrO₂ with mixed phase possessing better catalytic activity than that of Pt/ZrO₂ with monoclinic phase, and the strong interaction between metal and support played an important role in the oxidation process of toluene [19]. The O_v induced strong metal-support interaction on Au/ZrO₂ catalysts was rationally designed, and the generated interface active sites between metal and support can be tuned and employed for the high-efficient aerobic oxidation of HMF to FDCA [20]. This strategy sheds light on the design of oxygen-rich defect metal oxide supported-metal catalysts for the related biomass oxidation reactions.

Herein, SiO₂ nanospheres were used as template to prepare hierarchical porous bowl-shaped ZrO₂ (HB-ZrO₂) with mixed crystal phase and employed as the support for loading AuPd bimetal with different proportions to synthesize AuPd/HB-ZrO₂ catalysts (Fig. 1a). The optimal Au₂Pd₁/HB-ZrO₂ catalyst exhibited the highest FDCA yield (99.9%) with complete HMF conversion. The SEM and TEM images (Figs. 1b and c) of Au₂Pd₁/HB-ZrO₂ showed that the bowl-shaped ZrO₂ support was composed of uniform ZrO₂ pellets, and the subsequent loading of AuPd metal particles did not affect the morphology of the support (Figs. S1 and S2 in Supporting information). The EDS mapping of Au₂Pd₁/HB-ZrO₂ exhibited the uniform loading of Au and Pd particles on the surface of HB-ZrO₂ support. As shown in Figs. 1d and e, HRTEM images of Au₂Pd₁/HB-ZrO₂ presented characteristic crystal plane spacing of Au (111) and Pd (111). The lattice spacing was 0.287 and 0.292 nm, which falls into the range of the d-spacings of tetragonal ZrO₂ (200) and tetragonal ZrO₂ (201) (JCPDS No. 79–1764). The X-ray diffraction (XRD) patterns of the catalysts with different Au-Pd ratios were exhibited in Fig. 1f. The HB-ZrO₂ support presented a mixture of monoclinic and tetragonal zirconia crystalline phases, in which the peaks at 2θ positions 24.2°, 28.2°, 31.4°, 34.1°, 38.5°, 40.8°, 45.1°, 54.1°, 55.4° and 65.6° were ascribe to the monoclinic phase (JCPDS No. 37–1484), while 30.1°, 35.0°, 50.2°, 60.1°, 62.8° and 74.5° were assigned to the tetragonal phase (JCPDS No. 79–1764). After loading AuPd nanoparticles, the characteristic diffractions of HB-ZrO₂ support were observed as the main diffraction for all samples due to the relatively low contents and small size of metal nanoparticles, and their characteristic diffractions were masked by the characteristic diffractions of zirconia. Different proportions of Au and Pd interact with the support differently. When the ratio of Au to Pd was 1:0, the weak interaction force between the HB-ZrO₂ support and Au nanoparticles resulted in the aggregation of Au nanoparticles (Fig. S2b). With the change of Au and Pd ratio, the interaction force between metal particles and the HB-ZrO₂ support became stronger, resulting in the uniform distribution of metal particles on the surface of the HB-ZrO₂ support. When the ratio of Au to Pd increased to 2.5:1, the crystalline phase of the catalyst was mainly tetragonal ZrO₂. The nitrogen adsorption and desorption tests revealed that the specific surface area of the catalyst decreased, while the average pore diameter increased with the change of AuPd ratio (Table S1 and Fig. S3 in Supporting information). In particular, due to the small size of palladium particles, the specific surface area did not change significantly, and the average pore diameter represented a decrease trend.

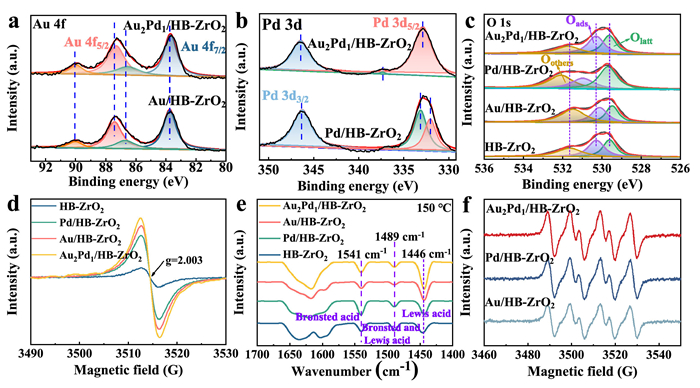

The surface chemical properties of the catalysts were analyzed by XPS surface characterization of Au/HB-ZrO₂, Pd/HB-ZrO₂, and Au₂Pd₁/HB-ZrO₂. Compared with the standard binding energies of Au 4f_7/2 (BE = 84.0 eV) and Au 4f_5/2 (BE = 87.7 eV) [21], the binding energies of Au 4f_7/2 and Au 4f_5/2 that ascribed to Au⁰ for Au/HB-ZrO₂ and Au₂Pd₁/HB-ZrO₂ were negatively shifted (0.2 eV). Binding energies at 86.8 and 90.0 eV indicated the presence of Au³⁺ (Fig. 2a). In the XPS spectra of Pd 3d (Fig. 2b), the binding energies of Pd/HB-ZrO₂ and Au₂Pd₁/HB-ZrO₂ in Pd 3d region also shifted significantly in relation to Pd⁰ and Pd²⁺ [22], indicating the formation of alloyed AuPd nanoparticles. The Zr 3d region of HB-ZrO₂ and AuPd/HB-ZrO₂ (Fig. S4 in Supporting information) demonstrated that Zr species were mainly Zr³⁺ and Zr⁴⁺ [23]. In particular, compared with HB-ZrO₂, the binding energies of Zr 3d_5/2 of Au/HB-ZrO₂ and Pd/HB-ZrO₂ were negatively shifted, but the binding energies of O 1s of Pd/HB-ZrO₂ were positively shifted (Fig. 2c and Fig. S4). According to the XPS results, the interaction between the O_v and the metallic center involves electron transfer from the structural defects from HB-ZrO₂ support toward AuPd nanoparticles, suggesting O_v acted as preferential nucleation sites for AuPd nanoparticles loading. At the same time, in the XPS spectra of O 1s, AuPd/HB-ZrO₂ revealed that oxygen species was the oxygen species bonded weakly to the catalyst surface (O_others: OH⁻, CO₃²⁻ or adsorbed molecular H₂O), adsorbed oxygen (O_ads) and surface lattice oxygen (O_latt) [15]. The concentration and peak position of oxygen species on the surface of ZrO₂ were shifted obviously with different metal loads. In the O 1s map of Au/HB-ZrO₂, the characteristic peak of oxygen species O_others, O_ads, and O_latt shifted to the lower energy level. The oxygen species O_others, O_ads, and O_latt characteristic peak of Pd/HB-ZrO₂ shifted to higher energy level. The oxygen species characteristic peak of Au₂Pd₁/HB-ZrO₂ was only slightly different from that of HB-ZrO₂. XPS data exhibited in Fig. 2 and Fig. S4 suggested that substantial increases in the concentration of the O_v and Zr³⁺ state caused by the loading of AuPd bimetal on HB-ZrO₂ support, resulting in strong metal-support interaction.

The surface defects of catalysts were studied by EPR technique (Fig. 2d). Compared with the peak intensity of different catalysts, the relative intensity of Au₂Pd₁/HB-ZrO₂ was the strongest, and the result matched well with the XPS characterization that loading the bimetal increases the O_v concentration of the HB-ZrO₂ support. NH₃ temperature-programmed desorption (TPD) was carried out to investigate the concentration and distribution of acid sites over HB-ZrO₂ supported mono-metal and bimetallic catalysts (Fig. S5a in Supporting information). The acid sites were detected for all three catalysts in the range of weak acid (100–200 ℃) and strong acid (350–600 ℃) [15]. The Au₂Pd₁/HB-ZrO₂ catalyst revealed the highest acid strength. By pyridine infrared spectroscopy (Fig. 2e), the characteristic peak at 1446 cm⁻¹ was corresponded to the coordination between pyridine and Lewis acid sites. The characteristic peak at 1541 cm⁻¹ was attributed to the adsorption of pyridine on the Brønsted acid site, and the characteristic band at 1489 cm⁻¹ was ascribed to the adsorption overlap of pyridine on the Lewis and Brønsted acid sites [24]. Compared with HB-ZrO₂ support, the intensity of Lewis acid exhibited substantial increases after loading metal nanoparticles. And the Au₂Pd₁/HB-ZrO₂ catalyst showed stronger Lewis acid than the other three samples, suggesting more O_v concentration was induced by AuPd bimetal. The results were consistent with those obtained by EPR and NH₃-TPD. O₂-TPD was used to further explore the oxygen species adsorbed on the catalyst surface (Fig. S5b in Supporting information). The low temperature region (100–250 ℃) was known to be the physical adsorbed oxygen region, the middle temperature region (250–600 ℃) was the adsorbed oxygen region associated with oxygen vacancy, and the high temperature region (600–800 ℃) was the bulk lattice oxygen release region [25]. It can be seen from Fig. S5b, Au₂Pd₁/HB-ZrO₂ has various oxygen absorption peaks, and the O_v-related adsorption oxygen peak was stronger, so it was speculated that there are more O_v sites for the adsorption and activation of O₂. The ESR test observed that Au₂Pd₁/HB-ZrO₂ catalyst presented a stronger ESR signals of DMPO-^•O₂⁻ than that of the other synthesized catalysts (Fig. 2f). Overall, the characterizations results revealed the strong metal-support interaction between AuPd nanoparticles and HB-ZrO₂ support that benefited adsorption and activation of O₂.

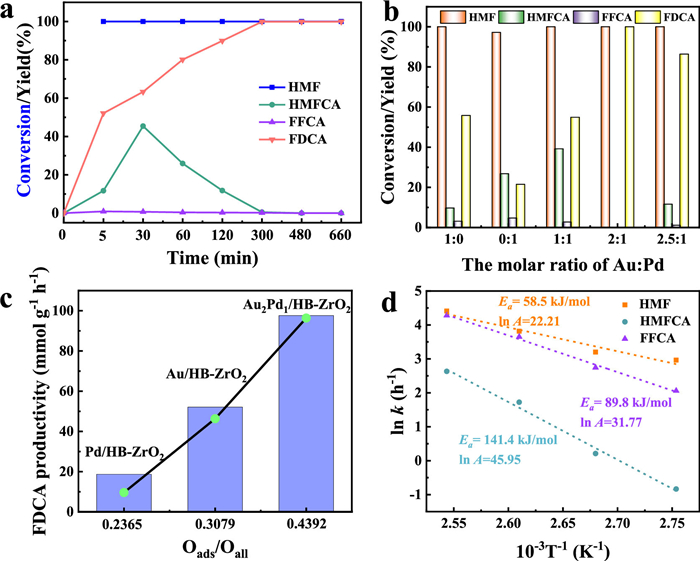

The catalytic performance of the prepared catalysts for the oxidation of HMF to FDCA was investigated at 100 ℃, 2.0 MPa O₂ for 660 min. 5-Hydroxymethyl-2-furancarboxylic acid (HMFCA), 5-formyl-2-furancarboxylic acid (FFCA) and FDCA intermediates were detected during the reaction, but no 2,5-diformylfuran (DFF) was found, suggesting that the reaction process followed path: HMF-HMFCA-FFCA-FDCA. In addition, the oxidation of HMF to FDCA employing HB-ZrO₂ that free of metals as catalyst revealed that only small amounts of HMFCA and FFCA were observed, and the final FDCA product was not detected in 300 min (Fig. S6 in Supporting information), indicating AuPd bimetal was the active site for FDCA production. After 5 min of reaction time, HMF conversion reached 100% and the yield of FDCA was 50.2% (Fig. 3a). The yield of FDCA was 99.9% with 97.6 mmol g⁻¹ h⁻¹ productivity after 300 min reaction. The effect of the mole ratios of Au and Pd in the bimetallic catalyst was tested. The monometallic catalysts Au/HB-ZrO₂ and Pd/HB-ZrO₂ showed 55.2% (52.5 mmol g⁻¹ h⁻¹) and 20.2% (18.7 mmol g⁻¹ h⁻¹) FDCA yields at 300 min with complete conversion of HMF, respectively (Fig. 3b, Fig. S7a in Supporting information). When the molar ratio of Au and Pd was adjusted to be 1:1, the yield of FDCA was significantly improved at the initial stage of reaction, but only 55.1% of FDCA yield can be achieved (48.3 mmol g⁻¹ h⁻¹) at 300 min. Further increasing the molar ratio of Au to Pd to be 2:1, the Au₂Pd₁/HB-ZrO₂ catalyst exhibited the best catalytic performance, and the yield of FDCA reached 99.9%. The yield of FDCA decreased with the increasing molar ratio of metal. It was concluded that the optimal molar ratio of Au and Pd was 2:1. At the same time, the yield of FDCA was positively correlated with the oxygen defect content of catalyst (Fig. 3c). In order to further verify the effect of reaction temperature, catalytic tests were carried out under different temperature conditions (Fig. S7b in Supporting information). The results showed that the yield of FDCA can reach 99.9% at 100 ℃, and the increase of reaction temperature has no obvious effect on the system. Studies have shown that O₂ played a role in removing electrons from metal surface during HMF oxidation, speeding up the electron transport rate in the reaction process, and promoting the adsorption and dehydrogenation of hydroxide ions [26,27]. Under the condition of 0.5 MPa oxygen pressure, the yield of FDCA was 78.5% (74.0 mmol g⁻¹ h⁻¹). With the increase of oxygen pressure, FDCA yield of 99.9% was obtained at 2.0 MPa (Fig. S7c in Supporting information). When the amount of catalyst was 30 mg, the yield of FDCA was 50.1% (78.8 mmol g⁻¹ h⁻¹), and further increasing the catalyst amount to 50 mg achieved the highest yield of 99.9% (Fig. S7d in Supporting information). Recyclability test of Au₂Pd₁/HB-ZrO₂ showed that the catalyst maintained good stability and the yield of FDCA only decreased by 5% after 5 cycles, which was mainly caused by the agglomeration of supported AuPd bimetal nanoparticles. (Fig. S8 in Supporting information).

According to the generated intermediates during the reaction process, the reaction process followed the sequence of HMF-HMFCA-FFCA-FDCA over Au₂Pd₁/HB-ZrO₂. Kinetics studies were carried out to calculate the apparent activation energies (E_a), and the results indicated the HMFCA oxidation demanded higher E_a than that of HMF substrate and FFCA (Fig. 3d and Tables S2–S4 in Supporting information). In the time course of HMF conversion, intermediate and FDCA yields in Fig. 3a also indicated that the HMF substrate swiftly converted and the HMFCA yield kept at a higher level than FFCA, suggesting that the oxidation of HMFCA should be the rate-determining step during HMF oxidation. The adsorption capacities of HMFCA over three catalysts were studied. After Langmuir and Freundlich isothermal adsorption model fitting, the HMFCA adsorption processes of the three catalysts were well fitted to the Langmuir model, indicating that the adsorption process of HMFCA was monolayer adsorption (Fig. S9 in Supporting information). According to Langmuir isothermal adsorption linear equation, the maximum adsorption capacity of Au₂Pd₁/HB-ZrO₂ for HMFCA was 1.1832 mg/g. The n value obtained by Freundlich isothermal adsorption linear equation was associated with the adsorption strength. Three catalysts were all favorable for the adsorption of HMFCA, and Au₂Pd₁/HB-ZrO₂ had the best adsorption effect (Table S5 in Supporting information). The catalytic performance of this developed catalyst was superior to supported catalysts for HMF oxidation in the reported literatures (Table S6 in Supporting information).

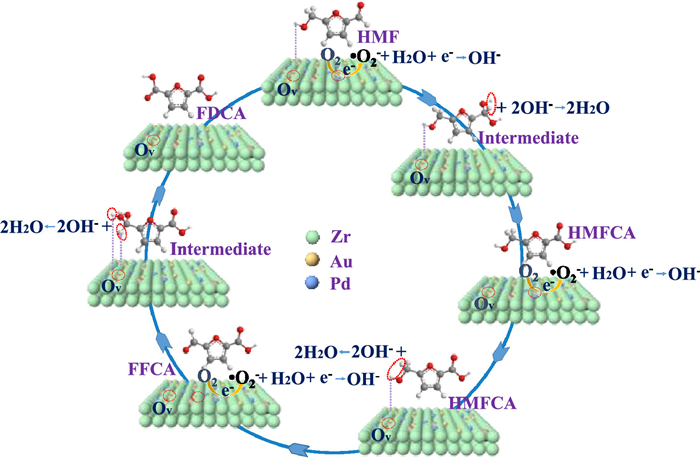

Control experiment indicated alkaline condition was essential for the catalytic oxidation of HMF to FDCA over the developed Au₂Pd₁/HB-ZrO₂ catalyst (Fig. S10 in Supporting information). In addition, the in situ infrared adsorption experiments revealed that HMF was vertically adsorbed on Au₂Pd₁/HB-ZrO₂ catalyst surface (Fig. S11 in Supporting information). Based on catalysts characterizations and catalytic activities, the possible reaction mechanism of HMF conversion to FDCA under the action of Au₂Pd₁/HB-ZrO₂ catalyst was speculated as illustrated in Fig. 4. The hydroxyl group of HMF was adsorbed on the catalyst, and activated by the active precious metal on the surface. The oxygen vacancy adsorbed and activated O₂ to form ^•O₂⁻. Meanwhile, the aldehyde group on HMF was formed into geminal diols [28,29]. The geminal diols were further combined with OH⁻ to form HMFCA. HMFCA was activated by metal and continued to react with OH⁻ to form FFCA. FFCA hydrolyzed to form intermediates, which further form FDCA under the action of metals and OH⁻. The synergistic action between the metal oxide support as the oxidation terminal and the metal particle as the reduction terminal accelerated the electron transfer rate in the reaction process, and finally realized the catalytic oxidation of HMF to FDCA.

In summary, hierarchical porous bowl-shaped ZrO₂ with oxygen-rich defect was designed and employed as AuPd bimetal nanoparticles support for high-efficient oxidation of HMF to FDCA. Compared with Au/HB-ZrO₂ and Pd/HB-ZrO₂ catalysts, AuPd/HB-ZrO₂ catalysts with bimetallic nanoparticles loading induced more O_v content, thus resulting in enhanced strong metal-support interaction. The O_v on the surface of HB-ZrO₂ was conducive to the dissociation of oxygen, and further removed the electrons transmitted to the surface of metal particles, accelerated the electron transfer rate in the reaction process. The Au₂Pd₁/HB-ZrO₂ catalyst afforded a satisfactory FDCA yield of 99.9%, accompanying with an excellent FDCA productivity at 97.6 mmol g⁻¹ h⁻¹. Moreover, kinetic studies confirmed the rate-determining step was the oxidation of HMFCA to FFCA during HMF oxidation over the Au₂Pd₁/HB-ZrO₂ catalyst. This work sheds new lights on the design of well-controlled metal oxide supported noble metal catalysts for the catalytic upgrading of biomass platform chemicals.
