Towards catalytic reactions of Cu single-atom catalysts: Recent progress and future perspective

Full

Yitao Zhao^a^,^b^,^*, Lei Tao^a^,^b

Affiliations

^a Jiangsu Province Engineering Research Center of Special Functional Textile Materials, Changzhou Vocational Institute of Textile and Garment, Changzhou 213164, China

^b Jiangsu Key Laboratory of Advanced Catalytic Materials and Technology, Advanced Catalysis and Green Manufacturing Collaborative Innovation Center, School of Petrochemical Engineering, Changzhou University, Changzhou 213164, China

Published: 2024-02-15 doi: 10.1016/j.cclet.2023.108571

Outline

Abstract

Less

One of the urgent and challenging topics in diversified sustainable energy conversion is the development of high-performance, low-cost, and well durable catalysts. Cu single-atom catalysts (SACs) have become promising catalysts for diversified sustainable energy conversion due to their capability to maximize the utilization efficiency, acquire modulated electronic structure and optimized binding strength with intermediates. In this review, we have provided an interview of the recent progress achieved in the field of electrocatalysis, photocatalysis, and heterogeneous reaction based on Cu SACs. Started by this review, we have summarized some advanced synthetic strategies for the construction of Cu SACs. Subsequently, the performance-improving strategies are discussed in terms of the coordination environments of the reaction center, reaction mechanism and selectivity, based on free energy diagram and electron structure analysis. Finally, the remaining issues, challenges, and opportunities of Cu SACs are also provided, affording a perspective for future studies. This review not only offers us a deep understanding on the catalytic mechanism of Cu SACs for energy conversion, but also encourages more endeavors in prompting their practical application.

Key words

Cu SACs / Energy conversion / Catalysis / Coordination environment

Cite this Article

Yitao Zhao, Lei Tao. Towards catalytic reactions of Cu single-atom catalysts: Recent progress and future perspective[J]. Chinese Chemical Letters, 2024 , 35 (2) : 108571 - . DOI: 10.1016/j.cclet.2023.108571

Full Text

Less

1 Introduction

Less

The increasingly exhausted conventional fossil fuels and pollution problems generated an ongoing challenge facing us now [1,2]. One of the most promising strategies to address this is to explore advanced energy conversion technologies (e.g., fuel cells, electrolytic cells, and metal-air batteries), which can convert chemical energy into electricity energy [3-7]. However, the conversion efficiency is closely related to the catalytic performance of catalysts. To date, the most effective candidates for catalysts are noble-metal-based materials (e.g., Pt, Pd, Ru, Rh, and Ir) [8-10]. Unfortunately, their high price and low nature reserves seriously impeded their widespread application. In this regard, exploring low-cost and nature abundant candidates to substitute these noble metals is highly imperative. Recently, transition metal-based catalysts emerge as a rising star wherein a well-adjusted D-band center will give rise to promising catalytic performance [10-13]. Among various transition metals, Cu and Cu-based nanomaterials are appearing as ideal alternatives to drive not only electrocatalytic energy conversion but also heterogeneous catalysis due to its high intrinsic activity, low cost, and extraordinary durability [14-18].

As is well known to all, the catalytic performance of a catalyst is associated with the number of active sites and the intrinsic activity of individual active site [19,20]. Thus, enlarging the active area and maximizing the atomic utilization may be a favorable method to improve the catalytic performance of a catalyst [21,22]. Recently, single-atom catalysts (SACs), emerge as a rising star in the field of catalysis, has attracted increasing interest [23-25]. For one thing, SACs not only increase the number of active sites accessible for reactants and intermediates, but also largely improve the intrinsic activity of individual active site [26-28]. For another, the strong metal-support interaction can also significantly improve the catalytic activity and stability, enabling the SACs to be desirable catalysts for energy conversion and environment catalysis [29]. In this contribution, Cu SACs are thus appealing increasing interest for functioning as promising catalysts for energy conversion. Compared with traditional Cu catalysts, the highly uniform active sites and geometric configuration of Cu SACs endow them with similar electronic and spatial interaction with substrate molecule. In addition, Cu SACs not only inherit the merits of easy separation and excellent recyclability of heterogeneous catalysts but also have the advantages of highly uniform active centers and tunable coordination environment of homogeneous catalysts [30]. Moreover, structural homogeneity of SASC favors to characterize and identify the exact atomic structure of active sites and further establishes a definitive correlation with catalytic performance [31].

By taking inspiration from these advantageous merits, Cu SACs are thus emerging as promising catalysts and attracting great interest for driving some key reactions, such as electrocatalytic energy conversion (e.g., electrocatalytic CO₂ reduction, oxygen reduction reaction, nitrogen reduction reaction, and nitrate reduction reaction), photocatalytic reaction (e.g., photocatalytic CO₂ reduction and hydrogen evolution reaction) and heterogeneous reaction (e.g., Fenton-Like reactions, hydrogenation of quinolone, and benzene oxidation) with remarkably high catalytic activity and good durability [32-36]. Although great progress has been achieved in the fabrication and application of Cu SACs over decades, a systematical review regarding the fabrication and application in electrocatalytic, photocatalytic, and heterogeneous reactions has been rarely summarized.

Inspired by this, we provide here an overview regarding the recent progress of Cu SACs in the field of catalytic reactions (Scheme 1). We first illustrate a detailed discussion about the synthesis of advanced Cu SACs, and then some representative examples for the electrocatalytic reactions, photocatalytic reactions, and heterogeneous reactions are also summarized and compared. We also provide the theoretical insights into the coordination environment and free energy diagram analysis, which is beneficial to understand the relationship between the properties and local atomic structure, revealing reaction mechanism and guiding experiments. Finally, the challenging issues and perspective insights are presented, providing an outlook for future research.

2 Synthesis of Cu single-atom catalysts

Less

2.1 Pyrolysis synthesis

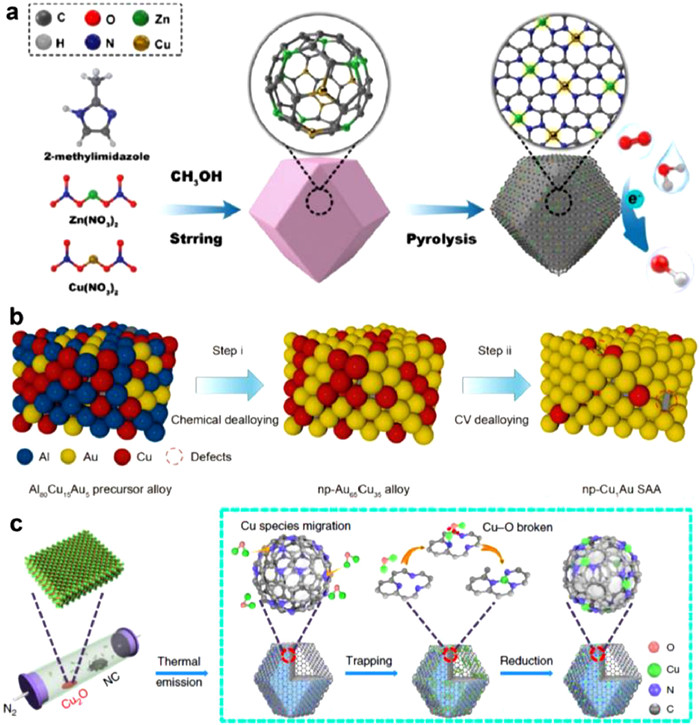

Pyrolysis synthesis is one of the most effective strategies to prepare Cu SACs with both high catalytic activity and good durability. Pyrolysis synthesis also shows great advantages, such as optimal metal loading and nanostructure engineering, which are crucial to determining the catalytic performance. Metal-organic frameworks (MOFs) are widely applied as precursors in high-temperature pyrolysis in view of its richness in structural diversity, high porosity, tailorable composition, and multifunctionality. For example, Fu and coworkers [37] synthesized the atomically dispersed Cu-N₄ and Zn-N₄ on the N-doped carbon support (Cu/Zn-NC) via directly pyrolyzing CuZn-ZIF precursor (Fig. 1a). The CoZn-ZIF enabled the Cu/Zn-NC with porous skeleton and good coordination environment. Besides MOFs, other carbon-based materials, such as Cu phthalocyanine (CuPc), carbon nanotube, graphene, can also be employed as precursors or supports for yielding the Cu SACs. Cui et al. [38] have synthesized a Cu SAC using CuPc as the precursor and carbon nanotubes as carriers through a facile pyrolysis method. The as-prepared Cu SACs can exhibit outstanding electrocatalytic performance towards oxygen reduction reaction (ORR).

2.2 Dealloying strategy

Dealloying is also an effective strategy for the synthesis of metal-supported alloy SACs. For example, Zhao et al. [39] proposed a facile dealloying strategy to synthesize the atomic Cu dispersed on hierarchically porous gold architectures (denoted as np-Cu₁Au SAA) (Fig. 1b). Remarkably, the resulting np-Cu₁Au SAA with rich active sites can achieve a nearly 100% CO Faraday efficiency during electrocatalytic CO₂ reduction reaction (CO₂RR). It is uncovered that the Cu-Au interface sites can function as the intrinsic active centers to facilitate the activated adsorption of CO₂ molecule and stabilize the *COOH intermediate.

2.3 Other methods

Besides pyrolysis method and dealloying strategy, some other methods such as ball milling technique, wet-chemical method, gas-transport strategy, are also proposed for the synthesis of Cu SACs. Taking Wu's work as a representative example [40], they have developed a new high-temperature gas-transport strategy to directly transform a series of commercial available metal oxides into isolated single atoms onto the nitrogen-doped carbon (NC) with ease of mass-production (Fig. 1c). To be specific, commercial Cu₂O power and NC are separately located in the porcelain boat. At a high temperature of 1273 K in flowing N₂, the surface Cu₂O is initially evaporated to form volatile species, which can be trapped and reduced by NC, yielding the isolated single-atom copper sites (Cu ISAS/NC) catalyst. Interestingly, this gas-transport strategy can also be extended to the synthesis of other M ISAS/NC (M = Mo, Sn) by varying the metal oxide precursors.

In recent years, some other effective synthesis methods are also proposed for the fabrication of highly efficient Cu SACs. Among them, the physical and chemical deposition methods have been widely developed for the successful fabrication of Cu SACs [41]. Generally, the deposition method includes the chemical vapour deposition, atomic layer deposition, and electrochemical deposition. In addition, the electron/ion irradiation method that can create surface vacancy to trap metal atoms is also another advanced strategy for the synthesis of Cu SACs [42].

3 Catalytic reactions

Less

3.1 Electrocatalytic reactions

3.1.1 Electrocatalytic CO₂ reduction reaction

The electrocatalytic conversion of CO₂ using renewable energy sources is widely considered as a promising approach to cut down the continuous accumulation of atmospheric CO₂ and yield a supply of value-added chemical fuels to regain the carbon balance [43,44]. Because of intrinsic inertness of CO₂, the electrochemical reduction of CO₂ not only depends on the electrocatalysts that can drive CO₂ reduction at ambient condition but also allow the formation of value-added products [45-48]. Therefore, it is necessary to develop the advanced electrocatalysts with not only high electrocatalytic activity but also desirable selectivity. Among a wide range of material candidates, Cu-based materials are well known as almost the most effective materials that can electrochemically convert CO₂ to liquid fuels with high activity and good selectivity [49,50]. However, Cu-based electrocatalysts usually generate a fairly broad mix of gaseous and liquid phase chemicals. Thus, controlling the catalytic selectivity of CO₂RR to desired product remains a forbidden challenge. Recently, Cu SACs with completely exposed active sites can exhibit ultrathin catalytic activity and selectivity of electrocatalytic CO₂RR. To this end, intensive endeavors have been devoted to the design and fabrication of high-quality Cu SACs to boost the selectively catalytic CO₂ conversion [51,52].

For example, Jiao et al. [53] reported the synthesis of an atom-pair catalyst (APC) that features a highly active Cu atomic interface, where the active site of APC comprises Cu₁⁰-Cu₁^x⁺ pairs were stabilized by the Te surface defects on Pd₁₀Te₃ alloy nanowires (Figs. 2a–d). It was demonstrated that the Cu₁⁰-Cu₁^x⁺ pairs can exhibit superb activity and high Faradaic efficiency to selectively produce CO in CO₂RR at low applied overpotentials (Figs. 2e and f). Upon combination of the density functional theorty (DFT) calculations and experimental data, it was uncovered that the outstanding electrocatalytic performance of Cu₁⁰-Cu₁^x⁺ pairs was ascribed to the CO₂ activation via a “biatomic activating bimolecular” mechanism (Figs. 2g and h), suggesting the great potential of the Cu SACs for selectively converting CO₂ to CO.

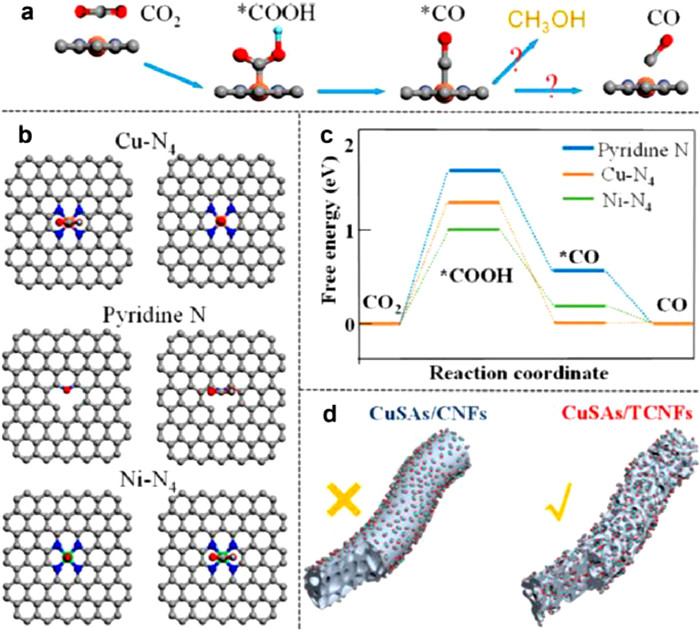

In addition to the efficient conversion of CO₂ to CO, Cu SACs are also demonstrated to be highly active towards the production of methane. Taking Zheng's work as a representative example [51], they constructed a Cu, N-codoped carbon nanosheet structure by atomically fabricating the single atom distribution of Cu-N_x coordination with varied Cu doping concentrations. The obtained single-atom Cu-N_x coordination structure is demonstrated to be highly effective for the electrocatalytic CO₂RR to hydrocarbons, including CH₄ and C₂H₄. Remarkably, at a high Cu loading density (4.9% mol), Cu atoms were close enough to each other to enhance the C−C coupling, thus leading to ethylene as a main CO₂ reduction product. When the Cu loading density was reduced to 2.4% mol, the C1 pathway was then favored and the main CO₂ reduction product was tuned to methane, implying a tailorable approach for Cu SACs for different CO₂RR selectivity. DFT calculations revealed that the two adjacent Cu-N₂ sites binding with two CO intermediates can lead to the formation of C₂H₄, while the isolated Cu-N₄, the neighboring Cu-N₄, and the isolated Cu-N₂ sites resulted in the production of CH₄. Cai et al. [54] synthesized the carbon-dots-based SAC margined with unique CuN₂O₂ sites to successfully modify the electronic structures of center atoms on SACs for lowering the overall endothermic energy of key intermediates (Figs. 3a–d). Interestingly, the oxygen ligands can induce remarkably high Faradaic efficiency (78%) and selectivity (99%) for converting CO₂ to CH₄ with a current density of 40 mA/cm². Theoretical calculations suggested that the high selectivity and activity on CuN₂O₂ active sites are originated from the proper elevated CH₄ and H₂ energy barrier (Fig. 3e). These works suggested that the crucial role in tailoring the coordination environment to improve the selectivity of Cu SACs for electrocatalytic CO₂RR.

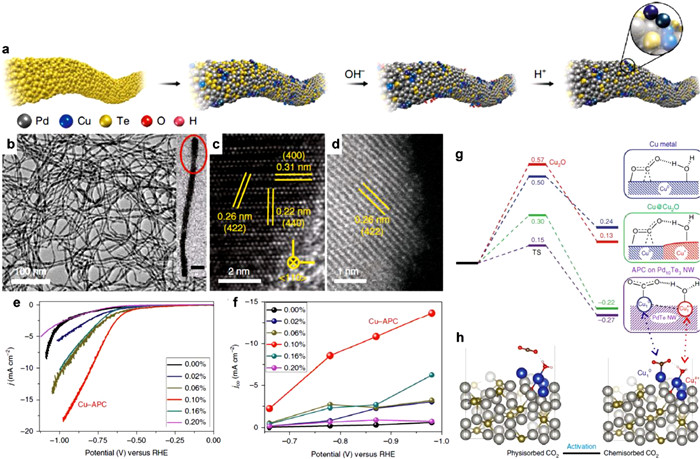

Moreover, Cu SACs are also demonstrated to be highly active and selective towards the electrocatalytic reduction of CO₂ to liquid fuels, such as formic acid, methanol. For instance, Zheng et al. [55] synthesized the Pb single-atom alloyed Cu catalyst (Pb₁Cu) to realize near unity selectivity of formate with record activity via an epoxide gelation approach. It is reported that the Pb₁Cu catalyst can exclusively electrochemically convert CO₂ into formate at a high current density of 1 A/cm² and a Faradaic efficiency ~96%. Upon combination of the in-situ spectroscopic evidence and theoretical calculations, it is uncovered that the activated Cu sites of the Pb₁Cu catalyst to optimize the first protonation step of the CO₂RR and divert the CO₂RR towards a HCOO* path rather than a COOH* path, thus improving the selectivity of formate. Yang et al. [56] synthesized the homogeneously distributed Cu single atoms on through-hole carbon nanofibers (denoted as CuSAs/TCNFs) to enable efficient electrocatalytic CO₂RR, which can generate nearly pure methanol with 44% Faradaic efficiency with −93 mA/cm² partial current density for C1 products and more than 50 h stability in aqueous solution. DFT calculations revealed that Cu single atoms possessed a relatively higher binding energy for *CO intermediate and further reduced them to products like methanol (Fig. 4).

3.1.2 Electrocatalytic N₂ reduction reaction

Electrocatalytic nitrogen reduction reaction (NRR) has long been regarded as a promising strategy to yield NH₃, which is critically important for both agriculture and industry [57-60]. However, its efficiency is still at a relatively low level, with poor Faradaic efficiency (FE) and being severely affected by the accompanying HER in aqueous electrolytes due to the strong N≡N triple bond (941 kJ/mol) in N₂ and high first bond cleavage energy (410 kJ/mol) [61-66]. Therefore, it is of vital importance to develop effective electrocatalysts to facilitate the cleavage of N≡N bond. Currently, noble metal Au, Ru, and Rh, are among the best performing for NRR, but their high cost and low scarcity greatly restrict their widespread and scaled up application [67]. To address this issue, nonnoble metal materials, such as MoS₂, Bi-based, and Cu-based nanocatalysts are also appearing as advanced electrocatalysts for NRR.

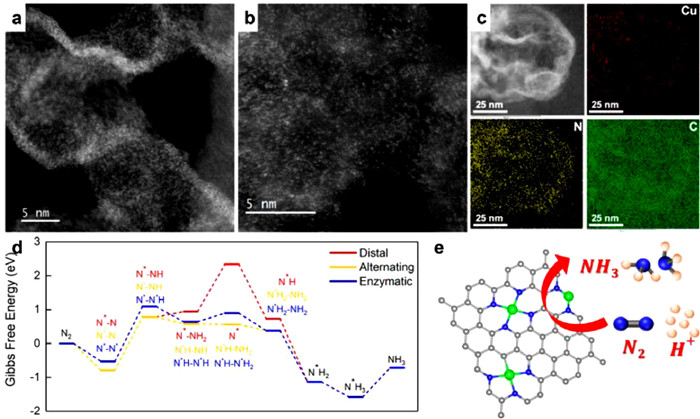

In recent years, SACs are emerging as promising electrocatalysts for NRR and thus extensively investigated. Indeed, single atoms that deposited on the surface of support have been demonstrated to possess several advantages, such as high atom utilization and high selectivity due to their low coordination environments. Bear these considerations into mind, intensive endeavors have been devoted to the fabrication of advanced SACs for electrocatalytic NRR, such as Fe, Co, Mo, W, Cu, and Ag SACs. Among them, Cu SACs have been reported to be highly active toward electrocatalytic NRR, along with the advantages of high intrinsic activity and low cost. For instance, Wang and coworkers reported a surfactant-free method for the successful fabrication of a new type of Cu single-atom electrocatalyst based on a porous nitrogen-doped carbon network (NC-Cu SA) (Figs. 5a–d), which was investigated for electrocatalytic NRR [58]. Impressively, NC-Cu SA can exhibit an outstanding FE of 13.8% and 11.7%, high NH₃ yield rate of ~53.3 and ~49.3 µg_NH h⁻¹ mg_cat⁻¹ in 0.1 mol/L KOH and 0.1 mol/L HCl electrolytes, respectively, surpassing the performance of Cu nanoparticle on NC. According to the mechanistic study, it is uncovered that the superb electrocatalytic performance is originated from the high density of exposed Cu-N₂ coordination and the high level of porosity (Fig. 5e).

3.1.3 Electrocatalytic oxygen reduction reaction

Electrochemical ORR has appealed increasing interest because of its irreplaceable role in energy conversion and storage, such as fuel cells and metal-air battery [68,69]. Pt and Pt-based materials are well accepted as the most effective electrocatalysts for ORR, but the high cost and low nature reserve seriously impede their widespread application [70-77]. Therefore, developing low-cost, highly active, and durable candidate to replace traditional Pt-based materials is highly imperative [78-81]. Alternatively, nonprecious metal-based metal-nitrogen-carbon (M-N-C, M stands for nonprecious metal) structures have been considered as a class of high-efficiency ORR catalysts [37,82,83]. In recent years, SAC as a rising star has made breakthroughs in energy conversion technologies with rapidly development due to the advantageous merits of highly unsaturated coordination bonds and uniform distribution of plentiful active sites [84]. Thus, the ORR activity of the M-N-C has been substantially improved by engineering the atomic site of M-N-C. Nowadays, most of the M-N-C catalysts with atomic level regulation are focusing on Fe, Co, and Ni species [85]. Atomic level Cu-N-C species are also emerging as promising catalysts for boosting the electrocatalytic reaction of CO₂RR and ORR due to high intrinsic activity and good durability [86]. Generally, the catalytic performance of Cu-N-C is determined by the number and structure of the active sites, which are critically depended on the preparation conditions. Therefore, it is urgently important to modify the coordination environment and structure of the metal active site via effective synthetic methods. Wang and coworkers reported that the Cu-N₂, Cu-N₃, and Cu-N₄ were all the active structure [87]. They developed a two-step method to synthesize the Cu-N-C SACs with a uniform and well-defined Cu²⁺-N₄ structure that exhibits superb ORR activity and stability. By combining operando X-ray absorption spectroscopy with theoretical calculations, they identified the dynamic evolution of Cu-N₄ to Cu-N₃ and further to HO-Cu-N₂ under ORR working conditions, which concurrently occurred with the reduction of Cu²⁺ to Cu⁺ and was driven by the applied potential. The increase in the Cu⁺/Cu²⁺ ratio with the reduced potential indicated that the low-coordinated Cu⁺-N₃ was the real active site, which was further supported by theoretical calculations exhibiting the lower free energy in each elemental step of the ORR on Cu⁺-N₃ than on Cu²⁺-N₄.

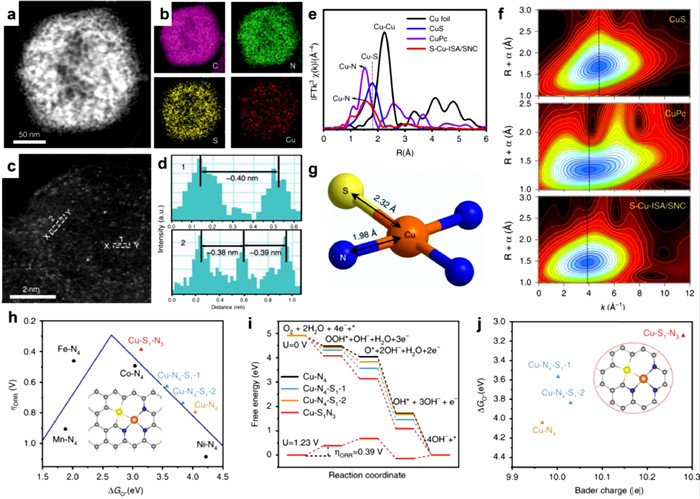

Beside the Cu-N coordination, single copper atoms coordinated with both sulfur and nitrogen atoms are also demonstrated to be highly active and durable toward ORR. Taking Wang's work as a representative example [88], they synthesized a new type of Cu SACs that Cu atom was directly bonded with both sulfur and nitrogen atoms (denoted as S-Cu-ISA/SNC) by rationally controlling the unsymmetrical interface structure of central metal atoms (Figs. 6a–g). Impressively, the S-Cu-ISA/SNC is demonstrated to be highly active and durable toward ORR by delivering a half-wave potential of 0.918 V vs. RHE. According to the experimental data and theoretical calculation, it is revealed that the improved ORR activity is originated from the optimized atomic arrangement and density-of-states distribution of the Cu-S₁N₃ centers (Figs. 6h–j), suggesting the great influence of the coordination environment regulation on the electrocatalytic ORR performance.

The dispersing substrate is also proved to be vital in the SACs. Graphene is sp²-hybridized carbon structure, which can serve as an ideal substrate for dispersing metal site, due to its good electrical conductivity, large specific surface area, and exceptional mechanical strength and high flexibility. Therefore, graphene-based SACs can be widely applied in driving electrocatalytic ORR. For example, Han et al. [89] developed a facile confined self-initiated dispersing protocol to synthesize the graphene-based Cu SACs, where the facile confined self-initiated dispersing protocol not only avoids the self-aggregation of Cu atoms, but also increase the mass loading of Cu atoms, leading to the remarkably high electrocatalytic ORR activity.

3.1.4 Electrocatalytic nitrate reduction reaction

Nitrate is one of the most widespread pollutants in surface and underground water, which is mainly emitted from artificial fertilizers in agriculture activity, factory waste disposal, and fossil fuel products of industrial effluents. Excessive nitrate emission in water has been widely recognized to pose health and environmental risks to humans, such as eutrophication and several health diseases. Electrocatalytic nitrate reduction reaction (NO₃RR) is a promising strategy for addressing these issues. Metallic Cu is also a well-known electrocatalyst for nitrate reduction reaction due to its high electrochemical activity, tunable electronic structure, and low cost [90-92]. However, some issues should be addressed before the industrial application of the electrocatalytic NO₃RR. One is the catalyst deactivation after long-time operation due to the passivation, leaching, and corrosion, the other is associated with the accumulation of nitrite, a main quasi-stable intermediate that is a carcinogen and more toxic than nitrate [93]. These two issues highlight the need to fabricate highly efficient, stable, and selective electrocatalyst. Downsizing the metal nanoparticles into single atoms is now appearing as a promising avenue to meet this need due to the maximized atomic utilization efficiency and high intrinsic activity [94,95]. Moreover, the strong interactions between single atoms and surrounding coordination atoms can also protect and stabilize single atomic metals, thereby significantly enhance the electrochemical stability. Therefore, Cu-based SACs are widely investigated and developed as advanced electrocatalysts for boosting electrocatalytic NO₃RR. For example, Zhu et al. [96] designed a catalyst composed of single Cu atoms anchored on nitrogenated carbon nanosheets (Cu-N-C), which can exhibit superb activity and durability in NO₃RR with appreciably higher rates. The combined results of experimental data and DFT calculation indicate that Cu-N₂ is the key to favorable adsorption of NO₃⁻ and NO₂⁻. This strong binding is responsible for the enhanced rate of nitrate conversion to the end products of ammonia and nitrogen. Basically, the design and synthesis of high-efficiency Cu SAC present a strategy to accelerate the reaction kinetic toward electrochemical reactions, which exhibit the potential applications of Cu SACs in energy conversion devices.

3.2 Photocatalytic reactions

3.2.1 Photocatalytic CO₂ reduction reaction

SACs, especially for Cu-based SACs, with unique electronic structure, high intrinsic activity, and distinctive coordination environments have attracted considerable attention. Besides, Cu SACs can also expose more accessible active sites and afford high atomic utilization efficiency. In this regard, Cu SACs are thus utilized as advanced photocatalysts for boosting CO₂ reduction [97,98]. Taking Wang's work as a representative example [99], they have reported a photoinduction method (PIM) to construct isolated Cu SAs (as active species) anchored on UiO-66-NH₂ to serve as photocatalyst toward CO₂ conversion to fuels. The Cu SA species can be captured by -NH₂ groups of UiO-66-NH₂ support and then anchored by after irradiation with visible light, which significantly modified the electronic structure of photocatalysts at the atomic level to facilitate the separation of electron-hole pairs. Upon the combination of experimental and theoretical data, it was revealed that the Cu SA species can induce the enrichment of the electrons on Cu SAs/UiO-66-NH₂, thus promoting the conversion of CO₂ to CHO* and CO* intermediates, leading to excellent selectivity toward methanol and ethanol.

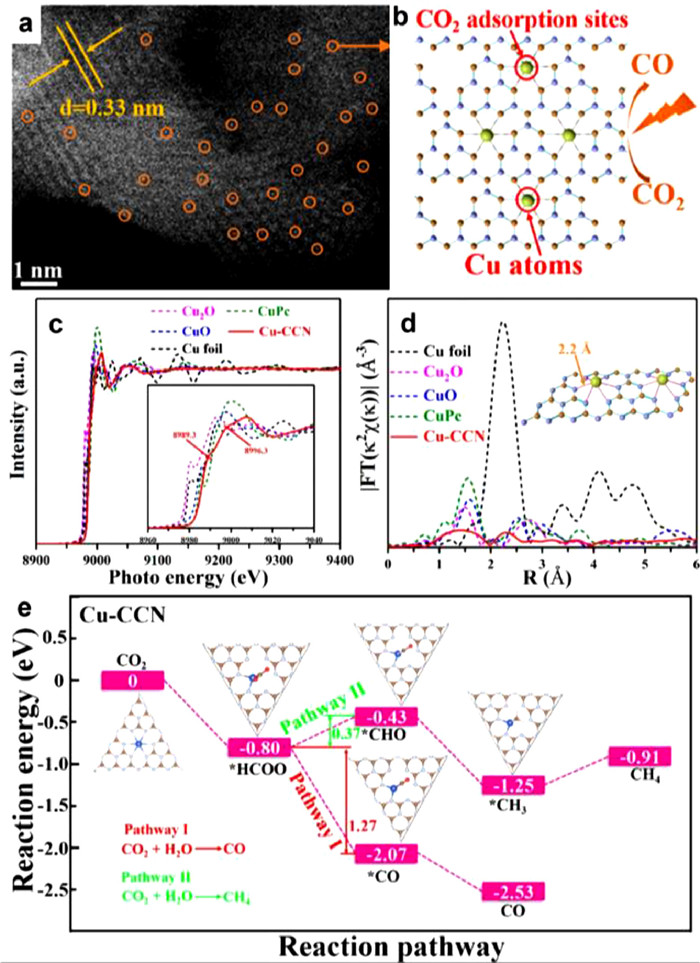

Li et al. [98] synthesized the Cu SACs that anchored on the graphitic carbon nitride (g-C₃N₄) as advanced photocatalyst for catalytic CO₂RR. g-C₃N₄, as a metal-free organic photocatalyst, show outstanding properties with nearly 100% selective photocatalytic CO₂ to CO conversion, good stability, no toxicity, low cost, and a moderate band gap to harvest visible light. More importantly, it is demonstrated that the introduction of Cu atoms can work as CO₂ adsorption sites, thereby increasing the adsorption capacity of Cu-CCN samples to CO₂ (Figs. 7a–d). Moreover, theoretical calculations revealed that reducing CO₂ to CH₄ on Cu-CCN samples was an entropy-increasing process, whereas reducing CO₂ to CO was an entropy-decreasing process (Fig. 7e).

3.2.2 Photocatalytic hydrogen evolution reaction

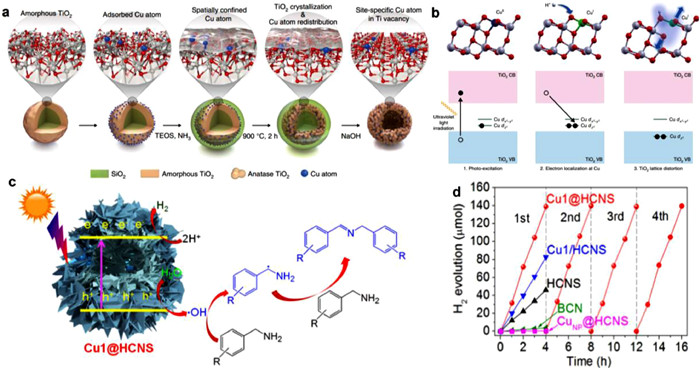

Heterogeneous photocatalysts possess great advantages for the application in photocatalytic hydrogen evolution. To achieve high efficiency and selectivity, the electronic band structures of the co-catalysts and their interactions with light absorbers should be investigated, along with the intrinsic light-absorbing properties of the photocatalysts [100-103]. In this regard, SACs, where the isolated single atoms are anchored to the support, offer an ideal platform because of its tailorable properties by tuning the local atomic configuration [104,105]. Among various metal single atoms, Cu SACs are emerging as promising catalysts for boosting hydrogen production due to its high intrinsic activity. By taking advantages from these, intensive efforts have been devoted to the fabrication of advanced Cu SACs for boosting photocatalytic hydrogen generation. For instance, Lee et al. [105] reported on the design and synthesis of highly active TiO₂ photocatalysts incorporating site-specific single copper atoms (Cu/TiO₂) that exhibited a reversible and cooperative photoactivation process (Fig. 8a). Upon the combination of the experimental results and DFT calculations, it was uncovered that the valence state of the isolated Cu atoms was changed by the atomistic localization of photogenerated electrons (Fig. 8b). This valence change can induce the activation of adjacent TiO₂, thereby tuning the initially dormant TiO₂ to an active state and greatly improving the photocatalytic performance.

Introducing Cu single atom into other light absorbers is also an effective approach to fabricate advanced Cu-based single-atom photocatalysts. Recently, polymeric carbon nitride (PCN) has also emerged as an attractive candidate for photocatalysts due to its advantageous merits, such as tunable electronic structure, good thermal and chemical stability, and environmental benignity. Therefore, incorporating Cu single atom into PCN is a promising strategy to obtain advanced photocatalysts for boosting photocatalytic hydrogen production. For instance, Zhao and coworkers [106] developed a facile molecular assembly approach to construct an intercalation-structured hollow carbon nitride sphere composed of carbon nitride nanosheets (HCNS) with atomically dispersed Cu₁N₃ moieties (Fig. 8c). According to the experimental results, it is demonstrated that the Cu₁@HCNS can exhibit superior photoredox catalysis to the pristine HCNS and the Cu₁N₃ moieties anchored on the surface of nanosheets for solar hydrogen production (3261 µmol g⁻¹ h⁻¹ rate) (Fig. 8d). It is uncovered that the embedded single-atom Cu can function as a modifier to greatly modify the electron structure and remarkably facilitate interfacial charge transfer of PCN. These researches have confirmed the great promise of the single-atom Cu in promoting the photocatalytic hydrogen production performance of conventional photocatalysts.

3.3 Heterogeneous catalytic reactions

3.3.1 Fenton-Like reactions

Effective activation of hydrogen peroxide (H₂O₂) to yield reactive oxygen species (ROS) is of great importance in advanced oxidation systems. Fenton reaction is the most popular engineered avenue for ROS generation, in which H₂O₂ was decomposed into highly oxidative hydroxyl radicals (^•OH) in the presence of Fe(Ⅱ) [107-110]. However, conventional Fenton reaction suffers from sluggish kinetics of Fe(Ⅱ) recovery and high consumption of H₂O₂ [111]. To this end, exploring advanced catalysts to improve the reaction kinetics and accelerate the reaction rate is highly imperative. In recent years, Cu-based SACs are emerging as promising catalysts for boosting the Fenton reaction due to their high intrinsic activity and maximized atomic utilization. For instance, Duan and coworkers [112] designed and synthesized a novel Cu single-atom sites coordinated onto pyrrolic N-rich g-C₃N₄ (PN-g-C₃N₄) scaffold for driving Fenton reaction. The regulated pyrrolic N-rich SA-Cu catalytic sites exhibited excellent performances for heterogeneous Fenton reaction due to the low energy barrier. Moreover, this synthetic method can also be extended to the universal synthesis of SA-TM/PN-g-C₃N₄ with remarkably high catalytic performance toward Fenton reaction.

In recent decades, sulphate radical-based oxidation reactions are also extensively explored for the degradaton of refractory organics [113]. Generally, SO₄^•− possesses a higher oxidation potential (2.5–3.1 V vs. NHE) and a longer half-life period (30–40 µs) than HO˙ (1.8–2.7 V vs. NHE, 20 ns); thus sulphate radicals can transfer longer distances to reach the target contaminants and mineralise them more effectively. As is well known to all, peroxymonosulphate (PMS) is a parent persulphate to produce SO₄^•− with the stimulations of ultrasound, heat, electrolysis, ultraviolet light, carbon-based materials, and transition metals [114]. PMS (also termed Oxone) is a triple salt composed of 2KHSO₅, KHSO₄, and K₂SO₄. In virtue of an asymmetric structure with longer superoxide O-O bond, PMS has been believed to be an easy-handling, stable, and non toxic peroxide. Recently, a series of Cu-based SACs has been used as PMS activators for the degradation of various organic micropollutants. For example, Yang et al. [115] prepared the Cu-SAC with uniformed coordination structures for driving catalytic oxidation of chloroquine phosphate (CQP). It was demonstrated that the radicals (SO₄^•− and HO^•) dominated the CQP oxidation (58.3%) in Cu-SAC/PMS system, which was associated with the different spin-state of the metal sites for PMS adsorption and breakage of O-O in PMS as well as the intermediates in versatile pathways, confirming the great promise of Cu SACs for sulphate radical-based oxidation reactions.

3.3.2 Hydrogenation of quinoline

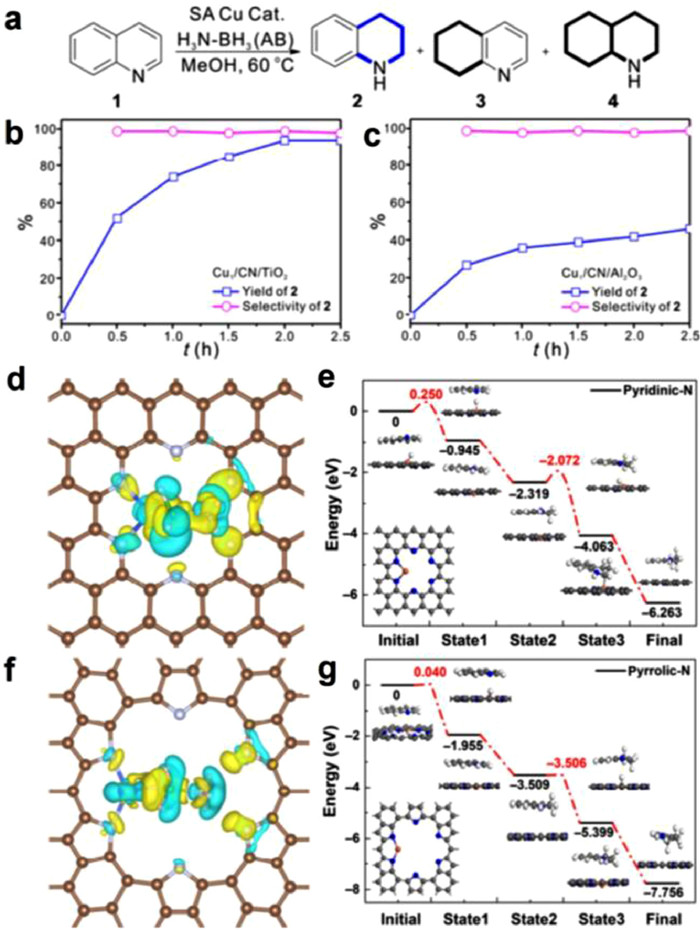

Heterogeneous hydrogenation of quinoline depends on noble metal catalysts with selectivity issues or suffering from harsh reaction conditions (high temperature and high pressure of H₂). Therefore, exploring cost-effective materials to substitute noble metal catalyst is highly important. In recent years, SACs, especially for Cu-based SACs, have emerged as a class of promising candidates for boosting catalytic hydrogenation of quinoline. For example, SA Cu catalyst on N-doped carbon (CN) materials has been developed for driving the selective hydrogenation of quinoline [116]. And a compounding metal oxides (MO_x) strategy has been successfully developed to effectively change the doping type of nitrogen atoms in CN as major pyrrolic-N and pyridinic-N respectively for optimizing the catalytic performance Cu SACs in transfer hydrogenation of quinolone (Figs. 9a–c). Interestingly, the dominant pyrrolic-N in CN can improve the activity of the Cu SAC by ~2 folds to produce 1,2,3,4-tetrahydroquinoline (THQ). As a result, the Cu SAC realizes the hydrogenation of quinolines in 99% selectivity under mild conditions (60 ℃ for 2 h) by employing ammonia-borane (AB) as the hydrogen source, suggesting the great promise of Cu SACs for serving as catalyst toward the transfer of quinoline. Moreover, it is also reported that the superb catalytic performance is originated from the higher electron density of individual Cu centers, which facilitates the hydrogen transfer process and reduce the energy barrier (Figs. 9d–g).

3.3.3 Benzene oxidation

Owing to the unique electronic structure, remarkably enhanced intrinsic activity, and high atomic utilization, Cu-based SACs have thus attracted increasing interest for serving as advanced catalysts for selective oxidation of benzene to phenol [117-123]. Recent years have witnessed an explosive development of works on the fabrication of Cu-based SACs for boosting catalytic conversion of benzene to phenol [122-124]. For instance, Zhang et al. [124] put forward a new template-free strategy to realize the successful fabrication of porous hollow g-C₃N₄ spheres (HCNS) inlaid with single Cu atoms via thermal polymerization of Cu-containing supramolecular assemblies formed by the preassembly of a melamine-Cu complex with cyanuric acid. Scanning electron microscope (SEM) and transmission electron microscope (TEM) images reveal that Cu-SA/HCNS catalyst features a hollow spheral structure with ca. 3 nm pores (Figs. 10a and b). Extended X-Ray absorption fine structure (EXAFS) measurement indicates that Cu atoms are atomically dispersed in the HCNS matrix. The related fitting curves show a prominent peak at 1.9–2.0 Å derived from the first shell of Cu-N plus a weak contribution at 2.8–2.9 Å originating from the replacement of the second shell of Cu-N or Cu-C in the C₃N₄ model by a Cu center (Figs. 10c and d). The catalytic performance of Cu-SA/HCNS catalyst for selective oxidation of benzene to phenol is evaluated by investigating the C—H bond activation since it is of vital significance for determining the transformation efficiency. As a result, Cu-SA/HCNS catalyst shows a benzene conversion of 33.4%, with a phenol selectivity of 90.6% at 25 ℃ for 24 h, being much superior to the supported Cu nanoparticles. Moreover, the Cu-SA/HCNS catalyst can also exhibit superb recyclability. According to the mechanistic studies, it is revealed that the remarkably high catalytic performance is ascribed to the atomically dispersed unique Cu-N₃ species and the efficiently promoted accessibility of active sites by the porous hollow structure. Moreover, it is also disclosed that the strongly anchored Cu-N₃ species in the HCNS matrix also contributes to the excellent catalytic stability.

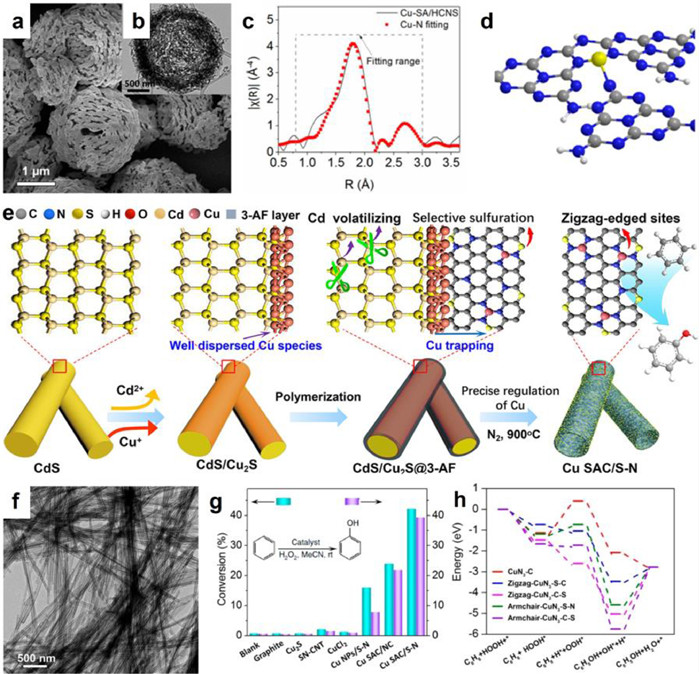

Recently, Wu and coworkers [35] developed a facile cation-exchange method for the successful fabrication of edge-rich S and N dual-decorated Cu SACs based on anionic frameworks of sulfides and N-rich polymer shell to generate abundant S and N defects during high-temperature annealing (Fig. 10e). Interestingly, this method can be extended to the successful fabrication of a series of highly active single-atom metal site catalyst (M SAC, M = Cu, Pt, Pd, Au, Ag, Pb, Zn, Bi, and Sb), which achieve strong metal-atom support interaction (MASI) to trap the metal by edge-rich S and N defects (Fig. 10f). Upon experiments and theoretical results, it is uncovered that the precisely obtained S, N dual-decorated Cu sites exhibit a high activity in catalytic hydroxylation of benzene at room temperature (Fig. 10g). Based on the theoretical calculations and catalytic mechanism, it is concluded that the zigzag-edged CuN₃-S-C center possesses a lower maximum reaction energy barrier (Fig. 10h), which is favorable for the thermodynamically process of the hydroxylation of benzene. Based on above results, it is easily concluded that Cu SACs hold great promise for catalyzing heteogeneous reactions, due to their inherently structural advantages and high intrinsic activity.

4 Conclusion and perspectives

Less

This review highlights the significant progress of Cu SACs for the application in the field of electrocatalysis, photocatalysis, and heterogeneous catalysis. By manifesting some advanced synthetic strategies, such as pyrolysis, dealloying, we have summarized the preparation methods for the construction of Cu SACs with good coordination environment and modified electronic structure. Moreover, some representative Cu SACs for driving electrocatalytic, photocatalytic, and heterogeneous reaction are also discussed, aiming to provide a deep understanding on the effect of the coordination environment of copper atoms on the catalytic activity. Although the great progress of Cu SACs achieved in catalysis, some challenging issues are also existed and required to be addressed before the practical applications of Cu SACs.

First, the pyrolysis method has been demonstrated to be effective for the successful fabrication of Cu-N_x motifs, whereas the samples from the pyrolysis method are mixed with different coordination numbers. Therefore, with the aim to achieve controlled coordination atom and coordination environment, it is highly important to develop new synthetic methods.

Second, the blooming of SACs heavily depends on the development of characterization techniques. In addition, in view of the complexity in the reaction center, theoretical calculations should also be operated. Moreover, in order to monitor the reaction procedures and reaction intermediates, some in-situ techniques should also be conducted to gain a better understanding on the reaction mechanism.

Third, to meet the high requirement for practical application, the catalytic activity and durability of Cu SACs should also be significantly elevated. Generally, the catalytic activity and stability of SACs are associated with the mass loading of metal atoms. In this case, developing new methods to improve the mass loading of Cu atoms on the support is urgently sought. Besides, the stability of SACs has always been an enormous challenge. The poor stability of metal sites stimulate more endeavors devoted to the substantial enhancement in electrochemical stability. One of the most effective ways to enhance the stability is to yield coordination bond between support and metal atoms.

Fourth, constructing bimetallic active sites is also highly desirable to be efficient for enhancing the catalytic performance. It is believed that the coupling between the transition metal couple can significantly modify the electronic structure and the spin coupling of transition metal. Specifically, inducing a second transition metal can achieve a more appropriate D-band center, giving rise to satisfied catalytic performance. Moreover, the extra metal is prone to improving the catalytic stability because it might sacrifice as the reaction center of side reactions. Taking consideration of the diversity of coordination environments, great opportunity is foreseeable in Cu-based bimetal reaction center.

It is foreseen that the continued endeavors in the Cu SACs will greatly narrow the gap between laboratory catalyst and commercial counterparts.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was financially supported by the Postgraduate Research & Practice Innovation Program of Jiangsu Province (No. KYCX21_2795), the Basic Science (Natural Science) Research Project of Colleges and Universities of Jiangsu Province (No. 21KJB540001), and Changzhou Sci&Tech Program (Nos. CJ20220180, CJ20210042), China.
