Surface-enhanced Raman scattering (SERS) is one of the most powerful analytical technologies, and has been widely applied in chemistry, materials science, catalysis and environmental science, biomedicine, and other fields [1-5]. Advancement of SERS is inseparable from development of substrate materials. Compared to traditional noble metal substrates (Au, Ag), recently developed semiconductor SERS substrates (especially wide-band gap semiconductors TiO₂, ZnO, etc.) have attracted growing attention due to their unique advantages such as low cost, high stability, selectivity, biocompatibility and recyclability [6-11]. However, enhancement factor (EF) of semiconductor substrates is only 10–10³, far lower than that of noble metals. Therefore, it is urgent to develop new semiconductor SERS substrates with high activity.

SERS of semiconductors is mainly derived from contribution of charge transfer (CT) between substrate and molecule. Some strategies have been proposed for development of semiconductor substrates, including defect engineering [12-14], energy band regulating (element doping) [15-17], amorphous state or morphology adjusting [6,18,19], semiconductor-metal hybridizing [20,21], etc. Among them, defect engineering is regarded as an effective strategy, which can promote CT between substrate and molecule as well as provide more active sites. Zhao et al. [22] reported an urchin-like W₁₈O₄₉ nanowire for SERS enhancement. Due to contribution of abundant oxygen vacancies (O_V) in W₁₈O₄₉ to CT, its EF was as high as 3.4 × 10⁵, and limit of detection (LOD) of Rhodamine 6G (R6G) probe was as low as 10⁻⁷ mol/L. Recently, Guo and co-workers [23] developed a nonstoichiometric three-dimensional cubic Cu₂O by recrystallization-induced self-assembly method, in which a large number of O_V were generated for enhancing SERS effect induced by CT, with an EF of 8 × 10⁵ for R6G. Yang et al. [24] also developed a hydrogenation strategy for preparing black TiO₂ nanowire, which boosted SERS performance of the substrate with a LOD of 10⁻⁷ mol/L for R6G and an EF of 1.2 × 10⁶ due to formation of abundant surface defects induced by hydrogen doping.

These defect engineering strategies mainly depend on defects and/or active sites induced by vacancy to create or increase new CT paths for activating SERS enhancement, which paid little attention to the influence of separation efficiency of photogenerated carrier on CT and SERS. According to theory of Herzberg-Teller vibration coupling in semiconductor-molecule system proposed by Lombardi et al. [25,26], it can be inferred that the rich carrier state density and its high separation efficiency will certainly promote CT between substrate and molecule, in addition to the resonance effect induced by defect engineering. However, there are few efforts focusing on the carrier regulation strategy for development of new semiconducting substrates, especially the combination strategy of carrier regulating and defect engineering.

Here, based on a combined strategy of carrier regulating and defect engineering, a g-C₃N₄/TiO_2-X heterojunction SERS substrate with abundant surface O_V was developed by an in-situ synchronous generation scheme of heterostructure and surface defects. The strong interfacial coupling effect (chemical interaction) between two components in heterostructure improves the carrier separation efficiency in TiO₂, and the concomitantly formed abundant surface O_V provides more CT paths, which are together responsible for greatly enhanced SERS activity. EF of 4-mercaptobenzoic acid (4-MBA) on substrate is as high as 5.57×10⁶, and LOD is as low as 1 × 10⁻⁸ mol/L. Meanwhile, the substrate exhibits excellent reproducibility and stability, which can resist corrosions of strong acid and strong base. And, g-C₃N₄/TiO_2-X can be applied for ultrasensitive detection of antibiotic contaminations (ciprofloxacin, CIP and enoxacin, ENX) in real water system. This work is of great significance for the development and practical application of new semiconductor substrates, and also provides a simple, economical and ultrasensitive SERS strategy for drug residue detection in real water system.

In this work, g-C₃N₄/TiO_2-X heterojunction was synthesized by a sol-hydrothermal method with the help of urea. Urea was used as raw material of g-C₃N₄ to mix with TiO₂ precursor obtained by sol-hydrothermal process for in-situ formation of g-C₃N₄/TiO_2-X with strong interfacial coupling effect via a heat treatment procedure, in which urea was also acted as an adjuvant to induce abundant surface O_V in TiO₂ by a surface reduction effect of NH₃ generated by decomposition of urea (i.e., urea achieves the role of "two birds with one stone"). For comparation, g-C₃N₄, TiO₂ and g-C₃N₄/TiO₂ (g-C₃N₄/TiO₂ was obtained by directly calcining the mixture of as-prepared g-C₃N₄ and TiO₂ precursor via a same heat treatment procedure) were also prepared. Fig. 1a shows XRD patterns of g-C₃N₄, TiO₂, g-C₃N₄/TiO₂ and g-C₃N₄/TiO_2-X. Diffraction peaks of pure g-C₃N₄ and TiO₂ are highly matched with hexagonal structure g-C₃N₄ (JCPDS No. 87–1526) and anatase TiO₂ (JCPDS No. 21–1272), respectively [27,28]. In two heterojunction samples, no any diffraction peaks about g-C₃N₄ are observed, which is due to the lower content of g-C₃N₄ in heterojunctions (in our case, mass ratio of g-C₃N₄ to TiO₂ is about 1%). Interestingly, however, diffraction peak of (200) crystal plane of TiO₂ in two heterojunctions exhibits a shift towards a smaller 2θ angle compared to that of pure TiO₂, and the shift is the largest for g-C₃N₄/TiO_2-X, which should be caused by interfacial interaction between g-C₃N₄ and TiO₂, implying the formation of heterostructures [29]. In addition, it can be found that diffraction peak intensity of TiO₂ in two heterojunctions also displays a decrease compared with that of pure TiO₂, and the decreased degree is also the largest for g-C₃N₄/TiO_2-X, indicating a decrease in crystallinity of TiO₂ due to the inhibit effect of heterojunction forming on crystal growth of TiO₂, which also implies the formation of more abundant surface defects in g-C₃N₄/TiO_2-X. Further, Raman spectra were measured (Fig. 1b). In pure g-C₃N₄, there are no obvious Raman bands appearing due to its strong fluorescence effect. Pure TiO₂ shows three characteristic bands at 398, 518 and 642 cm⁻¹, which correspond to B_1g, B_1g+A_1g and E_g vibrational modes of TiO₂, respectively [30]. It can be found that E_g vibration mode in two heterojunctions exhibits a slight shift towards lower frequency compared to that in pure TiO₂, it is more obvious in g-C₃N₄/TiO_2-X, which can be attributed to the change of Ti-O bond length [31]. This is a result of N atom in g-C₃N₄ entering into surface lattice of TiO₂ to replace the O atom [31,32], due to the formation of heterostructures (i.e., generation of interfacial interaction). Figs. 1c-f show representative TEM and HRTEM images of samples. g-C₃N₄ presents porous nanosheet morphology (Fig. 1c), which was caused by the release of CO₂ and NH₃ during thermal decomposing of urea [32]. Pure TiO₂ is spherical, ultrafine and homogeneously dispersed nanoparticles with average particle size about 9.9 nm, and the crystal lattice fringe of 0.35 nm corresponds to (101) plane of anatase TiO₂ (Fig. 1d). It can be found from Fig. 1e that g-C₃N₄ is uniformly dispersed on surface of TiO₂ in g-C₃N₄/TiO_2-X. This uniform combination can be attributed to the synchronous formation of integral heterojunction and its component unit (g-C₃N₄) by in-situ decomposition of urea. However, in g-C₃N₄/TiO₂ (Fig 1f), g-C₃N₄ exhibits non-uniform distribution due to the asynchronous formation of heterojunction and g-C₃N₄. Due to in-situ synchronous formation, the intimate interface boundary between g-C₃N₄ and TiO₂ in g-C₃N₄/TiO_2-X can be clearly observed from HRTEM (inset of Fig. 1e), and the average particle size (about 8.63 nm) of TiO₂ in g-C₃N₄/TiO_2-X is smaller than that of pure TiO₂.

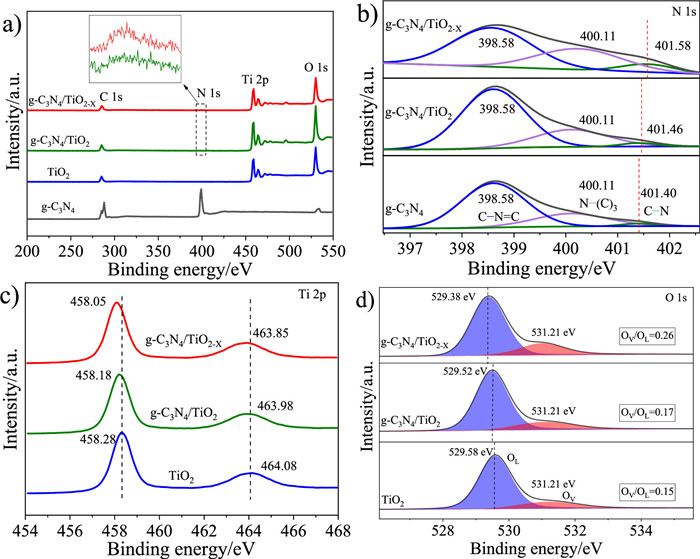

In order to further explore elemental composition and interface interaction in heterojunction, XPS analysis was carried out. XPS full spectra (Fig. 2a) reveal that Ti, O, C and N elements coexist in g-C₃N₄/TiO_2-X. Gauss-Lorentzian nonlinear fitting results (Fig. 2b) show that N 1s spectra of all samples contain three clearly distinguished peaks at 398.58, 400.11 and about 401.4 eV, which are assigned to sp² hybrid nitrogen (C—N=C), sp³ hybrid nitrogen (N-(C)₃) and sp hybrid nitrogen (C—N) in g-C₃N₄ structure [33,34]. It can be found that the C—N binding energy of two heterojunctions exhibits an increase compared to that of pure g-C₃N₄, and it is the biggest for g-C₃N₄/TiO_2-X (increased by 0.18 eV), indicating a decrease in electron cloud density of N atom. This can be attributed to the formation of N-Ti-O bonds in g-C₃N₄/TiO₂ and g-C₃N₄/TiO_2-X, resulting in decrease of N electron cloud density due to electron migration from N to O because of higher electronegativity of O than N. This is consistent with results of XRD and Raman, and the formation of N-Ti-O bond can be further confirmed by XPS results of Ti 2p (Fig. 2c). It is seen that Ti 2p binding energy of two heterojunctions presents a decrease (contrary to the change of N binding energy), due to the electron migration from N to O via bridged Ti in N-Ti-O bond that results in an increase of Ti electron cloud density. And, it should be noted that due to in-situ synchronous synthesis, a stronger interfacial coupling effect can be formed in g-C₃N₄/TiO_2-X, because of a lager change in binding energy of N 1s and Ti 2p in g-C₃N₄/TiO_2-X compared to those in g-C₃N₄/TiO₂. Fig. 2d shows O 1s XPS spectra of TiO₂, g-C₃N₄/TiO₂ and g-C₃N₄/TiO_2-X. Two O 1s peaks at 531.21 and about 529.0 eV correspond to surface O_V and lattice oxygen (O_L), respectively [35,36]. O_L binding energy of two heterojunctions also exhibits a decrease similar to change of their Ti 2p binding energy, due to the same cause mentioned above. Interestingly, however, the content of surface O_V in two heterojunction samples presents an increase trend compared to that of pure TiO₂, especially in g-C₃N₄/TiO_2-X (O_V/O_L ratio is as high as 0.26, increased by 73%). Abundant surface O_V generally means a more excellent SERS enhancement effect. In a word, a g-C₃N₄/TiO_2-X heterojunction with strong interfacial coupling effect (chemical interaction by N-Ti-O bonds) and abundant surface O_V was successfully prepared through such an in-situ synchronous generation strategy by means of the "two birds with one stone" role of urea.

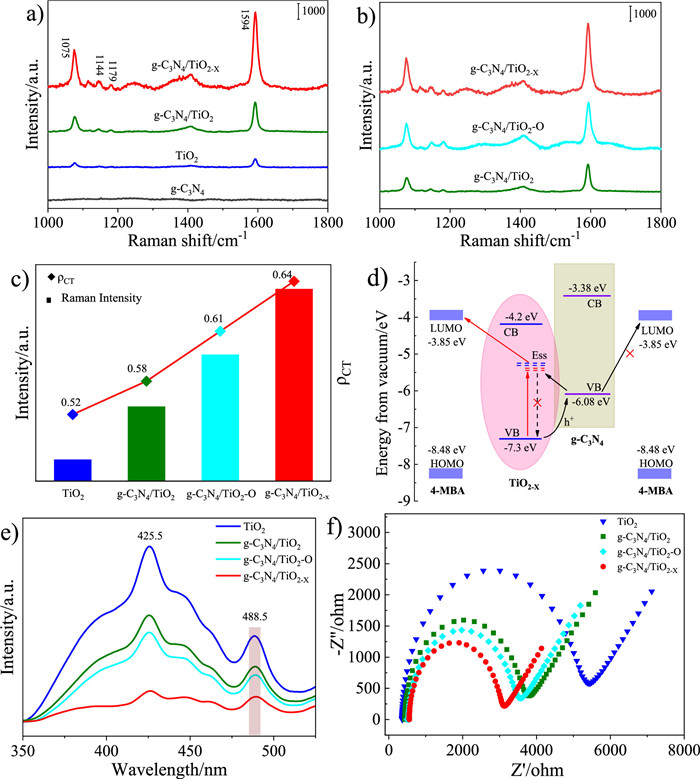

In this study, non-resonant molecule 4-MBA was served as a standard probe to evaluate SERS performances of substrates under 633 nm (1.96 eV) excitation. Fig. 3a shows SERS spectra of 4-MBA adsorbed on different substrates. There is no SERS signal of 4-MBA to be observed on pure g-C₃N₄, while several typical characteristic Raman peaks can be observed on pure TiO₂ at 1075 (ν_8a (a₁) aromatic ring vibration), 1594 (ν₁₂ (a₁) aromatic ring vibration), 1144 and 1179 (C—H deformation modes) cm⁻¹, due to the contribution of TiO₂-to-molecule CT mechanism [28,37,38]. Interestingly, however, 4-MBA on g-C₃N₄/TiO₂ exhibits a larger SERS enhancement compared to that on pure TiO₂, which should be derived from contribution of the introduce of g-C₃N₄ and the formed interfacial interaction between g-C₃N₄ and TiO₂. More interestingly, 4-MBA on g-C₃N₄/TiO_2-X exhibits an amazingly huge enhancement, which is even 2.6 times greater than enhancement on g-C₃N₄/TiO₂. According to the above characterization results, such a huge enhancement on g-C₃N₄/TiO_2-X compared with g-C₃N₄/TiO₂ may be derived from contributions of two aspect factors to TiO₂-to-molecule CT. One is contribution from stronger interfacial coupling effect, and the other is contribution from more abundant surface O_V. In order to verify this hypothesis, we prepared a comparison sample g-C₃N₄/TiO₂-O that was obtained by secondary calcining g-C₃N₄/TiO_2-X in air atmosphere to reduce the content of O_V under no changing the interfacial interaction, aiming to verify specific contribution of aforementioned two factors. Fig. S1 (Supporting information) reveals that O_V/O_L in g-C₃N₄/TiO₂-O is only 0.18, obviously less than that in g-C₃N₄/TiO_2-X (0.26) and almost equal with that in g-C₃N₄/TiO₂. As shown in Fig. 3b, with the decrease of O_V content in g-C₃N₄/TiO₂-O, its SERS activity also decreases, obviously lower than g-C₃N₄/TiO_2-X but obviously higher than g-C₃N₄/TiO₂. This indicates that such huge SERS enhancement on g-C₃N₄/TiO_2-X must be derived from joint contribution of two factors (strong interfacial coupling effect and abundant surface O_V), which together promote TiO₂-to-molecule CT. Improvement of CT efficiency can be further confirmed by degree of charge transfer (ρ_CT), a concept proposed by Lombardi for evaluating contribution degree of CT to SERS [25]. It can be seen from Fig. 3c that the change trend of ρ_CT is perfectly consistent with SERS signal intensity, which is the largest for 4-MBA-g-C₃N₄/TiO_2-X system, indicating a maximum degree of CT in this system (see Supporting information for detailed calculation of ρ_CT). In order to further elucidate CT mechanism in 4-MBA-g-C₃N₄/TiO_2-X system, relevant energy levels (two semiconductors as well as 4-MBA [39-42]) were given in Fig. 3d. In this work, the 633 nm excitation energy (1.96 eV) is not sufficient to excite the electron transition from valence band (VB) of g-C₃N₄ to its conduction band (CB) for SERS enhancement of molecule, while it is sufficient to excite the electron transition from VB of TiO₂ to its energy level of surface state (E_SS, i.e., energy level of surface O_V defect state) and then the excited electron is further transferred to the lowest unoccupied molecular orbital (LUMO) of 4-MBA for SERS enhancement. However, in g-C₃N₄/TiO_2-X, electron in VB of g-C₃N₄ can be excited to E_SS of TiO₂ due to the energy matching principle and the strong interfacial coupling effect between g-C₃N₄ and TiO₂, which provides an additional CT for SERS enhancement of 4-MBA. Meanwhile, photogenerated hole in VB of TiO₂ is migrated to VB of g-C₃N₄ due to the energy level offset between their VBs. Such a hole migration inhibits recombination of photogenerated carriers in TiO₂ side, which provides more opportunities for another additional TiO₂-to-molecule CT to enhance SERS of 4-MBA. Improvement of carrier separation efficiency of TiO₂ in the system can be verified by PL and photocurrent measurements. As shown in Fig. 3e, intensity of luminescence at 488.5 nm related to TiO₂ E_SS in g-C₃N₄/TiO_2-X is significantly lower than those of other samples, and photocurrent of g-C₃N₄/TiO_2-X is also the largest (Fig. S2 in Supporting information), indicating a highest carrier separation efficiency in g-C₃N₄/TiO_2-X. In addition, abundant surface O_V in g-C₃N₄/TiO_2-X also provides lots of additional CT channels for SERS enhancement, because the surface O_V serves as a bridge of TiO₂-to-molecule CT. Large numbers of CT channels and high-efficiency carrier separation are undoubtedly conducive to promoting CT from substrate to molecule. It can be found from Fig. 3f that g-C₃N₄/TiO_2-X presents a smallest arc radius of EIS Nyquist plot among all substrates, which means a strongest CT capacity. In short, high carrier separation efficiency contributed by strong interfacial coupling effect (interface engineering) and more CT paths contributed by abundant O_V (defect engineering) are jointly responsible for greatly enhanced SERS activity.

Since SERS of g-C₃N₄/TiO_2-X substrate highly depends on strong interface interaction and abundant surface O_V induced by the "two birds with one stone" effect of urea, addition amount of urea should have an important effect on SERS enhancement. As shown in Fig. S3a (Supporting information), with the increase of mass ratio of urea to TiO₂ precursor (U/T), SERS activity of substrate exhibits a change tendency of increasing first and then decreasing, when U/T is 2:1, g-C₃N₄/TiO_2-X exhibits the highest SERS activity. This can be attributed the fact that a small amount addition of urea is not enough to form more heterostructures due to low yield of g-C₃N₄ (it is only 5% in this system) and also does not generate more strong interface interaction, however, an excess urea addition results in a mass generation of g-C₃N₄ that decreases SERS activity of substrate due to its overcovering on TiO₂ surface and its strong fluorescence effect. PL measurements (Fig. S3b in Supporting information) reveal that insufficient heterostructures, weak interface interaction and strong fluorescence effect are not conducive to carrier separation of TiO₂. Under the optimal ratio, performances of substrate were further examined. Concentration-dependent SERS measurements (Fig. S3c in Supporting information) show that LOD of 4-MBA on g-C₃N₄/TiO_2-X reaches up to 1 × 10⁻⁸ mol/L, four orders of magnitude lower than that on pure TiO₂ (1 × 10⁻⁴ mol/L, Fig. S3d in Supporting information). EF of 4-MBA on g-C₃N₄/TiO_2-X is as high as 5.57×10⁶ (see Supporting information for calculation details of EF). And, g-C₃N₄/TiO_2-X substrate also exhibits ultra-high stability and excellent spectral reproducibility. As shown in Fig. S3e (Supporting information), after placing for length-up to 60 days, the substrate still shows high SERS activity similar to the fresh substrate, and it can withstand corrosion of high temperature up to 200 ℃, even corrosions of strong acid or strong alkali. Fig. S3f (Supporting information) indicates that SERS spectra of 4-MBA from 10 random test sites on the same substrate are almost identical, and relative standard deviation (RSD) of peak intensity at 1594 cm⁻¹ is only 5.97%.

Further, practical application of the developed substrate for detection of antibiotic residues in water system was tentatively attempted. Antibiotic residues (especially quinolone drug residues) in actual water system are seriously threatening ecological environment and human health, due to their abuse and overuse in aquaculture and livestock breeding [43,44]. From the perspective of drinking water safety and ecological protection, it is very necessary and valuable to conduct an ultrasensitive detection for the residues, especially comprehensive fingerprint evaluation of multi-component residues. Here, the local Nenjiang River water was taken as actual water sample, and typical quinolone antibiotics CIP and ENX were taken as residue pollutants for practical detecting. Encouragingly, g-C₃N₄/TiO_2-X substrate can achieve a highly sensitive detection for CIP and ENX residues in Nenjiang River water, with fine fingerprint information (Raman shifts and assignments of CIP and ENX are listed in Table S1 in Supporting information), their LODs are as low as 1 × 10⁻⁹ mol/L and 1 × 10⁻⁸ mol/L respectively (Fig. S4 in Supporting information), which are far lower than the standard of maximum residue limit (3.0 × 10⁻⁷ mol/L) by European Union [45]. And, a good quantitative relationship between SERS intensity (at 1386 cm⁻¹ for CIP, at 1419 cm⁻¹ for ENX) and their corresponding concentration logarithm can be obtained within a wide concentration range. According to the linear equation, quantitative detection can be executed. As shown in Table S2 (Supporting information), detect concentrations of five CIP or ENX spiked Nenjiang River water samples are consistent with their spiked concentrations, and recoveries for CIP and ENX residues in the water samples are between 90.8%−98.0% and 87.2%−97.0%, with RSDs of 2.8%−5.1% and 2.7%−5.3%, respectively. More importantly, SERS method based on g-C₃N₄/TiO_2-X as substrate can also achieve a highly sensitive detection and discrimination for multi-component antibiotic residues in actual water system (Fig. S4e). Mixed residues of CIP and ENX can be well distinguished according to the position and/or shape of their corresponding characteristic peaks, due to the fingerprint characteristics of SERS and the excellent performances (activity and selectivity) of g-C₃N₄/TiO_2-X substrate.

In summary, an organic/inorganic hybrid g-C₃N₄/TiO_2-X heterojunction SERS substrate with a high EF was successfully constructed by an in-situ synchronous synthesis strategy. The strong interfacial coupling effect in heterostructure and the synchronously formed abundant surface O_V are together responsible for greatly enhanced SERS activity, due to high-efficiency carrier separation and multichannel charge transport capability. g-C₃N₄/TiO_2-X substrate also exhibits high stability and excellent spectral reproducibility, and can be used to execute an ultrasensitive qualitative and quantitative detection for the antibiotic residues in water system. This study provides a new idea and approach for the development of new semiconductor substrate and also lays a foundation for the practical application of semiconductor SERS in real system.
