Photoinduced palladium-catalyzed 1,3-diene-selective fluoroalkylamination compounds as potential bactericidal agent against <i>Xanthomonas oryzae</i> pv. <i>oryzae</i>

Photoinduced palladium-catalyzed 1,3-diene-selective fluoroalkylamination compounds as potential bactericidal agent against Xanthomonas oryzae pv. oryzae

PDF

Yu Shi^a^,^b^,¹, Zhao-Sheng Zhang^a^,¹, Jiang Shao^a^,¹, Chen Fu^a, Lan-Tu Xiong^a, Zhao-Dong Li^c^,^*, Zi-Ning Cui^a^,^*

Chinese Chemical Letters | 2024, 35(1) : 108794

Less

Chinese Chemical Letters | 2024, 35(1): 108794

• Communication •

Photoinduced palladium-catalyzed 1,3-diene-selective fluoroalkylamination compounds as potential bactericidal agent against Xanthomonas oryzae pv. oryzae

Full

Yu Shi^a^,^b^,¹, Zhao-Sheng Zhang^a^,¹, Jiang Shao^a^,¹, Chen Fu^a, Lan-Tu Xiong^a, Zhao-Dong Li^c^,^*, Zi-Ning Cui^a^,^*

Affiliations

^aNational Key Laboratory of Green Pesticide, Integrative Microbiology Research Centre, Guangdong Province Key Laboratory of Microbial Signals and Disease Control, College of Plant Protection, South China Agricultural University, Guangzhou 510642, China

^bHenry Fok School of Biology and Agriculture, Shaoguan University, Shaoguan 512005, China

^cCollege of Materials and Energy, South China Agricultural University, Guangzhou 510642, China

Published: 2024-01-15 doi: 10.1016/j.cclet.2023.108794

Outline

Abstract

Less

A series of photoinduced palladium-catalyzed 1,3-diene-selective fluoroalkylamination derivatives was rationally synthesized based on diversity-oriented synthesis via cross coupling of 1,3-dienes, amines and fluoroalkyl iodides. The reaction featured good function group tolerance and a broad substrate scope, which could be extended to the late-stage modification of bioactive molecules. Bactericidal activity of all the compounds against Xanthomonas oryzae pv. oryzae (Xoo) was evaluated. Among them, compound E14 showed significant activity against Xanthomonas oryzae pv. oryzae (Xoo) with half maximal effective concentration (EC₅₀) value of 6.61 µmol/mL. In pot experiments, the results showed that E14 could control rice bacterial blight with protective and curative efficiencies of 37.5% and 63.2% at 200 µg/mL, respectively. Additionally, a plausible mechanism for antibacterial behavior of E14 was proposed by electron microscopy, flow cytometry, reactive oxygen species detection, and biofilm assay. In current work, it can promote the development of photoinduced palladium-catalyzed 1,3-diene-selective fluoroalkyl amination compounds as prospective antibacterial agent bearing an intriguing mode of action.

Key words

1,3-Diene-selective fluoroalkylamination derivatives / Xanthomonas oryzae pv. oryzae / Antibacterial activity / Electron microscopy / Reactive oxygen / Flow cytometry

Cite this Article

Yu Shi, Zhao-Sheng Zhang, Jiang Shao, Chen Fu, Lan-Tu Xiong, Zhao-Dong Li, Zi-Ning Cui. Photoinduced palladium-catalyzed 1,3-diene-selective fluoroalkylamination compounds as potential bactericidal agent against Xanthomonas oryzae pv. oryzae[J]. Chinese Chemical Letters, 2024 , 35 (1) : 108794 - . DOI: 10.1016/j.cclet.2023.108794

Full Text

Less

Bacterial leaf blight (BLB) is a devastating worldwide rice disease caused by the pathogen Xanthomonas oryzae pv. oryzae (Xoo), and is a Gram-negative bacterium that invades a broad range of host plants [1-3]. Infection with Xoo resulted in the development of several symptomatic white leaf blight diseases, such as abnormal growth, leaf blight, and necrosis, which can reduce rice yields by 80% and pose a serious threat to food security [3,4].

Few agrichemicals are effective in preventing and eliminating diseases caused by Xoo. The commonly used fungicides are bismerthiazol (BT) and thiodiazole (TC), however, the prolonged use of these fungicides has led to the production of resistant strains of BT and TC [5]. Hence, the quest for innovative antibacterial agents remains a significant challenge, and there is a severe requirement for such chemical or biological agents to control the damage caused by the disease [6-9]. However, the underlying mechanism of action of compounds against pathogens in most studies remained unexplored, resulting in a scarcity of targets that can be utilized for target-based molecular design [10]. This aroused our interest to further explore novel bactericidal agents and to investigate the molecular mechanism of their inhibition of bacterial growth [11-13]. Meanwhile, we hope to develop inhibitors for novel targets, which will provide possibilities for developing promising new agrochemicals.

Due to the unique fluorine effects on the lipophilicity, basicity, membrane permeability, and bioavailability of the parent molecules, fluoroalkyl motifs are very beneficial when included into organic frameworks [14]. Fluoroalkyl groups can significantly enhance the lipophilicity, solubility, basicity, membrane permeability, and bioavailability of organic molecules, modulating the physicochemical and pharmacokinetic properties of compounds. Due to their significant potential for advancement in the field of pharmaceutical and agrochemical compounds, a large number of scientists are currently researching new, safe, and efficient fluorinated compounds [15]. Fluoroalkylamines (perfluoroalkyl, trifluoromethyl, or difluoromethyl) are crucial building blocks for advanced intermediates in the pharmaceutical and pesticide industries because they can alter the chemical and biological properties of the target product [16]. 1,3-Diene is a versatile chemical raw material used in a variety of applications, including organic transformation, materials science, and the development of novel drugs. Complex compounds can be quickly and easily synthesized in one step by difunctionalizing 1,3-dienes [17]. Despite significant progress in the bifunctionalization of 1,3-dienes, the selective fluoroalkyl amination of 1,3-dienes remains a challenging research topic [18].

Palladium catalysis induced by visible light is an emerging field of catalysis [19-21]. In this study, we extended our previous work to synthesize a series of photoinduced palladium-catalyzed 1,3-diene-selective fluoroalkylamination derivatives. Subsequently, all title compounds were well-evaluated for potential bactericide against Xoo by the in vitro and in vivo antibacterial abilities. Furthermore, a plausible mechanism for the antibacterial behavior of the target compound was proposed by electron microscope, flow cytometry, reactive oxygen species (ROS) assay, and biofilm assay.

First, we synthesized γ-difluromethylated allylic amines product 4a–4w by varying the different 1,3-dienes 1 with the best yield of 20%–87%. As show in Scheme 1, the desired product 4a–4w could be isolated in the following condition: dichloromethane (DCM) (c = 0.05 mol/L) as the solvent, Pd(TFA)₂ (10 mol%) as the catalyst, Xantphos (20 mol%) as the ligand, NaNTf₂ (20 mol%) as the additive, and Cs₂CO₃ (1.5 equiv.) as the base, under the blue light for 36 h. Compounds 4a–4w were subjected to primary screening for bactericidal activity by the inhibition circle method, and those with inhibitory effect were selected for further determination of their minimum inhibitory concentration (MIC). Unfortunately, none of the compounds exhibited inhibitory activity against Xoo (MIC > 400 µmol/L).

Then, we replaced different amines 2 to further investigate their inhibitory activity. It can be seen in Scheme 2 that various amines can be reacted smoothly and the corresponding target products γ-difluoromethylated allylamine (5a–5p) were obtained in moderate to excellent yields. Among them, compound 5o showed good inhibitory activity against Xoo (MIC = 62.5 µmol/mL).

After investigating the generality of 1,3-dienes and amines, the scope of fluoroalkyl iodides 3 was fully discussed (Scheme 3). Unfortunately, these products containing different fluoroiododecanes (6a–6h) showed poor inhibitory activity (MIC > 400 µmol/mL).

Based on 5o, we synthesized the title compounds E1–E18 (Scheme 4), whose antibacterial activity against Xoo was examined by the turbidimetric method, and this MIC value (blue letters) has been tagged in Scheme 4. All the title compounds were characterized and confirmed by ¹H nuclear magnetic resonance (NMR), ¹³C NMR, and high-resolution mass spectra (HRMS) (Supporting information).

As listed in Table 1, five target compounds E3, E6, E8, E13 and E14 demonstrated excellent antibacterial activity against Xoo. Among them, compound E14 demonstrated the best bactericidal activity against Xoo (MIC = 12.5 µmol/mL). Subsequently, the results of the half maximal effective concentration (EC₅₀) assay showed that compound E14 (EC₅₀ = 6.61±0.36 µmol/mL) had the best bactericidal activity against Xoo, which was better than that of positive control bismerthiazol (EC₅₀ = 15.71±0.27 µmol/mL) (Table 1). Therefore, E14 was used in further study.

As shown in Fig. 1 and Table 2, the in vivo curative activity and protective activity of E14 against bacterial leaf blight were evaluated. The results showed that E14 (dissolved with dimethyl sulfoxide (DMSO)) gave curative activity and protective activity of 63.62% and 37.5%, respectively, where the curative activity was higher than that of positive control BT (61.2%). Interestingly, the addition of 0.1% (v/v) organic sicilon or orange peel essential oil adjuvants could significantly enhance the surface wettability of compound E14 toward rice leaves, thus leading to improved control effectiveness (curative activity and protective activity can reach 67.49% and 43.06%, respectively). It also indicated that E14 (63.62%) had more potential to be a therapeutic agent than that of the positive control BT (61.20%).

The morphological changes and membrane integrity of Xoo treated with compound E14 were further evaluated by scanning electron microscopy (SEM) and transmission electron microscopy (TEM). The scanning electron micrograph revealed that normal cells (treated with DMSO) of Xoo was typically rod-shaped with a normal, smooth, and bright surface without any apparent cellular debris, while E14 (2×, 4× and 8× MIC) treated Xoo showed irregular shape with sunken surface (Figs. 2a–d). TEM observations indicated that the Xoo cell membranes were heavily disrupted with noticeable irregular shape and morphology (Figs. 2e–h). Serious structural changes were also evidenced by the presence of a large amounts of debris and distinct formation of potholes on the surface. The cell wall disruption instigated the leakage of the intracellular bacterial content. By electron microscopy, we concluded that compound E14 disrupts the membrane integrity, and causes the release of bacterial content, which eventually leads to the inhibition of Xoo growth.

To further explore the possible antibacterial mechanism, the antibacterial behavior of compound E14 was investigated by fluorescence microscope, flow cytometry, apoptosis assay, ROS detection and biofilm formation. In this study, compound E14 bearing remarkable anti-Xoo effects was selected. After Xoo cells with various (2×, 4× and 8× MIC) does of compound E14, the fluorescence microscope and flow cytometry analysis results showed that apoptosis behaviors and ROS levels were also in a concentration-dependent manner (Figs. 3 and 4). Subsequently, we treated Xoo with 2× MIC to examine the biofilm, and the results showed that the 2× MIC treated Xoo almost lost biofilm formation ability compared with the untreated (Fig. 5). These results further indicate the promising potential of E14 as a prospective antibacterial agent for Xoo. In view of the excellent control effect of the compound E14 against Xoo, the bactericidal spectrum of compound E14 was evaluated (Table S1 in Supporting information). The result showed that E14 also possessed obvious activity against Xanthomonas oryzae pv. oryzicola (Xoc) (MIC = 12.5 µg/mL), Xanthomonas citri subsp. citri (Xac) (MIC = 25 µg/mL), and Xanthomonas campestris pv. campestris (Xcc) (MIC = 12.5 µg/mL).

In summary, we synthesized a series of fluoroalkylated amines (total 47), and only compound 5o showed potential inhibitory activity against Xoo with MIC of 62.5 µmol/L. Based on 5o, we synthesized a series of derivatives (E1–E18), and found that E14 demonstrated excellent antibacterial activity against Xoo with MIC (12.5 µmol/mL) and EC₅₀ (6.61±0.36 µmol/mL). E14 showed better curative activity than that of the positive control in pot experiments. Additionally, a plausible mechanism for the antibacterial behavior of compound E14 was proposed by SEM assay, TEM assay, ROS detection, apoptosis assay, and biofilm assay.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

We acknowledge the financial support from the National Natural Science Foundation of China (No. 32072450), the National Science Fund for Distinguished Young Scholars of Guangdong Province (No. 2021B1515020107), the International Science and Technology Cooperation Program in Guangdong (Nos. 2020A0505100048 and 2022A0505050060).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108794.

References

Less

[1]

S. Jiang, M. He, X.W. Xiang, et al., J. Agric. Food Chem. 67 (2019) 11867–11876.

[2]

S.Q. An, N. Potnis, M. Dow, et al., FEMS Microbiol. Rev. 44 (2020) 1–32.

[3]

S. Zhao, C. Xiao, J. Wang, et al., J. Agric. Food Chem. 68 (2020) 14204–14211.

[4]

Z. Xu, S. Wang, L. Liu, et al., Plant Dis. 104 (2020) 2764–2767.

[5]

Y.L. Zhao, X. Huang, L.W. Liu, et al., J. Agric. Food Chem. 67 (2019) 7512–7525.

[6]

P.K. Bangalore, S.K. Vagolu, R.K. Bollikanda, et al., J. Nat. Prod. 83 (2020) 26–35.

[7]

J. Shi, N. Luo, M. Ding, et al., Chin. Chem. Lett. 31 (2020) 434–438.

[8]

Y. Teng, Y. Qin, D. Song, et al., Bioorg. Med. Chem. Lett. 30 (2020) 126850.

[9]

W. Fu, Z. Li, X. Shao, Adv. Agrochem. 2 (2023) 142–153.

[10]

J. Cardoso, A.A. Souza, M. Vieira, Planta 256 (2022) 84.

[11]

P. Li, L. Shi, M.N. Gao, et al., Bioorg. Med. Chem. Lett. 25 (2015) 481–484.

[12]

P. Li, P. Tian, Y. Chen, et al., Pest Manag. Sci. 74 (2018) 844–852.

[13]

P.Y. Wang, H.S. Fang, W.B. Shao, et al., Bioorg. Med. Chem. Lett. 27 (2017) 4294–4297.

[14]

K. Muller, C. Faeh, F. Diederich, Science 317 (2007) 1881–1886.

[15]

C. Dalvit, A. Vulpetti, J. Med. Chem. 62 (2019) 2218–2244.

[16]

E. Vitaku, D.T. Smith, J.T. Njardarson, J. Med. Chem. 57 (2014) 10257–10274.

[17]

N.J. Adamson, S.J. Malcolmson, ACS Catal. 10 (2020) 1060–1076.

[18]

Y. Xiong, X. Ma, G. Zhang, Org. Lett. 21 (2019) 1699–1703.

[19]

Y. Zhu, W. Dong, W. Tang, Adv. Agrochem. 1 (2022) 125–138.

[20]

P. Chuentragool, D. Kurandina, V. Gevorgyan, Angew. Chem. 131 (2019) 11710–11722.

[21]

K.P.S. Cheung, S. Sarkar, V. Gevorgyan, Chem. Rev. 122 (2022) 1543–1625.

Appendix

Less

Year 2024 volume 35 Issue 1

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2023.108794

Receive Date：2023-06-13
Online Date：2025-11-20
Published：2024-01-15

Article Data

Affiliations

History

Received：2023-06-13
Revised：2023-07-06
Accepted：2023-07-09

Affiliations

^bHenry Fok School of Biology and Agriculture, Shaoguan University, Shaoguan 512005, China

^cCollege of Materials and Energy, South China Agricultural University, Guangzhou 510642, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2023.108794

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

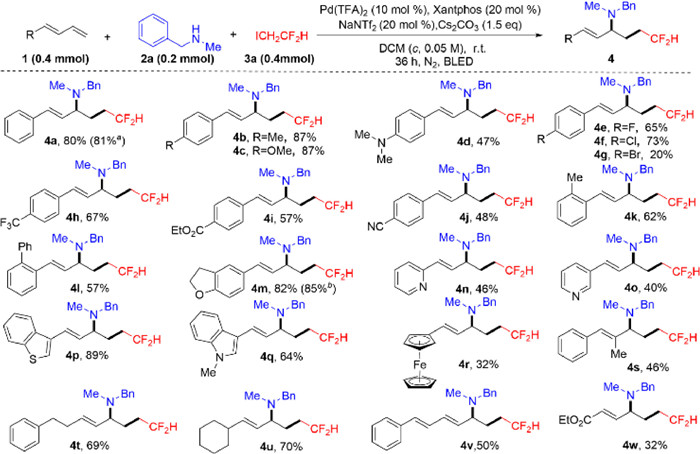

Scheme 1 Synthetic route of target compounds 4a–4w.

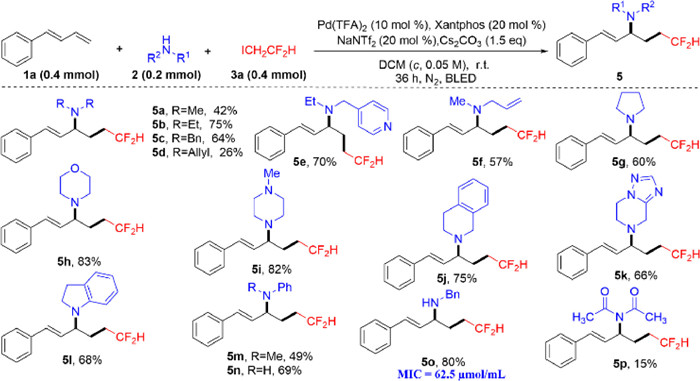

Scheme 2 Synthetic routes of target compounds 5a–5p.

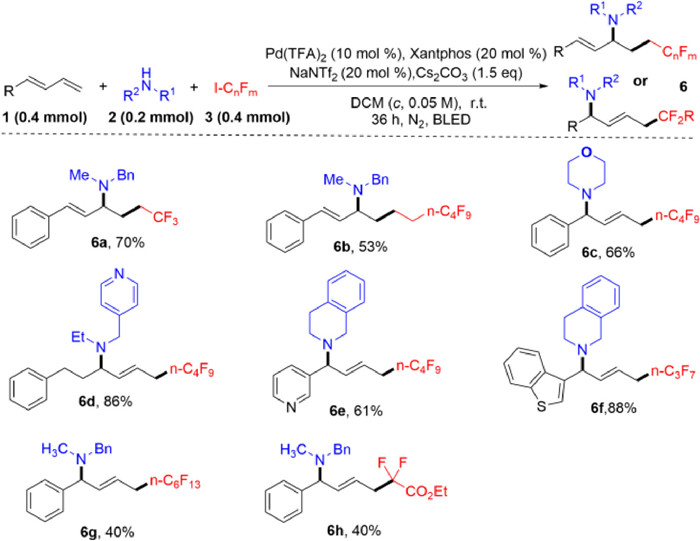

Scheme 3 Synthetic route of target compounds 6a–6h.

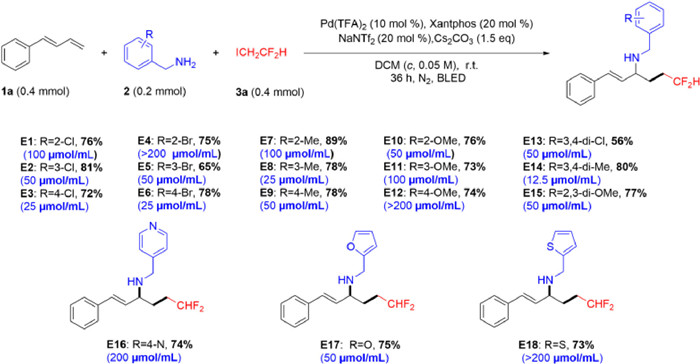

Scheme 4 Synthetic routes of target compounds E1–E18.

Fig. 1 Curative and protective activities of compound E14 against rice bacterial blight under greenhouse conditions at 200 µg/mL. 0.1% auxiliaries including organic sicilon (SI) and orange peel essential oil (OPO) were used to regulate the surface wettability of E14 toward rice leaves. The same volume of DMSO was used as a control check (CK). The agrochemical bismerthiazol was employed as the positive control.

Fig. 2 TEM (a-d) and SEM (e-h) images of Xoo treated with different amounts of the compound with E14. The scale bar of TEM and SEM image is 500 nm and 1 µm, respectively.

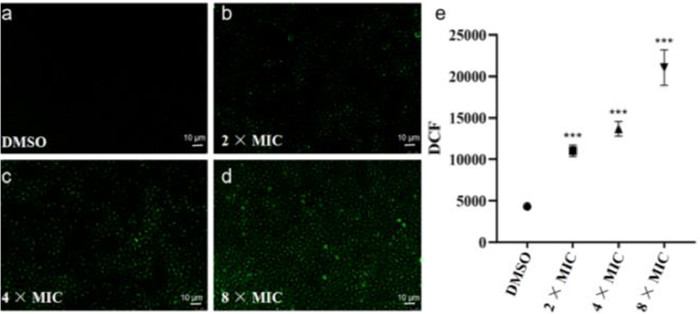

Fig. 3 Accumulation of ROS in Xoo was monitored by fluorescence microscope after treatment with title compound E14 of DMSO (a), 2× MIC (b), 4× MIC (c) and 8× MIC (d). Scale bar: 10 µm. (e) ROS was detected by flow cytometry. DMSO is the negative control. All experiments were repeated at least three repeats. Asterisks indicate statistically significant differences. ***P < 0.001 vs. DMSO group.

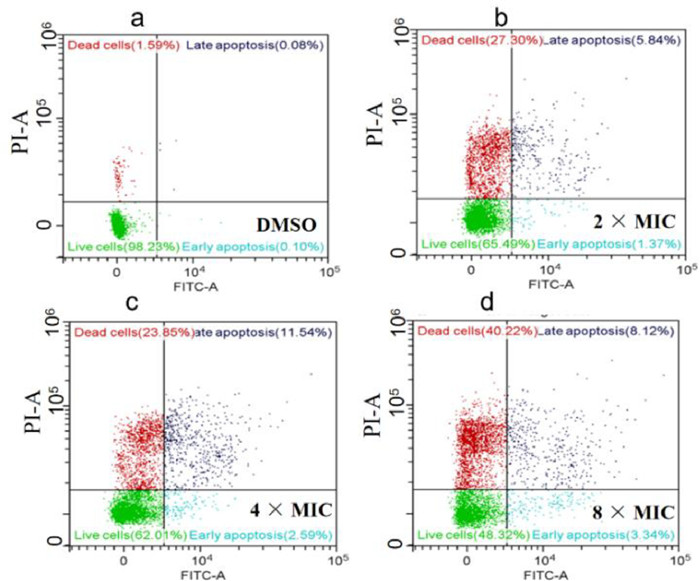

Fig. 4 Apoptosis assays stained with Annexin V-fluorescein isothiocyanate (FITC) and propidium iodide (PI) using flow cytometry after treatment with compound E14 of DMSO (a), 2× MIC (b), 4× MIC (c) and 8× MIC (d).

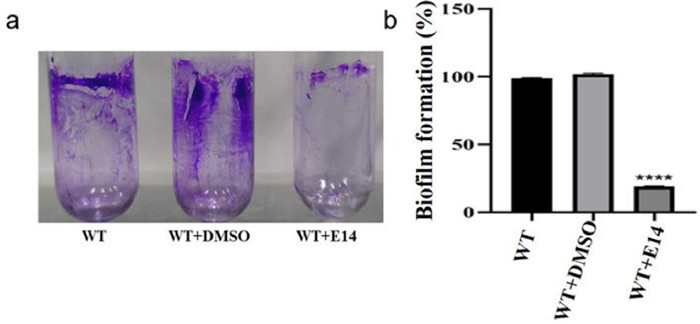

Fig. 5 Biofilm formation assay with the candidate compound E14 treatment. DMSO is the negative control. Asterisks indicate statistically significant differences. ****P < 0.0001 vs. wild type strain PXO99A (WT) group.
