Supramolecular cyclization induced emission enhancement in a pillar[5]arene probe for discrimination of spermine
收藏切换
PDF
Yibin Zhou, Hao Tang*, Hanlun Wu, Xiaomei Jiang, Lingyun Wang, Derong Cao*
Chinese Chemical Letters | 2024, 35(1) : 108626
Less
收藏切换
Chinese Chemical Letters | 2024, 35(1): 108626
• Communication •
Supramolecular cyclization induced emission enhancement in a pillar[5]arene probe for discrimination of spermine
Full
Yibin Zhou, Hao Tang*, Hanlun Wu, Xiaomei Jiang, Lingyun Wang, Derong Cao*
Affiliations
  • State Key Laboratory of Luminescent Materials and Devices, School of Chemistry and Chemical Engineering, South China University of Technology, Guangzhou 510641, China
Published: 2024-01-15 doi: 10.1016/j.cclet.2023.108626
Outline
收藏切换

Early diagnosis and treatment of cancer requires the development of tools that are both sensitive and selective in detecting spermine. In this study, we presented a "supramolecular cyclization-induced emission enhancement" strategy for the sensitive and selective detection of spermine. A new pillar[5]arene probe (P1) demonstrated excellent solution/solid dual-state emission properties, and the addition of certain spermine (Spm) resulted in fluorescence enhancement due to the synergy of multiple weak interactions that restricted the free motion of P1 in the P1⊃Spm complex. This mechanism was further confirmed by time-resolved spectroscopy, DFT calculations, and IGM analysis. With its low limit of detection and high selectivity, P1 is a promising tool for measuring spermine in artificial urine samples.

Spermine  /  Pillar[5]arene  /  Probe  /  Supramolecular chemistry  /  Supramolecular cyclization induced emission enhancement
Yibin Zhou, Hao Tang, Hanlun Wu, Xiaomei Jiang, Lingyun Wang, Derong Cao. Supramolecular cyclization induced emission enhancement in a pillar[5]arene probe for discrimination of spermine[J]. Chinese Chemical Letters, 2024 , 35 (1) : 108626 - . DOI: 10.1016/j.cclet.2023.108626
Full Text
Less
Spermine (Spm) is a polyamine widely present in eukaryotic cells and bodily fluids, playing a critical role in cell proliferation and development [1-3]. Recent studies have linked elevated levels of spermine to the presence of cancer, making it a promising biomarker for early detection and efficacy evaluation of cancer treatment [4,5]. However, conventional detection methods such as chromatography and immunoassays are time-consuming and expensive [6,7], necessitating the development of a swift and accurate diagnostic tool. Fluorescent probes have been recognized as a potent approach for spermine detection, with various organic molecules [8-13], quantum dots [14], conjugated polymers [15-17], organic metal compounds [18,19], and supramolecular self-assemblies [20-25] being employed in the past decade. However, the development of novel fluorescent probes for its detection remains desired because the probes for the identification of spermine with high selectivity are still rare.
Pillar[5]arene has been extensively employed in supramolecular chemistry due to its rigid structure and favorable host-guest characteristics [26-33]. By altering its structure, functionalized pillar[5]arenes have been developed and used for the detection of ions and small molecules [34-39]. Recently, we designed a functionalized pillar[5]arene with aggregation-induced emission (AIE) group and multiple-binding-site for the selective discrimination of specific alkylenediamines [40]. Here we proposed a “supramolecular cyclization-induced emission enhancement” (SCIEE) strategy for the selective detection of spermine. By introducing multiple binding sites to pillar[5]arene as a new host (P1), P1 and spermine can form a host-guest complex with a ring-like structure by supramolecular cyclization. Such a ring-like self-assembly restricts the free motion of the host, resulting in the fluorescence enhancement and selective detection of spermine.

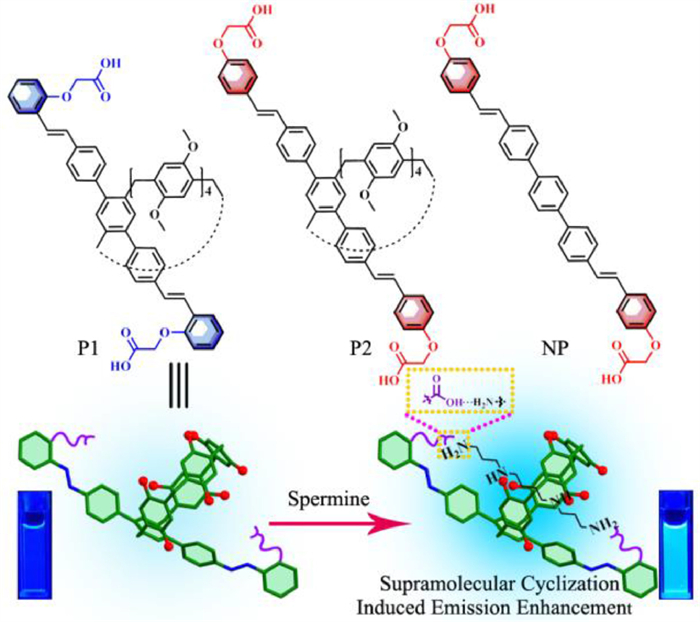

In this study, two modified versions of pillar[5]arene (P1 and its control counterpart P2, Scheme 1) were designed and synthesized for the purpose of sensing spermine. Due to the inclusion of diphenylethene groups, both P1 and P2 exhibited strong emission properties in both dilute solutions and solid state, featuring dual state emission. P1 was designed with three binding sites specifically suited for spermine, with the distance between two carboxyl groups of P1 matching the alkyl chain length of spermine. This design activated the supramolecular cyclization upon the addition of spermine, restricting the free motion of P1 in the host-guest complex and resulting in enhanced fluorescence. However, P2 was not effective in recognizing spermine despite also having three binding sites, as the distance between two carboxyl groups of P2 was too great for the amino groups at the end of the spermine to bind to them simultaneously.
The synthetic route of P1 and P2 was shown in Scheme S1 (Supporting information). Initially, intermediates 6a and 6b were produced through the Suzuki reaction of compounds 2/4 and 5, respectively. These intermediates were subjected to a sequence of Williamson and hydrolysis reactions to obtain the desired P1 and P2 compounds. NMR and HRMS analysis were conducted to fully characterize the related compounds, as shown in Figs. S1-S25 (Supporting information).

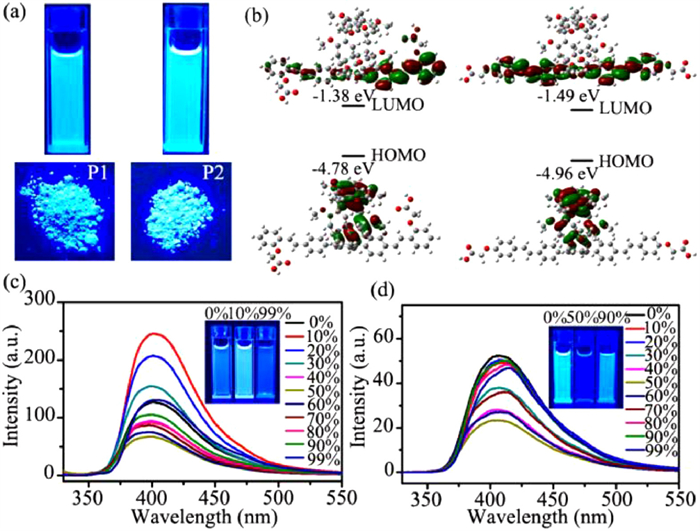

The photophysical characteristics of P1 and P2 were examined in acetonitrile and solid states. The absorption spectra of P1 and P2 were similar with two absorption bands being observed at ca. 305 and 331 nm (Fig. S26a in Supporting information). Similarly, the normalized fluorescence spectra of both compounds were nearly indistinguishable, with blue emission at 397 nm (Fig. 1a and Fig. S26b in Supporting information). DFT calculations indicated that the photophysical properties of P1 and P2 were nearly identical due to their comparable conjugated structures and energy gaps (Fig. 1b and Fig. S27 in Supporting information). Additionally, the emission of P1 and P2 showed weak solvatochromic properties, with a redshift of 16 and 20 nm, respectively, from toluene to DMF (Fig. S28 and Table S1 in Supporting information).
In the solid state, both P1 and P2 emitted strong blue emission at ca. 413 and 415 nm, respectively (Fig. S29 in Supporting information). To investigate their fluorescence properties in the aggregated state, dimethyl sulfoxide and water were chosen as the good solvent and poor solvent, respectively. In a dimethyl sulfoxide solution, P1 (2.5 µmol/L) exhibited blue emission at 401 nm. The fluorescence intensity of the mixture solution showed a tendency to increase and then decrease with the increase of water volume fraction (f). However, the magnitude of the fluorescence change was not significant for all samples, and all samples emitted strong blue light (Fig. 1c and Fig. S30a in Supporting information). Similarly, P2 also displayed significant blue fluorescence in both the solution and aggregated state (Fig. 1d and Fig. S30b in Supporting information). These findings demonstrate that P1 and P2 possess excellent solvent/solid dual state emission properties. The large conjugated structure of both compounds enables efficient fluorescence in dilute solutions, while the presence of the pillar[5]arene structure prevents the formation of π-π stacking in the aggregated state, resulting in excellent fluorescence performance of the aggregates.
Furthermore, solution-thickening experiments were conducted to confirm whether fluorescence enhancement could be attained by limiting the free motion of P1 and P2. As depicted in Fig. S31 (Supporting information), the fluorescence of both P1 and P2 underwent a significant enhancement as the volume fraction of glycerol increased, indicating that the intramolecular rotation of P1 and P2 could be constrained by the thickening approach, resulting in an increase in fluorescence.

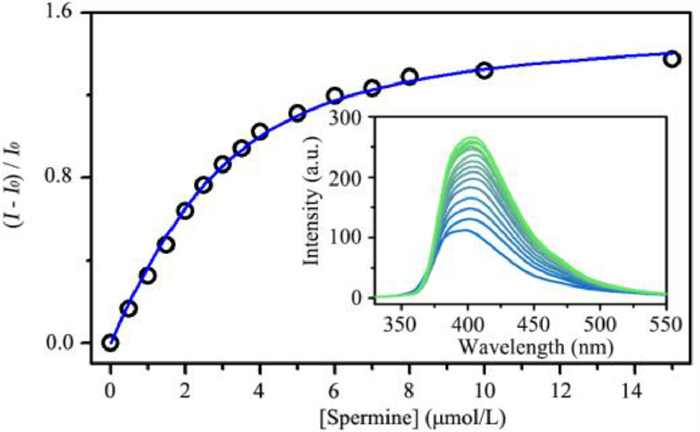

The host–guest complexation between P1 and spermine was investigated in acetonitrile. The emission of P1 was significantly increased upon the addition of spermine (Fig. S32 in Supporting information). The observed fluorescence enhancement correlated with the results of time-resolved spectroscopy experiments, where the fluorescence lifetime of P1 was found to increase from 2.80 ns to 3.14 ns upon the addition of spermine, as shown in Fig. S33 and Table S2 (Supporting information). To quantify the host-guest binding, a fluorescence titration experiment was conducted with the concentration of P1 held constant. As depicted in Fig. 2, the fluorescence intensity of P1 increased gradually with the addition of spermine. The binding isotherms were fitted well to a 1:1 binding model using the Scientist 3 program. The equilibrium binding constant of P1 to spermine was determined to be (7.7 ± 0.6) × 105 L/mol in acetonitrile. In order to examine the solvent effect on the P1-spermine binding, we investigated the fluorescence response of P1 (2.5 µmol/L) upon adding 5 µmol/L spermine in various solutions, including an acetonitrile/water mixture (1:9, v/v), an aqueous solution, and PBS buffer solutions (pH 6.5 and 7.4). As shown in Fig. S34 (Supporting information), the fluorescence of the P1 solution barely changed when spermine was added to the aqueous solution or PBS buffer solution, indicating that the binding capacities of P1 to spermine were not high in those media. The fluorescence enhancement of P1 was observed in the acetonitrile/water mixture (1:9, v/v) with the equilibrium binding constant of P1 to spermine determined to be (2.3 ± 0.2) × 104 L/mol, which is 33 times lower than that in acetonitrile (Fig. S35 in Supporting information). The binding capacity of P1 to spermine decreased greatly in the presence of water, which may be attributed to the competition between spermine and water for the binding of carboxylic unit of P1 and high solubility of spermine in water.

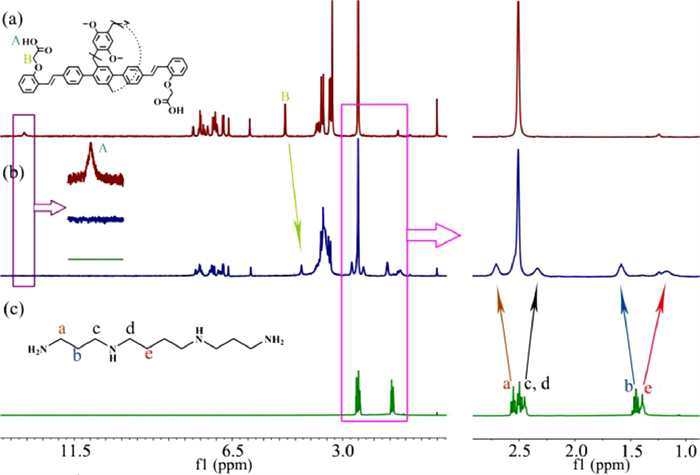

To confirm the host-guest interactions between P1 and spermine, 1H NMR was conducted (Fig. 3). The disappearance of the peak of protons HA on the carboxyl group of P1 indicated a proton exchange process between P1 and spermine, while upfield shifts of the NMR peak was observed for protons HB on the methylene group. The NMR peaks for protons Hc, Hd, and He on spermine displayed substantial upfield shifts and broadening, which were attributed to the inclusion-induced shielding effects and complexation dynamics [41]. Comparatively, the NMR peaks for protons Ha and Hb on spermine exhibited downfield shifts, possibly due to the effect of protonation of the amino group and the inability of the cavity of P1 to fully encapsulate spermine, leaving the exposed Ha and Hb protons outside the cavity. Besides, 1H NMR titration experiments were performed to further investigate the binding between P1 and spermine where DMSO was used as the solvent instead of acetonitrile due to P1’s inadequate solubility in acetonitrile for NMR experiments (Fig. S36 in Supporting information). The chemical shifts of protons on spermine were shifted with the addition of P1 and the binding isotherm was fit well with a 1:1 binding model, suggesting a 1:1 host-guest binding. The equilibrium binding constant of P1 to spermine in DMSO was calculated to be (5.3 ± 0.8) × 103 L/mol using the Scientist 3 program (Fig. S37 in Supporting information). Additionally, an ESI-MS experiment was conducted, which also revealed the formation of 1:1 host-guest complex in the P1/Spm system, as evidenced by the presence of the [P1⊃Spm]+ peak in the spectrum (Fig. S38 in Supporting information).
The control experiments were conducted by observing the fluorescent behavior of two control molecules of P1 (i.e., P2 and NP) upon the addition of spermine (Fig. S39 in Supporting information). The absence of substantial fluorescence enhancement in P2 and NP indicated their inability to effectively bind with spermine, which was attributed to the great distance between two carboxyl groups of P2 and the lack of a pillar[5]arene cavity in NP. This finding reinforced the importance of the pillar[5]arene cavity and the dual carboxyl-amine interactions in the selective recognition of spermine.

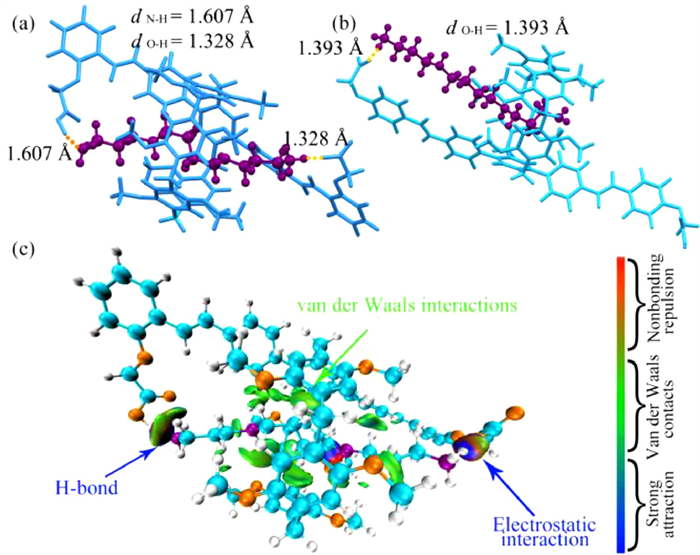

To further investigate the mechanism behind P1’s selective recognition of spermine, several methods were employed, including DFT calculations and independent gradient model (IGM) analysis. The complex structure of P1⊃Spm was optimized by DFT and depicted in Fig. 4a. One binding site showed a strong electrostatic interaction (1.328 Å) between the carboxylate anion and the alkylammonium cation due to proton transfer from a carboxyl group of P1 to an amino group of spermine. At another binding site, an O–H···N bond (1.607 Å) was formed between a carboxyl group of P1 and an amine group of spermine, consistent with the characteristics of carboxyl-amine interaction, namely, charge-assisted hydrogen bond [42]. IGM analysis revealed strong electrostatic interaction, hydrogen bond (indicated by blue areas in the isosurfaces), and van der Waals interactions (indicated by green areas in the isosurfaces) between P1 and spermine (Fig. 4c) [43]. In contrast, the amino groups at the end of spermine could not attach to two P2 carboxyl groups simultaneously to establish two carboxyl-amine interactions, as shown in Fig. 4b. These theoretical studies confirmed that the synergy of carboxyl-amine interactions and van der Waals interactions between the host and the guest played a key role in restricting the free motion of P1 and achieving supramolecular cyclization-induced emission enhancement.

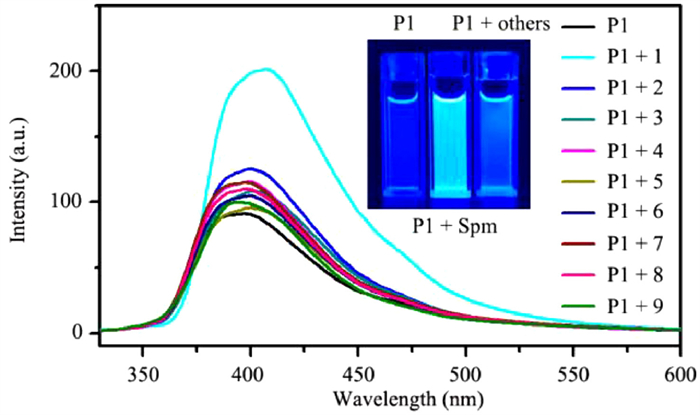

The investigation of the selectivity of P1 towards spermine in the presence of various amines was carried out. Firstly, 1,12-diaminododecane, which has the same chain length as spermine, was chosen to bind to P1. As shown in Fig. S40 (Supporting information), the emission of P1 was significantly increased upon the addition of 1,12-diaminododecane, indicating that the presence of 1,12-diaminododecane may cause interference in the detection of spermine. However, 1,12-diaminododecane is not biogenic amine and not typically present in the physiological environment and is therefore unlikely to cause interference in the detection of spermine [44]. Thus, taking into account practical application scenarios, interference was mainly selected from some common biogenic amines. Secondly, the results presented in Fig. 5 showed that the fluorescence emission of P1 was significantly enhanced upon the addition of spermine, while no significant increase in fluorescence was observed in any of the other biogenic amine solutions. Thirdly, considering that spermine is a basic compound, the impact of NH3 on the spermine sensing process was investigated. As depicted in Fig. S41 (Supporting information), P1 was capable of accurately detecting spermine in the presence of varying concentrations of NH3. Additionally, competition experiments were conducted to evaluate P1’s ability to distinguish spermine from other amines, as shown in Fig. S42 (Supporting information). The experimental findings indicated that P1 exhibited selective detection of spermine and was barely influenced by basic compounds. The limit of detection (LOD) for spermine in acetonitrile was determined as 0.094 ± 0.002 µmol/L using the equation 3σ/S (where standard deviation, σ = 1.1 and slope, S = 3.5 × 107) (Fig. S43 in Supporting information) [20]. These results indicated that P1 possessed high sensitivity and selectivity in recognizing spermine, placing it among the most selective and sensitive probes (Table S3 in Supporting information).
To showcase the potential utility of P1 in detecting spermine in artificial urine, the fluorescence spectra of P1 were determined with the addition of artificial urine (depicted in Fig. S44a in Supporting information). The results showed that the fluorescence intensities at 400 nm were linearly proportional to the spermine concentration in the range of 0–17 µmol/L, as demonstrated in Fig. S44b (Supporting information). The LOD for spermine in artificial urine was determined to be 0.4 µmol/L, which is sensitive enough in pathological conditions. The findings of the recovery experiments are summarized in Table 1.
In conclusion, we used supramolecular cyclization induced emission enhancement as a new strategy to detect spermine by pillar[5]arene derivative (i.e., P1) bearing three binding sites for spermine. An increase in the fluorescent emission of P1 with the addition of spermine was attributed to the inhibition of P1’s free motion in the P1⊃Spm complex by supramolecular cyclization, aided by multiple weak interactions. P1 possessed high sensitivity and selectivity in recognizing spermine (with LOD of 0.094 µmol/L and 0.4 µmol/L for spermine in acetonitrile and artificial urine) due to the synergism based on the pillar[5]arene cavity, the dual carboxyl-amine interactions, and the proper chain lengths of P1 and spermine, placing it among the most selective and sensitive probes. However, a similar pillar[5]arene derivative P2 cannot form such a ring-like structure by supramolecular cyclization, resulting no obvious emission enhancement because the chain length of P2 does not match that of spermine. Another similar probe NP does not show the supramolecular cyclization-induced emission enhancement due to the lack of a pillar[5]arene cavity. This study presents a novel approach to developing probes for spermine detection, and suggests potential applications in early cancer diagnosis. However, it should be mentioned that other alkanediamines with similar chain lengths, i.e., 1,12-diaminododecane may increase the emission of P1. Fortunately, 1,12-diaminododecane is not biogenic amine and therefore may not interfere the detection of spermine in the physiological environment samples.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
This work was supported by the National Natural Science Foundation of China (Nos. 22071066, 22071065), the National Key Research and Development Program of China (No. 2016YFA0602900), the Guangdong Natural Science Foundation, China (No. 2018B030311008), and the Guangzhou Science and Technology Project, China (No. 202102020802).
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108626.
References
Less
[1]
C. Stefanelli, F. Bonavita, I. Stanic, et al., FEBS Lett. 437 (1998) 233–236.
[2]
A. Bibillo, M. Figlerowicz, R. Kierzek, Nucl. Acids Res. 27 (1999) 3931–3937.
[3]
C. Moinard, L. Cynober, J.-.P. de Bandt, Clin. Nutr. 24 (2005) 184–197.
[4]
R.A. C.asero, L.J. M.arton, Nat. Rev. Drug. Disc. 6 (2007) 373–390.
[5]
D.H. Russell, Nat. New Biol. 233 (1971) 144–145.
[6]
H.E. Flores, A.W. Galston, Plant Physiol. 69 (1982) 701–706.
[7]
Y. Ma, G. Liu, M. Du, et al., Electrophoresis 25 (2004) 1473–1484.
[8]
J.T. Fletcher, B.S. Bruck, Sens. Actuators B Chem. 207 (2015) 843–848.
[9]
B. Lee, R. Scopelliti, K. Severin, Chem. Commun. 47 (2011) 9639–9641.
[10]
W. Li, L. Wang, T. Sun, et al., Commun. Biol. 4 (2021) 803.
[11]
H. Nohta, H. Satozono, K. Koiso, et al., Anal. Chem. 72 (2000) 4199–4204.
[12]
L. Wang, S. Xin, C. Zhang, et al., J. Mater. Chem. B 9 (2021) 9383–9394.
[13]
M. Barros, S. Ceballos, P. Arroyo, et al., Chemosensors 10 (2021) 8.
[14]
S.M. T.awfik, J. Shim, D. Biechele-Speziale, et al., Sens. Actuators B: Chem. 257 (2018) 734–744.
[15]
B. Bao, L. Yuwen, X. Zheng, et al., J. Mater. Chem. 20 (2010) 9628–9634.
[16]
A. Satrijo, S.E. Kooi, T.M. Swager, Macromolecules 40 (2007) 8833–8841.
[17]
J. Wang, Q. Zhang, Z. De Liu, et al., Analyst 137 (2012) 5565–5570.
[18]
C.F. Chow, M.H. L.am, W.Y. W.ong, Anal. Chem. 85 (2013) 8246–8253.
[19]
G. Munzi, S. Failla, S. Di Bella, Analyst 146 (2021) 2144–2151.
[20]
A.A. B.hosle, M. Banerjee, N. Barooah, et al., J. Photochem. Photobiol. A: Chem. 426 (2022) 113770.
[21]
Z. Kostereli, K. Severin, Chem. Commun. 48 (2012) 5841–3.
[22]
B. Lu, L. Wang, X. Ran, et al., Biosensors 12 (2022) 633.
[23]
H. Tian, X. Yu, J. Yao, et al., Chem. Commun. 57 (2021) 1806–1809.
[24]
J. Tu, S. Sun, Y. Xu, Chem. Commun. 52 (2016) 1040–1043.
[25]
G. Jiang, W. Zhu, Q. Chen, et al., Sens. Actuators B: Chem. 261 (2018) 602–607.
[26]
X.Y. Lou, Y.W. Y.ang, Adv. Mater. 32 (2020) 2003263.
[27]
K. Wang, J.H. Jordan, K. Velmurugan, et al., Angew. Chem. Int. Ed. 60 (2021) 9205–9214.
[28]
K. Wang, X. Tian, J.H. J.ordan, et al., Chin. Chem. Lett. 33 (2022) 89–96.
[29]
L. Wu, C. Han, X. Jing, et al., Chin. Chem. Lett. 32 (2021) 3322–3330.
[30]
L. Xu, Z. Wang, R. Wang, et al., Angew. Chem. Int. Ed. 59 (2020) 9908–9913.
[31]
W.L. Zhou, Y. Chen, W. Lin, et al., Chem. Commun. 57 (2021) 11443–11456.
[32]
H. Zhu, Q. Li, L.E. Khalil-Cruz, et al., Sci. China Chem. 64 (2021) 688–700.
[33]
L. Xu, R. Wang, H. Tang, et al., J. Mater. Chem. A 10 (2022) 11332–11339.
[34]
J. Chen, H. Ni, Z. Meng, et al., Nat. Commun. 10 (2019) 3546.
[35]
D. Dai, Z. Li, J. Yang, et al., J. Am. Chem. Soc. 141 (2019) 4756–4763.
[36]
X. Jiang, L. Wang, X. Ran, et al., Biosensors 12 (2022) 571.
[37]
Q. Lin, Z.H. Wang, T.T. Huang, et al., J. Mater. Chem. C 9 (2021) 3863–3870.
[38]
Y. Luo, W. Zhang, Q. Ren, et al., Chin. Chem. Lett. 33 (2022) 5120–5123.
[39]
D. Cao, H. Meier, Chin. Chem. Lett. 30 (2019) 1758–1766.
[40]
Y. Zhou, H. Tang, Z.H. L.i, et al., Chem. Commun. 57 (2021) 13114–13117.
[41]
X. Shu, S. Chen, J. Li, et al., Chem. Commun. 48 (2012) 2967–2969.
[42]
P. Gilli, L. Pretto, V. Bertolasi, et al., Acc. Chem. Res. 42 (2009) 33–44.
[43]
T. Lu, F. Chen, J. Comput. Chem. 33 (2012) 580–592.
[44]
N. Kaur, S. Chopra, G. Singh, et al., J. Mater. Chem. B 6 (2018) 4872–4902.
