Tuning host-guest binding model by different intramolecular alkyl chain lengths in tripodal hosts: An evidence on structure control supramolecular interactions

Full

Zheng-Hua Zhang^a, You-Ming Zhang^a^,^b^,^*, Wen-Juan Qu^a, Bingbing Shi^a, Hong Yao^a, Tai-Bao Wei^a^,^*

Affiliations

^aKey Laboratory of Eco-environmental Polymer Materials of Gansu Province, College of Chemistry and Chemical Engineering, Northwest Normal University, Lanzhou 730070, China

^bGansu Natural Energy Research Institute, Lanzhou 730046, China

Published: 2023-01-15 doi: 10.1016/j.cclet.2021.12.077

Outline

Abstract

Less

Supramolecular chemistry has received considerable attention in host-guest recognition. The structure-response relationship of host-guest recognition system is a meaningful issue. Herein, a series of tripodal nitrogen mustard derivatives (TMs) have been developed in this paper. By rationally design the intramolecular alkyl chain lengths of host, the host-guest binding model have been successfully tuned, which underwent a transformation from π-π to multiple hydrogen bonds. This process enhances the host-guest binding force and recognition efficiency.

Key words

Host-guest recognition / Supramolecular interactions / Fluorescent / Intramolecular alkyl chain / Aggregation induced emission

Cite this Article

Zheng-Hua Zhang, You-Ming Zhang, Wen-Juan Qu, Bingbing Shi, Hong Yao, Tai-Bao Wei. Tuning host-guest binding model by different intramolecular alkyl chain lengths in tripodal hosts: An evidence on structure control supramolecular interactions[J]. Chinese Chemical Letters, 2023 , 34 (1) : 107085 - . DOI: 10.1016/j.cclet.2021.12.077

Full Text

Less

Detection of nitroaromatic compounds (NACs) such as trinitrotoluene (TNT) and picric acid (PA) has attracted wide attentions [1-4]. Widespread application of PA may not only cause serious health problems, also results in the severe environment pollution [5, 6]. Therefore, it is necessary to design methods to improve the detection sensitivity and selectivity of PA [7-9].

How to improve the selectivity in host-guest recognition is an important issue for supramolecular chemistry [10, 11]. The design and application of novel supramolecular host for efficiently recognition target guest through non-covalent forces is one of the key trends [12-14]. It can be seen that improving the host-guest binding force is challenging. The host structure is one of the key factors which influence the binding property of the host-guest recognition system. It is a very meaningful topic to improve the selectivity and sensitivity of the host-guest system through rational investigate the structure-response relationship of host.

Moreover, in recent years, applications based on aggregation induced emission (AIE) sensors have fascinated more and more attention [15-17]. AIE also provides a new idea in fluorescent probes [18-20]. How to improve the recognition efficiency of AIE through regulating the molecule structures is also an interesting theme.

In view of these and our long-term research foundation in fluorescence chemosensors, in order to study the influence of different host structures on the host-guest recognition properties, herein, we have designed and synthesized three tripodal small molecule probes TM, TM2 and TM4 with different intramolecular alkyl chains which linked binding sites of the hosts. Interestingly, when the alkyl chain was different, the host-guest binding model as well as binding force was also different. The supramolecular interactions could be regulated from π-π stacking to multiple hydrogen bonds, meanwhile, the recognition efficiency has been improved.

The TMs (TM, TM2 and TM4) were synthesized and fully characterized by IR, NMR and HRMS (Schemes S1, S2 and Figs. S8, S9, S16-S21 in Supporting information). The AIE properties of TMs were primary explored by the fluorescence characteristics of DMSO/H₂O mixed solution with different water components. In the DMSO/H₂O binary system, DMSO was used as a good solvent for TMs, while water was a poor solvent for TMs. In the TM system, as the water fraction (f_w) increased, the fluorescence emission intensity of TM gradually increased and reached a maximum at 50% water fraction (Fig. S1a in Supporting information), while, which were 20%, 40% for TM2 and TM4, respectively (Figs. S1b and c in Supporting information). In order to verify the AIE process, the morphologies of the TMs with different moisture content were investigated by SEM. As shown in Fig. 1, after drying the corresponding TM solutions in air and got the SEM images of them, the TM2 obtained from the pure DMSO shown irregular particles structures, while with the increase of water content, obvious aggregation observed. The SEM images of TM and TM4 were similar to TM2 (Figs. S13 and S14 in Supporting information). This suggests that the main mechanism of AIE effect of TMs compounds is due to water-induced agglomeration, which limits the dissipation of excited state energy caused by intramolecular rotation. This is consistent with the classical RIM theory [21].

Afterward, as shown in Fig. 2b and Fig. S3 (Supporting information), the fluorescent recognition performances of TMs for nitroaromatic compounds (NACs) were primarily explored by adding a series of NACs, including picric acid, 2-nitrophenol, 3-nitrophenol, 4-nitrophenol, 2, 4-dinitrophenol, 2-nitrobenzoic acid, 3-nitrobenzoic acid, 4-nitrobenzoic acid, 4-nitrobenzaldehyde, 2-nitroaniline, 3-nitroaniline, 4-nitroaniline and 4-nitrotoluene into TMs solution separately. As a result, TMs could selectively recognize PA by fluorescent response. In the fluorescence titration experiments of TMs with PA, as shown in Fig. 2a and Fig. S2 (Supporting information), the fluorescence spectra of TM, TM2 and TM4 exhibited intense emission λ_max at 502, 470 and 430 nm, respectively. While, the fluorescence quenching occurred with the gradually increasing of PA. Additionally, the PA specific selectivity of sensor TMs over other miscellaneous NACs was carefully investigated via control experiments under competitive condition. Fig. 2c and Fig. S4 (Supporting information) showed that the coexist competition NACs could not cause any significant interference for the TMs sensing to PA.

In order to investigate the influence of different structures of TMs on the sensitivity of PA detection, the detection limit (LOD), quenching constant (K_SV) and corresponding binding constant (K_a) were studied in detail. The LOD was calculated by way of 3δ/S method [22]. From the experiments, it was found that the LOD of PA were observed to be 8.0 × 10⁻⁸ mol/L for TM, 5.7 × 10⁻⁸ mol/L for TM2 and 3.1 × 10⁻⁸ mol/L for TM4 respectively (Fig. S5 in Supporting information). K_SV was studied by Stern-Volmer (SV) equation I₀/I = 1 + K_SV[Q] [23]. I₀ and I were the fluorescence intensities in the absence and presence of PA and [Q] was concentration of quencher PA. K_SV was the Stern-Volmer rate constant, which was calculated conveniently by the slope of the plot of I₀/I vs. [Q]. Fig. S6 (Supporting information) showed the corresponding K_SV of TM, TM2 and TM4 were estimated to be 2.3 × 10⁴ L/mol, 5.5 × 10⁴ L/mol and 6.0 × 10⁴ L/mol respectively. The Ka values for TMs-PA complex were directly related to the stability of these complexes. It was calculated by fluorescence titration experiment and obtained by non-linear fitting [24]. We performed the data fitting for TMs: PA 1:1 complex and calculated the binding constant. The corresponding Ka was evaluated to be 2.9 × 10⁴ L/mol, 5.0 × 10⁴ L/mol and 7.8 × 10⁴ L/mol for TM, TM2 and TM4 respectively (Fig. S7 and Eq. S1 in Supporting information). As summarized in Table 1, the TMs can sensitively detect PA at the ppb level and the TM4 shows the highest sensitivity. The quenching efficiency of PA was also the highest for TM4 which had the longest intramolecular alkyl chain among TMs. Meanwhile, the TM4 also had the highest binding capacity.

In order to understand the influence of molecular structure on supramolecular interactions and recognition efficiency, the FT-IR, ¹H NMR titration, ESI-MS and SEM were carried out. The ¹H NMR titration was used to check the host-guest binding mode of TMs and PA in DMSO-d₆ solution. As shown in Fig. 3a, addition of PA to TM resulted in upshift of the proton signals H1-H7 of TM and downshift of the proton signals H_a of PA, which clearly reflected that TM and PA undergo π-π and van der Waals force interactions to form the supramolecular complex [25]. However, as showed in Fig. 3c, according to ¹H NMR titration of TM4 and PA, an obvious downshift was inspected for the chemical shift of the H1-H10 atoms in TM4. The results showed that the TM4 binding the PA through N − H⋯O and C − H⋯O multiple hydrogen bonds interactions and forming a stable complex with PA [26, 27]. Analogously, the proton signals H1-H7 of TM2 were shifted downfield gradually upon the addition of PA, which indicated that the strong N − H⋯O and C − H⋯O multiple hydrogen bonds were formed between the TM2 with PA (Fig. 3b). Moreover, the proton signal of PA underwent significant upshift when interacting with TM2 and TM4, while it only slightly shifted to downfield when combined with TM. For the TM, the quenching of the fluorescence would be related to the change of electron cloud density between TM and PA via the π-π stacking [28]. However, for the TM2 and TM4, the electrons were transferred from TM2 and TM4 to electron-deficient PA by the stronger multiple hydrogen bonds interactions. This difference of the host-guest recognition models was attributed to the different intramolecular alkyl chains in the molecular structure of host (Fig. 3). Therefore, the interaction between host and guest should undergo a transition from π-π stacking and der Waals force interactions to hydrogen bonds as the linker increased from 0 to 4 methylene. Meanwhile, the magnitude of chemical shift on the host and guest increased significantly. These showed that the hydrogen bonding between host and guest increased with the increase of linker length. Therefore, when the linker was one and three methylene, the interaction between host and guest should be hydrogen bonding, that was, the hydrogen on the host should move to the lower field, and the hydrogen on the guest should move to the higher field. However, when the linker was one and three methylene, the magnitude of the chemical shift of hydrogen on the host and guest was smaller and larger than that when the linker was two methylene groups, respectively.

The FT-IR spectra of PA, TMs and TMs + PA complex were carried out to further understand the interaction process. For the PA, the stretching vibration absorption peak of =C—H appeared on benzene ring at 3102 cm⁻¹. The peak located at 3279 cm⁻¹ was attributed to the stretching vibration of -NH in the TM4 (Fig. 2d). When PA is added to the TM4, the -NH stretching vibration absorption peak shifted to 3270 cm⁻¹ and the =C—H stretching vibration absorption peak shifted to 3107 cm⁻¹. Similarly, in the mixture of TM and PA, the -NH characteristic absorption peak shifted from 3204 to 3198 cm⁻¹ and the =C—H characteristic absorption peak shifted from 3102 to 3104 cm⁻¹ (Fig. S8 in Supporting information). For the TM2 + PA complex, the -NH characteristic absorption peak shifted from 3275 to 3264 cm⁻¹ and the =C—H characteristic absorption peak shifted from 3102 to 3106 cm⁻¹ (Fig. S9 in Supporting information). The results also showed that the formation of N − H⋯O and C − H⋯O multiple hydrogen bonds.

Simultaneously, these inferences were also supported by the ESI-MS spectra of TMs and PA. As displayed in the Fig. S10 (Supporting information), the peaks at 1194.1992 and 1661.2079 were attributed to the formation of [TM + PA + CH₃OH]⁺ and [TM + 3PA + CH₃CN]⁺ complexes. Fig. S11 (Supporting information) showed that the peaks at 1263.2738, 763.6787 and 1743.2889 were consistent with [TM2 + PA + H₂O-H]⁺, [TM2 + 2PA + 2(CH₃CN)–3H]²⁺ and [TM2 + 3PA + CH₃CN−2H]⁺. The peaks at 484.4731, 1600.3857 and 1828.3833 were ascribed to the formation of [TM4 + PA + 3(CH₃CN)]³⁺, [TM4 + 2PA + CH₃CN]⁺ and [TM4 + 3PA + CH₃CN-H]⁺ complexes respectively (Fig. S12 in Supporting information). All of above indicated that with the increase of PA, TMs and PA formed the stabilized host-guest complex from 1:1 to 1:3.

The morphology of TMs before and after combining PA was also characterized by SEM. For the TM after added to the PA, a large number of fibrous morphologies with a length of several microns and a diameter of several nanometers were appeared, which a flower-like shape was formed through self-assembly (Fig. S15a in Supporting information). We found the hierarchical micro-flowers formed by self-assembly of lots of nanosheets while the PA added to the TM2 (Fig. 1d). And the complex of TM4 and PA could form the small flower-like structure by nanosheets and nanorods. These changes in morphologies clearly showed that TMs and PA have formed new complexes (Fig. S15b in Supporting information).

In short, in order to study the structure-response relationship, we have designed and synthesized three chemosensors (TMs) with different intramolecular alkyl chains. The corresponding results suggested that with the increasing of the length of linker alkyl chain, the host-guest binding model was changed from π-π interactions to multiple hydrogen bonds. The binding model showed directly influence on the recognition efficiency for these PA sensors. As a result, among TM, TM2 and TM4, TM4 has the longest intramolecular alkyl chain, which exhibited higher detection selectivity, stronger quenching constant and binding constant. The TM4 could sensitively detect PA at the ppb level. This result indicated that multiple hydrogen bonds host-guest binding model was more efficient than π-π stacking model. Therefore, we realized the regulation of host-guest recognition model and efficiency through adjusting the host structure. The present strategy is enlightening, and we expect it could provide a new idea and method to improve the host-guest recognition efficiency by rationally adjusting the host molecular structure.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

The authors gratefully acknowledge the support from the National Natural Science Foundation of China (Nos. 22165027, 22061039, 22001214), Key R & D program of Gansu Province (No. 21YF5GA066) and Gansu Provincial Department of Education: Excellent Postgraduate "Innovation Star" Project (No. 2021CXZX-184).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.12.077.

References

Less

[1]

Y. Liang, L. Xu, F. Qu, et al., Polym. Chem. 10 (2019) 4818–4824

[2]

Z.H. Fu, Y.W. Wang, Y. Peng, Chem. Commun. 53 (2017) 10524–10527

[3]

M. Ansari, R. Bera, S. Mondal, D. Neeladri, ACS Omega 4 (2019) 9383–9392

[4]

N.G. Khaligh, M.R. Johan, Nano 13 (2018) 1830006

[5]

H. Zhou, J. Li, M.H. Chua, et al., Polym. Chem. 5 (2014) 5628–5637

[6]

D.C. Santra, M.K. Bera, P.K. Sukul, S. Malik, Chem. Eur. J. 22 (2016) 2012–2019

[7]

Z.Y. Li, Z.Q. Yao, R. Feng, et al., Chin. Chem. Lett. 32 (2021) 3095–3098

[8]

S. Mondal, P. Bairi, , S. Das, A.K. Nandi, Chem. Eur. J. 24 (2018) 5591–5600

[9]

S. Xing, Q. Bing, H. Qi, et al., ACS Appl. Mater. Inter. 9 (2017) 23828–23835

[10]

H. Duan, Y. Li, Q. Li, et al., Angew. Chem. Int. Ed. 59 (2020) 10101–10110

[11]

Y. Sakata, M. Tamiya, M. Okada, S. Akine, J. Am. Chem. Soc. 141 (2019) 15597–15604

[12]

Y. Huo, Z. He, C. Wang, et al., Chem. Commun. 57 (2021) 1413–1429

[13]

B. Qin, Z. Yin, X. Tang, et al., Prog. Polym. Sci. 100 (2020) 101167

[14]

C. Xu, L. Xu, X. Ma, Chin. Chem. Lett. 29 (2018) 970–972

[15]

Y.Y. Chen, X.M. Jiang, G.F. Gong, et al., Chem. Commun. 57 (2021) 284–301

[16]

J.J. Li, H.Y. Zhang, G. Liu, et al., Adv. Optical Mater. 9 (2021) 2001702

[17]

L. Xu, Z. Wang, R. Wang, et al., Angew. Chem. Int. Ed. 59 (2020) 9908–9913

[18]

L. Zhang, Y. Sun, Y. Jiang, et al., Chin. Chem. Lett. 31 (2020) 2428–2432

[19]

T. Feng, X. Li, J. Wu, C. He, C. Duan, Chin. Chem. Lett. 31 (2020) 95–98

[20]

S. Wang, C.H. Zhang, P. Zhang, et al., Anal. Methods 13 (2021) 2030–2036

[21]

G.X. Feng, B. Liu, Small 12 (2016) 6528–6535

[22]

Analytical Methods Committee, Analyst 112 (1987) 199–204

[23]

M.C. Rong, L.P. Lin, X.H. Song, et al., Anal. Chem. 87 (2015) 1288–1296

[24]

L. Xu, R. Wang, W. Cui, et al., Chem. Commun. 54 (2018) 9274–9277

[25]

S. Kasthuri, K. Shiv, S. Raviteja, et al., Appl. Surf. Sci. 481 (2019) 1018–1027

[26]

Y.M. Zhang, Q.Y. Yang, X.Q. Ma, et al., J. Phys. Chem. A 124 (2020) 9811–9817

[27]

T. Xiao, L. Zhou, X.Q. Sun, et al., Chin. Chem. Lett. 31 (2020) 1–9

[28]

N. Yan, J. Song, F. Wang, et al., Chin. Chem. Lett. 30 (2019) 1984–1988

Appendix

Less

Year 2023 volume 34 Issue 1

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.12.077

Receive Date：2021-07-31
Online Date：2025-11-20
Published：2023-01-15

Article Data

Affiliations

History

Received：2021-07-31
Revised：2021-12-28
Accepted：2021-12-29

Affiliations

^aKey Laboratory of Eco-environmental Polymer Materials of Gansu Province, College of Chemistry and Chemical Engineering, Northwest Normal University, Lanzhou 730070, China

^bGansu Natural Energy Research Institute, Lanzhou 730046, China

Corresponding:

^*E-mail addresses: zhangnwnu@126.com (Y.-M. Zhang),

weitaibao@126.com (T.-B. Wei).

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.12.077

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

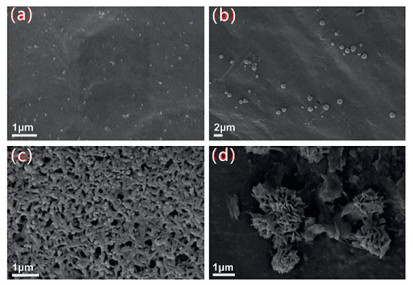

Fig. 1. SEM images of (a) TM2 in DMSO, (b) TM2 in DMSO—H₂O (4:1), (c) TM2 in DMSO—H₂O (1:9) and (d) TM2-PA.

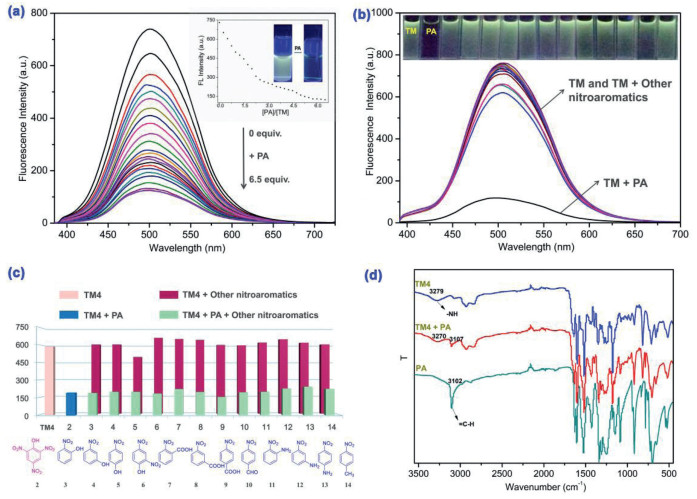

Fig. 2. Emission spectra of TM (2 × 10⁻⁵ mol/L, DMSO/H₂O (1:1, v/v) binary solution) in (a) fluorescence titration of with PA and (b) various nitroaromatic compounds (6.5 equiv.). (c) Fluorescence emission value of the TM4 (2 × 10⁻⁵ mol/L, DMSO/H₂O (3:2, v/v) binary solution) to PA (2.55 equiv.) in the presence of various nitroaromatic compounds, (d) IR spectra of TM4, TM4-PA and PA.

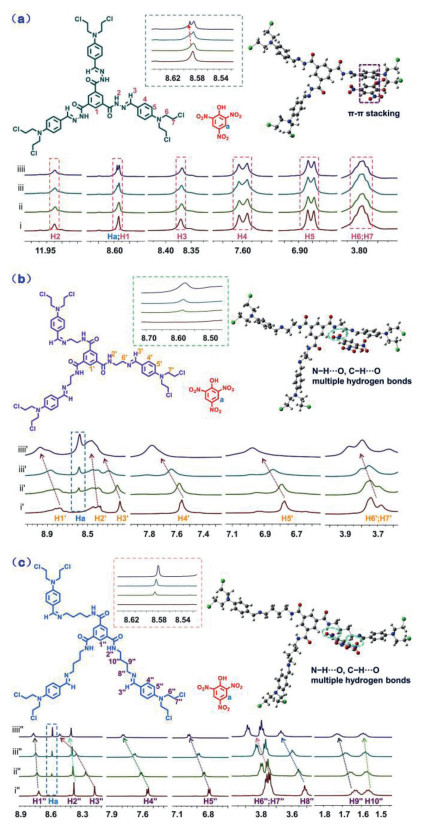

Fig. 3. Partial ¹H NMR spectra changes (DMSO-d₆). (a) (i) TM, (ii) TM + 0.5 equiv. PA, (iii) TM + 1.0 equiv. PA, (iiii) TM + 2.0 equiv. PA; (b) (iʹ) TM2, (iiʹ) TM2 + 0.5 equiv. PA, (iiiʹ) TM2 + 1.0 equiv. PA, (iiiiʹ) TM2 + 2.0 equiv. PA; (c) (iʹʹ) TM4, (iiʹʹ) TM4 + 0.5 equiv. PA, (iiiʹʹ) TM4 + 1.0 equiv. PA, (iiiiʹʹ) TM4 + 2.0 equiv. PA.
