A proximity tagging strategy utilizing an activated aldehyde group as the active site

A proximity tagging strategy utilizing an activated aldehyde group as the active site

PDF

Mengfan Zhang^a, Lingyan Liu^b, Peng Wei^*^,^b, Wei Feng^*^,^a, Tao Yi^*^,^b

Chinese Chemical Letters | 2025, 36(4) : 110127

Less

Chinese Chemical Letters | 2025, 36(4): 110127

• Communication •

A proximity tagging strategy utilizing an activated aldehyde group as the active site

Full

Mengfan Zhang^a, Lingyan Liu^b, Peng Wei^*^,^b, Wei Feng^*^,^a, Tao Yi^*^,^b

Affiliations

^aDepartment of Chemistry, Fudan University, Shanghai 200438, China

^bState Key Laboratory for Modification of Chemical Fibers and Polymer Materials, Shanghai Engineering Research Center of Nano-Biomaterials and Regenerative Medicine, College of Chemistry and Chemical Engineering, Donghua University, Shanghai 201620, China

Published: 2025-04-15 doi: 10.1016/j.cclet.2024.110127

Outline

Abstract

Less

Utilizing small molecules as markers for specific cells or organs within biosystems is a crucial approach for studying and regulating physiological processes. However, current tagging strategies, due to the presence of exposed highly reactive groups, suffer from drawbacks such as low tagging efficiency or insufficient spatial specificity, thereby diminishing their expected effectiveness. Consequently, there is a pressing need to develop a strategy capable of in situ labeling of active groups in response to cellular or in vivo stimuli, ensuring both high tagging efficiency and spatial specificity. In this work, we devised a strategy for releasing aldehyde groups activated by hypochlorous acid (HOCl). Compounds synthesized through this strategy can release the fluorophore methylene blue (MB) and aldehyde-based compounds upon HOCl activation. Given high reactivity of the released aldehyde group, it can effectively interact with macromolecules in biological systems, facilitating tagging and enabling prolonged imaging. To validate this concept, we further incorporated a naphthalimide structure with stable light emission to create SW-110. SW-110 can specifically respond to in vitro and endogenous HOCl, when release MB, it also releases naphthalimide fluorophore with highly reactive aldehyde group for tagging within cells. This strategy provides a simple but efficient strategy for proximity tagging in situ.

Key words

ROS / Aldehyde / Fluorescence / Methylene blue / Proximity tagging strategy

Cite this Article

Mengfan Zhang, Lingyan Liu, Peng Wei, Wei Feng, Tao Yi. A proximity tagging strategy utilizing an activated aldehyde group as the active site[J]. Chinese Chemical Letters, 2025 , 36 (4) : 110127 - . DOI: 10.1016/j.cclet.2024.110127

Full Text

Less

The utilization of small organic molecules for tagging cells and living organisms, followed by subsequent analysis of the tagging signals through techniques like fluorescence, mass spectrometry, is a common approach to investigate vital processes. Various methods have been employed in small organic molecule tagging strategies, including ligand-redirecting [1], covalent ligand directed release [2,3], lysine-reacting peptides [4], aptamer-based affinity labelling [5-8]. However, these methods come with their respective drawbacks and limitations. For instance, to achieve rapid responses, tagging molecules are often designed with highly active functional groups like aldehyde group or sulfhydryl groups. Unfortunately, such designs can introduce issues such as instability, low tagging efficiency, and poor specificity. Ideally, achieving the precise release of the tagging molecule at the desired target location would minimize these shortcomings and enhance the spatial specificity. However, achieving directional release of highly reactive functional groups under physiological conditions remains a challenge due to the lack of effective release strategies. Therefore, it is of high necessity to develop highly active functional group releasing strategies under physiological conditions for the design of proximity tagging probes.

Aldehyde group stands out as one of the prevalent and reactive functional groups. As mild electrophilic reagents, aldehydes exhibit unique reactivity. They can participate in bioorthogonal reactions for tagging [9-15], contribute to therapeutic hydrogel formation for wound healing [16-22], be coupled with amino residues for regulating physiological activities [23-25], for the synthesis of drugs [26-28], or for diseases treatment and antibacterial applications [29-34]. Due to their high reactivity, aldehyde groups serve as an ideal functional group for labelling. Nevertheless, the strategy for in situ activation and release of aldehyde groups remains unreported, primarily due to the high reactivity of aldehydes and the harsh reaction conditions required for their formation [35-38]. Given the widespread applications and importance of those compounds containing aldehyde groups, it is imperative to develop more effective methods for the in situ generation of aldehyde groups within organisms.

Reactive oxygen species (ROS) play a pivotal role in various biological processes, encompassing signal transduction, inflammation, and the pathological pathways of serious ailments such as cancer [39-42], kidney injury [43,44], liver damage [45-48], cardiovascular diseases [49-51] and neurodegenerative diseases [52-55]. Consequently, ROS have garnered significant attention in recent years, with increasing research exploring their potential as activators for prodrugs [56-58]. We have also successfully developed various types of prodrugs utilizing ROS as the activator based on the methylene blue (MB) structure, a widely used near-infrared (NIR) fluorescent dye, and an FDA-approved photodynamic drug [59-64].

In our earlier research, we successfully synthesized a series of leucomethylene blue (LMB) derivatives containing amide bonds. These compounds could be activated by HOCl to release carboxyl compounds (e.g., FDOCl-12 in Fig. 1a). This observation prompted us to investigate whether a similar response would happen if the carbonyl group was directly replaced with an alkyl group, realizing the release of aldehyde in a mild condition. Actually, the oxidation of methylene-amino structures to aldehyde groups generally needs the help of metal catalysts [35] or enzymes [65], which is not benefit for its application in physiological conditions. It was excited to know that ROS could oxidize and break the carbon-nitrogen bonds between tertiary amines attached to phenol [66-69] or benzyl [70]. Since LMB happens to have an easily functionalized active nitrogen atom whose binding groups determine their ROS stimulation performance and the released molecular type (Fig. 1a), an aldehyde group release strategy activated by HOCl may be discovered via an ingenious structural design. We therefore designed MB-benzyl derivatives SW-100 based on LMB at first (Fig. 1a). It was exciting that SW-100 could release benzaldehyde under physiological conditions activated by HOCl. Multiple types of probes were thus developed based on this strategy (Scheme 1). All these compounds could release aldehyde groups in the presence of HOCl to some extent. Our research confirmed the universality of the strategy and elucidated the extent to which the strategy could be adapted. Following the activation of the probe, the released benzaldehyde group could be subsequently anchored within the cell. This further illustrated that the new proximity tagging strategy could be successfully used at the cellular level (Fig. 1b).

The synthesis details of SW-100 were shown in Scheme S1 (Supporting information). HOCl could effectively activate SW-100. With the addition of HOCl from 0 to 10 µmol/L, the fluorescent emission at 686 nm and the absorption at 664 nm of the probe (5 µmol/L) increased significantly, showing good HOCl responses and linear dependence on the concentration of HOCl in the range of 0–5 µmol/L (Figs. 2a and b). Colour changes of SW-100 (5 µmol/L) after adding different concentrations of HOCl were noticeable as well (Fig. S1 in Supporting information). The Maldi-TOF analysis of the response substance right after adding HOCl in the solution of SW-100 verified the generation of LMB which would be quickly autoxidized to MB (Fig. S2 in Supporting information). The emission of MB could thus be used to track the reaction process of the probe.

SW-100 displayed remarkable reaction sensitivity toward HOCl that could react with HOCl within 10 min with a low detection limit of 0.03 µmol/L (Figs. 2c and d). Other types of ROS, including H₂O₂, TBHP, ROO^•, NO, KO₂, ONOO^–, ^•OH and TBO^• caused negligible fluorescent intensity and colour changes compared to HOCl (Fig. 2e and Fig. S3 in Supporting information). Meanwhile, some commonly available anions, cations, and amino acids under physiological conditions, including CH₃COO^–, CO₃^2–, SO₄^2–, F^–, Cl^–, NO₃^–, S₂O₃^2–, ClO₄^–, NH₄⁺, Na⁺, Mg²⁺, Al³⁺, K⁺, Ca²⁺, Fe³⁺, Cu²⁺, Ni²⁺, Tyr, Gly, Phe, Met, Leu, Arg, Pro, Lys, Gln, Glu, Asn, Ile, Asp, Val, His, Ser, Ala, Thr, Cys, Trp, could not cause markable fluorescence changes of SW-100 (Fig. S4 in Supporting information). All these data showed that SW-100 could react with HOCl with high efficiency and selectivity.

Since our goal was to investigate an activatable probe that could release aldehyde group for tagging biomolecules, it was the critical point to verify the generation of aldehyde and its coupling ability with other molecules. HPLC analysis of the reaction substances between SW-100 and HOCl showed that one of the productions shared the same retention time with the benzaldehyde standard sample (5.16 min), indicating the producing of benzaldehyde (Fig. 2f). In addition, we used DCM to extract and enrich the production of the reaction between SW-100 and HOCl, following by GC–MS analysis to identify the benzaldehyde generated after the reaction. (Fig. S5 in Supporting information). The proximity tagging performance of the generated benzaldehyde was thus investigated by adding aniline to the reaction system 30 min after their reaction. The existence of hydrazine compounds ((E)-N,1-diphenylmethanimine) formed by the coupling of benzaldehyde and aniline was successfully demonstrated (Fig. 2g). These data illustrated that SW-100 could release benzaldehyde after activation by HOCl and the generated benzaldehyde could further react with amine group under physiological conditions in situ.

To verify that the activatable behavior of SW-100 towards HOCl was not accidental, we further designed and synthesized the series of SW-00m (m = 1, 2) and SW-10n (n = 1–5) compounds with different alkyl chains and counterpointed group-derived benzyls, respectively, based on the LMB structure (Scheme 1, Schemes S1 and S2 in Supporting information). Their spectral properties activated by HOCl were investigated by fluorescence spectroscopy in PB (pH 7.4). With the addition of HOCl, the fluorescent emission at 686 nm of all these probes (5 µmol/L) increased significantly, showing good HOCl responses and linear dependence on the concentration of HOCl (Figs. S6-S13 in Supporting information). To verify the selectivity of SW-00m and SW-10n series probes towards ROS, the effects of different ROS (HOCl, H₂O₂, TBHP, ROO^•, NO, KO₂, ONOO^–, ^•OH, TBO^•) were measured through the fluorescence spectra of MB. The result showed that only HOCl induced a significant fluorescence enhancement of the probes. Other ROS had only minimal effects, indicating that the probes all had good selectivity for HOCl (Figs. S14-S21 in Supporting information).

Four probes, SW-002 with alkyl chain, SW-101, SW-103, and SW-104 containing benzene ring with no obvious push-pull electron effector group, electrophilic group and nucleophilic group on the para-position, respectively, were selected to study their kinetics in response to HOCl (Fig. 3a). The time-dependent fluorescence changes of these probes showed a positive relationship between reaction rates and electrophilic properties of groups on benzene of the probes (Figs. S22-S25 in Supporting information). It was worth noting that although these derivatization structures could respond to HOCl and produce aldehyde-based compounds, the reaction degree was not the same (Fig. S26 in Supporting information). An increase of the fluorescent intensity at 686 nm of SW-103 (5 µmol/L) reached a plateau within only 7 min, which was the fastest one among the four probes upon adding HOCl (15 µmol/L). HPLC was used to determine the releasing rates of MB of the probes responding to HOCl according to the MB standard curve (Fig. S27 and Table S1 in Supporting information). The reaction of SW-103 was most efficient with HOCl whose MB releasing efficiency came out to be 40.77%, consistent with the reaction kinetics.

To study the effect of the substituent of the aromatic structure of MB on the aldehyde group releasing process, we prepared three different phenothiazine-derived structures (the series of SW-p00 (p = 2-4), Schemes S3-S5 in Supporting information) and investigated their response products after activated by HOCl through HPLC. Considerable benzaldehyde product was found in the reaction systems of SW-100 and SW-200, whereas the generation of benzaldehyde in SW-300 and SW-400 was almost negligible (Fig. 3b), indicating that the structure of phenothiazine derivatives also played an important role on the release of aldehyde after stimulated with HOCl. The results showed that phenothiazine-derivatives with electron-donating groups (SW-100) were easier to react with HOCl than those containing electron-withdrawing groups (SW-400). The benzaldehyde release efficiency of SW-100 was much higher than other benzyl derivatives of phenothiazine-derived structure (Table S2 in Supporting information).

After confirmed the response behavior of this series of molecules, we further studied the possible reaction mechanism. Since these probes only responded specifically to HOCl among the ROS and released aldehyde-group substances, the possible reaction mechanism was proposed as shown in Fig. 4. Taking SW-100 as an example, due to high electronegativity, the tertiary amine N atom on LMB derivative has a relatively larger electron cloud density relative to the C atom on the methylene group of the benzyl. The H proton in HOCl tend to bind to the N atom, while the oxygen atom in [ClO]^– structure may attack methylene on the benzyl group. The transfer of electrons causes the C—N bond breaking to form unstable LMB (a), which has been verified by Maldi-TOF analysis of the response substance right after adding HOCl into the solution of SW-100 (Fig. S3), and benzyl hypochlorite structures (c). LMB spontaneously oxidizes to produce MB (b) that could be confirmed not only by its fluorescence but also by naked eye under visual light. The unstable benzyl hypochlorite structure undergoes intramolecular electron transfer, shedding Cl^– and H⁺ to form benzaldehyde (d). The proposed reaction mechanism is consistent with the structure-activity relationship of the probes, in which the electron-withdrawing group linked to the para position of benzyl (SW-10n (n = 0–5) series) and the electron-donating group on aromatic phenothiazine (SW-p00 (p = 1–4) series) promote the reaction process.

The above results demonstrated that probes of SW series could release aldehydes in the presence of HOCl. The data also confirmed the universality of the strategy, which could be applied for the development of multiple types of probes. Further, we explored the feasibility of this aldehyde releasing strategy at the cellular level. Considering that the released aldehyde without fluorescence is difficult to be verified in cells, on the basis of SW-100, we introduced 4-N,N-dimethylamino-1,8-naphthalimide group with constant bright fluorescence at the para-position of the benzene ring and synthesized the probe SW-110. The synthesis details of SW-110 were shown in Scheme S6 (Supporting information). SW-110 was also verified to have good selectivity for HOCl, compared to commonly available anions, cations, and amino acids under physiological conditions (Fig. S28 in Supporting information). Compared to MB, which is well soluble in water and easily metabolized from intracellular, resulting in reduced fluorescence, naphthalimide fluorophores with aldehyde groups could be subsequently anchored within the cell and maintain long-term fluorescence after multiple times of washing. We thus used the fluorescence of MB and 4-((6-(dimethylamino)-1,3-dioxo-1H-benzo[de]isoquinolin-2(3H)-yl)methyl)benzaldehyde (NB) to indicate the reaction behavior of SW-110 by confocal laser scanning microscopy (CLSM) (Fig. 5a). Fluorescence signal of MB in 633 nm channel was found in HL-60 cells after incubation of the probe, indicating that the probe could be activated by endogenous HOCl under physiological conditions, while the constantly bright fluorophore of NB indicated the path and positioning of the probe. This further illustrated that the new proximity tagging strategy could be successfully used at the cellular level (Fig. 1b).

To verify the released NB containing an aldehyde part after reaction with HOCl had a better intracellular retention over the 4-N,N-dimethylamino-1,8-naphthalimide without an aldehyde group (NE), we compared the fluorescence decrease of different groups of cells incubated with SW-110 (10 µmol/L) and NE (10 µmol/L) for 12 h on green and red channels before and after the cells were washed by PBS every 6 h for 24 h. CLSM images of HL-60 cells loaded with SW-110 showed both green and red fluorescence, confirming the capability of SW-110 to be activated by endogenous HOCl in living cells. After 24 h of washing, the fluorescence of MB could barely be observed while the fluorescence of NB remained basically unchanged (Fig. 5b and Fig. S29 in Supporting information). Comparing to the fluorescent signal of NB, the fluorescent intensity of NE showed an obvious weakening (Fig. 5b) which proved that NB with an aldehyde group retained better in cells than NE, attributed to aldehyde group's tagging ability. CLSM images of HL-60 cells loaded with both SW-110 and NAC (500 µmol/L) showed only green fluorescence, proving the vital role of ROS in the progress of C—N bond cleavage and MB releasing (Fig. S30 in Supporting information). Cytotoxicity of SW-110 were studied on HL-60 using MTT method, which showed low cytotoxicity of SW-110 on HL-60 at experimental concentration (Fig. S31 in Supporting information).

In summary, we developed a novel HOCl-activated aldehyde group-releasing proximity-tagging strategy. Based on this strategy, a series of probes were designed, which performed good sensitivity and selectivity towards HOCl in aqueous solution and intracellular physiological conditions. These probes could release tagging-use benzaldehyde and its derivatives, while their proximity tagging ability in aqueous solution was demonstrated through aniline conjugation. The mechanism of the benzaldehyde release was proposed via the structure-activity relationship study. Furthermore, the activation and tagging capability of those probes on the cellular level was verified by using probe SW-110 with double fluorescent signals. Our work provides a simple but efficient strategy for proximity tagging in situ. Further studies for the release of aldehyde groups in specific cellular organ and the application of the physiological-condition-aldehyde-releasing strategy in vivo are under way in our laboratory.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

CRediT authorship contribution statement

Less

Mengfan Zhang: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Resources, Validation, Visualization, Writing – original draft. Lingyan Liu: Data curation, Investigation, Methodology, Resources, Software, Validation, Visualization, Writing – original draft. Peng Wei: Conceptualization, Data curation, Funding acquisition, Investigation, Methodology, Supervision, Validation, Visualization, Writing – original draft. Wei Feng: Conceptualization, Data curation, Investigation, Methodology, Supervision, Validation, Visualization, Writing – review & editing. Tao Yi: Conceptualization, Data curation, Funding acquisition, Investigation, Methodology, Project administration, Supervision, Validation, Visualization, Writing – review & editing.

Acknowledgments

Less

This study was financially supported by the National Natural Science Foundation of China (Nos. 22177019, 22377010, 22371038) and State Key Laboratory for Modification of Chemical Fibers and Polymer Materials (No. KF2206).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2024.110127.

References

Less

T. Tamura, I. Hamachi, J. Am. Chem. Soc. 141 (2019) 2782–2799.

R.N. Reddi, E. Resnick, A. Rogel, et al, J. Am. Chem. Soc. 143 (2021) 4979–4992.

R.N. Reddi, A. Rogel, E. Resnick, et al, J. Am. Chem. Soc. 143 (2021) 20095–20108.

Y. Zhang, Y. Liang, F. Huang, et al, Biochemistry, 58 (2019) 1010–1018.

C. Cui, H. Zhang, R. Wang, et al, Angew. Chem. Int. Ed. 56 (2017) 11954–11957.

Y. Tivon, G. Falcone, A. Deiters, Angew. Chem. Int. Ed. 60 (2021) 15899–15904.

J.L. Vinkenborg, G. Mayer, M. Famulok, Angew. Chem. Int. Ed. 51 (2012) 9176–9180.

Z. Xiang, H. Ren, Y.S. Hu, et al, Nat. Methods, 10 (2013) 885–888.

S.R. Adusumalli, D.G. Rawale, K. Thakur, et al, Angew. Chem. Int. Ed. 59 (2020) 10332–10336.

A.K. Hurben, P. Ge, J.L. Bouchard, T.M. Doran, N.Y. Tretyakova, Chem. Commun. 58 (2022) 855–858.

Y. Guo, J. Tao, Y. Li, et al, J. Am. Chem. Soc. 142 (2020) 7404–7412.

H. Liu, X. Wei, R. Nie, et al, LWT-Food Sci. Technol. 155 (2022) 112977.

Y. Zhang, M. Ucuncu, A. Gambardella, et al, J. Am. Chem. Soc. 142 (2020) 21615–21621.

M. Wolter, D. Valenti, P.J. Cossar, et al, Angew. Chem. Int. Ed. 59 (2020) 21520–21524.

P.J. Cossar, M. Wolter, L. van Dijck, et al, J. Am. Chem. Soc. 143 (2021) 8454–8464.

Y. Liang, Z. Li, Y. Huang, R. Yu, B. Guo, ACS Nano, 15 (2021) 7078–7093.

W. Zhang, B. Bao, F. Jiang, et al, Adv. Mater. 33 (2021) 2105667.

M. Wu, J. Chen, W. Huang, et al, Biomacromolecules, 21 (2020) 2409–2420.

R. Heras-Mozos, R. Gavara, P. Hernández-Muñoz, Carbohydr. Polym. 283 (2022) 119137.

Y. Guo, M. Wang, Q. Liu, et al, Theranostics, 13 (2023) 161–196.

W. Chen, Y. Ming, M. Wang, et al, Macromol. Rapid Comm. 44 (2023) e2300128.

F.Y. Chung, Y.Z. Lin, C.R. Huang, K.W. Huang, Y.F. Chen, Int. J. Biol. Macromol. 255 (2024) 127947.

M. Wang, F.A. Dingler, K.J. Patel, Blood, 139 (2022) 2119–2129.

J.M. Garlick, S.M. Sturlis, P.A. Bruno, et al, J. Am. Chem. Soc. 143 (2021) 9297–9302.

H.Y. Wang, Y. Zhang, M. Zhang, Y.Q. Zhang, Int. J. Biol. Macromol. 259 (2024) 129099.

V. Dhayalan, Mini-rev. Org. Chem. 20 (2023) 593–611.

A.N. Fajer, H.A. Al-Bahrani, A.A.H. Kadhum, M. Kazemi, J. Mol. Struct. 1296 (2024) 136800.

Y. Liu, Z. Fu, H. Dong, et al, Angew. Chem. Int. Ed. 62 (2023) e202300906.

E. Uhl, F. Wolff, S. Mangal, H. Dube, E. Zanin, Angew. Chem. Int. Ed. 60 (2021) 1187–1196.

Y. Chen, Y. Liu, X. Hou, Z. Ye, C. Wang, Chem. Res. Toxicol. 32 (2019) 467–473.

S. Ma, W. Song, Y. Xu, et al, Nano Lett. 20 (2020) 2514–2521.

K. Wang, J. Li, Y. Yi, et al, Nano Today, 42 (2022) 101355.

H. Gavilan, G.M.R. Rizzo, N. Silvestri, B.T. Mai, T. Pellegrino, Nat. Protoc. 18 (2023) 783–809.

R.E. Mohamed, M.A. Islam, Chelonian Research Foundation, 18 (2023) 555–594.

R.L. Brabham, R.J. Spears, J. Walton, et al, Chem. Commun. 54 (2018) 1501–1504.

C. Wang, Y. Liu, C. Bao, et al, Chem. Commun. 56 (2020) 2264–2267.

A. Trachsel, N. Paret, D.L. Berthier, A. Herrmann, ChemPhotoChem, 6 (2022) e202200045.

S. Azeez, P. Sureshbabu, S. Sabiah, J. Kandasamy, Org. Biomol. Chem. 20 (2022) 2048–2053.

G.Y. Liou, P. Storz, Free Radic Res. 44 (2010) 479–496.

H. Nakamura, K. Takada, Cancer Sci. 112 (2021) 3945–3952.

B. Perillo, M. Di Donato, A. Pezone, et al, Exp. Mol. Med. 52 (2020) 192–203.

C.R. Reczek, N.S. Chandel, Annu. Rev. Cancer Bio. 1 (2017) 79–98.

M.V. Irazabal, V.E. Torres, Cells, 9 (2020) 1342.

N. Xu, S. Jiang, P.B. Persson, et al, Acta Physiol. 229 (2020) e13477.

L. Conde de la Rosa, L. Goicoechea, S. Torres, C. Garcia-Ruiz, J.C. Fernandez-Checa, Livers, 2 (2022) 283–314.

S. He, J. Song, J. Qu, Z. Cheng, Chem. Soc. Rev. 47 (2018) 4258–4278.

Kenry, Y. Duan, B. Liu, Adv. Mater. 30 (2018) 1802394.

V. Sanchez-Valle, N.C. Chavez-Tapia, M. Uribe and N. Mendez-Sanchez, Curr. Med. Chem. 19 (2012) 4850–4860.

D. Moris, M. Spartalis, E. Spartalis, et al, Ann. Transl. Med. 5 (2017) 326.

N. Panth, K.R. Paudel, K. Parajuli, Adv. Med. 2016 (2016) 9152732.

J.N. Peoples, A. Saraf, N. Ghazal, T.T. Pham, J.Q. Kwong, Exp. Mol. Med. 51 (2019) 1–13.

G.H. Kim, J.E. Kim, S.J. Rhie, S. Yoon, Exp. Neurobiol. 24 (2015) 325–340.

E.O. Olufunmilayo, M.B. Gerke-Duncan, R.M.D. Holsinger, Antioxidants, 12 (2023) 517.

A. Singh, R. Kukreti, L. Saso, S. Kukreti, Molecules, 24 (2019) 1583.

Y. Zhou, Y. Zhen, G. Wang, B. Liu, Front. Neuroanat. 16 (2022) 910427.

X. Chen, F. Wang, J.Y. Hyun, et al, Chem. Soc. Rev. 45 (2016) 2976–3016.

C. Nathan, J. Clin. Invest. 111 (2003) 769–778.

Y. Yang, Q. Zhao, W. Feng, F. Li, Chem. Rev. 113 (2013) 192–270.

D. Liu, L. Liu, F. Liu, et al, Adv. Sci. 8 (2021) 2100074.

F. Liu, L. Liu, D. Liu, et al, Chem. Sci. 13 (2022) 10815–10823.

L. Liu, L. Jiang, W. Yuan, et al, ACS Sensors 5 (2020) 2457–2466.

L. Liu, F. Liu, D. Liu, et al, Angew. Chem. Int. Ed. 61 (2022) e202116807.

P. Wei, L. Liu, Y. Wen, et al, Angew. Chem. Int. Ed. 58 (2019) 4547–4551.

P. Wei, W. Yuan, F. Xue, et al, Chem. Sci. 9 (2018) 495–501.

N. Fan, C. Wu, Y. Zhou, et al, Anal. Chem. 93 (2021) 7110–7117.

J. Cheng, D. Li, M. Sun, et al, Chem. Sci. 11 (2020) 281–289.

T. Peng, X. Chen, L. Gao, et al, Chem. Sci. 7 (2016) 5407–5413.

Q. Sun, J. Xu, C. Ji, et al, Anal. Chem. 92 (2020) 4038–4045.

H. Zhang, J. Liu, Y.Q. Sun, et al, Chem. Commun. 51 (2015) 2721–2724.

M. Weber, H.H. Han, B.H. Li, et al, Chem. Sci. 11 (2020) 8567–8571.

Appendix

Less

Year 2025 volume 36 Issue 4

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2024.110127

Receive Date：2024-02-04
Online Date：2025-11-19
Published：2025-04-15

Article Data

Affiliations

History

Received：2024-02-04
Revised：2024-06-03
Accepted：2024-06-14

Affiliations

^aDepartment of Chemistry, Fudan University, Shanghai 200438, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2024.110127

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1 (a) Previously reported HOCl-activated carboxyl release probe FDOCl-12 and the designed HOCl-activated aldehyde release probe SW-100 in this work. (b) The proposed mechanism of HOCl-activated aldehyde release within cells for tagging application.

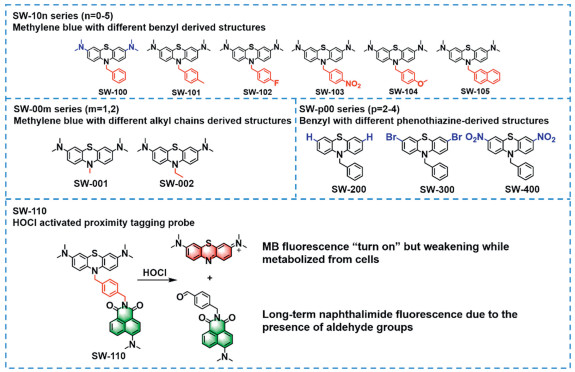

Scheme 1 Chemical structures of the series of HOCl- activated probes.

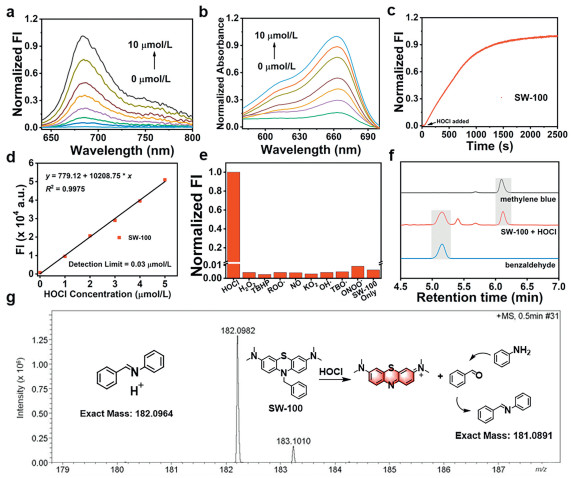

Fig. 2 ROS responsive properties of SW-100. (a) Normalized fluorescence and (b) absorption spectra of SW-100 (5 µmol/L in PB, pH 7.4) in the presence of different concentrations of HOCl (0–10 µmol/L). (c) Time-dependent changes in the fluorescence intensity of SW-100 (5 µmol/L) at 686 nm after adding HOCl (15 µmol/L). (d) The linear relationship between the fluorescence intensity at 686 nm of SW-100 and the concentration of HOCl (the detection limit is included). (e) Fluorescence intensity of SW-100 (5 µmol/L in PB, pH 7.4) at 686 nm after adding various ROS (from left to right: HOCl (10 µmol/L), H₂O₂, TBHP, ROO^•, NO, KO₂, ONOO^–, ^•OH, TBO^• with concentration of 100 µmol/L. (f) HPLC analysis of the reaction of 5 µmol/L SW-100 with 15 µmol/L HOCl (254 nm). (g) The HRMS spectra of (E)-N,1-diphenylmethanimine produced by benzaldehyde condensation with aniline.

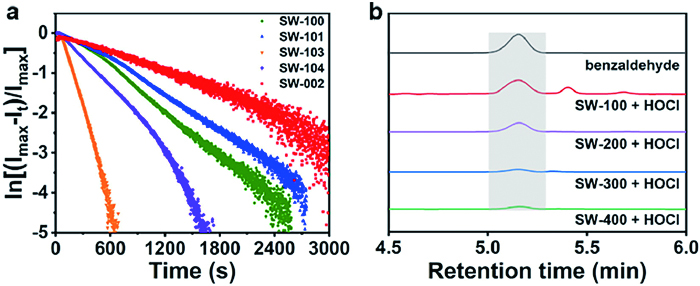

Fig. 3 (a) Pseudo-first-order kinetic plot of the reaction of 5 µmol/L probes (SW-002, SW-100, SW-101, SW-103, SW-104) to 15 µmol/L HOCl. (b) HPLC analysis of the reaction of 5 µmol/L different probes (SW-100, SW-200, SW-300, SW-400) to HOCl (15 µmol/L) and standard compound benzaldehyde (254 nm).

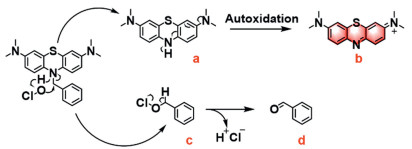

Fig. 4 Proposed reaction mechanism of the probes (SW-100 as example) activated by HOCl releasing aldehyde-based compound and MB.

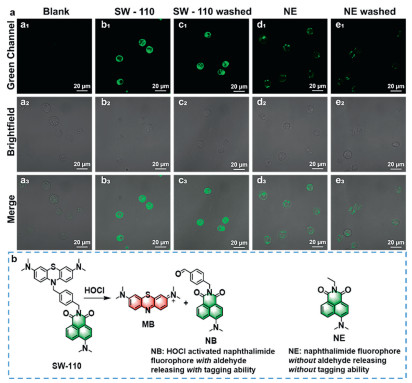

Fig. 5 (a) CLSM images of HL-60 cells incubated with SW-110 (10 µmol/L) and NE (10 µmol/L) while one of each group of cells were washed by PBS every 6 h for 24 h. λ_em = 540 ± 60 nm, λ_ex = 405 nm. Scale bar = 20 µm. (b) SW-110 reacted with HOCl to exhibit two kinds of fluorescence.
