Phase separation is a very common phenomenon in cells and is the basis for the formation of membraneless organelles such as P-bodies and stress granules. Coacervates, as membraneless organelles, have liquid-like characteristics due to the lack of physical membranes, and coacervate droplets can readily exchange biomolecules with their environment and fuse [1,2]. They play an important role in regulating biochemical reactions and improving the adaptability of cells to the environment [3,4]. In addition, many studies have shown that many neurodegenerative diseases, such as Alzheimer's disease and Parkinson's disease, are related to phase-separated proteins [5]. Liquid-liquid phase separation (LLPS) is a phenomenon in which molecules spontaneously demix from the surrounding solvent and condense into a high-concentration phase (dense phase) that is in equilibrium with a dispersed phase that has a lower molecule content. Phase separation is primarily driven by weak interactions, including π-π stacking, cation-π interactions, charge-charge interactions, and transient cross-β-contacts [4]. Many biomolecules can phase separate in cells, the most common of which are proteins and RNA. The ability of proteins to undergo phase separation is associated with their amino acid sequence, with research indicating that proteins undergoing phase separation typically possess intrinsically disordered regions or low-complexity domains, such as the RNA-binding proteins FUS [6], TDP-43 [7], and hnRNPA2 [8] containing low-complexity domains, which support multivalent interactions that aid in phase separation. DNA and RNA have been reported to provide scaffolds for phase separation of proteins or peptides, thereby allowing more complex protein/peptides interactions [9,10].

LLPS is usually characterized in vitro by fluorescence microscopy, turbidity measurements [11], and absorption measurements at 280 nm [12]. However, these techniques generate static “snapshots” and cannot provide dynamic information about the molecule as a monomer in coacervates. Solution-state nuclear magnetic resonance (NMR) spectroscopy can be utilized to offer detailed insights into the structure and motion of individual components in coacervates [13-15]. However, the investigation of the condensed phase presents challenges due to the broad line widths resulting from the heightened viscosity and reduced molecular motion within the condense phase. These factors make resonances associated with the condensed phase difficult to detect above the noise, requiring high protein concentrations [16]. Electron paramagnetic resonance (EPR) spectroscopy is a powerful tool for investigation of structure and dynamics of macromolecules in solutions [17]. The size and the dynamic regime of the protein under investigation is not a limit: either globular, membrane, and intrinsically disordered proteins can be studied [18]. In this study, we selected a minimal model of biomolecular condensates: a complex coacervate formed by electrostatic interactions between peptides and RNA. We labeled the peptide with a nitroxide spin label at an engineered cysteine and studied the dynamic properties of the spin-labeled peptide in the dispersed and dense phases using EPR spectroscopy. We demonstrated apparent line broadening in the dense phase due to slow molecular tumbling; therefore, continuous-wave (CW)-EPR spectroscopy is sensitive to phase separation. We also observed three different populations with different molecular motions: peptides in the dense phase exhibiting slow motion, defined as component Ⅲ, and peptides in the dispersed phase that correspond to fast motion and slower motion, defined as components Ⅰ and Ⅱ, respectively. Based on EPR results, we report a hypothetic schematic model for the LLPS of the peptide and RNA.

To gain a deeper understanding of the complex coacervate formed by LLPS of these positively charged arginine-rich proteins and RNA at the molecular level, here, we selected arginine-rich peptides, which contain three RRASL sequences and were previously shown to undergo complex coacervation with RNA, as minimal models of biomolecular condensates [19]. EPR spectroscopy is a powerful tool for measuring local changes in protein dynamics. EPR measurements require a paramagnetic probe, which was introduced via site-specific attachment of a methanethiosulfonate spin label (MTSL) to an engineered cysteine; therefore, we designed peptides carrying the desired mutations for spin labeling containing the RRASLRRACLRRASL sequence (Fig. 1a). We started by preparing 1 mmol/L peptide solutions after the addition of polyU, which resulted in phase separation and an opalescent phase-separated solution. We also characterized the phase separation of the peptides by microscopy using carboxytetramethylrhodamine (TAMRA) labeling. In the presence of 1 mg/mL polyU, the peptides formed micrometer-sized droplets. In control experiments which were carried out in the absence of polyU, droplets were not detected by microscopy. Phase separation also led to the fusion of droplets, indicating their liquid-like nature (Fig. 1b). After characterizing the LLPS macroscopic behavior of the peptides by microscopy (Fig. S4 in Supporting information), we explored their dynamic properties using EPR spectroscopy. First, we explored the EPR characteristics of peptides in the dispersed phase state. The CW-EPR spectrum of the peptides before phase separation shows three narrow lines, which indicates fast molecular tumbling and is expected for the disordered structure of the peptides in the dispersed phase state (Figs. 1c and d). Interestingly, the CW-EPR spectrum of the biphasic sample displays dramatically decreased signal intensities and line broadening, potentially a result of attenuated motional narrowing under peptide-RNA and peptide-peptide interactions (Figs. 1c and d). To compare the differences between the spectra of the dispersed phase and biphasic samples, we obtained the spectrum of the biphasic sample at 63× magnification, which revealed the presence of an additional, broader component that was absent in the spectrum of the dispersed sample (Fig. 1d). This component is indicative of a second population of peptide molecules that experience slow molecular tumbling or increased spin-spin interactions consistent with higher peptide concentrations in the dense phase.

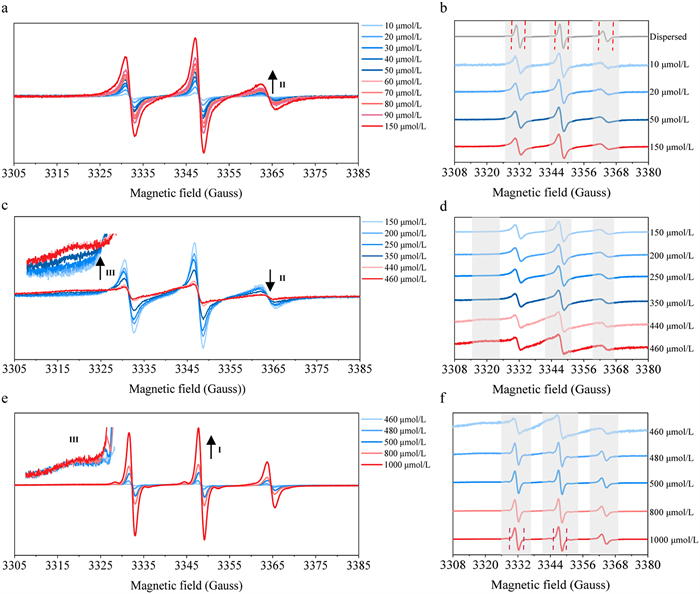

To assess the influence of the peptide concentration on the phase separation at a fixed concentration of polyU RNA, we recorded EPR spectra in the peptide concentrations ranging from 10 µmol/L to 1000 µmol/L. The EPR spectra show a concentration dependence. Surprisingly, the spectrum of the 50 µmol/L peptide in the presence of polyU is very different from that of the monomeric native peptide in the absence of polyU and displays decreased signal intensities and line broadening (Figs. 2a and b, Fig. S5 in Supporting information). However, we do not observe any liquid droplets at a peptide concentration of 50 µmol/L in the presence of polyU, which is well below the LLPS transition concentration, as shown in Fig. S4 (Supporting information). Here, we assigned component Ⅰ to dispersed peptides (monomeric native peptides) on the basis of its similar EPR spectrum to that of a highly mobile nitroxide, and we assigned component Ⅱ to peptides experiencing a slower motion at low concentrations when mixed with polyU. We excluded the possibility that the broadening of the component Ⅱ spectra was attributed to phase separation since polyU does not induce peptide phase separation at low concentrations. The simplest explanation for the line broadening of component Ⅱ would be a weak interaction of the peptide with RNA, but this weak interaction is not sufficient to induce phase separation of the peptide at low peptide concentrations; consequently, component Ⅱ is characterized as binding solely to RNA without entering a phase-separated state, remaining in a dispersed phase state. At low concentrations (e.g., in the 10–150 µmol/L concentration range), the spectra exhibit a clear increase in the spectral signature of component Ⅱ. At high concentrations (e.g., in the 200–1000 µmol/L concentration range), the spectra exhibit clear features of multiple components, with some indicative of highly restricted motion, exhibiting new signatures and more pronounced broadening than component Ⅱ; this is, component Ⅲ (Fig. 2c). Interestingly, the appearance of component Ⅲ is concomitant with an apparent phase transition, as observed by a white/opaque transition and liquid droplet formation, as shown in Fig. S4 (Supporting information); therefore, the component Ⅲ spectra display more significant line broadening, potentially as a result of phase separation. LLPS-induced line broadening in EPR spectra was previously observed for several intrinsically disordered proteins [20-22]. The increase in the component Ⅲ signature with increasing concentration from 200 µmol/L to 460 µmol/L is associated with a decrease in the component Ⅱ signature (Fig. 2c and Fig. S6 in Supporting information), and the broadening of the spectral lines becomes increasingly obvious, possibly because an increasing number of peptides in component Ⅱ are transformed into component Ⅲ with more restricted motion (Fig. 2d). Furthermore, we observed the changes in the EPR spectra at 480–1000 µmol/L peptide concentrations and found that the component Ⅲ signature signal intensity no longer increased with increasing peptide concentration but stabilized, suggesting that the peptides in the dense phase were largely saturated (Fig. 2e and Fig. S7 in Supporting information). In addition, we also noticed that the EPR spectrum was rather narrow and similar to that of the dispersed phase (monomeric native peptide) (Figs. 2e and f). We speculate that upon reaching saturation in the dense phase, some peptides enter the dispersed phase. The fraction of peptides within the dense phase exhibiting extreme line broadening minimally contributes to the overall signal, leaving only the signals from the dispersed phase.

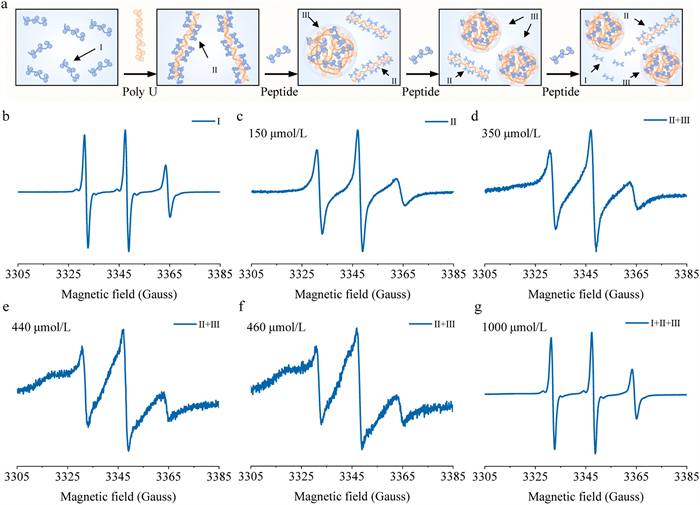

After establishing the presence of three distinct dynamic components, we proceeded to explore their relationship to LLPS. Here, we present a hypothetic schematic model for the LLPS (Fig. 3a). First, the monomeric native peptides as component Ⅰ are in the dispersed phase, exhibiting fast molecular tumbling, and the EPR spectrum is relatively narrow (Fig. 3b). Subsequently, RNA, a long polyU that carries many negative charges, can bind to arginine-rich peptides and convert peptides into peptide/RNA coacervates by electrostatic interactions. Titration of a smaller amount of peptides into a fixed concentration of RNA does not result in phase separation of the peptides but rather the formation of the oligomer that is only bound to RNA, that is, component Ⅱ, which is still in the dispersed phase state (Fig. 3c). This shows that component Ⅱ is a transition form before phase separation. As the peptides are titrated, the newly added peptides occupy the negative charges on the RNA chain, causing component Ⅱ to transform into component Ⅲ in the dense phase. A high concentration of peptides in the dense phase leads to spin-spin interactions, resulting in the EPR spectrum of component Ⅲ being broader than that of component Ⅱ. Next, component Ⅱ is consumed, while component Ⅲ increases, which is consistent with the result that the EPR spectrum gradually broadens (Figs. 3d–f). However, when the peptide concentration reaches 460 µmol/L and component Ⅲ in the dense phase was saturated, the spectrum shows a clear multicomponent feature, which we believe is due to the fact that there is still a very small amount of component Ⅱ that will not be consumed and converted into component Ⅲ, but remains in the dispersed phase. Finally, the newly added peptides enter the dispersed phase and exist in component Ⅰ form. The total EPR signal of the biphasic sample is a combination of signals from component Ⅰ, Ⅱ and Ⅲ. The signal from component Ⅰ obscures the broadened signal from component Ⅲ and the signal from minimal component Ⅱ, resulting in the appearance of three narrow peaks (Fig. 3g).

Interestingly, low RNA concentrations support the formation of condensates, whereas RNA at a sufficiently high concentration can dissolve reconstituted condensates [23]. For instance, FUS molecules bind to RNA molecule, inducing phase separation, but the highest concentrations of RNA lead to decreased phase separation [13]. We also tested the effect of the polyU RNA concentration on phase separation. The extent of phase separation was slightly affected by a decrease in the polyU concentration from 1 mg/mL to 0.5 mg/mL (Fig. S8 in Supporting information). Titration down to 0.5 mg/mL of RNA resulted in more pronounced broadening of the EPR spectrum of the 400 µmol/L peptide than titration down to 1 mg/mL of RNA, indicating that more peptides entered the dense phase and that the greatest extent of phase separation occurred. Therefore, high RNA concentrations inhibit phase separation.

In this work, EPR spectroscopy was used to provide detailed information on the motion of individual molecule inside coacervates. We demonstrated that EPR is sensitive to phase separation and that the EPR spectrum of spin-labeled peptides in the dense phase exhibited apparent line broadening due to slow molecular tumbling. In addition, EPR was able to detect the entire phase separation process and revealed three components: a fast motion component (Ⅰ), a slower motion component (Ⅱ) and an immobile component (Ⅲ). Peptide phase separation is induced by the polyU. This process does not operate via a binary "on/off" mechanism but rather via steady advancement. Before phase separation, peptides are not present as monomers but instead exist as oligomers that bind to RNA (Ⅱ). Component Ⅱ transition into component Ⅲ due to an increasing number of peptides binding to a single RNA chain, which initiates phase separation. During phase separation, component Ⅱ gradually converts into component Ⅲ until saturation is reached. Following this, the level of component Ⅲ stays consistent, and surplus peptides are present in a dispersed state. This offers a detailed explanation for the phase separation of biomolecules. Furthermore, we noticed that high RNA concentrations inhibited phase separation.

In summary, we reported the application of SDSL-EPR method in detection and characterization of LLPS processes. Detailed characterization of dynamics properties during LLPS was realized by analysis of EPR spectral line broadening, which originates from different motional states of spin-labeled molecules during LLPS. This method can be readily applied to the detection and quantitative studies of other LLPS systems. Indeed, we applied SDSL-EPR method in analyzing the LLPS process of a poly-arginine (PolyR)-ATP system, in which the PolyR peptide was spin-labeled and LLPS occurred in the presence of ATP (Fig. S9 in Suppporting information). The successful application of this method within the PolyR-ATP system further demonstrates the excellent applicability of SDSL-EPR approach, which can be widely applied to the analysis of dynamic characteristics during the LLPS process.
