Assembly of fullerenes using a highly preorganized janusarene

Full

Nianqiang Jiang^a^,¹, Yiqiang Ou^a^,¹, Yanpeng Zhu^a^,^*, Dingyong Zhong^b, Jiaobing Wang^a^,^*

Affiliations

^a School of Chemistry, Sun Yat-sen University, Guangzhou 510006, China

^b School of Physics and State Key Laboratory of Optoelectronic Materials and Technologies, Sun Yat-sen University, Guangzhou 510275, China

Published: 2025-04-15 doi: 10.1016/j.cclet.2024.110004

Outline

Abstract

Less

Molecular recognition of fullerene using various host compounds is well-known in literature. But most studies focus on host-guest complexation in solution using host compounds with a single binding cavity. Herein, we report a series of highly preorganized janusarene derivatives with homoditopic binding sites. These novel janusarenes can bind and align various fullerenes such as C₆₀, C₇₀, C₈₄, and Gd@C₈₂ in a highly efficient manner. Robust shape complementary association and assembly are observed in solution, in the bulk solid state, in the liquid crystalline state, or on surface, and the assembled structures are characterized by nuclear magnetic resonance (NMR) titration, X-ray diffraction, polarized optical microscopy, and scanning tunneling microscopy.

Key words

Janusarene / Conformation / Fullerene / Host / Assembly

Cite this Article

Nianqiang Jiang, Yiqiang Ou, Yanpeng Zhu, Dingyong Zhong, Jiaobing Wang. Assembly of fullerenes using a highly preorganized janusarene[J]. Chinese Chemical Letters, 2025 , 36 (4) : 110004 - . DOI: 10.1016/j.cclet.2024.110004

Full Text

Less

Concave-convex shape complementary interaction has been widely used for the construction of different molecular hosts of fullerenes [1-10]. However, most of these host compounds either form discrete complexes with fullerenes in solution, or cocrystallize with them under a defined condition. Except for a kind of judiciously designed conical fullerene derivative [11], extending the capability of using concave-convex interaction to direct supramolecular assembly of fullerenes [12-15], especially the unmodified ones, is still underdeveloped, which may result in highly ordered hierarchical supramolecular structures of broad interests in materials science and nanotechnology [16-18].

In 2017, we introduced a kind of hexaphenylbenzene (HPB) based homoditopic molecular host, named janusarene [19,20], which can bind and align fullerene C₆₀ and some polycyclic aromatic hydrocarbons in the solid crystalline state. Although the binding interaction is only modest in solution, cocrystal structures of these janusarene complexes show a general alternate linear host-guest binding mode, which promises janusarene as a modular host compound to direct the assembly of unmodified fullerenes under various conditions.

Herein, we report a series of new janusarene derivatives (1, 2, and 4), which have highly preorganized bowl-shaped binding cavities, and the binding constant for fullerene C₆₀ is 25-fold stronger than that of the previous one. Impressively, these new janusarenes can assemble with various fullerenes, such as C₆₀, C₇₀, C₈₄, and Gd@C₈₂ via concave-convex shape complementary interaction. Molecular recognition and assembly in solution, in the bulk solid state, in the liquid crystalline state, or on surface highlight the generality and robustness of the current system, distinct from various supramolecular assembly of unmodified fullerenes [21-24], or fullerene derivatives [25-27].

To design a highly preorganized janusarene (Fig. 1), we use HPB and triphenylbenzene (TPB) as the basic polyphenyl structural subunits. Briefly, free rotation of the peripheral (p-) phenyl rings of HPB is limited with an energy barrier of 73.2 kJ/mol [28]. This unique structural feature of HPB allows us to prepare the homoditopic janusarene derivatives, e.g., 3, by twelve-fold attaching of the fencing (f-) phenyl rings to the meta-position (red star) of HPB’s p-rings [19]. However, in the original design, free rotation of f-ring around the C—C bond to p-ring, like that in biphenyl (BP, ΔG^ǂ = 7.2 kJ/mol) [29], leads to an ill-defined binding cavity (Fig. 2B), which is deleterious on host-guest association. We now attach additional "back" (b-) phenyl ring between each two f-rings, resulting in a TPB subunit. This simple structural modulation will substantially increase the rotational barrier of f-rings (ΔG^ǂ = 33.2 kJ/mol), thereby favoring the formation of two highly preorganized bowl-shaped binding cavities. In addition, two flexible branched alkyl chains are appended on each b-ring, which enhance solubility and are essential for molecular assembly under different conditions.

The key step in the synthesis of 1 and 2 involves a Co₂(CO)₈ catalysed [2 + 2 + 2] cyclotrimerization reaction of a bis-TPB functionalized tolan precursor (Scheme S1 in Supporting information), which incorporates 25 phenyl rings on a newly formed HPB platform and affords the desired product in excellent yield (> 90%) [30,31]. We also prepared 4 (Fig. 2A and Scheme S2 in Supporting information), in which all the b- and f-rings are 4-methoxyphenyls, for crystallographic investigation. Compound 3 had been prepared previously [19].

Incorporation of b-rings has a significant effect on the conformation of janusarene. Single crystal X-ray structure of 4, possessing the same polyphenyl skeleton as that of 1 and 2, shows a perfect bowl-shaped conformation, which is better preorganized than 3 (Fig. 2, Tables S2 and S3 in Supporting information). The average dihedral angle (DA) between p-f rings are increased, from 30.8° to 53.9°, with the introduction of b-rings. This structural change preorganizes the π-surfaces of f-rings to form a conical cavity, which is expected to be in favor of concave-convex interaction with fullerenes. Moreover, the HPB subunit in 4 displays a regular propeller conformation with an average DA of 57.3° between p-c rings. In contrast to 4, the polyphenyl skeleton of 3 is more disordered (Fig. 2B). The X-ray structure of 4 is highly promising for a strong shape complementary complexation with fullerenes.

When 4 and C₆₀ (1:1, mole ratio) are mixed in a toluene solution, insoluble 4-C₆₀ complex is formed promptly, indicating a host-guest association. To characterize the host-guest interaction in solution, we performed ¹H-nuclear magnetic resonance (NMR) titration using janusarene 1 which has improved solubility. The result indicates that addition of b-rings results in a significantly enhanced binding capability (Fig. 3). The inner proton H¹, at the bottom of the binding cavity on p-ring, shifts from 7.55 ppm to 7.71 ppm in the presence of 3.1 equiv. of C₆₀. Job plot analysis gives a 1:2 binding stoichiometry (Fig. S4 in Supporting information), indicating that each binding cavity associates with one C₆₀. The first and second association constant K₁ and K₂ are determined to be 26,200 ± 340 and 2950 ± 6 L/mol, respectively (Fig. S6 in Supporting information). K₁ is more than 25-fold stronger than that of 3 without b-rings (1020 L/mol, determined previously using a monotopic analogue of 3). Because K₂, 2950 L/mol, is less than 1/4 of K₁, ~6550 L/mol, a negative cooperativity is present.

In contrast to proton H¹, which shifts to the down-field monotonically upon addition of C₆₀, a turning point, from down- to up-field shift, at ~1.0 equiv. of C₆₀ appears on the titration curves for all the other protons H²-H⁵ (Fig. 3, Figs. S5 and S6 in Supporting information). We reason that, (ⅰ) binding with the first C₆₀ decreases the electron density of f-rings due to a charge transfer interaction between the electron-rich anisole groups (f-rings) and the electron-deficient C₆₀, as is supported by the ultraviolet–visible (UV–vis) absorption spectral changes (Fig. S7 in Supporting information), thereby leading to a deshielding effect which accounts for the initial down-field shift of protons H¹–H⁵. However, (ⅱ) complexation with the second C₆₀ might result in a more rigidified conformation, in which the f- and b-rings, are sandwiched between two fullerenes (Fig. 3, inset), and adopt a near "cofacial" arrangement. In this way, f- and b-rings of the 1-C₆₀ 1:2 complex are expected to experience a stronger shielding effect than the 1:1 complex, dominating the changes in chemical shift of protons H²–H⁵ to high field. Due to fast exchange of free and bound host on the NMR timescale, only one set of resonance signals is observed.

Well-defined bowl-shaped conformation and strong host-guest complexation prompt us to investigate molecular assembly of the newly designed janusarene with various fullerenes, such as C₆₀, C₇₀, C₈₄, and Gd@C₈₂ (Fig. 4). Evaporation of the solvent from a solution of the 1-C₆₀ complex (1:1, mole ratio) in toluene generates a brown colored, clay-like material. X-ray diffraction (XRD) measurement shows a series of distinct diffraction signals with d-spacing of 26.9 (100), 15.4 (110), 13.5 (200), and 10.1 Å (210), respectively. In addition, a broad halo at ~4.5 Å can be attributed to the molten alkyl chains (Fig. S8 in Supporting information). The XRD pattern indicates an alternate linear assembly of janusarene and fullerene (Fig. 1C), which further organizes into a hexagonal columnar structure (d₁₀₀: d₁₁₀: d₂₀₀ = 1:1/

: 1/2, Fig. 5A, inset), a result in agreement with the X-ray crystal structure of the 3-C₆₀ complex reported previously [19]. An intercolumnar distance of 30.6 Å, deduced from the XRD data (Table S4 in Supporting information), is reasonable considering the dimension of the polyphenylene core of janusarene (diam. ~20 Å) plus the periphery alkyl chains (~13.8 Å in an all-trans conformation).

When other fullerenes, such as C₇₀, C₈₄, and Gd@C₈₂, are applied (Figs. 4B–D, Fig. S8 in Supporting information), evaporation of a mixed solution of 1-fullerene complex (1/1, mole ratio) in toluene delivers a hexagonal columnar structure consistent with that obtained with C₆₀. Although different isomers of the high fullerene C₈₄, and metallofullerene Gd@C₈₂ are present, the XRD patterns are not affected significantly. Molecular modelling study suggests that janusarene 1 can adjust its conformation to accommodate different fullerenes by a slight change on the DAs between p-c and p-f rings (Fig. S10 in Supporting information). Furthermore, we observe an extremely high thermostability for the assembled columnar structure. For instance, XRD pattern of the assembled 1-C₆₀ complex is maintained even after being heated at 270 ℃ for 1 h (Fig. S11 in Supporting information). And the XRD signals get sharper after heating due to a thermal annealing effect.

To further demonstrate the generality and robustness of the current system, we systematically investigate the molecular assembly of 1 and C₆₀ (or 1 and C₇₀, see Supporting information), under different conditions. A lyotropic liquid crystalline (LLC) mesophase [11] is formed, when n-tetradecane and 1-C₆₀ (or 1-C₇₀) complex are mixed (w/w = 3/5) (Figs. S10–S13 in Supporting information). Polarized optical microscopy (POM) reveals a fluid and birefringent texture at 25 ℃ (Fig. 5A, Figs. S13 and S15 in Supporting information). The XRD pattern (Fig. 5A, inset) is similar to that recorded with the bulk 1-C₆₀ complex alone (Fig. 4A), indicating that the hexagonal columnar structure is maintained.

We find that the intercolumnar distance (a) increases linearly with the amount of intercalated alkane added (a = 39.8 Å, when alkane/C₆₀-complex = 3/5, w/w, Figs. S12 and S14 in Supporting information). The hexagonal columnar LLC mesophase is maintained until the mass ratio of n-tetradecane to 1 reaches 4/5, after that, only diffuse XRD signals are observed, indicating a less ordered structure. It is noteworthy that using host-guest chemistry to produce liquid-crystalline (LC) materials of pristine fullerene has rare precedents [32,33], and most LC fullerenes are obtained by covalent attaching of mesogenic pendants [34].

Assembly of janusarene and fullerene is robust and general. When a transparent solution of the 1-C₆₀ complex (10 mg) in a mixture of dichloromethane/ethanol (1.1 mL, 6/5, v/v, in a sealed vial) is cooled from 65 ℃ to 20 ℃, a dark-yellow precipitate is formed quantitatively. Microscopic optical imaging shows a fiber-shaped structure of millimeter in length (Fig. 5B). XRD pattern of the precipitate obtained thereby reveals a columnar assembly structure comparable to the bulk, or LC state as discussed above (Fig. S16 in Supporting information). Furthermore, when a droplet of the 2-C₆₀ complex (5 µmol/L, in hexane) is dried on the highly oriented pyrolytic graphite (HOPG) surface, and examined using scanning tunneling microscopy (STM), uniform columnar structures aligned in parallel are observed (Fig. 5C). The intercolumnar distance on surface, ca. 2.6 nm (Fig. S17 in Supporting information), is shorter than the corresponding value in the bulk state, ca. 3.1 nm. This discrepancy is reasonable for STM imaging of assembled three-dimensional nano-objects, whose surfaces are coated with alkyl chains [35].

In conclusion, we present a series of highly preorganized janusarenes with perfect bowl-shaped binding cavities. Taking advantage of the shape complementary interactions, these biconcave molecular hosts exhibit remarkable capability to assemble various unmodified fullerenes, including C₆₀, C₇₀, C₈₄, and Gd@C₈₂. This system performs well in solution, in the bulk state, in the LC state, or on surface. We expect that a general and reliable method to assemble different fullerenes, especially the less accessible and highly precious high fullerenes and endohedral fullerenes, may open new opportunity for exploring their potentials in interdisciplinary fields of chemistry, physics, and materials science.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

CRediT authorship contribution statement

Less

Nianqiang Jiang: Writing – original draft, Investigation. Yiqiang Ou: Software, Formal analysis. Yanpeng Zhu: Project administration, Funding acquisition. Dingyong Zhong: Resources, Project administration, Methodology. Jiaobing Wang: Supervision, Conceptualization.

Acknowledgments

Less

This research was supported by the National Natural Science Foundation of China (Nos. 22325111, 2220312, 21871298, 91956118), Guangdong Basic Research Center of Excellence for Functional Molecular Engineering and the Sun Yat-sen University. We thank Prof. Xing Lu and Dr. Chang-wang Pan in Huazhong University of Science and Technology for providing higher fullerene C₈₄.

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2024.110004.

References

Less

T. Kawase, H. Kurata, Chem. Rev. 106 (2006) 5250–5273.

E.M. Pérez, N. Martín, Chem. Soc. Rev. 37 (2008) 1512–1519.

X. Hou, Y. Sun, L. Liu, et al., Chin. Chem. Lett. 27 (2016) 1166–1174.

R. Chen, R. Lu, P. Shi, et al., Chin. Chem. Lett. 27 (2016) 1175–1183.

X. Chang, Y. Xu, M. von Delius, Chem. Soc. Rev. 53 (2024) 47–83.

M. Yanney, F.R. Fronczek, Angew. Chem. Int. Ed. 54 (2015) 11153–11156.

Y.M. Liu, D. Xia, B.W. Li, et al., Angew. Chem. Int. Ed. 55 (2016) 13047–13051.

X.S. Ke, T. Kim, V.M. Lynch, et al., J. Am. Chem. Soc. 139 (2017) 13950–13956.

Y. Yang, K. Cheng, Y. Lu, et al., Org. Lett. 20 (2018) 2138–2142.

Z. Qiu, Y. Cheng, Q. Zeng, et al., J. Am. Chem. Soc. 145 (2023) 3289–3293.

M. Sawamura, K. Kawai, Y. Matsuo, et al., Nature 419 (2002) 702–705.

T. Haino, Y. Matsumoto, Y. Fukazawa, J. Am. Chem. Soc. 127 (2005) 8936–8937.

G. Fernández, E.M. Pérez, L. Sánchez, et al., Angew. Chem. Int. Ed. 47 (2008) 1094–1097.

D.S. Kim, J. Chang, S. Leem, et al., J. Am. Chem. Soc. 137 (2015) 16038–16042.

Z. Sun, X. Guo, Y. Zhao, et al., Chin. Chem. Lett. 35 (2024) 109162.

J.L. Segura, N. Martín, D.M. Guldi, Chem. Soc. Rev. 34 (2005) 31–47.

S.S. Babu, H. Möhwald, T. Nakanishi, Chem. Soc. Rev. 39 (2010) 4021–4035.

X. Zhang, X. Li, Chin. Chem. Lett. 25 (2014) 912–914.

T. Li, L. Fan, H. Gong, et al., Angew. Chem. Int. Ed. 56 (2017) 9473–9477.

Z. Yin, L. Fan, C. Lin, et al., Chin. Chem. Lett. 33 (2022) 280–282.

B.W. Smith, M. Monthioux, D.E. Luzzi, Nature 396 (1998) 323–324.

M. Shirakawa, N. Fujita, S. Shinkai, J. Am. Chem. Soc. 125 (2003) 9902–9903.

T. Yamaguchi, N. Ishii, K. Tashiro, et al., J. Am. Chem. Soc. 125 (2003) 13934–13935.

K. Wei, J. Li, W. Zhang, et al., Chin. Chem. Lett. 35 (2024) 109055.

T. Homma, K. Harano, H. Isobe, et al., J. Am. Chem. Soc. 133 (2011) 6364–6370.

H. Isla, E.M. Pérez, N. Martín, Angew. Chem. Int. Ed. 53 (2014) 5629–5633.

R.C. Huber, A.S. Ferreira, R. Thompson, et al., Science 348 (2015) 1340–1343.

D. Gust, J. Am. Chem. Soc. 99 (1977) 6980–6982.

F. Grein, J. Phys. Chem. A 106 (2002) 3823–3827.

Y.P. Zhu, Z.M. Xia, Z.Y. Cai, et al., J. Am. Chem. Soc. 140 (2018) 4222–4226.

H. Shi, B. Xiong, Y. Chen, et al., Chin. Chem. Lett. 34 (2023) 107520.

D. Felder, B. Heinrich, D. Guillon, et al., Chem. Eur. J. 6 (2000) 3501–3507.

M. Kimura, Y. Saito, K. Ohta, et al., J. Am. Chem. Soc. 124 (2002) 5274–5275.

D. Felder-Flesch, D. Guillon, B. Donnio, Fullerene-containing liquid crystals, in: J.W. Goodby, P.J. Collings, T. Kato, et al. (Eds.), Handbook of Liquid Crystals, Wiley-VCH, Weinheim, 2014.

M.A. Mezour, I.I. Perepichka, J. Zhu, et al., ACS Nano 8 (2014) 2214–2222.

Appendix

Less

Year 2025 volume 36 Issue 4

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2024.110004

Receive Date：2024-03-14
Online Date：2025-11-19
Published：2025-04-15

Article Data

Affiliations

History

Received：2024-03-14
Revised：2024-05-08
Accepted：2024-05-11

Affiliations

^a School of Chemistry, Sun Yat-sen University, Guangzhou 510006, China

^b School of Physics and State Key Laboratory of Optoelectronic Materials and Technologies, Sun Yat-sen University, Guangzhou 510275, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2024.110004

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1 Design and structure of new janusarenes. (A) Rotational barriers of various polyphenylene structural subunits of janusarene. (B) Molecular model of janusarene, optimized using molecular mechanics. One of the six TPB subunits (circled area) is shown with the ChemDraw structure. Note: In the molecular model, all the functional groups are substituted with hydrogens. (C) Cartoon representation of the alternate linear assembly of janusarene and fullerene.

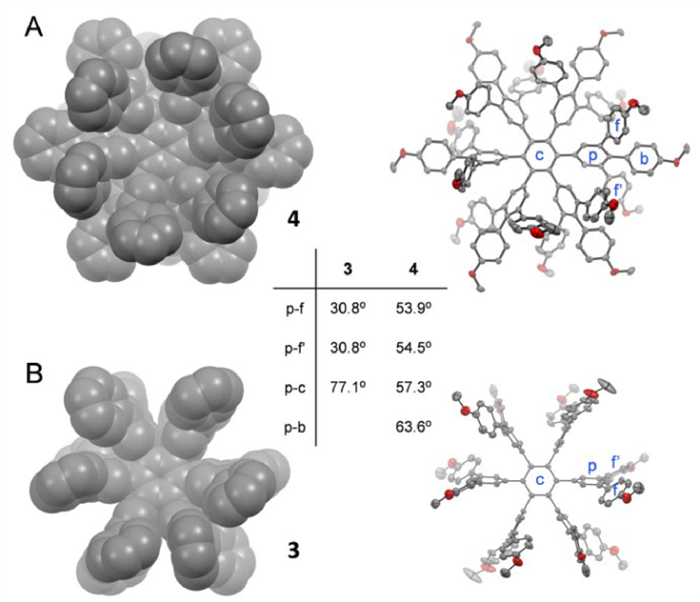

Fig. 2 Crystal structures of janusarene derivatives with (A, 4) and without (B, 3) the b-rings. All the f- and b-rings are 4-methoxyphenyls, whose methoxy groups are removed in the space-filling crystal structures for clarity. DA is reported as an average value, f and f’ denote the f-rings around different binding cavities.

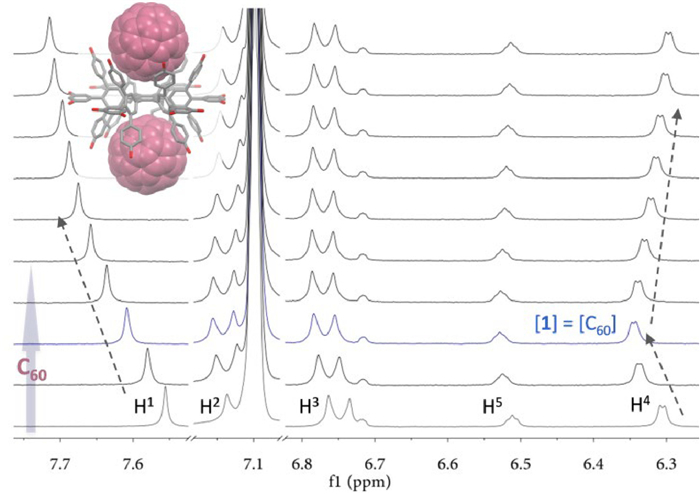

Fig. 3 Partial ¹H NMR spectral changes of 1 (in ⁸D-toluene, 0.4 mmol/L) upon addition of up to 3.1 equiv. of C₆₀. Inset, molecular model of the 1-C₆₀ 1:2 complex, generated using molecular mechanics. In this model, the methoxy groups on f-rings and the branched alkoxy groups on b-rings are simplified for clarity.

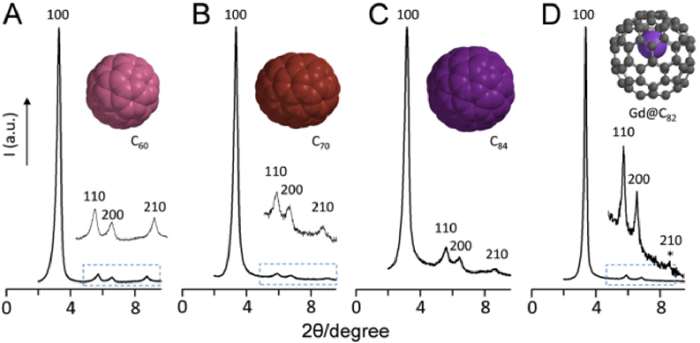

Fig. 4 XRD patterns of the 1-C₆₀ (A), 1-C₇₀ (B), 1-C₈₄ (C), and 1-Gd@C₈₂ (D) 1:1 complex at 25 ℃. Inset, enlarged partial XRD signals. Evaporation of the fullerene complexes in toluene, under reduced pressure at 50 ℃, resulted in the assembled materials within minutes.

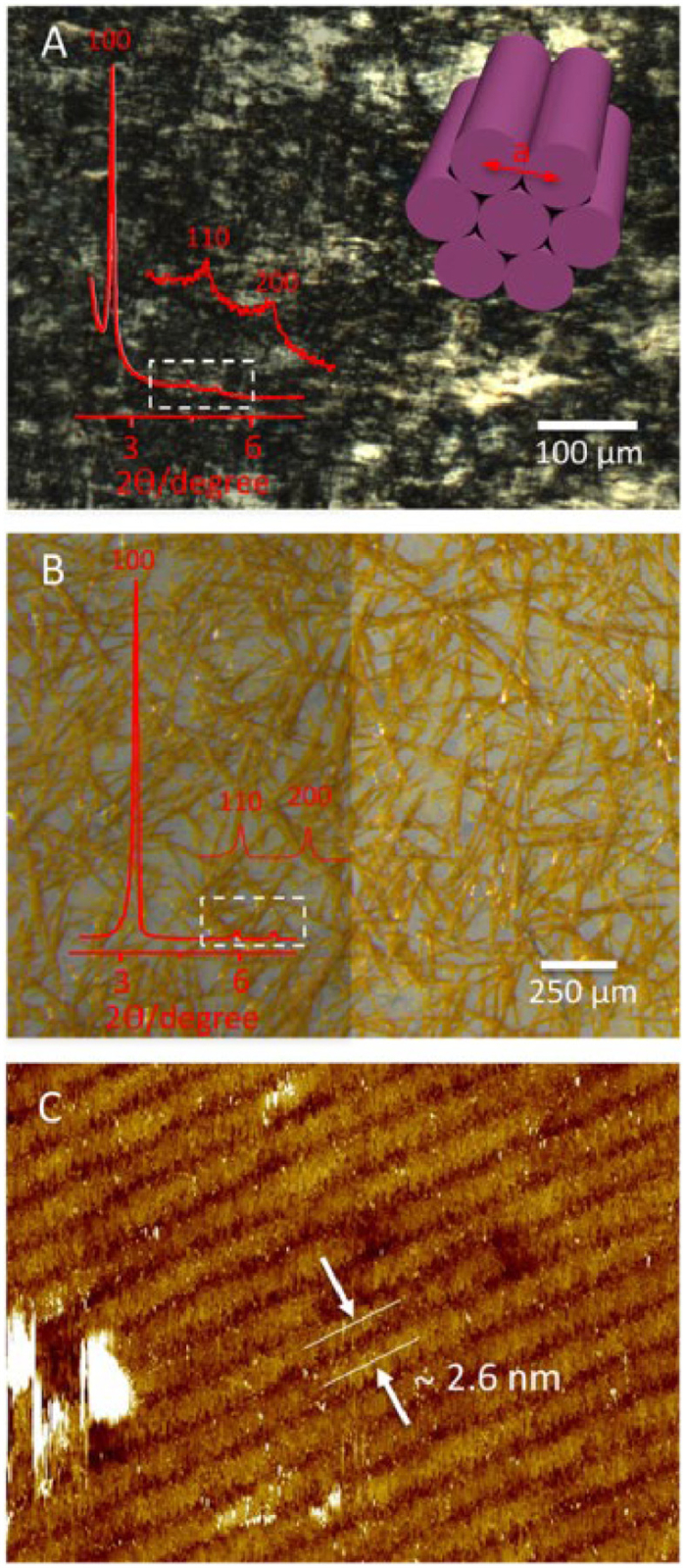

Fig. 5 Molecular assembly of janusarene and C₆₀ under different conditions. (A) POM image of the lyotropic LC mesophase formed by mixing 1-C₆₀ complex and tetradecane (5/3, w/w) at 25 ℃. Inset, XRD pattern of the material at 25 ℃ and the schematic representation of the hexagonal columnar structure. (B) Optical micrograph of the assembled 1-C₆₀ complex in a mixed solvent of dichloromethane and ethanol (6/5, v/v). Inset, XRD pattern of the fibers at 25 ℃. (C) STM image of the columnar assembly of the 2-C₆₀ complex on a HOPG surface.
