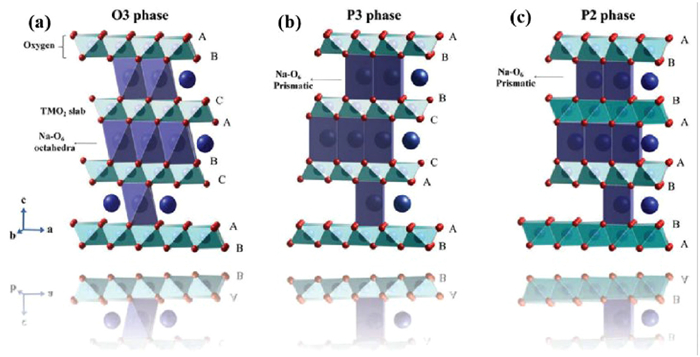

P2-type layered oxides have wide sodium ions transport channels and low ion migration energy barrier and have high reversible specific capacity and structural stability. However, the sodium-deficient P2-layer oxides always exhibit complex phase transition, which exacerbates the collapse of the structure and leads to a decline in material cycling performance [57].

In 2017, Li et al. [58] tried to solve this problem by preparing Zr⁴⁺ doped Na_0.75Mn_0.55Ni_0.25Co_0.05 Fe_0.10Zr_0.05O₂. It is proved that replacing Fe³⁺ with Zr⁴⁺ can greatly improve the rate performance and cycle stability. However, the capacity of the material doped with Zr⁴⁺ is lower than that of the unmodified material at a small current, which is caused by the electrochemical inertness of Zr⁴⁺ in the measured voltage range. At the same time, the modified material has better rate performance than the original sample and still has a capacity of about 60 mA/g even at 10 C. This is because the bond energy of Zr-O is stronger than that of Fe-O, the stability of the structure is enhanced and the cycle performance is improved. On the other hand, the equivalent substitution of Fe³⁺ by Zr⁴⁺ improves the conductivity in favor of Na⁺ conduction, increases the disorder of the transition metal layer, prevents the ordering of Na⁺ vacancy, and further improves the multiplier performance. The author compared the properties of the materials made by in-situ doping and non-in-situ doping and found that the residual ZrO₄ residue in non-in-situ doping would seriously affect the electrochemical properties of the materials, resulting in a decline in capacity and rate performance. At the same time, the addition of Zr⁴⁺ has little effect on the redox peak of the material. The charge and discharge curve of the material becomes smooth, no obvious charge and discharge platform appears, and there is no transition from P2 phase to O2 phase in this process. In short, although the capacity of the material was not improved, the rate performance was strengthened, which laid the foundation for subsequent research.

In 2021, Yang et al. [59] designed the P2 Na_0.6Ti_0.2Mn_0.2Co_0.2Ni_0.2Ru_0.2O₂ (TMCNR) cathode material through solid phase reaction, which reduced the possible order and phase transition in the P2 structure. This material showed excellent rate performance. It provides a high capacity of 164 mAh/g at 0.1 C and 68 mAh/g at 86 C, which exceeds most existing sodium-ions cathode materials. However, its long-term performance is poor, the capacity of the material decreases significantly after 30 cycles of recycling, which is caused by its structural factors. Further comparing the different voltage windows under the circulation ability, found that when the upper limit of voltage is 4.2 V, cycle performance will be improved. The authors point out that the improved performance is due to the presence of multiple high-entropy components in the transition metal (TM) layer leading to the disorder of cations and charges, effectively weakening the vacancy generation in the sodium layer and promoting the diffusion of sodium ions. In contrast, in non-high entropy layered materials, the orderly arrangement of transition metals is easily formed due to the small number of transition metal components, resulting in a high diffusion energy barrier, which hinders the macroscopic rapid diffusion of Na⁺. It is calculated that the TM concentration of high Na⁺ migration barrier should be maintained at < 0.293. In P2-TMCNR, the concentration of harmful Ru was < 0.293, while the concentration of beneficial Co and Ni combined was > 0.293, which met the threshold of rapid macroscopic diffusion. This is consistent with the experimental results. The design of this material can be said to be another big step forward for HE materials, and the beneficial concentration range of TM obtained by the authors through calculation has also been verified, which is conducive to subsequent development research.

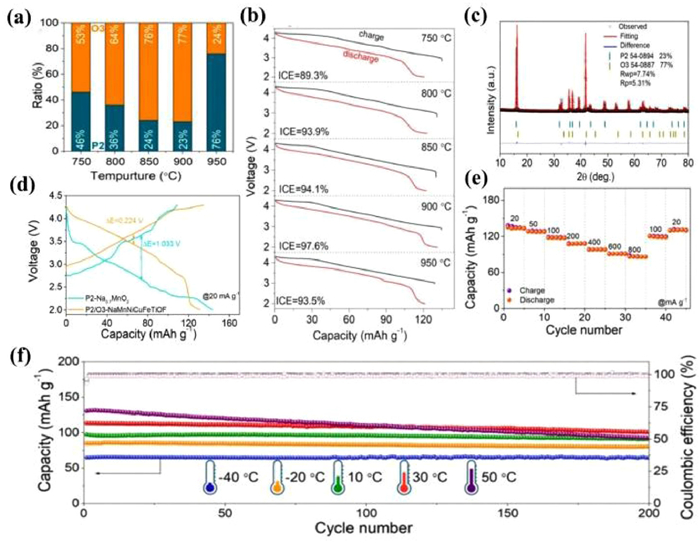

To improve electrochemical performance, researchers have conducted a series of studies on P2/O3 [60] mixed phase in recent years and found that the capacity of hybrid oxides has a high reversible ability. The idea of using multi-element high entropy oxides to improve the storage capacity of sodium through the entropy stabilization effect is put forward. In 2022, Zhou et al. [61] proposed to use of high entropy to improve layered sodium-manganese-based oxides to improve their shortcomings of limited initial coulomb efficiency and poor structural stability. The author, through the method of solid phase sintering and temperature regulation of the preparation of the optimal proportion of P2/O3 mixing P2/O3-Na_0.7Mn_0.4Ni_0.3Cu_0.1Fe_0.1Ti_0.1O_1.95F_0.1 (NaMnNiCuFeTiOF). It is pointed out that the calcination temperature has a great influence on the composition of the material. The pure P3 phase is formed at 500 ℃, and the P2/O3 dual phase structure is formed when the temperature is increased to 640 ℃ or more. It is worth noting that, P2/O3 duplex structure of P2/O3 percentage changes over the sintering temperature (Fig. 5a). When the temperature reaches 900 ℃, the O3 ratio is the highest, reaching 77%. Moreover, when O3 phase increases, the initial coulomb efficiency of the material can be significantly improved (Fig. 5b). Generally speaking, P2 has a wider diffusion path and linear transport mode Na⁺ insertion/extraction, while O3 phase has a narrower diffusion path and curved transport mode, resulting in a higher Na⁺ diffusion barrier. However, in this paper, the author obtained through refined XRD (Fig. 5c) that the cell parameters of P2 phase in NaMnNiCuFeTiOF were close to those of the pure P2 phase. In contrast, the parameter of O3 phase in the material was much larger than that of pure O3 phase. This indicates that the O3 phase in P2/O3-NaMnNiCuFeTiOF can provide a wide diffusion path for Na⁺ ion migration, Thus, the electrochemical properties of the material are improved. Compared with the pure phase P2-Na_0.7MnO₂, P2/O3-NaMnNiCuFeTiOF shows a smaller polarization and an initial coulomb efficiency of 97.6% in the charging-discharge curve (Fig. 5d), which makes it more suitable for use in full batteries and has a higher energy density. It also shows good rate performance under different current densities (Fig. 5e), even at a large current of 800 mAh/g, it still delivers a capacity of 86.7 mAh/g and exhibits good cycle stability at different temperatures (Fig. 5f). At the same time, the phase transition in the cycle of layered materials has been the focus of research. The author studied the evolution process of the material circulation structure of P2/O3-Na_0.7Mn_0.4Ni_0.3Cu_0.1Fe_0.1Ti_0.1O_1.95F_0.1 using in situ XRD under different temperature conditions. It was found that the material undergoes a P2/O3-P2/P3 transition at 3.31–4.13 V at both high and low temperatures. However, at high temperatures, a P2/P3-OP4/OP2 transition occurs when the voltage reaches 4.3 V, whereas this transition does not occur at low temperatures. In other words, the material at high temperature will undergo three steps (P2/O3-P2/P3-P2/P3-OP4/OP2), while at low temperature it will only undergo two steps (P2/O3-P2/P3). This also indicates that low temperature will hinder the phase transition process of the material. It is important to note that whether at low or high temperatures, the phase transition is reversible and the lattice does not exhibit significant shrinkage or expansion. This is mainly because the inclusion of high-entropy materials effectively prevents the Jahn-Teller effect of Mn³⁺. Additionally, the inclusion of strong TM-F bonds effectively prevents the detrimental sliding of the TM layer while Na⁺ is being extracted/inserted, thereby enhancing the stability of the structure. In this article, the authors modified P2-Na_0.7MnO₂ by controlling the temperature and using HE material, which greatly improved the electrochemical properties, such as initial coulombic efficiency and material ratio. The factors of the material’s excellent performance in the field of wide temperature were explored successfully.

In 2023, Wang et al. [62] prepared biphasic mixed Na_0.9Ni_0.2Mn_0.55Cu_0.14Ti_yZn_zO₂ (P2/O3-NMCTZ) by sol-gel method. Compared with pure O3 phase, it has higher capacity retention rate and higher initial capacity, but its rate performance is not very ideal. By calculating the pseudo-capacitance contribution rate of P2/O3-NMCTZ, the authors found that the improved cycling performance was caused by the enhancement of intercalation pseudo-capacitance effect and the generation of oxygen vacancies caused by polyatomic doping at the interface where P2 and O3 structures were mixed, thus providing more surface reaction sites. The authors point out that the sodium diffusion rate of P2/O3 is significantly higher than that of O3 type, which is due to the existence of P2 structure providing more channels for the sodium ions diffusion, thus improving the electrochemical properties of the material. In general, the presence of mixed-phase increases the capacity of the material but decreases the rate performance, which is an area that needs to be improved in future research. In contrast, in 2023, Mu et al. [63] prepared Na_0.85Li_0.05Ni_0.25Cu_0.025Mg_0.025Fe_0.05Al_0.05Mn_0.5Ti_0.05O₂ by solid phase method to reduce the decline of O3 phase capacity and improve the rate performance of the material. The material owns a specific capacity of 122 mAh/g at 0.2 C and 81.8 mAh/g at 10 C, with a capacity retention rate of 90% after 1000 cycles. For comparison, S-HE (NaLi_0.05 Ni_0.25Cu_0.025Mg_0.025Fe_0.05Al_0.05Mn_0.5Ti_0.05O₂) was prepared by changing the proportion of sodium salt. They have similar specific discharge capacities of 122 mAh/g and 120 mAh/g at 0.2 C, but B-HE rates performance is better than S-HE. At high current density, B-HE can provide 76.5 mAh/g reversible capacity, and the capacity retention rate is 89% after 1000 cycles, both of which are significantly improved compared with S-HE. In-situ XRD deeply reveals the impact of phase transition in the charge and discharge process of the battery. In the process of B-HE charging and discharging, only O3-P3 changes, and P2 phase does not change, so it is believed that the existence of P2 phase plays a role in enhancing the stability of the material structure. Through the reading of the above article, the HE material can effectively increase the diffusion rate of sodium ions and provide more oxygen vacancies, thus improving the electrochemical performance of the material. Through the control of calcination temperature, the optimal ratio of dual-phase mixed materials can be prepared, so as to achieve complementary advantages, so that the material has not only good structural stability of P2 phase but also a relatively high capacity of O3 in the charge and discharge process. However, the rate performance of the current materials needs to be further developed, and the stability performance needs to be improved.

The phase transition in the charge and discharge process of layered materials has always been the focus of research. The multiple phase transitions existing in the O3 phase structure have a huge impact on the capacity and cyclic stability of the material. In the process of solid solution, the shielding effect between O—O is weakened, which leads to the increase of the layer spacing between Na-Na. The transition metal layer spacing also changes with the removal of sodium ions leading to the transition, resulting in the reduction of sodium content and the change of excessive metal valence, which makes the alkali metal layer deformed or even collapsed, leading to the irreversible transformation of the structure. Therefore, how to inhibit phase transition is the main problem to be considered by researchers. At present, some studies have shown that HE structures can effectively inhibit such phase transitions of layered oxides.

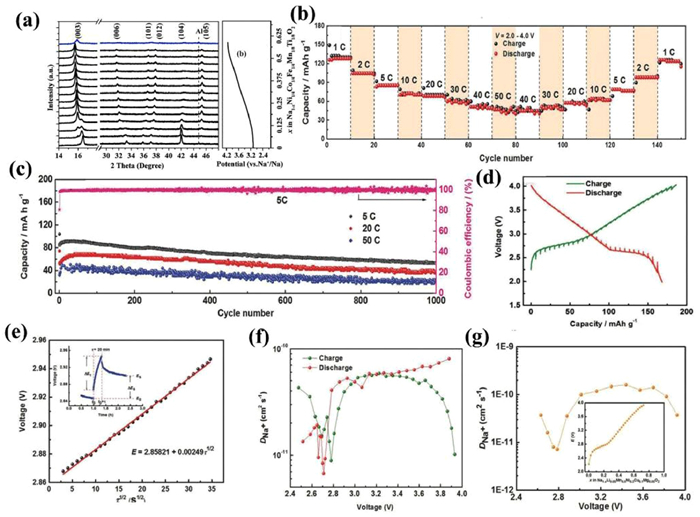

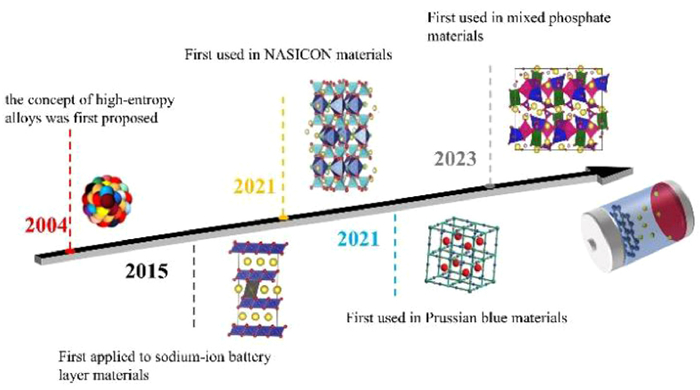

In 2015, Yue et al. [64] reported a single-phase oxidation NaNi_1/4Co_1/4Fe_1/4Mn_1/8Ti_1/8O₂ (NCFMT), composed of five transition metals, which for the first time applied HE materials to the layered materials of SIBs. This material has a considerable reversible capacity, ultra-fast charge and discharge capacity, and a long room temperature sodium-ion battery cycle life. The first cycle at 0.1 C provided a discharge specific capacity of close to 128 mAh/g. The capacity remained stable at 96.82 mAh/g at 2 C after 100 cycles and the capacity retention rate was 97.72%. In order to prove that HE can suppress the terrible phase transition of the material, the author successfully explained the changes of different crystal faces in the charge and discharge process of the battery by in-situ XRD pattern (Fig. 6a) and confirmed that the test in the voltage range of 2.0–4.1 V can effectively reduce the capacity decline. The authors show that Ni, Co, and Fe participate in charge compensation during Na⁺ insertion/extraction, while Mn and Ti stabilize the structure without changing its oxidation state. The electrochemical properties of the material were improved. However, the material still has defects, such as low capacity and other problems. Therefore, in 2018, Deng et al. [65] designed O3-Na [Li_0.05Mn_0.50Ni_0.30Cu_0.10Mg_0.05] O₂, by co-precipitation to solve the Jahn-Teller effect of Mn³⁺, stability in air and phase transition during sodium-ion deintercalation. The material has good magnification and cycle performance (Figs. 6b and c) at 0.1 C, its reversible capacity is 172 mAh/g, and after 1000 cycles at 20 C, its capacity retention rate is still 70.4%. By calculating the conductivity of sodium ions and measuring the impedance of the battery (Figs. 6d-g), it is concluded that doping Li⁺ and Mg⁺ can improve the conductivity and diffusion coefficient of sodium ions, thus improving the rate performance of the positive electrode material. Due to the existence of Li-O bond, which is stronger than Mn/Ni-O bond, and the degeneration of Mn⁴⁺, the entry of lithium ions into the transition metal layer and Mn⁴⁺ oxidation state can improve the structural stability. The presence of Cu²⁺ can inhibit phase transition and maintain structural stability. In short, each atom plays its own role and produces a synergistic effect to improve the electrochemical properties of the material. The full battery also exhibits excellent performance with high energy density and cycle stability.

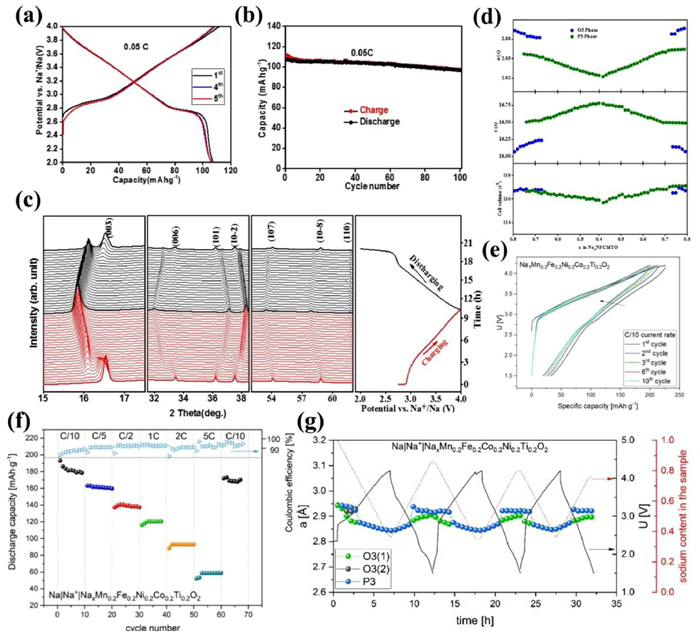

In 2019, Daniel et al. [66] designed a new system with five transition elements to completely inhibit or minimize the phase transition by adding high concentrations of electrochemically active metal ions, such as Ti⁴⁺ and Mn⁴⁺, to relieve the problem of poor cycling stability caused by phase transition to Na_xCoO₂-type layered oxides. The O3 layer HE cathode material Na_0.8Ni_0.2Fe_0.2Co_0.2Mn_0.2Ti_0.2O₂ was synthesized by the solid phase method. The first-cycle discharge capacity was 107 mAh/g at 0.05 C within the voltage range of 2–4 V, and the capacity retention rate was 90% after 100 cycles (Figs. 7a and b). In order to explore whether high entropy can inhibit the phase transition of the material, the author measured in-situ XRD (Fig. 7c) during the charge and discharge process of the material, and found that there is a reversible O3-P3-O3 phase transition. The results of lattice parameters calculated (Fig. 7d) are consistent with in situ XRD, showing good electrochemical performance and little change in total volume. In contrast, in 2022, Walczak et al. [67] designed a material similar to Daniel, NaNi_0.2Fe_0.2Co_0.2Mn_0.2Ti_0.2O₂, the electrochemical performance of the latter is better than that of the former, and within the voltage range of 1.5–4.2 V. The first cycle discharge capacity of 0.1 C is 180 mAh/g (Figs. 7e and f), and the capacity retention rate after 100 cycles is 97%. The authors point out that there is an O3-P3 transition in the charging process of the material, which may be related to the magnetic interaction of the HE structures. This view was also confirmed by in-situ XRD measurements (Fig. 7g), and it was found that when the sodium content was 0.9, the material showed an O3-P3 phase transition process. This rapid phase change gives the material good metal conductivity, which explains the material’s high capacity. Through this study, it is understood that the capacity of the battery can reach 180 mAh/g even under low Co/Ni conditions, which provides a reference idea for the subsequent development of large-scale energy storage devices.

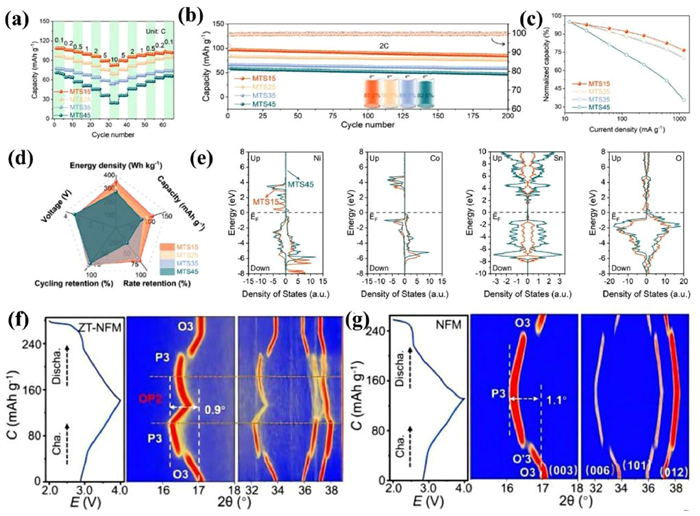

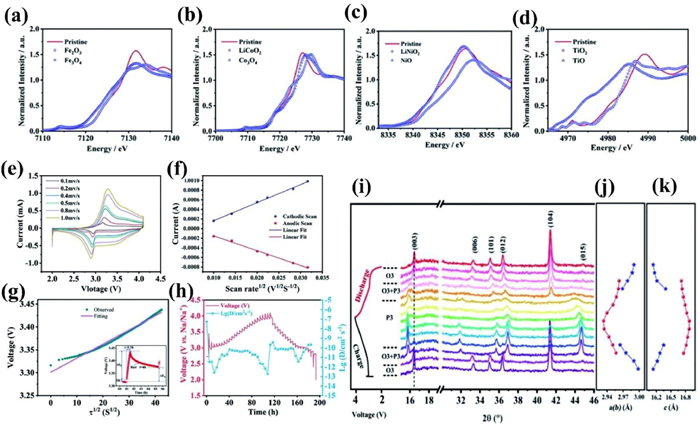

In 2022, Tian et al. [68] prepared O3 type-Na (Fe_0.2Co_0.2Ni_0.2Ti_0.2Sn_0.1Li_0.1) O₂ (O3-NFCNTSL) by solid-state to solve the defects of poor cycle stability and rate ability of sodium-ion batteries due to complex phase transition caused by sliding between layers of cathode materials. The material has good rate performance (81 mAh/g capacity at 2.0 C) and cycle stability (81% capacity retention rate after 100 cycles at 0.5 C). The authors further investigated the charge compensation mechanism of NFCNTSL using X-ray spectroscopy (Figs. 8a-d). Excellent Na⁺ diffuse-ion capability was demonstrated by CV curve and constant current intermittent titration (GITT) measurements (Figs. 8e-h). In situ XRD (Figs. 8i-k) analysis reveals that when the voltage reaches 3.1 V, it becomes evident that the peaks of (003) and (006) are noticeably shifted. However, the material does not undergo a new phase transformation and continues to maintain its O3 phase. As the voltage increases to 3.3–3.5 V, a structural transition occurs from the O3 phase to the P3 phase. Upon reaching 3.7 V, the (003) peak of the O3 phase is entirely replaced by the (003) peak of the P2 phase, thus completing the O3-P3 transition. The phase transition in the discharge process is consistent with that in the charging process, which proves that the material’s phase transition is highly reversible. Additionally, the lattice parameters of NFCNTSL also change with the voltage. During the charging process, the active element undergoes oxidation, resulting in a decrease in its ionic radius and causing the ab plane to shrink. Simultaneously, the electrostatic repulsion between adjacent oxygen layers increases, leading to an expansion of the C-axis spacing. After being discharged, the lattice parameters will revert to their original state, and the rate of volume change is only 0.22%. All of these phenomena indicate that the incorporation of high entropy materials can effectively prevent the undesired phase transition of the materials and enhance the cyclic stability of the layered materials. It provides new insights into the application of HEOs in electrochemical energy storage. By comparison, Wang et al. [69] designed O3-Na_0.83Li_0.1Ni_0.25Co_0.2Mn_xTi_xSn_0.45−2xO_2−δ (MTS45, x = 0; MTS35, x = 0.05; MTS25, x = 0.1; MTS15, x = 0.15) material by high temperature solid phase method, only the Mn²⁺ were replaced by Fe²⁺ compared with the material designed by Tian, and the electrochemical properties of the material were further improved. Especially MTS15 has amazing rate performance and cycle stability (Figs. 9a and b). The configurational entropy also increases with the increase of the x value, which is conducive to the stability of the crystal structure and plays a decisive role in the improvement of rate performance. The higher the configurational entropy, the higher the capacity retention rate obtained at non-stop multiplicity (Figs. 9c and d). DFT also demonstrated the entropy effect of inactive cation changes on structural characteristics (Fig. 9e), which expanded the O−Na−O spacing and enhanced the Na⁺ diffusion kinetics and structural stability. In conclusion, a series of Na-lacking O3-type layered oxides were fabricated by adjusting the stoichiometric ratio of inactive cations, which provides a new idea for the design of high-power density HE sodium-ion battery layer oxides.

On the other hand, the Jahn-Teller distortion and irreversible migration of cations caused by Na⁺ insertion/extraction during the cycle of layered materials result in significant voltage reduction and structural instability [70]. Therefore, in 2024, Gao et al. [71] introduced rigid KO₆ columns and flexible TiO₆ octahedrons into the NaO₂ and TMO₂ layers, respectively, to control local strains. This approach effectively addresses the issues of repulsion between Na-Na in layered materials, slow diffusion kinetics caused by rearrangement of Na⁺ vacancies in NaO₂, sliding of TMO₂ caused by Jahn-Teller distortion of NiO₆ octahedra in O3-type nickel-based oxides, propagation of anisotropic strains, and exacerbated chemo-mechanical degradation. Design materials with the composition O3-Na_0.898K_0.058Ni_0.396Fe_0.098Mn_0.396Ti_0.092O₂ (KT-NFM). By comparing the in situ XRD results of Na_0.987Ni_0.396Fe_0.204Mn_0.402O₂ (NFM) and KT-(NFM), it is clear that the inclusion of the KO₆ column and TiO₆ octahedron effectively prevents the formation of the O3′ phase. This is because the contraction of TMO₂ caused by the K column inhibits it, and the strong coulomb repulsion hinders the migration of Ni/Fe, thus reducing the impact of the Jahn-Teller distortion effect. Moreover, the inherent flexibility of the TiO₆ octahedron reduces the change in anisotropy of the Ni-O bond, minimizes the O3-O3′ phase transition, and enhances the stability of the material structure during charge and discharge. In the same year, Zhang et al. [72] aimed to solve the problem of TMO₂ sliding and the destruction of the microstructure and capacity attenuation during the Na⁺ extraction/insertion process. They prepared O3-Na_0.9Ni_0.32Zn_0.08Fe_0.1Mn_0.3Ti_0.2O₂ (ZT-NFM) by introducing Zn²⁺ and Ti⁴⁺. In situ, XRD analysis revealed that the charging and discharging process of ZT-NFM led to a reversible transition from O3-OP2 to P3 phase, without the formation of the harmful O3′ phase. Comparing the in-situ XRD pattern of Na_0.9Ni_0.4Fe_0.1Mn_0.5O₂ (NFM) with ZT-NFM (Figs. 9f and g), it can be observed that the addition of Zn²⁺ and Ti⁴⁺ effectively prevented the formation of the O3′ phase and induced the generation of O3-OP2. At the same time, these transformations occur below 4.0 V, which helps to prevent lattice expansion, avoid degradation of the interphase structure under high voltage, and effectively enhance the electrochemical performance of the material. This approach of reducing Jahn-Teller lattice distortion and controlling local strain through foreign ions offers new possibilities for the development of advanced cathode materials.

Typically, high charging voltages result in increased redox reactions and irreversible oxygen loss, leading to significant structural deterioration and rapid capacity decay. Therefore, high voltage is also a crucial factor in the phase transition of layered transition metal oxides during the cycle. In 2022, Yao et al. [73] developed a superlattice O3-Na_2/3Li_1/6Fe_1/6Co_1/6Ni_1/6Mn_1/3O₂ high entropy layered material. The researchers investigated the electrochemical stability of NaLFCNM at high voltages by conducting experiments with various charging and discharging intervals. They discovered that the material remained relatively stable up to 4.5 V and exhibited a capacity of 172.3 mAh/g at 0.1 C. Furthermore, it retained 63.7% of its capacity after 300 cycles under 5 C. The authors believe that the excellent performance of the material is attributed to the presence of Li⁺ and TM layers, which can mutually adjust the anionic redox activity and reversibility. This adjustment helps to address the issues of undesirable phase transition and redox problems. In-situ XRD analysis further revealed the reason for the material’s stability at high voltage. It was confirmed that the charging process resulted in the generation of the O3-P3 phase transition, without any other heterophase being produced. Additionally, the authors demonstrated through HR-TEM that when the voltage reached 4.5 V, only the P3 and O3 phases coexisted in the material. This process is highly reversible, as the material reverts back to the previous O3 phase after discharge. The excellent reversible phase transition process is a result of the design of high-entropy materials and the formation of superlattices. Specifically, the introduction of Li⁺ can decrease the electrostatic repulsion between the cations in the same plane and enhance the orderly arrangement of the cations. As a result, the maximum rate of volume change in this process is only 4.78%, which is attributed to the prevention of irreversible phase transition after the conversion from the low-pressure region to the P3 phase. This is why the long cycle exhibits high stability. This paper fully explains the reasons for the degradation of electrochemical properties in high voltage underlayer materials and proposes a feasible method. By utilizing the combined effects of high entropy material and superlattice, a layered material with excellent properties under high voltage has been successfully designed, providing a foundation for future research.

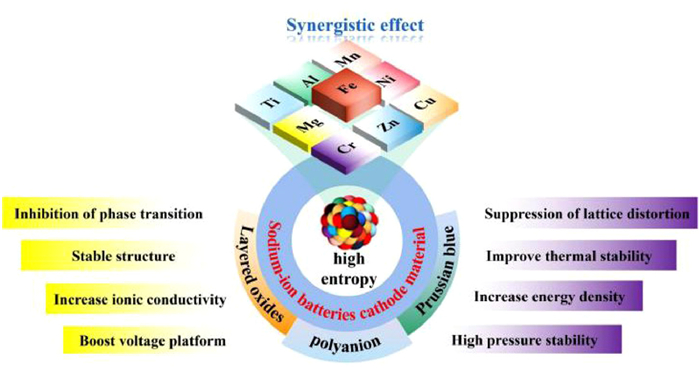

From the above materials, the HE structure of layered materials can effectively inhibit the monoclinic phase transition commonly seen in O3-type layered materials, thus making their structures more stable in the charge and discharge process. The conclusion provides some solutions for the subsequent development of O3 structures. However, the possibility of delaying or advancing phase transitions of HE structures remains to be further investigated. Of course, because there are many studies on [74–79], HE modification of layered materials, this paper can only introduce some of them. The research on this kind of material is summarized, as shown in Table 1.

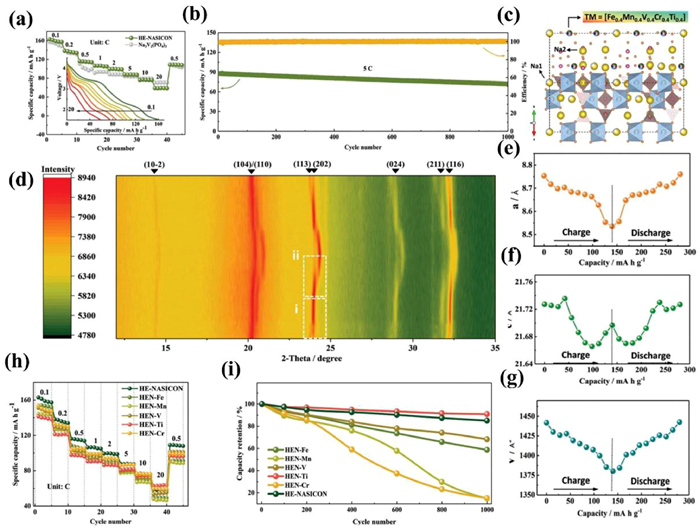

In 2021, Wu et al. [81] first tried to add HE materials to NASICON materials. Two materials with good crystallites were prepared, Na₃(Ti_0.2V_0.2Mn_0.2Cr_0.2Zr_0.2)₂(PO₄)₃ (HE-N₃M₂P₃) and Na(Ti_0.2V_0.2Mn_0.2Cr_0.2Zr_0.2)₂PO₄O_x (HE-NMP). Unfortunately, although it is confirmed that both are Na₃V₂(PO₄)₃ phase and both have R3c structure, the performance has not improved or even regressed. However, through a series of characterization methods, the authors prove that the addition of high-entropy materials is theoretically feasible, so the improvement in performance needs to be further developed later, which will inevitably bring more surprises and challenges. Therefore, Li et al. [82] tried to enhance and stabilize the sodium storage in the polyanion cathode by increasing the entropy of the polyanion host structure on this basis. To solve the problem of irreversible capacity loss and structural change, Na_3.4Fe_0.4Mn_0.4V_0.4Cr_0.4Ti_0.4(PO₄)₃ was prepared, which made a great breakthrough. The material has a high reversible capacity (0.1 C, 161.3 mAh/g) and a capacity retention rate of 85.3% after 1000 cycles under 5 C (Figs. 10a and b). In Fig. 10c, the authors revealed the specific sites occupied by the high-entropy material in the Na₃M₂(PO₄)₃ lattice and how it co-constructed the three-dimensional frame structure with phosphate. In-situ XRD further confirmed the stability of the structure with small volume change (Figs. 10d-g). However, the proportion of different transition metals in a HE material has a large impact on material properties (Figs. 10h and i), and the authors point out that the excellent electrochemical properties of the material result from the synergistic effect of various transition metals with the same molar concentration. In general, the authors demonstrate the validity of the concept of high entropy in the direction of polyanion cathode materials. The successful design of materials with excellent properties provides new opportunities and challenges for the design of advanced polyanionic compound materials for SIBs.

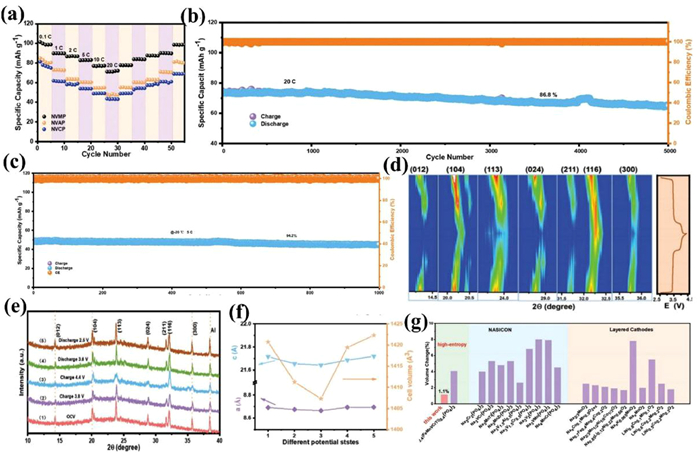

In 2023, Li et al. [83] designed Na₃VAl_0.2Cr_0.2 Fe_0.2In_0.2Ga_0.2(PO₄)₃ (NVMP) material, which improved its low temperature performance based on previous studies. A high reversible capacity of 102 mAh/g was achieved, with a capacity retention rate of 86.6% even after 5000 cycles at a high magnification rate of 20 C (Figs. 11a and b). Even at −20 ℃, NVMP has a capacity retention rate of 94.2% after 1000 cycles at 5 C (Fig. 11c). According to previous experience when the test cut-off voltage reaches 4 V, the redox reaction of V⁴⁺ will be triggered, and the migration of sites in the material will also lead to structural degradation and affect the stability of the material, which is a negative factor for the material. However, NVMP effectively improves this, and crystal faces appear or disappear regularly with the charge-discharge process in-situ XRD (Figs. 11d and e). It is confirmed that the high entropy effect significantly inhibits the migration of local atoms, making the redox reaction process of V⁴⁺/V⁵⁺ in the positive electrode of NVMP reversible. At the same time, the change of lattice parameters is also within the controllable range, resulting in a low volume change rate of the material (Figs. 11f and g). In this paper, in-situ XRD confirms that the addition of HE materials effectively inhibits the negative phase transition process of the materials, and also improves the high-pressure resistance of the materials, effectively solving the shortcomings of site migration leading to structural degradation.

On this basis, Gu et al. [84] proposed doping Na₃V₂(PO₄)₂F₃ with HE materials in 2022. In order to solve the problem of poor electrical conductivity and uncontrollable discharge behavior of Na₃V₂(PO₄)₂F_3, Na₃V_1.9(CaMgAlCrMn)_0.1(PO₄)₂F₃ (HE-NVPF) with low carbon content was prepared by sol-gel method. Due to the high entropy assisted inhibition mechanism, Na⁺ can be completely stored in the potential window of the high voltage platform, providing the material with a higher average voltage of 3.81 V and a higher energy density of 445 kWh/g. HE-NVPF disappears in the 3.4 V discharge platform region and appears in the higher voltage range, which confirms that the material can withstand higher voltage, and also explains the reason for obtaining greater capacity. The increase of the voltage platform also leads to the increase in energy density, which proves that the introduction of HE materials can indeed improve the energy density of NVPF too. In summary, even without any carbon added to the NVPF material, the electrical conductivity of HE-NVPF is enhanced, further accelerating the rate of Na⁺ migration due to the reduced energy barrier. In essence, the proposed high-entropy substitution strategy fills the gap in voltage adjustability within the determined active transition metal center in a fixed lattice, further achieving important competitiveness in commercial applications.

In addition to phosphates containing a single polyanion, mixed phosphates such as Na₄M₃(PO₄)₂P₂O₇ (M = Fe, Co, Mn) and Na₇V₄(P₂O₇)₄PO₄ containing two polyanion groups have also received a lot of attention in the field of sodium-ion batteries. Among them, Na₄M₃(PO₄)₂P₂O₇ (M = Fe, Co, Mn) has a stable three-dimensional network framework and a large ion transport channel, small volume change during charge and discharge, good thermal stability, and higher operating voltage than similar transition metal NaMPO₄ and Na₂MP₂O₇. It has been identified as a promising cathode material for sodium-ion batteries. But this kind of material caused by the reasons of the poor phosphoric acid root spontaneous electrical conductivity slow diffusion dynamics and material conductivity is bad, so it often has poor rate performance and discharge specific capacity [85]. Therefore, Ge et al. [86] first tried to use high-entropy materials doped with Na₄Fe₃(PO₄)₂P₂O₇ to improve its electrochemical performance. The designed material, Na₄Fe_2.85(NiCoMnCuMg)_0.03(PO₄)₂P₂O₇ (NFPP-HE), exhibits 122 mAh/g at 0.1 C and 85 mAh/g at 50 C and still has an ultra-high-capacity retention rate of 82.3% after 1500 cycles at 10 C. In order to reveal the advantages of HE materials and the reasons for the improved electrochemical performance, the authors used EIS and GITT techniques to fully demonstrate that NFPP-HE has smaller resistance and faster ion diffusion rate, and has fast sodium ion migration kinetics, indicating that the enhanced charge transfer is conducive to better sodium storage performance. Improve speed capability and cycle capability. Observation of in situ XRD revealed that the Na⁺ extraction/insertion of sodium ions in NFPP-HE could be classified as a defective single-phase solid-phase reaction. With the extraction of Na⁺, the diffraction peak intensity is significantly enhanced, which explains the good crystal structure stability performance of NFPP-HE. In summary, the introduction of high entropy materials into sodium-ion batteries is a successful method for achieving high performance of SIBs.

In short, at present, the modification of polyanionic materials by HE materials is not much, and HE materials can effectively improve the electrochemical properties of polyanionic materials Therefore, more research will be needed in the future. Some successful modification cases are summarized here (Table 2).
