As the chemical industry flourishes, improper management of agricultural pollution, industrial wastewater, and urban sewage has significantly contaminated water resources with various metal ions. This contamination adversely affects biological systems and the ecological environment [1,2]. Among these metal ions, Fe³⁺ is one of the most crucial and prevalent metal ions in the ecosystem. Chronic exposure to excessive Fe³⁺ in water can result in increased iron load, posing a risk to human health [3-5]. Consequently, the detection and quantitative analysis of Fe³⁺ in the environment and organisms, supported by accurate data, can provide guidance for environmental assessment, food safety, health monitoring, clinical drug testing, and water treatment processes [6-10]. Hence, quantification of Fe³⁺ ion concentration in water environments is especially crucial.

Currently, several different strategies can be employed for the quantification of Fe³⁺ content in environmental water or within organisms. One of these strategies utilizes fluorescence or spectroscopic probes [11-21]. Through chelation or redox reactions between the molecules modified on fluorescence or spectroscopic probes and the Fe³⁺ ions, the fluorescence or the specific spectral intensity of the modified molecules changes, thereby achieving the quantification of Fe³⁺. Alternatively, portable fluorescent paper can be used to detect Fe³⁺ by visually observing the color change on the fluorescent paper [22,23]. Electrochemical methods can be employed for Fe³⁺ detection by testing the redox reactions between nanocluster particles and Fe³⁺ [24,25]. Additionally, differential pulse voltammetry (DPV) can be used for the quantification of Fe³⁺ by measuring the changes in properties such as the surface double layer. Fe³⁺ concentrations can also be calculated by measuring absorbance changes and normalizing the results using spectrophotometric methods [26]. Furthermore, inductively coupled plasma mass spectrometry (ICP-MS) or inductively coupled plasma optical emission spectrometry (ICP-OES) can be employed for the quantification of Fe³⁺ through imaging and quantitative analysis [27,28]. However, in practical applications, these methods require the use of relatively expensive instruments such as fluorescence spectrometers, ICP-MS, or ICP-OES. Moreover, testing devices such as fluorescent test papers are often disposable. These approaches not only incur higher operational costs but also involve complex procedural and data analysis steps [29]. These factors limit the development of these methods for practical applications to some extent. Therefore, it is essential to develop a cost-effective, long-term functional, and rapid method for the quantification of Fe³⁺.

The detection and sensing of substances using bioinspired nanopores has been rapidly advancing [30-32]. Combining bioinspired nanopore ion sensing with electrochemical techniques involves designing modified molecules and their interface roles on the inner surface of bioinspired nanopores [33-36]. The modified molecules can alter the charge on the inner surface of the bioinspired nanopores and interact with the detected ions through coordination or chelation. This alters the electrostatic, hydrogen bonding, and other interactions between the bioinspired nanopore surface and the detected ions, leading to changes in ion conductivity within the nanopores, which allow for the detection of specific ions. These current changes can be precisely measured using electrochemical methods, and the subsequent data analysis is not complex [37-39]. Previous attempts have demonstrated that tailoring the types of modified molecules on the inner surface of nanopores allows for regulating the interactions with Fe³⁺, thereby influencing the ion current in the nanopores [39-44]. However, although these efforts enable detection of the presence of Fe³⁺ through nanopores, quantification of Fe³⁺ ion concentration using nanopores remains challenging.

Tannic acid (TA), a mixture of polygalloyl glucose molecules with different degrees of esterification, possesses polyphenol functional groups that can specifically interact with Fe³⁺ ions [45-47], as shown in Fig. S1 (Supporting information). Here, TA is adopted to build the TA-modified nanopores. The polyphenol structural fragments within TA molecules show differential binding affinities for various metal ions, and under specific pH conditions, they exhibit significantly stronger chemical coordination with Fe³⁺ ions. This strong affinity alters the surface charge of the nanopores, affects the thickness of the electric double layer within the nanopores, and significantly changes the ion current through nanopores. Meanwhile, we found that the equilibrium ion current (I_eq) in nanopores is linearly related to the concentrations of Fe³⁺ (c_Fe³⁺) in the tested solutions. Thus, by measuring the ion current of a Fe³⁺-containing solution passing through the TA-modified nanopores and correlating it to the linear relationship between I_eq and c_Fe³⁺, quantification of Fe³⁺ ion concentration in the solution can be achieved. After detection, the introduction of ethylenediaminetetraacetic acid disodium salt (EDTA-2Na), which has a higher binding affinity with Fe³⁺, can displace the Fe³⁺ bound to TA within the nanopores. This restoration allows for the repeated use of the nanopores for quantification of unknown Fe³⁺ ion concentrations, thereby reducing testing costs. This work not only enables rapid and efficient detection of target analytes, but also provides ease of operation, low cost, significant economic and practical value for the quantification of Fe³⁺, demonstrating promising applications in fields such as environmental assessment, health monitoring, and beyond.

In this work, a single glass nanopore was first prepared using the bench-top method [39,48], and then functionalized with TA molecules. As depicted in Fig. S2 (Supporting information), (3-aminopropyl)triethoxysilane (APTES), which terminates with an amino group, was first modified on the nanopore. Subsequently, TA modified the reusable bioinspired nanopores through electrostatic interactions and hydrogen bonding between the trihydroxy phenolic groups of TA and the amino groups of APTES. To compare the changes in the properties of the glass surface before and after modification, atomic force microscopy (AFM) and contact angle characterization were performed on glass slides that underwent the same modification process. The bare glass surface is relatively smooth; however, after modification with APTES and TA molecules, the roughness of the glass surface increases (Fig. S2). The modified molecules adhere to the glass surface and remain stable even after washing with deionized water, indicating that the modified molecules have excellent stability. As shown in Fig. S3 (Supporting information), the bare glass slide has a contact angle of 27.6°, which increases to 79.0° after APTES modification and decreases to 42.2° following TA modification. These changes in contact angles confirm the success of the modification. Fig. 1a shows a schematic diagram of the testing set of the bioinspired nanopores. The Fe³⁺ ion current passing through the nanopore is tested. Compared to other metal ions, the interaction distance between TA fragments and Fe³⁺ is shorter, and the interaction force is stronger, laying the foundation for the quantification of Fe³⁺. Meanwhile, I-t tests were conducted on solutions with varying concentrations of Fe³⁺ using TA-modified glass nanopores. By continuously applying voltage, it was found that the ion current in the nanopores gradually reached an equilibrium ion current (I_eq) corresponding to different Fe³⁺ ion concentrations. Additionally, the magnitude of this I_eq value is linearly related to c_Fe³⁺ in the solution. Based on this linear relationship, the quantification of Fe³⁺ ions can be determined only by conducting an I-t test. For instance, as depicted in Fig. 1b, when the equilibrium ion current is I_eq1 in the I-t test, the corresponding Fe³⁺ ion concentration c₁ can be deduced from the I_eq-c_Fe³⁺ linear relationship. Similarly, when the equilibrium ion current is I_eq2, the corresponding Fe³⁺ ion concentration in the solution is identified as c₂. Furthermore, the nanopores can be restored to their initial condition by being cleaned with EDTA-2Na after binding with Fe³⁺ ions for multiple times (Fig. 1c), demonstrating the reusability for Fe³⁺ ion quantification.

I-V tests were conducted on 1.0 mmol/L KCl solutions mixed with various metal ions, including 0.1 mmol/L solutions of LiCl, NaCl, MgCl₂, CuCl₂, AlCl₃, and FeCl₃, under different pH conditions. The surface charge of TA-modified nanopores varies under different pH conditions, as shown in Fig. S4 (Supporting information), affecting the I-V curves for each solution. When the pH is 4, TA-modified nanopores are positively charged, resulting in a weaker binding ability with metal ions. The current of the solution containing Fe³⁺ is higher than that of solutions mixed with other ions (Fig. S5a in Supporting information). When the pH range is 9–10, the surface charge of TA-modified nanopores shifts from positive to negative, reversing the ion rectification phenomenon. Under this condition, it is difficult to distinguish between solutions containing Fe³⁺ and those containing other ions based on the magnitude of the ion current (Fig. S5b in Supporting information).

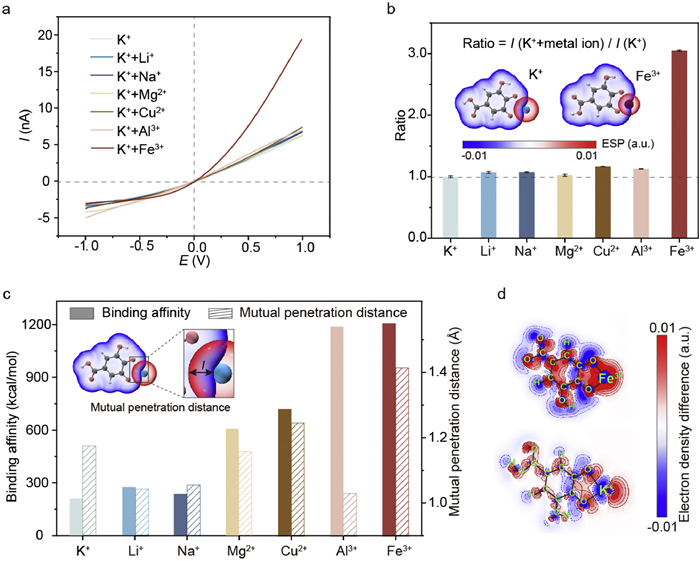

When the pH is 5–6, the I-V curve changes for different solutions of metal ions are generally not significant, except for the Fe³⁺ ion solution. In the presence of Fe³⁺, the I-V curve of the KCl solution exhibits a noticeable difference in current values as shown in Fig. 2a. This significant difference, demonstrating the specificity between TA and Fe³⁺, provides a foundation for the quantification of Fe³⁺. Further comparisons were made of the current magnitude of KCl solutions containing various metal ions at a voltage of +1 V. As shown in Fig. 2b, the ratio of the current value of KCl solutions containing different metal ions (I_{K⁺+metal ion}) to the current value of the solution containing only KCl (I_K⁺) at +1 V is displayed. One can see that the ratio for the solution containing Fe³⁺ to the KCl solution is about 3, whereas the ratios for other metal ions are close to 1. Therefore, at a pH of 5–6, the specificity between TA and Fe³⁺ is the most pronounced, enabling the recognition of Fe³⁺.

To delve into the interactions between TA molecules and different ions, calculations based on density functional theory (DFT) were carried out. The primary TA molecular fragment involved in these interactions between TA and ions is the polyphenol, which tends to deprotonate two phenolic hydroxyl groups at a pH of approximately 4–5, resulting in two negative charges on the TA fragment [45]. Therefore, we selected polyphenol structural fragments carrying two negative charges to construct TA-ion complex models and calculate their interactions with various ions, including Li⁺, Na⁺, K⁺, Mg²⁺, Cu²⁺, Al³⁺, and Fe³⁺. To find the most stable structures of the TA-ion complexes, 50 original conformations of TA-ion adsorption clusters for each ion were generated using Molclus [49]. Then all the original TA-ion complexes were optimized using the PBE0 method [50] in conjunction with the def1TZVP basis set [51,52]. The TA-ion complex structures with the lowest energies for each kind of ion were selected as the optimized structures.

The binding energy (E_bind) represents the change in electronic energy during the formation of TA fragment-ion complexes from separated TA fragment and ions. The E_bind was calculated at the B3LYP/def2TZVP [53,54] level with Grimme’s D3BJ dispersion [55] depending on the following equation (Eq. 1):

The electrostatic potential (ESP) plays a crucial role in determining weak interactions. Typically, the isosurface of the electron density, ρ = 0.001 a.u., is employed to define the molecular van der Waals (vdW) surface [56]. The ESP on the vdW surface is often investigated because it significantly influences intermolecular electrostatic interactions.

To compare the interactions between different ions and TA fragments, the ESP-colored vdW surface maps of TA-K⁺ and TA-Fe³⁺ complexes are shown in the inset of Fig. 2b. The ESP-mapped vdW surfaces of the TA fragments are depicted in blue, while those of the metal ions are depicted in red. From these depictions, it can be inferred that in the TA-ion complexes, the TA structural fragments exhibit negative ESP, while the positively charged ions display positive ESP. This difference in surface ESP facilitates the positive and negative electrostatic interactions between the TA fragments and metal ions. To further quantitatively represent the strength of these electrostatic interactions, Fig. 2c displays the absolute values of the binding energies (|E_bind|) between TA and various ions. In fact, all ions exhibit negative binding energies with TA fragments, indicating that the interactions are of an affinitive nature. The greater the magnitude of E_bind, the stronger the interaction between the ion and the TA fragment. Among all considered ions, Fe³⁺ exhibits the largest binding energy, inferring the strongest binding affinity among different ions.

The mutual penetration distance (l) between the molecular surfaces of TA fragments and ions was also calculated. As illustrated in the inset of Fig. 2c, l is defined as the distance at which the surfaces of the two fragments overlap. This distance l can quantitatively measure the strength of electrostatic interactions. It can be observed that as the positive charge of the ions increases, the overall l between TA and ion surfaces tends to increase, with Fe³⁺ exhibiting a significantly greater l than all other ions. By combining the binding energy E_bind and the penetration distance l, it can be concluded that the interaction between TA molecules and Fe³⁺ differs significantly from those with other ions, which is the root cause of Fe³⁺ exhibiting specificity in this context.

To further demonstrate the polarization effect of metal ions on the electron distribution in TA molecules, variations in electron distribution during the binding processes are depicted with 2D electron density difference (EDD) maps in Fig. 2d. The EDD, defined as Δρ = ρ_{TA − ion} – (ρ_TA + ρ_ion), can vividly display the electron transfer and polarization caused by the interactions between TA fragments and ions. Regions where electron density ρ decreases are depicted in blue, while regions where electron density ρ increases are depicted in red. A comparison of the EDD maps for TA-K⁺ and TA-Fe³⁺ reveals that the electron density around Fe³⁺ significantly increases upon interaction with TA fragment molecules, indicating that many electrons from the TA fragment molecules are attracted and polarized towards Fe³⁺. In contrast, the polarization effect of K⁺ on the electron density of TA fragment molecules is less pronounced. This strong electron polarization effect indirectly reflects the strong interaction between Fe³⁺ and TA molecules. The ESP and electron density were obtained and visualized using Multiwfn 3.8 (dev) [57]. The final complex molecular structures and calculated results were rendered by the VMD visualization program [58].

To further demonstrate that the significant increase in ion current in the Fe³⁺-containing KCl solution is attributable to the specific binding of TA-modified with Fe³⁺, the ion current of solutions mixed with different ions in bare glass nanopores were also tested (Fig. S6 in Supporting information). Due to the presence of silanol groups on the surface of bare glass slides, the surface charge varies under different pH conditions (Fig. S6a). When using bare glass nanopores without modification, as shown in Figs. S6b and c, the nanopores exhibit variations in current for Fe³⁺ at pH 4 and 5. However, compared to TA-modified nanopores, the differences caused by Fe³⁺ are significantly reduced. At pH 10, bare glass nanopores also exhibit a reversal of ion selectivity (Fig. S6d). However, the ion current of the solution containing Fe³⁺ is similar to that of other solutions and cannot be distinctly differentiated. A comparison was also made between TA-modified nanopores and bare glass nanopores before and after rinsing with a Fe³⁺-containing solution. Testing was conducted using the base KCl solution. The TA-modified nanopores showed significant differences before and after rinsing with the Fe³⁺-containing solution, indicating that TA binding with Fe³⁺ alters the surface charge density (Fig. S7a in Supporting information). For bare glass nanopores, as shown in Fig. S7b (Supporting information), the tests with the KCl solution both before and after rinsing with the Fe³⁺-containing solution showed almost overlapping curves, indicating that bare nanopores do not bind with Fe³⁺. This demonstrates the specificity between TA and Fe³⁺ and directly confirms that the significant changes in the I-V curves are attributable to the effect of the modified TA molecules.

It is worth noting that when testing unknown solutions, selecting a base solution and diluting unknown solutions strategically helps minimize interference from other ions, thereby enhancing the accuracy of the detection results. If the current of the base solution is too high, it may obscure the current changes of the Fe³⁺ ion-containing solution, thereby affecting the accuracy of the detection. Conversely, if the concentration of the base solution is too low, the current will be very small and susceptible to external interference, leading to an increase in the relative value of current fluctuations and consequently, the potential for increased error. Through theoretical calculations and experimental validation, it was determined that the solution of monovalent ions, which weakly bind with tannic acid, can meet the detection requirements. Therefore, this study selected KCl solution as the base solution.

Based on the above analysis, a pH range of 5–6 and a KCl base solution were selected because the specificity for Fe³⁺ is most pronounced under these conditions. I-V tests were conducted on solutions containing different concentrations of Fe³⁺. As shown in Fig. 3a, using a 1 mmol/L KCl solution as the base solution, the current gradually increased at +1 V as the c_Fe³⁺ increased. Fig. 3b illustrates the ratio of the current value of KCl solutions containing Fe³⁺ (I_ci) to the current value of the base KCl solution without Fe³⁺ (I_c0) at +1 V. The fitting of the current ratio with different c_Fe³⁺ demonstrates a linear relationship: Ratio = 0.0315c_Fe³⁺ + 1.03, and R² = 0.9917. Therefore, based on the linear relationship between c_Fe³⁺ and the current ratio, I-V tests can be used to achieve quantification of c_Fe³⁺. The chosen concentration range for this detection method is set from 10 µmol/L to 200 µmol/L. To further assess the adaptability of this method to other base solutions, variations in the concentration of the KCl solution and other monovalent ion solutions were selected as base solutions. As illustrated in Figs. S8 and S9 (Supporting information), 0.5 mmol/L KCl and 1.0 mmol/L NaCl were chosen as base solutions for testing. Both of these results demonstrated a very good linear relationship, confirming that the method can potentially be expanded to include a broader range of monovalent metal ion solutions.

Fig. 4a shows the change in ion current over time for solutions with different concentrations of Fe³⁺. As depicted in the inset of Fig. 4a, the current of the solution gradually approaches an equilibrium current (I_eq) over time. By analyzing the I_eq of solutions with different concentrations, it can be observed that the I_eq value increases as the c_Fe³⁺ increases. A linear fit between I_eq and c_Fe³⁺ was performed, as shown in Fig. 4b. The fitted curve is I_eq = 0.1334c_Fe³⁺ + 3.97, with R² = 0.9949. Therefore, by performing an I-t test on an unknown solution and then using the fitted curve of I_eq versus c_Fe³⁺, the Fe³⁺ ion concentration of the unknown solution can be obtained. This I-t testing method proves to be more practical and convenient in real-world applications compared to the previously described I-V testing approach.

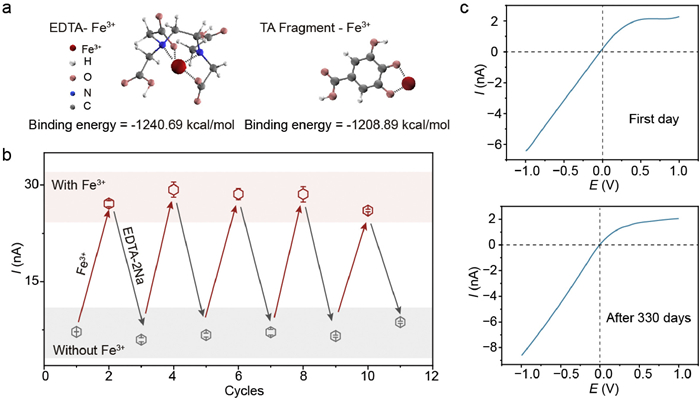

To validate the cycle stability of nanopores for the quantification of unknown Fe³⁺ ion concentration, EDTA-2Na was used to clean the nanopores after testing. Owing to the stronger binding affinity of EDTA-2Na with Fe³⁺, it can displace Fe³⁺ from the nanopores where it is bound to TA. To compare the binding energies of EDTA-2Na and TA with Fe³⁺, DFT analyses were also conducted. Similar to the method used to calculate the E_bind between TA and Fe³⁺, the interaction between Fe³⁺ and EDTA molecules was also calculated at the B3LYP/def2TZVP level (Fig. 5a). One can see that the E_bind between EDTA and Fe³⁺ (−1240.69 kcal/mol) is significantly higher than that between TA and Fe³⁺ (−1208.89 kcal/mol). Therefore, upon the introduction of EDTA molecules into the nanopores, Fe³⁺ preferentially binds to EDTA, thereby displacing Fe³⁺ from the TA-modified nanopores and restoring the nanopores to their initial condition.

The binding of Fe³⁺ to TA alters the channel ion current signal, enabling quantification of Fe³⁺. Additionally, the ability of EDTA-2Na to restore the channel to its initial condition facilitates its reusability and test stability (Fig. 5b). This suggests that the nanopore system employed in this study can be repeatedly utilized for the quantification of Fe³⁺ ion concentration, further reducing the cost. The I-V curves in the cycle tests are shown in Fig. S10 (Supporting information). The significant differences in the curves before and after the presence and removal of Fe³⁺ also demonstrate the accuracy and reusability of the Fe³⁺ quantification system. Additionally, comparing the test results from the same glass nanopore on the first day and after 330 days of storage, no significant changes in ion current were observed, as shown in Fig. 5c. This indicates that the quantification function of the nanopores possesses long-term reliability and stability. Therefore, using nanopores can not only perform quantification of different c_Fe³⁺ in solutions for multiple times but also ensure high stability over extended periods. Thus, the TA-modified glass nanopore offers stability, convenience, and cost-effectiveness in a system for quantification of Fe³⁺ in solutions.

In summary, we developed a reusable TA-modified nanopore system that specifically recognizes Fe³⁺ ions and can be used for the quantification of Fe³⁺ concentration, addressing some challenges in Fe³⁺ analysis, such as universality, portability, and affordability, thereby eliminating the dependency on expensive instruments. TA-modified nanopores utilize the specific interaction between TA molecules and Fe³⁺. A linear relationship between Fe³⁺ ion concentration and detection current is established, making this method suitable for quantification of Fe³⁺ ion concentrations in unknown solutions. Furthermore, the nanopore device demonstrates exceptional stability, maintaining its functionality after 330 days of storage, which supports the sustainability and significantly reduces the operational costs by reusing the nanopores. Therefore, this method for the quantification of Fe³⁺ not only offers benefits such as low cost, fast response, and high stability but also paves the way for advanced quantification applications, including environmental monitoring and real-time detection.
