Nd@C3N4-photoredox/chlorine dual catalyzed synthesis and evaluation of antitumor activities of 4-alkylated sulfonyl ketimines
收藏切换
PDF
Hong-Tao Jia, b, Yu-Han Lub, Yan-Ting Liua, Yu-Lin Huanga, Jiang-Feng Tianb, Feng Liua, Yan-Yan Zengb, Hai-Yan Yangc, Yong-Hong Zhanga, *, Wei-Min Heb, *
Chinese Chemical Letters | 2025, 36(2) : 110568
Less
收藏切换
Chinese Chemical Letters | 2025, 36(2): 110568
• Communication •
Nd@C3N4-photoredox/chlorine dual catalyzed synthesis and evaluation of antitumor activities of 4-alkylated sulfonyl ketimines
Full
Hong-Tao Jia, b, Yu-Han Lub, Yan-Ting Liua, Yu-Lin Huanga, Jiang-Feng Tianb, Feng Liua, Yan-Yan Zengb, Hai-Yan Yangc, Yong-Hong Zhanga, *, Wei-Min Heb, *
Affiliations
  • a Department of Ophthalmology, The Affiliated Nanhua Hospital, Hengyang Medical School, University of South China, Hengyang 421001, China
  • b School of Chemistry and Chemical Engineering, University of South China, Hengyang 421001, China
  • c Department of Lung Cancer and Gastroenterology, Hunan Cancer Hospital, The Affiliated Cancer Hospital of Xiangya School of Medicine, Central South University, Changsha 410013, China
Published: 2025-02-15 doi: 10.1016/j.cclet.2024.110568
Outline
收藏切换

The first example of Nd@C3N4-photoredox/chlorine dual catalyzed alkylation with unactivated alkanes as the alkyl sources has been developed, which allows for the synthesis of various 4-alkylated cyclic sulfonyl ketimines. In this process, chlorine functions as both a redox and hydrogen atom transfer catalyst. The synergism of the reversible Nd2+/Nd3+ and Cl¯/Cl˙ redox pairs significantly enhances overall photocatalytic efficiency. The in vitro anticancer activity of 4-alkylated products was evaluated by using the CCK8 assay against both human choroidal melanoma (MUM-2B) and lung cancer (A549) cell. Compound 3da showed approximately triple the potency of 5-fluorouracil.

Dual catalysis  /  Semiconductor  /  Chlorine  /  Redox catalyst  /  Hydrogen atom transfer
Hong-Tao Ji, Yu-Han Lu, Yan-Ting Liu, Yu-Lin Huang, Jiang-Feng Tian, Feng Liu, Yan-Yan Zeng, Hai-Yan Yang, Yong-Hong Zhang, Wei-Min He. Nd@C3N4-photoredox/chlorine dual catalyzed synthesis and evaluation of antitumor activities of 4-alkylated sulfonyl ketimines[J]. Chinese Chemical Letters, 2025 , 36 (2) : 110568 - . DOI: 10.1016/j.cclet.2024.110568
Full Text
Less
Semiconductor-based photoredox organic synthesis which uses light energy to facilitate chemical conversions in organic reactions, has received extensive attention from synthetic chemists due to its easy recyclability and excellent reusability [1,2]. Carbon nitride (C3N4) has garnered significant research interest as a cost-effective and readily accessible semiconductor photocatalyst for its high chemical stability and favorable photoelectrical properties [3,4]. Therefore, many efforts have been devoted to addressing its intrinsic limitations [5-12]. The introduction of the low-cost and abundant rare earth element neodymium (Nd) into C3N4 is considered as promising approach, which enhances the efficiency of photoinduced electron-hole pair separation and interfacial charge transfer due to the reversible shifting between Nd3+ and Nd2+ oxidation states, thereby boosting the overall photocatalytic performance [13,14]. Recently, Nd doped C3N4 (Nd@C3N4) has been applied in the photocatalytic degradation of organic dyes [15]. To the best of our knowledge, there have been no reports on the application of Nd@C3N4 in photoredox organic synthesis. Very recently, several intrinsic semiconductors have been applied in dual photoredox/redox catalysis for the efficient construction of high-value chemicals. However, no example of dual catalysis has been reported using high-performance extrinsic semiconductor photocatalyst.
Cyclic N-sulfonyl ketimines are highly significant structural subunits that are present in a large number of naturally occurring compounds, bioactive molecules and synthetic pharmaceuticals [16-18]. Furthermore, they are also versatile synthons and building blocks toward a wide variety of high-value compounds [19-24]. Consequently, their synthesis and functionalization have engrossed lots of interest from synthetic and pharmaceutical chemists. Among these cyclic sulfonyl ketimines derivatives, 4-alkylated cyclic sulfonyl ketimines are of particular interest, as they have shown valuable biological and pharmaceutical activities. Therefore, several synthetic protocols have been developed for such molecules [25-28]. However, these processes generally require stoichiometric chemical oxidants and large excess of alkylation reagents, which limit their applicability in large-scale synthesis.
The efficient and sustainable catalytic transformation of saturated C—H bonds of low-cost abundant unactivated alkanes into high value-added alkylated compounds has been a challenging task for synthetic chemists [29-31]. The photocatalytic hydrogen atom transfer (HAT) is an eco-friendly and energy-efficient strategy to achieve alkylation with unactivated alkane as the alkyl radical source [32,33]. Chlorine radical is a powerful HAT reagent, which can abstract hydrogen atoms from unactivated alkane to yield the corresponding carbon-centered radical. Chloride anion (Cl¯) is considered as an ideal source for the generation of Cl˙ via single electron oxidation because it is innocuous and abundant in diverse salt forms. However, the single electron oxidation of Cl¯ into Cl˙ is generally challenging due to the high redox potential (Eox = + 2.03 V vs. SCE). Recently, the photoinduced ligand-to-metal charge transfers (LMCT) [34,35] has emerged as a powerful protocol for the production of Cl˙ by the photolysis of transition metal chlorides [36-44]. However, a major drawback of these types of reactions is the inevitable residual transition metal in the final products, which greatly restricts their application in pharmaceutical synthesis. As a result, alternative photocatalytic HAT strategies that efficiently generate Cl˙ under transition metal-free and sustainable conditions should be highly desirable.
As part of our continuing studies in the area of green organic synthesis [45-51], we herein report the first Nd@C3N4-photoredox/chlorine dual catalyzed alkylation reaction with unactivated alkanes as the alkyl sources, by which various 4-alkylated cyclic sulfonyl ketimines were efficiently synthesized from cyclic N-sulfonyl ketimines and under visible light conditions (Scheme 1). In this reaction, Cl played a dual role also as a redox catalyst and a HAT catalyst. To the best of our knowledge, this is the first example of combining the reversible Nd3+/Nd2+ redox pair and the reversible Cl¯/Cl˙ redox pair to achieve a huge improvement in the photocatalytic efficiency.
Initially, we investigated the reaction conditions employing N-sulfonyl ketimine (1a) and cyclohexane (2a) as the model substrates (Table 1). After systematic investigation of the reaction parameters, an 87% GC yield of the alkylated product 3aa was achieved in the presence of 6% Nd@C3N4 as the heterogeneous photocatalyst and TBACl as the homogeneous HAT catalyst in MeCN with the irradiation of 10 W purple LED under nitrogen atmosphere at ambient temperature for 24 h (entry 1). The single g-C3N4, single Nd(NO3)3·H2O and the physical mixture of g-C3N4 and Nd(NO3)3·H2O either gave 3aa in a trace yield or showed no reactivity in this reaction (entries 2 and 3). These results indicated that Nd-doping has an improved photoelectrochemical property and significant enhancement in photoactivity. Changing the amount of incorporated Nd diminished the reaction yield, suggesting the photocatalytic activity of the Nd-doped g-C3N4 was highly dependent on the amount of incorporated Nd (entry 4). Performing the reaction with rare earth element-doped g-C3N4 gave a low yield of 3aa (entry 5). With iron or copper family element-doped g-C3N4 as the photocatalyst, only a trace amount of 3aa was detected (entries 6 and 7). Without a photocatalyst or visible light, the template reaction did not occur, suggesting that both photocatalyst and visible were necessary for this alkylation reaction (entry 8). Either no generation or trace amount of 3aa was observed with intrinsic semiconductor photocatalyst (α-Fe2O3, WO3 and CdSe, entry 9) and homogeneous photocatalyst (Ir(ppy)3 and 4CzIPN, entry 10). Only 33% yield of 3aa was obtained in the absence of TBACl, highlighting the critical role of the HAT catalyst in promoting the homolytic alkyl C–H bond cleavage (entry 11). A series of solvents, including acetone, THF, DMF and DMSO, were also investigated, and these results showed that they were less effective than MeCN (entry 12). Carrying out this reaction with other LED sources, including blue LED and green LED, afforded 3aa in 38% and trace yield, respectively (entry 13). The yield of target products decreased to 48% when the power of LEDs light was reduced to 5 W (entry 14). No reaction occurred under air atmosphere, suggesting that molecular oxygen suppressed this reaction (entry 15).

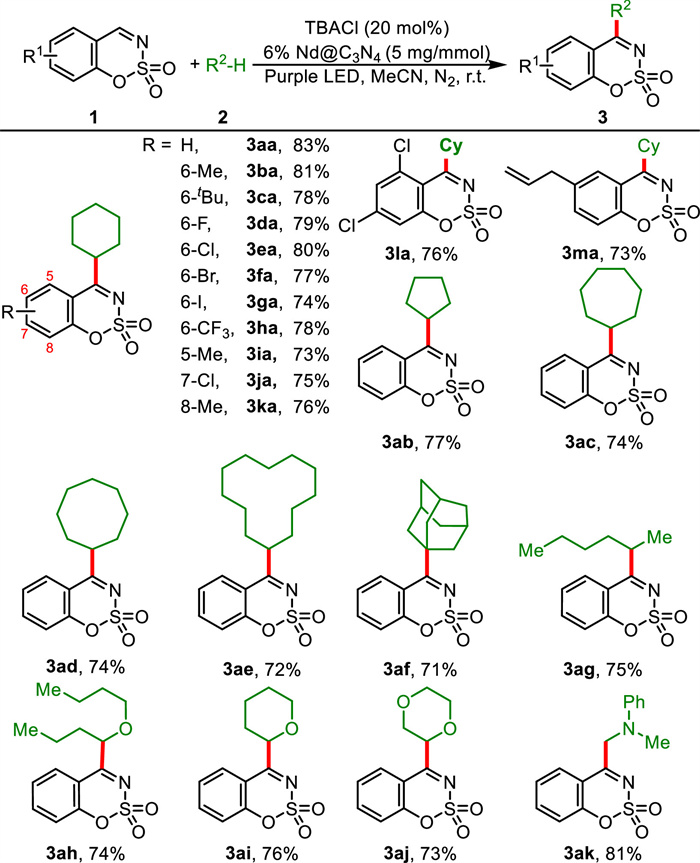

With the optimum reaction conditions in hand, we next sought to evaluate the scope of the reaction using a series of N-sulfonyl ketimines (1) and alkanes (2) (Scheme 2). No matter whether the phenyl ring of N-sulfonyl ketamine (1) was substituted with either an electron-donating, electron-withdrawing or sterically hindered group, all of them afforded the desired alkylated products in good yields (3aa, 3ca-3ka). A series of useful scaffolds for late derivatization including methyl, tert-butyl, fluorine, chloro, bromo, iodine, and trifluoromethyl groups can be preserved. The existence of substituents-methyl or chloro at 5, 6, 7, and 8 positions of substrates 1 (3ba, 3ia-3ka) did not significantly affect the C-4 alkylation outcome, generating desired products in high yields. Substrates 1 bearing the di-substituents at 5, 7-position of the benzene ring was efficiently transformed into the corresponding products in a 76% yield (3la). Notably, alkene could be retained in this photocatalyzed reaction (3ma). Afterwards, the scope of this transformation with respect to other alkanes were also investigated. A series of cycloalkanes such as cyclopentane, cycloheptane, cyclooctane, cyclooctanes all proceeded well, yielding the products (3ab-3ae) in excellent yields. Additionally, bulky cycloalkanes adamantane (3af), as well as linear alkanes and ethers (3ag and 3ah) were well tolerated in this semi-heterogeneous transformation. Furthermore, cyclic ethers such as tetrahydro-2H-pyran and 1, 4-dioxane also reacted effectively with 1a to produce the desired products (3ai and 3aj) in 76% or 73% yields, respectively. No target product was detected when cyclohexanone was used as the substrate. N, N-Dimethylaniline was compatible with the reaction and afforded the C4-alkylated product in excellent yields (3ak).

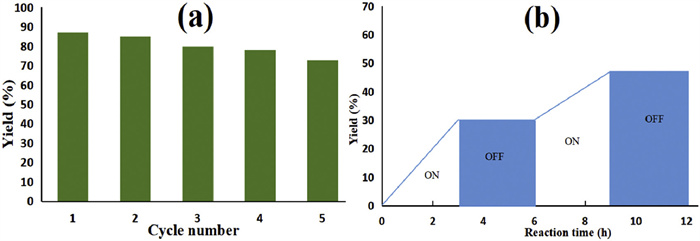

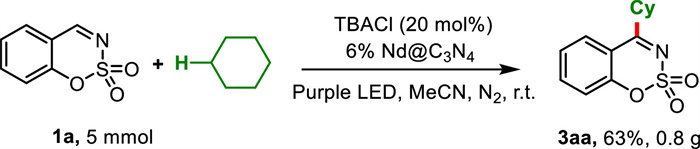

From a practical perspective, the scalability of reactions and the reusability of photocatalysts are vital for the semi-heterogeneous catalytic systems. The scale-up synthesis was conducted on 5 mmol and 63% yield was obtained, demonstrating that the reaction could be scaled up effectively (Scheme 3). Additionally, the reusability and stability of the semiconductor photocatalyst were assessed via five recycling experiments in which the photocatalyst was successfully recovered and reused through simple centrifugal separation. The heterogeneous photocatalyst could retain good performance after five successive cycles with no significant loss in catalytic activity (Fig. 1a).

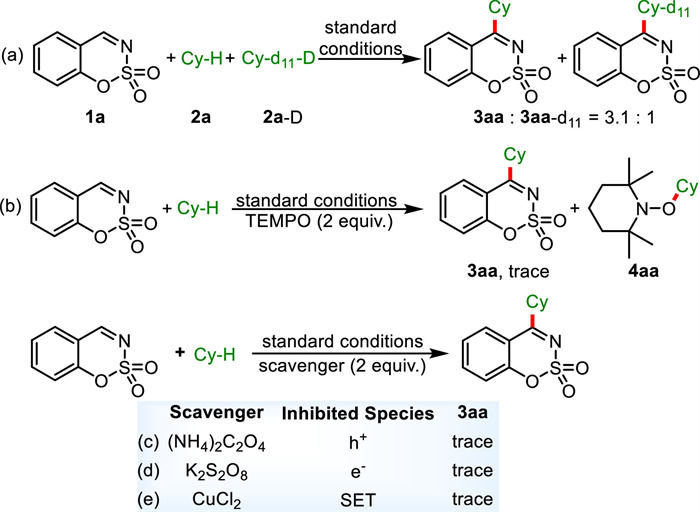

To gain deeper understanding of the Nd@C3N4/chlorine co-catalyzed semi-heterogeneous reaction, a variety of control experiments were conducted (Scheme 4). We started our investigations by studying kinetic isotope effects (KIE) of C(sp3)–H cleavage in this reaction in which a mixture of cyclohexane and its deuterated analogue cyclohexane-D in a 1:1 molar ratio was used, a distinguished kinetic isotope effect of (kH/kD = 3.1) was observed (Scheme 4a), indicating that the cleavage of the C—H bond in cyclohexane was the rate-limiting step in the reaction. The addition of radical inhibitors (TEMPO) in this photocatalytic transformation completely suppressed the generation of 3aa, and cyclohexyl-TEMPO adduct 4aa formed in situ was detected by GC–MS, suggesting the reaction involved a radical process and the generation of cyclohexyl radical (Scheme 4b). When the photogenerated hole scavenger (h+) ammonium oxalate [NH₄]₂C₂O₄ or photogenerated electron scavenger (eˉ) K2S2O8 was added to the photocatalytic reaction, the production of 3aa was apparently quenched, providing strong evidence of the vital roles of electron and hole in this photocatalytic process (Schemes 4c and d). The reaction was completely hampered when the single electron transfer (SET) inhibitor CuCl2 was added to the reaction, indicating a SET event was likely involved (Scheme 4e). Additionally, the "on/off" experiment demonstrated that light irradiation was essential for the reaction (Fig. 1b) and the low quantum yield (Φ = 0.3%) further ruled out the possibility of a radical chain mechanism involved in this process (Supporting information).

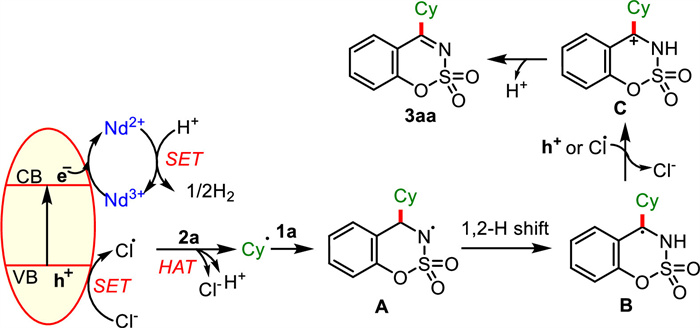

On the basis of the results obtained above and the literature [15,52], a probable mechanism was proposed as depicted in Scheme 5. Under the light irradiation, the composite photocatalysts Nd@C3N4 absorbed photons and generated photogenerated charge carriers. The introduction of Nd in intrinsic g-C3N4 rendered an impurity level, which could facilitate the separation of photogenerated electron-hole pairs. The photogenerated electrons (eˉ) reduced Nd3+ to Nd2+, which in turn promoted the reduction of protons (H+) to produce H2 in a SET process. In parallel, chloride ions (Cl¯) interacted with holes to form chlorine radicals in a SET event, which then engaged in a hydrogen atom transfer (HAT) process with cyclohexane 2a, generating cyclohexyl radicals and releasing protons (H+). Afterwards, the cyclohexyl radical regio-selectively attacked C═N bond of N-sulfonyl ketimine to give intermediate A, followed by 1, 2-H shift to yield a C-centered radical intermediate B. The intermediate B was subsequently oxidized by holes to form the cationic intermediate C. Finally, C underwent dehydrogenation and aromatization to produce the terminal product 3aa.

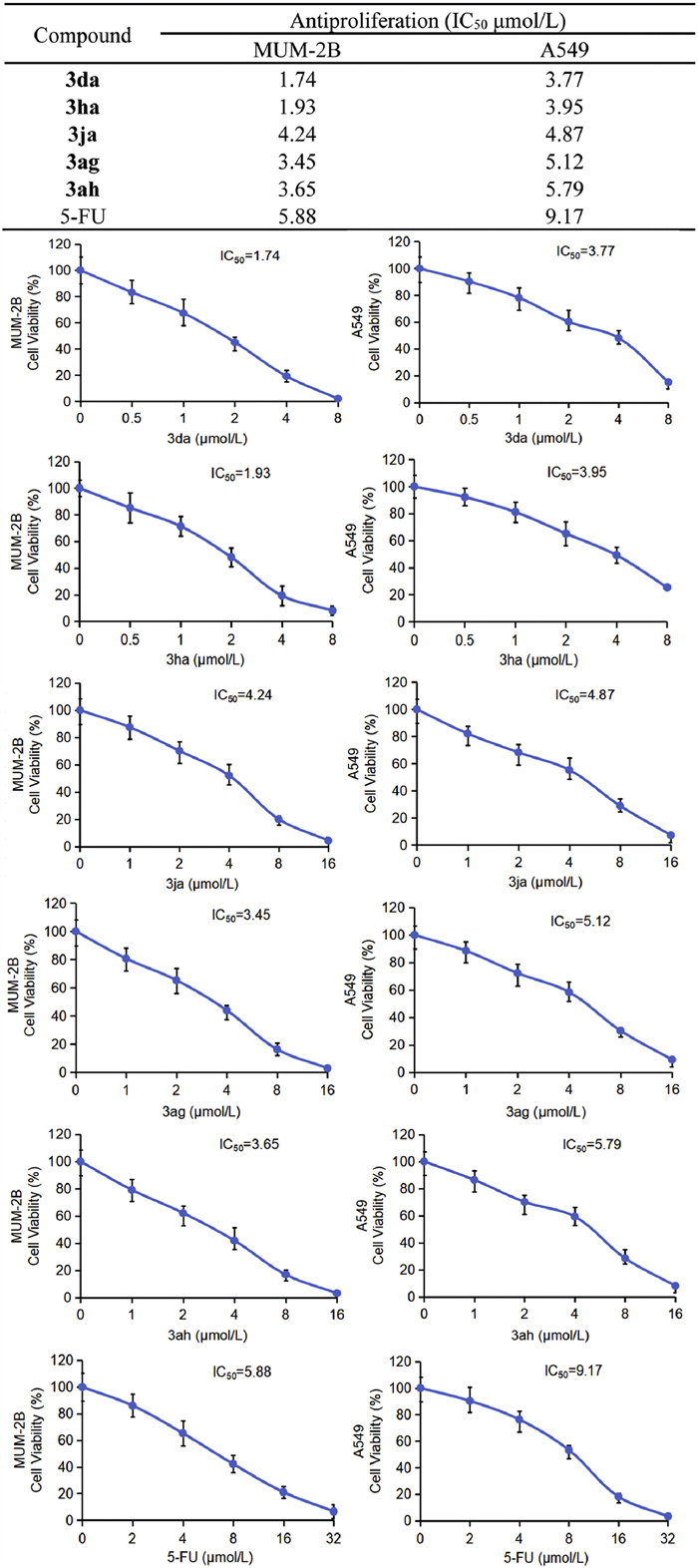

The development of tumor resistance to existing chemotherapeutic agents puts forward a significant challenge in clinical cancer treatment. As a consequence, discovering new chemical compounds with antitumor effects is in high demand. The antitumor potential of synthesized compounds was assessed on human choroidal melanoma (MUM-2B cells) and lung cancer (A549 cells). Compound 3da showed remarkable antitumor efficacy for these above-mentioned tumors, showing approximately triple the potency of the widely used antitumor drug 5-fluorouracil (5-FU) (Fig. 2). This report firstly observed antitumor activity in these novel compounds. We hope that further study of 3da via our protocol will promote the development of new antitumor agents.
In summary, we have reported the first example of chlorine-mediated Nd@C3N4-photocatalyzed semi-heterogeneous synthesis of 4-alkylated N-sulfonyl ketimines and its antitumor activities research. With traceless and green photon as the energy source, Nd@C3N4 serves as a heterogeneous photocatalyst, while TBACl acts both as a redox and HAT catalyst. A variety of high-value alkylated N-sulfonyl ketimines were efficiently synthesized in moderate to high yields under mild conditions. Five successive reaction-separation cycles demonstrated the excellent recyclability of Nd@C3N4. Additionally, the high performance of Nd@C3N4 was validated in a gram-scale reaction, highlighting its potential for industrial applications. Mechanistic studies indicated that TBACl acted as both a redox catalyst to consume holes and a HAT catalyst to cleave C—H bonds in alkanes and the combination of the reversible Nd3+/Nd2+ and Clˉ/Cl˙ redox pairs significantly enhanced photocatalytic efficiency. The antitumor activity experiment showed that such compounds had potential medicinal value. This semi-heterogeneous protocol provides new opportunities for organic synthesis of pharmaceutical drugs, showing potential industrial application value.
Declaration of competing interests
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
CRediT authorship contribution statement
Less
Hong-Tao Ji: Methodology, Data curation. Yu-Han Lu: Investigation. Yan-Ting Liu: Investigation. Yu-Lin Huang: Investigation. Jiang-Feng Tian: Data curation. Feng Liu: Data curation. Yan-Yan Zeng: Data curation. Hai-Yan Yang: Data curation. Yong-Hong Zhang: Project administration, Methodology. Wei-Min He: Writing – review & editing, Writing – original draft.
Acknowledgment
Less
This work was supported by grants from the Provincial Natural Science Foundation of Hunan (No. 2023JJ60335).
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2024.110568.
References
Less
[1]
A. Savateev, M. Antonietti, ACS Catal. 8 (2018) 9790–9808.
[2]
S. Gisbertz, B. Pieber, ChemPhotoChem 4 (2020) 456–475.
[3]
S.K. Verma, R. Verma, Y.R. Girish, et al., Green Chem. 24 (2022) 438–479.
[4]
A. Murugan, R. Selvaraj Mohana, High Energ. Chem. 56 (2022) 73–90.
[5]
B. Dam, B. Das, B.K. Patel, Green Chem. 25 (2023) 3374–3397.
[6]
Y.S. Wudil, U.F. Ahmad, M.A. Gondal, et al., Arab. J. Chem. 16 (2023) 104542.
[7]
Z. Wang, J. Hao, Y. Lv, et al., Asian J. Org. Chem. 11 (2022) e202200484.
[8]
Y. Lv, Z. Wang, J. Hao, X. Zhao, W. Wei, Asian J. Org. Chem. 12 (2023) e202300290.
[9]
F.L. Zeng, H.L. Zhu, X.L. Chen, L.B. Qu, B. Yu, Green Chem. 23 (2021) 3677–3682.
[10]
X.J. Huang, H.T. Ji, X. Li, et al., J. Org. Chem. 89 (2024) 10654–10659.
[11]
H.T. Ji, H.Y. Song, J.C. Hou, et al., J. Org. Chem. 89 (2024) 9543–9550.
[12]
Z.L. Wu, J.T. Liu, R.W. Zhou, et al., J. Org. Chem. 89 (2024) 12693–12700.
[13]
J. Zhang, S.J. Deng, S.Y. Liu, et al., Mater. Technol. 29 (2014) 262–268.
[14]
U. Alam, A. Khan, D. Ali, D. Bahnemann, M. Muneer, RSC Adv. 8 (2018) 17582–17594.
[15]
X. Yu, Z. Song, X. Dong, et al., J. Mater. Sci. Mater. El. 33 (2022) 13271–13289.
[16]
J.Y. Winum, A. Scozzafava, J.L. Montero, C.T. Supuran, Med. Res. Rev. 25 (2005) 186–228.
[17]
S.J. Williams, Expert Opin. Ther. Pat. 23 (2013) 79–98.
[18]
S. Zimmermann, M. Akbarzadeh, F. Otte, et al., Chemistry 25 (2019) 15498–15503.
[19]
J.F. Bower, J. Rujirawanich, T. Gallagher, Org. Biomol. Chem. 8 (2010) 1505–1519.
[20]
A. Shi, K. Sun, X. Chen, et al., Org. Lett. 24 (2022) 299–303.
[21]
X. Wang, A. Shi, X.Q. Huang, et al., Org. Biomol. Chem. 20 (2022) 3798–3802.
[22]
Y.H. Lu, S.Y. Mu, H.X. Li, et al., Green Chem. 25 (2023) 5539–5542.
[23]
M.Y. Liu, J. Jiang, H.T. Ji, et al., J. Catal. 434 (2024) 115509.
[24]
H.Y. Song, J. Jiang, Y.H. Song, et al., Chin. Chem. Lett. 35 (2024) 109246.
[25]
J. Wang, X. Liu, Z. Wu, et al., Chem. Commun. 57 (2021) 1506–1509.
[26]
J. Wang, X. Liu, Z. Wu, et al., Chin. Chem. Lett. 32 (2021) 2777–2781.
[27]
H.Y. Song, F. Xiao, J. Jiang, et al., Chin. Chem. Lett. 34 (2023) 108509.
[28]
L. Fang, J. Yu, Z. Yu, et al., J. Org. Chem. 88 (2023) 17249–17256.
[29]
Z. Chen, M.Y. Rong, J. Nie, et al., Chem. Soc. Rev. 48 (2019) 4921–4942.
[30]
P. Bellotti, H.M. Huang, T. Faber, F. Glorius, Chem. Rev. 123 (2023) 4237–4352.
[31]
H. Ding, Z. Wang, C. Qu, et al., Org. Chem. Front. 9 (2022) 5530–5535.
[32]
L. Capaldo, D. Ravelli, M. Fagnoni, Chem. Rev. 122 (2022) 1875–1924.
[33]
L. Chang, S. Wang, Q. An, et al., Chem. Sci. 14 (2023) 6841–6859.
[34]
X.Y. Yuan, C.C. Wang, B. Yu, Chin. Chem. Lett. 35 (2024) 109517.
[35]
Q. Dou, T. Wang, L. Fang, H. Zhai, B. Cheng, Chin. J. Org. Chem. 43 (2023) 1386–1415.
[36]
Q. Zhang, S. Liu, J. Lei, et al., Org. Lett. 24 (2022) 1901–1906.
[37]
J.L. Tu, H. Gao, M. Luo, et al., Green Chem. 24 (2022) 5553–5558.
[38]
H.C. Li, G.N. Li, K. Sun, et al., Org. Lett. 24 (2022) 2431–2435.
[39]
Y. Xu, P. Huang, Y. Jiang, et al., Green Chem. 25 (2023) 8741–8747.
[40]
J.L. Tu, A.M. Hu, L. Guo, W. Xia, J. Am. Chem. Soc. 145 (2023) 7600–7611.
[41]
Q.Y. Li, S. Cheng, Z. Ye, et al., Nat. Commun. 14 (2023) 6366.
[42]
N. Xiong, Y. Li, R. Zeng, ACS Catal. 13 (2023) 1678–1685.
[43]
X. Zeng, F.H. Zhang, R. Lai, X. Lin, Z. Wang, Sci. China Chem. 67 (2024) 1589–1595.
[44]
X.K. Qi, L.J. Yao, M.J. Zheng, et al., ACS Catal. 14 (2024) 1300–1310.
[45]
Z.L. Wu, J.Y. Chen, X.Z. Tian, et al., Chin. Chem. Lett. 33 (2022) 1501–1504.
[46]
R. Yi, W. He, Chin. J. Org. Chem. 42 (2022) 2590–2592.
[47]
J. Jiang, K.L. Wang, X. Li, et al., Chin. Chem. Lett. 34 (2023) 108699.
[48]
Y.H. Lu, Z.T. Zhang, H.Y. Wu, et al., Chin. Chem. Lett. 34 (2023) 108036.
[49]
X. Chen, W.T. Ouyang, X. Li, W.M. He, Chin. J. Org. Chem. 43 (2023) 4213–4219.
[50]
Y.F. Jiang, W.T. Ouyang, H.T. Ji, et al., J. Org. Chem. 89 (2024) 13970–13977.
[51]
J.C. Hou, J. Jiang, Y.C. Wen, et al., J. Org. Chem. 89 (2024) 6117–6125.
[52]
J. Xu, H. Cai, J. Shen, et al., J. Org. Chem. 86 (2021) 17816–17832.
