Due to the rapid growth of the world economy, the emergence of problems such as energy shortage and severe environmental pollution are threatening the survival of mankind, so there is an urgent need to develop a clean, renewable and environmentally friendly way to develop energy sources [1-4]. Ammonia is a very important chemical product in industrial production, which is widely used in the chemical industry, fertilizers, synthetic fibers and other fields [5-9]. In addition, ammonia is also considered to be a highly promising alternative energy fuel to hydrogen, not only due to its high hydrogen content density (17.6 wt%), but also because it is a zero-carbon energy storage product [10-12]. In particular, ammonia is more easily stored and transported as liquid fuel compared to gaseous hydrogen [13-15]. Nitrogen reduction reaction (NRR) is a promising way for ammonia synthesis and electrochemical method has attracted a lot of attention due to its clean and sustainable characters [16-19]. Many pioneering studies have successfully designed NRR catalysts with high reactivity and selectivity. Zheng et al. have predicted Ni₃NG, Ru₃NG, and Ir₃NG as promising electrocatalysts for NRR with very low limiting potentials of −0.31 V to −0.33 V [20]. Moreover, Meng et al. identified W@MoSSe and Os@MoSSe as effective candidate catalysts for NRR on the basis of estimated stability, high catalytic activity and unchallengeable selectivity, where W@MoSSe was screened as the best NRR catalyst with a limiting potential of −0.15 V [21]. Overall, high performance of N₂ activation and ammonia synthesis has been achieved in pioneering works. Moreover, the mechanisms of NRR have also been comprehensively summarized, including remote, alternating, and enzymatic mechanisms, on various kinds of catalysts. However, there are currently very few NRR catalysts that can dissociate N₂ directly (denoted as dissociation mechanism). This is because that the cleavage of the N≡N triple bond requires an ultrahigh energy consumption of 410 kJ/mol [22-25]. The prerequisite of the dissociation mechanism is the strong interaction between N₂ and the catalyst, which can lead to effective N₂ activation. However, the direct dissociation of N₂ is still challenged, even if N₂ is successfully activated. Therefore, it is urgently needed to search for high performance catalysts for N₂ dissociation [5,10,20,26].

Noble metal catalysts, such as Pd, Ru, Ir, always possess high reactivity for activation of inert gases due to the unoccupied d-orbitals [7,19,27,28]. In addition, these catalysts have excellent binding properties and electrical conductivity, resulting in excellent catalytic performance and are widely used in electrochemical reactions. Taking Ru as an example, Du et al. [29] have performed NRR on Ru(0001) with V doped on it. The results have shown a low negative limiting potential of −0.15 V for NRR to NH₃. Mainly, the alloying of Ru with transition metals can modulate the binding strength of NRR intermediates and eventually improve its catalytic activity. Au as one of the most effective catalysts for NRR is also a noble metal that has been widely studied due to its high affinity and ability to activate N₂ for electrochemical reduction as well as its generally low tendency of hydrogen formation [30]. Among numerous noble metals, Ir is also a promising catalyst, which has been widely used in recent years. Many pioneering works have focused on improving the utilization rate of Ir atom, which can effectively realize high reactivity [31-34]. For example, Strickler et al. [35] have performed DFT calculations on bimetallic Ir-based films and demonstrated the tendency between activity and stability of oxygen evolution reaction (OER) at 1.65 V vs. RHE. in acidic media. He et al. [34,36] have systematically studied the adsorption and dissociation of NO on Ir(100) for the formation of N₂. The results have shown that the dissociation of NO into N and O only needs to overcome an energy of 0.46 eV. The dissociated N atoms can also combine into N₂ with high selectivity. Song et al. [37,38] have performed NRR on Ir(100) doped with 3d transition metal atoms. Through regulation of electronic structure, an ultralow limiting potential of −0.36 V has been achieved, making it a potential NRR electrocatalyst. Although many studies on Ir have been successfully performed, the mechanism of N₂ activation and dissociation on Ir still remains elusive.

Inspired by the pioneering studies, we herein study the dissociation mechanism of N₂ molecules on Ir(100) and Ir(110) and analyze the relevant properties of N₂ activation based on density functional theory (DFT). Through the analysis of adsorption energy, reaction barrier and optimal adsorption site, the hollow (H) site was finally determined to be a favorable dissociation site for N₂. The N₂ dissociation should overcome an energy barrier of 1.12 eV on Ir(110), while it is only 0.87 eV for Ir(100). Thus, Ir(100) was screened as a promising catalyst for N₂ dissociation compared to Ir(110). This can be attributed to the fact that the adsorption energy of N₂ at the H site of Ir(100) (−0.48 eV) is significantly higher than that of Ir(110) (−0.22 eV), resulting in different dissociation mechanisms for Ir(100) and Ir(110). Our results have not only pointed out the essential reason for choosing the NRR reaction on the crystal surface of Ir(100), but also provide a good idea for the laboratory workers to choose the precious metal Ir catalyst with high activity.

All the calculations were performed in Vienna Ab into Simulation Package (VASP) by using spin-polarized density functional theory (DFT) [39-42]. The electronic exchange-correlation interactions were described by the Perdew and Wang (PW91) functional within generalized gradient approximation (GGA) [43,44]. The electron-ion interactions were described by the projector augmented wave (PAW) method [45-49]. A cutoff energy of 400 eV was adopted for the planewave basis set. The convergence criteria for energy and force were set to be 10⁻⁵ eV and 0.05 eV/Å, respectively. The parameters of Ir unit-cell were set according to the experimental results (3.88 Å vs. 3.84 Å) [50]. The 2 × 2 × 1 supercell of the Ir(100) and Ir(110) facet with five layers was taken as the substrate model. Brillouin zones were sampled by a Monkhorst-Pack k-point mesh with a 7 × 7 × 1 k-points grid for Ir(100) and 3 × 5 × 1 k-points grid for Ir(110). To avoid the interaction between two neighboring surfaces, a vacuum space over 20 Å was used. The bottom two atomic layers were fixed in their bulk positions whereas the remaining top layers and the adsorbates were allowed to relax. In the calculations of gas adsorption, 15 Å vacuum layer was used to avoid interactions between the neighboring images. Considering the interaction between layers, a layer spacing of over 15 Å is sufficient to overcome the interaction between layers. The climbing nudged elastic band(CI-NEB) method was used to search the saddle points and minimum energy pathways [51]. The transition states were also verified by its one imaginary vibrational frequency [52].

Adsorption energy is defined as the change of system energy before and after adsorption, which can be calculated as follows:

where E_tot denotes the total energy of the N₂-supported Ir atom. E_sub and E_N denote the optimized atomic surface and the energy of isolated nitrogen molecules, respectively.

We start our study from the characters of catalyst configurations. To investigate the N₂ dissociation, we have constructed different Ir surfaces, including Ir(100) and Ir(110), and the optimized structures are shown in Figs. S1a and b (Supporting information). The Ir(100) and Ir(110) exhibit different characters: The Ir(100) surface is flat compared to Ir(110), which has some ridges and grooves on the surface. The different characters can directly lead to various bond length of Ir-Ir, which is 2.714 Å on Ir(100) and 2.694 Å on Ir(110). These results are in agreement with the pioneering studies [34].

In order to confirm the adsorption behavior of N₂, we have considered many adsorption sites, including bridge (B), top (T) and hollow (H) positions, on Ir(100) and Ir(110), as labeled in Fig. S1 (Supporting information). In addition, the bridge positions can be divided into long bridge (LB) sites and short bridge (SB) sites. After calculation of adsorption energies, the optimal adsorption site are confirmed as T site (LB site) on Ir(100) (Ir(110)) with an adsorption energy of −0.87 eV (−1.12 eV). The adsorption strength has indicated that there is a strong interaction between N₂ molecules and substrates via chemisorption, which is beneficial for the activation of N₂ molecules. This can also be reflected from the distance between Ir surface and adsorbed N₂ (the d_N-Ir in Table S1 in Supporting information). The bond lengths of N—Ir (d_N-Ir) bonds are generally less than 2.0 Å, which is much smaller than the sum of the radii of the N and Ir atoms (2.63 Å). In order to quantitatively reveal the interaction between N₂ and Ir, we focus on the bond lengths of N≡N (d_NN) of N₂ adsorbed on Ir. Compared to the N₂ molecule in the free state, the N≡N bond lengths of the adsorbed N₂ on Ir are all somewhat elongated. Among them, the N₂ adsorbed on the H site of Ir(100) via horizontal manner can be activated most effectively with the longest N≡N bond of 1.294 Å, which has significantly elongated compared to the situation in gas phase (1.12 Å). This phenomenon can be interpreted from the coordination environment of active sites: N₂ binds with Ir with only one Ir atom at the T-site and four Ir atoms at the H-site. The four-atom-coordination interaction can lead to more charge transfer between Ir and N₂, which is assumed to be a beneficial factor for N₂ activation. In fact, the calculated charge transfer (Q_CT) is consistence with our consumption: The Q_CT is increased with increasing coordination number between N₂ and Ir, which can be described as Q_CT[T] (−0.26 e) < Q_CT[SB] (−0.41 e) < Q_CT[LB] (−0.43 e) < Q_CT[H] (−0.8 e), where the Q_CT[T] (Q_CT[SB], Q_CT[LB] Q_CT[H]) denotes the charge transfer between Ir and N₂ adsorbed on the T (SB, LB, H) site.

To reveal the intrinsic mechanism of N₂ activation on Ir, we have performed some calculations on electronic properties, including charge density difference (CDD), density of states (DOS), and crystal orbital Hamiltonian group (COHP).

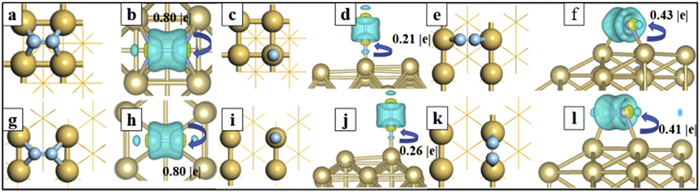

For CDD analysis, we have considered the charge distribution between Ir and N₂, adsorbed on various positions (Fig. 1). The cyan part in CDD denotes the depletion of electrons and the yellow part denotes the accumulation of electrons. Obviously, a significant charge transfer is observed between Ir and N₂, denoting effective activation of adsorbed N₂. Clearly, the charge density distribution around the N₂ molecule is cylindrical, the charge distribution outside the column shows depleted trend and it is accumulated inside the column. In addition, both charge accumulation and reduction can be observed around the adsorbed N₂ and the Ir atom connected to it. These characters perfectly accord with the “acceptance-donation” mechanism proposed in pioneering works. Ir manifests the valence electrons of 5d⁷6s² and the Ir-d orbitals are half occupied. The empty Ir-d orbitals can accept lone-pair electrons of N₂ and the separated Ir-d electrons can also be donated into the anti-binding orbitals of N₂, which can effectively weaken the N≡N triple bonds and facilitate the N₂ dissociation [39]. Overall, the N₂ is negatively charged on both Ir(100) and Ir(110), which is in accordance with the bader charge analysis (Table S1). Due to the larger electronegativity of N compared to Ir atoms, the charge will transfer from Ir to N₂ with a large amount of −0.79 e (−0.80 e) for Ir(100) (Ir(110)), which is beneficial for the dissociation of N≡N bond. The figures in Fig. 1 are all periodic in the planar directions and it is vacuum in the vertical directions. This is a common slab model to simulate the surface of bulk metals.

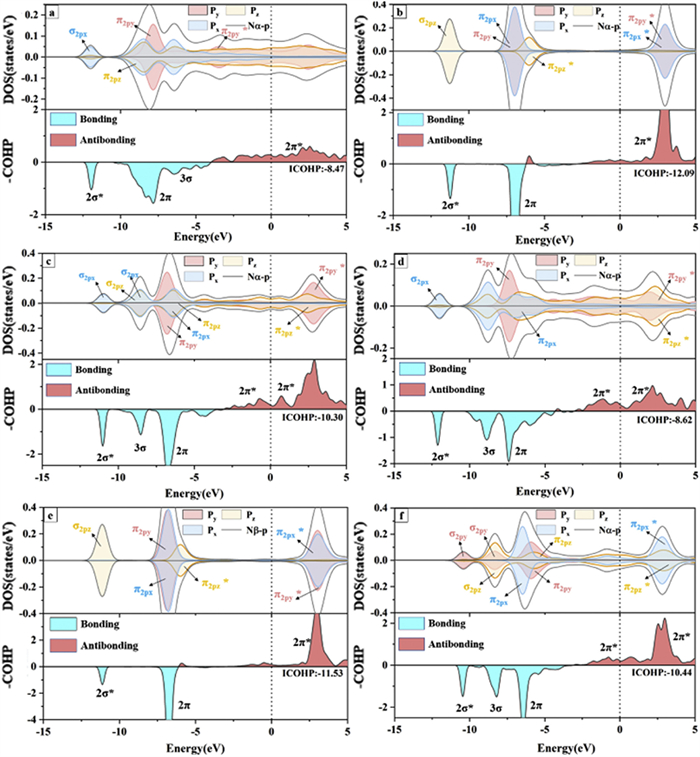

To further reveal the potential activation mechanism of N₂ molecules, we have calculated the projected crystal orbital Hamiltonian group (COHP) and partial density of states (PDOS) to reveal the bond properties between N₂ and Ir from the aspect of electronic configuration (Fig. 2). COHP analysis is widely used to characterize bonding character with positive and negative values denoting bonding and anti-bonding contribution, respectively.

From the COHP analysis, we can see that the bonding states for the adsorbed N≡N bonds mainly contributed by the 2σ*, 2π and 3σ orbitals, corresponding to the σ_2s*, σ_2px, π_2py and π_2pz orbitals, respectively. In addition, the adsorbed N₂ is negatively charged with −0.21 ~ −0.80 e and large amounts of 2π* states of the adsorbed N₂ locate below the Fermi level. This can indicate that the electrons from Ir have dramatically filled the 2π* orbitals of N₂ as N₂ adsorbed on Ir. These phenomena illustrate that the bonding level of the N≡N triple bond is weakened and N₂ has been activated effectively. The bond length of N₂ adsorbed on the hollow/top site of Ir(100) has elongated to 1.294/1.127 Å compared to 1.10 Å in the free state. More interestingly, the 2π, 2π* and 3σ orbitals of N₂ adsorbed at the hollow site of Ir(100) undergo a significant energy level splitting compared to the top site, indicating an increased spin density. The unpaired electrons induced by the spin state are beneficial for the protonation of N₂. We have also integrated the crystal orbital Hamilton population (ICOHP) up to Fermi level, to quantitatively depict the N₂ activation. The ICOHP values can reflect how much this bond contributes to the band-structure energy. ICOHP refers to the numerical integral from the lowest energy peak to 0 eV on the COHP. In general, the bonding (anti-bonding) state is defined as negative (positive) in COHP. Therefore, ICOHP can quantitatively indicate the occupation degree of anti-bonding states: The less negative ICOHP of N₂ denotes a higher occupation of antibonding orbitals, corresponding to a more activated degree of N₂. We have measured the activation degree of N₂ from the aspect of N—N bond length in the above discussions. However, the change of N—N bond length is not the only factor to decide the activation ability. We have therefore further demonstrated the activation of N₂ quantitatively from ICOHP. The ICOHP of N≡N bond for N₂ adsorbed at hollow site (−8.47) is significantly less negative than the situation for top site (−12.07), which further indicates that the hollow site is more favorable for N₂ activation compared to the top site. Similar conclusions can also be obtained for other sites: The ICOHP of N≡N bonds for N₂ adsorbed on LB (−10.30) and SB (−10.44) sites all possess more negative value than that for H site. From the partial density of states, we can also see that the filled 2π* orbitals of N₂ adsorbed on Ir(110) (Ir(100)) are mainly contributed by the states of N-π_2py* and N-π_2pz* (N-π_2py*). Shortly, the Ir atoms can contribute large amount of electrons to the p-orbitals of N₂, leading to the full activation of N₂ at the hollow position of the Ir(100) crystal plane. In addition, the vacancy position of the Ir(100) crystal plane with an ICOHP value of −8.47 eV is more conducive to the activation of N₂ than the hollow position of Ir(110) with an ICOHP value of −8.62 eV. To further demonstrate the correlation between ICOHP and N—N bond length, we eventually comprehensively compare the numeric values on various active sites. For Ir(100), the N—N bond length of adsorbed N₂ is 1.13 Å (1.29 Å) on T (H) site, corresponding to a N—N ICOHP of −12.09 (−8.47). For Ir(110), the N—N bond length of N₂, adsorbed on T, (B and H) site, is 1.13 Å (~1.19 Å and 1.30 Å), with an N—N ICOHP of −11.53 (~−10.40 and −8.62). Therefore, a more enlonged N—N bond corresponds to a higher occupation degree of antibonding states, which is beneficial for N₂ activation. Therefore, the change of N—N bond length is eventually proved as a valid criterion to decide the activation ability of catalysts for N₂.

These phenomena can be treated as the origin of elongated N≡N bond length and shortened N—Ir bond (Table S1). Overall, the hollow site can be treated as the most favorable adsorption sites for N₂ activation compared to other sites.

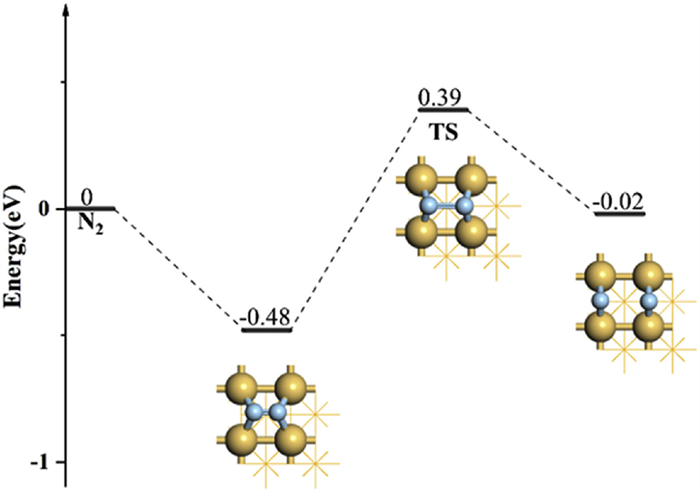

To explore the activation ability of N₂ on Ir quantitatively, we have calculated the reaction pathway of N₂ dissociation, including the initial states, transition states (TS), and final states (Fig. 3). The adsorption free energy of N₂ on the hollow site of Ir(100) is −0.48 eV and the reaction barrier of N₂ dissociation is 0.87 eV, which can be easily overcome at ~50 ℃. The N≡N bond length of adsorbed N₂ has been elongated to 1.94 Å compared to 1.29 Å for the initial state.

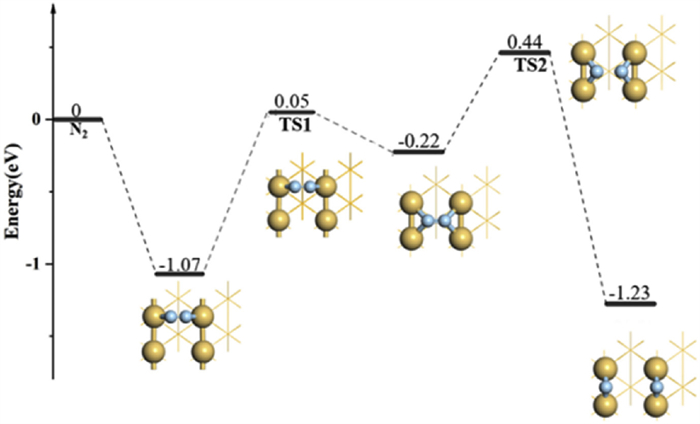

We have also considered the dissociation of N₂ molecules on Ir(110) (Fig. 4). Unlike the situation on Ir(100), the adsorption energy of N₂ is only −0.22 eV on the H site, indicating an ultralow capture property of N₂. Therefore, the N₂ prefers to be adsorbed at LB site, with an adsorption energy of −1.07 eV, and further experiences a movement from LB to H site with a barrier of 1.12 eV The transition state (TS1) has an imaginary frequency of −199.95 cm⁻¹ and the corresponding N≡N bond of adsorbed N₂ has extended from 1.179 Å (initial state) to 1.231 Å (final state). The following step is the dissociation of N₂ at the hollow site with a reaction barrier of 0.66 eV. The N≡N bond length of adsorbed N₂ in transition state (TS2) is further elongated to 1.826 Å with a virtual frequency of 459.7 cm⁻¹. Finally, the N₂ has successfully dissociated into two N atoms in the last step. This can reflect a synergistic effect between LB and H sites: The LB (H) site is superior in the capture (activation) ability of N₂, compared to the situation of H (LB) site. There indeed exists some correlations between the capture and activation capacities of molecules: An increased activation property can lead to a decreased capture ability. This can be treated as a common rule for the activation of small molecules, such as N₂, CO₂, and O₂. In our previous work, we have also discussed the activation of CO₂ on Pt atom loaded on substrates, including BC₃N₂ and graphene. The results have shown that the N₂ adsorbed on BC₃N₂ system manifests a higher occupation degree of antibonding orbitals, corresponding to a higher activation property. However, the BC₃N₂ system cannot effectively capture N₂ due to the dramatic filled antibonding states, compared to the situation of graphene system [53].

Finally, we comprehensively compared the situations on Ir(100) and Ir(110). N₂ molecule can be dissociated with an energy barrier of 0.87 eV (1.12 eV) on Ir(100) (Ir(110)). Based on rough rule-of-thumb, the energy barrier can be overcome at about 348 K (448 K) for Ir(100) (Ir(110)). Clearly, the temperature required for N₂ dissociation on Ir(100) is significantly lower compared to the situation on Ir(110). This can be interpreted from the different reaction mechanism between Ir(100) and Ir(110): The N₂ can be directly dissociated into N atoms on Ir(100) surface; In comparison, the dissociation of N₂ on Ir(110) need to experience two steps, including migration and dissociation processes (Fig. 4), with two transition states. This may originate from the different capture ability of H site between Ir(100) and Ir(110). The adsorption energy of N₂ is −0.48 eV on H site of Ir(100), indicating a favorable capture ability for N₂. Therefore, the N₂ prefers to be directly adsorbed and dissociated on the hollow site of Ir(100). In comparison, the adsorption energy of N₂ is only −0.22 eV on the hollow site of Ir(110), which is unfavorable for N₂ capture. Therefore, N₂ prefers to be adsorbed on the bridge site of Ir(110) and further transfers to the hollow site. Finally, the N₂ will dissociate into separated N atoms on the hollow site. About the adsorption process of N₂, the N₂ in free state can adsorb on the surfaces of Ir(100) and Ir(110) with an energy release of 0.48 eV and 1.07 eV, respectively. Therefore, there is no transition state for the process of N₂ adsorption (Fig. S4 in Supporting information).

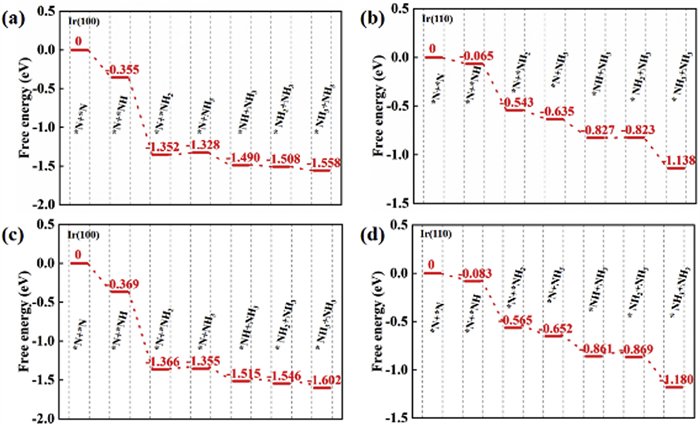

To better demonstrate that the most critical factor of ammonia synthesis is N₂ dissociation, we have calculated the entire reaction pathway of N₂ electroreduction to NH₃. It can be seen from Fig. 5 that once N₂ has dissociated, the subsequent hydrogenation steps can generally proceed spontaneously with negative reaction energies. Thus, the N₂ dissociation process can be treated as the rate controlling step of ammonia synthesis, which is accordance with the key point of our research. As mentioned above, the barrier of N₂ dissociation can be overcome at 348 K. We therefore performed the corresponding correction of free energy with temperature of 348 K, and the reaction pathway is displayed in Figs. 5c and d. The protonation steps of dissociated N atoms have also demonstrated negative reaction energies, similar to the situation at room temperature. Therefore, we can assume that the N₂ dissociation and the following ammonia synthesis processes can occur spontaneously once the temperature higher than 348 K on Ir(100). In addition to the reaction pathway, we can also demonstrate the factors for ammonia synthesis from the aspect of charge transfer. The Ir atom has unpaired electrons, which can accept lone-pair electrons from N₂. This can reflect that the N≡N bond can be weakened via the well-known “accept-donate” mechanism. Therefore, we can also attempt to increase the charge density of Ir to promote the occupation of antibonding orbitals to activate N₂.

Considering the realistic condition, some ambient adsorbate such as *N₂ may induce catalysts’ dynamics or reconstructions. We thus adsorb *N₂ on Ir(100) (denoted as N₂/Ir(100)) and test the stability (Fig. S2 in Supporting information). The N₂/Ir (100) structure has shown negligible deformation after 10 ps dynamic calculation at 300 K. In addition, the structural integrity was maintained with no bond breaking, indicating a strong chemical bonds character between N₂ molecule and Ir (100). Moreover, the energy of the system is nearly constant throughout the dynamic simulation, further indicating the good stability of N₂/Ir (100) complex. In addition, in the real electrochemical condition, the high-index surfaces of Ir can also anticipate in the reaction. We have therefore calculated the free energy profile of N₂ dissociation on Ir(211) surface to demonstrate the superiority of Ir(100) and Ir(110). As shown in Fig. S3 (Supporting information), the dissociation barrier of N₂ on Ir(211) is 2.63 eV, which is significantly higher than that on Ir(100) and Ir(110) (0.87 eV and 1.12 eV). Therefore, the low-index surfaces of Ir can be treated as the main active centers for N₂ dissociation in the realistic condition.

In conclusion, in this paper, the adsorption and dissociation of N₂ on Ir(100) and Ir(110) were investigated using density functional theory. The results can be listed as follows: Ir(100) can interact with N₂ effectively with an adsorption energy of −0.48 eV, leading to an ultralow N₂ dissociation-barrier of 0.87 eV; In contrast, the Ir(110) can effectively capture N₂ with a large adsorption energy of −1.07 eV, but the dissociation of N₂ is a little difficult with a barrier of 1.12 eV. Therefore, the Ir(100) can be treated as a promising catalyst for N₂ dissociation compared to Ir(110). This can be attributed to the significantly higher adsorption energy of N₂ on the H site of Ir(100) (−0.48 eV) compared to the H site of Ir(110) (−0.22 eV), leading to different dissociation mechanisms on Ir(100) and Ir(110). Ir(100) can dissociate N₂ directly on H site and Ir(110) should firstly capture N₂ via LB site and further transfer the adsorbed N₂ to the H site, which will dramatically deteriorate the reactivity of N₂ dissociation. In addition, the barrier of N₂ dissociation can be easily overcome at a low temperature of 348 K, at which the reaction energies of the following protonation steps of dissociated *N atoms are all negative. Therefore, as the temperature higher than 348 K, the N₂ dissociation and ammonia synthesis can occur spontaneously on Ir(100) surface. Our calculations have provided clues for further catalyst design of N₂ dissociation and ammonia synthesis in both theory and experiments.
