Enhanced C₂H₂/CO₂ separation in tetranuclear Cu(Ⅱ) cluster-based metal-organic frameworks by adjusting divider length of pore space partition

Full

Fahui Xiang^a^,^b^,¹, Lu Li^a^,¹, Zhen Yuan^a, Wuji Wei^a, Xiaoqing Zheng^a, Shimin Chen^a, Yisi Yang^a, Liangji Chen^a, Zizhu Yao^a, Jianwei Fu^b, Zhangjing Zhang^*^,^a, Shengchang Xiang^*^,^a

Affiliations

^a Fujian Provincial Key Laboratory of Polymer Materials, College of Chemistry and Materials Science, Fujian Normal University Fuzhou 350108, China

^b Institute of Quality Standards and Testing Technology for Agro-Products, Fujian Key Laboratory of Agro-Products Quality and Safety, Fujian Academy of Agricultural Sciences, Fuzhou 350001, China

Published: 2025-03-15 doi: 10.1016/j.cclet.2024.109672

Outline

Abstract

Less

Achieving efficient adsorption and separation of C₂H₂/CO₂ mixtures is a goal that people have always pursued to improve the situation of high energy consumption brought by traditional separation technologies in industry today. High-nuclearity metal cluster-based MOFs with different functionalities are promising for this separation, but it is a complicated and difficult task to precisely control their structures. The strategy of pore-space partition (PSP) is a powerful way to construct this type MOFs, which has the characteristic of isostructural relationship, and can be resulted in a similar performance for them. Therefore, it is an interesting work to explore the effect of MOFs property by adjusting the size of PSP dividers. Herein, three tetranuclear Cu(Ⅱ) cluster-based MOFs (FJU-112/113/114) with dual functionalities has been successfully obtained by PSP strategy with various lengths of divider units. With the highest microporosity and unique functional site, FJU-114 realized a good improvement in the adsorption and separation performance of C₂H₂/CO₂. The gas adsorption and lab-scale C₂H₂/CO₂ breakthrough experiments demonstrated that FJU-114 exhibits the highest adsorption uptake of 77 cm³/g for C₂H₂, and shows the best separation factor of 4.2 among three MOFs. The GCMC simulation reveals that a stronger adsorption binding site of C₂H₂ in FJU-114a located in the cage Ⅱ near the unchanged tetranuclear copper node, combined with its high microporosity to achieve the effect of dual functionalities for the improvement performance of C₂H₂ adsorption and separation.

Key words

Metal-organic frameworks / Dual functionalities / Pore space partition / C₂H₂/CO₂ separation / Divider length adjustment

Cite this Article

Fahui Xiang, Lu Li, Zhen Yuan, Wuji Wei, Xiaoqing Zheng, Shimin Chen, Yisi Yang, Liangji Chen, Zizhu Yao, Jianwei Fu, Zhangjing Zhang, Shengchang Xiang. Enhanced C₂H₂/CO₂ separation in tetranuclear Cu(Ⅱ) cluster-based metal-organic frameworks by adjusting divider length of pore space partition[J]. Chinese Chemical Letters, 2025 , 36 (3) : 109672 - . DOI: 10.1016/j.cclet.2024.109672

Full Text

Less

As an emerging porous material platform with flexible design capabilities, metal-organic frameworks (MOFs) not only exhibit a variety of topological structure types, but also provide convenient and diverse ways to modify and functionalize structural pores, which attracted widespread attention from researchers in the field of gas adsorption [1-5]. In the subclass of MOFs, high-nuclearity metal cluster-based MOFs generally possess a good thermal and chemical stability [6], and they can also provide more post modification opportunities on the skeleton of materials [7-9]. However, one of the drawbacks of this subclass MOFs is their large channel limits the achievement of high selectivity for gas separation and purification. For this drawback, the strategy of pore space partition (PSP) is an effective way to narrow the channel size and improve the gas adsorption performance [2,10,11]. Our previous work also shows that the tetranuclear metal cluster-based MOFs with the method of PSP exhibits good C₂H₂ selectivity and separation performance [12]. Normally, the characteristic of isostructural relationship in these MOFs constructed by the PSP strategy can be resulted in the similar performance for them.

Although, the MOFs with the features of isostructural relationship and similar performance, we want to further explored the relationship between the gas adsorption and separation performance and the structural changes brough by adjusting the size of the PSP dividers, which has rarely been discussed before. It is amazing that the divider size regulation not only can effectively reduce the size of the pore to improve the microporosity and gas selectivity, but also change the gas adsorption sites in the structure. Thus, three ten-connected tetranuclear copper cluster-based MOFs (FJU-112/113/114) have been constructed from copper salt and 3,5-dicarboxyphenylphosphonic acid (H₄L) via PSP strategy with various length of dividers (Scheme 1), including 1, 2-bis(4-pyridyl)ethane (BPE 9.288 Å), 1, 2-bis(4-pyridyl)ethylene (BPEL 9.069 Å) and 4, 4′-azo-dipyridinel (DPA 9.004 Å). With the smallest length of divider unit, FJU-114 exhibits the best adsorption and separation performance among three MOFs, which can be confirmed by its highest microporosity and a stronger functional site from the grand canonical monte carlo (GCMC) simulations. It demonstrated that controlling the length of PSP divider is an effective way to enhance the synergy effect of microporosity and functional sites in the structure to improve the gas adsorption performance of materials.

The synthesis of H₄L is referenced from the literature of Luh [13] with a slight modification. 3,5-Dicarboxylate methyl bromobenzene (2.7300 g, 10.0 mmol) and NiCl₂ (0.1300 g, 1.0 mmol) was placed in a two-necked round-bottom flask and heated to 170 ℃ under nitrogen atmosphere. After 3,5-dicarboxylate methyl bromobenzene melted and next triethyl phosphite (2.4 mL, 14.05 mmol) was added dropwise over 7 h. The mixture was heated at the same temperature and stirred overnight. Orange viscous oil was obtained and was purified by column chromatography using a 13:1 v/v mixture of ethyl acetate/ethanol. And the dimethyl 3,5-dicarboxylate-1-diethyl phenylphosphonate with colorless oil was obtain. ¹H NMR (DMSO-d₆, 400 MHz, ppm): δ 8.63 (1H), 8.41–8.44 (2H), 4.01–4.14 (4H), 3.933 (6H), 1.27–1.23 (6H). ¹³C NMR (DMSO-d₆, 400 MHz, ppm): δ 164.9, 136.1, 133.4, 131.4, 130.0, 62.9, 53.3, 16.5. Dimethyl 3,5-dicarboxylate-1-diethyl phenylphosphonate were mixed with 6 mol/L hydrochloric acid by using the mole ratio of 1:6, and heated at reflux for 12 h. The white precipitate was obtained after solvent removal by rotary evaporation under vacuum conditions. And the target product 3,5-dicarboxyphenylphosphonic acid (H₄L) was obtained. The construction of the isostructural MOFs FJU-113/114 adopts a similar method to FJU-112 [12], Cu(NO₃)₂·3H₂O (12 mg, 0.05 mmol), H₄L (3.5 mg, 0.025 mmol), and BPEL/ DPA (4.6 mg, 0.025 mmol) were dissolved by the mixed solvents of DMF/H₂O (4/4 mL) in a 20 mL glass bottle, and put it on the open air under room temperature for three days, then crystal was obtained.

Single-crystal X-ray diffraction studies revealed that green crystal FJU-113 crystallizes in tetragonal I4₁/amd space group. The size of BPEL in the lattice is stretched to 9.380 Å, close to the BPE size of 9.261 Å in FJU-112. FJU-113 inherits major structural characteristic from FJU-112 (Figs. S1a and b in Supporting information), including the ten-connected tetranuclear copper cluster node [Cu₄(μ_2-H₂O)₂N₄(PO₃)₂(CO₂)₄] (Figs. 1a and Figs. 2a), and the connection mode between metal cluster nodes and linkers. The unique organic ligand of deprotonated L⁴⁻ combined with the [Cu₄(μ_2-H₂O)₂N₄(PO₃)₂(CO₂)₄] nodes bring a structure similar to MOF-808 with a spn net [14] as one part of the main structure. The spn net contains two kinds of cages. A tetrahedral cage Ⅰ centered at Wyckoff site 4a is composed of four tetranuclear copper cluster nodes and four L⁴⁻, the diameter and the channel size generated from this cage is 5.8 Å and 4.8 × 5.0 Å² along b axis (Figs. 1b and 2b, Fig. S3a in Supporting information). Cage Ⅰ is connected to each other via sharing the tetranuclear copper cluster nodes to form the spn net with a large cage (Fig. 1c). Simultaneously, the BPEL molecules not only connect with Cu ions as another part of the host framework to enhance the stability of whole host network, but also regard as an insertion linear divider in the pore space partition (PSP) (Figs. 1d and e). The PSP has resulted in a significantly decreasing level in the window size from 17.3 × 14.1 Å² to 4.6 × 9.3 Å² along b axis. And the 1D channel of spn partial divided into numerous cages (cage Ⅱ, Fig. 2c) centered at Wyckoff site 8e with the diameter of 8.6 Å (Fig. 1e). Compared with the structure of FJU-112, the tetrahedral cage (cage Ⅰ) as one part of spn partial and the cage Ⅱ generated from another partial of 2M4–1 in FJU-113 are almost unaffected by the divider BPEL with small dimension, resulting in the same topology and a minor change with the cage diameter size and channel aperture size. Importantly, the characteristic of cage Ⅰ has four phenyls from different H₄L molecules to form a quasi-cylindrical space for the guest adsorption (Fig. S3c in Supporting information).

For FJU-114, as the length of 9.004 Å for the divider DPA is obviously shorter than BPE and BPEL, its space group, coordination mode of 3,5-dicarboxyphenylphosphonic anion, and the modes of the ten-connected tetranuclear copper nodes are different with those for FJU-112/113. The brown crystal FJU-114 crystallizes in monoclinic I2/a space group, a subgroup of tetragonal I4₁/amd space group, in which the asymmetric unit consists of two Cu atoms, two μ₂-H₂O, two H₄L and two DPA organic ligands, indicating that there are two kinds of 10-connected tetranuclear copper nodes (Fig. 2d) and the 3,5-dicarboxyphenylphosphonic ligand adopts two various coordination manners (Figs. S2b and d in Supporting information). Nevertheless, as the ligand DPA is also bidentate same as BPE and BPEL, the sp2 topology containing spn and 2M4–1 subnets can be kept in FJU-114 (Figs. S1c and d in Supporting information). Notably, due to the change of divider size, the new connection mode between nodes and ligands was presented, which significantly affect the aperture size of cage Ⅰ and the 1D channel in FJU-114, one side of the window size was significantly narrower through the carboxylate oxygen compare to that of another side (Fig. 2e and Fig. S3b in Supporting information). Besides, the feature of cage Ⅱ has two interpenetrated quasi quadrilateral parts structure which constructed by connecting two different nodes with DPA ligand to provide a guest adsorption functional site near the unchanged cluster node originating from the carboxylate oxygen O4 and the π conjugation between pyridine group and N6 (Fig. S3d in Supporting information). Among them, the length in the crystal of BPEL and DPA are obviously elongated compare to that of original molecule size to affect the change of the crystal structure. As a result, the diameter sizes of cage Ⅰ and Ⅱ in FJU-114 remains 5.8 Å and 8.6 Å, but the aperture sizes of the two channels have been changed to 3.2 × 6.0 Å² along b axis and 4.8 × 9.0 Å² along a axis, respectively (Figs. 2e and f). By the calculation of PLATON program [15], the total accessible volume of FJU-113/114 is 45.6% and 46.1%, respectively, which were filled with the disordered solvent molecules. The unit cell parameters of these MOFs are listed in Table S1 (Supporting information, CCDC: 2131130 and 2131131).

The phase purity of the as-synthesized samples of FJU-113/114 was confirmed by a comparison of the experimental and simulated powder X-ray diffraction (PXRD) patterns (Fig. S4 in Supporting information). The structure of them was further verified by elemental analysis and thermogravimetric analysis (TGA), and their formulas are listed as follows: {[Cu₄(μ₂-H₂O)₂(L)₂](BPEL)₂}·4DMF·10H₂O, and {[Cu₄(μ₂-H₂O)₂(L)₂](DPA)₂}·4DMF·6.5H₂O, respectively. As shown in the TGA curves, FJU-113/114 has a similar thermal stability up to about 250 ℃, and the weight loss nearly 250 ℃ for them can be attributed to the solvents guest escape (Fig. S5a in Supporting information), which have further confirmed by the elemental analysis. The FT-IR spectra of the synthesized MOFs (FJU-113/114) are shown in Fig. S5b (Supporting information). The stretch peaks of P=O bonds are located at 971, 1064, and 1120 cm⁻¹, the stretch peaks of 1660 cm⁻¹ and the range from 1570 cm⁻¹ to 1660 cm⁻¹ are belong to C=C and N=N bond, respectively, which can be found in FJU-113 and FJU-114 [16,17]. The variable temperature PXRD experiments shown that FJU-113/114 can be remained their thermal stability up to 250 and 200 ℃, respectively (Fig. S6 in Supporting information). Simultaneously, FJU-113 can keep chemical stability under different pH range from 2 to 12, while FJU-114 (pH from 4 to 12) is weaker than that of FJU-113 for 24 h (Fig. S7 in Supporting information). To explore the permanent porosity, two samples were guest-exchanged by anhydrous acetone and then degassed at 30 ℃ under high vacuum for 32 h to yield guest-free phases FJU-113a/114a. The PXRD pattern of FJU-113a/114a revealed that the structural integrity was still preserved after activation (Fig. S4 in Supporting information).

As shown in Fig. 3a, single component N₂ adsorption at 77 K were measured on Micromeritic ASAP 2020 HD. The sorption isotherms of FJU-113a/114a belong to type I behaviours, and their Brunauer-Emmett-Teller (BET) surface areas are 724, and 891 m²/g, respectively (Figure S9). The corresponding pore volumes for FJU-113a/114a are 0.33, and 0.35 cm³/g, respectively, close to the theoretical values of 0.41 and 0.40 cm³/g calculated from their crystal structures. The pore-size distribution (PSD) of FJU-113a/114a was analysed from the isotherms of 273 K CO₂ and 77 K N₂ based on the nonlocal density functional theory (NLDFT) model. They show narrow pore cavity sizes distributions centred at 5.8 and 8.6 Å (Fig. 3b and Fig. S8a in Supporting information), close to the cavity sizes determined from their crystal structures. Notably, the cumulative pore volume of FJU-114a is always higher than those of FJU-113a and FJU-112a in the range of 3.5–11 Å (Fig. 3c and Fig. S8b in Supporting information), indicating a higher microporosity in FJU-114a, which is further verified by comparing the micropore surface area and the micropore volume derived by t-plot method to BET specific surface areas and pore volumes in these MOFs (Table S2 in Supporting information). The short divider DPA makes FJU-114a with higher pore volume than FJU-112a and FJU-113a with the long dividers BPE and BPEL, which further make an important effect on its gas adsorption and separation performance.

These ten-connected tetranuclear copper cluster-based MOFs (FJU-113a/114a) with permanent porosity encourage us to explore their abilities for the adsorption and separation of C₂H₂ and CO₂. As shown in Fig. 3d, the single-component uptake of C₂H₂ (77 cm³ (STP)/g) for FJU-114a is about two times higher than that of CO₂ (39 cm³ (STP)/g) at 296 K, 1 bar. However, it is worth noting that the uptake amount of C₂H₂ for FJU-114a is obvious higher than that of FJU-113a (FJU-112a, Fig. S8d in Supporting information), while, the CO₂ adsorption capacity of them almost keep the same. This is mainly due to the reduction in the length of the dividers (PEL (BPE) > DPA) result in an increase of the micropore porosity in the structure of FJU-114a (FJU-114a > FJU-113a (FJU-112a)). Notably, the uptake capacity of C₂H₂ in FJU-114a is comparable to those MOFs of JXNU-12 (77.9 cm³/g) [18], UPC-80 (77.3 cm³/g) [19], ZNU-1 (76.3 cm³/g) [20], and FJU-112a (74 cm³/g) [12], but smaller than SNNU-98-Mn (222.9 cm³/g) [21], ZJU-50a (192 cm³/g) [22], FJU-90a (180 cm³/g) [11], ZJNU-118 (159.5 cm³/g) [23], ATC—Cu (112 cm³/g) [24], ZJNU-109 (104.6) [25], and FJU-118a (88.6 cm³/g) [26]. These results show that these MOFs could have the potential to apply in the separation of C₂H₂/CO₂ mixture gases.

The adsorption enthalpy (Q_st) of FJU-113a/114a was calculated by virial fitting for C₂H₂ and CO₂ from the adsorption isotherms at 273 and 296 K. The calculated Q_st value for C₂H₂ in FJU-113a/114a (32.7 and 33.0 kJ/mol) is almost the same at near zero coverage (Fig. 3e, Figs. S10a and c in Supporting information). While, the Q_st value of CO₂ for FJU-113a/114a is calculated to be 26.5, and 29.1 kJ/mol, respectively (Figs. S10b, d and S11 in Supporting information), which is obviously lower than that of C₂H₂. This indicated that FJU-13a/114a exhibits a stronger affinity for C₂H₂ than CO₂. Compared to the reported MOF materials, the moderate C₂H₂ Q_st value for FJU-114a is significantly lower than that of NCU-100 (60.5 kJ/mol) [27], ZNU-1 (54 kJ/mol) [20], MFU-4-F (41 kJ/mol) [28], MPM-2 (38.5 kJ/mol) [29], and MFM-160a (37 kJ/mol) [30]. This moderate Q_st for C₂H₂ provide an easier way to regenerate the materials in their practical gas adsorption and separation.

To deal with the separations of gas mixture, we first determined the C₂H₂/CO₂ separation selectivity of the FJU-113a/114a by means of ideal adsorbed solution theory (IAST) calculations after fitting the pure-component isotherms to the single-site Langmuir-Freundlich equation at different pressures (Fig. S12 in Supporting information). The calculated selectivity of C₂H₂/CO₂ (50:50) for FJU-114a is 4.0, and this value almost the same as that of FJU-113a (Fig. 3f). Above all, with the advantages of suitable stability, relative low adsorption enthalpies and considerable adsorption selectivity in FJU-113a/114a, indicated that these materials can be a promising solid absorbent candidate.

Next, a laboratory-scale fixed-bed breakthrough experiments were performed in a packed column of activated FJU-113a/114a to evaluate their separation performance for actual mixtures of C₂H₂/CO₂/He (5/5/90, v/v/v) at room temperature under a total flow of 2 mL/min. As shown in Fig. 4a, both FJU-113a and FJU-114a could be successfully realized the complete separation of C₂H₂ from CO₂ at ambient conditions. It can be observed that pure CO₂ was first to elute through the bed, and pure C₂H₂ was retained until the uptake capacity got saturated in both materials of FJU-113a and FJU-114a. Obviously, the breakthrough time of CO₂ for two materials is very close (6.1 and 6.7 min/g for FJU-113a and FJU-114a, respectively). On the contrary, the breakthrough time of C₂H₂ for FJU-113a (12.1 min/g) is earlier than that of FJU-114a (17.8 min/g), which means that FJU-114a exhibits a better separation performance than that of FJU-113a (FJU-112a). More importantly, the separation uptake for FJU-114a (0.35 cm³/g) is significantly higher than that of FJU-113a/112a (0.21, and 0.20 cm³/g for FJU-112a/113a, respectively), which could be well confirmed by the consequents of micropore volume from three MOFs (0.24, 0.25, and 0.32 cm³/g for FJU-112a/113a/114a, respectively) caused by the adjustment of divider size (Fig. 4b). This means that the gas separation performance of them have closely related to the dual functionalities of high microporosity and a stronger functional site. It is worth mentioned that FJU-114a (4.2) has a better C₂H₂/CO₂ separation factor compared to FJU-113a (3.0), which can be well match with the results of adsorption performance. Furthermore, the separation factor value of C₂H₂/CO₂ in FJU-114a is comparable to those MOFs (Table S3 in Supporting information) including: ZJU-74a (4.3) [31], ZJU-50a (4.2) [22], Cu^I@UiO-66-(COOH)₂ (3.4) [32], DNL-9(Fe) (3.0) [33], FJU-112a (3.0) [12], and FJU-118a (1.9) [26], but this value is smaller than that of ZNU-1 (49) [20], and BSF-3 (16) [34]. Multiple cycling C₂H₂/CO₂/He dynamic breakthrough experiments were measured under the same operating conditions for these materials, showing that FJU-113a/114a can be maintained the retention time of C₂H₂ and CO₂ (Fig. S13 in Supporting information). It means that the adsorption capacity of both MOFs is well retained under dynamic capturing, which could be the potential candidate for C₂H₂/CO₂ mixtures separation, especially for FJU-114a.

To further understand the host-guest interactions, the grand canonical Monte Carlo (GCMC) simulations was employed to determine the possible position distribution of C₂H₂ (the primary binding site) in the frameworks of FJU-112a/113a/114a. Compared to the primary binding site located in cage Ⅰ for FJU-112a (Figs. 5a and b), the primary binding site of FJU-113a shows the same result, also located in the tetrahedral cage Ⅰ (Figs. 5c and d) with multiple π···π interactions (distance range from 3.523 Å to 3.526 Å), which mainly due to the similar size of divider in FJU-112a/113a. Different from FJU-113a, the primary binding site of FJU-114a located near the unchanged ten-connected tetranuclear copper node and the DPA ligand in cage Ⅱ, which provide the interactions of O^δ⁻···C^δ⁺ and π···π with the distance range of 3.363–3.636 Å (Figs. 5e and F). Because a significantly shorter size of divider (DPA) results in one side of cage Ⅰ aperture size become narrower to hinder the C₂H₂ molecule enter the cage space entirely to reduce the interaction intensity between guest and host framework (Fig. S3b in Supporting information). Therefore, the primary binding site changes from cage Ⅰ in FJU-113a to cage Ⅱ in FJU-114a. These results indicated that FJU-114a with a stronger binding site interaction and higher microporosity makes an enhancement performance of gas adsorption and separation by regulating the length of divider.

In summary, we have realized the construction of three MOFs (FJU-112/113/114) with different gas adsorption and separation performance by the PSP strategy with variable divider length. Although it is generally believed that the MOFs constructed by the PSP strategy have the characteristics of isostructural relationship and similar performance, the adjustment of the MOF structure is achieved by adjusting the size of the PSP dividers, which has a significant impact on the separation selectivity and adsorption sites of the material for C₂H₂. With the shortest length of divider ligand, FJU-114a shows the highest adsorption capacity of 77 cm³/g for C₂H₂ at 296 K 1 bar, and exhibits the best separation performance of C₂H₂/CO₂/He (v/v/v = 5/5/90) with the separation factor of 4.2. The GCMC simulation reveals that a stronger adsorption binding site of C₂H₂ in FJU-114a located in the cage Ⅱ near the unchanged tetranuclear copper node. These results confirmed that FJU-114a with dual functionalities could be a potential candidate for C₂H₂/CO₂ mixtures separation. In short, the PSP strategy with various size of divider is a powerful way to realize the maximizing effects of multifunctional synergy of microporosity and adsorption binding site to improve the performance of gas adsorption and separation.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was financially supported by the National Natural Science Foundation of China (Nos. 21975044, 21971038, 21922810 and 22271046), the Fujian Provincial Department of Science and Technology (Nos. 2023J01355, 2023J011106 and 2022R1022001).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2024.109672.

References

Less

[1]

S. Yuan, L. Huang, Z. Huang, et al., J. Am. Chem. Soc. 142 (2020) 4732–4738.

[2]

L. Liu, Z. Yao, Y. Ye, et al., J. Am. Chem. Soc. 142 (2020) 9258–9266.

[3]

Q. Yu, L. Guo, D. Lai, et al., Sep. Purif. Technol. 268 (2021) 118646.

[4]

U. Ryu, S. Jee, P.C. Rao, et al., Coord. Chem. Rev. 426 (2021) 213544.

[5]

X. Zheng, L. Chen, H. Zhang, et al., Angew. Chem. Int. Ed. 62 (2023) e202216710.

[6]

J.H. Cavka, S. Jakobsen, U. Olsbye, et al., J. Am. Chem. Soc. 130 (2008) 13850–13851.

[7]

H. Li, L. Li, R.B. Lin, et al., ACS Sustainable Chem. Eng. 7 (2019) 4897–4902.

[8]

H.M. Wen, M. Liu, Y. Ling, et al., J. Mater. Chem. A 11 (2023) 17821–17827.

[9]

A. Sharma, J. Lim, S. Jeong, et al., Angew. Chem. Int. Ed. 60 (2021) 14334–14338.

[10]

X. Zhao, X. Bu, Q.G. Zhai, H. Tran, P. Feng, J. Am. Chem. Soc. 137 (2015) 1396–1399.

[11]

Y. Ye, Z. Ma, R.B. Lin, et al., J. Am. Chem. Soc. 141 (2019) 4130–4136.

[12]

F. Xiang, H. Zhang, Y. Yang, et al., Angew. Chem. Int. Ed. 62 (2023) e202300638.

[13]

C.Y. Lo, C.H. Chen, T.W.T. Tsai, et al., J. Chin. Chem. Soc. 57 (2010) 539–546.

[14]

H. Furukawa, F. Gándara, Y.B. Zhang, et al., J. Am. Chem. Soc. 136 (2014) 4369–4381.

[15]

A.L. Spek, PLATON, A Multipurpose Crystallographic Tool, Utrecht University, 2001.

[16]

E. Pretsch, P. Bühlmann, M. Badertscher, Structure Determination of Organic Compounds: Tables of Spectral Data, Springer-Verlag Berlin Heidelberg, 2009, p. 174.

[17]

Y. Zhang, L. Wang, J. Hu, et al., CrystEngComm. 22 (2020) 2649–2655.

[18]

X.P. Fu, Y.L. Wang, X.F. Zhang, et al., Chem. Eng. J. 432 (2022) 134433.

[19]

C. Jiang, C. Hao, X. Wang, et al., Chem. Eng. J. 453 (2023) 139713.

[20]

L. Wang, W. Sun, Y. Zhang, et al., Angew. Chem. Int. Ed. 60 (2021) 22865–22870.

[21]

J.W. Wang, S.C. Fan, H.P. Li, et al., Angew. Chem. Int. Ed. 62 (2023) e202217839.

[22]

K. Shao, H.M. Wen, C.C. Liang, et al., Angew. Chem. Int. Ed. 61 (2022) e202211523.

[23]

L. Fan, L. Yue, W. Sun, et al., ACS Appl. Mater. Inter. 13 (2021) 40788–40797.

[24]

Z. Niu, X. Cui, T. Pham, et al., Angew. Chem. Int. Ed. 60 (2021) 5283–5288.

[25]

T. Xu, M. He, L. Fan, et al., Dalton Trans. 50 (2021) 638–646.

[26]

Q. Song, Y. Yang, F. Yuan, et al., J. Mater. Chem. A 10 (2022) 9363–9369.

[27]

J. Wang, Y. Zhang, Y. Su, et al., Nat. Commun. 13 (2022) 200.

[28]

Q. Liu, S.G. Cho, J. Hilliard, et al., Angew. Chem. Int. Ed. 62 (2023) e202218854.

[29]

M.Y. Gao, D. Sensharma, A.A.A. Bezrukov, et al., Small 19 (2023) 2206945.

[30]

W.J.F. Trenholme, D.I. Kolokolov, M. Bound, et al., J. Am. Chem. Soc. 143 (2021) 3348–3358.

[31]

J. Pei, K. Shao, J.X. Wang, et al., Adv. Mater. 32 (2020) 1908275.

[32]

L. Zhang, K. Jiang, L. Yang, et al., Angew. Chem. Int. Ed. 60 (2021) 15995–16002.

[33]

Y.M. Gu, Y.Y. Yuan, C.L. Chen, et al., Chem. Sci. 14 (2023) 1472–1478.

[34]

Y. Zhang, J. Hu, R. Krishna, et al., Angew. Chem. Int. Ed. 59 (2020) 17664–17669.

Appendix

Less

Year 2025 volume 36 Issue 3

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2024.109672

Receive Date：2023-12-24
Online Date：2025-11-07
Published：2025-03-15

Article Data

Affiliations

History

Received：2023-12-24
Revised：2024-02-08
Accepted：2024-02-22

Affiliations

^a Fujian Provincial Key Laboratory of Polymer Materials, College of Chemistry and Materials Science, Fujian Normal University Fuzhou 350108, China

^b Institute of Quality Standards and Testing Technology for Agro-Products, Fujian Key Laboratory of Agro-Products Quality and Safety, Fujian Academy of Agricultural Sciences, Fuzhou 350001, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2024.109672

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Scheme 1 The synthetic route to FJU-112/113/114 with the various lengths of dividers BPE, BPEL and DPA, and the formula of them is {[Cu₄(μ₂-H₂O)₂(L)₂](BPE)₂}·4DMF·8H₂O, {[Cu₄(μ₂-H₂O)₂(L)₂](BPEL)₂}·4DMF·10H₂O, and {[Cu₄(μ₂-H₂O)₂(L)₂](DPA)₂}·4DMF·6.5H₂O, respectively.

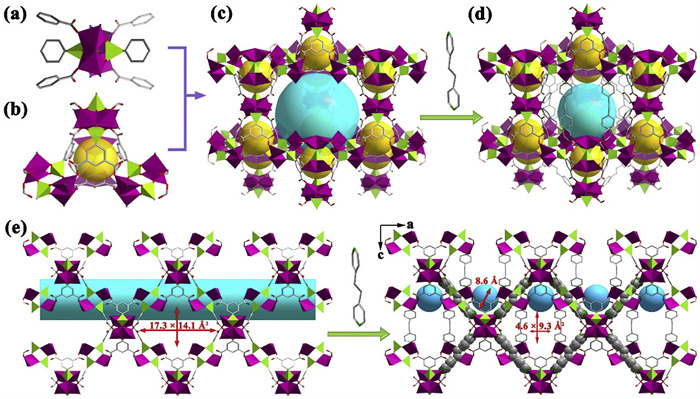

Fig. 1 (a) The main trigonal antiprism partial building units. (b) The tetrahedral cage Ⅰ. (c) The spn partial frameworks formed by the split building units and triangular organic linkers. (d) Inserting linear divider into spn net to obtain FJU-113. (e) Side view of the 1D channel and nanocages before and after partitioning. Colour code: Cu, teal; P, pink; C, light grey; N, green; O, red. H atoms are omitted for clarity. Cages are illustrated with light orange and turquoise balls.

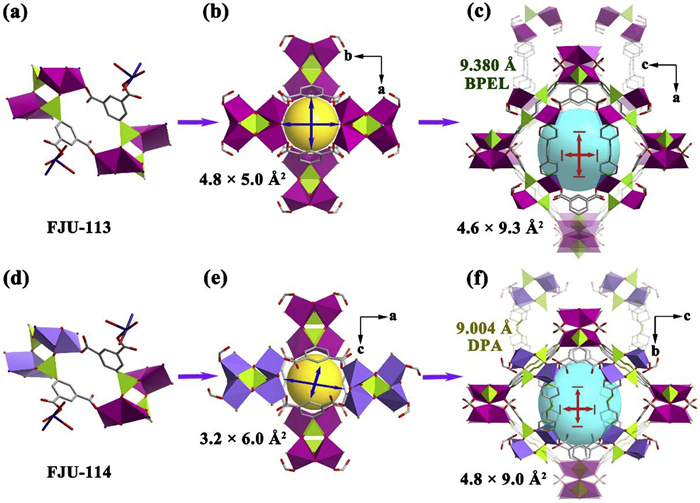

Fig. 2 (a) The tetranuclear Cu cluster node for FJU-113. (d) Two kinds of tetranuclear Cu cluster nodes for FJU-114. (b, e) Cage Ⅰ and its aperture size for FJU-113/114, respectively. (c, f) Cage Ⅱ and its aperture size for FJU-113/114, respectively.

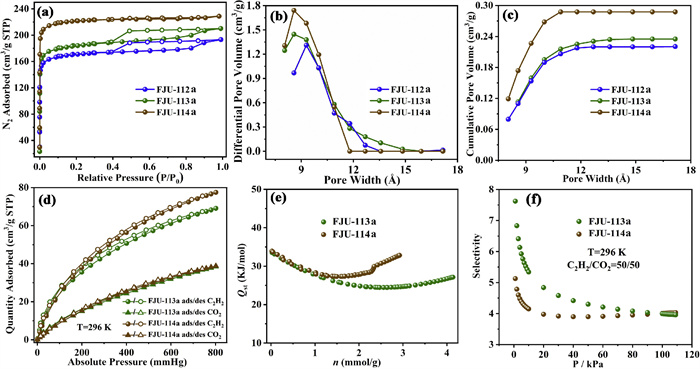

Fig. 3 (a) N₂ adsorption isotherm of FJU-112a/113a/114a at 77 K. (b) The pore size distribution and (c) cumulative pore volume of FJU-112a/113a/114a from 77 K N₂ isotherms based on the nonlocal density functional theory (NLDFT) model. (d) C₂H₂ and CO₂ adsorption isotherms of FJU-113a/114a at 296 K. (e) Adsorption enthalpy of C₂H₂ in FJU-113a/114a. (f) IAST selectivity for equivalent C₂H₂/CO₂ of FJU-113a/114a at 100 kPa and 296 K.

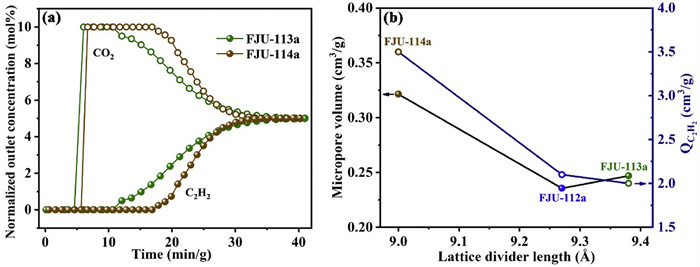

Fig. 4 (a) Experimental column breakthrough curves of FJU-112a/113a/114a for C₂H₂/CO₂/He (v/v/v = 5/5/90) separation at 296 K and 1 bar. (b) The relationship between lattice divider length and micropore volume and separation uptakes for FJU-112a/113a/114a, respectively.

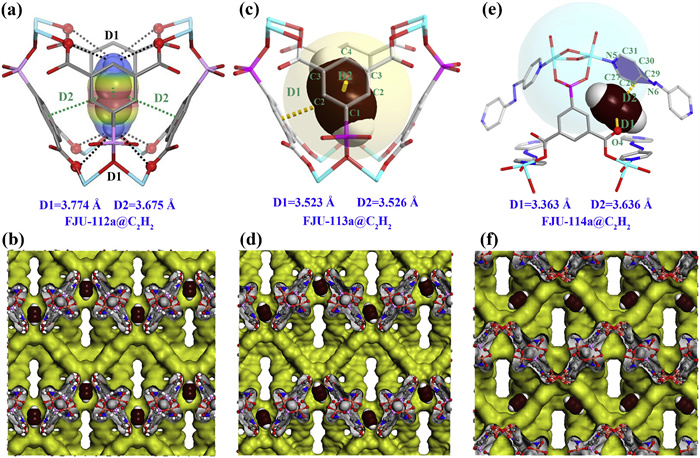

Fig. 5 (a, c, e) Calculated primary adsorption binding sites of C₂H₂ in FJU-112a/113a/114a. (b, d, f) Top views of the packing diagram of one C₂H₂ loaded in FJU-112a/113a/114a. The framework and pore surface are shown in gray and light yellow. (Color code: Cu, turquoise; O, red; C, gray; P, pink; H, white. Only the H atoms in C₂H₂ molecules are shown for clarity).
