Transition-metal dichalcogenides, especially molybdenum disulfide (MoS₂), have been extensively investigated as an attractive catalyst for the electrochemical hydrogen evolution reaction (HER) [1,2]. Tremendous of work has been devoted to understanding the structure-activity relationship and optimizing the catalytic performance. It has been well acknowledged that the edge sites are active while the basal plane is relatively inert towards the electrochemical H₂ evolution [3,4]. Various strategies such as strain [5], doping [6], phase engineering [1,7], and heterostructures [8] have been developed to modulate the electronic structure and improve the catalytic activity of MoS₂ basal plane. Sulfur vacancy has been recognized as a key defect type that can dramatically perturb the local density of states and create additional energy states between Femi level, thus could effectively improve the catalytic activity [9-11]. Although many studies demonstrate the effect of sulfur vacancy concentration on the electrochemical and chemical catalysis [12,13], thorough understanding of the sulfur vacancy dependence requires spatially resolved measurements.

Several techniques have been employed for the local probing of electrocatalytic activity across 2D materials surface. The on-chip electrocatalytic microdevice platform, where the region of interest can be selectively exposed to electrolyte solution, allows high-precision and targeted local electrochemical measurement on single MoS₂ nanosheet level [14,15]. However, due to the sophisticated fabrication processes and a series of issues (e.g., polymer passivation layer, current leakage), large cell-to-cell variations in measurements have been observed [16]. Other approaches such as scanning electrochemical microscopy (SECM) [17], super-resolution fluorescence microscopy (FL) [18], electrochemiluminescence microscopy (ECL) [19], and plasmonic imaging [20] offers high spatial/temporal resolution in detecting catalytic reaction across single catalysts. However, FL and ECL optical approaches are limited to fluorogenic reactions or that emit light. Label-free optical imaging method lacks the selectivity to recognize contribution from the intrinsic catalytic reaction. In all of the above methods, the effect of enhanced mass transport at perimeter (specific structures such as corners and edges) can be nontrivial, causing possible misidentification of the active sites.

Scanning electrochemical cell microscopy (SECCM), an emerging powerful technique that uses a glass nanopipette filled with electrolyte to scan across surfaces of interest, can resolve the fundamentals of various electrochemical processes with a high spatial resolution [21,22], Importantly, SECCM is especially appropriate to reveal the mechanistic insights into the structure-property (activity) relationships across heterogeneous surfaces of 2D materials, such as graphene [23-25], MoS₂ [26-28], WSe₂ [29], Mexene [30], and others [31,32]. In this study, we comprehensively explore the electrochemical hydrogen evolution reaction across monolayer MoS₂ in the form of triangular microflakes with regulated sulfur vacancy using SECCM approach. Nanoscale inhomogeneity of electrocatalytic activity is clearly demonstrated. Characterization of kelvin probe force microscope (KPFM) and photoluminescence (PL) imaging on identical microflakes and regions elucidate the local electronic structures, unravelling the unambiguous correlation between catalytic activity and local sulfur vacancy defects. This study demonstrates the power of correlative co-located SECCM approach for understanding the spatial heterogeneity of electrocatalytic reaction at sub- transition-metal dichalcogenides flakes.

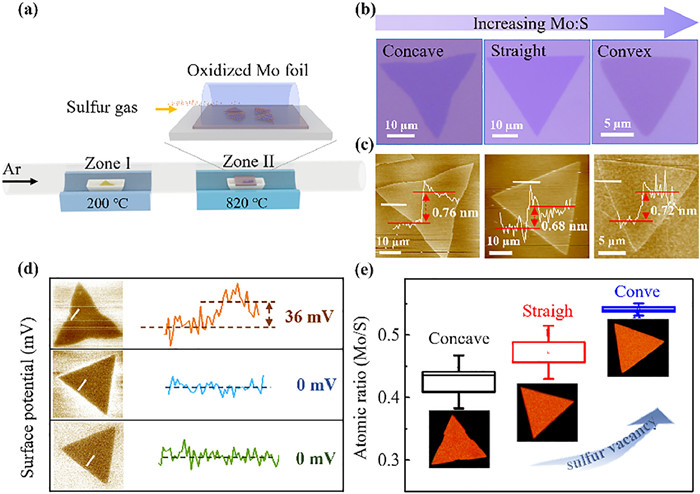

Large area high-quality crystals of monolayer 2H-MoS₂ were grown on a SiO₂/Si substrate by atmospheric pressure chemical vapor deposition (CVD) with oxidized Mo foil and S precursors as illustrated in Fig. 1a (details in section S1 in Supporting information) [33,34]. By precisely controlling the stoichiometry (Mo:S) during synthesis, triangular MoS₂ flakes with regulated sulfur vacancy density can be obtained and three different shapes from concave to straight and convex equilateral triangles with typical size of tens of micrometers are displayed in the optical images of Fig. 1b. Atomic force microscopy (AFM) topological images identify that the concave, straight, and convex triangular flakes have typical thicknesses of 0.76, 0.68, and 0.72 nm, respectively (white line in Fig. 1c), in accordance with the characteristic of monolayer MoS₂ [34].

The electronic structure of monolayer MoS₂ flakes is characterized by KPFM [35], where the surface potentials obtained are not calibrated with respect to the tip. Fig. 1d illustrates the easily distinguishable surface potential on MoS₂ samples from the SiO₂/Si substrate. The line profile shows that the surface potential across the straight and convex triangular flakes is relatively uniform, consistent with recent results of uniform electronic properties across straight triangular CVD-grown monolayer MoS₂ flakes [36,37]. In contrast, spatial heterogeneity in surface potential across the concave triangular flakes is demonstrated. Previously, this in-plane surface potential variances in single crystalline flakes is ascribed to the heterogeneous distribution of local defects [38,39] or strain [40]. Auger electron spectroscopy (AES) is employed to analyze the chemical distribution across MoS₂ microflakes [39,41]. The spectra and element map of Mo and S, associated with scanning electron microscope (SEM) images, are presented in Figs. S1–S4 (Supporting information), indictive of uniform atomic distribution [39]. Further atomic concentration analysis over different samples reveals that the Mo:S ratio increases from 0.43 to 0.47 and 0.54 with a significant decrease in sulfur content, as the flake morphology evolves from concave to straight and further to convex triangle (Fig. 1e). Such tendency of sulfur-deficiency in MoS₂ agrees well with the afore-mentioned stoichiometry control during CVD synthesis and suggests the variations in sulfur vacancy concentration of the three different shaped MoS₂ flakes.

Considering all the three types of MoS₂ flakes have identical compositions and there is no elastic strain applied in the course of experiment, we speculate that the non-uniform surface potential from KPFM image of the concave MoS₂ flake is attributed to the heterogenous distribution of defects. Extensive previous aberration-corrected scanning transmission electron microscopy studies suggest that the sulfur vacancies are the predominant point defects in pristine CVD-grown monolayer MoS₂ [39,42-44]. Based on the results of KPFM and AES, we conclude that as the morphology changes from concave to straight and further to convex triangle, the sulfur vacancy defects concentration significantly increases. Meanwhile, as the vacancy concentration increases, its spatial distribution across the microflakes changes from inhomogeneous to relatively uniform. This conclusion can be validated from the spatially resolved photoluminescence observations, which will be discussed later. In a nutshell, the different sulfur vacancy concentrations and spatial distributions make the three MoS₂ triangular flakes excellent candidates for understanding the spatial heterogeneities in electrocatalytic HER.

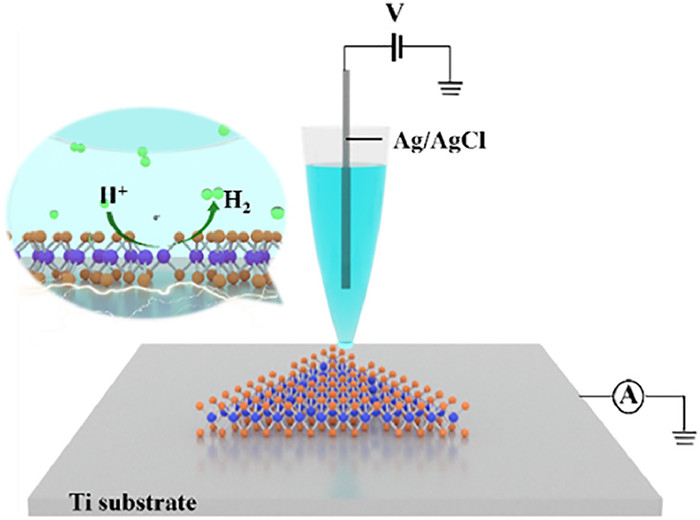

After characterization, the MoS₂ monolayers were carefully placed on a catalytically inert substrate using a wet etching transfer method assisted by PMMA, as detailed in section 2.1 in Supporting information [45]. Considering previous electrochemical microscopy of two dimensional materials [23,27] and supporting substrates effect on the HER of MoS₂ [46], atomically flat Ti thin layer was deposited on flat quart glass by electron-beam lithography to avoid possible local strain (Figs. S5 and S6 in Supporting information). Localized electrochemical measurement of HER across MoS₂ monolayers were performed using SECCM approach and the configuration is illustrated in Fig. 2 [47-49]. A single-barrel glass nanopipette with a tip opening radius of ~100 nm (Fig. S7 in Supporting information), filled with 10 mmol/L HClO₄ aqueous solution as electrolyte and inserted with an Ag/AgCl wire as the quasi-reference and counter electrode (QRCE) is used as the scanning probe. Variances in glass nanopipette geometry is carefully examined by the ionic conductance measurement [50], and nanopipettes with similar ionic current responses are chosen for experiments (Fig. S8 in Supporting information), ensuring the reliability of local electrochemical quantification. The position of the nanopipette is controlled by a piezoelectric motor in the z direction to slowly approach the substrate. Once the meniscus contacts the substrate, a nanometer-sized electrochemical droplet cell is established and consequent electrochemical measurement such as linear sweep voltammetry (LSV) for HER on the sample surface will be performed. The substrate confined by the meniscus droplet serves as the working electrode. Electrochemical imaging is obtained by using a repetitive “hopping” mode scanning across the sample surface (Fig. S9 in Supporting information) and the step distances vary from 500 nm to 2 µm depending the lateral dimension of individual MoS₂ microflakes. The spatial resolution in our SECCM study is limited by the size of the nanopipette (~200 nm diameter) as well as the hopping distance between each spot. Due to the speed limit of pipette approaching, the arrays for 30 × 30 pixels typically take ~120 min. The current density is obtained by picking up the current from LSV and divided by an electrode area [23,51], as estimated from SEM images of the post-SECCM footprints with additional electrolyte salt introduced. The observed consistent in droplet footprint size in Fig. S10 (Supporting information) suggests the reproducibility of droplet wetting during electrochemical mapping and the reliability of quantification of current density. It should be noted that due to the iR drop in SECCM, such current density value from nanoscale electrochemical measurement is not comparable to that obtained from macroscopic measurement [52].

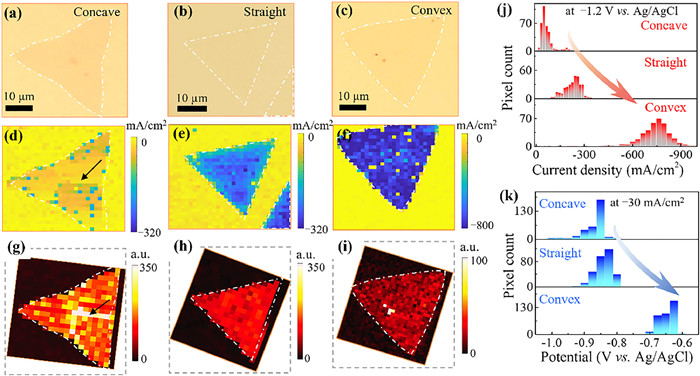

Typical SECCM results obtained at individual monolayer MoS₂ flakes consist of correlated optical image, electrochemical HER current density image, and photoluminescence image. Figs. 3a–c show the optical images of the concave, straight, and convex triangular MoS₂ flakes before SECCM experiments. The HER current density image at –1.20 V vs. Ag/AgCl across the corresponding MoS₂ flakes are demonstrated in Figs. 3d–f. It is found that current across MoS₂ samples shows higher magnitude relative to the Ti substrate and the edge positions display comparable activity with the basal plane for all the three flakes. This observation of equivalent activity at edge and basal plane is in line with recent report of heterogeneous electron transfer on CVD-grown concave triangular monolayer MoS₂ using bright field optical imaging [53]. Meanwhile, previous local electrochemical measurement on bulk MoS₂ surfaces found highly superior HER activity at edge positions with tens of MoS₂ layers, but only slightly superior (130%) at edge positions with a few (~2–3) layers [26]. We expect that the unobserved superior activity at the edges in current study is likely due to the tiny proportion of the edges within the total area encapsulated by the meniscus droplet. Nevertheless, the spatial resolved electrochemical HER activity within the MoS₂ basal plane can be revealed. While the concave triangle exhibits uneven distribution of catalytic activity (Fig. 3d), the straight and convex triangular samples display relatively uniform distribution of activity (Figs. 3e and f). Additional HER current images at different potentials (–0.9 and –1.1 V vs. Ag/AgCl) of the three different flakes are presented in Fig. S11 (Supporting information), demonstrating the consistent heterogeneity of catalytic activity on concave triangular monolayer MoS₂ flakes.

To understand the heterogeneity of HER activity, spatially resolved photoluminescence imaging was performed across the same MoS₂ flake/region of the SECCM measurements [54]. Figs. 3g–i shows the corresponding photoluminescence intensity map at 1.82 eV across individual flakes under a laser wavelength of 532 nm. Interestingly, it is observed that the straight and convex triangular flakes exhibit relatively uniform emission intensity distribution (Figs. 3h and i) while the concave triangular sample displays noticeable in-plane emission intensity heterogeneity (Fig. 3g). This observation is fully consistent with the surface potential distribution as earlier revealed by KPFM in Fig. 1d. Previous optoelectronic studies of pristine CVD-grown monolayer MoS₂ reported similar inhomogeneity within concave triangular microflakes [41,55], and relative homogeneity within straight triangular microflakes [55]. Since strain effect and doping can be excluded in our study, the variations of in-plane emission intensity can be ascribed to the uneven distribution of sulfur vacancy defects. In Figs. 3g–i, an overall reduction of PL intensity is observed with increasing sulfur vacancy concentration, similar to previous works on sulfur vacancy engineering [41,44]. Region with significantly high emission intensity, indictive of low electron concentration, as noted by the arrow in Fig. 3g, displays low HER activity in Fig. 3d. Finally, we discuss the overall local HER activity for the three different samples. Figs. 3j and k display the histograms of the current density at –1.2 V vs. Ag/AgCl and overpotential at a current density of –30 mA/cm², respectively, over three different MoS₂ flakes. It is clearly demonstrated that the convex triangular flakes with highest sulfur vacancy concentration shows significantly (~7 times) higher HER activity as compared to the concave triangular flakes. This phenomenon of the sulfur vacancy effect on HER activity is fully consistent with previous results from macroscopic measurement of MoS₂ nanosheets [9,13].

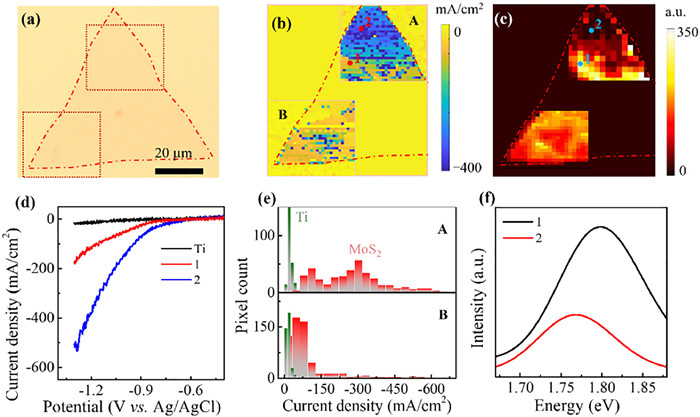

To fully validate the spatial correlation between the sulfur vacancy defects and HER activity, larger area concave MoS₂ microflakes were prepared for further examination using identical scanning nanopipette probe. As presented in Fig. 4, two distinct regions of a ~70 µm concave triangle MoS₂ flake are independently mapped for electrochemical HER. It is observed that corner A exhibits significantly higher HER activity relative to corner B (Fig. 4b). Presentative current responses at different positions are shown in Fig. 4d. The current density at –1.2 V vs. Ag/AgCl at position 2 is as high as 380 mA/cm², which is about 3 times of that at position 1 (126 mA/cm²). Fig. 4e summarizes the distributions of HER current density from individual isolated nanoscale electrochemical measurements in corners A and B. Two peaks located around 105 and 290 mA/cm², respectively, are observed in corner A and only one peak around 70 mA/cm² is observed in corner B. Parallel analysis of overpotential at a constant current density (–30 mA/cm²) shows similar result of superior activity at corner A (Fig. S14 in Supporting information), thus confirming the significant inhomogeneity in HER activity across the concave triangular flakes. Importantly, Fig. 4c shows the spatially resolved photoluminescence image of the same MoS₂ concave triangular flake, where distinct variations in photoluminescence intensity between corners A and B is explicitly demonstrated. The photoluminescence spectra at position 2 shows a great decrease in intensity and low bandgap shift compared with position 1 (Fig. 4f), indicative of the presence of more local sulfur vacancy defects [56]. After examining more co-located microscopy of additional MoS₂ microflakes (Figs. S15-S18 in Supporting information), it is decisively to conclude that the local superior HER activity is correlated with sulfur vacancy defects.

In summary, different from the existing three-electrode ensemble system with a macroscopic composite electrode and the on-chip electrochemical microdevices, the heterogeneity in electrocatalytic hydrogen evolution reaction across CVD-grown monolayer MoS₂ flakes was spatially resolved by scanning electrochemical cell microscopy. Large area single-crystalline triangular microflakes with deliberately regulated sulfur vacancies concentration were examined. The local structure and sulfur vacancies on the basal plane was revealed by a series of co-located microscopy including kelvin probe force microscope, auger electron spectroscopy mapping and photoluminescence imaging. From an unprecedented correlative SECCM and photoluminescence imaging of individual monolayer MoS₂ microflakes, the intrinsic electrocatalytic activity is correlated with local vacancy structures. Significant nanoscale inhomogeneity in electrochemical HER activity is explicitly observed on concave triangular MoS₂ flakes with low vacancy density. In contrast, the straight and convex triangular MoS₂ flakes with high vacancy density, exhibit a relatively uniform HER activity across the sample. Compared with recent SECCM study on defects in MoS₂ flakes [57-59], our work features the correlative SECCM and PL images for MoS₂ samples with deliberately regulated sulfur vacancy density. Direct and persuasive evidence for the enhanced catalytic activity by sulfur vacancy is demonstrated. The strategy can be applicable for the unambiguous understanding of more structure-function relationship of other transition-metal dichalcogenides materials.
