The elimination of environmental pollution and energy crisis caused by consumption of fossil fuels relies on the exploitation of sustainable energy sources. Hydrogen, an advancing reactant for fuel cells and hydrogen engine, generates from electrochemical water splitting, resulting in carbon dioxides free emission. Due to the working environments, the water splitting technology has been classified to acidic and alkaline water splitting. In case of acidic water splitting, more attention should be paid to the anodic electrocatalyst since the high applied potential (> 1.6 V vs. RHE) associated with high acidity decompose the electrocatalyst leading to a low stability [1,2]. Iridium oxides (IrO₂) and ruthenium oxides (RuO₂) are commercially available anodic electrocatalysts for acidic water splitting [3,4]. RuO₂ performs a better catalytic activity than IrO₂; in contrast, a higher electrochemical stability is recorded for IrO₂ [5]. Thus, the stability should be highly considered for the real application of RuO₂ [6–8].

The stability of electrocatalyst customarily divides to thermodynamic and structural stability, which relies on the electronic configurations, like coordination environments, bond energy and bond length, and defects, respectively [9]. Therefore, doping RuO₂ with secondary metal [10] or heteroatoms [11], constructing of solid solution [12] and heterostructure [13] are tremendously conducted to boost the electrocatalyst's stability ascribing to the tailoring of electronic structure [14]. The formation of heterostructure is also beneficial for the adjustment in electronic structure of active center, regulating the adsorption/desorption capability of oxygen coordinates leading to a promoted catalytic activity [15]. As previously reported that MnO₂ was stable in acidic OER catalysis; thereby, MnO₂ is a potential material for RuO₂ to construct heterostructure [16]. The morphology of electrocatalyst normally affects the structural stability since the surface energy, defects and exposed crystal planes are different, which performs different resistance towards electrochemical oxidization and dissolution [17]. RuO₂ formed as nanosheets [18], nanowires [19] and nanospheres [20] have been reported as efficient and stable acidic OER electrocatalysts. Among these morphologies, nanosheets assembled nanoflower structure is a promising architecture for RuO₂ since a strong interaction between nanosheet was recognized triggering a robust stability; besides, the active center is fully exposed and the diffusion of reactant and relative products is accelerated; thereby, the catalytic activity should be dramatically enhanced [21,22].

In this work, herein, we have synthesized RuO₂/MnO₂ nanoflower structure for acidic OER catalysis using MnO₂ as template. RuO₂/MnO₂ performed higher oxygen vacancies percentage by comparison with RuO₂ and MnO₂; thereby, a lower valance state (< 4) was observed for Ru atoms, favorable for the deprotonation of H₂O, reducing the energy barrier for the formation of *OOH species. RuO₂/MnO₂ demanded only 221 mV overpotential to obtain 10 mA/cm², which was lowered by 23 mV and 45 mV than commercial RuO₂ and RuO₂-300, respectively. The reaction order was higher than commercial RuO₂ suggesting the formed Ru-O_bri-Mn facilitated the pronation during OER catalysis. The in-situ Raman spectroscopy associated with cyclic voltammetry tests supported that the further oxidation of Ru⁴⁺ to Ru⁶⁺ was well suppressed, leading to a better structural stability.

As shown in Fig. 1a, it was found that diffraction peaks at 36.9° and 66.1° was stemmed from the (006) and (119) facets of MnO₂ (JCPDS No. 18-0802) confirming the formation of MnO₂. Also, the diffraction peaks at 27.6°, 34.9° and 54.4° was assigned to the crystal planes of (110), (101) and (211) verifying the successful construction of RuO₂. In the XRD pattern of RuO₂/MnO₂, these diffraction peaks were both observed indicating the existence of RuO₂ and MnO₂. In order to confirm the formation of heterostructure, XPS test was carried out shown in Fig. S1 (Supporting information). The Mn 2p XPS spectra were shown in Fig. 1b, in which two distinct peaks at 652.6 eV and 641.2 eV were detected stemming from the Mn 2p_1/2 and Mn 2p_3/2, deconvoluted to Mn³⁺ and Mn⁴⁺ motifs. Interestingly, the quantitative analysis of the peak area indicated that a higher percentage of Mn⁴⁺ specie was found for RuO₂/MnO₂ with relative to pure MnO₂ (Fig. S2 in Supporting information) revealing higher valance state of Mn in RuO₂/MnO₂. As shown in Fig. 1c, Ru 3p XPS spectra composed of Ru⁰ 3p_1/2, Ru⁴⁺ 3p_1/2, Ru⁰ 3p_3/2 and Ru⁴⁺ 3p_3/2 at 484.5 eV, 487.2 eV, 462.1 eV and 465.0 eV, respectively. It was found that a lower content of Ru⁴⁺ moieties were noticed for RuO₂/MnO₂ (Ru⁰: Ru⁴⁺ = 2.77) by comparison with RuO₂-300 (1.92, Table S1 in Supporting information). As shown in Fig. 1d, the core-level O 1s spectra were deconvoluted to absorbed H₂O at 531.74 eV, oxygen vacancy at 529.83 eV and lattice oxygen at 528.65 eV [23]. A higher proportion in oxygen vacancy was calculated for RuO₂/MnO₂ than RuO₂-300 and MnO₂ ascribing to the mismatched lattice spacing of RuO₂ and MnO₂ at heterostructure triggering more oxygen vacancies. Combined with XRD and XPS tests, it was concluded that heterostructured RuO₂/MnO₂ was synthesized. Based on the weight ratio between Ru and Mn from ICP-MS test, the percentage of RuO₂ was 28.6 wt% in electrocatalyst.

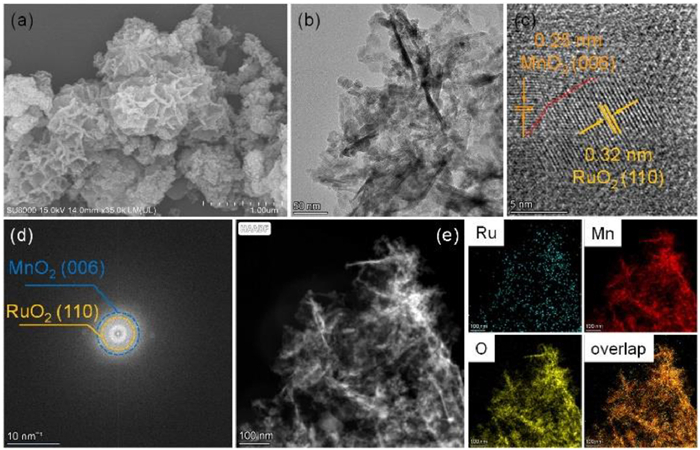

As shown in Fig. S3 (Supporting information), well-defined nanoflower assembled by nanosheets was observed for MnO₂. While, with the same procedure, microspheres were observed for RuO₂-300 (Fig. S4 in Supporting information). Surprisingly, the nanoflower structure was still detected for RuO₂/MnO₂ shown in Fig. 2a and only the surface became rougher compared to MnO₂. The TEM image in Fig. 2b also testified the nanoflower structure. As shown in Fig. 2c, the HR-TEM image clearly stated two lattice spacing of 0.32 nm and 0.25 nm relating to the dominant (110) and (006) facet of RuO₂ and MnO₂, respectively. Additionally, the heterointerface was distinctly recorded highlighting the formation of heterostructure. As shown in Fig. 2d, the SAED pattern also indicated the coexistence of RuO₂ (110) and MnO₂ (006) facets. From the HAADF-STEM image (Fig. 2e) and corresponding EDS mapping, homogenously dispersed Mn, Ru and O elements over the architecture were recorded.

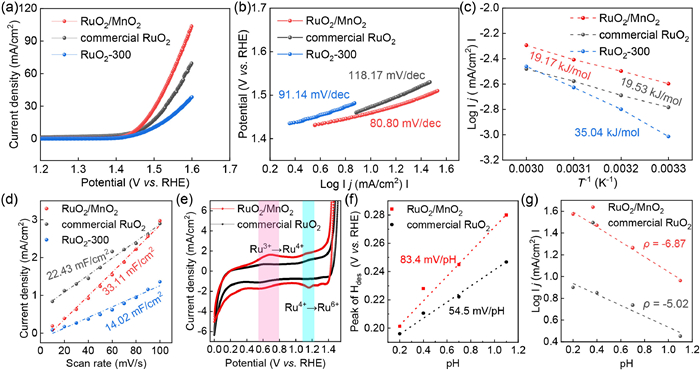

As shown in Fig. 3a, the benchmarked RuO₂ required 244 mV overpotential to obtain 10 mA/cm², outperforming the RuO₂-300 needing 266 mV overpotential to attain 10 mA/cm². Impressively, RuO₂/MnO₂ exhibited a robust catalytic activity towards acidic OER demanding 221 mV overpotential to obtain 10 mA/cm². The OER performance of RuO₂/MnO₂ was superior to RuO₂-300 attributing to the formation of heterostructure inducing more active sites as well as electronic configurations since MnO₂ exhibited an ignorable OER activity. Due to the different dosage of noble metal Ru, the mass activity (MA) was estimated shown in Fig. S5 (Supporting information). RuO₂/MnO₂ exhibited a 6.5-time higher mass activity by comparison with RuO₂-300 at 1.52 V vs. RHE. Besides, the MA value of RuO₂/MnO₂ at 1.52 V vs. RHE was boosted by a factor of 3.7 with relative to commercial RuO₂. As listed in Table S2 (Supporting information), it was noticed that RuO₂/MnO₂ exhibited a higher OER performance than reported Ru based electrocatalysts. The Tafel slope was 118.2 mV/dec, 91.1 mV/dec and 80.8 mV/dec for commercial RuO₂, RuO₂-300 and RuO₂/MnO₂ (Fig. 3b). The lower Tafel slope of RuO₂/MnO₂ also indicated a Eley-Rideal-like (ER-like) OER mechanism; however, OER occurred on commercial IrO₂ followed Langmuir-Hinshelwood mechanism. Also, as displayed in Fig. S6 (Supporting information), the charge transfer resistance (R_ct) of RuO₂/MnO₂ was as low as 61.4 Ω, which was decreased by 28.8% and 31.4% than RuO₂-300 and commercial RuO₂. To know the activation energy for various electrocatalysts, OER performance tested at different temperatures were carried out (Fig. S7 in Supporting information). The activation energy was estimated as 35.04 kJ/mol and 19.17 kJ/mol for RuO₂-300 and RuO₂/MnO₂ shown in Fig. 3c, respectively. The activation energy for acidic OER catalysis was strongly decreased by 45.7% for RuO₂/MnO₂ with respect to RuO₂-300 suggesting its better catalytic activity. Moreover, the activation energy of RuO₂/MnO₂ was lower than commercial RuO₂ (19.53 kJ/mol). To know the active sites, cyclic voltammetry (CV) curve was tested with variation in scan rate (Fig. S8 in Supporting information). The double layer capacitance (C_dl), estimated from slope of the plot of net current density versus scan rate, was 33.11 mF/cm² for RuO₂/MnO₂ (Fig. 3d), promoted by 2.4-fold than RuO₂-300 deriving from the strain effect in the heterostructure with more defects [24]. The estimation in catalytic performance of single catalytic center was conducted by means of normalization of OER performance with C_dl. As shown in Fig. S9 (Supporting information), the specific activity was 1.43 A/F for RuO₂/MnO₂, enhanced by 1.2- and 1.1-time with relative to RuO₂-300 and benchmarked RuO₂, respectively. The higher specific catalytic activity was a distinct indicator of better intrinsic catalytic activity. The higher intrinsic catalytic activity was also testified by turnover frequency (TOF), which was 0.5 s^-1, 0.8 s^-1 and 4.3 s^-1 for RuO₂-300, commercial RuO₂ and RuO₂/MnO₂ at 1.6 V vs. RHE, respectively. To confirm more active sites in RuO₂/MnO₂ compared to benchmarked RuO₂, the cyclic voltammetry curve was recorded from 0 V to 1.4 V vs. RHE shown in Fig. 3e. A clear anodic peak at 0.62 V vs. RHE was detected for RuO₂/MnO₂ assigned to the oxidation of Ru³⁺ to Ru⁴⁺ structure due to more oxygen vacancies. Another oxidation peak at 1.31 V vs. RHE was found due to the further oxidation of Ru⁴⁺ to Ru⁶⁺ specie [25]. Although, this oxidation peak was more obvious for RuO₂/MnO₂; however, the peak ratio between Ru⁴⁺ → Ru⁶⁺ and Ru³⁺ → Ru⁴⁺ was lower for RuO₂/MnO₂ with relative to the counterpart of commercial RuO₂ revealing a lower percentage of Ru⁴⁺ moieties have been oxidized; thereby, a higher structural stability was predicted. As deprotonation is involved in acidic OER process, the capability of deprotonation was estimated by Tafel slope of hydrogen desorption peak. As shown in Fig. S10 (Supporting information), Tafel slope was 451 mV/dec and 348 mV/dec for commercial RuO₂ and RuO₂/MnO₂, respectively, indicating a faster hydrogen desorption from RuO₂/MnO₂. To reveal the fast H desorption, the cyclic voltammetry curves were observed under various pH electrolyte (Fig. S11 in Supporting information). The plot of potential for H desorption vs. pH was shown in Fig. 3f, in which the slope was 54.5 mV/pH and 83.4 mV/pH for commercial RuO₂ and RuO₂/MnO₂. It is noted that 59 mV/pH indicates 1e^- and 1H⁺ were involved in the reaction; thereby, in case of commercial RuO₂, 1e^-/1H⁺ was involved for hydrogen desorption; however, 2e^-/3H⁺ reaction was calculated for RuO₂/MnO₂, which would be due to the hydrogen spillover from active site to bridge oxygen (O_bri) and released from O_bri site. The OER performance was also recorded under different electrolyte with various pH values shown in Fig. S12 (Supporting information). As shown in Fig. 3g, the reaction order of RuO₂/MnO₂ was 6.87, which was higher than commercial RuO₂ (5.02) suggesting the OER performance of RuO₂/MnO₂ was more sensitive to the hydrogen ion concentration. In RuO₂/MnO₂ structure, Ru-O_bri-Mn species were observed and the O_bri performed a better deprotonation capability since the deprotonation of absorbed *OOH species could be accelerated by the Mn atoms [26]; thus, a better OER performance was achieved for RuO₂/MnO₂.

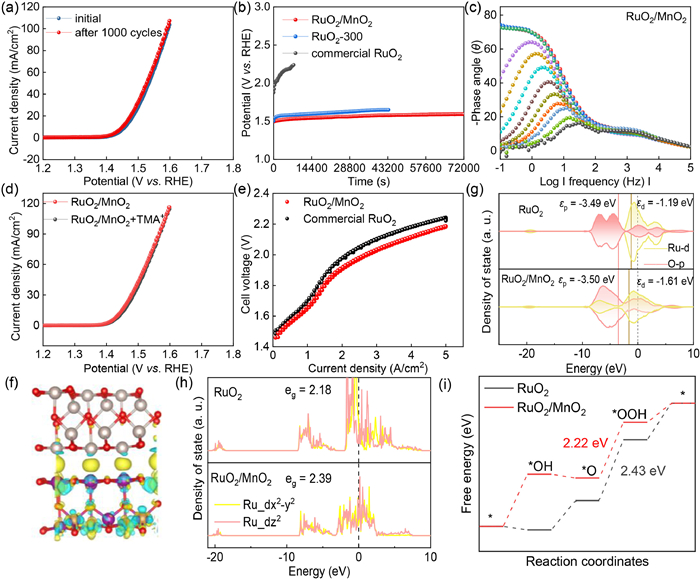

As shown in Fig. 4a, RuO₂/MnO₂ performed a stable OER activity during 1000 potential cycles. To know the mechanism of such high stability, C_dl was calculated as 27.88 mF/cm² after 1000 cycles (Fig. S13 in Supporting information), which was only deteriorated by 10%; additionally, the R_ct was merely increased from 61.36 Ω to 71.68 Ω shown in Fig. S14 (Supporting information). Thus, it was concluded that the superior cyclic stability was stemmed from the superb structural stability. As shown in Fig. S15 (Supporting information), commercial RuO₂ showed a serious degradation in OER activity after 1000 cycles ascribing to the electrochemical decomposition. RuO₂/MnO₂ exhibited an extraordinarily high stability with potential only increased by 13 mV within 20 h; however, commercial RuO₂ only sustained for 0.5 h (Fig. 4b). To verify the superior stability, the OER performance of RuO₂/MnO₂ has been tested after long term operation test. As shown in Fig. S16 (Supporting information), it was found the OER performance was inconspicuously decayed underscoring the superior configurational stability of RuO₂/MnO₂. The in-situ electrochemical impedance spectroscopy (EIS) is carried out to detect the dynamic change in electrocatalyst-electrolyte interface. As shown in Fig. 4c, the phase angle greatly variated in the low frequency region, larger than commercial RuO₂ (Fig. S17 in Supporting information). In this region, the change in phase angle attributed to the OER catalysis and an obvious change means the high catalytic activity towards OER. Nevertheless, the phase angle in high-frequency region reflects the information of electrocatalyst-electrolyte interface. For RuO₂/MnO₂ electrocatalyst, it was noticed that the phase angle also stable during the increment in applied potential; however, the phase angle was changed for commercial RuO₂ indicating the surface reconstruction forming dissolvable Ru⁶⁺ species. Also, the R_ct of RuO₂/MnO₂ was lower than commercial RuO₂ at various potentials (Fig. S18 in Supporting information). As generally accepted that OER catalysis follows two mechanism, adsorption evolution mechanism (AEM) and lattice oxygen mechanism (LOM), O₂^2- and O₂^- is considered as the different reaction intermediate involved in LOM and AEM, which could be identified by tetramethylammonium cations (TMA⁺) capturing O₂^2- resulting in deterioration in OER performance [27]. Acidic OER performance of RuO₂/MnO₂ was stable with and without TMA⁺ (Fig. 4d) indicating the OER catalysis followed AEM pathway, which was beneficial for enhancing stability because the structure is easy to collapse via LOM. To know the practical application, the membrane electrode assembly was constructed. The cell voltage was only 2.18 V to attain 5 A/cm², 50 mV lower than commercial RuO₂ (Fig. 4e), indicating its robust water oxidation.

The theoretical calculation was performed based two structures, RuO₂ and RuO₂/MnO₂. Firstly, the charge density was calculated shown in Fig. 4f. An electron deficiency state was noted for Ru atoms and increment in electron density was found for Mn atoms, which was in line with XPS analysis. The density of state (DOS) of RuO₂ and RuO₂/MnO₂ was displayed in Fig. 4g. The d band center of Ru in RuO₂ and RuO₂/MnO₂ was −1.19 eV and −1.61 eV, respectively, suggesting the introduction of MnO₂ downshifted the d band center of Ru weakening the adsorption of reaction intermediates during OER catalysis [18]. Moreover, the p band center of oxygen atom was slightly downshifted for RuO₂/MnO₂ compared to that of RuO₂. The band gap between Ru and O atom was narrowed by 0.41 eV implying a faster electronic conductivity. The further analysis of DOS indicated that the e_g filling was 2.39 and 2.18 for RuO₂/MnO₂ and RuO₂, respectively (Fig. 4h). A higher e_g filling indicated a weakened adsorption of intermediates, similar to the analysis of d band center. The increment in e_g filling after MnO₂ decoration suggested more electrons were in the outmost orbital beneficial to involve in OER catalysis. The energy barriers for the formation of various reaction coordinates were estimated (Fig. S19 in Supporting information). As shown in Fig. 4i, the potential-limiting step was the conversion of *O to *OOH demanding 2.22 eV and 2.43 eV for RuO₂/MnO₂ and RuO₂. The lowered free energy demonstrated a better OER performance of RuO₂/MnO₂.

In this work, we have successfully synthesized RuO₂/MnO₂ heterostructure with nanoflower structure via MnO₂ hard template. RuO₂/MnO₂ performed a robust OER activity with only 221 mV overpotential to reach 10 mA/cm², superior to commercial RuO₂ and RuO₂-300. Additionally, the mass activity at 1.53 V vs. RHE was 7.2 A/mg_Ru for RuO₂/MnO₂, which was enhanced by 3.7 folds than commercial RuO₂. Due to the formation of heterostructure, a better deprotonation capability was observed for RuO₂/MnO₂ proved by a higher reaction order in the pH-independent test attributing to more oxygen vacancies. Also, the oxidation of Ru to Ru⁶⁺ was also effectively suppressed triggering a better stability. In the PEMWE test, RuO₂/MnO₂ only demanded 2.18 V to reach 5 A/cm², which was lower than commercial RuO₂. The DFT calculation indicated that the e_g filling of Ru atom was increased after MnO₂ decoration suggesting a downshifted d band center; thereby, the energy barrier for the rate-limiting step, formation of *OOH, was decreased.
