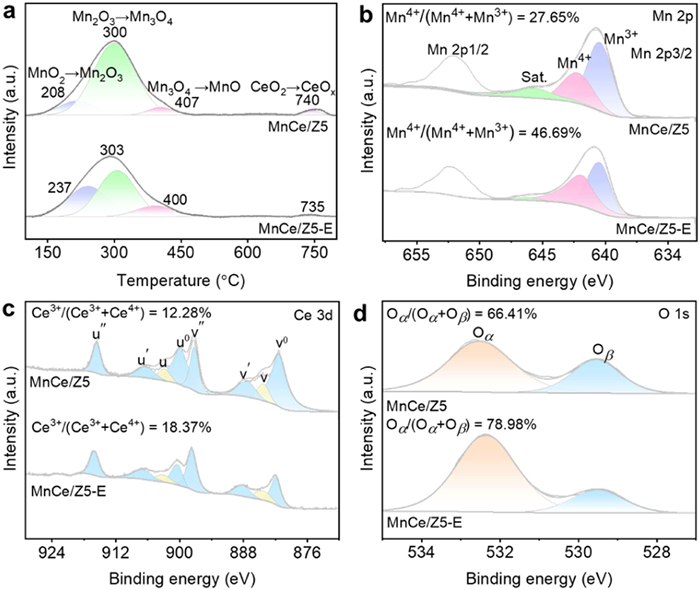

To explore the electronic structure of Mn and Ce over MnCe/Z5-E and MnCe/Z5 catalysts, X-ray photoelectron spectroscopy (XPS) experiments were performed. As seen in
Fig. 3b, there are two broad peaks in the range of 635–660 eV, which can be attributed to Mn 2p
3/2 and Mn 2p
1/2. The peak of Mn 2p
3/2 can be assigned to three peaks at 639.6, 642.2, and 645.4 eV, belonging to Mn
3+, Mn
4+, and satellite peaks respectively [
42-
44]. By calculating the respective peak area to calculate the relative atomic content of Mn species. It can be found that the ratio of Mn
4+/(Mn
4+ + Mn
3+) is much higher on MnCe/Z5-E (46.69%) than MnCe/Z5 (27.65%) (Table S4 in Supporting information), indicating that more Mn species with high valence exist on MnCe/Z5-E, which is following the result of H
2-TPR experiments. It has been reported that Mn
4+ species have a higher oxidative capability than Mn
3+, which is beneficial to produce NH
2, NH, and N resulting from the oxidative dehydrogenation of NH
3. Furthermore, NH
2 could interact with gaseous NO to generate N
2 while NH species interact with gaseous NO to generate N
2O [
45,
46]. The Ce 3d XPS spectra of catalysts are analyzed (
Fig. 3c) and can be divided into eight peaks. The peaks denoted as u”, u’, u
0, v”, v’, and v
0 are attributed to Ce
4+, while the remaining peaks assigned as u and v are belonged to Ce
3+, respectively [
47]. Notably, the proportion of Ce
3+/(Ce
4+ + Ce
3+) is also higher on MnCe/Z5-E (18.37%) than on MnCe/Z5 (12.28%) (Table S4 in Supporting information). The higher Ce
3+ content of MnCe/Z5-E is mainly due to the presence of more Mn
4+ on the surface according to the chemical equation (Ce
4+ + Mn
3+ ↔ Ce
3+ + Mn
4+) and the transfer of electrons from Mn to Ce, which also results in more Mn
4+ species. This also indicates the strong interaction between Mn and Ce species on MnCe/Z5-E. The higher content of Ce
3+ in the catalysts can generate more oxygen vacancies that facilitate oxygen migration and promote the reactant molecules’ activation. The O 1s XPS spectra of catalysts are further analyzed (
Fig. 3d) and can be divided into two peaks, one peak of binding energy of 529.4 eV vests in lattice oxygen (O
β), and the other peak of binding energy of 532 eV belongs to surface adsorption oxygen (O
α) [
48]. The proportion of O
α/(O
α + O
β) is much higher on MnCe/Z5-E (78.98%) than MnCe/Z5 (66.41%) (Table S4 in Supporting information). O
α is thought to have better oxidation capacity and mobility than lattice oxygen in the redox reaction. Besides, O
2-TPD-MS experiments were employed to explore the mobility of oxygen species of MnCe/Z5-E and MnCe/Z5 (Fig. S14 in Supporting information). Below 200 ℃ is assigned to the desorption of chemisorbed oxygen over the surface, 200–600 ℃ belongs to the release of oxygen from the surface lattice, and above 600 ℃ is due to the release of oxygen from the bulk lattice [
49]. MnCe/Z5-E exhibits a distinct desorption peak below 200 ℃ compared with MnCe/Z5, which indicates that more oxygen species are adsorbed on the surface of MnCe/Z5-E, which is following the XPS results of O 1s. Based on the above results, it can be found that MnCe/Z5-E owns more Mn
4+ species and stronger oxidative capacity together with more oxygen vacancy and reactive adsorbed oxygen species than MnCe/Z5. Generally, the strong oxidative ability of Mn-based catalysts leads to poor N
2 selectivity because of excessive oxidation of NH
3. However, MnCe/Z5-E shows better N
2 selectivity than MnCe/Z5, indicating the excessive oxidation of NH
3 is inhibited on MnCe/Z5-E.
