Photocatalytic overall water splitting is considered an efficient strategy to address the energy crisis, utilizing solar light as the sole energy source and pure water as the reactant. Significant progress has been made by various research groups over the past decades, although the work mainly remains in the laboratory phase [1-3]. Two major challenges must be overcome before practical industrial application. The first challenge involves improving sunlight utilization efficiency, typically achieved through strategies such as element doping, sensitization, or composites to broaden the photocatalyst’s photo-response range across the solar energy spectrum [4-6]. Factors like doping elements and concentration, sensitizer stability and cost, and the alignment of valence and conduction band potentials must be carefully studied for optimal catalytic performance. Moreover, a considerable amount of incident light passes through the photocatalytic dispersion system without converting into excited charge carriers. Plasmonic nanostructures have been developed to enhance light absorption through the nanoantenna effect and improved electric-field distribution due to localized surface plasmonic resonance (LSPR) of noble metal nanoparticles [7-9]. The frequency of LSPR is influenced by factors such as composition, size, geometry, dielectric environment, and nanoparticle separation distance. However, these structures often face challenges such as energy loss and excessive heat generation, limiting their potential benefits for photocatalysis. Whispering gallery modes (WGMs) in dielectric spheres have recently gained attention due to their low loss, stability, and resonance tunability. WGMs arise from the continuous reflection of incident light within the optical cavity, confining and guiding light along the surface [10-12]. Specifically, constructive resonance mode, known as Mie resonance, occurs when the light path corresponds to a multiple of a specific wavelength inside the sphere, resulting in an enhancement of the electric and magnetic field intensity [13-16]. The resonance wavelength in hollow nanoshells is dependent on inner diameter, shell thickness, refractive index of shell materials, and surrounding medium [17]. Dielectric Mie resonance offers the potential to rival or complement plasmonic resonances, and not only shares properties with LSPR, such as enhanced scattering, but also features unique characteristics like strong magnetic resonance. This enhancement of electromagnetic field has been utilized by various research groups to enhance light absorption in thin-film solar cells, by directing the confined light within resonant spheres into absorbing materials to improve light trapping capabilities [15,18,19]. Successful light trapping enhancement hinges on tuning the resonance wavelength to align with the photo-response range of semiconductors. While Mie resonance in silica hollow spheres has shown promise for structural colors [20-22], semiconductor materials are more commonly used in different fields like photocatalysis, photovoltaics, and sensors. Our previous work focused on exploring Mie resonance in TiO₂ hollow nanoshells, demonstrating the ability to modulate resonant peaks by adjusting the inner diameter or surrounding medium [23]. Additionally, we showcased an anti-counterfeiting application by changing the structural color reversibly to reveal hidden information in designed patterns. Building on the concept of plasmonic resonance in noble metals for photocatalysis, we studied Mie resonance in TiO₂ nanoshells for photocatalytic hydrogen evolution, aiming to enhance the light absorption. Matching the resonance wavelength of TiO₂ hollow nanoshells with the absorption range of sensitized dye or CdS semiconductor significantly improved photocatalytic performance, highlighting the potential of Mie resonance-enhanced light trapping in dielectric hollow spheres [24,25].

The acceleration of photogenerated charge carriers’ separation is another challenge in enhancing overall water splitting efficiency. Various strategies have been explored to facilitate the movement of electron-hole pairs and reduce recombination rates, such as adjusting particle size, controlling crystal orientation, creating Z-scheme and S-scheme structures, and loading cocatalysts [26-29]. Among these approaches, cocatalysts with spatial separation play a crucial role in directing electrons and holes along different paths, minimizing contact opportunities during migration from bulk to surface, and thereby suppressing recombination of charge carriers. Hollow nanostructured materials, known for their large surface area, specific space, low density, and high loading capacity, have been extensively studied in catalysis, energy storage, and drug delivery [30-32]. The inner cavities and outer surfaces of these materials offer naturally segregated regions for the incorporation of reduction and oxidation cocatalysts.

Herein, hollow TiO₂ microspheres were synthesized with spatially-separated Pt and RuO₂ cocatalysts for dielectric Mie resonance-enhanced photocatalytic water splitting. Pt and RuO₂ nanoparticles were positioned on the inner space and outer shell of the microspheres, respectively. Our previous work researched the dielectric Mie resonance in TiO₂ hollow nanoshells to match with another visible-light-response materials (dye or CdS) [24,25]. This study focuses on demonstrating that a single metal oxide semiconductor, specifically TiO₂, can exhibit dielectric Mie resonance and catalyze photocatalytic redox reactions. By leveraging dielectric Mie resonance in UV light, we aim to improve the light absorption capacity of TiO₂ hollow nanoshells. Experimental data, including fluorescence spectra, photo-response current, and photocatalytic hydrogen production, confirmed the presence of Mie resonance in the hollow nanoshells. Mie calculations indicated a twofold increase in near electric-field intensity. The photocatalytic results suggested that Pt@TiO₂@RuO₂ hollow nanoshells showed the highest hydrogen and oxygen evolution rates from overall water splitting, owing to the dual functionality of dielectric Mie resonance and charge separation.

Pt@TiO₂@RuO₂ hollow nanoshells were prepared in a stepwise fashion to facilitate the movement of photoinduced electrons and holes in distinct directions. (see the detailed experiments in Supporting information). The microstructure of the synthesized samples at different stages was observed using transmission electron microscopy (TEM) (Fig. 1). The SiO₂ spheres exhibited monodispersion with an average diameter of 230 nm and a smooth surface (Fig. 1a). Small Pt nanoparticles (2.9 nm) were uniformly anchored on the outer surface of the SiO₂ spheres (Fig. 1b). Subsequently, one more SiO₂ layer coating was conducted to prevent Pt nanoparticles from migrating to the TiO₂ outer surface during subsequent calcination. TEM image further confirmed the positioning of Pt nanoparticles between the SiO₂ sphere and the SiO₂ coating layer (Fig. 1c), ensuring that the final Pt nanoparticles were located on the inner surface of TiO₂ hollow nanoshells. Rough TiO₂ shells were effectively coated on the outer SiO₂ surface through the hydrolysis of titanium n-butoxide (TBOT) (Fig. 1d). Following cation exchange, calcination, and complete etching, RuO₂ nanoparticles were anchored in-situ on the outer surface, and Pt@TiO₂@RuO₂ hollow nanoshells with an inner diameter of 260 nm and a shell thickness of 23 nm were produced (Fig. 1e). The high-resolution TEM (HRTEM) image in Fig. 1e inset displayed clear lattice fringes with a lattice distance of 0.352 nm, corresponding to the (101) facet of anatase TiO₂ [33,34]. RuO₂ nanoparticles were challenging to observe by TEM due to their small size and/or high distribution. The scanning electron microscopy (SEM) image in Fig. 1f further illustrated the formation of well-dispersed spherical particles. To investigate the distribution of Pt and RuO₂ in the hollow nanoshells, high-angle annular dark field scanning transmission electron microscopy (HAADF-STEM) and energy-dispersive X-ray spectroscopy (EDS) elemental mappings were performed (Fig. S1 in Supporting information). The Ti and O elements predominantly occupied the hollow structure with uniform dispersion, while Pt and Ru were dispersed on the inner and outer surfaces.

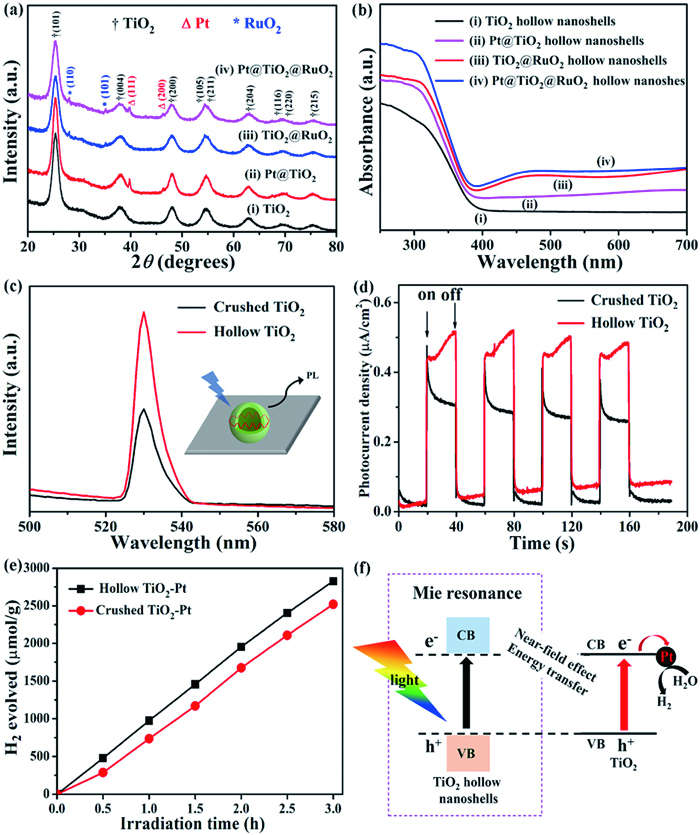

The phase structures of the synthesized samples were analyzed using powder X-ray diffraction (XRD). As presented in Fig. 2a, the TiO₂ hollow nanoshells displayed the anatase phase with characteristic diffraction peaks at 25.3°, 37.8°, 48.8°, 53.8°, 55.1°, and 62.7°, corresponding to (101), (004), (200), (105), (211), and (204) planes [35]. After loading Pt cocatalyst, another two small peaks at 39.7° and 46.2° were detected, which were attributed to (111) and (200) planes of cubic Pt [36]. Following ion exchange and calcination, the tetragonal RuO₂ phase was observed with weak diffraction peaks at 28.0° and 35.1° [37]. The Pt@TiO₂@RuO₂ hollow nanoshells presented the mixed phases of anatase TiO₂, cubic Pt, and tetragonal RuO₂, confirming the successful synthesis of hollow TiO₂ microspheres with spatially-separated Pt and RuO₂ co-catalysts. The crystalline size of anatase TiO₂ was calculated to be 7.0 nm according to the Scherrer’s equation. UV–vis diffused reflectance spectra showed strong absorption below 400 nm for TiO₂ hollow nanoshells due to its band gap of 3.2 eV (Fig. 2b). Absorption in the UV region for Pt@TiO₂ and TiO₂@RuO₂ hollow nanoshells was attributed to anatase TiO₂, while absorption in the visible region was linked to Pt or RuO₂ nanoparticles. The Pt@TiO₂@RuO₂ hollow nanoshells exhibited significant absorption in both UV and visible regions. Plasmonic metal nanoparticles are known to transfer energy to nearby semiconductors through various mechanisms such as localized surface plasmonic resonance (LSPR) energy transfer, nanoantenna effect, or hot electron injection [38,39]. Similarly, the enhanced electric field from dielectric Mie resonance in hollow nanoshells can further excite the semiconductor, generating more electron-hole pairs when the resonance wavelength matches its intrinsic absorption range. Photoluminescence (PL) spectra serve as a strategy to confirm the presence of Mie resonance in hollow nanoshells. Both hollow TiO₂ and crushed TiO₂ exhibited anatase phase with identical nanoparticle size, as the crushed TiO₂ resulted from the structural collapse of hollow TiO₂ in an agate mortar. As described in Fig. 2c, both samples showed the emission peak at 530 nm with the excitation at 360 nm. The PL intensity of hollow TiO₂ was 1.90 times higher than that of crushed TiO₂, indicating that the confined incident light and dielectric Mie resonance in hollow nanoshells continuously excited charge carriers, resulting in more charge recombination and thus higher PL emission intensity [40,41]. Additionally, the transient photocurrent response was measured to evaluate the enhancement function of dielectric Mie resonance for light utilization (Fig. 2d). The photo-response current is a result of photoinduced electrons transferring within the TiO₂ semiconductor upon light irradiation [42]. This resonance effect in hollow nanoshells confines incident light around the surface, enhancing the excitation of electrons from the valence band to the conduction band of TiO₂. Consequently, an increased number of photogenerated electrons leads to higher photocurrent in TiO₂ hollow nanoshells during light exposure. In contrast, the photocurrent of TiO₂ nanoparticles slightly decreased under light illumination due to rapid recombination of charge carriers. To elucidate the enhancement of light utilization efficiency through dielectric Mie resonance, a photocatalytic hydrogen evolution experiment was conducted using hollow TiO₂ and crushed TiO₂ with a 0.5% Pt cocatalyst in the presence of a methanol sacrificial agent (Fig. 2e). The hollow TiO₂ catalyst showed the stable photocatalytic H₂ production with an evolution rate of 0.97 mmol g⁻¹ h⁻¹, which was 1.24 times higher than that of crushed TiO₂ nanoparticles (0.78 mmol g⁻¹ h⁻¹). Fig. 2f schematically illustrated the photocatalytic mechanism, involving dielectric Mie resonance and charge separation. Upon light irradiation, electrons in the TiO₂ semiconductor were excited and transferred to the Pt nanoparticles for photocatalytic hydrogen production. Furthermore, the dielectric Mie resonance boosted the electric field intensity and transferred energy to TiO₂, resulting in the generation of additional excited electrons. Consequently, dielectric Mie resonance proved advantageous in enhancing light trapping ability and improving photocatalytic performance.

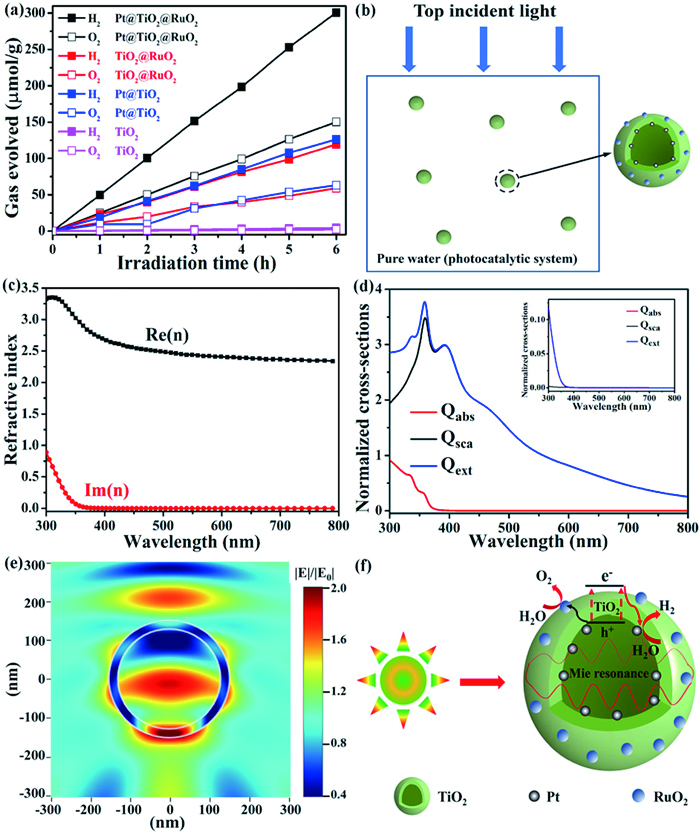

The photocatalytic overall water splitting performance was assessed in a catalysis system under simulated sunlight irradiation without sacrificial agents (Fig. 3a). Initially, TiO₂ hollow nanoshells exhibited low gas production due to rapid charge recombination and high overpotential on the surface. However, when Pt or RuO₂ cocatalysts were integrated into the TiO₂ nanoshells, successful H₂ and O₂ evolution from pure water splitting was observed. Particularly, Pt@TiO₂@RuO₂ hollow nanoshells, featuring spatially-separated cocatalysts, demonstrated the most effective photocatalytic water splitting performance. This was evidenced by a stable H₂ generation rate of 50.1 µmol g⁻¹ h⁻¹ and O₂ evolution rate of 25.1 µmol g⁻¹ h⁻¹, maintaining a near stoichiometric ratio of 2:1. Results presented in Table S1 (Supporting information) show that these hollow nanoshells exhibit competitive photocatalytic activity for overall water splitting when compared to related samples in literature. The stability of Pt@TiO₂@RuO₂ hollow nanoshells was assessed through a cycle test of overall water splitting (Fig. S2 in Supporting information). The catalyst exhibited consistent H₂ and O₂ evolution under simulated sunlight in each cycle, and nearly 90% of the initial activity was maintained after 24 h, making Pt@TiO₂@RuO₂ hollow nanoshells a promising candidate for practical applications. The experiments highlighted the importance of cocatalysts in enhancing charge separation for water splitting, as well as the role of dielectric Mie resonance in hollow nanoshells for improved light trapping. Solar energy and seawater are abundant resources, making seawater an ideal industrial-grade resource for hydrogen and oxygen production through photocatalysis [43]. However, the performance of photocatalytic seawater splitting can be affected by various factors such as solution pH, cations, anions, and competitive reactions due to the thermodynamic favorability of certain species over water molecules [44]. This work focuses on photocatalytic pure water splitting and further research need to be conducted to clarify the influence of water quality on the photocatalytic water decomposition performance. Additionally, theoretical calculation based on Mie theory was used to analyze the optical properties and electric field distribution in hollow nanoshells. The simulation model depicted in Fig. 3b illustrated the efficient capture of incident light by suspended nanoshells in water, leading to the generation of photo-induced charge carriers through dielectric Mie resonance. The refractive index of TiO₂, as shown in Fig. 3c, considered the absorption properties in the ultraviolet region by incorporating the imaginary part of the refractive index. Fig. 3d illustrated the simulated absorption, scattering and extinction cross-section of TiO₂ hollow nanoshells and nanoparticles (inset). TiO₂ hollow nanoshells exhibited significant absorption below 400 nm, with no absorption observed in the visible light region. The scattering spectrum of TiO₂ hollow nanoshells displayed two peaks at 359 nm and 393 nm, along with a broad scattering band from 400 nm to 800 nm. The extinction spectrum of TiO₂ hollow nanoshells was a combination of the absorption and scattering spectra. When compared to TiO₂ nanoshells, TiO₂ nanoparticles with a crystalline size of 7 nm showed absorption below 400 nm but weak scattering in the 300–800 nm range. The TiO₂ nanoparticles were actually derived from the structural fragmentation of TiO₂ hollow nanoshells through grinding in an agate mortar. The size of the TiO₂ nanoparticles was identical to that of TiO₂ hollow nanoshells. Based on the XRD results (Fig. 2a), the crystalline size of the anatase TiO₂ nanoparticles was determined to be 7.0 nm using Scherrer’s equation. Consequently, the size of the TiO₂ nanoparticles was set at 7 nm for the simulated calculations. The scattered light within the absorption range of TiO₂ can excite nearby nanoparticles to generate charge carriers. In Fig. 3e, the electric near-field distribution around the TiO₂ hollow nanoshells at a resonance wavelength of 359 nm was simulated using the finite-difference time-domain (FDTD) method. The incident light was directed along the z-axis above the nanoshell. The electric-field enhancement, defined as |E|/|E₀| (where E₀ is the incident field amplitude), showed a significant increase in electric field intensity around the nanoshell, reaching a value of 2.0. This localized electric field within the nanoshell enhances light trapping efficiency, as absorbed power is proportional to the square of the electric field [45,46]. Given that anatase TiO₂ has a bandgap of 3.2 eV and strongly absorbs UV light below 387 nm, the enhanced electric field at 359 nm can further excite TiO₂ to generate more electrons from the valence band to the conduction band, resulting in stronger photoluminescence emission, higher photocurrent response, and better photocatalytic activity. Finally, a mechanism was proposed for photocatalytic overall water splitting using Pt@TiO₂@RuO₂ hollow nanoshells, considering dielectric Mie resonance, light utilization, and charge separation (Fig. 3f). When exposed to simulated sunlight, electrons moved from the valence band to the conduction band of TiO₂. The confined nanoshells allowed incident light to travel around, enhancing the near electric field due to dielectric Mie resonance at 359 nm. This further excited the TiO₂ semiconductors, increasing the production of charge carriers and improving light utilization efficiency. Additionally, photo-induced electrons migrated to inner Pt sites for water reduction, while photo-induced holes transferred to RuO₂ sites for water oxidation, enhancing the hydrogen and oxygen evolution rate through spatial charge separation.

In summary, this study effectively illustrated the dual functionality of designed Pt@TiO₂@RuO₂ hollow nanoshells in boosting photocatalytic overall water splitting through dielectric Mie resonance and spatial separation of cocatalysts. Various methodologies, such as template synthesis, surface modification, and ion-exchange, were employed to fabricate TiO₂ hollow nanoshells with Pt nanoparticles inside and RuO₂ nanoparticles outside in a controllable manner. Experimental techniques including photoluminescence emission, photocurrent measurements, and hydrogen production, along with theoretical simulations using Mie theory, confirmed the presence of dielectric Mie resonance in the hollow nanoshells. The resonant scattering at 359 nm facilitated efficient light absorption by enhancing electric-field energy transfer. The spatial separation of cocatalysts promoted charge migration, leading to high rates of hydrogen and oxygen evolution during water splitting. Overall, the discovery of dielectric Mie resonance in nanoshells presents a novel approach to improve light absorption and enhance solar-to-chemical conversion.
