Hua Liu^a^,¹, Jian Zhao^b^,¹, Qi Li^b, Xiang-Yu Zhang^a^,^b^,^*, Zhi-Wei Zheng^a, Kun Huang^a, Da-Bin Qin^a^,^*, Bin Zhao^a^,^b^,^*

Chinese Chemical Letters | 2025, 36(6) : 110593

Less

Chinese Chemical Letters | 2025, 36(6): 110593

• Communication •

Indium-captured zirconium-porphyrin frameworks displaying rare multi-selectivity for catalytic transfer hydrogenation of aldehydes and ketones

Full

Hua Liu^a^,¹, Jian Zhao^b^,¹, Qi Li^b, Xiang-Yu Zhang^a^,^b^,^*, Zhi-Wei Zheng^a, Kun Huang^a, Da-Bin Qin^a^,^*, Bin Zhao^a^,^b^,^*

Affiliations

^a Key Laboratory of Chemical Synthesis and Pollution Control of Sichuan Province, College of Chemistry and Chemical Engineering, China West Normal University, Nanchong 637002, China

^b Frontiers Science Center for New Organic Matter, Key Laboratory of Advanced Energy Materials Chemistry (MOE), College of Chemistry, Nankai University, Tianjin 300071, China

Published: 2025-06-15 doi: 10.1016/j.cclet.2024.110593

Outline

Abstract

Less

Selective catalytic transfer hydrogenation (CTH) of carbonyl compounds to obtain specific alcohols holds significant importance across various fields. Achieving multiple selectivity in CTH is particularly crucial, but full of great challenge. Herein, a cationic In-captured Zr-porphyrin framework (1) with nanosized pores/cages was successfully constructed and showed high structure stability. Catalytic investigations revealed that 1 displayed highly multi-selective CTH of aldehydes and ketones containing both chemo- and size selectivity for the first time. The CTH of aldehydes and ketones exhibited remarkable reductive selectivity of 99% towards CO bonds into CHOH in the presence of -NO₂, -CN and CC groups. Through tuning the reaction conditions, 1 also exhibited highly selective reduction of 97% for -CHO groups in the simultaneous presence of -CHO and -COCH₃ groups in intra- and intermolecular settings. Remarkably, reductive selectivity towards -CHO group remained prominent among five concurrent unsaturated groups mentioned above. Additionally, the definite pore size of 1 facilitated volume control of substrates, enabling size selectivity. 1 as a heterogeneous catalyst was further confirmed by leaching tests, and maintained high activity even after being used for at least six cycles. Mechanistic studies have revealed that Zr₆O₈ clusters served as the catalytic centers and the observed chemoselectivity mainly results from the synergistic effect of distinct metal sites within 1. The heightened selectivity towards -CHO over -COCH₃ can be attributed to the easier realization of transfer hydrogenation processes for -CHO compared to -COCH₃.

Key words

Metal-organic framework / Heterogeneous catalysis / Transfer hydrogenation / Multiple selectivity / Synergistic effect

Cite this Article

Hua Liu, Jian Zhao, Qi Li, Xiang-Yu Zhang, Zhi-Wei Zheng, Kun Huang, Da-Bin Qin, Bin Zhao. Indium-captured zirconium-porphyrin frameworks displaying rare multi-selectivity for catalytic transfer hydrogenation of aldehydes and ketones[J]. Chinese Chemical Letters, 2025 , 36 (6) : 110593 - . DOI: 10.1016/j.cclet.2024.110593

Full Text

Less

Selective hydrogenation displays significant importance in various domains, including organic synthesis, drug manufacturing, and industrial production [1–3]. This valuable topic focuses on preserving specific functional groups or selecting distinct substrates, meeting the specific requirements in these fields mentioned above [4–7]. Compared with traditional direct hydrogenation, catalytic transfer hydrogenation (CTH) using renewable and sustainable liquids such as alcohols and formates as hydrogen sources, avoids the need for flammable H₂ gas with high pressure and promotes the selectivity of unsaturated bonds [8]. Recent achievements have witnessed impressive progress in CTH reactions [9,10], and selective CTH of furfural, alkenes and α,β-unsaturated carbonyls have been widely studied [11–13]. Since most chemicals in nature or generated from biomass commonly maintain multi-unsaturated groups like -CHO, -COR, -NO₂, -CN and C═C bonds, highly selective reduction aimed at a specific group ensures the generation of definite products preserving other unsaturated groups, which is crucial for realizing advanced functions in the areas of pharmaceutical and chemical industry. Nevertheless, the investigations on selective CTH mainly focused on reduction of the given group in two types of unsaturated groups, while the selective reduction of a specific functional group amongst many kinds of unsaturated groups remains undeveloped [14,15]. Actually, the π-bonds within unsaturated groups are generally easy to be unselectively reduced, and selective CTH frequently confronts the confusion, where the high activity of catalysts promotes thorough reduction of all unsaturated bonds and inert activity results in an ineffective reaction. As a result, the selective reduction of a single group among various unsaturated groups become greatly challenging [16]. Furthermore, size selectivity enables the screening of substrates with specific volumes for reactions [17–19], and to our best knowledge no size selectivity has been reported in CTH reactions hitherto. Therefore, to realize selective CTH with both definite chemoselectivity among many kinds of unsaturated groups and size selectivity for various substrates, the exploration of an ideal catalyst with suitable catalytic activity and defined pore size is necessary and important.

Metal-organic frameworks (MOFs) constitute a significant category of porous materials that find widespread use as heterogenous catalysts [20–29], and are regarded as candidates for achieving efficient and multi-selective CTH reactions based on the following considerations: (1) Porous structures provide reaction space and allow full utilization of catalytic sites, thus accelerating reaction rate [30–35] (2) Multi-metallic sites can activate different functional groups, leading to selectivity of specific reaction sites [36–39] (3) Fixed orifice size enables spatial confinement and presents potentially size-selective properties [40,41]; (4) Stable frameworks make the catalysts easily separated from the reaction mixture and reused several times [42–44]. Despite the numerous advantages of using MOFs as catalysts for CTH reactions, there has been little research on their ability to achieve multiple selectivity, including chemoselectivity towards diverse functional groups and size selectivity [11,45].

With this in mind, a nanopore-based In-captured Zr-porphyrin framework (1) was successfully synthesized. In the structure, Zr₆O₈ clusters induce electrons from central metals over the porphyrin skeletons, enhancing the Lewis acidity of the In centers to facilitate the substrate into the pores and interact [46,47]. In CTH reactions of aldehydes and ketones, the dual metal centers in 1 can serve as divided active sites to give definite reductive selectivity towards -CHO or -COCH₃ when existing -NO₂, -CN, C═C groups, and note that high selectivity can be also obtained for reduction of -CHO to -CH₂OH in the simultaneous presence of -CHO and -COCH₃ groups. Interestingly, when five unsaturated groups mentioned above were concurrently introduced to the CTH system, 1 exhibited a high reductive selectivity towards the -CHO group. Additionally, the specific pore size of 1 afforded volume control of the substrates to give obvious size selectivity. It is the first time to realize highly multi-selective CTH reactions of aldehydes and ketones containing selectivity from various unsaturated groups and volume size confinement.

1 was first synthesized via the reaction between Zr-porphyrin framework PCN-224 and In(NO₃)₃·5H₂O in DMF (Fig. 1a). Scanning electron microscopy (SEM) images show the block morphology of 1, and EDS mapping analysis indicates homogeneous distribution of C, N, O, Zr and In elements on the surface (Fig. 1b and Fig. S1 in Supporting information). The elemental amount determined by ICP-OES analysis suggested a 5.78% weight of In in the structure (calcd. 7.77%). In the compared PXRD patterns, the peaks match well with those of PCN-224 and PCN-224(Bi) at 4.6°, 6.4°, 7.9° and 9.0°, as reported previously [47], indicating the scaffold unchanged (Fig. S2 in Supporting information). FT-IR spectrum of 1 is also compared with those of PCN-224 and PCN-224(Bi), and the peak located at 1709.8 cm^-1 related to carboxylic C═O bond is nearly the same, suggesting the Zr₆O₈ cluster remained unchanged (Fig. S3 in Supporting information). The N—H peak at 3324.2 cm^-1 disappears, indicating the In-N bond formation. X-ray photoelectron spectroscopy (XPS) results are shown in Fig. 2 and Fig. S4 (Supporting information), and the survey spectrum suggests the existence of In, Zr, N, C and O elements (Fig. 2a). Two typical peaks located at 452.9 and 445.4 eV in In 3d region are related to In 3d_3/2 and 3d_5/2 electronic configurations, respectively, indicating the In³⁺ state (Fig. 2b) [48]. The signals at 185.3 eV (3d_3/2) and 182.9 eV (3d_5/2) in Zr 3d spectrum confirm the existence of Zr⁴⁺ ions (Fig. 2c) [48]. In N 1s spectrum, the peaks at 399.9 and 397.8 eV are attributed to C═N/C—N bonds of porphyrin moiety and In-N bonds, and 407.3 eV signal can be assigned to NO₃^-, indicating that 1 is a cationic framework (Fig. 2d) [49]. With respect to C 1s, three signals at 288.8, 285.9 and 284.8 eV can be attributed to C—O/C═O, C—N/C═N and C—C/C═C bonds (Fig. S4a in Supporting information) [50]. The O 1s peaks located at 533.1, 531.9 and 530.3 eV are correlated to C—O, C═O and Zr-O bonds (Fig. S4b in Supporting information) [51]. TGA curve is depicted in Fig. S5 (Supporting information), and the swift weight reduction of 10% observed prior to reaching 85 ℃ can be ascribed to solvent evaporation. A reposeful platform with only 15% weight loss is obtained from 85 ℃ to even 409 ℃, showing excellent thermal stability of 1. After 409 ℃, a sharp weight decline suggests the decomposition of 1. The analytic results above verify the successful construction of In-captured Zr-porphyrin framework 1, and porphyrins with In occupied in centers were linked by Zr₆O₈ clusters in this compound [47]. Additionally, the substrate framework PCN-224 featuring nanosized pores/cages of approximately 16 Å, along with 2.2 nm average pore size of 1 (Fig. S6 in Supporting information), provides ample space for diverse organic molecules to approach the catalytic centers, and also possible to realize the size confinement towards these substrates.

Comparatively, the reduction of -NO₂ to -NH₂ in nitrobenzene (redox potential: −1.31 eV) is considered easier than the reduction of -CHO to -CH₂OH in benzaldehyde (redox potential: −1.68 eV) theoretically [12]. As demonstrated in previous research studies, for nitrobenzaldehydes, -NO₂ and -CHO are together reduced to give aminobenzyl alcohols, or -NO₂ are selectively transferred into -NH₂ to afford aminobenzaldehydes in most direct hydrogenation and transfer hydrogenation systems [52–54]. However, in our research, using 1 as a catalyst and isopropanol (iPrOH) as the hydrogen source, 4-nitrobenzaldehyde (1a) can be selectively reduced to 4-nitrobenzyl alcohol (2a) while preserving the -NO₂ group entirely (Table 1, entry 1). In contrast, -NO₂ was also hydrogenated to -NH₂ meanwhile in most MOF-based catalytic system when a strong base was used as an additive [45]. 5, 10, 15, 20-Tetrakis(4-carboxyphenyl)porphyrin-In (In-TCPP) afforded no reductive product under the same conditions and PCN-224 showed lower yield than catalyst 1, suggesting obvious synergistic effect of two moieties within the catalyst in this reaction (entries 2–3). When a mixture of In(NO₃)₃·5H₂O, H₂TCPP and ZrCl₄ was used, only 35% yield of 2a was presented, indicating efficient activity of the MOF catalyst (entry 4). The performance of other metals associated with the porphyrin center, such as PCN-224(M) (M= Co, Ni, Bi) was also compared. These selected MOFs showed lower efficiency than compound 1, suggesting the essential role of the In center within the porphyrin ring. Based on the results above and the optimations in Tables S1-S4 (Supporting information), 1 exhibited high activity and selectivity in CTH of 1a and was further used as the catalyst for subsequent investigations.

Compared with aldehydes, ketones need an elevated temperature of 120 ℃ to afford the desired secondary alcohol products in ideal results (Tables S5-S9 in Supporting information), and higher activity of catalyst 1 over PCN-224 also indicated the significant role of In-TCPP moiety. C═O bond was also reduced selectively for 4-nitroacetophenone (3a) with -NO₂ remained and the yield of 4a is 97% (Fig. 3a). -CN group can be hydrogenated to -CH═NH, -CONH₂ or -CH₂NH₂ under H₂ hydrogenation or via CTH. Theoretically, -CN group is more easily reduced than C═O bonds due to the lower reduction potential (-CHO, −1.68; -COCH₃, −1.75; -CN, −1.29) [55,56]. In the 1 catalytic transfer hydrogenation of 4-cyanobenzaldehyde (1b) and 4-cyanoacetophenone (3b), C═O bonds were selectively reduced while -CN remained completely, and the alcohols 2b and 4b were obtained in high yields (Fig. 3b). As is well-known, the selective reduction of α,β-unsaturated aldehydes and ketones is a significant research focus, cause allylic alcohols are highly vital compounds in many fields [13]. However, in these substrates, C═C bonds also exhibit high reactivity towards reduction, thus it is still a challenge to control the selectivity for C═C and C═O bonds. Attractively, based on catalyst 1, cinnamaldehyde (1c) produced cinnamyl alcohol (2c) and cyclohexanone (3c) afforded cyclohexanol (4c), maintaining complete selectivity for the reduction of C═O bonds while leaving the C═C bonds unaffected (Fig. 3c). The results above indicate superior reductive selectivity towards the C═O bonds of aldehydes and ketones into CH—OH in the presence of -NO₂, -CN and C═C groups.

In addition to the high selectivity between C═O bonds and the three groups mentioned above, we also conducted investigations into CTH reactions involving the simultaneous presence of -CHO and -COCH₃ groups. As we know, -CHO and -COCH₃ are similar groups, selective distinction between these two groups is challenging and has an important role in practical applications [57]. To our delight, as shown in Fig. 4a, 1 catalyzed transfer hydrogenation of 4-acetylbenzaldehyde (1d) smoothly in 93% yield using iPrOH solvent at 80 ℃ for 6 h. The -CHO reductive product 4-acetylbenzyl alcohol (2d) occupied 90%, and the complete reduction product 2d' was only 3%, showing high reductive selectivity of 97% towards -CHO. In contrast, another Zr₆O₈ cluster-based MOF-808 exhibited a selectivity of only 72% for 2d under the same condition (Fig. 4b). When benzaldehyde (1f) and acetophenone (3d) were both introduced to the reaction, benzyl alcohol (2f) and 1-phenylethanol (4d) were afforded in 90% and 4% yields, respectively (Fig. 4c). The results revealed a notable preference for the selective reduction of the -CHO group over -COCH₃, regardless of whether it was present in an intermolecular or intramolecular context.

Remarkably, upon introducing a blend of benzonitrile, acetophenone, nitrobenzene, styrene, and benzaldehyde into the CTH system, benzaldehyde demonstrated high yield of benzyl alcohol (2f) and acetal in 88% and 7%, respectively. The production of 1-phenylethanol (4d) was limited to only 9%, and no discernible transformation was observed for other functional groups (Fig. 5 and Fig. S8 in Supporting information). It is important to point out that the selective hydrogenation generally occurs between two unsaturated groups. Here, a notable breakthrough is the achievement of highly selective reduction for -CHO groups, even in the presence of various functional groups. Significantly, the precise chemoselectivity among various unsaturated groups demonstrated by catalyst 1 in CTH reactions finds significant prospects in selective reduction fields and industrial production.

Subsequently, an assessment was conducted on the range of aldehydes incorporating various functional groups, taking their electronic effects, steric hindrance, and volumetric dimensions into account (Table 2). Widely studied biomass derived furfural (FUL, 1e) could be converted to furfural alcohol (FOL, 2e) in high yield (92%). Benzaldehyde (1f) successfully yielded benzyl alcohol (2f) with a high yield of 94%. In the case of 2-methylbenzaldehyde (1-g), the corresponding primary alcohol (2g) was obtained with a moderate yield. When it came to ortho-halogen substituted benzaldehydes (1h-1j), the yield decreased as the size of the halogen increased. The disparity in yields observed for ortho-substituted groups may be attributed to the varying degrees of steric hindrance and their respective interference with the reaction center, and bulky ortho-substituents tend to obstruct the reaction site, thereby inhibiting the yield. 3-Methylbenzaldehyde (1k) provided a moderate yield of product 2k (49%), while 3-bromobenzaldehyde (1l) exhibited a high yield in the CTH process (2l, 93%). The discrepancy can be attributed to the differing electronic effects of the substituents. 4-Methyl and 4-methoxybenzaldehyde gave the corresponding CTH products 2m-2n in moderate yields, while electron deficient group containing benzaldehydes 1o-1q presented the alcohol products 2o-2q in high yields (93%-99%). Compared to electronic or steric hindrance effect, volumetric effect has a more obvious influence. 1-Naphthaldehyde (1r) exhibited a lower yield of 64% in the formation of 1-naphthalenemethanol (2r) compared to substrates with smaller sizes. 4-Phenylbenzaldehyde (1s) produced the alcohol 2s in 60% yield due to the larger size. When larger-sized substrates, such as 1t and 1u, were chosen for transfer hydrogenation reactions, the yields further decreased to 19% and 20% respectively. The significantly bulky substrate 1v only achieved the target primary alcohol product with a yield of 10% under standard conditions, leaving a substantial amount of starting material unused. Therefore, this catalytic system exhibits excellent selectivity towards the size of aldehyde substrates and can be utilized for the efficient screening of reactants suitable for the reaction.

After condition optimization using acetophenone (3d) as the model substrate (Tables S5-S9 and Table 3, entry 1), various ketones were evaluated in CTH reactions with 1 as the catalyst and iPrOH as the hydrogen source at 120 ℃ for 24 h (Table 3). 2-Methylacetophenone (3e) gave the corresponding reduction product 4e in 58% yield, which was possibly due to the bulky steric hindrance around the reactive center and the difficulty of approaching the catalytic sites. When 4-methylacetophenone (3f) was introduced to this reaction, product 4f could be obtained in 76% yield, and an elevated value of 88% could be realized when extended to 36 h. para-Halogen group-containing acetophenones 3g-3i underwent the CTH process smoothly, and presented corresponding alcohol products 4g-4i in high yields (94%). N Heterocyclic ketones 3j-3k were also examined, with the result that 2- and 4-acetylpyridine showed excellent activity to give 4j and 4k in 92% and 99% yields. Aliphatic cyclic ketones also exhibited efficient activities. Cyclopentanone and cyclohexanone (3l and 3m) both exhibited excellent yields of 99% to give cyclopentanol and cyclohexanol (4l and 4m), respectively. Ascribed to the bulky size, benzophenone (3n) and 1-phenyl-1-butanone (3o) delivered the alcohol products 4n and 4o in reduced yields of 62% and 61%. When larger-sized ketones were introduced, the yields exhibited a more significant decrease. 4,4′-Dimethylbenzophenone (3p) could realize the CTH reaction, but produced the product 4p in 40% yield. The lager-sized 4-benzoylbiphenyl (3q) afforded the desired CTH product 4q in only 28% yield, indicating obvious size selectivity for the substrates.

As the reaction time increased, obvious gradual consumption of the substrates and generation of the reduction products can be observed by ¹H NMR analysis (Fig. 6a and Fig. S9 in Supporting information). Using acetophenone 3d as an example, the CTH exhibited rapid progress within the first 2 h, followed by a slower rate up to 12 h (Fig. 6b, blue line). Unlike the continuous formation of the product observed in the catalyst-induced system, the reductive product 4d was not obtained upon removing the catalyst from the system after a 4-h reaction, indicating the essential role and high stability of the catalyst (Fig. 6b, pink line). The yield of CTH product remained remarkably high even after the catalyst employed for at least 6 times, showing high catalytic performance and recyclability of 1 (Fig. 6c and Fig. S10 in Supporting information). ICP-OES analysis indicated the contents of Zr and In of the used catalyst were 16.2% and 4.98% respectively, only slightly losing compared with the fresh 1 (15.5% for Zr, 5.78% for In). Additionally, XPS signals and PXRD peaks were almost identical between the fresh and recycled catalyst (Figs. 6d-f and Fig. S11 in Supporting information). The results above demonstrated the outstanding stability, recyclability and catalytic activity of the heterogeneous catalyst 1.

To gain a deeper understanding of the mechanism underlying activity and selectivity of the CTH process, we carried out control experiments and density functional theory (DFT) calculations (Figs. 7 and 8, Fig. S12 in Supporting information). No detectable acetone signal was generated according to ¹H NMR analysis even over a prolonged period when PCN-224 or catalyst 1 was combined with iPrOH, but the in-situ CTH reaction of 1a afforded product 2a and acetone (Figs. 7a and b), which ruled out the possibility of metal hydride serving as an intermediate in this process and determined the transfer hydrogenation mediated by iPrOH. The corresponding hydrogen signals shifted significantly when mixing iPrOH and ZrCl₄ (Fig. S12 in Supporting information). Furthermore, the -CHO hydrogen signal experienced a significant shift when ZrCl₄ and 1a were introduced to iPrOH (Fig. 7c). Whereas in both these scenarios, the -CHO hydrogen signal remained original state when either 1a and In-TCPP or 1a, In-TCPP and iPrOH were combined (Fig. 7d). These observations imply that the Zr₆O₈ cluster engages in interactions with both iPrOH and aldehyde group, and serves as the catalysis center, whereas the In-porphyrin component does not participate in such interactions. However, In-TCPP may interact with -NO₂ and other unsaturated groups within the substrates [58], constituting different functions of the porphyrin metal centers and the Zr₆O₈ nodes within catalyst 1. These results constitute the fundamental reason for the observed chemoselectivity, and the multiple Lewis acid centers also promote the substrates into the channels and accelerate the reaction rate.

DFT calculations were firstly conducted to explore the reaction among Zr₆O₈ node, 1a, and iPrOH, with the corresponding energy profile (Δ G) depicted in Fig. 8a. In the initial step, the -OH group of iPrOH underwent deprotonation by the -OH within the Zr₆O₈ node, resulting in the attachment of the deprotonated iPrOH to Zr₆O₈ node (+0.41 kcal/mol, Int-1). Subsequently, the aldehyde group of 1a displaced the water molecule of the cluster (+3.92 kcal/mol, Int-2). Transfer hydrogenation took place from the tertiary carbon of the deprotonated iPrOH to the carbon of -CHO group through transition state Ts-1, and a high activation energy of +13.22 kcal/mol with a substantial energy barrier signifies that this step is the rate-determining step. The reaction energy decrease for acetone and benzyl oxygen anion interacting with the Zr₆O₈ node (Ts-1 → Int-3) was estimated to be highly exothermic by −19.94 kcal/mol. Subsequently, the acetone was substituted with a second iPrOH, leading to a substantial exothermic process of −5.46 kcal/mol (Int-4). The second transfer hydrogenation process occurred from the -OH group of iPrOH to benzyl oxygen anion (Ts-2) with a low energy barrier of +0.68 kcal/mol and affording Int-5. However, the energy gap in this step was notably lower than Ts-1. Following this, upon the replacement by H₂O, product 2a was afforded and Int-1′ was regenerated to complete the catalytic cycle.

The DFT calculations were further investigated among Zr₆O₈ node, 3a, and iPrOH under the same conditions as 1a system (Fig. 8b). The activated energies for Ts-1 and Ts-2 were determined to be 13.85 and 1.58 kcal/mol, respectively. Notably, the energy value for Ts-2 of -COCH₃ was significantly higher compared to that of -CHO (+0.68 kcal/mol), whereas the energy value of Ts-1 was relatively similar. Moreover, the corresponding reaction energies required for the first hydrogen transfer process (Int-2 → Int-3) with 3a as substrate was much higher than that of 1a. The above results suggest that the CTH conversion of -COCH₃ is more challenging than that of -CHO, providing a reasonable insight into the high selectivity between -CHO and -COCH₃ in CTH reaction. To elucidate other chemoselectivity, we conducted interaction calculations involving 1a and 1b with In-TCPP. The binding energies for -NO₂ and -CN with the porphyrin central metal were determined to be −25.39 and −28.93 kcal/mol, respectively (Fig. 8c). The above-mentioned results indicate that -NO₂ and -CN exhibit strong interactions with the In-porphyrin moiety, whereas -C═O displays a greater affinity for the Zr₆O₈-based CTH catalytic center. Thus, the chemoselectivity arises from the distinct Lewis acid center-substrate group interactions. Furthermore, both Zr₆O₈ nodes and In-porphyrin moieties facilitate preferential enrichment of reactants, promoting the catalytic process for the CTH reaction. Therefore, the proposed mechanism (Fig. 8d), highlights that Zr₆O₈ clusters serve as the catalytic sites and the In-porphyrin acts as the Lewis acid binding site, playing an important role in enhancing activity and chemoselectivity during the CTH process.

In summary, a new In-captured Zr-porphyrin framework (1) assembled by Zr₆O₈ clusters and In-porphyrin moieties was successfully constructed. 1 displayed highly multi-selective CTH of aldehydes and ketones containing both chemo- and size selectivity. Based on catalyst 1, C=O bonds in aldehydes and ketones could be selectively reduced to CH-OH in the presence of other unsaturated groups including -NO₂, -CN, and C=C bonds. Furthermore, through tuning the conditions under the activation of catalyst 1, high selectivity of 97% towards -CHO was achieved in the concurrent existence of -CHO and -COCH₃ groups, whether in intra- or intermolecular settings. Importantly, 1 also exhibited prominent selectivity towards -CHO in the CTH among five types of unsaturated groups mentioned above. Additionally, an obvious size selectivity was achieved, primarily attributed to the well-defined pore size of the catalyst. Control experiments and DFT calculations provided clear evidence that chemoselectivity was mainly controlled by synergistic effect of the Zr and In centers within 1, and the selectivity towards -CHO in presence of -COCH₃ was attributed to the easier realization of transfer hydrogenation processes for -CHO compared to -COCH₃. This research represents the first example for realizing multi-selective CTH reactions, combining both chemoselectivity among many kinds of unsaturated groups and size selectivity for various substrates.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

CRediT authorship contribution statement

Less

Hua Liu: Writing – original draft, Investigation, Formal analysis, Data curation. Jian Zhao: Software, Investigation. Qi Li: Formal analysis, Data curation. Xiang-Yu Zhang: Writing – review & editing, Supervision, Funding acquisition, Conceptualization. Zhi-Wei Zheng: Software, Formal analysis. Kun Huang: Supervision, Funding acquisition. Da-Bin Qin: Supervision, Funding acquisition, Conceptualization. Bin Zhao: Writing – review & editing, Supervision, Funding acquisition, Conceptualization.

Acknowledgments

Less

This study was financially supported by National Nature Science Foundation of China (Nos. 92161202 and 22121005), China Postdoctoral Science Foundation (Nos. 2023M741814 and 2023M741815), Postdoctoral Fellowship Program of CPSF (No. GZC20231170), Natural Science Foundation of Science & Technology Department of Sichuan Province (No. 2023NSFSC110) and Research and Innovation Team of China West Normal University (No. KCXTD2023-1).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2024.110593.

References

Less

[1]

W. Zuo, A.J. Lough, Y.F. Li, et al., Science 342 (2013) 1080–1083.

[2]

M. Zhao, K. Yuan, Y. Wang, et al., Nature 539 (2016) 76–80.

[3]

L. Zhang, M. Zhou, A. Wang, et al., Chem. Rev. 120 (2020) 683–733.

[4]

Y. Wang, Z. Huang, X. Leng, et al., J. Am. Chem. Soc. 140 (2018) 4417–4429.

[5]

L. Wang, J. Lin, Q. Sun, et al., ACS Catal. 11 (2021) 8033–8041.

[6]

F. Wang, T. Yang, T. Wu, et al., J. Am. Chem. Soc. 143 (2021) 2477–2483.

[7]

X. Li, W. Hao, N. Yi, et al., CCS Chem. 5 (2023) 2277–2289.

[8]

D. Wang, D. Astruc, Chem. Rev. 115 (2015) 6621–6686.

[9]

Y.Y. Li, S.L. Yu, W.Y. Shen, et al., Acc. Chem. Res. 48 (2015) 2587–2598.

[10]

Z. An, J. Li, Green Chem. 24 (2022) 1780–1808.

[11]

A.H. Valekar, M. Lee, J.W. Yoon, et al., ACS Catal. 10 (2020) 3720–3732.

[12]

J. Wei, L. Zhao, C. He, et al., J. Am. Chem. Soc. 141 (2019) 12707–12716.

[13]

R.A. Farrar-Tobar, A. Dell'Acqua, S. Tin, et al., Green Chem. 22 (2020) 3323–3357.

[14]

S.M. King, X. Ma, S.B. Herzon, J. Am. Chem. Soc. 136 (2014) 6884–6887.

[15]

C.K. Hill, J.F. Hartwig, Nat. Chem. 9 (2017) 1213–1221.

[16]

Y. Ren, Y. Yang, M. Wei, ACS Catal. 13 (2023) 8902–8924.

[17]

W. Gong, X. Chen, W. Zhang, et al., J. Am. Chem. Soc. 144 (2022) 3117–3126.

[18]

X.R. Tian, Z.Y. Jiang, S.L. Hou, et al., Angew. Chem. Int. Ed. 62 (2023) e202301764.

[19]

G.D. Wang, Y.Z. Li, W.J. Shi, et al., Angew. Chem. Int. Ed. 62 (2023) e202311654.

[20]

L. Sun, X. He, Y. Yuan, et al., Chem. Eng. J. 397 (2020) 125468.

[21]

K. Sun, Y. Qian, H.L. Jiang, Angew. Chem. Int. Ed. 62 (2023) e202217565.

[22]

C.P. Wang, Y.X. Lin, L. Cui, et al., Small 19 (2023) 2207342.

[23]

E.X. Chen, M. Qiu, Y.F. Zhang, et al., Angew. Chem. Int. Ed. 61 (2022) e202111622.

[24]

X. Chen, C. Peng, W. Dan, et al., Nat. Commun. 13 (2022) 4592.

[25]

Q. Wu, A. Li, R. He, et al., Chin. Chem. Lett. 35 (2024) 108639.

[26]

X. Kou, Y. Lin, Y. Shen, et al., CCS Chem. 6 (2024) 1821–1835.

[27]

R.J. Wei, H.G. Zhou, Z.Y. Zhang, et al., CCS Chem. 3 (2021) 2045–2053.

[28]

M. Zhao, S. Huang, Q. Fu, et al., Angew. Chem. Int. Ed. 59 (2020) 20031–20036.

[29]

K. Sheng, L.M. Fan, X.F. Tian, et al., Sci. Chin. Chem. 63 (2020) 182–186.

[30]

L. Yang, P. Cai, L. Zhang, et al., J. Am. Chem. Soc. 143 (2021) 12129–12137.

[31]

X.C. Lin, Y.M. Wang, X. Chen, et al., Angew. Chem. Int. Ed. 62 (2023) e202306497.

[32]

F. Guo, R.X. Li, S. Yang, et al., Angew. Chem. Int. Ed. 62 (2023) e202216232.

[33]

X.S. Jiang, F.Y. Ren, Y. Shi, et al., CCS Chem. 6 (2024) 2333–2345.

[34]

X.S. Li, J. Zhao, S.L. Hou, et al., CCS Chem. 6 (2024) 2982–2995.

[35]

X.S. Li, J. Zhao, L. Luo, et al., Chin. Chem. Lett. 35 (2024) 109407.

[36]

Y.S. Wei, M. Zhang, R. Zou, et al., Chem. Rev. 120 (2020) 12089–12174.

[37]

T. He, X.J. Kong, J.R. Li, Acc. Chem. Res. 54 (2021) 3083–3094.

[38]

Y. Song, X. Feng, J.S. Chen, et al., J. Am. Chem. Soc. 142 (2020) 4872–4882.

[39]

Q.J. Wu, J. Liang, Y.B. Huang, et al., Acc. Chem. Res. 55 (2022) 2978–2997.

[40]

Z. Ji, H. Wang, S. Canossa, et al., Adv. Funct. Mater. 30 (2020) 2000238.

[41]

C.X. Chen, Z.W. Wei, T. Pham, et al., Angew. Chem. Int. Ed. 60 (2021) 9680–9685.

[42]

G. Ji, L. Zhao, J. Wei, et al., Angew. Chem. Int. Ed. 61 (2022) e202114490.

[43]

N. Li, G.Q. Lai, L.H. Chung, et al., CCS Chem. 6 (2023) 1211–1221.

[44]

S. Fu, S. Yao, S. Guo, et al., J. Am. Chem. Soc. 143 (2021) 20792–20801.

[45]

P. Vasanthakumar, D.S. Raja, D. Sindhuja, et al., Mol. Catal. 516 (2021) 112004.

[46]

D. Feng, W.C. Chung, Z. Wei, et al., J. Am. Chem. Soc. 135 (2013) 17105–17110.

[47]

G. Zhai, Y. Liu, L. Lei, et al., ACS Catal. 11 (2021) 1988–1994.

[48]

P. Jin, L. Wang, X. Ma, et al., Appl. Catal. B: Environ. 284 (2021) 119762.

[49]

M.W. Geis, T.H. Fedynyshyn, M.E. Plaut, et al., Diam. Relat. Mater. 84 (2018) 86–94.

[50]

H. Liu, H.J. Li, Z.W. Zheng, et al., Cryst. Growth Des. 23 (2023) 7316–7324.

[51]

H. Liu, Z.W. Zheng, X.Y. Zhang, et al., Inorg. Chem. 63 (2024) 11554–11565.

[52]

Q. Wang, Z. Wei, J. Li, et al., ACS Appl. Mater. Interfaces 14 (2022) 27775–27790.

[53]

F.A. Westerhaus, R.V. Jagadeesh, G. Wienhöfer, et al., Nat. Chem. 5 (2013) 537–543.

[54]

J. Zhang, L. Wang, Y. Shao, et al., Angew. Chem. Int. Ed. 56 (2017) 9747–9751.

[55]

R.B. Nasir Baig, R.S. Varma, ACS Sustain. Chem. Eng. 1 (2013) 805–809.

[56]

W. Walczak, M. Zakrzewski, G. Cichowicz, et al., Org. Biomol. Chem. 18 (2020) 694–699.

[57]

Z.W. Xi, L. Yang, D.Y. Wang, et al., J. Org. Chem. 86 (2021) 2474–2488.

[58]

Y. Li, Y.N. Li, J.W. Zheng, et al., Chem. Eur. J. 27 (2021) 1080–1087.

Appendix

Less

Year 2025 volume 36 Issue 6

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2024.110593

Receive Date：2024-07-29
Online Date：2025-10-29
Published：2025-06-15

Article Data

Affiliations

History

Received：2024-07-29
Revised：2024-10-23
Accepted：2024-10-29

Affiliations

^a Key Laboratory of Chemical Synthesis and Pollution Control of Sichuan Province, College of Chemistry and Chemical Engineering, China West Normal University, Nanchong 637002, China

^b Frontiers Science Center for New Organic Matter, Key Laboratory of Advanced Energy Materials Chemistry (MOE), College of Chemistry, Nankai University, Tianjin 300071, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2024.110593

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

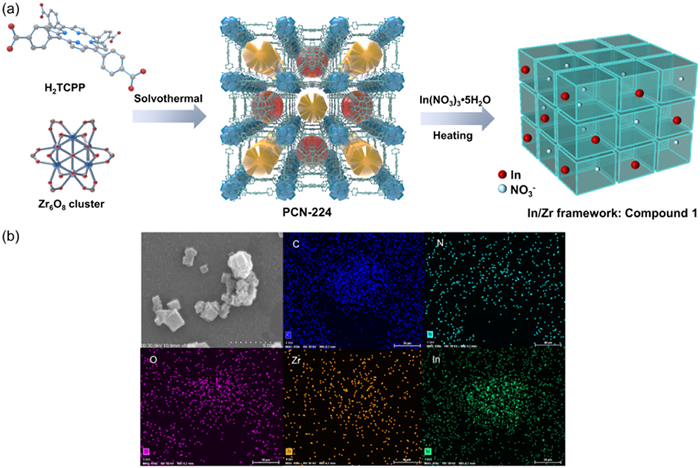

Fig. 1 (a) Synthetic schematic of 1, (b) SEM and EDS images of 1.

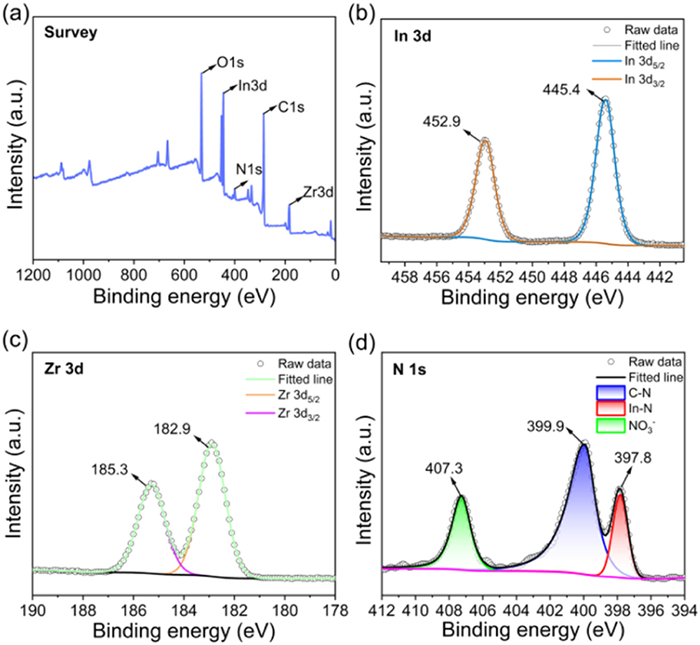

Fig. 2 XPS analysis of 1 : (a) Survey spectrum, (b-d) In 3d, Zr 3d and N 1s spectra.

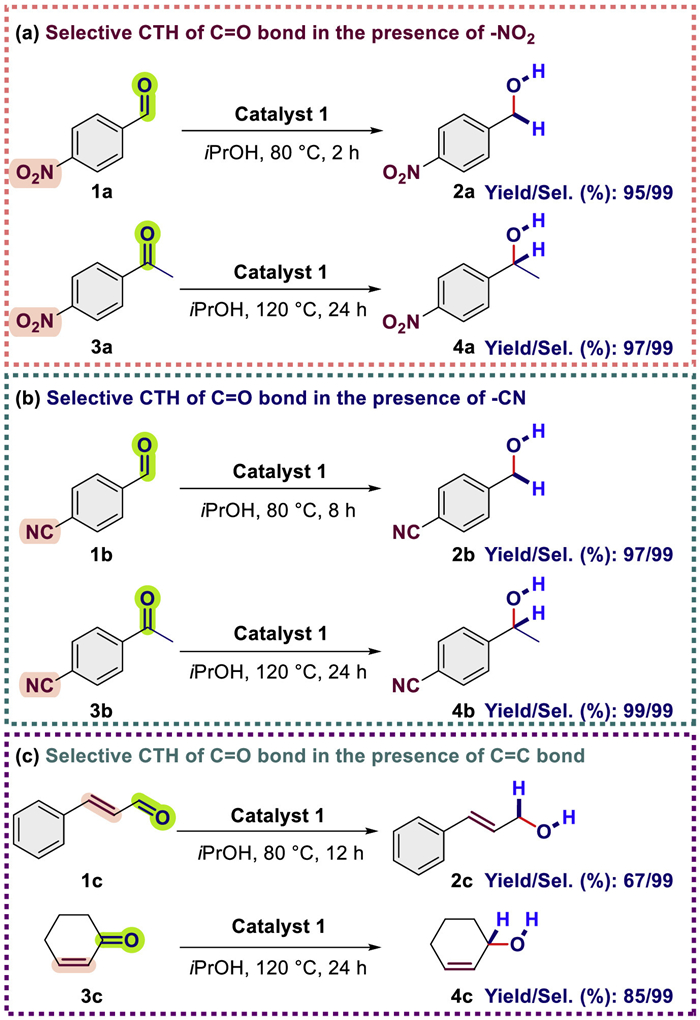

Fig. 3 Selective CTH of C═O bonds in the presence of (a) -NO₂, (b) -CN and (c) C═C bonds.

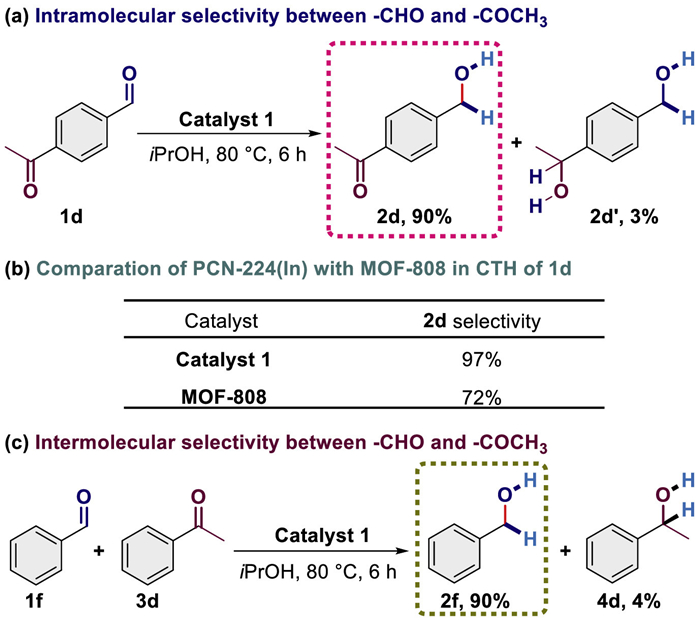

Fig. 4 (a-c) Intra- and intermolecular CTH selectivity between -CHO and -COCH₃.

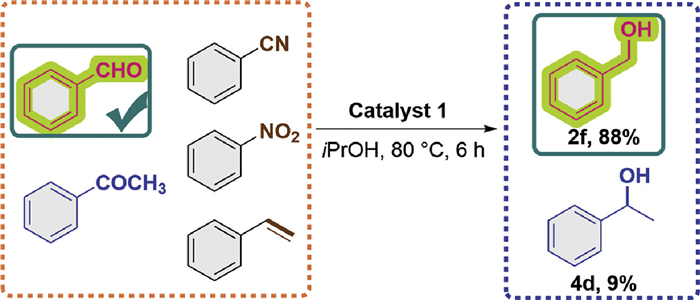

Fig. 5 Selective CTH of -CHO among various unsaturated groups.

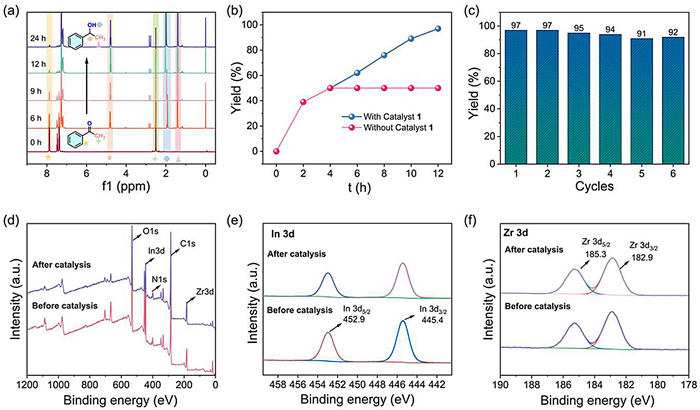

Fig. 6 (a) Monitoring the CTH of acetophenone (3d) for different reaction time. (b) Yield-time curve (3d) and the leaching test. (c) Catalytic results for CTH of 3d after catalyst reused successive 6 times. (d-f) Compared XPS spectra of 1 before and after catalysis.

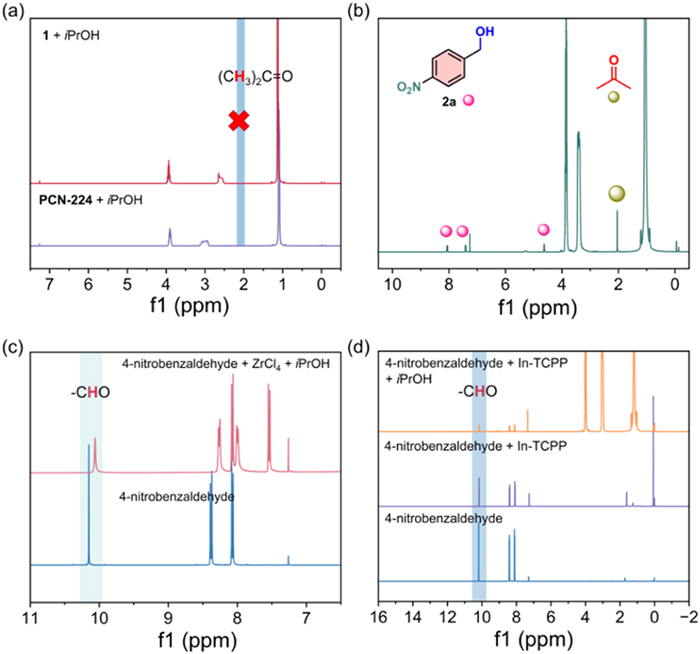

Fig. 7 Control experiments detected by ¹H NMR analysis. (a) None acetone generation after mixing of iPrOH with 1 or PCN-224. (b) In-situ CTH reaction of 4-nitrobenzaldehyde (1a) in NMR tube. (c) ¹H NMR spectra for interaction of 1a, ZrCl₄ and iPrOH. (d) ¹H NMR spectra for interaction of 1a, In-TCPP and iPrOH.

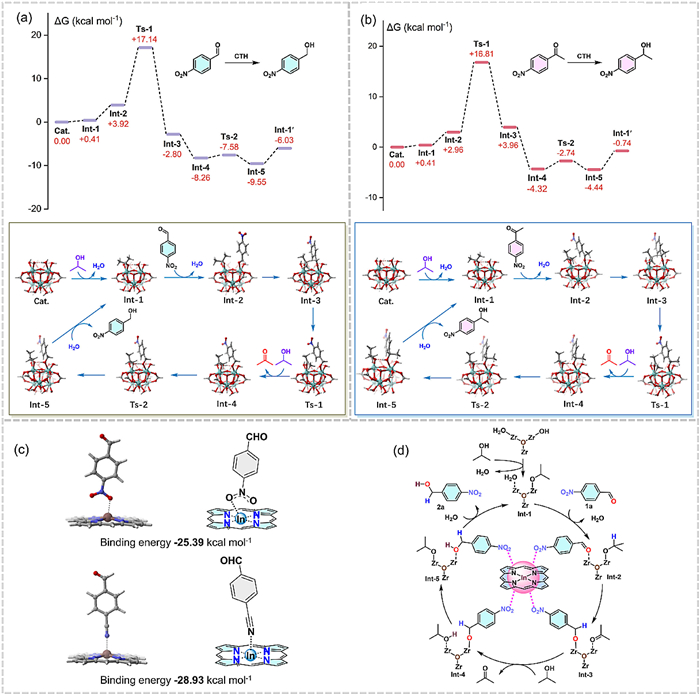

Fig. 8 (a) Reaction energies for CTH of 1a calculated by DFT. (b) Reaction energies for CTH of 3a calculated by DFT. (c) Binding energies of In-TCPP with -NO₂ and -CN for corresponding aldehydes. (d) Proposed CTH mechanism towards the example of 1a.
