Emission enhancement induced by the supramolecular assembly of leggero pillar[5]arenes for the detection and separation of silver ions

Emission enhancement induced by the supramolecular assembly of leggero pillar[5]arenes for the detection and separation of silver ions

PDF

Kun Zhang^a, Xin-Yue Lou^*^,^a, Yan Wang^a, Weiwei Huan^*^,^b, Ying-Wei Yang^*^,^a

Chinese Chemical Letters | 2025, 36(6) : 110464

Less

Chinese Chemical Letters | 2025, 36(6): 110464

• Communication •

Emission enhancement induced by the supramolecular assembly of leggero pillar[5]arenes for the detection and separation of silver ions

Full

Kun Zhang^a, Xin-Yue Lou^*^,^a, Yan Wang^a, Weiwei Huan^*^,^b, Ying-Wei Yang^*^,^a

Affiliations

^a International Joint Research Laboratory of Nano-Micro Architecture Chemistry, College of Chemistry, Jilin University, Changchun 130012, China

^b Zhejiang Provincial Key Laboratory of Chemical Utilization of Forestry Biomass, College of Chemistry and Materials Engineering, Zhejiang A & F University, Hangzhou 311300, China

Published: 2025-06-15 doi: 10.1016/j.cclet.2024.110464

Outline

Abstract

Less

A renewable fluorescent material (G⊂CP5L) has been constructed via supramolecular assembly between a new derivative of pillararene, namely leggero pillar[5]arene, as the host molecule (CP5L) and a tetraphenylethylene (TPE)-based ditopic guest (G). This new material can simultaneously perform efficient detection and separation of silver(Ⅰ) from aqueous environments. Possessing an electron-rich cavity and two cytosine groups modified on both rims, CP5L functions as the host-guest binding site for G and offers exclusive coordination sites for further interaction with Ag⁺. Adding Ag⁺ to the system undergoes dramatic fluorescence enhancement due to the mechanism of supramolecular assembly-induced enhanced emission (SAIEE). This fluorescence enhancement allows for efficient and visualized detection following a "light-up" pattern, achieving a limit of detection (LOD) of 1.3 × 10^–7 mol/L, which is fully in line with the World Health Organization's drinking water standard of 9 × 10^–7 mol/L. In addition, G⊂CP5L also shows strong anti-interference capability against other cationic species. For the separation of Ag⁺ from aqueous systems, G⊂CP5L displays exceptional adsorption efficiency (97%) and reliable recovery performance, demonstrating excellent recyclability after five experimental cycles without compromising its adsorption activity

Key words

Pillararene / Host-guest chemistry / Aggregation-induced emission / Supramolecular chemistry / Supramolecular assembly

Cite this Article

Kun Zhang, Xin-Yue Lou, Yan Wang, Weiwei Huan, Ying-Wei Yang. Emission enhancement induced by the supramolecular assembly of leggero pillar[5]arenes for the detection and separation of silver ions[J]. Chinese Chemical Letters, 2025 , 36 (6) : 110464 - . DOI: 10.1016/j.cclet.2024.110464

Full Text

Less

Supramolecular assembling processes can lead to the generation of various stimuli-responsive materials via noncovalent interaction [1-3], such as hydrogen bonding [4, 5], van der Waals force [6], metal-ligand coordination [7-9], electrostatic interactions [10], anion-π interactions, cation-π interactions [11], and halogen bonding interactions [12], host-guest recognitions [13], which endow these materials with dynamic and reversible properties. Pillar[n]arenes, as a novel category of synthetic macrocycles and a unique type of building blocks in the realm of supramolecular chemistry [14-16], play significant roles in fabricating functionalized supramolecular materials due to their rigid macrocycle skeletons [17, 18], electron-rich cavities [19], versatile functionalizations [20, 21], and superior host-guest properties [22]. Various supramolecular materials based on pillar[n]arene have been designed and applied in multiple research fields [23-25], such as drug delivery [26, 27], gas adsorption and separation [28-30], artificial ion channels [31], and sensing and detection [32-35], thanking to their highly tunable properties and superior guest selectivity. In the meantime, the design and synthesis of pillar[n]arene derivatives with distinctive characteristics have been important pursuits for researchers. For instance, our group reported the syntheses of leaning pillar[6]arenes and geminiarenes with nanometer-sized adaptive cavities, demonstrating capabilities of separating aromatics and cyclic aliphatics [17, 36, 37]. Chen et al. fabricated a pagoda[5]arene with a large electron-rich cavity, which forms stable complexes with pyridinium or bipyridinium salts via host-guest interaction and exhibits acid/base-responsiveness in solution [38]. Notably, we developed a new version of pillararenes denoted as leggero pillar[5]arene (P[5]L), which possesses four alkoxyl-modified phenyl groups and one bare benzene ring in its molecular skeleton [39]. Its water-soluble derivative and mono-quinone substituted derivative have also been reported [40]. Recently, a novel leggero pillar[4]arene[1]quinone containing one benzoquinone unit was reported, which shows high selectivity to p-xylene over other C8 aromatics [41]. Compared with traditional pillar[5]arene, P[5]L possesses enhanced adaptability in its cavity structure, while the inherent host-guest properties of pillararenes are nicely maintained. Therefore, we envision that the selective modifications on the portals of P[5]L would open up more possibilities in creating supramolecular materials and developing the practical applications of this new macrocycle in broader fields.

In 2001, Tang and colleagues proposed the mechanism of aggregation-induced emission (AIE) [42], where the AIE-active luminogens show weak fluorescence in diluted solutions yet become significantly more emissive upon aggregation due to the restriction of intramolecular motions (RIM) [43]. This groundbreaking photophysical mechanism thus effectively addressed the issue of aggregation-caused quenching (ACQ) observed in traditional organic luminophores and propelled the development of luminescent materials [44, 45]. Over the years, researchers have invested a tremendous amount of effort in combining supramolecular self-assembling strategy with AIE luminogens [46], resulting in the creation of versatile fluorescent supramolecular materials with outstanding sensitivity and responsiveness. For instance, the integration of AIEgens with host-guest systems has been widely adopted in constructing artificial light-harvesting systems [47-51], fluorescence sensing and bioimaging agents [52, 53], and other related fields [54]. It is worth noting that, building on earlier fundamental studies [55-58], a mechanism has been proposed for supramolecular assembly-induced enhanced emission (SAIEE) [59], it can be deemed a promising method in preparing substances with enhanced photoluminescence properties and enriched functionalities, thus closing the gap between supramolecular macrocycles and fluorescent materials [60-62].

Silver ions, as one of the heavy metal ions, impact the health of organisms by deactivating proteins [63]. The World Health Organization (WHO) stipulates strict regulations that the amount of Ag⁺ in potable water must not exceed 0.9 µmol/L. Therefore, designing and developing a probe material that can simultaneously and efficiently detect and separate silver ions from aqueous environments is imperative. Drawing inspiration from the specific coordination between cytosine (C) and silver ion (C-Ag⁺-C) [64, 65], we herein report the design and preparation of a supramolecular assembly (G⊂CP5L) between cytosine-functionalized leggero pillar[5]arene (CP5L) as the host molecule, and a TPE-based ditopic guest (G) with AIE characteristics via host-guest interactions. With the addition of Ag⁺ aqueous solution, a supramolecular polymer, i.e., G⊂CP5L@Ag⁺, can be constructed through C-Ag⁺-C pairs. This construction process is accompanied by a phenomenon known as the SAIEE mechanism, which leads to a significant increase in fluorescence emission (Scheme 1). Hence, this supramolecular material (G⊂CP5L) can be used as a fluorescence probe to detect and separate silver ions with superior recycling capacity. We anticipate this strategy will broaden the real-world application scope of leggero pillararenes and provide a practical and efficient approach for detecting and separating silver ions pollution in water.

Detailed synthetic pathways of CP5L, G, and G1 are shown in Figs. S1 and S9 (Supporting information). In short, we have synthesized cytosine-functionalized leggero pillar[5]arene (CP5L) for the first time with a yield of 65% through nucleophilic substitution reaction between the precursor P5L-(Br)₂ and cytosine. Tetraphenylethylene (TPE) modified by two bromoalkyl units (G) and a single bromo-substituted TPE (G1) were prepared according to literature reports [66]. All the substances reported for the first time were characterized using ¹H NMR, ¹³C NMR, and high-resolution mass spectroscopy (HRMS) (Figs. S2-S12 in Supporting information).

Before carrying out investigations on the host-guest interactions between G and CP5L, we must exclude the possibilities of self-inclusion within CP5L, considering the flexible alkyl side chains modified on its rims and the adaptive cavity. 2D ROESY NMR experiments were performed to analyze the spatial structure relationship of CP5L (Fig. 1a). For the phenyl proton signal peaks on the macrocycle (H_c), observable cross-peaks can be found correlated with the methylene proton signals (H_f) and methoxy proton signals (H_g), respectively, attributing to π-π interactions between the benzene rings of CP5L and C-H···π interactions between the benzene rings and the methylene and methoxy groups at high concentrations. On the contrary, no correlation was observed among CP5L phenyl protons (H_c) and flexible alkyl side chains protons (H_e, H_i) or cytosine group protons (H_a, H_d). This phenomenon suggested that the cytosine groups on the side chain were not encircled by the cavity of CP5L itself, verifying the absence of self-inclusion structures within CP5L.

The host-guest complexation formed between G (4 mmol/L) and CP5L (8 mmol/L) was first studied by ¹H NMR in the mixed deuterated solvent of CDCl₃/DMSO-d₆ (v: v = 9:1). As shown in Fig. 1b, after adding guest G to host CP5L, the proton signal peaks on the side chain of G showed a clear upfield shift, indicating that the side chain of G had been encapsulated by the cavity of CP5L. Moreover, a downfield shift of proton signals of the phenyl group on CP5L provided further confirmation of successful complexation between host and guest. The binding stoichiometry between CP5L and G was confirmed via fluorescence titration experiments. According to Fig. 1, Fig. 1, the stoichiometric ratio of CP5L and G was defined as 2:1. To verify the accuracy of this stoichiometry, we also synthesized a monobromo-substituted TPE as model guest (G1) and repeated the titration mentioned above. The results confirmed a 1:1 stoichiometric relationship between G1 and CP5L (Fig. 1, Fig. 1), with the association constant (K_a) of (4.86 ± 0.2) × 10⁷ L/mol, demonstrating high affinity between the guest entity and the cavity of CP5L (Fig. S13 in Supporting information). In addition, the SEM images showed that the host-guest complexes possessed a spherical morphology with regular shapes distinct from G (Fig. 2a), which also evidenced the successful preparation of G⊂CP5L (Fig. 2b).

The coordination effect of Ag⁺ with the cytosine moieties of CP5L was investigated via UV–vis spectroscopy. As depicted in Fig. S14 (Supporting information), UV absorbance intensity steadily increased with the introduction of Ag⁺. When above 1.0 equiv. of Ag⁺ was added, UV absorbance of the mixture reached its maximal and maintained unchanged, indicating the formation of C-Ag⁺-C pairs between CP5L and Ag⁺. Moreover, ¹H NMR titration experiments further supported this conclusion (Fig. S15 in Supporting information). Upon adding Ag⁺, cytosine proton signals of CP5L were shifted to the lower field. When 1.0 equiv. of Ag⁺ was added, the proton signal peaks decreased to the minimum and almost disappeared, indicating the 1:1 coordination pattern between Ag⁺ and CP5L.

Based on the above experiments, the supramolecular polymer, namely G⊂CP5L@Ag⁺, was constructed via a synthetic method where the first step involved the preparation of host-guest complex G⊂CP5L, and the coordination with Ag⁺ was conducted as the second step. Scanning electron microscopy (SEM) revealed that G⊂CP5L@Ag⁺ exhibited a larger particle size than G⊂CP5L (Fig. 2, Fig. 2). Energy dispersive spectroscopy (EDS) results further indicated that the Ag element was distributed uniformly in the supramolecular assembly, proving the successful coordination of Ag⁺ with G⊂CP5L (Figs. 2e-i). Additionally, further elucidation of the assembly process from CP5L to G⊂CP5L and subsequently to G⊂CP5L@Ag⁺ was achieved through two-dimensional diffusion-ordered NMR spectroscopy (2D DOSY). As shown in Fig. S16 (Supporting information), the diffusion coefficients (D) for CP5L, G⊂CP5L, and G⊂CP5L@Ag⁺ were 1.1 × 10^–10, 1.04 × 10^–10, and 9.03 × 10^–11 m²/s, respectively. The decrease in diffusion coefficients revealed the formation of G⊂CP5L@Ag⁺ with higher molecular weights. We further confirmed the coordination between Ag⁺ and G⊂CP5L using Raman spectroscopy. As shown in Fig. S17 (Supporting information), the characteristic peak at 1060 cm^-1 was attributed to the C-N stretching vibration of cytosine, which shifted to 1070 cm^-1 upon the addition of Ag⁺. Additionally, the C=N and C=C stretching vibrations at 1572 cm^-1 shifted significantly to 1625 cm^-1. The peak at 1321 cm^-1 (C-H bending and C-N stretching) also shifted to 1304 cm^-1. Moreover, after adding Ag⁺, the peak intensities at 953 cm^-1 (C-C and C-N bending), 1209 cm^-1 (C-N stretching) and 1418 cm^-1 (C=C stretching) increased markedly. These results indicate the complexation of Ag⁺ with G⊂CP5L.

Subsequently, the photophysical features of G⊂CP5L@Ag⁺, G⊂CP5L, and CP5L were evaluated to determine whether SAIEE properties can be achieved upon the formation of supramolecular polymers. Regarding fluorescence intensity, G exhibited negligible fluorescence in dilute solutions owing to the unrestricted rotation of phenyl rings and conjoined nonradiative energy dissipation [67, 68]. G⊂CP5L displayed slightly enhanced fluorescence emission, although the intensity remained rather weak. However, remarkably enhanced fluorescence emission was detected upon adding Ag⁺ into the host-guest complexes, where the fluorescence intensification can be observed with naked eyes under UV light irradiation (Fig. 3a). Additionally, fluorescence experiments were performed to examine the fluorescence lifetime and quantum yield of G⊂CP5L@Ag⁺. As shown in Fig. 3b, G⊂CP5L@Ag⁺ demonstrated a fluorescence lifetime of 5.80 ns, surpassing the durability of G (4.02 ns) and CP5L (4.79 ns). Concurrently, the fluorescence quantum yield of G⊂CP5L@Ag⁺ reached 31.51% (Fig. 3c), significantly exceeding G (4.73%) and G⊂CP5L (10.40%). Remarkably, G⊂CP5L@Ag⁺ exhibited a higher radiative decay rate constant (K_r) of 5.42 × 10⁷ s^-1 coupled with a lower nonradiative decay rate constant (K_nr) of 1.18 × 10⁸ s^-1 compared with that of G (1.18 × 10⁷ s^-1 and 2.37 × 10⁸ s^-1, respectively) and G⊂CP5L (2.17 × 10⁷ s^-1 and 1.87 × 10⁸ s^-1, respectively) (Fig. 3d and Table S1 in Supporting information). In short, fluorescent supramolecular polymers involving host-guest complexation and silver(Ⅰ) coordination were successfully fabricated and exhibited exceptional optical properties relying on the SAIEE mechanism.

Silver ion titration experiments were conducted to elucidate the importance of host-guest complexes G⊂CP5L in forming G⊂CP5L@Ag⁺. As depicted in Fig. S18 (Supporting information), no discernible changes were spotted in the fluorescence intensity of either G or CP5L after introducing Ag⁺. Nevertheless, a marked enhancement in the fluorescence emission of G⊂CP5L was observed upon continuous titration of Ag⁺, reaching a maximal value as 1 equiv. of Ag⁺ was introduced into the system. These findings demonstrated the significance of G⊂CP5L in the development of the fluorescence-enhanced G⊂CP5L@Ag⁺.

In this section, titration experiments of Ag⁺ into G⊂CP5L were performed, where the aqueous solutions of Ag⁺ at different concentrations were added to G⊂CP5L for fluorescence testing. As depicted in Fig. 4a, the fluorescence emission exhibited a linear enhancement upon increasing Ag⁺ concentration at 0–8 µmol/L. The limit of detection (LOD) was determined to be 1.3 × 10^–7 mol/L based on 3 δ/s (Fig. 4b), where δ represents the standard deviation of 20 blank tests, and s denotes the slope of the fluorescence emission standardization curve equation. This LOD value is below the standard concentration of Ag⁺ for drinking water set by WHO (9 × 10^–7 mol/L) [69], indicating that G⊂CP5L can potentially be used as a fluorescence probe to detect Ag⁺ in aqueous systems.

Fluorescence experiments were employed to assess the selectivity of G⊂CP5L for Ag⁺. Fluorescence spectra of G⊂CP5L were recorded upon the addition of 15 metal cations (1 equiv.), including K⁺, Na⁺, Ca²⁺, Cd²⁺, Co²⁺, Cu²⁺, Fe²⁺, Mg²⁺, Sn²⁺, Zn²⁺, Bi³⁺, Ce³⁺, Cr³⁺, Fe³⁺, and Ag⁺, respectively. As depicted in Fig. 4c, only Ag⁺ can initiate a significant fluorescence intensity increase under identical conditions, indicating that G⊂CP5L was capable of performing selective recognition and detection toward Ag⁺ exclusively (Fig. 4d). Furthermore, we used nitrate as the corresponding anion for the selected metal ions. To eliminate the possibility of interference from anions, we selected different sodium salts with various anions for fluorescence testing and compared them with sodium nitrate. As shown in Fig. S19 (Supporting information), different anions have no effect on the probe. In particular, it is worth noting that a multiplicity of heavy metal cations is present simultaneously in real-world aqueous conditions, such as industrial wastewater. Therefore, anti-interference experiments were implemented, whereby the presence of other metal cations demonstrated a very slight impact on the fluorescence emission increase of Ag⁺ (Fig. 4e). Additionally, we investigated the stability of G⊂CP5L in detecting silver ions using fluorescence spectroscopy under conditions ranging of 20–50 ℃. As shown in Fig. S20 (Supporting information), the fluorescence intensity of G⊂CP5L@Ag⁺ shows a slight decreasing trend with increasing temperature. However, the extent of this decrease is minimal, suggesting that the probe possessed outstanding stability in the detection of Ag⁺.

In order to confirm the ability of G⊂CP5L to separate Ag⁺ from aqueous media, we carried out Ag⁺ separation experiments and recycling experiments (Fig. 5). First, an aqueous solution of Ag⁺ was introduced into G⊂CP5L, and the solution immediately converted into a white suspension with bright fluorescence under 365 nm UV light irradiation, followed by centrifugation to get a white precipitate. This result indicated the strong coordination between cytosine moieties of G⊂CP5L and Ag⁺. Inductively coupled plasma spectrometry (ICP) experiments were conducted to determine the residual Ag⁺ concentration in the solution. The result showed that the remaining Ag⁺ concentration was below 0.94 ppm, indicating that over 97% of Ag⁺ could be rapidly separated via simple operations. Based on the excellent Ag⁺ separation efficiency of G⊂CP5L, we proceeded to assess its recyclability by dissolving the white precipitate in DMSO and introducing excessive Na₂S into the mixture, which led to the generation of Ag₂S as black precipitates. Thus, G⊂CP5L can be recovered after centrifugation. The recycling experiments of five cycles demonstrated no compromise in its adsorption activity (Fig. 4f). Therefore, we have validated that G⊂CP5L can function as a fluorescence probe for both detecting and separating Ag⁺ in water, offering a feasible strategy and a reproducible platform for practical remediation of Ag⁺ contaminants.

In summary, we have developed a supramolecular assembly system (G⊂CP5L) by employing cytosine-functionalized leggero pillar[5]arene and tetraphenylethylene (TPE)-based ditopic guest. G⊂CP5L possessed superior responsiveness to silver ions in water, taking advantage of the formation of G⊂CP5L@Ag⁺ assembled via the coordination effect between cytosine moieties of CP5L and Ag⁺. G⊂CP5L@Ag⁺ displayed intensified blue-green fluorescence on account of the SAIEE mechanism. High selectivity and anti-interference ability have been achieved in the concurrent detection and separation of silver ions from aqueous media, demonstrating a low LOD value and high separation efficiencies. Particularly, G⊂CP5L can be recovered with very slight performance degradation after five cycles of continuous separation experiments, making it a promising candidate for sustainable wastewater remediation. This research enriches the functionalization protocols of leggero pillar[5]arenes and offers a simple and effective method for optically sensing and removing excessive silver ions in water. In the future, these supramolecular materials can be further modified to broaden their detection and recognition range for metal ions and pollutants. This will ensure that they meet the demands of diverse real-world applications, paving the way for innovative solutions to contemporary challenges.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

CRediT authorship contribution statement

Less

Kun Zhang: Writing – original draft, Methodology, Formal analysis, Data curation, Conceptualization. Xin-Yue Lou: Writing – review & editing, Validation, Methodology, Formal analysis. Yan Wang: Writing – review & editing, Validation, Formal analysis. Weiwei Huan: Writing – review & editing, Validation, Resources, Funding acquisition. Ying-Wei Yang: Writing – review & editing, Supervision, Resources, Project administration, Funding acquisition.

Acknowledgments

Less

We acknowledge the Natural Science Foundation of Jilin Province (No. 20230101052JC), the National Natural Science Foundation of China (No. 52173200), Hangzhou Jingshi Technology Co., Ltd., and Hangzhou Xuhui Technology Co., Ltd. for financial support.

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2024.110464.

References

Less

[1]

T. Kakuta, T.A. Yamagishi, T. Ogoshi, Acc. Chem. Res. 51 (2018) 1656–1666.

[2]

T. Ogoshi, T.A. Yamagishi, Y. Nakamoto, Chem. Rev. 116 (2016) 7937–8002.

[3]

X.Y. Lou, S. Zhang, Y. Wang, et al., Chem. Soc. Rev. 52 (2023) 6644–6663.

[4]

K. Liu, L. Cheng, N. Zhang, et al., J. Am. Chem. Soc. 143 (2020) 1162–1170.

[5]

S. Schäfer, G. Kickelbick, Macromolecules 51 (2018) 6099–6110.

[6]

L.M. Woods, D.A.R. Dalvit, A. Tkatchenko, et al., Rev. Mod. Phys. 88 (2016) 045003.

[7]

K.C. Bentz, S.M. Cohen, Angew. Chem. Int. Ed. 57 (2018) 14992–15001.

[8]

T. Sun, H. Min, Z. Han, et al., Chin. Chem. Lett. 35 (2024) 108718.

[9]

Y. Liu, Z. Guo, Y. Guo, et al., Chin. Chem. Lett. 34 (2023) 108531.

[10]

S. Das, T. Basu, S. Majumdar, ACS Macro Lett. 13 (2024) 34–39.

[11]

Y.F. Li, X. Wang, C.Y. Wang, et al., Tetrahedron 149 (2023) 133178.

[12]

H. Jain, D. Sutradhar, S. Roy, et al., Angew. Chem. Int. Ed. 60 (2021) 12841–12846.

[13]

H. Wang, C.N. Zhu, H. Zeng, et al., Adv. Mater. 31 (2019) 1807328.

[14]

X.Y. Lou, Y.W. Yang, Adv. Mater. 32 (2020) 2003263.

[15]

T. Ogoshi, S. Kanai, S. Fujinami, et al., J. Am. Chem. Soc. 130 (2008) 5022–5023.

[16]

Q. Zhang, H. Qian, T. Xiao, et al., Chin. Chem. Lett. 34 (2023) 108365.

[17]

J.R. Wu, A.U. Mu, B. Li, et al., Angew. Chem. Int. Ed. 57 (2018) 9853–9858.

[18]

Z.D. Tang, X.M. Sun, T.T. Huang, et al., Chin. Chem. Lett. 34 (2023) 107698.

[19]

D. Li, G. Wu, X. Wang, et al., Smart Mol. 1 (2023) e20230016.

[20]

N.L. Strutt, H.C. Zhang, S.T. Schneebeli, et al., Acc. Chem. Res. 47 (2014) 2631–2642.

[21]

H. Zheng, L. Fu, R. Wang, et al., Nat. Commun 14 (2023) 590.

[22]

N. Song, Y.L. Sun, Y.W. Yang, Acc. Chem. Res. 47 (2014) 1950–1960.

[23]

M. Zhang, Y. Cheng, T. Zhang, et al., Aggregate (2024) e608.

[24]

S. Bleus, W. Dehaen, Coord. Chem. Rev. 509 (2024) 215762.

[25]

C. Sathiyajith, R.R. Shaikh, Q. Han, et al., Chem. Commun. 53 (2017) 677–696.

[26]

X. Sun, G. He, C. Xiong, et al., ACS Appl. Mater. Interfaces. 13 (2021) 3679–3693.

[27]

C.Y. Wang, Y.Q. Liu, C. Jia, et al., Chin. Chem. Lett. 34 (2023) 108648.

[28]

T. Ogoshi, R. Sueto, K. Yoshikoshi, et al., Chem. Commun. 50 (2014) 15209–15211.

[29]

W. Shan, D. Zhang, X. Wang, et al., Microporous Mesoporous Mater. 278 (2019) 44–53.

[30]

Y. Li, X. Lou, C. Wang, et al., Chin. Chem. Lett. 34 (2023) 107877.

[31]

Y.F. Li, Z. Li, Q. Lin, et al., Nanoscale. 12 (2020) 2180–2200.

[32]

P. Pananusorn, A. Ruengsuk, A. Docker, et al., ACS Appl. Mater. Interfaces. 14 (2022) 6810–6817.

[33]

D. Dai, J. Yang, Y.W. Yang, Chem. Eur. J. 28 (2022) e202103185.

[34]

W.M. Wang, D. Dai, J.R. Wu, et al., Chem. Eur. J. 27 (2021) 11879–11887.

[35]

T.T. Huang, J.F. Chen, J. Liu, et al., Chin. Chem. Lett. 35 (2024) 109281.

[36]

J.R. Wu, Y.W. Yang, J. Am. Chem. Soc. 141 (2019) 12280–12287.

[37]

J.R. Wu, Y. Wang, Y.W. Yang, Small 16 (2020) 2003490.

[38]

X.N. Han, Q.S. Zong, Y. Han, et al., CCS Chem. 4 (2022) 318–330.

[39]

J.R. Wu, Z. Cai, G. Wu, et al., J. Am. Chem. Soc. 143 (2021) 20395–20402.

[40]

J.R. Wu, G. Wu, Z. Cai, et al., Molecules 27 (2022) 6259.

[41]

G. Zhang, K. Zhang, X.Y. Lou, et al., ACS Mater. Lett. 6 (2024) 446–451.

[42]

J.D. Luo, Z.L. Xie, J.W.Y. Lam, et al., Chem. Commun. (2001) 1740–1741.

[43]

J. Mei, N.L.C. Leung, R.T.K. Kwok, et al., Chem. Rev. 115 (2015) 11718–11940.

[44]

J. Mei, Y. Hong, J.W.Y. Lam, et al., Adv. Mater. 26 (2014) 5429–5479.

[45]

X. Wei, M.J. Zhu, H. Yan, et al., Chem. Eur. J. 25 (2019) 12671–12683.

[46]

D. Ren, L. Tang, Z. Wu, et al., Chin. Chem. Lett. 34 (2023) 108617.

[47]

S. Guo, Y. Song, Y. He, et al., Angew. Chem. Int. Ed. 57 (2018) 3163–3167.

[48]

N. Song, X.Y. Lou, H. Yu, et al., Mater. Chem. Front. 4 (2020) 950–956.

[49]

L. Zhou, Y. Zhou, L. Fang, et al., Chin. Chem. Lett. 35 (2024) 109509.

[50]

T. Xiao, X. Li, L. Zhang, et al., Chin. Chem. Lett. 35 (2024) 108618.

[51]

T. Xiao, L. Zhang, D. Chen, et al., Org. Chem. Front. 10 (2023) 3245–3251.

[52]

H. Zhu, H. Wang, B. Shi, et al., Nat. Commun. 10 (2019) 2412.

[53]

Z. Liu, H. Chen, L. Guo, et al., Chin. Chem. Lett. 35 (2024) 109666.

[54]

J. Li, J. Wang, H. Li, et al., Chem. Soc. Rev. 49 (2020) 1144–1172.

[55]

N. Song, D.X. Chen, Y.C. Qiu, et al., Chem. Commun. 50 (2014) 8231–8234.

[56]

N. Song, D.X. Chen, M.C. Xia, et al., Chem. Commun. 51 (2015) 5526–5529.

[57]

Y. Wang, M.Z. Lv, N. Song, et al., Macromolecules 50 (2017) 5759–5766.

[58]

X.Y. Jin, N. Song, X. Wang, et al., Sci. Rep. 8 (2018) 4035.

[59]

X.Y. Lou, Y.W. Yang, Adv. Opt. Mater. 6 (2018) 1800668.

[60]

X.Y. Lou, Y.W. Yang, Aggregate 1 (2020) 19–30.

[61]

Y. Jia, W.L. Guan, J. Liu, et al., Chin. Chem. Lett. 34 (2023) 108082.

[62]

H. Zhu, Q. Li, W. Zhu, et al., Acc. Mater. Res. 3 (2022) 658–668.

[63]

K.B. Holt, A.J. Bard, Biochem. 44 (2005) 13214–13223.

[64]

W.Y. Xie, W.T. Huang, N.B. Li, et al., Analyst 136 (2011) 4130–4133.

[65]

L. Bian, X. Ji, W. Hu, J. Agr. Food Chem. 62 (2014) 4870–4877.

[66]

D. Dai, Z. Li, J. Yang, et al., J. Am. Chem. Soc. 141 (2019) 4756–4763.

[67]

Y.N. Hong, J.W.Y. Lam, B.Z. Tang, Chem. Soc. Rev. 40 (2011) 5361–5388.

[68]

W.B. Wu, B. Liu, Nat. Sci. Rev. 8 (2021) nwaa222.

[69]

Y. Zhang, A. Ye, Y. Yao, et al., Sensors 19 (2019) 247.

Appendix

Less

Year 2025 volume 36 Issue 6

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2024.110464

Receive Date：2024-06-25
Online Date：2025-10-29
Published：2025-06-15

Article Data

Affiliations

History

Received：2024-06-25
Revised：2024-09-04
Accepted：2024-09-13

Affiliations

^a International Joint Research Laboratory of Nano-Micro Architecture Chemistry, College of Chemistry, Jilin University, Changchun 130012, China

^b Zhejiang Provincial Key Laboratory of Chemical Utilization of Forestry Biomass, College of Chemistry and Materials Engineering, Zhejiang A & F University, Hangzhou 311300, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2024.110464

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

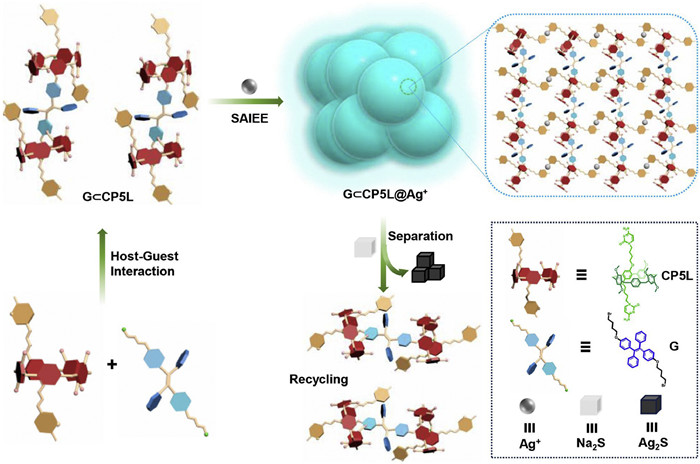

Scheme 1 Illustration of the silver ions' detection and separation process using the recyclable supramolecular assembly G⊂CP5L.

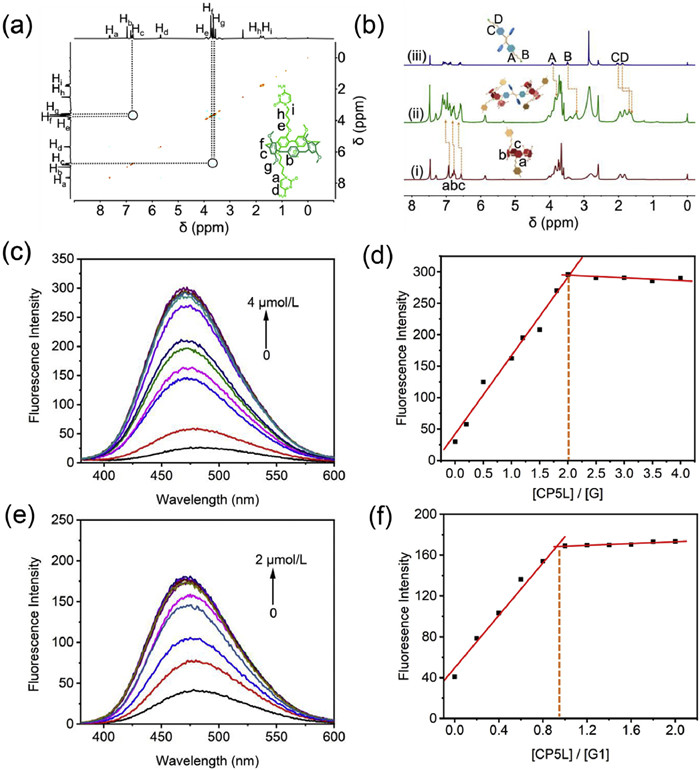

Fig. 1 (a) 2D ROESY analysis (600 MHz, DMSO-d₆, 298 K) of CP5L (20 mmol/L). (b) ¹H NMR spectra (400 MHz, 298 K, CDCl₃/DMSO-d₆ = 9/1, v/v) of (i) CP5L; (ii) CP5L + G; and (iii) G ([G] = 4 mmol/L, [CP5L] = 8 mmol/L). (c) Fluorescence spectra of G with different fractions of CP5L. (d) Molar ratio plot for CP5L and G, demonstrating 2:1 complexation stoichiometry ([G] = 1 µmol/L, [CP5L] = 0–4 µmol/L). (e) Fluorescence spectra of G1 with different fractions of CP5L. (f) Molar ratio plot for CP5L and G1 ([G1] = 1 µmol/L, [CP5L] = 0–2 µmol/L), demonstrating 1:1 complexation stoichiometry (λ_ex = 310 nm; excitation/emission slit widths = 3/3 nm; H₂O/DMSO = 9/1, v/v).

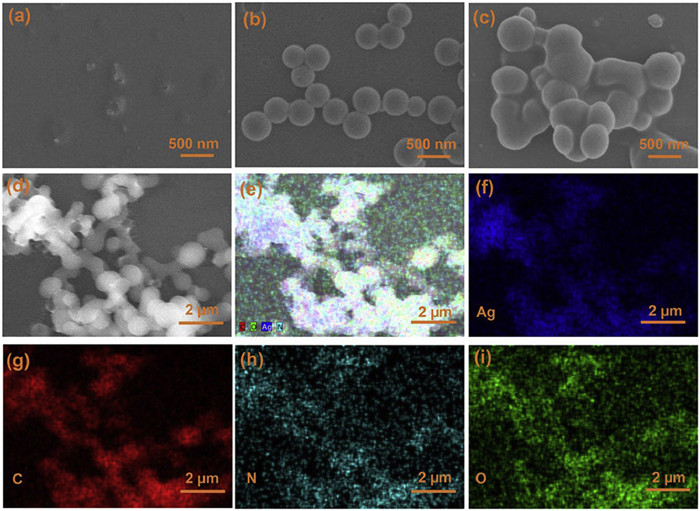

Fig. 2 SEM images of (a) G, (b) G⊂CP5L, (c, d) G⊂CP5L@Ag⁺, and elemental mapping of G⊂CP5L@Ag⁺, consisting of (e) the overlapped image and the distributions of (f) Ag, (g) C, (h) N, and (i) O, respectively.

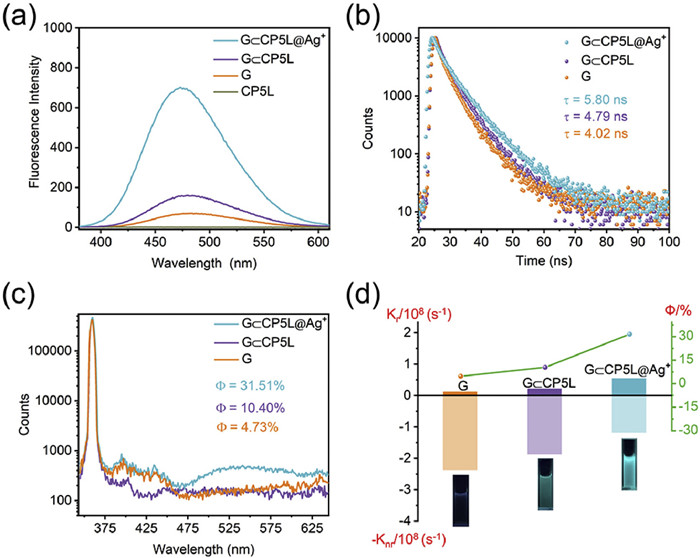

Fig. 3 (a) Fluorescence emission spectra of G⊂CP5L@Ag+, G⊂CP5L, G and CP5L. (b) Fluorescence decay profile and (c) quantum yield of G⊂CP5L@Ag⁺, G⊂CP5L, G. (d) Comparison of the radiative/nonradiative decay rate constants and quantum yields of G⊂CP5L@Ag⁺, G⊂CP5L, G. Inset: digital photos captured under UV light irradiation at 365 nm for G, G⊂CP5L, and G⊂CP5L@Ag⁺.

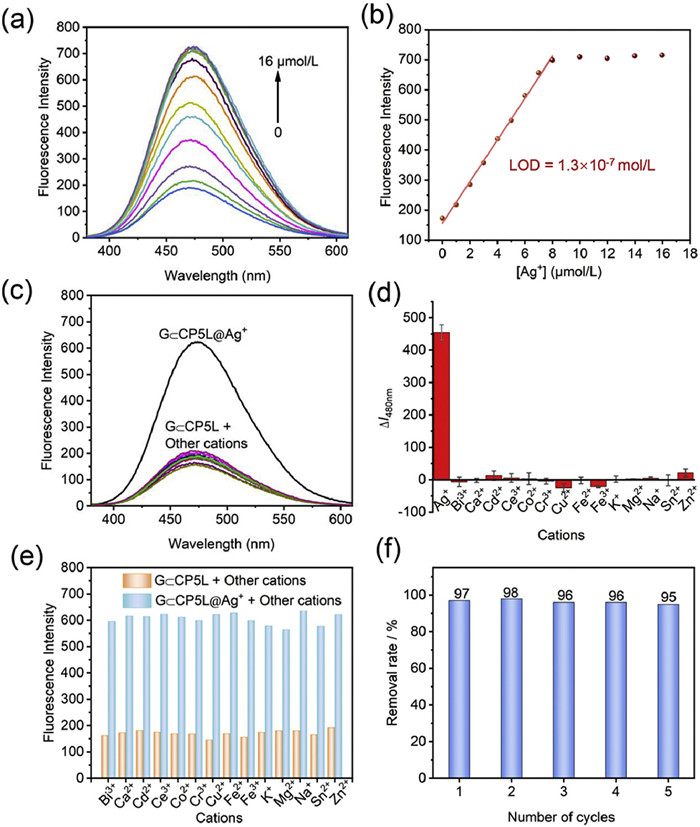

Fig. 4 (a) Fluorescence emission spectra of G⊂CP5L (8 µmol/L in DMSO) with different Ag⁺ concentrations (0–16 µmol/L) in water. (b) Fluorescence intensity of G⊂CP5L at 480 nm versus Ag⁺ concentrations under λ_ex = 310 nm; excitation/emission slit widths = 3/3 nm; H₂O/DMSO = 9/ 1, v/v. (c) Fluorescence spectra and (d) fluorescence changes of G⊂CP5L upon adding aqueous solutions of various metal cations (1.0 equiv. of each). (e) Degrees of fluorescence enhancement at 480 nm derived from G⊂CP5L with Ag⁺ and other cations species (1 equiv.). (f) Recycling performance of G⊂CP5L toward the separation of Ag⁺.

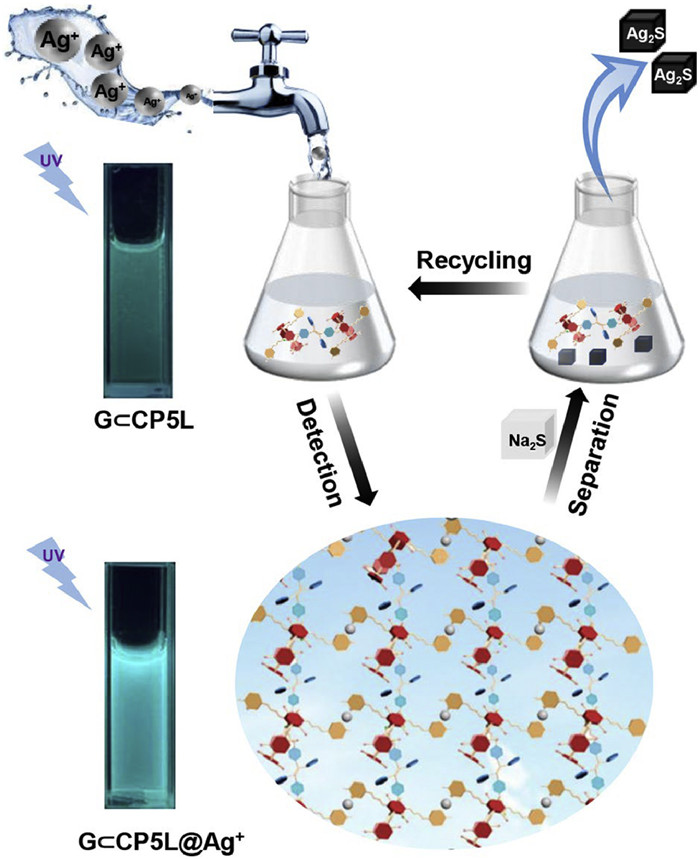

Fig. 5 Cartoon illustration of the recycling process of sensing and removal of Ag⁺ by G⊂CP5L.
