On pursuing future energy storage systems (ESSs) with high output performances and sustainability, a series of new ESSs beyond lithium-ion batteries (LIBs) have attracted growing attention due to the bottle-neck of LIBs towards higher energy/power density [1-3]. As one of the most promising candidates for the next-generation ESSs, lithium-sulfur (Li-S) batteries outperform others due to the low cost of nature abundant sulfur and high theoretical capacity (1675 mAh/g). Up to date, significant progresses have been achieved regarding the notorious problems that hinder the practical application of Li-S batteries, such as the "shuttle effect" of lithium polysulfides in state-of-the-art ether-based electrolytes, the sluggish kinetics due to the insulating nature of sulfur species, and the destructive volume expansion of the lithiated cathode [4-7]. Numerous cathodes involving advanced catalysis and well-defined structures have been developed to realize high performance even with lean electrolyte [8-13]. With respect to prototype Li-S batteries, high capacity, high energy density, and acceptable power density are undoubtedly necessary to adopt their practical use, which requires a high mass loading of the active material [14-16]. However, in pouch cells with high-loading-cathodes, achieving fast kinetics remains a long-standing challenge since the aforementioned problems are even more sever in these thick electrodes. Specifically, the reaction kinetics is even more sluggish due to the proportional increase in the electron- and ion transport distance. Moreover, on account of the increased sulfur concentration gradient in the high-loading-cathode, the shuttle-effect tends to be intensified, leading to sever capacity decay during cycling. Besides, increasing areal loading usually leads to new challenges such as fracturing and delamination of the thick electrodes. In principle, building long-range conducting paths for efficient electron and ion transfer has been the most straightforward approach to eliminate the retarded kinetics and improve the stability of thick electrodes, thus to realize comparable electrochemical performances to that under low sulfur loading [14].

Among various sulfur host materials, low-tortuous arrays featuring both short and continuous electron- and ionic conducting paths have been demonstrated beneficial to achieving high-rate and prolonged cycling life of lithium batteries [17-21]. Besides facilitated mass transport, strong confinement and fast conversion of polysulfides are additional preset for sulfur cathode for practical application. In this regard, one-dimensional nanostructures such as hollow carbon nanotube (CNT) stand out from many other structures due to their straight conducting route and tubular space for encapsulating and confining of sulfur species [22,23]. In addition, strong interactions between the nonpolar carbon and the polar Li₂S can be introduced by surface modification of amphiphilic organic molecules on the inner carbon wall to further constrain the sulfur species. Although more complicated structures were reported afterwards such as small CNT embedded micro carbon tubes and spheres-in-tube structures [24,25], the rational design of one-dimensional sulfur host still needs systematic study to realized optimized output performances under high areal loading of sulfur.

Motivated by the aforementioned research, a multifunctional C@WS₂ host with coil-in-tube structure inspired by the Graham condenser was designed in purpose to induce rapid electron and ion transfer, tunable sulfur loading, strong confinement and fast conversion of polysulfide species. The one-dimensional carbon nanotubes with internal carbon coils allow efficient charge transfer across through the thickness of the cathode and provide strong physical confinement to polysulfide diffusion towards both the lateral and longitudinal directions. The Few-layer WS₂ loaded in the carbon coils provides additional adsorption sites for polysulfides, performing a synergistic role in suppressing the shuttle-effect and boosting the cathodic kinetics.

Nanoporous AAO membrane (200 nm in diameter) with vertically aligned nanochannels and block copolymer of polystyrene-b-poly(2-vinylpyridine) (PS-b-P2VP) are used as hard and soft template, respectively. The inner coil is induced by PS-b-P2VP, which forms helix micelles inside the AAO channels driven by the confined phase separation [26]. As shown in Fig. S1 (Supporting information), PS-b-P2VP/THF+DMF solution was firstly filled into the AAO channels via drop wetting and subsequently immersed into water to induce a fast phase separation. Helix micelles were generated due to the microphase separation under the spatial confinement of AAO nanochannels driven by the fast extraction of THF+DMF from PS-b-P2VP into water. The total molecular weight which determines the micelle size and the volume ratio of PS: P2VP that presents its hydrophilic property are found to be crucial in the formation of helix coils. PS₅₀₀₀₀-b-P2VP₁₆₅₀₀ with a volume ratio of PS: P2VP = 3.03 was demonstrated adoptable for the fabrication of helix coils under the confinement of 200 nm nanochannels, while those with larger or smaller PS content would form disordered structures due to the weaker or stronger interactions between the hydrophilic P2VP and water. In order to transform the PS-b-P2VP micelles into carbon nanotubes, polydopamine (PDA) was applied as carbon source and uniformly coated on the surface of PS-b-P2VP as well as the inner wall of AAO channels (Fig. 1a, step 1). WS₂ nanodomains are generated by the adsorption of WS₄²⁻ ions and the subsequent decomposition under acid conditions (pH-3) (Fig. 1a, step 2). Finally, the PS-b-P2VP template was removed by a thermal annealing process and carbon tubes with helix coils inside can be obtained. The prepared C@WS₂ host was filled with sulfur and used as cathode in the subsequent process (Fig. 1a, step 3).

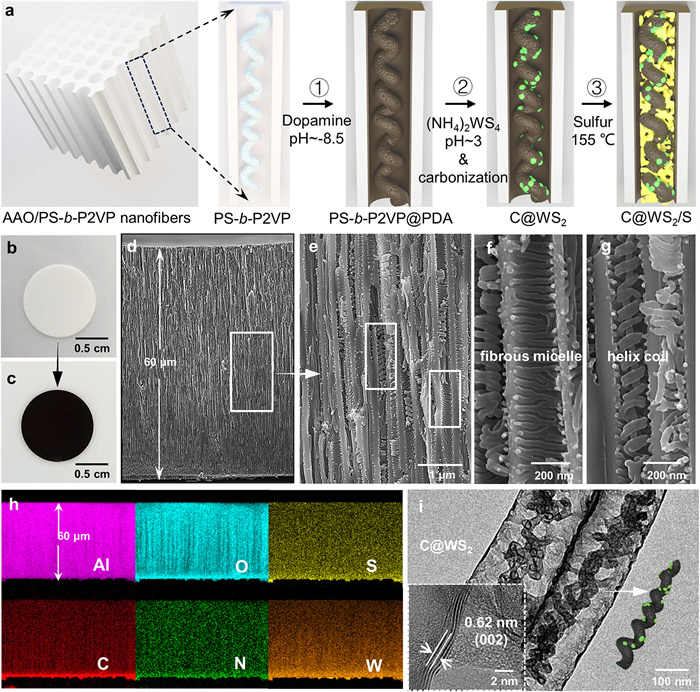

Figs. 1b and c show the morphology change of the AAO membrane before and after filling with the C@WS₂ tubes, in which the color changes from white to black. Fig. 1d shows the thickness of the AAO membrane is about 60 µm, which is filled with PS-b-P2VP helix coils (Figs. 1e–g) inside the channels. EDS mapping of the C@WS₂ tubes inside the AAO membrane show homogeneous distribution of S, C, N, W elements, which were derived from the carbonized PDA and incorporated WS₂ (Fig. 1h). TEM image further confirms the replica of the PS-b-P2VP template by PDA, showing the well-defined coil-in-tube structure after carbonization (Fig. 1i). High-resolution TEM (HRTEM) image reveals the formation of few-layer WS₂ inside the amorphous carbon where crystal domains with an adjacent lattice fringe of 0.62, 0.27, 0.16, and 0.26 nm corresponding to the (002), (100), (101) and (110) plane of WS₂ can be found, suggesting the successful loading of WS₂ (Fig. S2 in Supporting information).

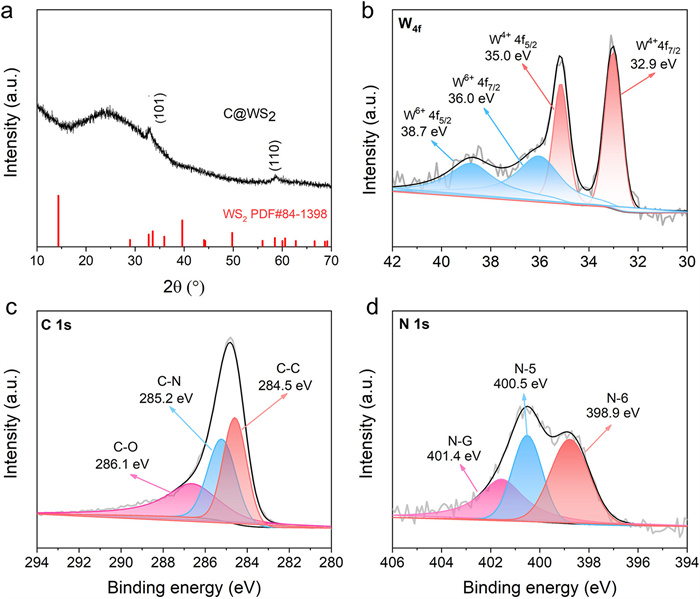

XRD pattern of the C@WS₂ host is shown in Fig. 2a. Sharp reflexes at 2θ of 33.6° and 58.4° corresponding to the 101 and 110 plane of WS₂ are observed (PDF No. 84-1398) [27,28]. In addition, a broad peak centered at 24.8° can be indexed to the amorphous phase-dominated carbon derived from PDA. In XPS spectra, the W 4f spectrum (Fig. 2b) [29-33] is fitted by three characteristic peaks of W⁴⁺, ascribed to W 4f_7/2 (32.9 eV) W 4f_5/2 (35.0 eV). Besides, the peaks at 36.0 and 38.7 eV are assigned to W 4f_7/2, W 4f_5/2 of W⁶⁺, respectively, which can be attributed to a slight oxidation of the WS₂ surface. In the S 2p [34-36] spectrum (Fig. S3 in Supporting information), the peaks at 162.5 and 163.3 eV belong to S 2p_3/2, S 2p_1/2 of sulfidic nature. The splitting signals positioned at approximately 164.3 and 165.6 eV are assigned to the C—S—C bond, which is derived from the interaction between PDA and WS₄^2- during the synthetic process of WS₂. In the C 1s spectrum (Fig. 2c), peaks at 284.5 and 286.1 eV correspond to the C—C and C—O bonds, respectively. The existing of C-N bond at 285.2 eV indicates the generation of N-doped carbon from PDA. The N 1s [37,38] spectrum in Fig. 2d shows three peaks at 398.9, 400.5, and 401.4 eV, which can be ascribed to three nitrogen's chemical states, namely the pyridinic N (N-6), pyrrolic N (N-5), and graphitic N (N-G), respectively. The N-doped carbon not only can provide additional polar sites to adsorb polysulfides, but also can accelerate the redox reaction via efficient electron transfer of graphitic N.

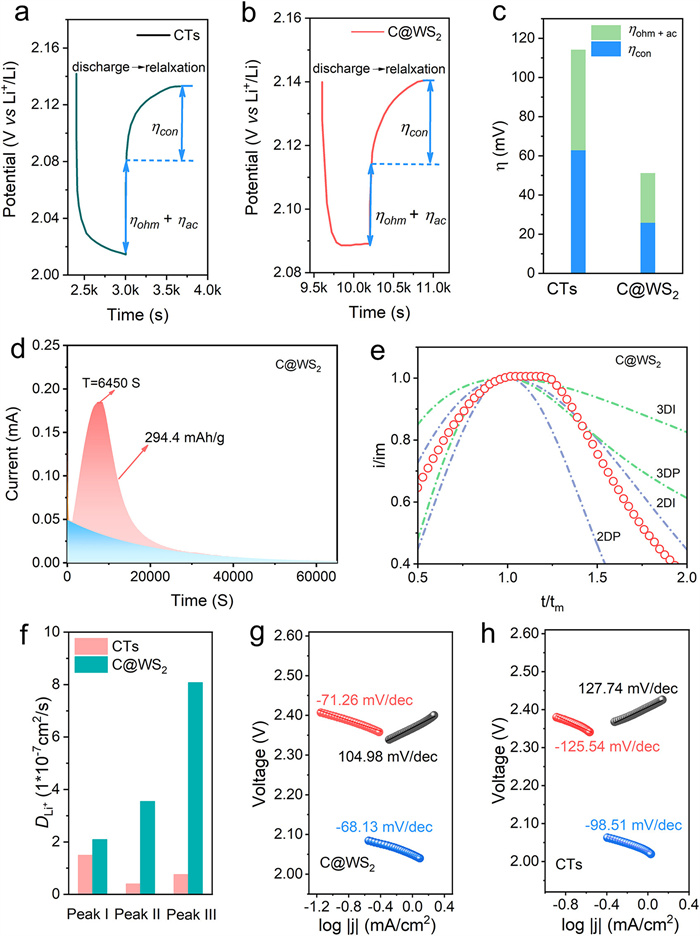

The S/C@WS₂ cathode was prepared by the melting-infusion method at 155 ℃ with different areal loading of sulfur and assembled into Li-S coin cells with 100 µm lithium foil as the anode. TEM image shows that the melt sulfur was successfully filled inside the tubular structure (Fig. S4 in Supporting information). The cathode kinetics is systematically analyzed to evaluate the functions of the designed C@WS₂ host with coil-in-tube structure. Carbon nanotubes (CTs) generated from AAO without coils and WS₂ nanocatalyst were applied for comparison. The galvanostatic intermittent titration technique (GITT) is adopted to decouple the total cathodic polarization (η_total) during discharge into activation polarization (η_ac), concentration polarization (η_con), and ohmic polarization (η_ohm) [39]. Specifically, the sum of η_ohm and η_ac can be indicated by the instantaneous voltage jump at the end of the discharge step, and the η_con can be represented by the following voltage recovery to the equilibrium voltage in the relaxation stage. As shown in Figs. 3a–c, the decoupled η_total at the Li₂S nucleation stage (depth of discharge between 27% and 70%, Fig. S5 in Supporting information) is compared between the C@WS₂ and CTs host. C@WS₂ host with WS₂ nanocatalyst and coil-in-tube structure show smaller η_ohm + η_ac and η_con, suggesting that the C@WS₂ host shall significantly reduce the polarization required for interfacial charge transfer determined by the activation energy of electrode reaction (η_ac) and ohmic resistance of electrolyte under a certain current (η_ohm), as well as the concentration polarization caused by the concentration differences of the reaction species between the electrode surface and the bulk electrolyte (η_con). In addition, the Li₂S precipitation test with constant potential discharge at 2.05 V vs. Li/Li⁺ is performed to validate the catalytic performance of the C@WS₂ host [40-43]. As shown in Fig. 3d and Fig. S6 (Supporting information), the C@WS₂ host exhibits clear response of Li₂S nucleation (at 6450 s), while the CTs reference shows no obvious Li₂S nucleation peak, indicating efficient electrocatalytic activity of WS₂ towards lithium polysulfides. According to Faraday's law, the Li₂S precipitation capacitiy of C@WS₂ based cathode is 294.4 mAh/g, which is higher than that of CTs based cathode (59.19 mAh/g), implying more conversion of lithium polysulfides to Li₂S. Therefore, C@WS₂ not only promotes the initial nucleation but also guides the subsequent deposition of Li₂S, showing a favorable catalytic effect on the redox reaction owing to the highly active sites of few-layer WS₂. Further evaluation on the Li₂S growth behavior is conducted using the classical Scharifer-Hills (SH) and Bewick-Fleischman-Thirsk (BFT) models to fit the curves of current vs. time in the potentiostatic discharging process (Fig. 3e). The fitted result shows that the Li₂S growth on the C@WS₂ host matches better with the 2DI nucleation model, suggesting the Li₂S growth rate will be controlled by lattice bonding, which can be attributed to the existence of sulfurphilic WS₂.

The electrochemical properties of the S/C@WS₂ electrode were further revealed by CV measurements under various scan rates ranging from 0.02 mV/s to 0.1 mV/s (Fig. S7 in Supporting information). The C@WS₂ cell exhibits two typically cathodic peaks at about 2.3 V and 1.93 V and two closed (merged) anodic peaks at around 2.4 V corresponds to the reversible sulfur redox reactions (Figs. S7a and b). Li⁺ diffusion coefficients (D_Li⁺) can be calculated by the classical Randles-Sevcik equation (), where i_p is the peak current measured in the CV curve, z is the number of transferred charges, A is the area of the electrode, ν is the scanning rate, C_Li is the concentration of Li⁺ in the electrolyte. The linear fitting relations of i_p/ν^0.5 of the two sulfur cathodes are shown in Figs. S7c and d and the D_Li⁺ is summarized in Fig. 3f. In comparison with the CTs host, the S/C@WS₂ exhibits greatly improved Li⁺ transfer in the cell. Moreover, the kinetics in liquid-solid reaction and solid-liquid reaction is further verified by the Tafel slope derived from CV curve (Fig. S8 in Supporting information). As shown in Figs. 3g and h, the S/C@WS₂ cathode shows smaller Tafel slope for all the three redox peaks, indicating better bidirectional catalysis of C@WS₂ than that of CTs.

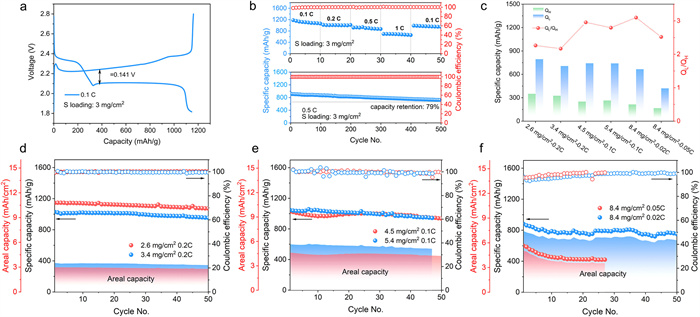

Fig. 4a shows the galvanostatic charge/discharge profiles of the S/C@WS₂ cathode, from which small voltage hysteresis (ΔE = 0.14 V) can be observed, corresponding to small electrochemical polarization. Electrochemical impedance spectroscopy (EIS) is used to monitor the changes of the inner resistance related to the structure and electrochemical evolution during the cycling. Compared to the initial state before cycling, the charge transfer resistance (R_ct) and Warburg impedance of the S/C@WS₂ battery greatly decrease after 5 cycles due to the redistribution of sulfur species after the activation process. In the subsequent cycles the impedance stable, suggesting good reversibility of the redox reactions (Fig. S9 in Supporting information). Fig. 4b illustrates the cycling performances of the S/C@WS₂ battery at moderate sulfur loading of approximately 3 mg/cm² under different C rates. Reversible specific capacities of 1180, 1014, 920, 695 and 200 mAh/g are obtained at 0.1, 0.2, 0.5, and 1 C, respectively. When the current rate returns to 0.1 C, reversible specific capacity of 986 mAh/g is sustained, which is comparable to the initial state. Long-term cycling of the S/C@WS₂ battery at 0.5 C has been investigated, which shows a high discharge capacity of 900 mAh/g and a remarkable capacity retention of 79% after 500 cycles. Analysis on the capacity contributions (denoted as Q_H and Q_L, corresponding to the conversion of long-chain polysulfides (the higher plateau) and short-chain polysulfides (the lower plateau), respectively) have been conducted for the battery with different sulfur loading. As shown in Fig. 4c, the highest Q_L/Q_H of 3.09 has been achieved with the areal loading of 8.4 mg/cm² at 0.02 C, which is quite close to the ideal contribution of the redox conversion from Li₂S₄ to Li₂S (-75% of the total discharge capacity). Another two high Q_L/Q_H values can be observed in the case of 4.5 and 5.4 mg/cm² at 0.1 C (2.95 and 2.79, respectively), suggesting that full redox conversion shall be realized under high mass loading with appropriate current density.

In practical applications, the amount of sulfur loading at the cathode is one of the key indicators that determine the actual energy density of Li-S batteries. In previous studies, a low sulfur loading usually helps to improve the specific capacity and cycling stability, but it leads to a dramatic decrease in the overall energy density of the battery. For the sake of further confirming the functionality of the C@WS₂ host, tunable sulfur loading of 2.6, 3.4, 4.5, 5.4 and up to 8.4 mg/cm² has been investigated with the E/S ratio of 10 µL/mg_S (Figs. 4d–f). Typical discharge plateau is clearly displayed in the charge/discharge curves at different current densities (Fig. S10 in Supporting information). Notably, the kinetic voltage of the S/C@WS₂ battery shows almost no decrease as the sulfur loading increased to 8.4 mg/cm², dictating the smooth electron/ion transfer and efficient catalysis of the C@WS₂ host. As shown in Figs. 4d–f, the initial specific capacity of the batteries reaches 1145 mAh/g for 2.6 mg/cm² at 0.2 C, 1028 mAh/g for 3.4 mg/cm² at 0.2 C, 1045 mAh/g for 2.6 mg/cm² at 0.1 C, 881 mAh/g for 8.4 mg/cm² at 0.02 C, corresponding to areal capacity of 3.0, 3.5, 5.6 and 7.4 mg/cm², respectively. The coulombic efficiency for different sulfur loading keeps above 98.8%, suggesting good reversibility of the charge-discharge reactions under high sulfur loading.

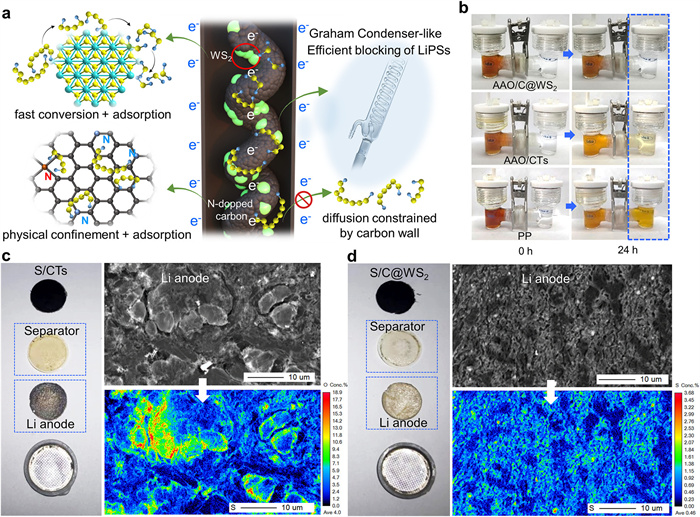

The excellent electrochemical performances can be attributed to the synergistic effect of the C@WS₂ host with coil-in-tube structure, which not only provides short path for charge transfer, but also strong adsorption to polysulfides and efficient catalysis for the conversion reaction (Fig. 5a). Specifically, the host material serves as efficient conducting framework which enable electron transfer from both the tube wall and the inner coil. The one-dimensional tubular structure shall regulate the ion transfer within a short pathway, which is favorable for fast kinetics. Notably, sulfur species could be seriously constrained inside the Graham condenser-like tubes. During discharging, the lateral diffusion of lithium polysulfides would be prohibited by the carbon tube wall and the longitudinal diffusion shall pass through the inner coil, during which lithium polysulfides would be blocked by the strong adsorption (Fig. S11 in Supporting information) of the WS₂ nanodomains [44] and the N-doped carbon. Simultaneously, the kinetics of soluble polysulfides could be facilitated at the "triple-phase" interface. Fig. 5b shows the diffusion experiment of Li₂S₆ performed with Celgard, AAO-CTs, and AAO-C@WS₂ membranes as filters. The colorless solution on the right side of the chamber after 24 h confirms the significant intercept of polysulfides for the C@WS₂ host, while the two references show very limited intercepting capability. The strong confinement of the coil-in-tube structure to polysulfides is further verified by decomposition of the cycled batteries and the electron probe X-ray microanalysis (EPMA) results of the lithium anode (Figs. 5c and d). The lighter color in the separator and lithium anode of the S/C@WS₂ battery as well as the much less sulfur species on the surface of lithium anode in comparison with that of the S/CTs batteries confirm the mitigated "shuttle effect" by the Graham condenser-like C@WS₂ host.

In summary, we designed and fabricated a novel C@WS₂ host material with coil-in-tube structure inspired by the Graham condenser for tunable loading of sulfur. Due to the advantages of both the novel structure and well-designed chemical components, the cathode material shows good electron-and ionic conductivity, strong adsorption and electrocatalytic ability to lithium polysulfides, which effectively promotes excellent electrochemical performances of Li-S batteries with tunable sulfur loading. Under a moderate sulfur loading of 3 mg/cm², the S/C@WS₂ cathode delivers remarkable high specific capacity of 1180 mAh/g at 0.1 C and long-cycling stability with a 79% capacity retention at 0.5 C after 500 cycles. Under high sulfur loading of 8.4 mg/cm², impressive areal capacity of 7.4 mAh/cm² has been realized at 0.02 C. The synergistic effect derived from the combination of structural and compositional design propose a new way to tackle the key problems of Li-S batteries on the way towards practical use.
