Recent research on aqueous zinc-ion batteries and progress in optimizing full-cell performance

Full

Tong Peng^a^,^c^,¹, Yupeng Xing^a^,^b^,¹, Lan Mu^a^,¹, Chenggang Wang^*^,^a, Ning Zhao^a, Wenbo Liao^a, Jianlei Li^d, Gang Zhao^*^,^a

Affiliations

^aSchool of Physics and Technology, University of Jinan, Ji'nan 250022, China

^bSchool of System Design and Intelligent Manufacturing, Southern University of Science and Technology, Shenzhen 518055, China

^cInstitute of Novel Semiconductors, State Key laboratory of Crystal Material, Shandong University, Ji'nan 250100, China

^dWeifang Special Equipment Inspection and Research Institute, Weifang 261000, China

Published: 2025-06-15 doi: 10.1016/j.cclet.2024.110039

Outline

Abstract

Less

With the development of science and technology, there is an increasing demand for energy storage batteries. Aqueous zinc-ion batteries (AZIBs) are expected to become the next generation of commercialized energy storage devices due to their advantages. The aqueous zinc ion battery is generally composed of zinc metal as the anode, active material as the cathode, and aqueous electrolyte. However, there are still many problems with the cathode/anode material and voltage window of the battery, which limit its use. This review introduces the recent research progress of zinc-ion batteries, including the advantages and disadvantages, energy storage mechanisms, and common cathode/anode materials, electrolytes, etc. It also gives a summary of the current research status of each material and provides solutions to the problems they face. Finally, it looks at the future direction and methods to optimize the performance of zinc-ion full batteries.

Key words

Aqueous zinc-ion batteries / Energy storage mechanism / Cathode materials / Zinc anode / Electrolyte / Full battery optimization

Cite this Article

Tong Peng, Yupeng Xing, Lan Mu, Chenggang Wang, Ning Zhao, Wenbo Liao, Jianlei Li, Gang Zhao. Recent research on aqueous zinc-ion batteries and progress in optimizing full-cell performance[J]. Chinese Chemical Letters, 2025 , 36 (6) : 110039 - . DOI: 10.1016/j.cclet.2024.110039

Full Text

Less

1 Introduction

Less

As mentioned above, non-aqueous LIBs have advantages such as large specific capacity and long cycle life and have become the mainstream energy storage system in fields such as mobile electronic devices and emerging oil-electric hybrid vehicles. However, the current scarcity of lithium resources, high price, and serious safety hazards have seriously restricted the scale application of LIBs in power stations and other sites with high safety levels. In other new types of batteries, because sodium, potassium and lithium are the same main group elements with similar chemical structures, and abundant reserves and low prices, sodium and potassium have the potential to become new energy materials to replace lithium. However, sodium ion batteries (SIBs) and potassium ion batteries (KIBs) still have the problems of low energy density and high operating costs, and the organic electrolyte of these batteries has increased safety risks for the practical application of the batteries because of its highly toxic and flammable nature. Therefore, the use of aqueous batteries instead of batteries with organic electrolytes not only helps to improve the stability of the energy storage system, but also to obtain a more cost-effective battery device. Zinc is abundant, has low toxicity compared to lithium and is the most energetic of the metal elements that can be stabilized in aqueous solution [1], as well as having the advantages of a low balance potential and a high overpotential for hydrogen reaction. Due to its superior properties such as reliable safety, absence of any risk of flame or explosion, great cost competitiveness, eco-friendliness, high theoretical capacity, and long-term cyclic stability, it is expected to be used in large scale in various energy storage systems in the future.

Among aqueous secondary batteries, zinc-based batteries are the most promising energy storage system in recent years. As the negative electrode of zinc-based batteries, metallic zinc has low potential (−0.76 V vs. NHE), abundant reserves, and is green and non-toxic. Its redox involves a two-electron reaction and has the highest volumetric energy density (5855 mAh/cm³) among aqueous electrode materials. Compared with strongly acidic lead-acid batteries and strongly alkaline nickel-metal hydride batteries, zinc-based batteries mostly use mild weak acid or neutral electrolytes, which greatly reduces the corrosion resistance requirements for battery parts such as the collector and shell. Moreover, the aqueous electrolyte is inexpensive, and the batteries can be assembled directly in the air environment, so it has a significant advantage in cost. In addition, zinc anode can be flexibly paired with a variety of cathodes, such as zinc-ion batteries with solid embedded-type materials, zinc-liquid-flow batteries with liquid soluble molecules, and zinc-air batteries with gas cathodes; this makes zinc-based batteries have a huge energy enhancement potential. Among them, aqueous zinc-ion batteries are highly reversible and the most rapidly developing and are regarded as strong candidates for various power sources. Zinc-ion batteries have the following advantages:

(1) Good multiplier performance. When the current density is small, the charging and discharging rate is slow; on the contrary, when the current density is large, the charging and discharging rate is fast. Under very large current conditions, the reversible charge and discharge process of zinc-ion battery is only a few tens of seconds [2,3]. Since zinc-ion batteries can complete charging and discharging in a short period of time, they have a promising application in many places where fast charging and discharging are required.

(2) Environmental protection, safety, and reliability. The electrolyte of zinc-ion batteries generally adopts zinc sulfate, zinc acetate aqueous solution, which has the advantages of non-toxic and non-flammable, with a pH close to neutral, and is more environmentally friendly than the highly toxic and flammable organic electrolyte [4-6]. No pollutants are generated during the production and use of the battery, causing minimal impact on the environment.

(3) Low price and simple process. Zinc metal resources are abundant, the raw material is easily available, the preparation difficulty is low, which reduces the production cost; furthermore, the battery can be assembled in the air, and the manufacturing process is simple. Low-priced raw materials and simple production methods make the production cost of zinc-ion batteries lower than other types of batteries, and more advantageous in the promotion and application [7-9].

(4) High theoretical energy density and power density. Comparing the performance of zinc-ion batteries (ZIBs) with other existing small portable energy devices, it is found that: zinc-ion batteries have high power density as well as high energy density, which can not only be discharged slowly under low-power conditions, like ordinary batteries, but also complete charging and discharging rapidly under high-power conditions, like supercapacitors, thus possessing the advantages of both at the same time [10].

Despite the above many advantages, the actual energy density and insufficient cycle life of aqueous zinc-ion batteries are still restricting their development at this stage. Due to the narrow thermodynamic stability window of water, the voltage of zinc-ion batteries is limited, and their charging and discharging processes are always coupled with the occurrence of side reactions such as hydrogen and oxygen precipitation. Meanwhile, it is highly influenced by the nature of electrolyte such as pH and additives, which leads to the complexity of the actual electrochemical behavior inside the battery and the unclear energy storage mechanism [11,12]. Consequently, the current development of zinc-ion batteries is confronted with the following difficulties: (1) Zinc anodes store energy through their own dissolution and deposition. They are similarly susceptible to dendrite formation during deposition, which can lead to short circuits [13,14]. (2) The majority of cathode materials exhibit a relatively low voltage plateau and are structurally unstable, prone to electrode degradation [15,16]. (3) The existing zinc storage anode materials have limited capacity, and the large polarization of divalent zinc ions slows down the kinetic processes of embedding and detachment, while destroying the structural stability of the anode material, which results in poor multiplicative performance of the battery [17-19]. (4) The electrolyte of zinc-ion batteries can be either acidic or alkaline. The occurrence of by-product reactions such as hydroxide precipitation will lead to significant changes in the local pH value, in comparison with lithium-ion batteries. This places higher requirements on the acid and alkali corrosion resistance of the diaphragm. (5) In practical outdoor use, the solidification of aqueous electrolytes at low temperatures and volatilization at high temperatures will accelerate the degradation of device performance [20].

Therefore, in this review, we will start from the energy storage mechanism of zinc-ion batteries, elaborate the comparison, summarize, and analyze the energy storage mechanism of several kinds of zinc-ion batteries in detail, and then list and classify the current development status of zinc-ion batteries' anode and cathode materials, and encountered problems and the optimal solution methods. Besides, we will introduce the research status of electrolytes, and summarize the improvement methods of common types of electrolytes, aiming to make it easier for everyone to search for them. Eventually, the above aspects are summarized, and the development direction is expected (Fig. 1). This review of zinc-ion batteries will play a role in the development of zinc-ion batteries.

2 Energy storage mechanism of zinc-ion batteries

Less

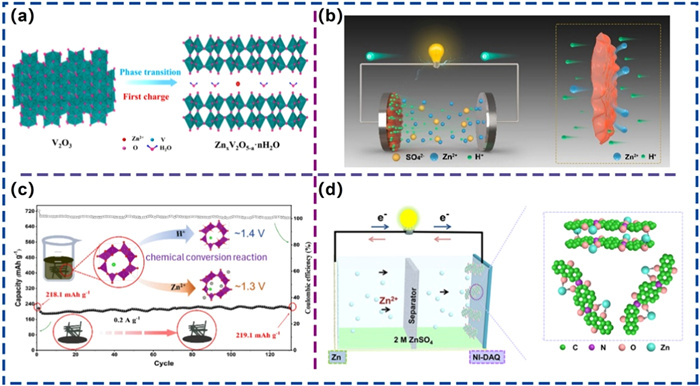

The reaction mechanism of aqueous zinc-ion batteries is controversial and has many issues compared to the reaction mechanisms of other ion batteries for energy storage. In particular, the reaction mechanism involving the energy storage process has been the focus of discussion and controversy. According to the available research papers, several reaction mechanisms have been proposed for aqueous zinc-ion batteries, including the traditional Zn²⁺ insertion/deinsertion, dual-ion co-insertion mechanism, the chemical conversion reaction theory, and the coordination reaction of Zn²⁺ with structural organic framework cathode materials and other mechanisms (Figs. 2a–d) [21-24]. The general categorization of the energy storage mechanisms of zinc-ion batteries and their specific reaction mechanisms and corresponding representative electrode materials will be described in detail in the following sections.

2.1 Zn²⁺ detachment/insertion mechanism

The Zn²⁺ detachment/insertion mechanism proposed earlier is the most common energy storage mechanism, similar to that of lithium-ion and sodium-ion batteries [1,21]. During working discharge, the anode loses electrons and Zn²⁺ is embedded in the cathode active material after entering the electrolyte as a carrier, and the cathode receives electrons as the oxidation state decreases; when the battery is charged, the anode material is dissolved in the electrolyte in the form of Zn²⁺, and electrons are obtained by the external circuit to be reduced to metallic Zn and deposited onto the anode (Fig. 3a) [25]. This process can be summarized in a general equation as follows:

(1)

(2)

(3)

wherein M is the cathode material. Materials with tunneling, layered or open-framework structures with sufficient space to accommodate Zn²⁺ are considered ideal cathode materials for ZIBs [10]. For example, the multistructured α-MnO₂ material was proposed by Feiyu Kang's team at Tsinghua University to reversibly insert Zn²⁺ will be inserted into the α-MnO₂ cathode/release from the α-MnO₂ cathode into the electrolyte during the discharge/charge of aqueous rechargeable zinc-ion [26]. This principle is quite different from the two-step energy storage mechanism of conventional alkaline zinc-manganese batteries. Subsequently, professor Yanbing He's team also demonstrated that the Zn²⁺ detachment/insertion mechanism occurs in β, γ, λ, δ and other types of MnO₂. At the same time, dissolution/deposition behaviors occur on the zinc metal anode side. In alkaline conditions, the surface of metallic zinc anode is prone to passivation to generate zinc oxide passivation, and prone to generate dendrites to make the zinc electrode utilization reduced, which is not conducive to the cyclic energy storage of zinc-ion batteries [27].

2.2 Dual-ion co-insertion mechanism

When Zn²⁺ is embedded, the phenomenon of slow embedding of zinc ion is often encountered, which is due to the large scale and high spatial resistance of zinc ion after hydration, and it carries a 2-unit positive charge, which makes a strong electrostatic repulsive force between it and the positive electrode material, and this repulsive force is able to impede the embedding of Zn²⁺, which leads to the degradation of the performance of the battery. In fact, the insertion of zinc ions is allowing the host material to simultaneously insert other ions with higher diffusion kinetics (e.g., H⁺, Li⁺, Na⁺) [28], which can promote the effective utilization of the active sites on the structure of the host material and improve the energy storage of the battery. Yin et al. synthesized Mn₃O₄ electrode materials using MOF with a multidimensional laminate structure, and the process of H⁺ and Zn²⁺ embedding was comprehensively explored by kinetic analysis and ex situ X-ray diffraction (XRD)/X-ray photoelectron spectroscopy (XPS) characterization [29]. Fig. 3b recorded the CV curves for the second cycle of Mn₃O₄@C electrode in the range of 0.8–1.9 V at 0.1 mV/s. During the anodic process, a strong oxidation peak at 1.62 V and an inconspicuous shoulder peak at 1.57 V can be attributed to the co-desorption reaction of Zn²⁺ and H⁺. Fig. 3c showed the GCD curves of Mn₃O₄@C at different current densities from 0.2 A/g to 3 A/g. The gradual steepening of the discharge plateau with increasing current density indicates that the charge storage mechanism of the material is mainly controlled by the insertion/extraction process of Zn²⁺.

2.3 Chemical transformation reaction theory

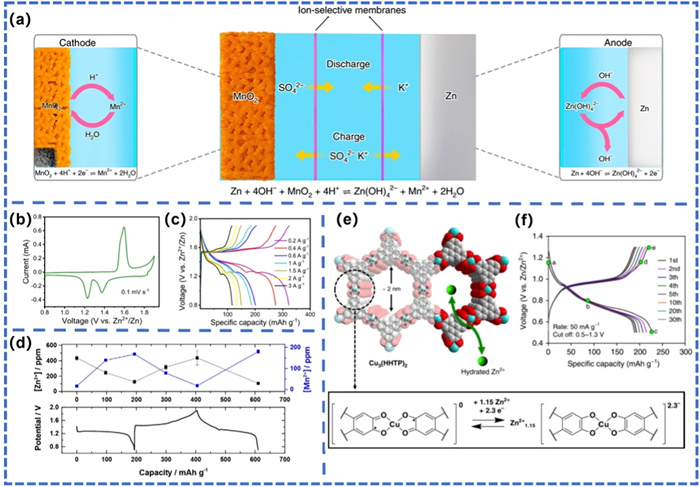

When investigating the above Zn ion embedding mechanism, the researchers found that when Zn ions were embedded during the discharge process, the concentration of cations of the positive material in the electrolyte increased instead, which was because the water in the aqueous electrolyte easily reacted with the active positive metal oxides to produce positively valent ions and hydroxides, such as MnO₂ positive MnO₂ + 2H₂O + 2e⁻ ⇔ Mn²⁺ + 4OH⁻. As reported by Oh et al., Fig. 3d showed that the concentration of Mn²⁺ tended to increase during discharge and decrease during charging, while the opposite was true for Zn²⁺ [30]. Such a small amount of Mn²⁺ detachment facilitates the embedding of Zn ions and promotes the migration rate of Zn ions, which increases the discharge rate of the battery, however, a large amount of dissolution of MnO₂ cathode destabilizes the cathode structure of the battery, which affects the cycling stability of charging and discharging. Yang et al. proposed a mild method for the batch synthesis of K-doped α-MnO₂ (KMO) nanorods and demonstrated that the zinc storage mechanism is mainly related to the chemical transformation reactions of H⁺, Zn²⁺, and MnO₂ of the KMO nanorods in the AZIBs by in situ XRD and DFT calculations [23].

More interestingly, it has been found that sometimes it is the H⁺ that is embedded in the zinc-manganese battery rather than the Zn²⁺. H⁺ reacts with MnO₂ to form MnOOH, while Zn²⁺ combines with OH⁻ and then complexes with ZnSO₄ electrolyte to form zinc hydroxide sulfate (ZnSO₄[Zn(OH)₂]₃·12H₂O) deposited on the surface of MnO₂. This embedded energy storage effect of H⁺ is inferior to that of H⁺ and Zn²⁺ co-embedded energy storage. Therefore, MnSO₄ is usually used as an additive in order to inhibit the reaction between MnO₂ and H⁺ or the dissolution of MnO₂ cathode and to promote the cycling stability [5,31].

2.4 Coordination reaction of Zn²⁺ with structural organic framework cathode materials

Structural organic framework materials, such as MOF, COF, have both the lamellar, pore and three-dimensional open framework structures of common crystalline materials, and the advantages of organic polymers' structural and functional tunability enable them to provide abundant Zn²⁺ bonding sites; hence, in recent years, structural organic framework materials have also been frequently used as positive electrodes for zinc-ion batteries. These organic materials are diverse in their chemical composition, but the mechanism of zinc storage action is similar, mainly storing Zn²⁺ through coordination reactions, such as bonding with Zn²⁺ at positions such as quinone structures, neighboring C═O sites, and —NH functional groups [32-34]. We can facilitate the bonding embedding and embedding out of Zn ions by modifying the spacing of the coordination groups to accommodate the size of the Zn ions.

Metal-organic skeleton materials (MOFs) with conductive properties have received increasing research attention in the field of energy storage in ZIBs recently due to their tunable morphology, abundant active sites, and diverse functions. For example, Stoddart and colleagues employed a conductive two-dimensional metal-organic framework (MOF), Cu₃(HHTP)₂, with an open-framework structure analogous to that of the Prussian blue analog, as a high-performance cathode for rechargeable AZIBs. Density functional theory (DFT) calculations indicate that the quinone structure and copper in MOFs serve as redox centers. The Cu₃(HHTP)₂ cathode exhibits a rapid Zn²⁺ diffusion rate, low interfacial resistance, and high reversible capacity (Figs. 3e and f) [35]. Additionally, a vanadium-based metal–organic framework (MOF) material (MIL-47, V-MOF) has been identified as a cathode material for ZIBs with exceptional performance due to its excellent structural reversibility, which facilitates the de-embedding of Zn²⁺ [36]. Moreover, it exhibits excellent rate capability. Following XPS analysis of the V 2p peaks, it can be concluded that the Zn²⁺ storage mechanism of V-MOF is the reversible coordination of Zn²⁺ with the organic part, which belongs to the structurally stabilized solid solution reaction.

A summary of the four energy storage mechanisms reveals that the zinc-ion battery's energy storage mechanism is more intricate and subject to a greater number of influencing factors than the de-embedding reaction mechanism of other alkaline ion batteries. Most of the time, an energy storage device contains several energy storage mechanisms, and the reactions are synergistic with each other, so researchers need to analyze the specific electrode materials and electrolytes to find out which kind of energy storage mechanism is dominant.

3 Cathode materials for zinc-ion batteries

Less

The electrochemical performance of zinc-ion battery cathode materials determines the energy storage performance of the battery to a certain extent, therefore, the research on zinc-ion battery cathode materials is gradually deepening in recent years. At present, the cathode materials for aqueous zinc-ion batteries with more studies mainly include manganese-based oxides, vanadium-based oxides, Prussian blue and its analogues, and so on. The above materials and their modification studies will be introduced next.

3.1 Manganese-based oxides

Manganese-based oxides are considered to be the best choice of cathode materials for aqueous zinc-ion batteries because of their advantages of high capacity, low toxicity, easy recycling, and multivalency (Mn^x+, x = 0, 2, 3, 4, and 7). In recent years, the main manganese-based oxides that have been studied more are MnO₂, Mn₂O₃, Mn₃O₄ and MnO. Among them, MnO₂ is regarded as the most promising cathode material for aqueous zinc-ion batteries by researchers because of its low toxicity, low cost, high specific capacity, high discharge platform, good compatibility with aqueous solution and moderate redox potential [23]. Fig. 4a shows that α-MnO₂, β-MnO₂, and γ-MnO₂ all have a tunneling structure, allowing for reversible insertion/detachment of Zn²⁺. Nevertheless, aqueous zinc-ion batteries with MnO₂ as the cathode material still face many problems, such as poor real specific capacity, severe capacity degradation, and poor cycling stability during long-term operation. The following modification methods are currently the most commonly used: composite with highly conductive carbon materials; introduction of oxygen defects; defect/vacancy engineering; and addition of small amounts of Mn²⁺ to the electrolyte.

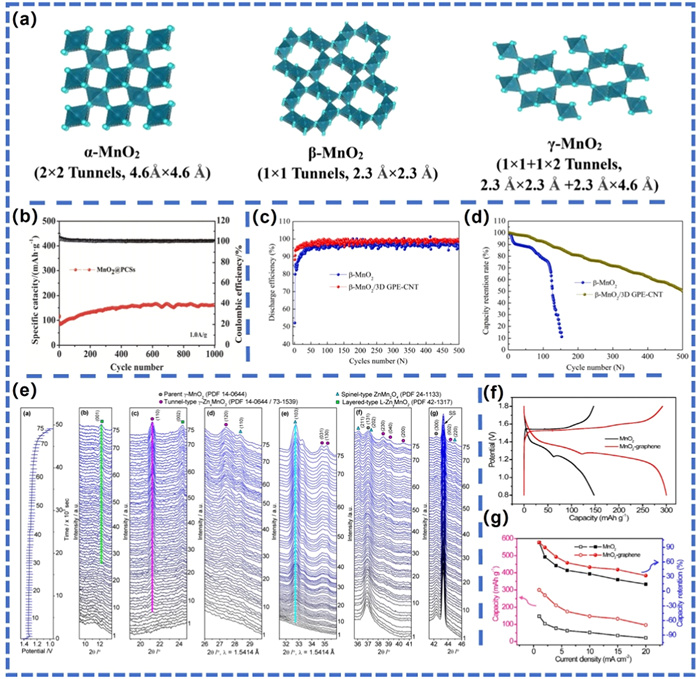

First, α-MnO₂ has a one-dimensional 2 × 2 large pore structure, which is favorable for the detachment of zinc ions, and the zinc ions can pass through it freely. The basic structural unit is composed of [MnO₆] octahedral double chains, and the angles of adjacent double chains in the plane are shared. Since each zinc ion can transfer two electrons, the cell of Zn/α-MnO₂ has a higher energy storage capacity than the monovalent ion battery. Moreover, its suitable tunnel size ensures the diffusion performance of zinc ions in the pores as well as the stability of the cathode material structure; therefore, α-MnO₂ has become one of the MnO₂ cathode materials with the most attention in current research. Recently, Wu et al. investigated the mechanism of Zn/α-MnO₂ batteries containing a slightly acidic electrolyte using characterizations by X-ray diffraction and Raman spectroscopy [37]. They revealed a reversible solid aqueous phase transition via manganese dissolution-deposition reaction and a solid redox mechanism via zinc-ion insertion. As another example, Li et al. studied α-MnO₂/PCSs, a cathode material composed of porous carbon nanosheets and rod-like α-MnO₂ with a large specific surface area [17]. After cycling experiments (Fig. 4b), they found that the composite electrode had a Coulombic efficiency close to 100% and performed well in terms of cycling stability even at high current densities. The cycling experiments showed a decrease in the capacity of ordinary α-MnO₂ electrodes. This suggests that α-MnO₂-based composites with higher electrical conductivity and Zn²⁺ transport efficiency have promising applications.

Additionally, β-MnO₂ is composed of [MnO₆] octahedral units arranged in a single-chain corner-sharing configuration (Fig. 4a). This result in a 1 × 1 tunneling structure with a smaller diameter compared to α-MnO₂ and γ-MnO₂, making it more difficult for ions to be detached and inserted. To improve the zinc storage properties of β-MnO₂, researchers have increased its conductivity by introducing oxygen defects. For instance, Zheng et al. prepared oxygen-rich defective β-MnO₂ (O_d) nanorods and conducted theoretical investigations into the role of O_d in the material using first-principle calculations. Their findings indicated that O_d can shift the Fermi energy level to a lower energy level, which results in an increase in the electrical conductivity of the material. Additionally, the Mn 3d and O 2p orbitals can introduce a multitude of additional states within their energy gaps, further enhancing their conductivity. Consequently, the incorporation of oxygen defects enhances the conductivity and proton adsorption strength of β-MnO₂, thereby improving its electrochemical performance [18]. In particular, the electrochemical performance of oxygen-deficient β-MnO₂ (O_d) nanorods is superior to that of pure β-MnO₂ and commercial β-MnO₂ (com). Due to the exceptional electrical conductivity of carbon materials, the composite cathode materials achieved by combining structurally stabilized β-MnO₂ with carbon materials exhibit outstanding electrical conductivity and mechanical properties. Xin et al. prepared β-MnO₂/3D GPE-CNT hybrids using the high-energy vibratory ball milling method [38]. The hybrid material was then used as the cathode material for an aqueous zinc-ion battery. The electrochemical performance of the battery was tested and compared to that of pure β-MnO₂ cathode material (Figs. 4c and d). After several cycles, the addition of the hybrid material containing 3D GPE-CNT improves the electrochemical and kinetic properties of pure β-MnO₂, particularly the discharge specific capacity and cycling stability.

Then, there is γ-MnO₂, which belongs to the rhombohedral crystal system, with lower crystallinity and more lattice defects, and the tunnel structure consists of soft manganite 1 × 1 tunnels alternating with rhombohedral manganite 1 × 2 tunnels irregularly [37]. It has a more complex structure, but excellent energy storage effect, therefore, it is also the focus of recent research on Zn/MnO₂ batteries. The possibility of Zn²⁺ de-embedding and electrochemically induced multiphase transition in γ-MnO₂ was first illustrated, for example, by Alfaruqi et al. Measurements with an in situ synchrotron and X-ray diffractometer revealed that the complete embedding of Zn²⁺ transformed γ-MnO₂ from a tunneling type to the coexistence of two phases of tunneling and laminar structures, as shown in Fig. 4e (green for the laminar phase, magenta for the tunneling phase, and cyan for the spinel phase) [39]. Most of these two phases were found to revert to the original γ-MnO₂ phase after several charge-discharge cycles. In addition, Wang et al. combined graphene with γ-MnO₂ nanorods to create a composite that possesses both the high electrical conductivity of graphene and the high ion diffusion rate of γ-MnO₂ [40]. Graphene also serves as a protective function for the structure of γ-MnO₂. Batteries composed of these composite electrodes exhibit improved stability, capacity, and cycling characteristics (Figs. 4f and g).

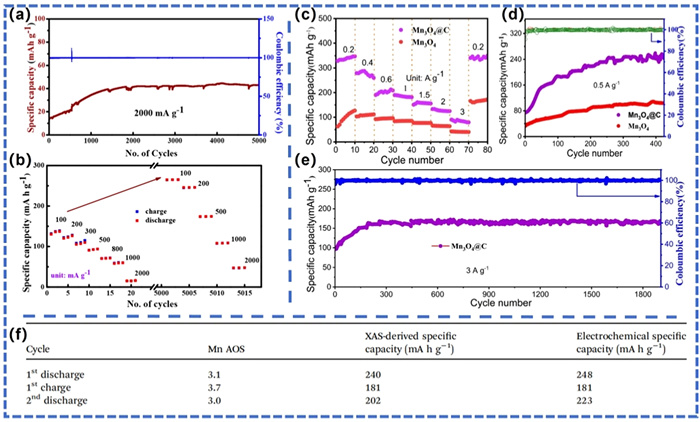

Not limited to MnO₂, other manganese-based oxides can also be used as zinc-ion battery cathodes. For example, Mallick et al. synthesized Zn_0.65Ni_0.58Mn_1.75O₄ by defect engineering of ZnMn₂O₄, which for the first time demonstrated the Zn²⁺ storage performance of this defect-engineered cathode and achieved ultra-long cycle stability [41]. As shown in Figs. 5a and b, this material can achieve an ultra-long charge/discharge cycle stability of 5000 cycles at 2000 mA/g without any capacity degradation. Due to the high electrostatic repulsion between Zn²⁺ in the lattice, Zn²⁺ is not suitable for diffusion in the ideal spinel structure, and in order to promote the diffusion of Zn²⁺, a means of incorporating a large number of Mn vacancies in spinel ZnMn₂O₄ was adopted. Since spinel is rich in Mn vacancies, the Zn²⁺ diffusion coefficient increases, and the electrode kinetic rate increases when the electrostatic force against Zn²⁺ is small. Then Yin et al. synthesized Mn₃O₄@C as a cathode material for zinc-ion batteries, which improved the specific capacity and long-cycle performance of the batteries (Figs. 5c–e) [29].

Although manganese-based oxides have a very good electrochemical energy storage effect in zinc-ion batteries, they also face many problems, such as weak electrical conductivity. It is possible to compound manganese-based oxides and carbon materials, which not only plays a role in improving the electrical conductivity, but also provides a skeleton for manganese-based materials to prevent their dissolution or manganese-based structure destruction during charging and discharging, and enhances the charging speed and electrochemical cycling stability of the cathode materials. The electrochemical performance of β-MnO₂ hybrid material with 3D GPE-CNT added is shown in Figs. 4c and d compared with that of pure β-MnO₂ [38]; and the electrochemical performance of Mn₃O₄@C as the cathode material for zinc-ion batteries is shown in Figs. 5c–e compared with that of Mn₃O₄@C [29]. Obviously, the manganese-based oxides compounded with carbon materials have stronger chemical stability and improve the battery specific capacity and long-cycle performance. Further, the dissolution of Mn²⁺ during cycling causes a significant decrease in the specific capacity of MnO₂ materials [41,42]. Cycling test experiments on Zn/MnO₂ cells in a 2 mol/L ZnSO₄ electrolyte are shown in Fig. 5f by Wu et al. [42]. A comparison of the theoretical specific capacity calculated from the average Mn oxidation state change with the actual specific capacity determined electrochemically, where the Mn redox reaction accounts for the Faraday capacity, shows a significant decrease in the capacity of the cell. Elemental analysis of the dissolved Mn²⁺ showed that Mn²⁺ was gradually dissolved in the electrolyte, and the rate of dissolution gradually slowed down as the number of cycles increased. The reason for this situation may be that the dissolution of Mn²⁺ at the positive electrode replenishes Mn²⁺ in the electrolyte and inhibits the dissolution of Mn²⁺ instead. Therefore, the prior addition of a certain amount of Mn²⁺ can neutralize and balance the two processes of Mn²⁺ dissolution and Mn²⁺ reoxidation in the electrolyte, and thus achieve high stability of the electrode [43]. This method of adding Mn²⁺ to the electrolyte is applicable in many cases, such as adding a small amount of MnSO₄ or Mn(CF₃SO₃)₂ to ZnSO₄ electrolyte [42] and Zn(CF₃SO₃)₂ electrolyte [44], respectively.

3.2 Vanadium-based oxides

In the field of zinc-ion batteries, vanadium-based oxides are an important cathode material due to their low cost, abundant resources, and multiple valence states for multi-step redox. This makes vanadium-based materials theoretically capable of high theoretical capacity [7]. The energy storage mechanism in zinc-ion batteries is mainly based on the intercalation and delamination of zinc ions between the lattices of vanadium-based oxides. During discharge, Zn²⁺ are inserted into the cathode while Zn in the anode loses electrons to form Zn²⁺, thus maintaining the charge balance of the electrolyte. During reverse charging, Zn²⁺ are extracted from the cathode into the electrolyte, and Zn²⁺ in the electrolyte gain electrons (i.e., are reduced) and are deposited on the Zn anode. Since vanadium-based compounds usually have different crystal structures (e.g., tunneling structure of VO₂ and layered structure of V₂O₅), it gives them a variety of open structures, which facilitates the insertion and detachment of zinc ions. Vanadium-based cathode materials have higher capacities and superior cycling stability than common manganese-based compounds [45], despite having lower discharge voltages. As a result, vanadium-based oxides have become a promising cathode material for aqueous zinc-ion batteries in recent years.

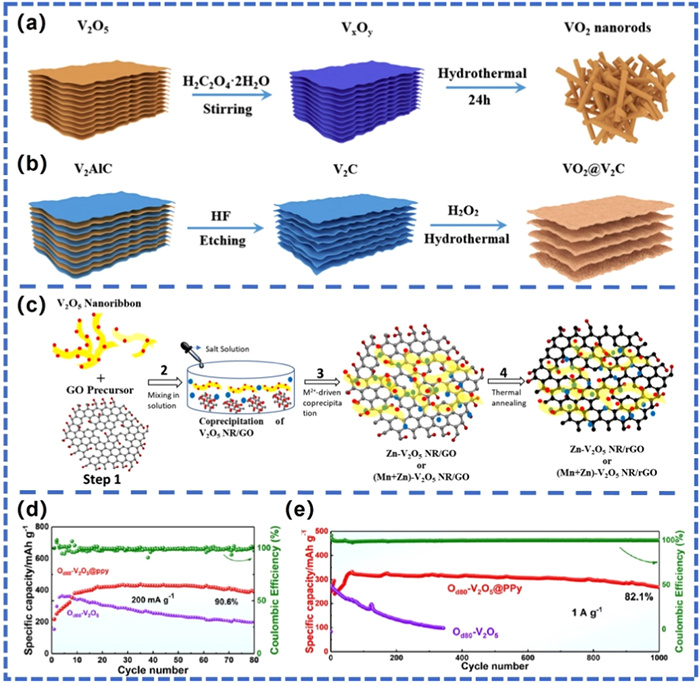

First of all, VO₂ is a common cathode material in zinc-ion batteries, which is a phase transition metal oxide with a tunnel framework structure, and is available in tetragonal crystal system VO₂(A), monoclinic crystal VO₂(B), and VO₂(D) crystal types. Among them, monoclinic crystal VO₂ (B and D) has good structural stability, which provides for the reversible detachment and insertion of Zn²⁺ and is an ideal cathode material for zinc-ion batteries [46]. Moreover, the diffusion energy barriers of various materials, as calculated by DFT, can be employed to analyze the diffusion kinetics of Zn²⁺, thereby enabling the prediction of the electrochemical performance of cathode materials. For example, Huang Juanjuan and her team at Lanzhou University constructed a VO₂@V₂C 1D/2D heterostructure (Figs. 6a and b) by controlled partial oxidation of V₂C via hydrothermal method [47]. This unique heterostructure improves the diffusivity of zinc ions and significantly improves the rate performance of VO₂, which achieves high capacity and maintains high multiplicity performance in aqueous zinc-ion batteries. In addition, some researchers have prepared materials with higher transport efficiency of ions by adjusting the microscopic morphology of monoclinic crystalline VO₂(D), which has a larger specific surface area, a larger layer spacing or a core-shell structure. For example, Chen et al. prepared monoclinic crystalline VO₂(D) with nanosphere hollow structure [48]. This hollow internal structure made the diffusion of Zn²⁺ into the interior of the electrode material easier, and the multiplicity performance and cycle life of the electrode remained good under the condition of large loading area. In general, the discharge specific capacity and cycle stability of the battery were improved.

In the second place, V₂O₅ is also a common cathode material, which belongs to the rhombohedral crystal system and is a typical layered vanadium-based oxide. The distance between the layers of V₂O₅ is larger than the radius of Zn²⁺, and ions are free to de-embed between the layers during the charging and discharging process [45]. The electrostatic interaction present in the crystal structure of V₂O₅ hinders the detachment of Zn²⁺, and with repeated detachment of ions, the van der Waals forces between the laminar structures are gradually weakened, and the reversibility and kinetic properties of the Zn²⁺ detachment process are affected by the number of detachments and the number of cycles. As mentioned previously, compounding with highly conductive carbon materials improves the conductivity of the materials, and similarly, excellent conductivity can be obtained by compounding V₂O₅ with carbon materials. Muthukumar et al. used a microwave-assisted process of liquid-phase exfoliation to produce vanadium pentoxide nanoribbons (NRs) [49]. These NRs were then assembled with graphene oxide (GO) nanosheets to create highly conductive V₂O₅ NR/GO hybrids (Fig. 6c). Zhang et al. synthesized V₂O₅ (V₂O₅@PPy) nanospheres with oxygen vacancies coated with PPy, which exhibited a high capacity (404.3 mAh/g at 0.2 A/g), enhanced transport properties, and excellent cycling stability (268.1 mAh/g after 1000 cycles), as shown in Figs. 6d and e [50]. Meanwhile, in order to improve the electrode kinetic performance and accelerate the de-embedding of Zn²⁺, some researchers inserted structured water molecules into V₂O₅ to obtain V₂O₅·nH₂O with a bilayer structure. Compared to the raw material, this bilayer structure has a larger layer spacing that facilitates the de-embedding of Zn²⁺. The inserted water molecules attenuate the interlayer electrostatic force caused by the excessively high positive charge of Zn²⁺, which is conducive to the diffusion and transfer of ions. This optimization improves the multiplicity and electrochemical performance of the battery system [49,51].

In addition to the more common vanadium-based oxides, vanadium-based compounds represent a significant area of research interest in the field of cathode materials for aqueous zinc ion batteries. For instance, Ren et al. proposed a novel porous K_0.5VOPO₄·1.5H₂O polyanion cathode (P-KVP) for the first time, which is not only capable of achieving high output voltages (> 1.2 V), but also can be mass-produced by using a simple technology [15]. Furthermore, Wu and his research team prepared PEO-LiV₃O₈ superlattice nanosheets with an extended interlayer spacing (1.16 nm) in order to address the issue of slow transport kinetics of Zn²⁺ in the cathode lattice and to enhance the mass loading performance [52]. The experimental results are in agreement with density-functional theory simulations, which indicate that the interlayer PEO helps to reduce the Zn²⁺ diffusion resistance and increase the number of active sites at additional interfaces, thus improving the Zn²⁺ storage rate.

In conclusion, vanadium-based compounds with multiple oxidation states, abundant crystal structures and natural reserves are considered as the most prospective cathode materials for zinc-ion batteries. Vanadium-based cathode materials can be used in zinc-ion batteries by modulating local electroneutrality and lowering the diffusion ion barrier. This allows electrolyte cations to nest within the electrode material, providing greater practical capacity [1,15,28,49]. The following modifications are common in current research on vanadium-based oxides: bonding with highly conductive carbon materials; embedding structural water molecules; and modulating localized electroneutrality and lowering diffuse ionic barriers.

3.3 Prussian blue analogues

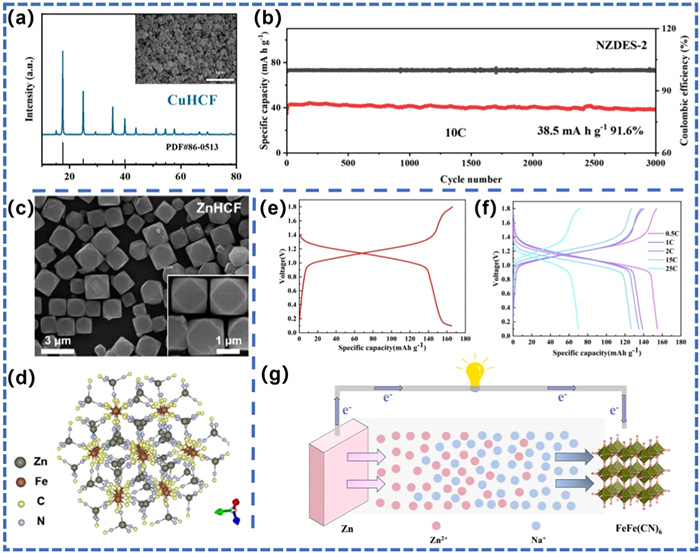

Prussian blue analogs (PBAs) are transition metal hexacyanoferrates, such as nickel hexacyanoferrate (NiHCF), copper hexacyanoferrate (CuHCF), and zinc hexacyanoferrate (ZnHCF), with a 3D network structure. They have become a research hotspot in zinc-ion batteries because their open framework structure allows for the highly reversible insertion/extraction of zinc ions (Fig. 3e) [35].

The structure of PBAs has a large gap, which favors the de-embedding of Zn²⁺. The de-embedding of ions is also influenced by water molecules and alkali metal atoms. So far, by applying NiHCF and FeHCF, CuHCF and ZnHCF to zinc-ion batteries, it has been found that all of them have the potential to be used as cathode materials, with NiHCF and FeHCF having a typical cubic structure, and ZnHCF having a rhombic skeletal structure. For example, the Zn||CuHCF hybrid cell fabricated by Li et al. in NZDES-2 electrolyte is shown in Figs. 7a and b showing a good stability of 91.6% after cycling for 3000 cycles at a rate of 10 C [53]. Xu et al. investigated the cathode material of zinc hexacyanoferrate (ZnHCF) in aqueous zinc-ion batteries [19]. They found that the morphology of the cathode material was affected by the concentration of the precursor solution and the valence state of the iron ions. The rhombic ZnHCF structure had a high degree of crystallinity, with diameters ranging from 700 nm to 2 µm (Figs. 7c and d). Additionally, the ZnHCF exhibited a large capacity of 66.7 mAh/g. Yang et al. explored an aqueous zinc-ion battery with FeFe(CN)₆ as the positive electrode and a Zn-Na hybrid electrolyte, and found that the discharge capacity of this battery was as high as 165.2 mAh/g at 0.1 C, which is superior to many reported aqueous zinc-ion batteries or Zn-Na hybrid batteries (Figs. 7e–g) [54]. Xiang et al. assembled and tested an aqueous zinc-ion battery with NiHCF as the cathode material, and systematically investigated the effect of different Zn²⁺ coordination configurations on the reversibility of the zinc anode in the Zn/NiHCF full cell [55].

In conclusion, compared with inorganic materials, PBAs have the following advantages: (1) High voltage and stable crystal structure [53]; (2) Large and unique three-dimensional ion channels, which are suitable for rapid insertion and detachment of Zn²⁺ [54]; (3) It can provide more active sites [12,19]. However, their low practical capacity limits the development of the whole system and makes them uncompetitive for zinc-ion battery cathode material applications. In addition, the structural evolution and valence changes of transition metal atoms in PBAs are complex and remain to be further investigated in depth.

4 Zinc anode materials for zinc-ion batteries

Less

In aqueous zinc-ion batteries, zinc metal is commonly used as the negative electrode due to its stability and high theoretical specific capacity of 820 mAh/g (5855 mAh/cm³) [14,28]. Zinc is a transition metal with an atomic number of 30. It has a silver-gray appearance and high electrical conductivity. Zinc is amphoteric, meaning it can react with both acids and bases. When reacting with acid, it generates Zn²⁺, and when reacting with alkali, it generates [Zn(OH)₄]²⁻.

4.1 Advantages of zinc metal

(1) Abundant reserves. Zinc is the fourth most common metal and has abundant reserves in the earth's crust. China has particularly abundant zinc ore resources, with zinc reserves ranking fourth in the world.

(2) Non-toxic and environmentally friendly. As an essential trace element, metallic zinc and zinc ions are virtually harmless to the human body. Zinc and zinc-containing compounds are also relatively friendly to the atmosphere and soil [56]. This suggests that aqueous zinc-ion batteries, based on zinc metal negative electrodes and zinc ion electrolyte-based zinc ion batteries, can be used in a wider range of applications.

(3) Low cost. Compared to secondary batteries that use alkali metal negative electrodes, which are more commonly studied in organic systems, batteries that use zinc metal are more economical due to the lower cost of zinc compared to Li/Na/K metals, aluminum, and copper collectors, which are the most commonly used materials in secondary batteries [2].

(4) High theoretical capacity. Ultra-high theoretical capacity of 820 mAh/g (5855 mAh/cm³) can be realized by using zinc metal directly as electrode [14].

(5) Low redox potential. Regarding the standard hydrogen electrode, zinc metal has a low redox potential of −0.76 V. This potential is higher than the overpotential of water decomposition by hydrogen precipitation on the surface of zinc. This implies that zinc metal can be stabilized and reversibly redoxed in an aqueous electrolyte [57]. Zinc is the most promising anode material for aqueous batteries, as shown in Fig. 8a.

4.2 Existing issues

Zinc-ion batteries face several issues with their negative electrodes, including zinc dendrite, passivation, and self-hydrogen precipitation. The problems of dendrite and passivation are caused by the non-uniform Zn²⁺ dissolution/deposition reaction on the zinc negative electrode, which can harm battery performance.

(1) During the battery's operation, the anode's metal zinc undergoes constant oxidation, producing zinc ions that are then reduced back into metal zinc. This reduction process often results in the deposition of metal zinc in the same location as before, causing the formation of zinc dendrites to increase with each charge/discharge cycle. If the zinc dendrites grow enough to penetrate the diaphragm, they can short-circuit the battery by coming into contact with the positive electrode. This poses a safety hazard when using the battery. Additionally, dendrites generated at the tendency position are randomly distributed and cause electrode deformation, leading to battery capacity degradation [57].

(2) Passivation of the zinc electrode occurs primarily in alkaline electrolytes. Zn²⁺ reacts with OH^- to produce insoluble ZnO or Zn(OH)₂, which forms a passivation film on the electrode surface. This film isolates the contact between zinc and the electrolyte, reducing the reactive surface area of the zinc electrode. As a result, the dissolution of metallic zinc is hindered, and the sustained discharging state of the battery is affected, which reduces the activity and cycling performance of the battery [11].

(3) To ensure proper battery operation, an excess of zinc must be supplied due to the continuous consumption of zinc metal through the hydrogen precipitation process. In sealed batteries, corrosion causes hydrogen to precipitate, increasing pressure within the battery case. If the pressure exceeds the limit, the battery may expand and rupture, leading to electrolyte leakage [12]. During operation, hydrogen precipitation reactions increase the local concentration of hydroxides and form insoluble substances, which are an important source of hydroxides.

During battery charging and discharging, dendrites, hydrogen precipitation reaction, and electrochemical corrosion can interact with each other [7,14]. The formation of dendrites increases the negative electrode's surface area, accelerating the rate of hydrogen precipitation and generating more OH⁻. This, in turn, accelerates the electrode's passivation and makes the surface more prone to dendrite formation, leading to more severe electrode polarization and easier dendrite formation.

4.3 Modification methods

To tackle the aforementioned issues, three primary design strategies are employed: modifying the structure of the zinc electrode, optimizing additives, and developing zinc alloying. The design strategies are based on the principles of ensuring uniform charge distribution over the anode surface, stabilizing zinc deposition/stripping, and limiting side reactions. The following sections will describe each of these strategies in detail.

4.3.1 Modifying the structure of the zinc electrode

The formation and corrosion of zinc dendrites are mainly caused by the uneven distribution of Zn²⁺ on planar or two-dimensional metallic zinc foils.

Zinc can be electrodeposited on highly conductive, porous, nano or microstructured substrates, such as metal-organic frameworks (MOFs). MOFs have three-dimensional open frameworks, adjustable compositions, and controllable pore structures, which effectively homogenize the Zn²⁺ fluxes. This ultimately leads to fast and stable zinc plating kinetics and dendrite-free zinc anodes (Fig. 8b). Sun et al. constructed a 7 µm thick MOF interfacial layer that effectively inhibits side reactions and self-corrosion (Fig. 8c) [58]. Additionally, the MOF layer improves zinc deposition kinetics and inhibits zinc dendrites, resulting in a stable polarization voltage for MOF@Zn. In contrast, planar Zn foils serve as both active materials and collectors. However, their mass, volume, and electrical properties may change with the deposition/exfoliation of Zn, which can lead to unstable cycling performance.

Deposition of zinc into layered collectors is a viable method for slowing down dendrite growth and achieving high rate and stable ZIBs. Wang et al. designed a sulfonated functionalized boron nitride/graphene oxide (F-BG) buffer layer, a unique nanosheet that directs a uniform zinc flux and efficiently achieves homogeneous nucleation on zinc foils through a homogeneous interfacial electron field, as shown in Fig. 8d, thereby mitigating dendrite growth and HER side reactions [59]. The anodes obtained through this method exhibit higher capacity and smaller polarization in comparison to conventional zinc foils (Fig. 8e). Additionally, the zinc nano-array structures demonstrate excellent electrochemical activity and fast Zn/Zn²⁺ redox kinetics. Moreover, many similar studies have been conducted for this technology, such as the zinc-coated TiO₂CNT anode shown in Fig. 8f [8], the zinc-coated Cu@CNT anode shown in Fig. 8g [3], the zinc-coated three-dimensional nitrogen-oxygen co-doped graphene anode shown in Fig. 8h [60], and the zinc-coated nickel-titanium alloy yarns. This new type of zinc hierarchical current-collecting anode greatly reduces the formation of dendrites, which is conducive to improving multiplicity performance and lifetime.

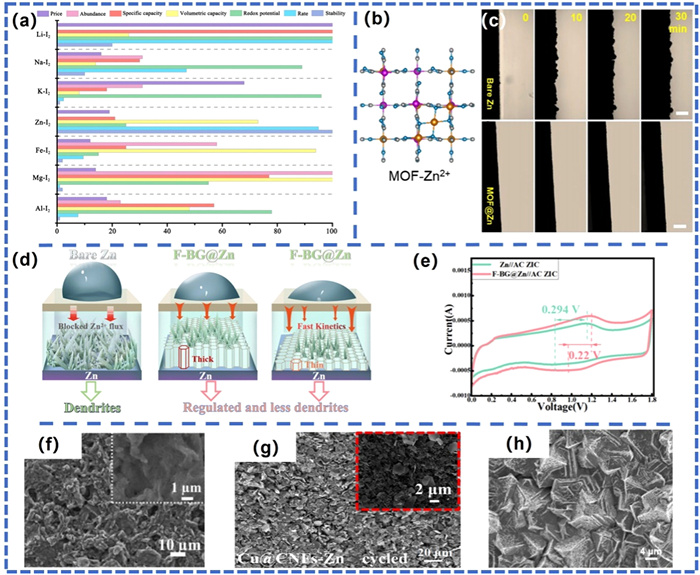

Carbon-based materials have good electrical conductivity and can be used to stabilize the de-embedding behavior of Zn²⁺ by changing the zinc anode interface. For example, Zhang et al. prepared zinc metal with an ultrathin carbon coating (C@Zn) by magnetron sputtering, which increased surface wettability, resulted in a more homogeneous zinc coating, and mitigated undesirable side effects [61]. Kim et al. used plasma treatment for surface engineering to enhance the oxygen functionalization of graphene layers [62]. The surface-functionalized graphene layer effectively prevented the proliferation of zinc dendrites and stabilized the interface between the anode and electrolyte. The obtained ZIBs exhibited superior storage performance and reversibility, with a specific capacity of 260.0 mAh/g at 0.3 A/g and a long-term stability of 150 cycles at 2.0 A/g and a specific capacity of 139.0 mAh/g. Later, Zheng et al. prepared porous biomass carbon material (BCK) with larger specific surface area and used BCK as an interfacial coating for zinc anode [9]. As shown in Figs. 9a–c, it was experimentally demonstrated that BCK-7 has abundant pore structure and zinc-friendly oxygen-containing functional groups, which can provide more active sites for Zn²⁺ nucleation and help to better mitigate the occurrence of zinc dendrites and side reactions, and to improve the cycle life and cycle stability of the battery. The full-cell battery consisting of BCK-7@Zn anode and MnO₂ cathode remained 61.5% after 1000 cycles (Fig. 9d). The incorporation of these carbon-based materials improves the cycling stability and electrochemical performance of zinc anodes by modulating the growth of zinc dendrites or dendrites.

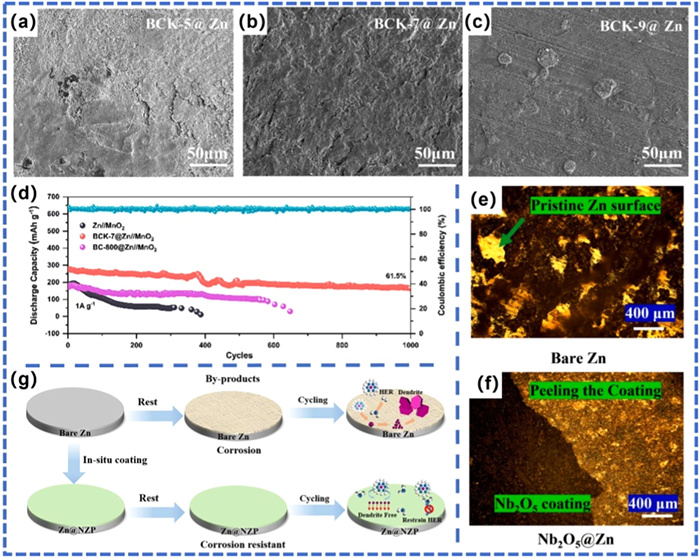

In addition to carbon-based materials, inorganic non-metallic materials that do not react with the zinc anode are also suitable for use as a protective layer for the zinc anode, such as titanium dioxide TiO₂, calcium carbonate CaCO₃, and zirconium dioxide ZrO₂. Liang et al. obtained electrodeposited manganese dioxide (EMD) on zinc substrate by electrodeposition under constant pressure conditions, and the protective layer can extend the lifetime of the battery by improving its corrosion resistance [63]. As another example, Li et al. modified a zinc anode with a nanoporous coating composed of niobium pentoxide (Nb₂O₅) for uniform zinc deposition [64]. Compared with the bare zinc anode, the surface of Nb₂O₅@Zn anode was smoother and more uniform, and the zinc flakes were deposited on the surface in parallel and uniformly, and the Nb₂O₅ coating could effectively guide the uniform deposition of zinc (Figs. 9e and f). Therefore, the zinc anode modified by Nb₂O₅ coating can realize better cycle stability and rate capability. In addition, Yu et al. constructed a strong protective layer of sodium zinc phosphate (Zn@NZP) in situ on the zinc metal foil anode, and the schematic diagram of the preparation process and the mechanism of inhibition of dendrites in the electrolyte are shown in Fig. 9g [65]. This NZP coating inhibits the formation of dendrites and side reactions, and reduces the energy barriers for zinc ion electroplating and stripping.

Polymeric materials can also be used as protective coatings for zinc anodes to improve interfacial properties. Recently, researchers have developed a new three-dimensional porous zinc anode (PF@Zn) to prevent the disordered growth of dendrites and by-products [66]. The corrosion potential of the PF@Zn electrode (−0.968 V) was higher than that of the bare Zn electrode (−0.979 V), and the corrosion current density (−1.83 mA/cm²) was lower than that of the Zn electrode (−1.52 mA/cm²), which suggests that the corrosion performance of the PF@Zn electrode is dominant. The PF@Zn electrodes have a high CE value (99.1%) and an extremely long service life (240 h) at a relatively high plating capacity of 1 mAh/cm² due to the three-dimensionally interconnected porous substrate that improves the anode's corrosion resistance and uniformly strips Zn²⁺. Furthermore, the C//PF@Zn capacitors maintain a high capacity of 96.6% even after 3000 cycles at 1.5 A/g.

4.3.2 Optimizing additives

Additive materials can be classified into two categories: (1) Structural modifiers, which optimize the anode structure (e.g., three-dimensional porous structure) to suit the anode product formed; (2) Morphological modifiers, which adjust the surface morphology or crystal orientation to prevent dendrite growth on specific crystal faces.

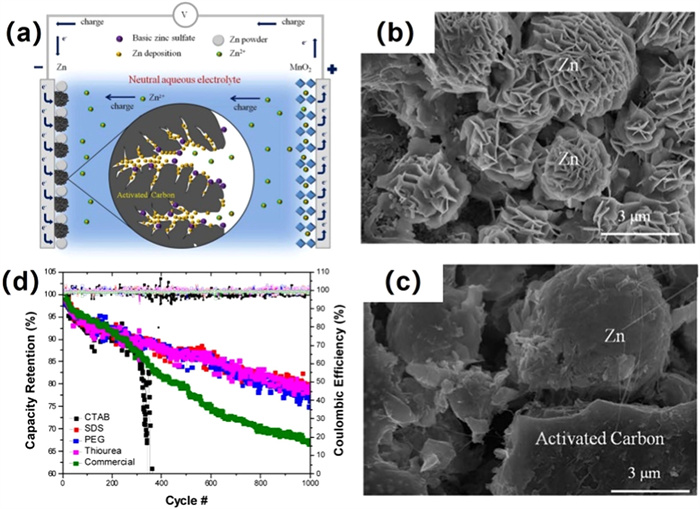

(1) Activated carbon (AC) can be used as a structure modifier for Zn anodes due to its high porosity structure. During the charging process, Zn deposition is more likely to occur inside the pores of the AC than on the surface (Fig. 10a). This results in the absorption of formed Zn dendrites and anode by-products (alkaline Zn sulfate) into the well-developed pores, leaving a smooth Zn anode surface (Figs. 10b and c). The cycling reversibility of the battery with AC-modified Zn anode was effectively enhanced, resulting in a capacity retention rate of 85.6% after 80 cycles. This is a significant improvement compared to the unmodified Zn anode, which only retained 56.7% of its capacity [67].

(2) Several studies have been conducted on the inhibition of dendrites by various organic additives in neutral and acidic mild electrolytes. These include sodium dodecyl sulfate (SDS), cetyltrimethylammonium bromide (CTAB), polyethylene glycol (PEG-8000), and thiourea (TU), as morphology modifiers. The formation of dendrites is affected by the weave and crystals on the surface of the zinc anode. Electroplated zinc anodes with and without organic additives display different crystal orientations due to changes in surface energy induced by the organic additives. Table 1 shows that Zn-PEG has a strong crystal orientation at (103) and a crystal growth close to horizontal, indicating that Zn-PEG has the lowest probability of forming dendrites, while the dominant peaks of Zn-SDS, Zn-TU and electroplated Zn without additives are from (101) plane, which is the same as that of the dominant peaks of Zn foils. Due to the fact that crystal growth on the (101) plane is approximately 70° perpendicular to the electrode surface, dendrite formation is likely to occur on the anode of the (101) plane, which plays a dominant role. However, the addition of SDS and TU reduces the likelihood and extent of dendrite formation. This is due to the significant enhancement of other peaks, such as the (002), (102), and (103) peaks of Zn-SDS.

As shown in Fig. 10d, except for the Zn-CTAB anode, the cycling performance of the modified zinc anodes was improved compared to the commercial zinc foil anodes. This finding is consistent with the XRD results of Zn-CTAB, which indicate a stronger (101) plane. Briefly, all three organic materials, SDS, PEG, and TU, except CTAB, are effective surface modifiers that inhibit the formation of dendrites and corrosion rate on the zinc anode, thereby improving the cycling stability of the battery (Table 1). Among the three, SDS was found to be the most effective organic additive. Additionally, zinc anodes with dominant crystal orientations of (101) and (100) were found to be more prone to dendrite formation, while those with dominant planes of (002) and (103) were less likely to form dendrites.

However, this finding differs from some previous studies that have shown that electrodeposited zinc anodes without organic additives have a stronger (002) weave. The introduction of additives changes the preferred orientation from the basal plane (002) to (100) and (110). The studies share a common finding that the crystal orientation of electrodeposited Zn is altered by surface modifiers. This is because organic surfactants obstruct certain active sites and interact electrostatically with Zn²⁺, leading to distinct growth kinetics during zinc electrodeposition. Future studies should explore the effects of inorganic additives on the surface morphology and crystal structure of electroplated zinc anodes. It is important to note that this strategy may not be suitable for large-scale applications due to the toxicity and high cost of most additives.

In conclusion, the synthesis of electroplated zinc anodes using auxiliary substrates and additives is an effective strategy to inhibit dendrite growth and improve recharging capacity. This may be due to the purification of zinc during electrodeposition or electroplating, as impurities in commercial zinc foils can lead to uneven nucleation sites for zinc electrodeposition. Another major idea for modified zinc anodes is to increase the active surface area to increase the number of active sites for fast and homogeneous zinc plating/stripping. However, due to the complexity and high cost of existing methods, there is still a great need for reliable and easy to implement strategies. To overcome the formation of zinc dendrites, an alternative intercalation anode for ZIBs can be found, similar to the approach taken with graphite in LIBs. However, this scheme can affect the operating voltage of ZIBs. For instance, a complete ZIBs can be formed by assembling 9, 10-anthraquinone (AQ) as an anode with a ZnMn₂O₄ cathode [68]. Though a dendrite-free anode was obtained after cycling, the high discharge potential of AQ reduced the operating voltage of the cell. Therefore, developing high-energy ZIBs by exploring zinc-free anodes may not be the best option if a high-potential cathode cannot be found.

4.3.3 Developing zinc alloying

To address issues such as dendrite growth, hydrogen precipitation, and corrosion, zinc can be alloyed with other metals. Yuan et al. mitigated zinc dendrite growth by alloying the anodes with rare earth elements [69]. The addition of Ce, Yb, and Mg to pure zinc anodes reduced point and surface defects, refined grain size, and decreased the anode's IEA strength, inhibiting dendrite growth. The formation of a Zn-Ni alloy film and solid-electrolyte interface (SEI) layer influences the nucleation and growth of Zn. This nickel-salt Zn coating can maintain a good state of non-porosity, resulting in excellent electrochemical performance and stability during cycling. Xie et al. used a copper-zinc alloy (Cu@Cu₃Zn) that was synthesized through a high-temperature gas-solidification reaction of zinc vapors with copper nanowires [70]. They then constructed a three-dimensional alloy network using a vacuum filtration method. The alloy network stabilized the zinc deposition interface by inhibiting two-dimensional diffusion and corrosion reactions. Additionally, it enhanced the zinc plating/stripping kinetics by accelerating the zinc desolvation and nucleation processes. Furthermore, a ZIB without an anode was created by utilizing a cathode made of Zn₃V₃O₈ and a collector made of copper carbide foil (CCF) modified with an alloy network. This ZIB exhibited exceptional cycling stability.

Qi et al. proposed a zinc-aluminum alloy that sacrificially oxidizes aluminum when immersed in an electrolyte, forming an electrochemically inactive Al₂O₃ phase on the surface of the zinc-aluminum foil. The introduction of Al₂O₃ not only directs the electrodeposition of zinc at the available zinc sites, but also reduces the oxygen content in the electrolyte and the potential for zinc passivation. Thus, zinc-aluminum alloys possess several advantages such as low corrosion rate, low dendrite formation, low corrosion current, and high capacity. These properties make them ideal for use as ZIB anodes with high speed performance and ruggedness [71].

In summary, it is evident that the design of the zinc negative electrode can be improved through structural modifications, coatings, and electrolytes to mitigate issues such as zinc dendrites, passivation, and self-precipitation of hydrogen. However, despite these efforts, the practical application of these methods still falls short, and further research is needed to identify more effective solutions.

5 Current state of research on zinc-ion battery electrolytes and their effect on the cathode interface

Less

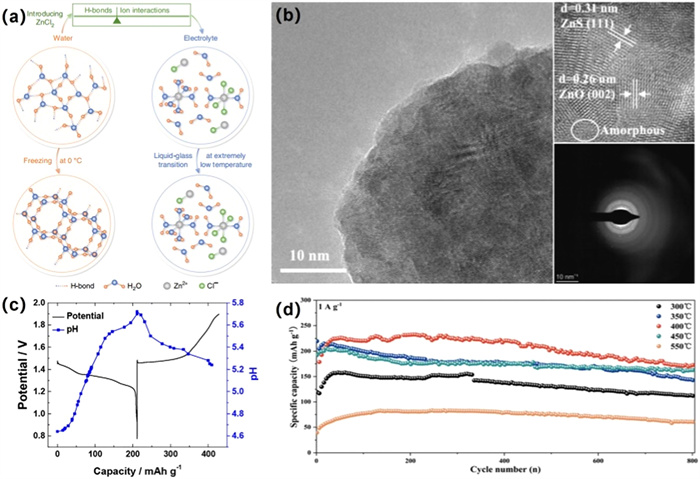

Electrolyte is an essential component of a battery, serving as the medium for connecting the positive and negative electrodes and facilitating ion transfer. The ideal electrolyte for aqueous zinc-ion batteries should also fulfill the following requirements: (1) A wide electrochemical window; (2) better compatibility with other components in the battery; (3) environmentally friendly and low toxicity; (4) lower cost. So far, the main electrolytes used in aqueous zinc-ion batteries are aqueous ZnSO₄ and zinc salts such as Zn(CF₃SO₃)₂. From an electrolyte standpoint, the presence of excessive free water can restrict the operating voltage range of zinc-ion batteries and result in negative electrode dendrite formation, passivation, and positive electrode dissolution. Additionally, conventional aqueous electrolytes suffer from issues such as high-temperature evaporation, intensified hydrogen precipitation, low-temperature icing, and a sharp decrease in kinetics, which severely limit the applicable environment of aqueous zinc-based batteries [32,44,68-71]. For instance, Jun Chen and their team from Nankai University disrupted the hydrogen bonding network in the ZnCl₂ solution by altering the concentration of ZnCl₂ [72]. The modulation of the electrolyte structure, including hydrogen bonding and ionic interactions, is illustrated in Fig. 11a. At 0 ℃, the pristine water network connected by hydrogen bonds readily transforms into an ice network. With the addition of ZnCl₂, the hydrogen-bonded network undergoes a transformation. The network is disrupted due to the strong interactions between the ions and the water, while the interactions between the ions are reinforced. The ZnCl₂ inhibits water solidification and reduces the solid-liquid transition of the aqueous electrolyte temperature from 0 ℃ to −114 ℃. In addition, electrode/electrolyte interface properties have been extensively studied in the field of ion batteries, particularly for solid-state electrolyte interfaces. A well-formed SEI film can effectively inhibit further reactions between the electrode and electrolyte, preventing the generation of dendrites and electrode corrosion [11,14,53,59]. Due to the specificity of SEI membranes, it is widely accepted that they can only be formed in non-aqueous electrolytes. It is also challenging to form stable SEI membranes in aqueous energy storage systems [73]. Li et al. recently proposed using organic small molecule formamide (FA) as an additive to aqueous ZnSO₄ electrolyte to form an inorganic-organic bilayer solid electrolyte interface (SEI) for dendrite-free homogeneous Zn deposition [74]. The SEI layer prevents metallic Zn from contacting water and inhibits side reactions while providing a diffusion pathway for Zn²⁺. This leads to a homogenization of the Zn²⁺ flux, as shown in Fig. 11b. However, studies on the electrode/electrolyte interface of aqueous zinc-ion battery systems have primarily focused on the surface of the zinc anode. This has been achieved through the construction of SEIs or the design of interfacial membranes with a uniform electric field and induced deposition to stabilize the zinc anode.

In contrast, there have been few reports on the influence of the interfacial properties of the electrolyte and anode on the cathode material. During the de/insertion process on the surface of the positive electrode, Zn²⁺ is accompanied by a significant amount of H⁺/H₃O⁺ co-embedding. This results in a notable change in the local pH at the electrode interface during charging and discharging, as depicted in Fig. 11c. The dissolution of the positive electrode material is exacerbated by this change, leading to the formation of by-products such as alkaline zincates [9,30,58,62,64]. To address this issue, Ren et al. introduced a new electrolyte containing Zn(OTF)₂ into a mixed solution of triethyl phosphate and water. This was done in order to prevent irreversible cathodic transformation and to increase the output voltage of the P-KVP cathode. The formation of a P-rich cathode electrolyte interfacial layer on the cathode surface was observed, which extended the cycle life [15]. However, current studies on aqueous batteries in a wide temperature range focus primarily on electrolyte design and negative electrode protection. The temperature sensitivity of cathode materials significantly affects the electrochemical performance of aqueous full batteries. High-temperature environments exacerbate self-discharge and dissolution problems of cathode materials, while low-temperature environments slow interfacial diffusion kinetics, both leading to rapid failure in battery performance (Fig. 11d) [18,20]. Electrode materials face different challenges in high and low temperature environments. At high temperatures, self-discharge and dissolution are issues, while at low temperatures, interfacial diffusion limitation and slow kinetics are problems. Designing materials that can address all of these challenges simultaneously is difficult. This presents a significant challenge for the development of wide-temperature-range cathode materials that can operate efficiently in both high and low-temperature environments.

In conclusion, the capacity of zinc-ion batteries may rapidly decay due to the dissolution of the positive and negative electrodes in the electrolyte. While severe zinc dendrite growth is not observed in zinc-ion batteries with neutral electrolytes at low current densities, the issue of dendrites cannot be overlooked at high current densities. In aqueous solutions, the presence of a large amount of free water makes side reactions, such as the dissolution of cathode active substances, corrosion of zinc anode, and generation of other products on the anode and cathode, unavoidable. Therefore, there is an urgent need to find new zinc salts and polymer cross-linking molecular additives at a reasonable price to adjust the concentration of the electrolyte for aqueous electrolytes. This will improve the interfacial properties of the positive and negative electrodes, widen the window of electrochemical stabilization, improve Coulombic efficiency, and prolong the stability of the battery cycle.

6 Summary and outlook

Less

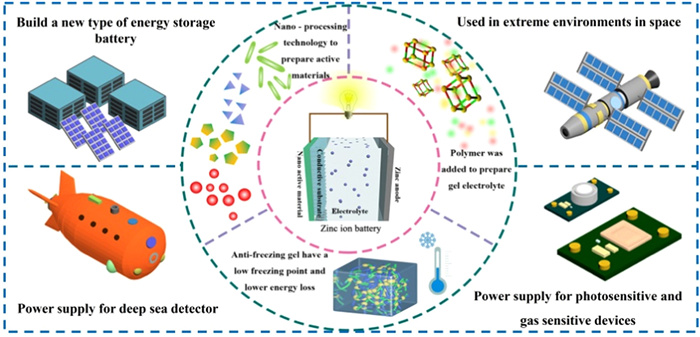

This paper describes the advantages of aqueous zinc-ion batteries, the energy storage mechanism, and the research progress of cathode and anode materials, along with corresponding modification strategies and potential improvements for the electrolyte. The research status of positive electrode materials, such as MnO₂, VO₂, and V₂O₅, is briefly summarized, and relevant modification studies are listed. Methods for improving zinc negative electrodes are proposed, addressing issues such as zinc dendrites, corrosion, hydrogen precipitation, and passivation. The article discusses the interfacial interaction between the electrolyte and the positive and negative electrode materials. It emphasizes the need for new zinc salts and additives to improve the interfacial properties of the electrolyte and the electrodes. Meanwhile, through continuous research, the aqueous zinc-ion battery has shown promise due to its safety, low cost, and eco-friendliness. Finally, based on the above discussion, the next development of zinc-ion battery is prospected:

(1) Research and development of new cathode materials, focusing on cathode materials that provide both high voltage (> 1.2 V) and large capacity (> 400 mAh/g). To achieve high stability and high cyclability of electrodes for commonly used cathode materials, certain Mn²⁺ and Zn²⁺ are added. The most common modification methods include form-building engineering, interface modification engineering, defect/void engineering, and structural modulation engineering.

(2) Although the current optimization strategy for the zinc negative electrode does not perfectly solve the problems of dendrites and side reaction passivation, it indicates the future research direction for battery optimization. Research on improving battery performance by modifying the zinc electrode can be based on three major directions: Improving the structure of the zinc electrode by using functional materials or materials with porous or layered structures; adding additives to the electrolyte to optimize the structure or morphology of the electrode; and zinc alloying.

(3) The article discusses the challenges of safe use in aqueous zinc-ion batteries, specifically low-temperature solidification and electrolyte leakage. To address these issues, the electrolyte is changed from liquid to semi-solid/solid by adding polymer cross-linking molecules that reduce the electrolyte's low-temperature solidification point and high-temperature evaporation rate. This enhances the maintenance-free capability and wide-temperature range application potential of zinc-ion batteries.
