Home Journals Articles Updates About
CN
收藏切换
Heterogeneous Fenton catalytic degradation of nitrobenzene by controlled-release nano calcium peroxide
收藏切换
PDF
Haoyu Luo1, Jinsong Chen1, Mengfei Luo, Hui Ma*, Shengyan Pu*
Chinese Chemical Letters | 2025, 36(6) : 110367
Less
收藏切换
Chinese Chemical Letters | 2025, 36(6): 110367
• Communication •
Heterogeneous Fenton catalytic degradation of nitrobenzene by controlled-release nano calcium peroxide
Full
Haoyu Luo1, Jinsong Chen1, Mengfei Luo, Hui Ma*, Shengyan Pu*
Affiliations
  • State Key Laboratory of Geohazard Prevention and Geoenvironent Protection, Chengdu University of Technology, Chengdu 610059, China
Published: 2025-06-15 doi: 10.1016/j.cclet.2024.110367
Outline
收藏切换

Degradation of nitrobenzene (NB) via Fenton-like reaction is considered as an efficient approach for contaminated groundwater remediation. However, the poor stability of H2O2 limits the application of traditional Fenton reactions in soil and groundwater due to the transportation risks of H2O2. In this study, we synthesized a controlled release nano calcium peroxide (nCP) by coating it with polydopamine (PDA) as a solid H2O2 to construct a Fe(Ⅱ)/PDA@nCP Fenton-like system for contaminants degradation. The phenol-quinone transformations of catechol groups on the PDA surface facilitated the Fe(Ⅱ)/Fe(Ⅲ) cycle, resulting in enhanced generation of hydroxyl radicals (HO) and effective long-term degradation of NB. Moreover, the PDA shell modulated the nCP decomposition rate and inhibited sharp pH fluctuations, and the NB removal efficiency was achieved up to 96.8% at pH ranging from 3.0 to 9.0. This study demonstrated the promising application potential of PDA@nCP as a solid-controlled release H2O2 source in Fenton-like system for groundwater contamination remediation.

Calcium peroxide  /  Controlled release materials  /  Reactive species  /  Fe(Ⅱ)/Fe(Ⅲ) cycle  /  Hydroxyl radicals
Haoyu Luo, Jinsong Chen, Mengfei Luo, Hui Ma, Shengyan Pu. Heterogeneous Fenton catalytic degradation of nitrobenzene by controlled-release nano calcium peroxide[J]. Chinese Chemical Letters, 2025 , 36 (6) : 110367 - . DOI: 10.1016/j.cclet.2024.110367
Full Text
Less
Nitrobenzene (NB) is an aromatic nitro compound, frequently used in chemical and pharmaceutical industries [1]. But recognized as a widespread contaminant in soil and groundwater due to its carcinogenic, teratogenic, and mutagenic effects [2]. The electrophilic groups result in persistent features of NB and complicate its degradation from the environment [3]. Thus, developing green, effective, and environmentally friendly processes to clean up NB raises urgent environmental concerns. Advanced oxidation processes (AOPs) are considered as an effective approach for degrading NB, and in particular, the Fenton system was one of the most frequently used approaches due to its low cost and high reactivity [4]. Catalysts enable Fenton and Fenton-like reagents to produce reactive species, transforming NB into substances that are less toxic and more degradable with lower molecular weights, and then fully mineralized to water (H2O) and carbon dioxide (CO2) [5,6]. However, considering the large volume of soil and groundwater in contaminated sites, the effectiveness of the traditional system is limited by the sharp reactivity of H2O2, causing fast consumption before H2O2 reaches the contaminants. Additionally, the transportation and use of H2O2 are subject to strict requirements [7]. Therefore, finding a safe, stable and environmentally friendly alternative for H2O2 is crucial for further application. Nano-calcium peroxide (nCP) reacts with water to generate H2O2 with O2 as a side product (Eqs. 1 and 2) [8]. Which is usually referred to as solid hydrogen peroxide. Although the ability of nCP to release H2O2 has gradually received more attention from researchers, the high reactivity of nCP causes a pH increase in this system, hindering the generation of HO• (Eq. 3) [9]. The escalation in pH accelerates the conversion from Fe(Ⅱ) to Fe(Ⅲ), hindering the operation of the Fe(Ⅱ)/nCP Fenton-like process. Concurrently, the accumulation of OH− inhibits the decomposition of H2O2, leading to limited utilization efficiency of H2O2. Thus, optimizing the use of oxidizing agents is crucial for advancing the application of Fe(Ⅱ)/CP Fenton-like systems in remediating actual contaminated sites.
The surface functionalization of PDA showed great potential to overcome the drawbacks of nCP above. At present, researchers have advanced in the area of H2O2 release from nCP enhanced by a coating layer and the construction of a Fenton-like system for the degradation of organic pollutants. PEG200 was coated at nCP and constructed a Fenton-like system using FeS2 as a catalyst for naphthalene degradation. The findings indicated that the system's pH remained stable while efficiently degrading naphthalene [10]. An nCP-based oxidant (Cool OxTM) system was designed to control-release H2O2 into the soil and exhibited a remarkable removal of petroleum hydrocarbons compared to traditional methods [11]. A reasonable choice of coating materials for nCP modification not only aids in building the Fenton-like reaction system but also enhances its performance. The majority of research is centered on exploring the mechanism behind the enhanced H2O2 release from the coating layer. However, the theory of maintaining catalyst activity by the oxidant coating layer is usually overlooked.
Dopamine hydrochloride was widely used in medical treatments and self-polymerized under alkaline conditions to form polydopamine (PDA) [12]. The abundant catechol groups on the PDA surface render the nanoparticles with a negative charge, leading to a strong electrostatic repulsion that enables PDA to effectively coat the nanoparticles, forming a shell structure with enhanced stability and dispersibility [13]. PDA has been used as a coating material, enhancing the capabilities of NaBH4 to generate hydrogen. The PDA shell helps to moderate the sharp rise in pH, thereby protecting NaBH4 from solution environment [14]. Simultaneously, the catechol groups on the pollutants enhanced the Fenton system's performance by regenerating Fe(Ⅱ) and lowering pH to more acidic conditions [15]. These results indicate that the PDA shell effectively inhibits pH rise and facilitates Fe(Ⅱ) regeneration in the Fenton-like system, owing to the surface catechol groups. Therefore in this study, we aim to: (1) Synthesize PDA@nCP as controlled released solid H2O2 and fully characterize its physicochemical properties; (2) evaluate the efficiency and kinetics of PDA@nCP for control releasing H2O2; (3) investigate NB degradation mechanism by Fe(Ⅱ)/PDA@nCP Fenton-like system and the effects of groundwater condition such as pH, natural occurring anions. This study investigated the mechanisms of the PDA@nCP Fenton-like system for NB degradation, revealing its potential for groundwater contamination remediation.
All chemical reagents used in the experiment are shown in Text S1 (Supporting information). All experimental methods are shown in Texts S2-S6 (Supporting information).
Through the morphology and physicochemical properties of PDA@nCP, PDA shell was successfully coated in the surface of nCP and the coated process did not affect the crystalline structure of nCP (Figs. S1 and S2 in Supporting information). To ensure the high reactivity of Fe(Ⅱ)/PDA@nCP Fenton-like system for NB degradation, the dosage of PDA@nCP and Fe(Ⅱ) are optimized, and the highest degradation efficiency was achieved with the addition of 0.1 g/L of PDA@nCP and 0.65 mmol/L of Fe(Ⅱ) (Fig. S3 in Supporting information). Neither PDA nor Fe(Ⅱ) showed degradation or adsorption capacity for NB. After adding nCP, NB removal efficiency increased up to 62.4% due to the radical produced from the Fenton reaction (Fig. 1a). The pH of the solution dramatically increased to 9, which hindered further NB degradation [16]. In comparison, almost full degradation of NB (up to 96.8%) was achieved in the Fe(Ⅱ)/PDA@nCP system. To investigate the enhanced degradation performance of Fe(Ⅱ)/PDA@nCP Fenton-like system, the H2O2 release kinetics and the key reactive radicals are studied in the following work.

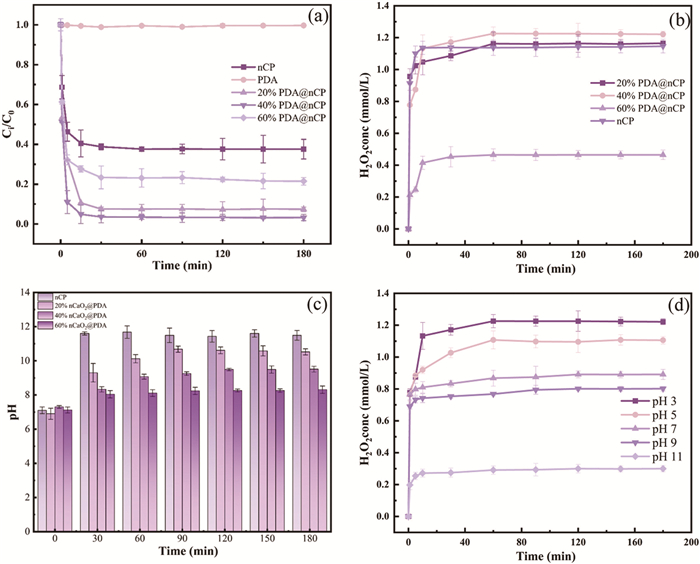

Previous studies indicate that suitable coating layers decrease the surface active sites of nCP, facilitating controlled H2O2 release and pH stability, thus improving H2O2 utilization efficiency [17-19]. Here we evaluated the H2O2 release capacity of PDA@nCP, and compared with bare nCP, the generation of H2O2 was dramatically improved after PDA coating. The PDA@nCP, containing 40% PDA is most efficient for H2O2 production compared with 20%-PDA@nCP and 60%-PDA@nCP after 60 min (Fig. 1b). Addition of PDA extended the release lifetime of H2O2, while PDA shell effectively moderated sharp pH increased (Fig. 1c). Notably, 60%-PDA@nCP released less H2O2 than 20%-PDA@nCP and 40%-PDA@nCP. Despite this, the 60%-PDA@nCP system achieved 78.4% NB degradation during the experiment (Fig. 1a). This is attributed to the phenomenon of the PDA shell. The controlled release of H2O2 from 40%-PDA@nCP under different initial pH conditions (Fig. 1d). When the initial pH was acidic (pH 3), the H2O2 release from PDA@nCP amounted to 1.22 mmol/L. As the initial pH increased, the H2O2 release gradually decreased. Previous research indicates that introducing nCP into the system caused a sharp pH increase, which restricted H2O2 release [20]. Nevertheless, H2O2 released from PDA@nCP was detected even in alkaline conditions. The presence of a PDA shell substantially decreased the surface active sites of nCP, hence controlling the reaction rate and stabilizing the pH of the system. The PDA shell effectively controlled the sharp pH raised in the PDA@nCP system, thereby enhancing its efficiency in H2O2 release compared to the nCP system. Moreover, this characteristic can enhance Fenton-like systems by generating reactive species and facilitating H2O2 release. Thus, the PDA shell may not only enhance NB degradation via controlled H2O2 release in the Fe(Ⅱ)/PDA@nCP system but also influence the catalyst conversion process.

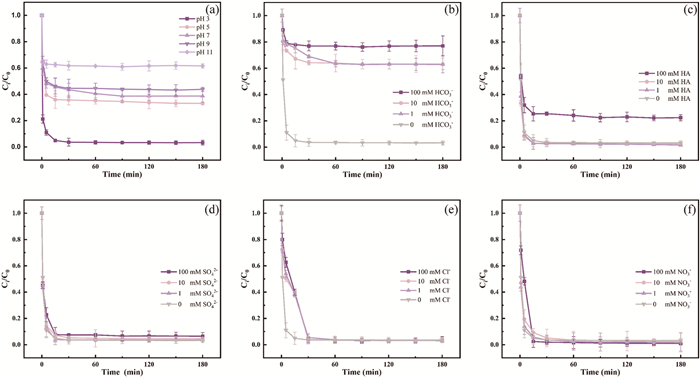

Fig. 2a shows the effects of different initial pH levels on NB degradation by the Fe(Ⅱ)/PDA@nCP Fenton-like system. As the initial pH of the system increased, the rate of NB degradation rate decreased correspondingly. The high concentration of H+ in the system at pH 3 promoted the generation of HO• (Eq. 4), and the subsequent NB degradation. Under alkaline conditions, OH− accelerated the conversion of Fe(Ⅱ) to Fe(Ⅲ), leading to catalyst passivation, which hindered the Fenton-like process. The presence of OH− lowered the generation of reactive species, and Fe(Ⅱ) activity, resulting in decreased NB degradation [21]. Meanwhile, it has been demonstrated that the release of H2O2 from nCP was significantly hindered in alkaline conditions [22]. However, a small amount of NB was still degraded in an alkaline solution in our study (Fig. S4 in Supporting information), which attributed to the PDA shell on PDA@nCP modulating the pH increase, enhancing H2O2 released in an alkaline solution, and then subsequently the surface catechol groups of the PDA shell potentially decreased Fe(Ⅱ) passivation. In conclusion, the degradation of NB in the system was highly dependent on Fe(Ⅱ) activity and H2O2 release in the Fe(Ⅱ)/PDA@nCP Fenton-like system.
Four typical common groundwater anions (HCO3−, SO42−, Cl− and NO3−) and humic acid (HA) were selected to evaluate the effectiveness of the Fe(Ⅱ)/PDA@nCP Fenton-like system and NB degradation in contaminated water. As shown in Fig. 2b, the degradation rate of NB reached 36.9% with the addition of 1 mmol/L and 10 mmol/L HCO3−. When the addition of HCO3− was increased to 100 mmol/L, the NB degradation rate dropped to 23.9%. It was speculated that HCO3− decreased the NB degradation rate through the following pathways: 1) Excess HCO3− addition caused a sharp pH increase, hindering Fe(Ⅱ) activity and H2O2 released from PDA@nCP. Primarily, catalyst passivation and insufficient H2O2 released to limit the Fenton-like process, resulting in weakened NB degradation [23]. 2) HCO3− has a scavenging effect on HO•, thus excess HCO3− and HO• initiate side reactions, producing less oxidation HCO3• and CO3•− (Eqs. 5 and 6) [24]. Additionally, HCO3− competes with NB for HO•, diminishing the degradation efficacy of HO• on NB [25]. The cumulative effects of these pathways resulted in enhanced inhibition of NB degradation by HCO3−. Humic acids are organic compounds containing aryl and alicyclic rings along with diverse functional groups, which are ubiquitous in groundwater [26]. At a 100 mmol/L HA concentration, the degradation of NB by Fe(Ⅱ)/PDA@nCP Fenton-like system was only 77.8% (Fig. 2c). HA competes with NB for HO•, resulting in diminished NB degradation within the Fe(Ⅱ)/PDA@nCP Fenton-like system [27]. In comparison to other anions, adding 100 mmol/L SO42− resulted in 93.5% NB degradation (Fig. 2d). This could be attributed to the formation of CaSO4 precipitates due to the dissociation of Ca2+ and SO42− in the system (Eq. 7). The CaSO4 precipitates adhered to the PDA@nCP surface, decreasing the reactive sites and influencing the NB degradation [9].
Based on the discussion that followed the effects of Cl− and NO3− additions on NB degradation were determined to be comparable to the degradation rate observed with optimum additions (Figs. 2e and f). The Fe(Ⅱ)/PDA@nCP Fenton-like system exhibits strong tolerance to common groundwater ions, particularly Cl− and NO3−. These findings offer theoretical support for constructing Fe(Ⅱ)/PDA@nCP Fenton-like systems in remediating NB-contaminated groundwater. However, the mechanism by which the PDA shell enhances the Fe(Ⅱ)/PDA@nCP Fenton-like system remains unclear. Therefore, the mechanism behind the generation of reactive species in the Fe(Ⅱ)/PDA@nCP Fenton-like system was explored.

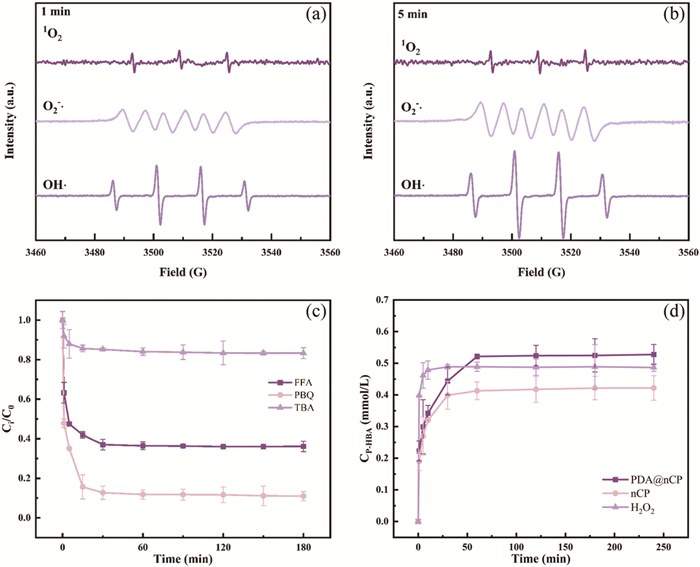

Previous studies have identified HO•, O2•− and1O2 as the primary reactive species in Fe(Ⅱ)/nCP Fenton-like reactions [28,29]. Therefore, electron paramagnetic resonance (EPR) was used to characterize the reactive species in the Fe(Ⅱ)/PDA@nCP Fenton-like system. Figs. 3a and b showed the characteristic 1:2:2:1 DMPO-HO• peak captured by DMPO at 1 min and 5 min [30]. With the progression of the Fe(Ⅱ)/PDA@nCP Fenton-like reaction, the intensity of the DMPO-HO• peak increases after 5 min, indicating HO• stabilization in the system. Additionally, DMPO and TEMP were used to capture O2•− and1O2 [31,32]. The results confirmed the presence of O2•− and1O2, as evidenced by six characteristic peaks for DMPO-O2•− and three for TEMP-1O2. However, the specific contributions of each reactive species to NB degradation within the system remain unclear.
To identify the primary reactive species responsible for NB degradation, their contribution was investigated through reactive species scavenging experiments. tert-Butanol (TBA), 1,4-p-benzoquinone (PBQ), and furfuryl alcohol (FFA) were selected to scavenge HO•, O2•− and1O2 [33,34]. The NB degradation rate was found to be 16.7% after TBA scavenged HO•, 89% after PBQ scavenged O2•− and 63.99% after FFA scavenged1O2 (Fig. 3c). These results indicate that all three reactive species contribute to NB degradation, but HO• plays the primary role in this Fenton-like system.
PDA shell enhanced the generation of reactive species in the Fe(Ⅱ)/PDA@nCP Fenton-like system. Thus, further investigation of Fe(Ⅱ)/PDA@nCP, Fe(Ⅱ)/nCP and Fe(Ⅱ)/H2O2 systems was conducted to find out the relationship between the PDA shell and the system's reactive species by determining HO•. H2O2 release from PDA@nCP was analyzed before the experiment to determine the H2O2 content needs to be added to the Fe(Ⅱ)/H2O2 Fenton system. HO• production in the systems was quantified by sodium benzoate (Text S5 in Supporting information). It was found that the HO• production in the Fe(Ⅱ)/nCP system significantly lowered than in the Fe(Ⅱ)/H2O2 system (Fig. 3d). This may be primarily due to the nCP decomposition increasing the pH of the reaction solution. Previous studies have indicated that an excessively high pH is detrimental to HO• production [35]. Notably, 60 min after initiating the reaction, the Fe(Ⅱ)/PDA@nCP system produced 0.041 mmol/L more HO• than the Fe(Ⅱ)/H2O2 system. Additionally, the pH changes in both the Fe(Ⅱ)/PDA@nCP system and the Fe(Ⅱ)/H2O2 system were measured (Fig. S5 in Supporting information). The Fe(Ⅱ)/PDA@nCP system exhibited a greater pH change upon H2O2 release compared to the Fe(Ⅱ)/H2O2 system. This suggests that the generation of HO• in the Fe(Ⅱ)/PDA@nCP system may be driven by the catalytic activity of Fe(Ⅱ). In other words, the PDA shell structure may facilitate enhanced Fe(Ⅱ)/Fe(Ⅲ) cycling. In light of this, more research on HO• generation in the Fe(Ⅱ)/PDA@nCP system with an emphasis on the PDA shell's surface functional groups was conducted.

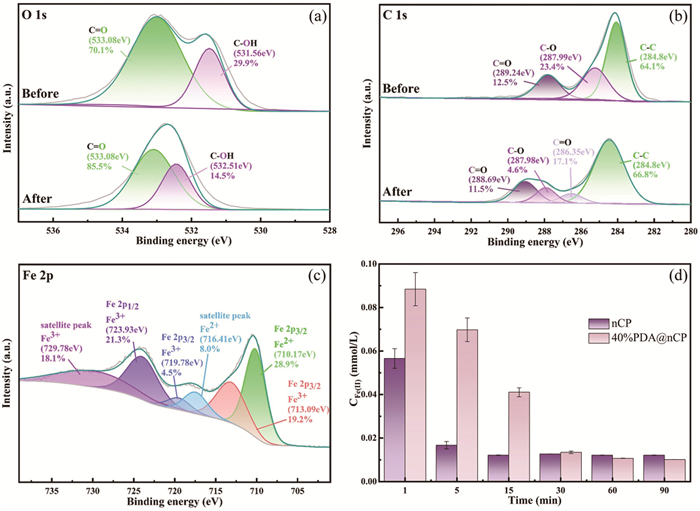

XPS was used to characterize changes in surface functional groups and chemical composition on the PDA@nCP surface before and after the reaction. The O 1s peaks before and after the reaction in the Fe(Ⅱ)/PDA@nCP system are shown in Fig. 4a. Two characteristic peaks were observed: quinone (C=O, 533.08 eV) and phenol (C-OH, 531.56 eV and 532.51 eV) are found in PDA@nCP before and after the reaction [36,37]. The relative abundance of C-OH decreased from 29.9% (531.56 eV) to 14.5% (532.51 eV) after 4 h of reaction, while C=O relative abundance increased by 15.5%. This indicated phenol-quinone transformations on the PDA@nCP surface. The XPS spectra of C 1s orbitals before and after the Fe(Ⅱ)/PDA@nCP reaction are presented in Fig. 4b. Before the reaction, the C-O peak at 287.99 eV indicated C-O presence, while after the reaction, a new C=O peak at 286.35 eV emerged, and the relative abundance of C-C at 284.8 eV increased. The C 1s XPS spectra reveal an increase in quinone content on the PDA@nCP surface and a continuous disruption of the PDA shell, leading to more exposed C-C bonds. Fig. 4c shows the XPS spectra of the Fe 2p orbital after the reaction. The Fe 2p spectra confirm the presence of Fe(Ⅱ) on the reacted PDA@nCP surface[38]. Notably, the phenol-quinone transformations in both the C 1s and O 1s orbitals on the PDA@nCP surface were observed. Previous reports suggest that phenol-quinone transformations trigger the conversion transformation of Fe(Ⅲ) to Fe(Ⅱ) in the system, thereby facilitating the Fe(Ⅱ)/Fe(Ⅲ) cycle[15,39]. The phenol-quinone transformations in the abundant catechol groups on the PDA shell surface aid in Fe(Ⅱ) regeneration and enhance the Fe(Ⅱ)/Fe(Ⅲ) cycle. Thus, this confirmed our earlier hypothesis about the enhancing effect of the PDA shell in the Fe(Ⅱ)/PDA@nCP Fenton-like system.
Dissolved Fe(Ⅱ) concentrations in nCP and PDA@nCP Fenton-like systems were compared to evaluate the effects of the PDA shell on Fe(Ⅲ) transformation during degradation of NB (Fig. 4d). The concentration of Fe(Ⅱ) in Fe(Ⅱ)/nCP system dropped dramatically after 5 min and then remain at a stable level of 0.017 mmol/L. This is possible because the fast nCP decomposition is accompanied by a sharp pH increase leading to the precipitation of dissolved iron ions. In comparison, the Fe(Ⅱ) content in the Fe(Ⅱ)/PDA@nCP system is generally higher than in Fe(Ⅱ)/nCP system, and the Fe(Ⅱ) decreasing period is prolonged over 5 times. This may be attributed to the catechol groups in the PDA coating, which provide a pathway for the transformation of Fe(Ⅲ) to Fe(Ⅱ), facilitating the Fe(Ⅱ)/Fe(Ⅲ) cycle. On other hand, we compared the ratios of Fe(Ⅱ) to Fe(Ⅲ) for the two systems (Fig. S6 in Supporting information) to demonstrate more visually the strengthening of Fe(Ⅱ)/Fe(Ⅲ) cycles by the PDA shell. Additionally, the PDA shell structure effectively moderated the sharp pH increase in the solution and maintained Fe(Ⅱ) stability. XPS analyses suggest that the transformation from Fe(Ⅲ) to Fe(Ⅱ) was directly associated with phenol-quinone transformations on the PDA surface.
In the Fe(Ⅱ)/PDA@nCP Fenton-like system, the PDA shell is coated on the nCP surface, hence preserving Fe(Ⅱ) activity preventing abrupt pH rises, and promoting NB degradation. PDA@nCP allows the controlled release of H2O2 (Fig. 5a). Compared to nCP, PDA@nCP exhibited a longer controlled release lifetime for H2O2. Additionally, the PDA shell inhibited sharp pH increase in the solution and facilitated H2O2 release, which is favorable for a Fenton-like reaction [17]. Reactive species such as HO•, O2•− and1O2 are produced by H2O2 catalyzed by Fe(Ⅱ) for degrading NB in solution and converting Fe(Ⅱ) to Fe(Ⅲ). Simultaneously, the catechol groups in the PDA shell undergo phenol-quinone transformations, induced by Fe(Ⅲ), converting Fe(Ⅲ) back to Fe(Ⅱ). This transformation facilitated the Fe(Ⅱ)/Fe(Ⅲ) cycle. The Fe(Ⅱ)/PDA@nCP system continuously produced reactive species with Fe(Ⅱ) regeneration, ultimately achieving the remediation and degradation of NB through the diffusion of these species.
LC-MS was used to analyze the intermediates produced by NB degradation (Table S1 in Supporting information). The NB was detected before the reaction (retention time: 9.97 min, m/z = 124.6), as shown in Fig. S7a (Supporting information). The peaks of nitrophenol appeared at m/z = 140.3 and 140.8 (retention time: 11.41 min) depicted in Fig. S7b (Supporting information) [40]. At a retention time of 11.49 min, the mass spectrogram showed three diphenol isomers along with traces of NB (m/z = 111.2 and 124.6, Fig. S7c in Supporting information) [41]. Two isomers of dibenzoquinone were found at m/z = 109.1 and 109.6 (retention time: 7.45 min, Fig. S7d in Supporting information). Meanwhile, the various dicarboxylic acids formed after NB underwent ring-opening during the reaction (Figs. S7e and f in Supporting information) [42].

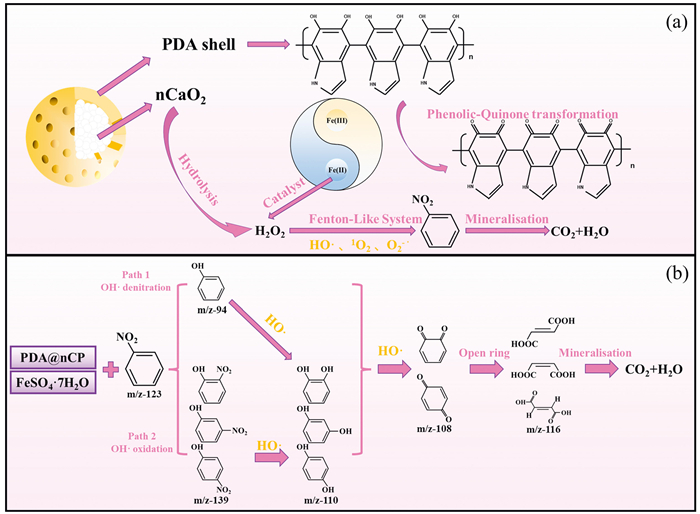

Fig. 5b shows the two pathways for NB degradation in the Fe(Ⅱ)/PDA@nCP Fenton-like system. In the first pathway, HO• attacked NB, completing the denitrification reaction to form phenol. Subsequently, under the continuous action of HO•, phenol transformed into three isomers including catechol, resorcinol, and hydroquinone. Simultaneously, phenolic intermediates undergo dehydrogenation to form 4-benzoquinone and 2-benzoquinone. In subsequent steps, quinones undergo ring-opening and ring-cleavaged to form three dicarboxylic acids: maleic acid, fumaric acid, and oxalic acid. Eventually, these three dicarboxylic acids are mineralized to CO2 and H2O [23]. During the second pathway, NB was directly oxidized by HO• to form three isomers including 2-nitrophenol, 3-nitrophenol, and 4-nitrophenol. In the presence of HO•, the three nitrophenol isomers transformed into the same diphenols as in pathway 1. The subsequent quinone formation and ring-opening processes were identical to pathway 1, ultimately mineralizing NB to CO2 and H2O [6]. At the same time, we analyzed the toxicity of the individual intermediates (Fig. S8 in Supporting information).
In conclusion, we synthesized a PDA@nCP as controlled released H2O2 by coating nCP with a PDA shell. These findings demonstrated that the PDA shell structure effectively prevented the pH increase in the Fe(Ⅱ)/PDA@nCP Fenton-like system, thereby favoring the controlled release of H2O2. The Fe(Ⅱ)/PDA@nCP Fenton-like system was able to degrade 96.8% of NB by extending the controlled released lifetime of H2O2 for 60 min compared to the bare nCP and allowing for a maximum release level of approximately 1.22 mmol/L. The HO• productions of Fe(Ⅱ)/PDA@nCP were higher than that of Fe(Ⅱ)/nCP system by 0.108 mmol/L, and the presence time and concentration of Fe(Ⅱ) in Fe(Ⅱ)/PDA@nCP system were also higher than that of Fe(Ⅱ)/nCP system. From this, the catechol groups of the PDA shell boosted Fe(Ⅱ)/Fe(Ⅲ) cycling, accelerated the transformation of Fe(Ⅲ) to Fe(Ⅱ), and enhanced NB degradation in the Fe(Ⅱ)/PDA@nCP Fenton-like system. The biological toxicity assessment demonstrated that the by-products of NB degradation by Fe(Ⅱ)/PDA@nCP Fenton-like system were safe and clean, suggesting the great potential for using PDA@nCP in the remediation of NB-contaminated groundwater. Except for HCO3− and high concentration of HA, Fe(Ⅱ)/PDA@nCP Fenton-like system has good tolerance properties to naturally occurring anions in groundwater.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
CRediT authorship contribution statement
Less
Haoyu Luo: Writing – original draft, Visualization, Validation, Software, Methodology, Data curation. Jinsong Chen: Writing – original draft, Visualization, Validation, Software, Methodology, Data curation. Mengfei Luo: Visualization, Validation, Data curation. Hui Ma: Validation, Software, Methodology, Conceptualization. Shengyan Pu: Writing – review & editing, Supervision, Project administration, Conceptualization.
Acknowledgments
Less
This research was supported by the National Natural Science Foundation of China (Nos. 42077185, U22A20591), the Sichuan Science and Technology Program for Distinguished Young Scholars (Nos. 2022JDJQ0010, 2022ZYD0040), the National Key Research and Development Program of China (No. 2020YFC1808300) and the Research Fund of State Key Laboratory of Geohazard Prevention and Geoenvironment Protection (No. SKLGP2020Z002).
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2024.110367.
References
Less
[1]
S. Kiani, S.M. Mousavi, S. Afrang, J. Polym. Environ. 31 (2023) 2968–2982.
[2]
M. Van den Berg, R. Cattley, J.W. Cherrie, et al., Lancet Oncol. 19 (2018) e681–e682.
[3]
J.Dong L.Deng, J. Bai, et al., J. Hydrol. 593 (2021) 125914.
[4]
Q. Shi, S. Pu, X. Yang, et al., Chin. Chem. Lett. 33 (2022) 2129–2133.
[5]
J. Chen, H. Luo, D. Luo, et al., Sep. Purif. Technol. 322 (2023) 124252.
[6]
Y. Chen, H. Li, W. Liu, et al., Chemosphere 113 (2014) 48–55.
[7]
S. Han, M. Qin, Y. Wang, et al., J. Hazard. Mater. 466 (2024) 133582.
[8]
B. Walawska, J. Gluzińska, K. Miksch, et al., Pol. J. Chem. Technol. 9 (2007) 68–72.
[9]
J. Chen, H. Ma, H. Luo, et al., J. Hazard. Mater. 464 (2024) 132902.
[10]
Y. Liu, X. Sheng, Z. Zhou, et al., J. Hazard. Mater. 432 (2022) 128693.
[11]
J. Gryzenia, D. Cassidy, D. Hampton, Chemosphere 77 (2009) 540–545.
[12]
K. Moraczewski, A. Trafarski, R. Malinowski, Materials 14 (2021) 6862.
[13]
Y. Xie, L. Lei, L. Luo, J. Clust. Sci. 34 (2023) 2361–2371.
[14]
X. Liu, S. Li, H. Liu, Colloid. Surf. A 648 (2022) 129265.
[15]
J. Xiao, C. Wang, S. Lyu, et al., Sep. Purif. Technol. 169 (2016) 202–209.
[16]
H. Wang, Y. Zhao, T. Li, et al., Chem. Eng. J. 303 (2016) 450–457.
[17]
M. Ali, U. Farooq, S. Lyu, et al., Sep. Purif. Technol. 241 (2020) 116729.
[18]
C. Vogt, B.M. Weckhuysen, Nat. Rev. Chem. 6 (2022) 89–111.
[19]
Z. Li, Y. Zhou, M. Xie, et al., Angew. Chem. Int. Ed. 62 (2023) e202217815.
[20]
A. Rastinfard, B. Dalisson, J. Barralet, et al., Acta Biomater. 145 (2022) 390–402.
[21]
Z. Yang, C. Shan, B. Pan, J.J. Pignatello, Environ. Sci. Technol. 55 (2021) 8299–8308.
[22]
W. Wang, Y. Wang, K. Zhou, et al, Sci. Total Environ. 848 (2022) 157708.
[23]
Y. Zhang, K. Zhang, C. Dai, et al, Chem. Eng. J. 244 (2014) 438–445.
[24]
Y. Liu, X. Sheng, M. Habib, et al, Chem. Eng. J. 475 (2023) 146032.
[25]
D. Rubio, E. Nebot, J.F. Casanueva, et al., Water Res. 47 (2013) 6367–6379.
[26]
J. Zhang, L. Chen, H. Yin, et al., Environ. Pollut. 225 (2017) 86–92.
[27]
X. Li, B. Wu, Q. Zhang, et al., Chem. Eng. J. 378 (2019) 122142.
[28]
C. Liu, Y. Cao, Y. Cheng, et al., Nat. Commun. 11 (2020) 1735.
[29]
D. Wang, D. Zhang, Q. Xu, et al., Chem. Eng. J. 355 (2019) 22–32.
[30]
Y.Y. Jiang, Z.W. Chen, M.M. Li, et al., Sci. Total Environ. 773 (2021) 144801.
[31]
J. Clément, N. Ferré, D. Siri, et al., J. Org. Chem. 70 (2005) 1198–1203.
[32]
S.K. Han, T.M. Hwang, Y. Yoon, et al., Chemosphere 84 (2011) 1095–1101.
[33]
X. Zhang, X. Gu, S. Lu, et al., J. Hazard. Mater. 284 (2015) 253–260.
[34]
Y. Li, H. Dong, J. Xiao, et al., Chem. Eng. J. 446 (2022) 136882.
[35]
A. Northup, D. Cassidy, J. Hazard. Mater. 152 (2008) 1164–1170.
[36]
Y. Xie, R. Xiong, J. Li, et al., J. Environ. Manage. 333 (2023) 117428.
[37]
M. Ali, M. Tariq, Y. Sun, et al., J. Hazard. Mater. 416 (2021) 125935.
[38]
M. Ali, X. Zhang, A. Idrees, et al., J. Environ. Chem. Eng. 9 (2021) 104591.
[39]
B.A.G. de Melo, F.L. Motta, M.H.A. Santana, Mater. Sci. Eng. C 62 (2016) 967–974.
[40]
H. Leng, Z. Lv, H. Tan, et al., Process Saf. Environ. Protect. 169 (2023) 34–47.
[41]
J. Xu, S. Wang, C. Yan, et al., Chemosphere 288 (2022) 132666.
[42]
J. Bai, Y. Liu, X. Yin, et al., Appl. Surf. Sci. 416 (2017) 45–50.
Appendix
Less
Year 2025 volume 36 Issue 6
PDF
66
34
Cite this Article
BibTeX
Article Info
doi: 10.1016/j.cclet.2024.110367
  • Receive Date：2024-04-26
  • Online Date：2025-10-29
  • Published：2025-06-15
Article Data
Affiliations
History
  • Received：2024-04-26
  • Revised：2024-07-23
  • Accepted：2024-08-23
Affiliations
    State Key Laboratory of Geohazard Prevention and Geoenvironent Protection, Chengdu University of Technology, Chengdu 610059, China
References
Share
https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2024.110367
Share to
QR

Scan QR to access full text

Cite this article
BibTeX
Citations
表12种不同金属材料的力学参数
科
Family		 属数
Number of
genus		 种数
Number of
species		 占总种数比例
Percentage of
total species (%)		 属
Genus		 种数
Number of
species		 占总种数比例
Percentage of total
species (%)
鹅膏菌科Amanitaceae 2 11 5.26 鹅膏菌属 Amanita 10 4.78
小菇科 Mycenaceae 2 12 5.74 丝盖伞属 Inocybe 5 2.39
多孔菌科 Polyporaceae 8 14 6.70 蜡蘑属 Laccaria 5 2.39
红菇科 Russulaceae 3 23 11.00 小皮伞属 Marasmius 6 2.87
小菇属 Mycena 11 5.26
光柄菇属 Pluteus 5 2.39
红菇属 Russula 17 8.13
栓菌属 Trametes 5 2.39
关闭全屏
  • BibTeX
  • EndNote
  • RefWorks
  • TxT
Links
Articles
Latest Articles
Most Read
Collections
Updates
Events
News
Multimedia
About
About Us
Contact
No. 86 Xueyuan South Road, Haidian District, Beijing
100081
010-62199257
qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
